◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FORWARD ▶ 11412 - FORWARD 1100/1200 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP ▶
6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#55192) — 11 parça

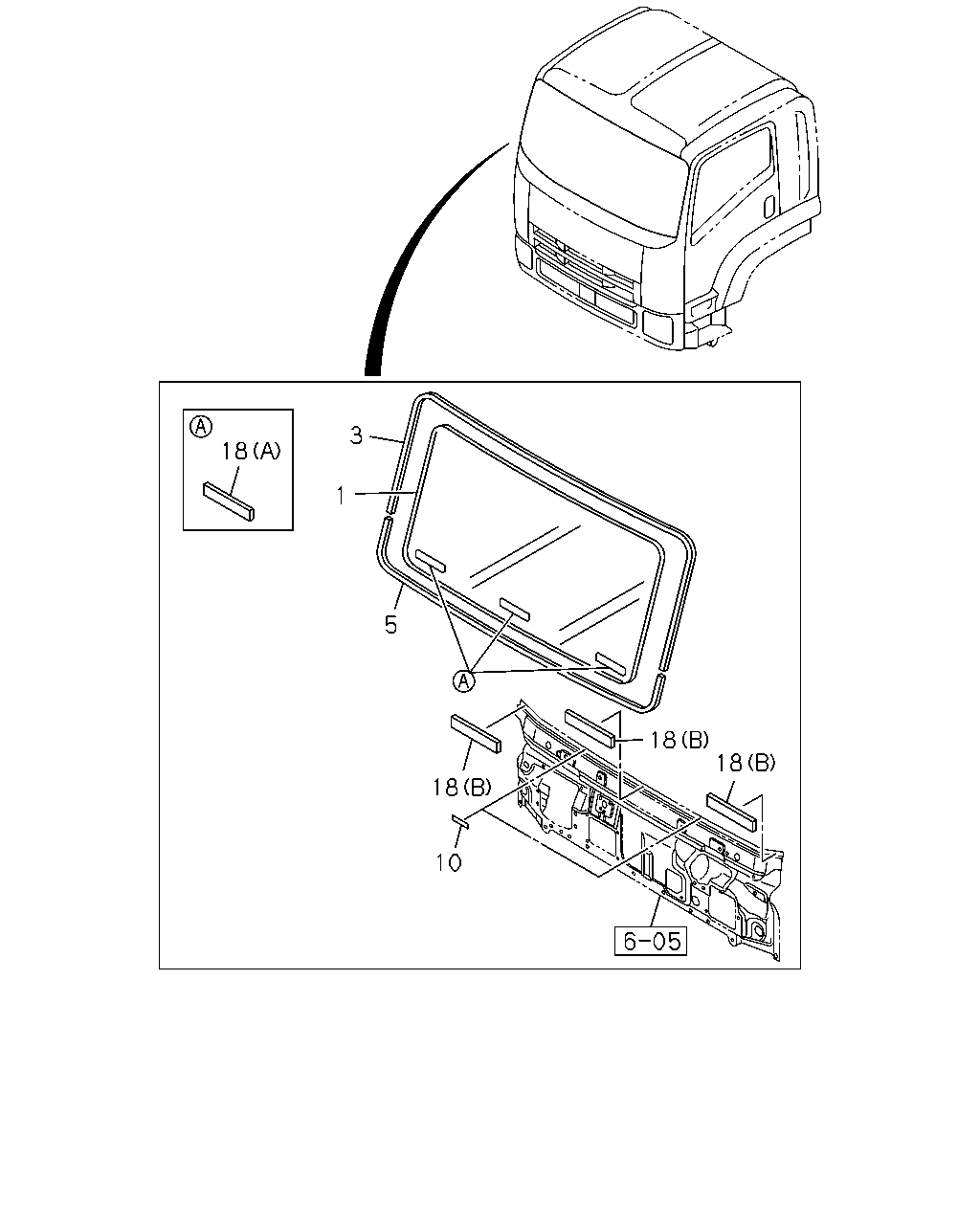

çizim 144941
18 3 1 5 18 10 18 18
BalonParca AdiParca NoAdetTipApplied Date
1 GLASS; WINDSHIELD 8-98041-647-3 01 1 1106-
3 MOLDING; WINDSHIELD 8-98041-651-3 01 1 1106-
5 MOLDING; WINDSHIELD,LWR 8-98041-654-2 01 1 1106-1209
5 MOLDING; WINDSHIELD,LWR 8-98222-159-0 01 1 1210-
10 SPACER; WINDSHIELD GLASS
KD PREPARATORY PACK VAR.4<7TV> L=100 B=1.5 		8-98095-044-0 02 1 1311-
18 SEAL; WINDSHIELD
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) L=100 B=8 		8-98029-086-1 06 1 1311-
18 SEAL; WINDSHIELD
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) L=100 B=10 		8-98083-198-1 06 1 1311-
18 SEAL; WINDSHIELD
(A) L=100 B=8 		8-98029-086-1 06 1 1106-1310
18 SEAL; WINDSHIELD
KD PREPARATORY PACK VAR.4<7TV> (A) L=100 B=8 		8-98029-086-1 10 1 1311-
18 SEAL; WINDSHIELD
(B) L=100 B=10 		8-98083-198-1 06 1 1106-1310
18 SEAL; WINDSHIELD
KD PREPARATORY PACK VAR.4<7TV> (B) L=100 B=10 		8-98083-198-1 10 1 1311-
