◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FORWARD ▶ 11412 - FORWARD 1100/1200 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-04 - CAB ASM ▶
6-04 — CAB ASM (#55190) — 3 parça

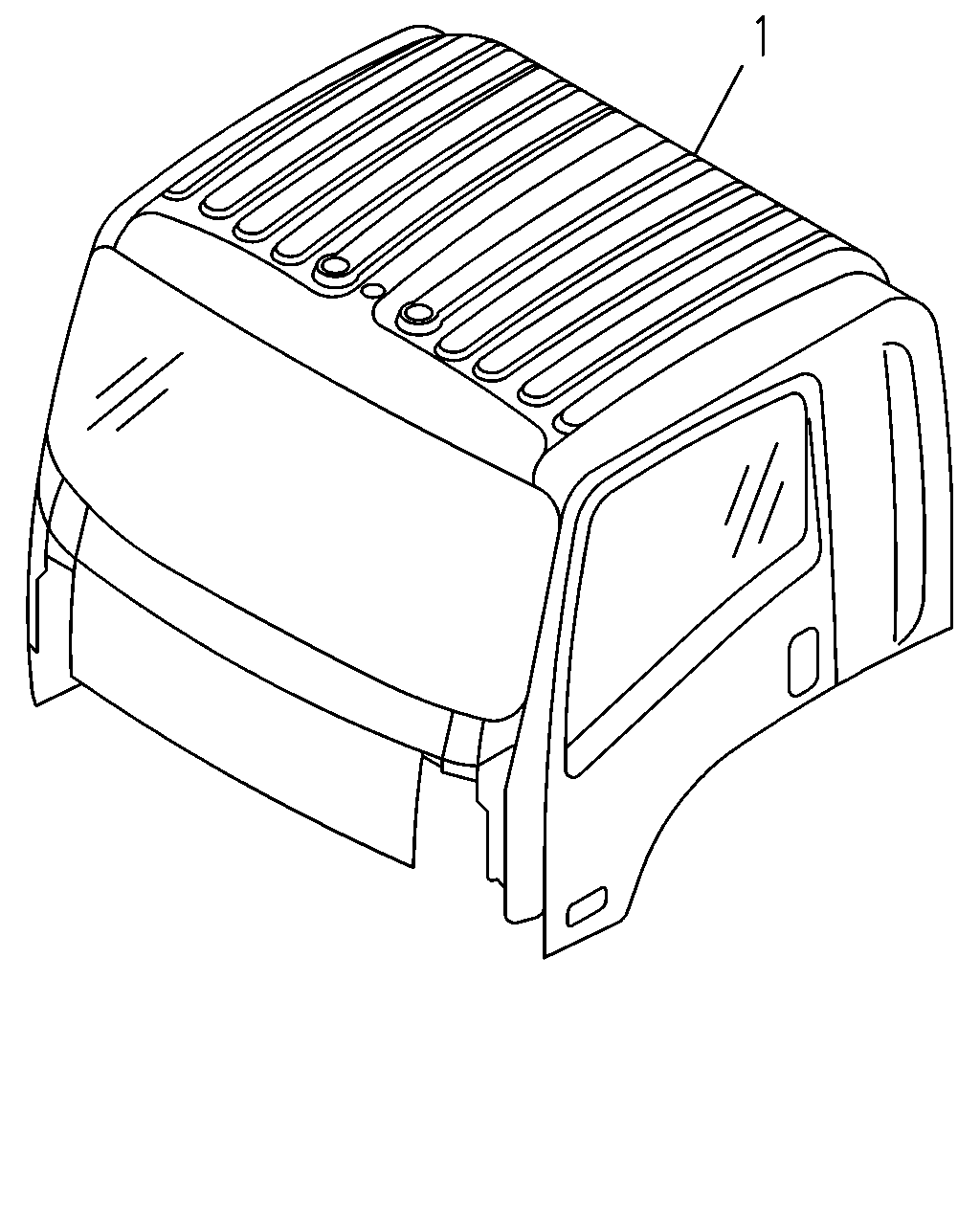

çizim 145027
1
BalonParca AdiParca NoAdetTipApplied Date
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) MEXICO EQUIPMENT(E11) ROOF MARKER LAMP<U01> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FUEL TANK 200L FRAME SIDE<N20> EXC. ROUND CURTAIN RAIL<EDH>,FUEL TANK CAP KEY LOCK<N05>,MIRROR O/S UNDER VIEW<RR9>,2-SPEAKER SYSTEM BASE<U95>,ASH TRAY PASSENGER DOOR<8LX> 		1-61089-001-0 01 1 1106-1310
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) MEXICO EQUIPMENT(E11) ROOF MARKER LAMP<U01> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FUEL TANK 200L FRAME SIDE<N20> MANUAL TRANSMISSION<X9C> EXC. ROUND CURTAIN RAIL<EDH>,FUEL TANK CAP KEY LOCK<N05>,MIRROR O/S UNDER VIEW<RR9>,2-SPEAKER SYSTEM BASE<U95>,RADIATOR HEAVY DUTY<V05>,ASH TRAY PASSENGER DOOR<8LX> 		1-61860-377-0 01 1 1311-
1 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) MEXICO EQUIPMENT(E11) ROOF MARKER LAMP<U01> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) FUEL TANK 200L FRAME SIDE<N20> MANUAL TRANSMISSION<X9C> RADIATOR HEAVY DUTY<V05> EXC. ROUND CURTAIN RAIL<EDH>,FUEL TANK CAP KEY LOCK<N05>,MIRROR O/S UNDER VIEW<RR9>,2-SPEAKER SYSTEM BASE<U95>,ASH TRAY PASSENGER DOOR<8LX> 		1-61860-378-0 01 1 1311-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
