0-60A — ENGINE ELECTRICAL CONTROL PARTS (#5519) — 186 parça

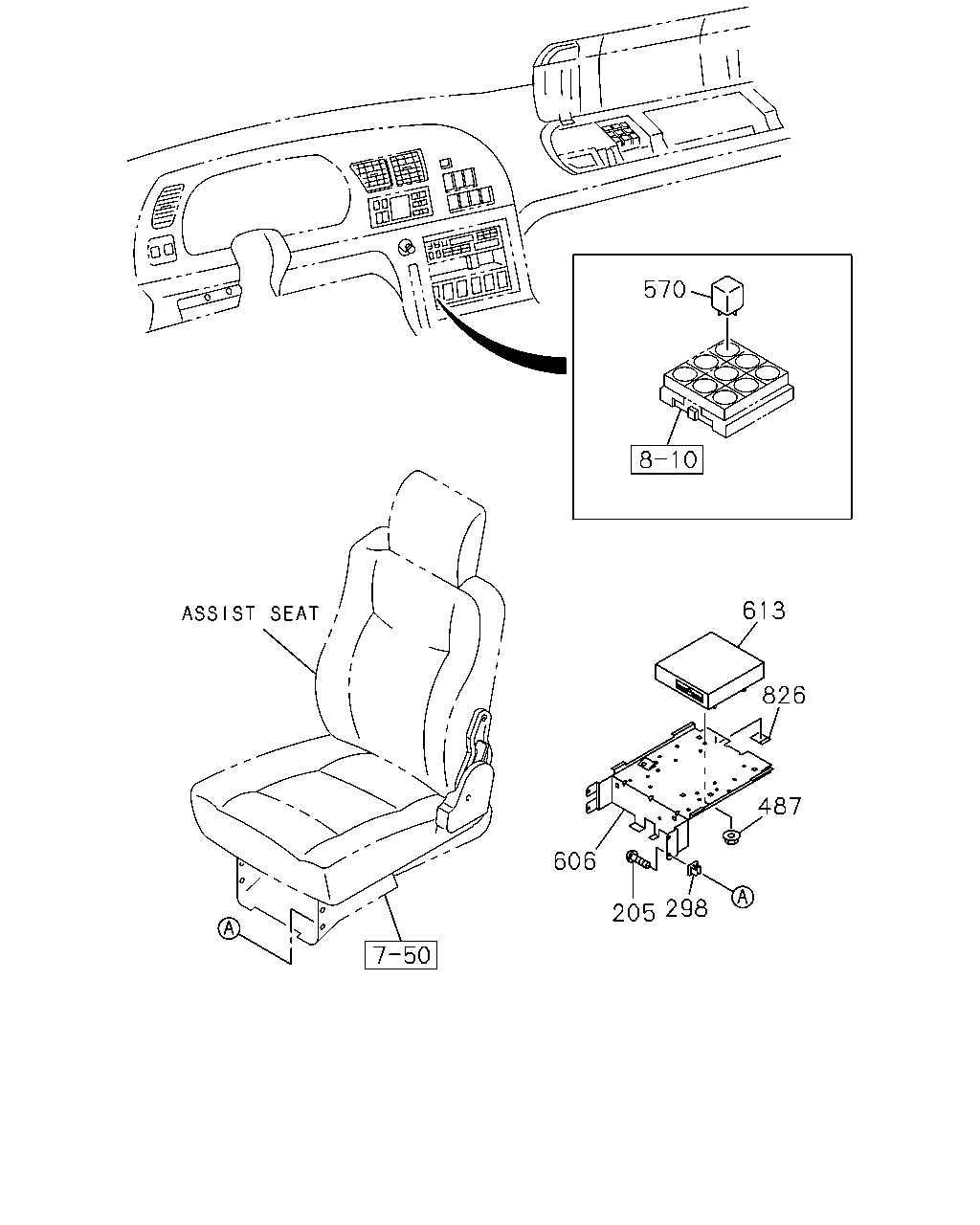

570 613 826 487 606 298 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
205	SCREW; BRKT EURO2 SPECIFICATION<THN> M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	9610-9904	●
205	SCREW; BRKT M6X12 TAPPING W/PL WASHER	0-74100-612-0	04	1	9905-		●
298	GROMMET; SCREW EURO2 SPECIFICATION<THN> D=9.7X9.7 L=8	8-94222-314-0	04	1	9610-9904	●
298	GROMMET; SCREW D=9.7X9.7 L=8	8-94222-314-0	04	1	9905-		●
487	NUT EURO2 SPECIFICATION<THN> M6 FLANGE	0-91150-106-0	04	1	9610-9904	●
487	NUT M6 FLANGE	0-91150-106-0	04	1	9905-		●
570	RELAY; EXH SHUTTER 24V 12.5A MITUBA	8-97062-815-1	01	1	9905-		●
606	BRACKET; CONT UNIT EURO2 SPECIFICATION<THN>	1-75558-534-5	01	1	9610-9904	●
606	BRACKET; CONT UNIT	1-75558-534-9	01	1	9905-		●
613	CONTROL UNIT; ENG EURO2 SPECIFICATION<THN>	1-80110-098-0	01	1	9610-9612	●
613	CONTROL UNIT; ENG EURO2 SPECIFICATION<THN>	1-80110-130-0	01	1	9701-9704	●
613	CONTROL UNIT; ENG EURO2 SPECIFICATION<THN>	1-80110-200-0	01	1	9705-9810	●
613	CONTROL UNIT; ENG EURO2 SPECIFICATION<THN>	1-80110-402-0	01	1	9811-9904	●
613	CONTROL UNIT; ENG ELECTRONIC GOV RED3(KG5)	1-80110-402-0	01	1	9905-		●
613	CONTROL UNIT; ENG RLD GOVERNOR(SD7)	1-80110-440-0	01	1	9905-		●
826	SEAL; NOISE INSULATION EURO2 SPECIFICATION<THN> 30X30	8-97866-626-0	03	1	9610-9904	●
826	SEAL; NOISE INSULATION 30X30	8-97866-626-0	03	1	9905-		●

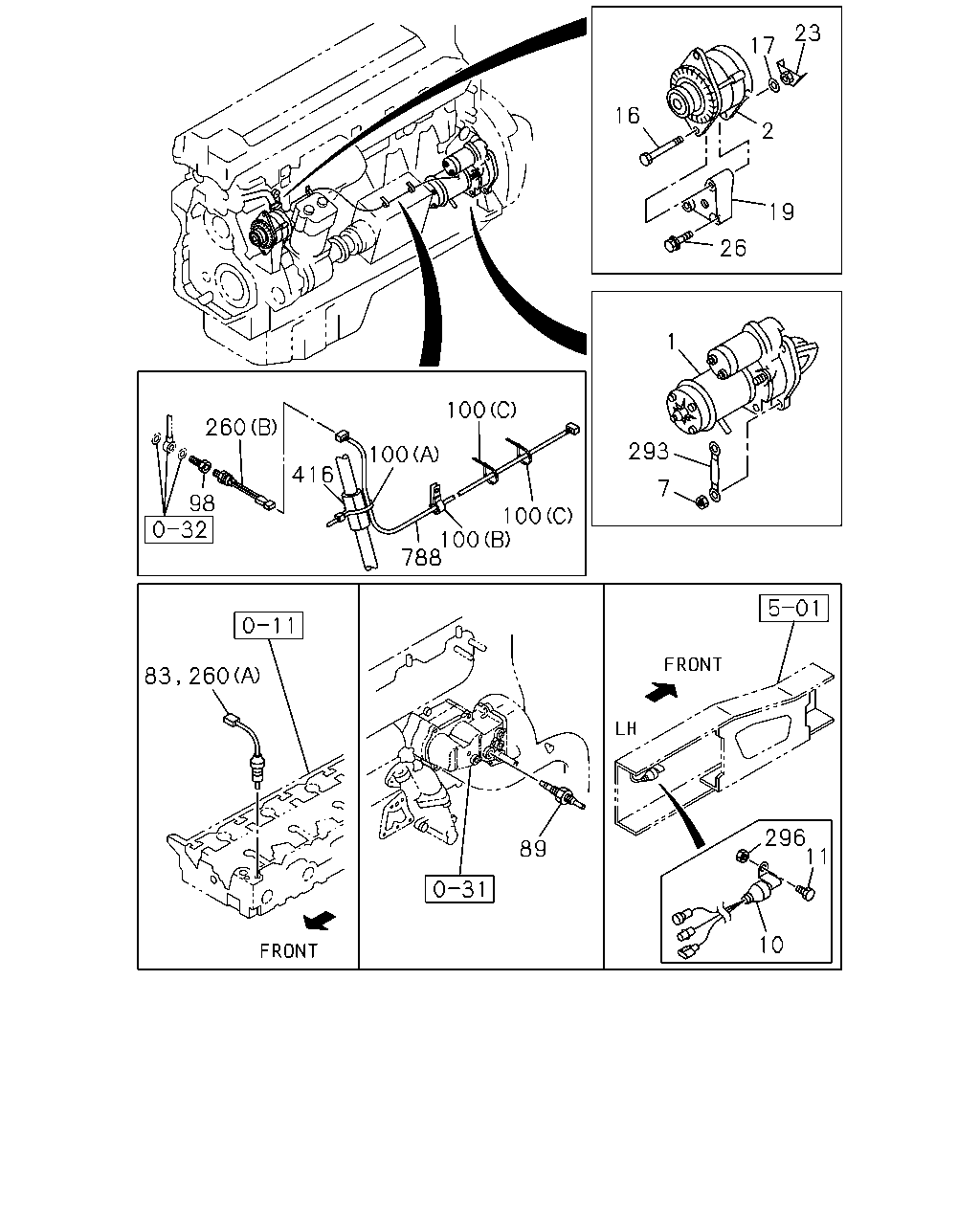

23 17 16 2 19 26 1 100 260 293 100 416 7 98 100 100 788 296 11 89 10 83 260

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 6.0KW NIKKO	1-81100-293-1	01	1	9603-9708	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 6.0KW NIKKO	1-81100-325-0	01	1	9709-9810	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 6.0KW NIKKO	1-81100-325-1	01	1	9811-9904	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 6.0KW NIKKO	1-81100-325-2	01	1	9905-		●	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI	1-81100-341-0	01	1	9904-9904	●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 7.0KW MITSUBISHI	1-81100-341-1	01	1	9905-9907		●	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO	1-81200-426-2	01	1	9603-9810	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO	1-81200-426-2	01	1	9811-9904	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A NIKKO	1-81200-469-4	01	1	9905-		●	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A MITSUBISHI	1-81200-519-0	01	1	9904-9904	●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A MITSUBISHI	1-81200-517-0	01	1	9905-9907		●	●	●
7	NUT; STARTER M14 FLANGE	0-91150-114-0	03	1	9603-9810	●
7	NUT; STARTER M14 FLANGE	0-91150-114-0	03	1	9811-9904	●	●
7	NUT; STARTER M14 FLANGE	0-91150-114-0	03	1	9905-		●	●	●
10	RELAY; STARTER NIKKO	1-81171-071-0	01	1	9603-9606	●
10	RELAY; STARTER NIKKO	1-81171-075-0	01	1	9607-9810	●
10	RELAY; STARTER HITACHI	1-81171-087-0	01	1	9904-9907	●
10	RELAY; STARTER EXC. NIKKO<Y70> HITACHI	1-81171-087-0	01	1	9908-		●	●	●
10	RELAY; STARTER NIKKO	1-81171-075-1	01	1	9905-		●	●	●
10	RELAY; STARTER NIKKO	1-81171-075-0	01	1	9811-9904	●	●
11	BOLT; RELAY STARTER M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●
11	BOLT; RELAY STARTER M8X30 FLANGE	0-28680-830-0	02	1	9607-9802	●
11	BOLT; RELAY STARTER M8X25 FLANGE	0-28680-825-0	02	1	9803-9810	●
11	BOLT; RELAY STARTER M8X25 FLANGE	0-28680-825-0	02	1	9905-		●	●	●
11	BOLT; RELAY STARTER M8X25 FLANGE	0-28680-825-0	02	1	9811-9904	●	●
16	BOLT; GEN M14X123	9-09801-204-1	01	1	9603-9810	●
16	BOLT; GEN M14X123	9-09801-204-1	01	1	9811-9904	●	●
16	BOLT; GEN M14X123	9-09801-204-1	01	1	9905-9905		●	●	●
16	BOLT; GEN M14X123	9-09801-204-1	01	1	9906-0010		●	●	●
16	BOLT; GEN M14X123	1-09040-105-0	01	1	0011-		●	●	●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	9603-9810	●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	9811-9904	●	●
17	WASHER; PL,GEN ID=15	9-09160-514-0	01	1	9905-		●	●	●
19	BRACKET; GEN	1-19711-068-1	01	1	9603-9810	●
19	BRACKET; GEN	1-19711-068-1	01	1	9811-9904	●	●
19	BRACKET; GEN	1-19711-068-1	01	1	9905-0010		●	●	●
19	BRACKET; GEN	1-19711-144-0	01	1	0011-		●	●	●
23	NUT; GEN M14 W/BRKT	1-19711-029-0	01	1	9603-9810	●
23	NUT; GEN M14 W/BRKT	1-19711-029-0	01	1	9811-9904	●	●
23	NUT; GEN M14 W/BRKT	1-19711-029-0	01	1	9905-		●	●	●
26	BOLT; GEN BRKT M10X60 FLANGE	0-28181-060-0	02	1	9603-9810	●
26	BOLT; GEN BRKT M10X60 FLANGE	0-28181-060-0	02	1	9811-9904	●	●
26	BOLT; GEN BRKT M10X60 FLANGE	0-28181-060-0	02	1	9905-		●	●	●
83	THERMOMETER UNIT	1-83161-031-1	01	1	9603-9810	●
83	THERMOMETER UNIT EXC. EURO2 SPECIFICATION<THN>	1-83161-031-1	01	1	9811-9904	●
83	THERMOMETER UNIT	1-83161-031-1	01	1	9811-9904		●
83	THERMOMETER UNIT	1-83161-031-1	01	1	9905-			●	●
89	SWITCH; OVER HEAT WARNING	5-82450-020-0	01	1	9603-9810	●
89	SWITCH; OVER HEAT WARNING	5-82450-020-0	01	1	9811-9904	●	●
98	ADAPTER; TEMP SENSOR	1-09675-236-0	01	1	0102-		●	●	●
100	CLIP; HARNESS (A) L=180	1-09707-162-1	01	1	0102-		●	●	●
100	CLIP; HARNESS HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) ELECTRONIC GOV RED3(KG5) (B) ID=11 L=30	1-09700-511-0	01	1	0102-		●
100	CLIP; HARNESS HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) ELECTRONIC GOV RED3(KG5) (C) L=140	5-09707-031-1	01	1	0102-		●
260	SENSOR; WATER TEMP EURO2 SPECIFICATION<THN> (A)	1-80210-004-0	01	1	9610-9904	●
260	SENSOR; WATER TEMP (A)	1-80210-004-0	01	1	9905-		●
260	SENSOR; WATER TEMP (B)	1-83161-038-0	01	1	0102-		●	●	●
293	CABLE; STARTER EARTH L=350	1-82650-235-0	01	1	9603-9810	●
293	CABLE; STARTER EARTH L=350	1-82650-235-0	01	1	9811-9904	●	●
293	CABLE; STARTER EARTH L=350	1-82650-235-0	01	1	9905-		●	●	●
296	NUT; RELAY,STARTER M8	9-09110-408-0	02	1	9603-9606	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91150-108-0	02	1	9607-9810	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91150-108-0	02	1	9905-		●	●	●
296	NUT; RELAY,STARTER M8 FLANGE	0-91150-108-0	02	1	9811-9904	●	●
416	SLEEVE; RUBBER ID=10 OD=14 L=30	9-09956-682-0	02	1	9603-9810	●
416	SLEEVE; RUBBER EXC. EURO2 SPECIFICATION<THN> ID=10 OD=14 L=30	9-09956-682-0	02	1	9811-9904	●
416	SLEEVE; RUBBER ID=10 OD=14 L=30	9-09956-682-0	02	1	9811-9904		●
416	SLEEVE; RUBBER EURO2 SPECIFICATION<THN> ID=10 OD=14 L=30	9-09956-682-0	05	1	9610-9710	●
416	SLEEVE; RUBBER EURO2 SPECIFICATION<THN> ID=10 OD=14 L=30	9-09956-682-0	06	1	9711-9904	●
416	SLEEVE; RUBBER ID=10 OD=14 L=30	9-09956-682-0	06	1	9905-		●
416	SLEEVE; RUBBER ID=17 OD=21 L=40	1-09337-012-0	01	1	0102-		●	●	●
416	SLEEVE; RUBBER ID=10 OD=14 L=30	9-09956-682-0	02	1	9905-			●	●
788	HARNESS; EXT,WATER TEMP SENSOR HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) ELECTRONIC GOV RED3(KG5)	1-82641-186-0	02	1	0102-		●

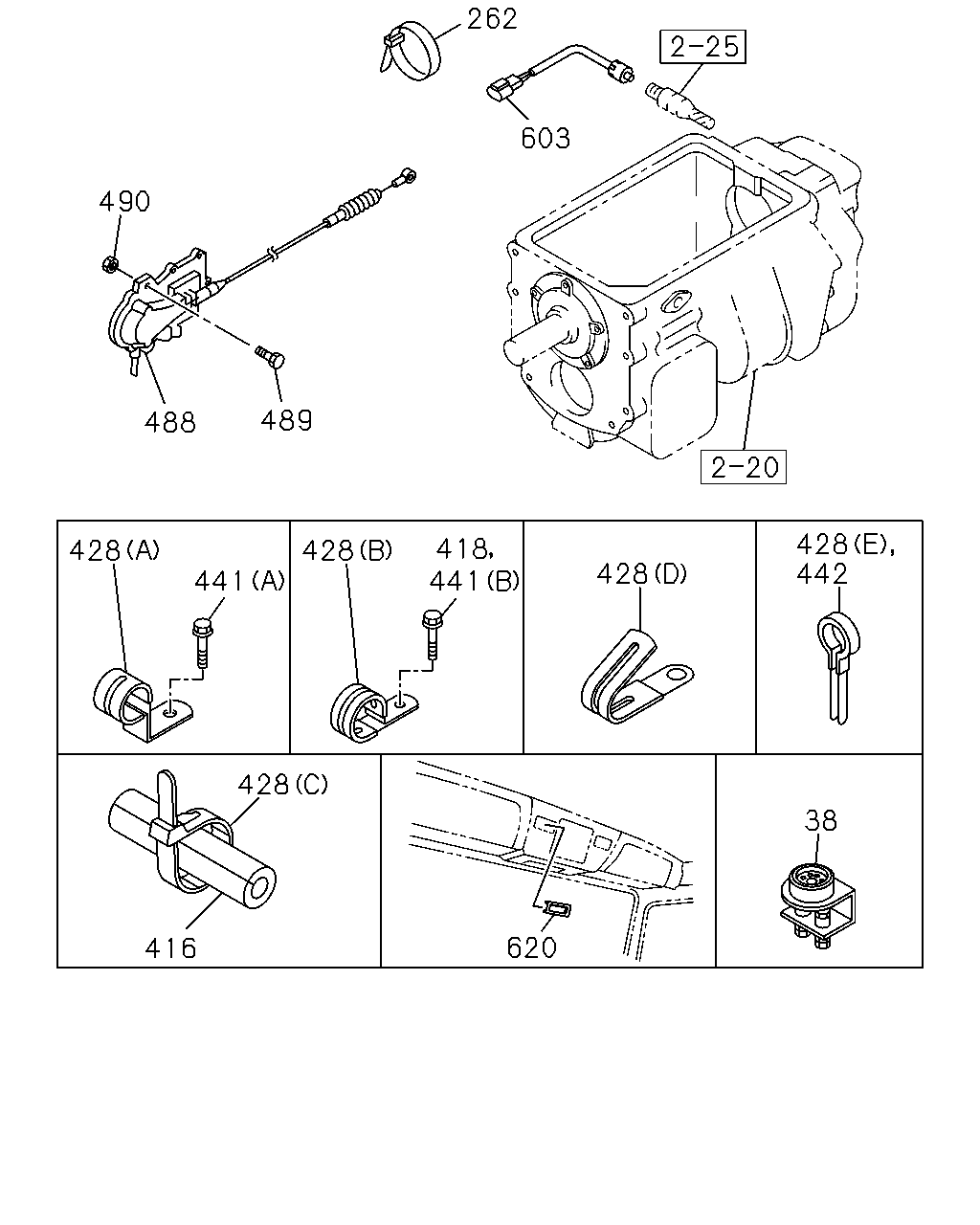

262 603 490 489 488 428 442 418 441 428 428 428 441 428 38 620 416

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
38	RESISTOR; CONT,GLOW PLUG GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	1-81402-008-0	01	1	9603-9810	●
38	RESISTOR; CONT,GLOW PLUG GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	1-81402-008-0	01	1	9905-		●	●	●
38	RESISTOR; CONT,GLOW PLUG GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	1-81402-008-0	01	1	9811-9904	●	●
262	CLIP; HARNESS L=140	5-09707-031-0	03	1	9603-9810	●
262	CLIP; HARNESS L=140	5-09707-031-1	03	1	9811-9904	●	●
262	CLIP; HARNESS L=140	5-09707-031-1	03	1	9905-		●	●	●
416	SLEEVE; RUBBER ID=10 OD=14 L=30	9-09956-682-0	02	1	9603-9810	●
416	SLEEVE; RUBBER EXC. EURO2 SPECIFICATION<THN> ID=10 OD=14 L=30	9-09956-682-0	02	1	9811-9904	●
416	SLEEVE; RUBBER ID=10 OD=14 L=30	9-09956-682-0	02	1	9811-9904		●
416	SLEEVE; RUBBER EURO2 SPECIFICATION<THN> ID=10 OD=14 L=30	9-09956-682-0	05	1	9610-9710	●
416	SLEEVE; RUBBER EURO2 SPECIFICATION<THN> ID=10 OD=14 L=30	9-09956-682-0	06	1	9711-9904	●
416	SLEEVE; RUBBER ID=10 OD=14 L=30	9-09956-682-0	06	1	9905-		●
416	SLEEVE; RUBBER ID=17 OD=21 L=40	1-09337-012-0	01	1	0102-		●	●	●
416	SLEEVE; RUBBER ID=10 OD=14 L=30	9-09956-682-0	02	1	9905-			●	●
418	BOLT; CLIP M10X16 FLANGE	0-28181-016-0	01	1	9603-9810	●
418	BOLT; CLIP M10X16 FLANGE	0-28181-016-0	01	1	9811-9904	●	●
418	BOLT; CLIP M10X16 FLANGE	0-28181-016-0	01	1	9905-		●	●	●
428	CLIP; HARNESS (A) ID=31.5 H=23 L=25	1-09701-017-0	01	1	9603-9810	●
428	CLIP; HARNESS (A) ID=31.5 H=23 L=25	1-09701-017-0	01	1	9905-		●	●	●
428	CLIP; HARNESS (B) ID=26 L=26	1-09701-236-0	01	1	9603-9810	●
428	CLIP; HARNESS (B) ID=32 L=35	1-09701-244-0	01	1	9603-9810	●
428	CLIP; HARNESS (B) ID=32 L=35	1-09701-244-0	01	1	9905-		●	●	●
428	CLIP; HARNESS (C) L=140	5-09707-031-0	01	1	9603-9810	●
428	CLIP; HARNESS EXC. EURO2 SPECIFICATION<THN> (C) L=140	5-09707-031-1	01	1	9811-9904	●
428	CLIP; HARNESS (C) L=140	5-09707-031-1	01	1	9811-9904		●
428	CLIP; HARNESS (D) L=36	8-94224-891-1	01	1	9603-9603	●
428	CLIP; HARNESS (B) ID=11 L=28	9-09917-544-0	01	1	9603-9607	●
428	CLIP; HARNESS (D) L=36	8-94224-891-1	01	1	9604-9801	●
428	CLIP; HARNESS (B) ID=11 L=28	9-09917-544-0	01	1	9608-9801	●
428	CLIP; HARNESS (D) L=36	8-94224-891-1	01	1	9802-9810	●
428	CLIP; HARNESS (D) L=36	8-94224-891-1	01	1	9811-9902	●	●
428	CLIP; HARNESS (B) ID=11 L=28	9-09917-544-0	01	1	9802-9810	●
428	CLIP; HARNESS (B) ID=11 L=28	9-09917-544-0	01	1	9811-9904	●	●
428	CLIP; HARNESS ELECTRONIC GOV RED3(KG5) (A) ID=20 H=23 L=27	1-09700-861-0	01	1	9609-9904	●
428	CLIP; HARNESS (A) ID=20 H=23 L=27	1-09700-861-0	01	1	9905-		●
428	CLIP; HARNESS ELECTRONIC GOV RED3(KG5) (E) ID=20 L=50	9-09917-430-0	02	1	9609-9904	●
428	CLIP; HARNESS EURO2 SPECIFICATION<THN> (C) L=250	5-09707-030-0	02	1	9610-9801	●
428	CLIP; HARNESS EURO2 SPECIFICATION<THN> (C) L=140	5-09707-031-1	05	1	9610-9904	●
428	CLIP; HARNESS (C) L=140	5-09707-031-1	05	1	9905-		●
428	CLIP; HARNESS (C) L=140	5-09707-031-1	01	1	9905-			●	●
428	CLIP; HARNESS EURO2 SPECIFICATION<THN> (C) L=250	5-09707-030-1	02	1	9802-9904	●
428	CLIP; HARNESS (C) L=250	5-09707-030-1	02	1	9905-		●
428	CLIP; HARNESS (A) ID=31.5 H=23 L=25	1-09701-017-0	01	1	9811-9904	●	●
428	CLIP; HARNESS (B) ID=26 L=26	1-09701-236-0	01	1	9811-9904	●	●
428	CLIP; HARNESS (B) ID=32 L=35	1-09701-244-0	01	1	9811-9904	●	●
428	CLIP; HARNESS (D) L=36	8-94224-891-1	01	1	9903-9904	●	●
428	CLIP; HARNESS (B) ID=26 L=26	1-09701-236-0	01	1	9905-		●	●	●
428	CLIP; HARNESS (D) L=36	8-94224-891-1	01	1	9905-		●	●	●
428	CLIP; HARNESS (E) ID=20 L=50	9-09917-430-0	02	1	9905-		●
428	CLIP; HARNESS (B) ID=11 L=28	9-09917-544-0	01	1	9905-		●	●	●
441	BOLT; HARNESS TO FRAME (A) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●
441	BOLT; HARNESS TO FRAME (A) M8X20 FLANGE	0-28680-820-0	01	1	9607-9705	●
441	BOLT; HARNESS TO FRAME (A) M8X20 FLANGE	0-28080-820-0	01	1	9706-	●
441	BOLT; HARNESS TO FRAME (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9603-9810	●
441	BOLT; HARNESS TO FRAME (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9905-		●	●	●
441	BOLT; HARNESS TO FRAME (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9811-9904	●	●
442	CLIP; GRAND ID=11 L=41	1-09700-403-0	01	1	9603-9810	●
442	CLIP; GRAND ID=11 L=41	1-09700-403-0	01	1	9905-		●	●	●
442	CLIP; GRAND ID=11 L=41	1-09700-403-0	01	1	9811-9904	●	●
488	STOPPER; ENG	1-82840-145-0	01	1	9603-9608	●
488	STOPPER; ENG EXC. ELECTRONIC GOV RED3(KG5)	1-82840-145-1	01	1	9609-9810	●
488	STOPPER; ENG EXC. ELECTRONIC GOV RED3(KG5)	1-82840-145-1	01	1	9811-9904	●	●
488	STOPPER; ENG EXC. ELECTRONIC GOV RED3(KG5)	1-82840-145-1	01	1	9905-		●	●	●
489	BOLT; ENG STOPPER M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●
489	BOLT; ENG STOPPER M8X25 FLANGE	0-28680-825-0	02	1	9607-9609	●
489	BOLT; ENG STOPPER EXC. ELECTRONIC GOV RED3(KG5) M8X25 FLANGE	0-28680-825-0	02	1	9610-9807	●
489	BOLT; ENG STOPPER EXC. ELECTRONIC GOV RED3(KG5) M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9811-9904	●	●
489	BOLT; ENG STOPPER EXC. ELECTRONIC GOV RED3(KG5) M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9905-		●	●	●
490	NUT; ENG STOP M8	9-09110-408-0	02	1	9603-9606	●
490	NUT; ENG STOP M8 FLANGE	0-91150-108-0	02	1	9607-9609	●
490	NUT; ENG STOP EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	9610-9810	●
490	NUT; ENG STOP EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	9905-		●	●	●
490	NUT; ENG STOP EXC. ELECTRONIC GOV RED3(KG5) M8 FLANGE	0-91150-108-0	02	1	9811-9904	●	●
603	SENSOR; TACHO	1-83127-115-0	01	1	9603-9810	●
603	SENSOR; TACHO	1-83127-115-0	01	1	9811-9904	●	●
603	SENSOR; TACHO	1-83127-115-0	01	1	9905-		●	●	●
620	BEZEL; CONT UNIT	1-72447-666-1	01	1	9603-9810	●
620	BEZEL; CONT UNIT	1-72447-666-1	01	1	9905-		●	●	●
620	BEZEL; CONT UNIT	1-72447-666-1	01	1	9811-9904	●	●

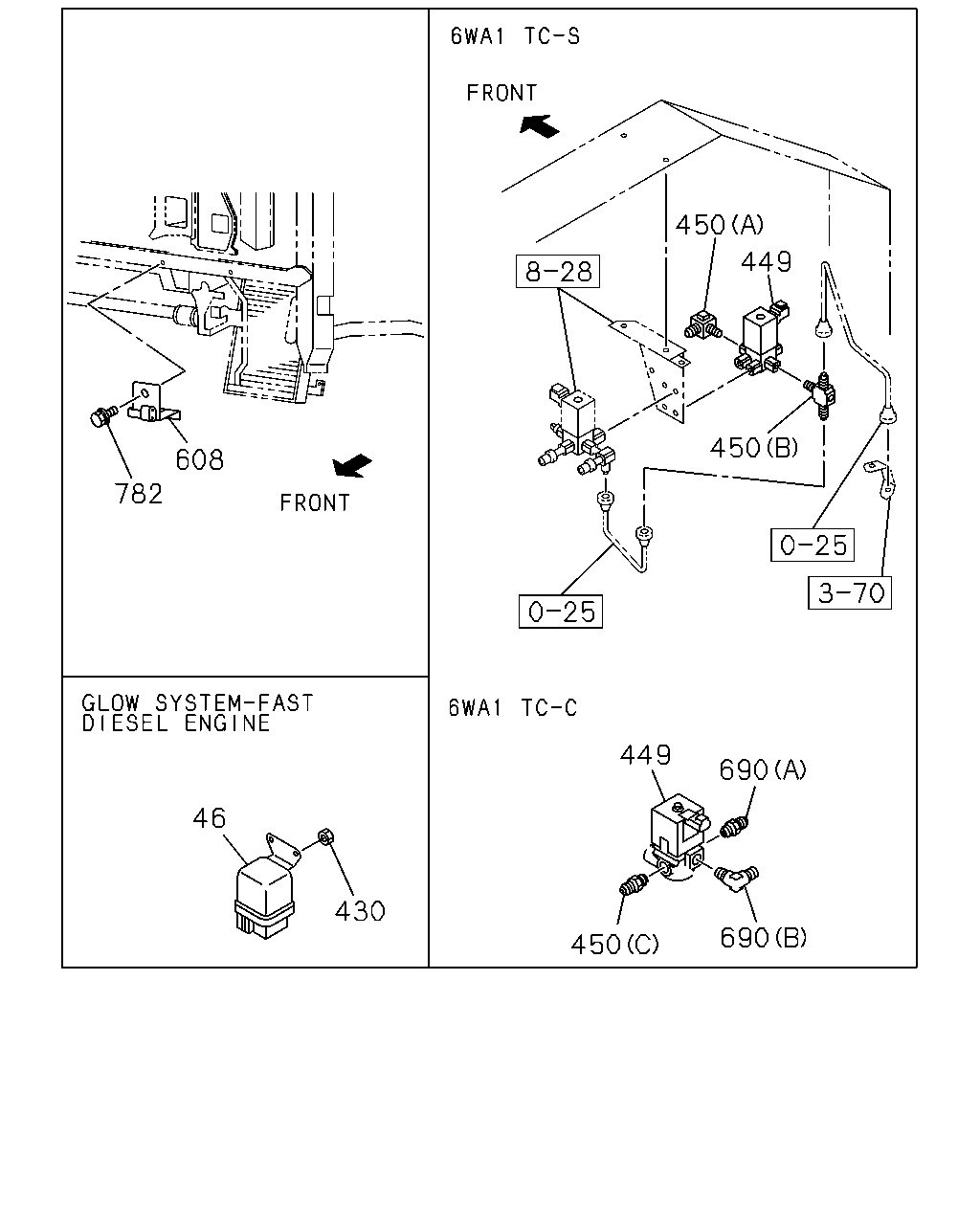

450 449 450 608 782 449 690 46 430 690 450

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
46	RELAY; GLOW PLUG GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	8-94258-014-0	01	1	9603-9810	●
46	RELAY; GLOW PLUG GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	8-94258-014-0	01	1	9905-		●	●	●
46	RELAY; GLOW PLUG GLOW SYSTEM-FAST DIESEL ENGINE<KM6>	8-94258-014-0	01	1	9811-9904	●	●
430	NUT; RELAY FIX GLOW SYSTEM-FAST DIESEL ENGINE<KM6> M6 FLANGE	0-91150-106-0	01	1	9603-9810	●
430	NUT; RELAY FIX M6 FLANGE	0-91150-106-0	01	1	9905-		●	●	●
430	NUT; RELAY FIX GLOW SYSTEM-FAST DIESEL ENGINE<KM6> M6 FLANGE	0-91150-106-0	01	1	9811-9904	●	●
449	VALVE; MAG,VARIABLE SWIRL SYSTEM EURO2 SPECIFICATION<THN>	1-82563-598-3	01	1	9610-9904	●
449	VALVE; MAG,VARIABLE SWIRL SYSTEM	1-82563-871-2	01	1	9905-		●
450	CONNECTOR; MAG VLV,INL PORT EURO2 SPECIFICATION<THN> (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9610-9904	●
450	CONNECTOR; MAG VLV,INL PORT (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9905-		●
450	CONNECTOR; MAG VLV,INL PORT EURO2 SPECIFICATION<THN> (B) M12X2 & PT1/4 3WAY	1-09656-229-1	01	1	9610-9904	●
608	SENSOR; AIR TEMP ELECTRONIC GOV RED3(KG5)	1-83544-022-3	01	1	9610-9610	●
608	SENSOR; AIR TEMP ELECTRONIC GOV RED3(KG5)	1-83544-031-0	01	1	9610-9904	●
608	SENSOR; AIR TEMP ELECTRONIC GOV RED3(KG5)	1-83544-031-0	01	1	9905-		●
690	CONNECTOR (A) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	9905-		●
690	CONNECTOR (B) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	9905-		●
782	BOLT; SENSOR ELECTRONIC GOV RED3(KG5) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9612-9904	●
782	BOLT; SENSOR ELECTRONIC GOV RED3(KG5) M8X20.5 W/LK&PL WASHER	8-94279-207-0	01	1	9905-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
