Isuzu WW
▶
TRUCKS
▶
FORWARD
▶
11412 - FORWARD 1100/1200
▶
5 - Frame, Cab Mounting
▶

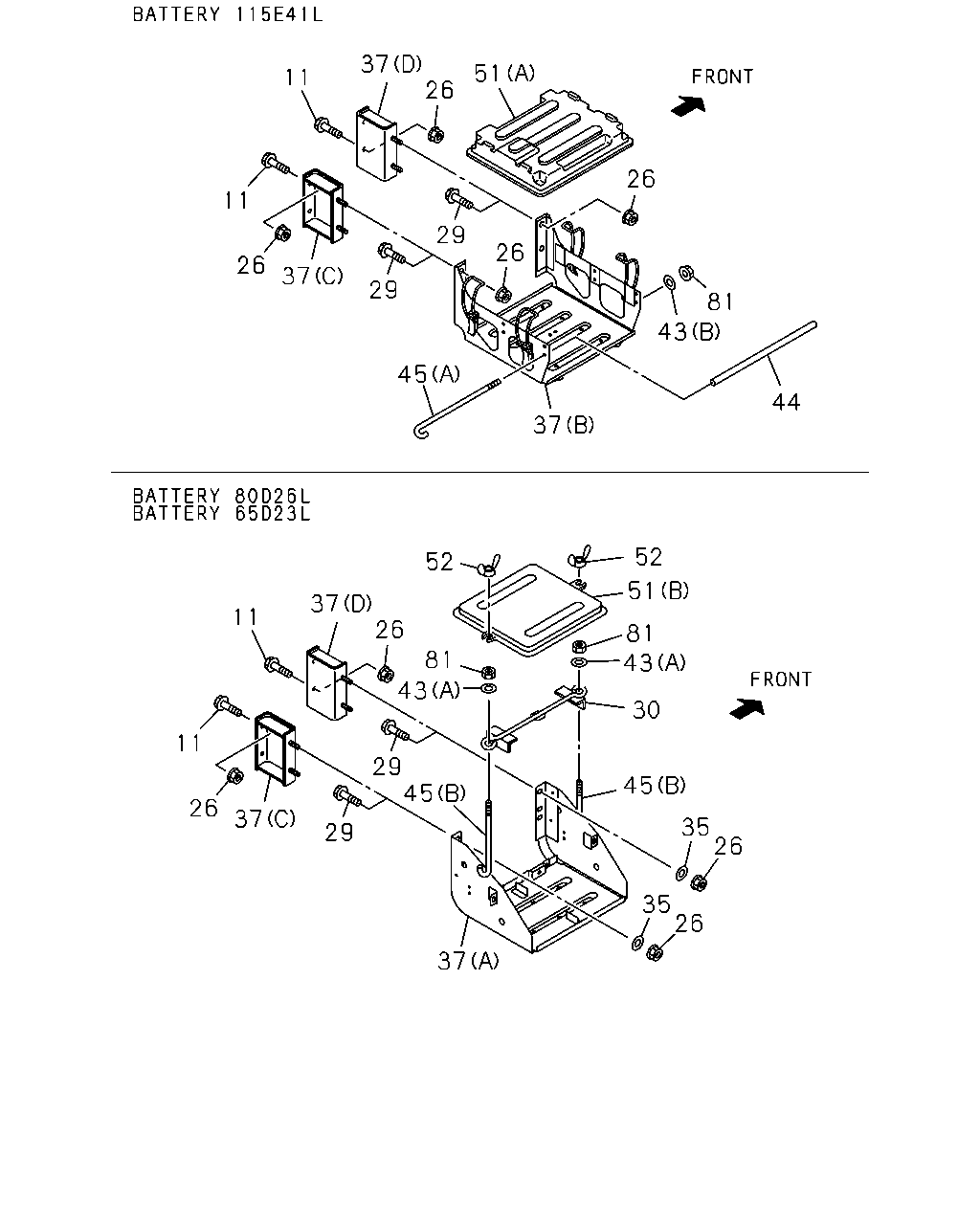

5-20 - BATTERY CARRIER
▶
5-20 — BATTERY CARRIER
(#55186) — 26 parça
37
26
35
26
35
45
30
43
52
51
81
52
26
81
43
29
45
29
37
26
11
11
37
44
37
43
81
45
29
37
26
11
11
37
51
26
26
29
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BOLT; BRKT FIX
M10X35 FLANGE
0-28651-035-0
04
1
1106-1310
11
BOLT; BRKT FIX
6HK1-TCN ENG(82L) M10X35 FLANGE
0-28651-035-0
04
1
1311-
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
1106-1310
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
1106-1310
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
1311-
26
NUT; BRKT
6HK1-TCN ENG(82L) M10 FLANGE
0-91180-210-0
04
1
1311-
29
BOLT; BRKT TO FRAME
4HK1-TCS ENG(RJS) M10X35 FLANGE
0-28651-035-0
04
1
1311-
30
PLATE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
5-53615-004-1
01
1
1106-
35
WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22
0-91614-610-0
04
1
1106-
37
BRACKET; BATTERY
(D)
8-98088-828-0
01
1
1106-1310
37
BRACKET; BATTERY
6HK1-TCN ENG(82L) (D)
8-98088-828-0
01
1
1311-
37
BRACKET; BATTERY
(C)
8-98162-291-0
01
1
1106-1310
37
BRACKET; BATTERY
6HK1-TCN ENG(82L) (C)
8-98162-291-0
01
1
1311-
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (B)
8-98091-497-0
01
1
1106-1405
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (B)
8-98261-636-0
01
1
1406-
37
BRACKET; BATTERY
BATTERY 65D23L<8EJ> (A)
8-97384-068-2
01
1
1106-
37
BRACKET; BATTERY
BATTERY 80D26L<TM1> (A)
8-97384-067-2
01
1
1106-
43
WASHER; PL,CLAMP
BATTERY 115E41L<8MA> (B) ID=8.4 OD=16
0-91610-508-0
02
1
1106-
43
WASHER; PL,CLAMP
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22
0-91614-708-0
02
1
1106-
44
SPACER; BATTERY
BATTERY 115E41L<8MA>
8-98261-682-0
02
1
1406-
45
ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> (A) L=430
8-97134-740-0
02
1
1106-
45
ROD; TENSION,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120
9-53616-615-0
02
1
1106-
51
COVER; BATTERY
BATTERY 115E41L<8MA> (A)
1-53612-037-2
01
1
1106-
51
COVER; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)
8-97120-747-0
01
1
1106-
52
NUT; WING,COVER FIX
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT
0-91118-408-0
02
1
1106-
81
NUT; BATTERY
M8 FLANGE
0-91180-108-0
02
1
1106-
