Isuzu WW
▶
TRUCKS
▶
FORWARD
▶
11412 - FORWARD 1100/1200
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶

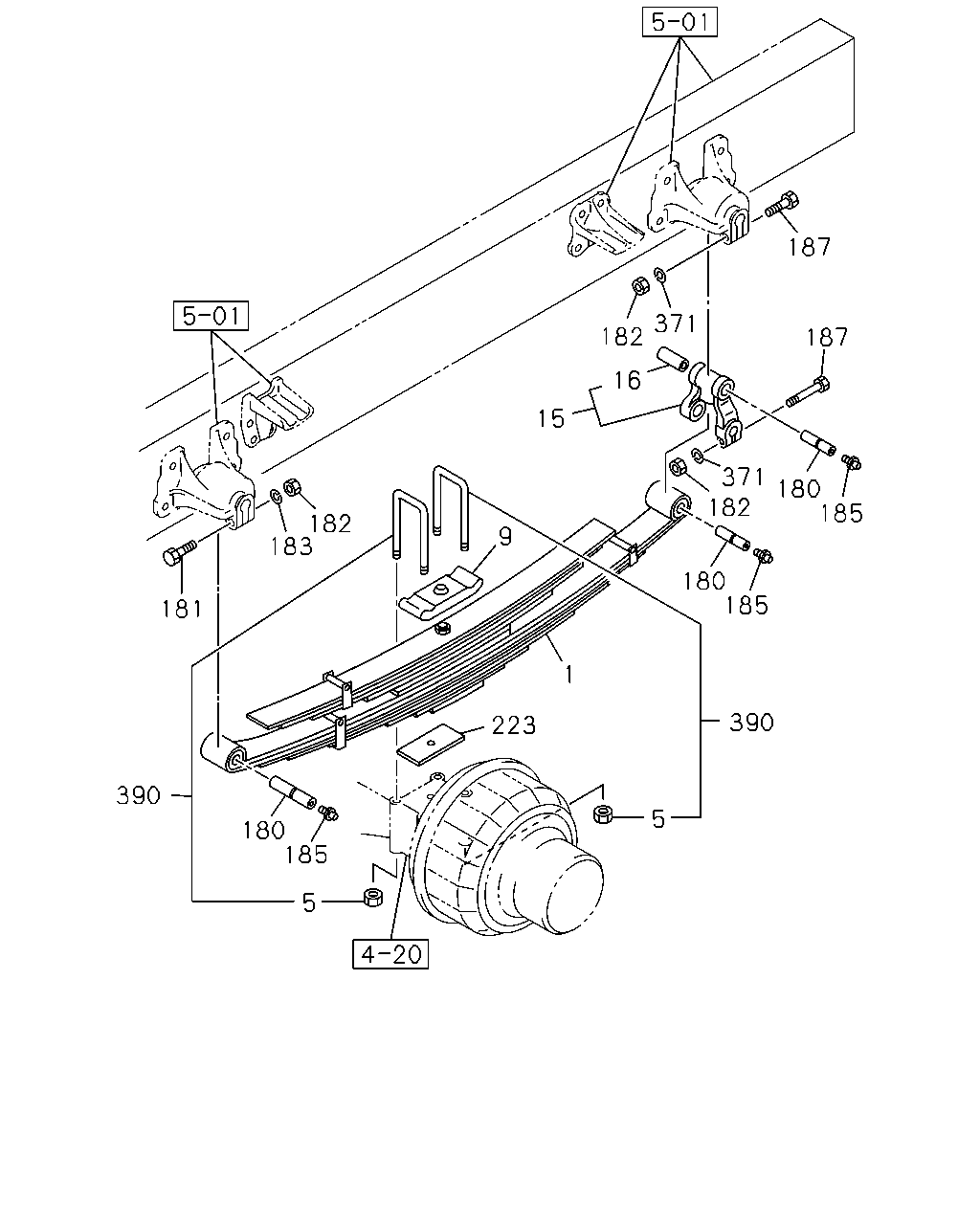

4-60 — REAR SUSPENSION
(#55180) — 22 parça
187
187
180
185
185
182
371
180
390
223
5
1
15
16
182
371
5
180
185
390
181
183
182
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT.
8-98017-564-0
02
1
1106-
5
NUT; U-BOLT,RR SPR
M24
0-91112-824-0
08
1
1106-
9
PAD; U BOLT,RR SPR
1-51372-048-1
02
1
1106-
15
SHACKLE; RR SPR
1-51362-049-2
02
1
1106-
16
BUSHING; SHACKLE,RR SPR
8-98081-830-0
02
1
1106-
16
BUSHING; SHACKLE,RR SPR
BEST VALUE PARTS
1-87610-163-0
02
1
1106-
180
PIN; RR SPR
DO=28 L=131 PT1/8
1-51361-015-0
06
1
1106-
181
BOLT; SPR & SHACKLE
M14X65
0-10811-465-0
02
1
1106-
182
NUT; PIN,RR SPR
M14
0-91110-514-0
02
1
1106-
182
NUT; PIN,RR SPR
M14
0-91110-514-0
04
1
1106-
183
WASHER; LK,PIN,RR SPR
ID=14.2
0-91510-514-0
02
1
1106-
185
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT
0-90301-410-0
02
1
1106-
185
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT
0-90301-410-0
04
1
1106-
187
BOLT; SPR & SHACKLE
M14X65
0-10811-465-0
04
1
1106-
223
SPACER; U BOLT,RR SPR
4HK1-TCS ENG(RJS) WHEEL BASE 4200MM(42W)
8-98083-789-0
02
1
1311-
223
SPACER; U BOLT,RR SPR
WHEEL BASE 4200MM(42W)
1-51377-166-0
02
1
1106-1310
223
SPACER; U BOLT,RR SPR
6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W)
1-51377-166-0
02
1
1311-
223
SPACER; U BOLT,RR SPR
4HK1-TCS ENG(RJS) WHEEL BASE 5500MM(55W)
1-51377-166-0
02
1
1311-
223
SPACER; U BOLT,RR SPR
WHEEL BASE 5500MM(55W)
1-51377-372-0
02
1
1106-1310
223
SPACER; U BOLT,RR SPR
6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W)
1-51377-372-0
02
1
1311-
371
WASHER; LK,SHACKLE
ID=14.2
0-91510-514-0
04
1
1106-
390
U-BOLT SET; RR SPRING
L=455
1-87870-268-1
04
1
1106-
