0-52B — OIL AND VACUUM PIPING; ENGINE (#5518) — 150 parça

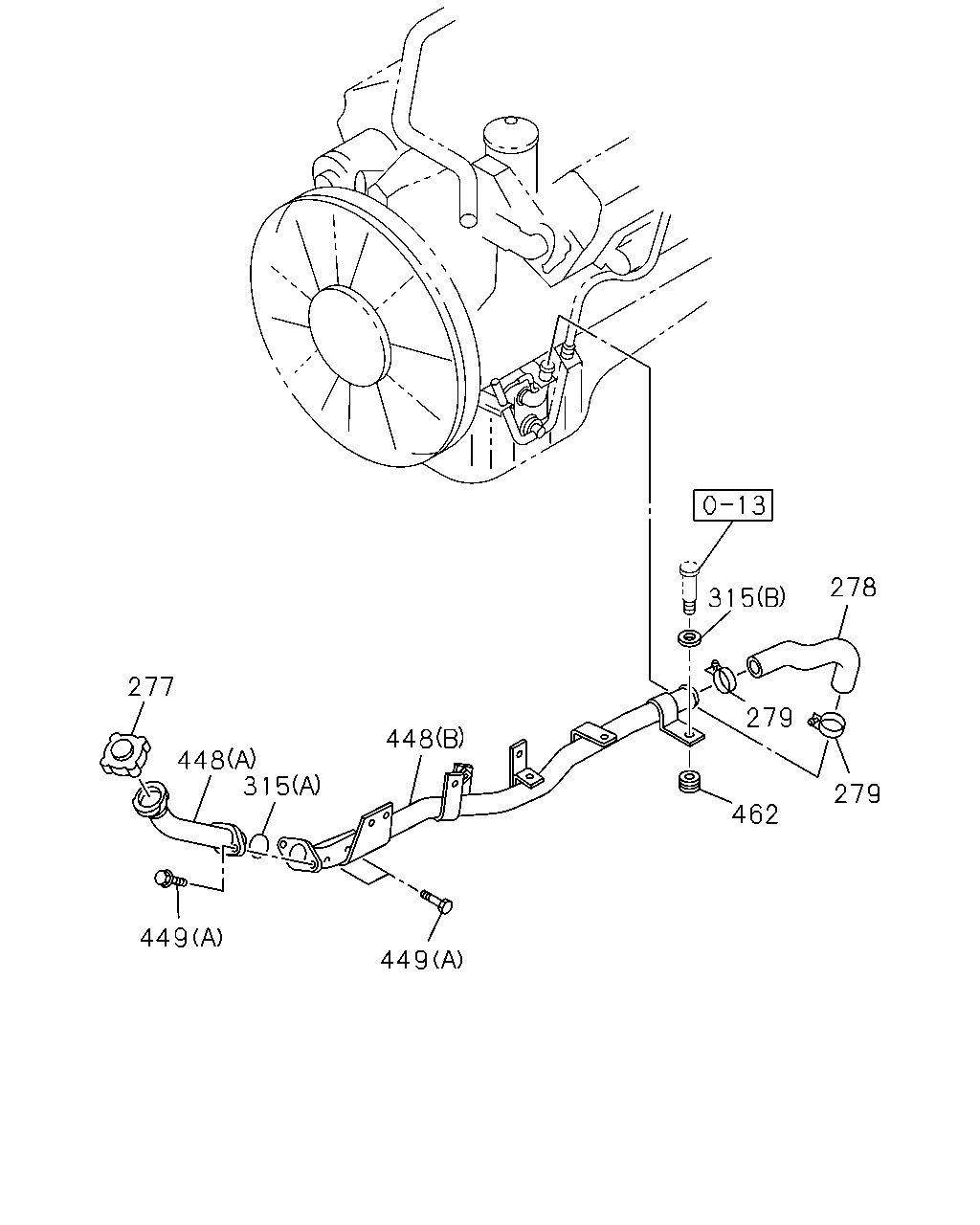

278 315 277 279 448 448 315 279 462 449 449

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
277	CAP; OIL FILLER	1-11750-020-0	01	1	9603-9810	●
277	CAP; OIL FILLER	1-11750-020-0	01	1	9905-	●	●
277	CAP; OIL FILLER	1-11750-020-0	01	1	9811-9904	●
278	HOSE; RUBBER,OIL FILLER	1-11749-149-0	01	1	9603-9904	●
278	HOSE; RUBBER,OIL FILLER	1-11749-149-0	01	1	9905-	●	●
279	CLIP; RUBBER HOSE ID=48	9-09915-512-1	02	1	9603-9810	●
279	CLIP; RUBBER HOSE ID=48	9-09915-512-1	02	1	9905-	●	●
279	CLIP; RUBBER HOSE ID=48	9-09915-512-1	02	1	9811-9904	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=38.7	1-09623-299-0	01	1	9603-9603	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=38.7	1-09623-299-0	01	1	9604-9810	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=38.7	1-09623-299-0	01	1	9811-9904	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=38.7	1-09623-299-0	01	1	9905-	●	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.5 OD=26	9-09160-612-0	01	1	9603-9904	●
315	GASKET; OIL FILLER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.5 OD=26	9-09160-612-0	01	1	9905-	●	●
448	FILLER; OIL (A)	1-11741-175-3	01	1	9603-9810	●
448	FILLER; OIL (A)	1-11741-175-4	01	1	9905-	●	●
448	FILLER; OIL (A)	1-11741-175-3	01	1	9811-9904	●
448	FILLER; OIL (B)	1-11741-192-1	01	1	9603-9904	●
448	FILLER; OIL (B)	1-11741-192-1	01	1	9905-	●	●
449	BOLT; OIL FILLER (A) M8X20 FLANGE	0-28080-820-0	04	1	9603-9606	●
449	BOLT; OIL FILLER (A) M8X20 FLANGE	0-28680-820-0	04	1	9607-9609	●
449	BOLT; OIL FILLER (A) M8X20 FLANGE	0-28680-820-0	02	1	9610-9904	●
449	BOLT; OIL FILLER (A) M8X20 FLANGE	0-28680-820-0	02	1	9905-	●	●
449	BOLT; OIL FILLER (A) M8X25 FLANGE	0-28680-825-0	02	1	9610-9810	●
449	BOLT; OIL FILLER (A) M8X25 FLANGE	0-28680-825-0	02	1	9905-	●	●
449	BOLT; OIL FILLER (A) M8X25 FLANGE	0-28680-825-0	02	1	9811-9904	●
462	GROMMET	1-09332-117-0	01	1	9603-9904	●
462	GROMMET	1-09332-117-0	01	1	9905-	●	●

195 195 194 195 203 195 194

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
194	BOLT; EYE,FLEX HOSE,PARTIAL FILTER (B) M14X45	1-09675-023-1	01	1	9603-9904	●
194	BOLT; EYE,FLEX HOSE,PARTIAL FILTER (B) M14X45	1-09675-023-1	01	1	9905-	●	●
194	BOLT; EYE,FLEX HOSE,PARTIAL FILTER (A) M14X33 FLANGE	1-09675-088-0	01	1	9603-9904	●
194	BOLT; EYE,FLEX HOSE,PARTIAL FILTER (A) M14X33 FLANGE	1-09675-088-0	01	1	9905-	●	●
195	GASKET; EYE BOLT,PARTIAL FILTER ID=14.2 OD=19.2	1-09630-085-0	04	1	9603-9904	●
195	GASKET; EYE BOLT,PARTIAL FILTER ID=14.2 OD=19.2	1-09630-085-0	04	1	9905-	●	●
203	HOSE; FLEX,PARTIAL FILTER,RETURN L=440	1-09364-916-0	01	1	9603-9904	●
203	HOSE; FLEX,PARTIAL FILTER,RETURN L=440	1-09364-916-0	01	1	9905-	●	●

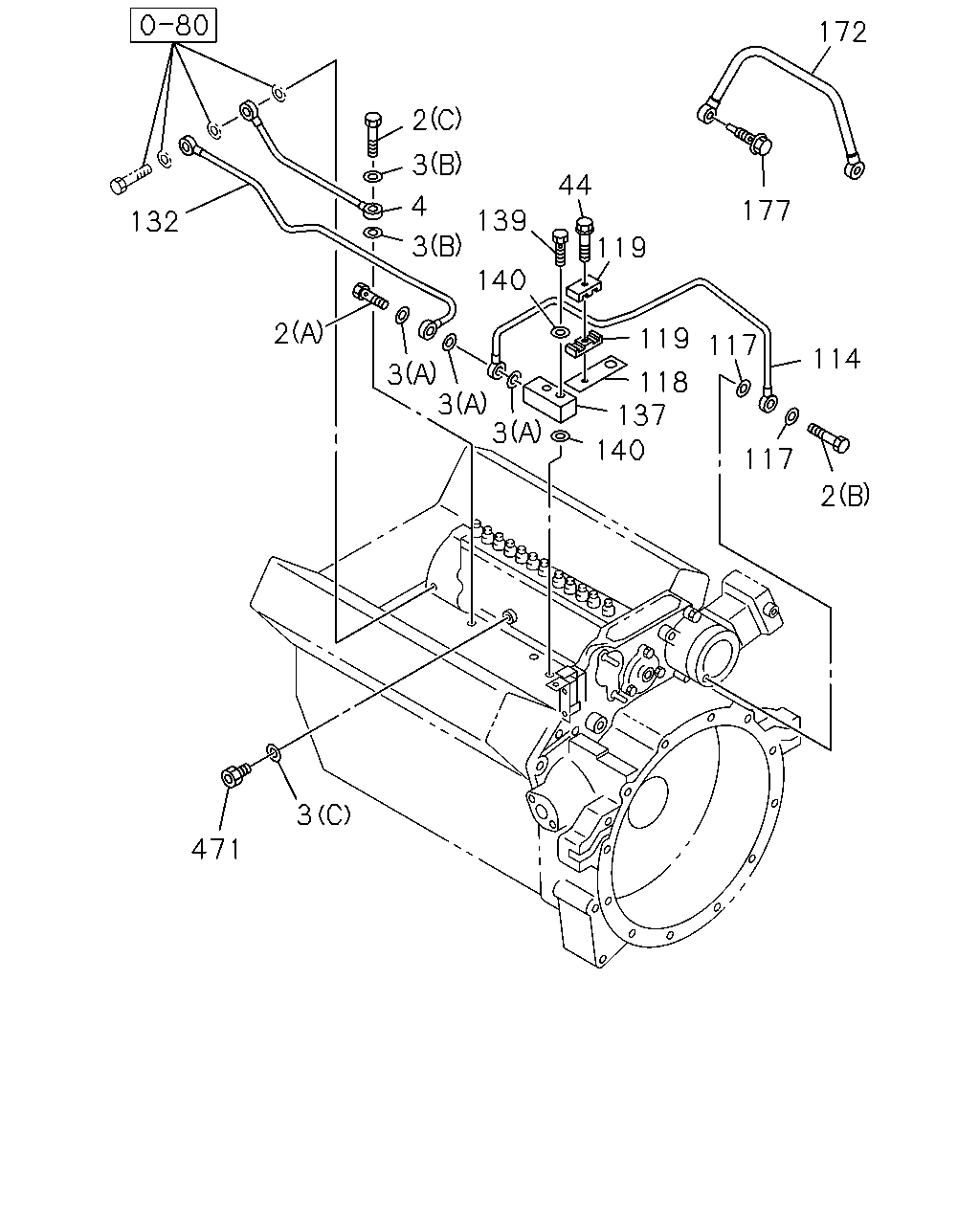

172 2 3 44 4 177 139 132 3 119 140 2 119 117 114 3 118 137 140 3 3 117 2 3 471

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	1-09675-077-0	01	1	9603-9612	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	9603-9612	●
2	BOLT; EYE,OIL PIPE (A) M10X32	1-09675-119-0	01	1	9603-9612	●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	1-09675-077-0	01	1	9701-9708	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	9701-9708	●
2	BOLT; EYE,OIL PIPE (A) M10X32	1-09675-119-0	01	1	9701-9708	●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	1-09675-077-0	01	1	9709-9711	●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	1-09675-077-0	01	1	9712-9904	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	9709-9904	●
2	BOLT; EYE,OIL PIPE (A) M10X32	1-09675-119-0	01	1	9709-9904	●
2	BOLT; EYE,OIL PIPE (D) M12X27 FLANGE	1-09675-085-0	01	1	9905-		●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	1-09675-077-0	01	1	9905-	●	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	9905-	●	●
2	BOLT; EYE,OIL PIPE (A) M10X32	1-09675-119-0	01	1	9905-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	9905-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	03	1	9603-9708	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	01	1	9603-9708	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	9603-9708	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	03	1	9709-9809	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	01	1	9709-9809	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	9709-9809	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	03	1	9810-9904	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	01	1	9810-9904	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	9810-9904	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	03	1	9905-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	01	1	9905-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-	●	●
4	PIPE ASM; OIL,GOV TO C/BL	1-13313-618-0	01	1	9604-	●
4	PIPE ASM; OIL,GOV TO C/BL	1-13313-492-0	01	1	9905-		●
44	BOLT; CLIP,OIL PIPE M6X25 FLANGE	0-28080-625-0	01	1	9603-9904	●
44	BOLT; CLIP,OIL PIPE M6X25 FLANGE	0-28080-625-0	01	1	9905-	●	●
114	PIPE ASM; OIL,BODY	1-13313-619-0	01	1	9603-9904	●
114	PIPE ASM; OIL,BODY	1-13313-619-0	01	1	9905-	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	05	1	9603-9603	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	05	1	9905-	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	05	1	9604-9904	●
118	BRACKET; CLIP,OIL PIPE	1-13319-041-0	01	1	9603-9904	●
118	BRACKET; CLIP,OIL PIPE	1-13319-041-0	01	1	9905-	●	●
119	CLIP; OIL PIPE,BODY TO CMPR ID=7 L=25 B=18	1-09700-851-0	02	1	9603-9904	●
119	CLIP; OIL PIPE,BODY TO CMPR ID=7 L=25 B=18	1-09700-851-0	02	1	9905-	●	●
132	PIPE ASM; OIL,INJ PUMP FEED	1-13313-386-1	01	1	9603-9904	●
132	PIPE ASM; OIL,INJ PUMP FEED	1-13313-607-0	01	1	9905-		●
132	PIPE ASM; OIL,INJ PUMP FEED	1-13313-386-1	01	1	9905-	●
137	UNION; OIL PIPE	1-09664-170-0	01	1	9603-9904	●
137	UNION; OIL PIPE	1-09664-170-0	01	1	9905-0008	●	●
137	UNION; OIL PIPE	1-09664-256-0	01	1	0009-	●	●
139	BOLT; EYE,UNION M14X39 FLANGE	1-09675-089-0	01	1	9603-9904	●
139	BOLT; EYE,UNION M14X39 FLANGE	1-09675-089-0	01	1	9905-	●	●
140	GASKET; EYE BOLT,UNION ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	02	1	9603-9904	●
140	GASKET; EYE BOLT,UNION ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-	●	●
172	PIPE; OIL,TIMER	1-13313-620-0	01	1	9603-9904	●
172	PIPE; OIL,TIMER	1-13313-819-0	01	1	9905-	●	●
177	JET ASM; OIL,OIL PIPE	1-09679-010-0	01	1	9603-9904	●
177	JET ASM; OIL,OIL PIPE	1-09679-010-0	01	1	9905-	●	●
471	PLUG; OIL M12X10	5-13265-001-0	01	1	9603-	●

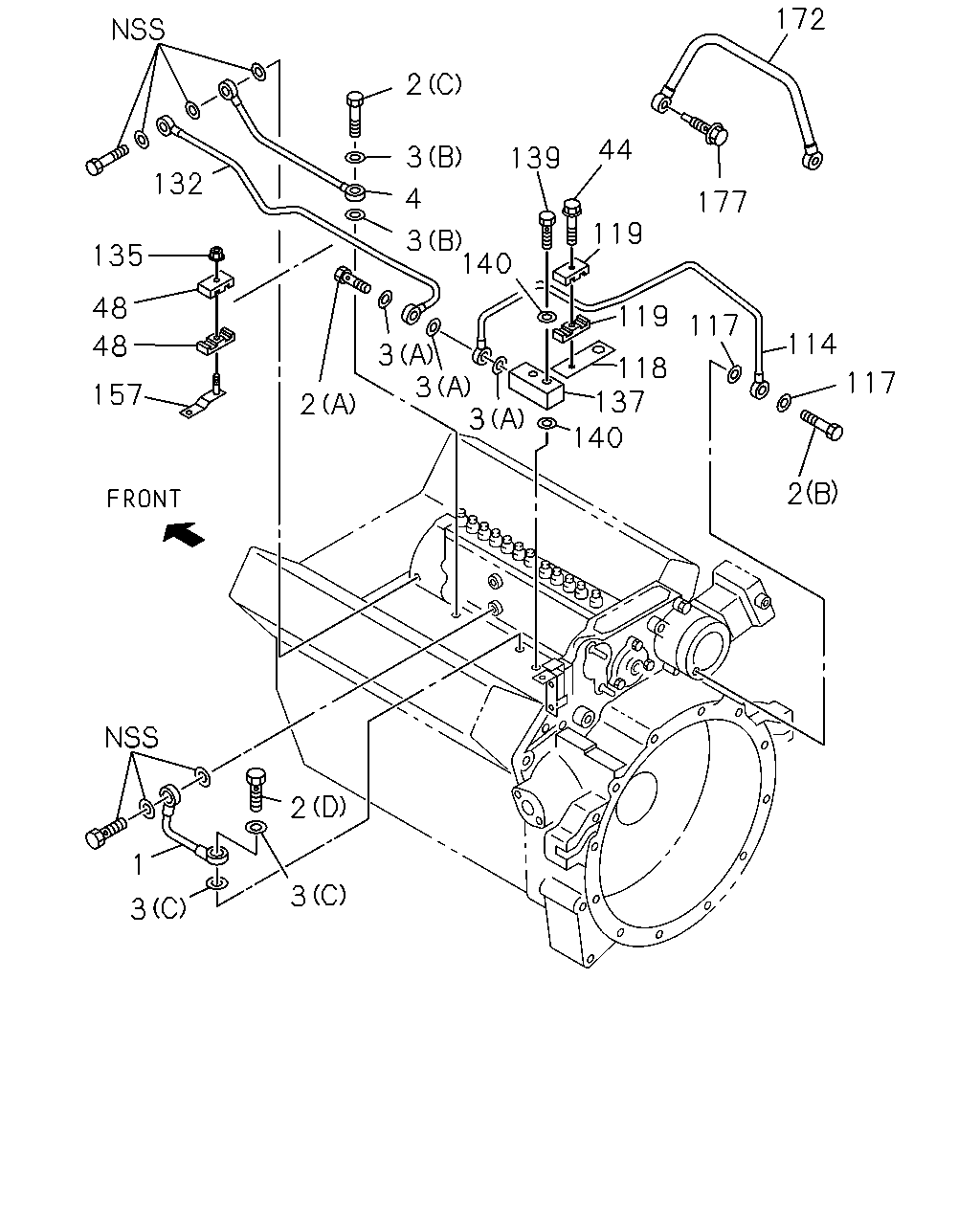

172 2 44 3 139 132 4 177 119 3 140 135 48 119 3 3 117 114 48 3 118 137 140 117 157 2 2 1 3 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; OIL,INJ PUMP TO C/BL	1-13313-495-0	01	1	9905-		●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	1-09675-077-0	01	1	9603-9612	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	9603-9612	●
2	BOLT; EYE,OIL PIPE (A) M10X32	1-09675-119-0	01	1	9603-9612	●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	1-09675-077-0	01	1	9701-9708	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	9701-9708	●
2	BOLT; EYE,OIL PIPE (A) M10X32	1-09675-119-0	01	1	9701-9708	●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	1-09675-077-0	01	1	9709-9711	●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	1-09675-077-0	01	1	9712-9904	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	9709-9904	●
2	BOLT; EYE,OIL PIPE (A) M10X32	1-09675-119-0	01	1	9709-9904	●
2	BOLT; EYE,OIL PIPE (D) M12X27 FLANGE	1-09675-085-0	01	1	9905-		●
2	BOLT; EYE,OIL PIPE (B) M10X21 FLANGE	1-09675-077-0	01	1	9905-	●	●
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	01	1	9905-	●	●
2	BOLT; EYE,OIL PIPE (A) M10X32	1-09675-119-0	01	1	9905-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	02	1	9905-		●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	03	1	9603-9708	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	01	1	9603-9708	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	9603-9708	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	03	1	9709-9809	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	01	1	9709-9809	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	9709-9809	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	03	1	9810-9904	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	01	1	9810-9904	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	9810-9904	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=15.2	1-09630-083-0	03	1	9905-	●	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=12.2	1-09630-084-0	01	1	9905-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-	●	●
4	PIPE ASM; OIL,GOV TO C/BL	1-13313-618-0	01	1	9604-	●
4	PIPE ASM; OIL,GOV TO C/BL	1-13313-492-0	01	1	9905-		●
44	BOLT; CLIP,OIL PIPE M6X25 FLANGE	0-28080-625-0	01	1	9603-9904	●
44	BOLT; CLIP,OIL PIPE M6X25 FLANGE	0-28080-625-0	01	1	9905-	●	●
48	CLIP; OIL PIPE	1-09701-132-1	02	1	9905-		●
114	PIPE ASM; OIL,BODY	1-13313-619-0	01	1	9603-9904	●
114	PIPE ASM; OIL,BODY	1-13313-619-0	01	1	9905-	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	05	1	9603-9603	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	05	1	9905-	●	●
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	05	1	9604-9904	●
118	BRACKET; CLIP,OIL PIPE	1-13319-041-0	01	1	9603-9904	●
118	BRACKET; CLIP,OIL PIPE	1-13319-041-0	01	1	9905-	●	●
119	CLIP; OIL PIPE,BODY TO CMPR ID=7 L=25 B=18	1-09700-851-0	02	1	9603-9904	●
119	CLIP; OIL PIPE,BODY TO CMPR ID=7 L=25 B=18	1-09700-851-0	02	1	9905-	●	●
132	PIPE ASM; OIL,INJ PUMP FEED	1-13313-386-1	01	1	9603-9904	●
132	PIPE ASM; OIL,INJ PUMP FEED	1-13313-607-0	01	1	9905-		●
132	PIPE ASM; OIL,INJ PUMP FEED	1-13313-386-1	01	1	9905-	●
135	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	9905-		●
137	UNION; OIL PIPE	1-09664-170-0	01	1	9603-9904	●
137	UNION; OIL PIPE	1-09664-170-0	01	1	9905-0008	●	●
137	UNION; OIL PIPE	1-09664-256-0	01	1	0009-	●	●
139	BOLT; EYE,UNION M14X39 FLANGE	1-09675-089-0	01	1	9603-9904	●
139	BOLT; EYE,UNION M14X39 FLANGE	1-09675-089-0	01	1	9905-	●	●
140	GASKET; EYE BOLT,UNION ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	02	1	9603-9904	●
140	GASKET; EYE BOLT,UNION ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-	●	●
157	BRACKET; OIL PIPE	1-15419-363-1	01	1	9905-9910		●
157	BRACKET; OIL PIPE	1-15419-622-0	01	1	9911-		●
172	PIPE; OIL,TIMER	1-13313-620-0	01	1	9603-9904	●
172	PIPE; OIL,TIMER	1-13313-819-0	01	1	9905-	●	●
177	JET ASM; OIL,OIL PIPE	1-09679-010-0	01	1	9603-9904	●
177	JET ASM; OIL,OIL PIPE	1-09679-010-0	01	1	9905-	●	●
