◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FORWARD ▶ 11412 - FORWARD 1100/1200 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#55178) — 68 parça

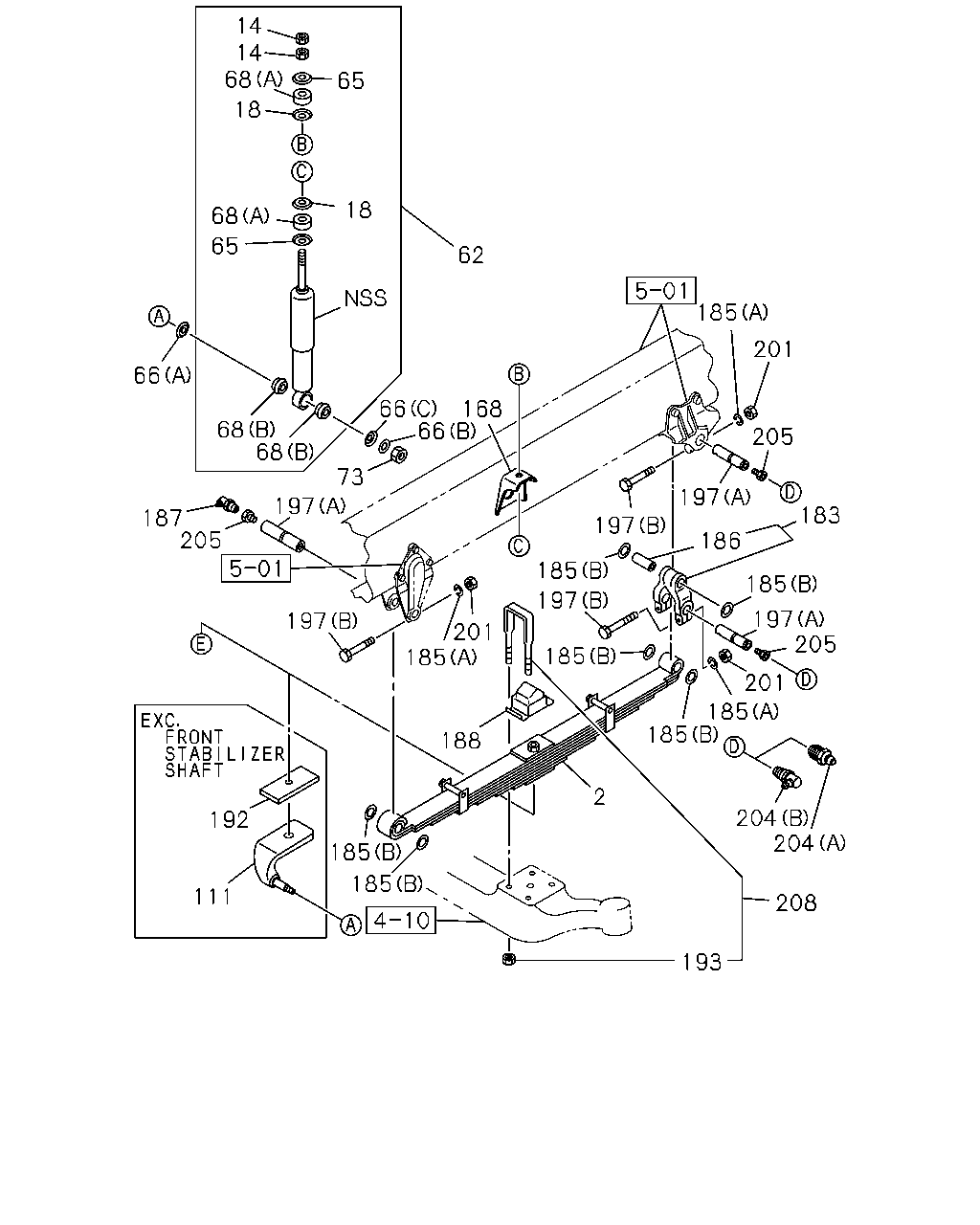

çizim 144958
14 65 14 18 68 18 68 62 65 66 68 73 197 68 187 205 197 192 111 185 185 2 193 208 204 204 185 185 188 185 197 185 197 205 201 186 197 185 201 66 66 168 197 183 185 205 201 185
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 4HK1-TCS ENG(RJS) FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF 		8-98328-526-0 01 1 1509-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 4HK1-TCS ENG(RJS) MULTI LEAF SUSPENSION FRT<SAQ> 8-LEAF 		8-98268-436-0 01 1 1402-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 4HK1-TCS ENG(RJS) FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF 		8-98204-313-0 02 1 1311-1508
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 4HK1-TCS ENG(RJS) FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF 		8-98204-313-0 01 1 1509-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF 		8-98023-053-0 02 1 1106-1310
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6HK1-TCN ENG(82L) FRT TAPER LEAF SUSPENSION<SAR> 3-LEAF 		8-98023-053-0 02 1 1311-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT STABILIZER SHAFT<F59> MULTI LEAF SUSPENSION FRT<SAQ> 7-LEAF 		8-98010-512-0 02 1 1106-1310
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6HK1-TCN ENG(82L) MULTI LEAF SUSPENSION FRT<SAQ> 7-LEAF 		8-98010-512-0 02 1 1311-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT TAPER LEAF SUSPENSION<SAR> EXC. FRONT STABILIZER SHAFT<F59> 3-LEAF 		8-98069-483-0 02 1 1106-1203
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. MULTI LEAF SUSPENSION FRT<SAQ> EXC. FRONT STABILIZER SHAFT<F59> 7-LEAF 		8-98029-096-0 02 1 1106-1310
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 4HK1-TCS ENG(RJS) MULTI LEAF SUSPENSION FRT<SAQ> 8-LEAF 		8-98228-700-0 02 1 1311-1401
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 4HK1-TCS ENG(RJS) MULTI LEAF SUSPENSION FRT<SAQ> 8-LEAF 		8-98228-700-0 01 1 1402-
14 NUT; S/ABS,UPR
M12 		8-98010-412-0 04 1 1106-
18 WASHER; CENTERING,S/ABS
ID=16.8 		1-51631-022-0 04 1 1106-
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> 		8-98021-302-0 02 1 1106-1310
62 ABSORBER ASM; SHOCK,FRT 8-98021-302-0 02 1 1311-
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT STABILIZER SHAFT<F59> 		8-98063-368-0 02 1 1106-1310
65 WASHER; S/ABS
ID=14.5 		9-51631-051-0 04 1 1106-
66 WASHER; LK,S/ABS SETTING
(B) ID=17 OD=30 		0-91610-516-0 02 1 1106-
66 WASHER; LK,S/ABS SETTING
(A) ID=23 		1-51631-019-0 02 1 1106-
66 WASHER; LK,S/ABS SETTING
(C) ID=17 		1-51631-020-0 02 1 1106-
68 BUSHING; S/ABS
(B) 		1-51631-009-1 04 1 1106-
68 BUSHING; S/ABS
(A) 		9-51631-050-0 04 1 1106-
73 NUT; BRKT,SHOCK
M16 		0-91110-516-0 02 1 1106-
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98123-347-0 01 1 1106-1310
111 SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59> 		8-98123-348-0 01 1 1106-1310
168 BRACKET; S/ABS,FRT SUSP 1-51681-306-0 02 1 1106-
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1106-
185 WASHER; LK,PIN
(A) ID=12.2 		0-91510-612-0 12 1 1106-
185 WASHER; LK,PIN
(B) ID=32.4 		1-51169-018-0 12 1 1106-
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1106-
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 1106-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRT TAPER LEAF SUSPENSION<SAR> 		1-51172-125-1 02 1 1106-1310
188 RUBBER; CLAMP,U-BOLT,FRT SPR
4HK1-TCS ENG(RJS) FRT TAPER LEAF SUSPENSION<SAR> 		1-51172-096-2 02 1 1311-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
MULTI LEAF SUSPENSION FRT<SAQ> 		1-51172-096-2 02 1 1311-
188 RUBBER; CLAMP,U-BOLT,FRT SPR
MULTI LEAF SUSPENSION FRT<SAQ> 		1-51172-096-2 02 1 1106-1310
188 RUBBER; CLAMP,U-BOLT,FRT SPR
6HK1-TCN ENG(82L) FRT TAPER LEAF SUSPENSION<SAR> 		1-51172-125-1 02 1 1311-
192 PIECE; DIST
EXC. FRONT STABILIZER SHAFT<F59> 80X144 ID=17.5 		1-51177-284-1 AR 1 1106-1310
193 NUT; U BOLT
M22 		0-91112-822-0 08 1 1106-1206
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1207-
197 PIN; FRT SPR,FRT
(B) M12X80 		0-10856-280-0 12 1 1106-
197 PIN; FRT SPR,FRT
(A) 		1-51161-031-0 06 1 1106-
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 1106-
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1106-
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1106-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1106-
208 U-BOLT SET; FRT SPRING
FRT TAPER LEAF SUSPENSION<SAR> L=210 		1-87870-380-1 04 1 1106-1206
208 U-BOLT SET; FRT SPRING
FRT TAPER LEAF SUSPENSION<SAR> L=210 		1-87870-498-0 04 1 1207-
208 U-BOLT SET; FRT SPRING
MULTI LEAF SUSPENSION FRT<SAQ> L=230 		1-87870-269-2 04 1 1106-1206
208 U-BOLT SET; FRT SPRING
MULTI LEAF SUSPENSION FRT<SAQ> L=230 		1-87870-493-0 04 1 1207-

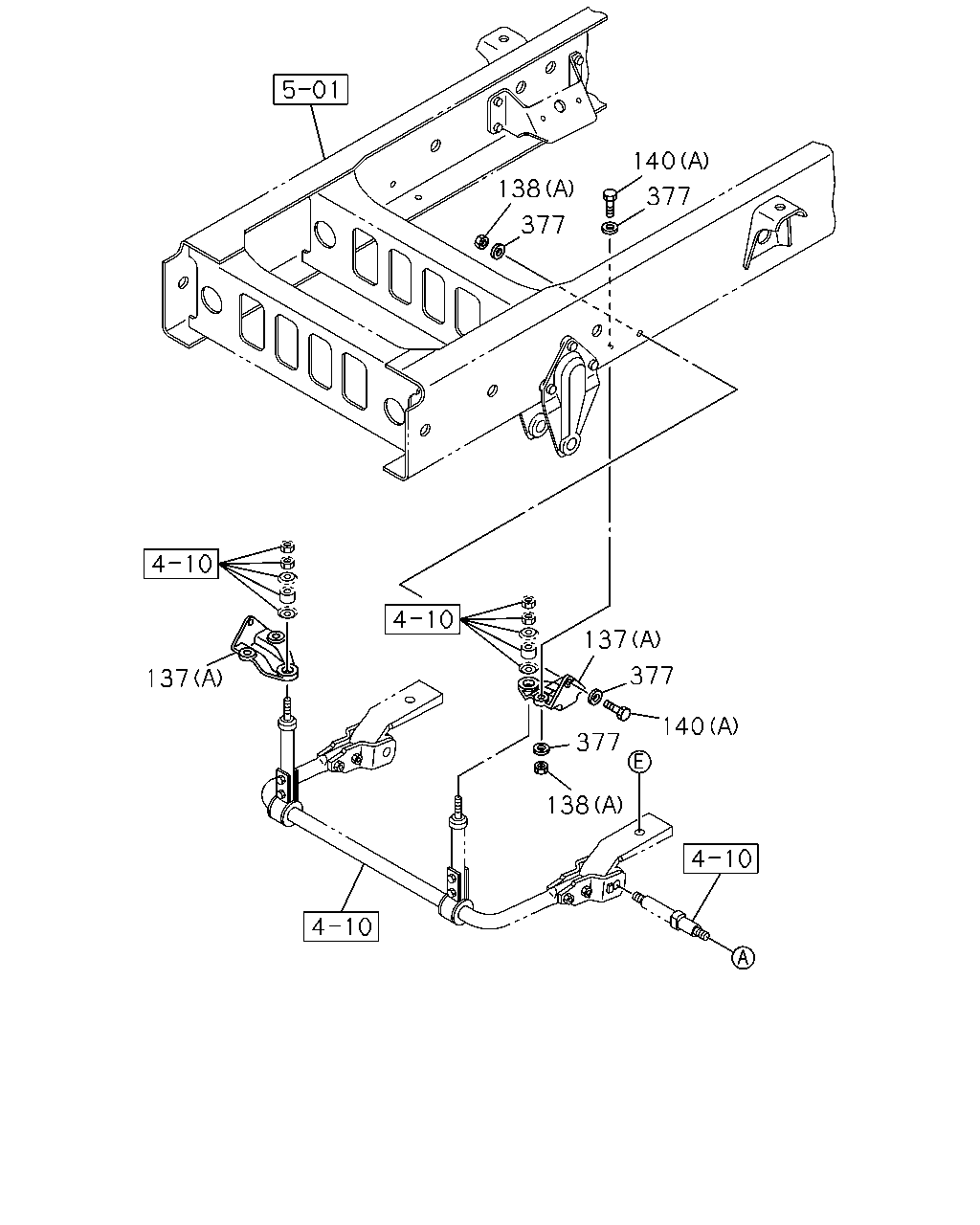

çizim 145015
138 377 140 377 137 377 137 377 140 138
BalonParca AdiParca NoAdetTipApplied Date
137 BRACKET; STAB BAR TO FRAME
6HK1-TCN ENG(82L) (A) 		8-98128-356-1 02 1 1311-
137 BRACKET; STAB BAR TO FRAME
FRONT STABILIZER SHAFT<F59> (A) 		8-98128-356-1 02 1 1106-1310
137 BRACKET; STAB BAR TO FRAME
4HK1-TCS ENG(RJS) (B) 		1-51781-046-3 02 1 1311-
138 NUT; BRKT
6HK1-TCN ENG(82L) (A) M14 		0-91110-514-0 06 1 1311-
138 NUT; BRKT
FRONT STABILIZER SHAFT<F59> (A) M14 		0-91110-514-0 06 1 1106-1310
138 NUT; BRKT
4HK1-TCS ENG(RJS) (B) M10 FLANGE 		0-91180-210-0 08 1 1311-
140 BOLT; BRKT
6HK1-TCN ENG(82L) (A) M14X45 		9-92061-445-0 06 1 1311-
140 BOLT; BRKT
FRONT STABILIZER SHAFT<F59> (A) M14X45 		9-92061-445-0 06 1 1106-1310
140 BOLT; BRKT
4HK1-TCS ENG(RJS) (B) M10X30 FLANGE 		0-28651-030-0 08 1 1311-
377 WASHER; LK,BRKT
FRONT STABILIZER SHAFT<F59> ID=15 		8-98010-627-1 12 1 1106-1310
377 WASHER; LK,BRKT
6HK1-TCN ENG(82L) ID=15 		8-98010-627-1 12 1 1311-

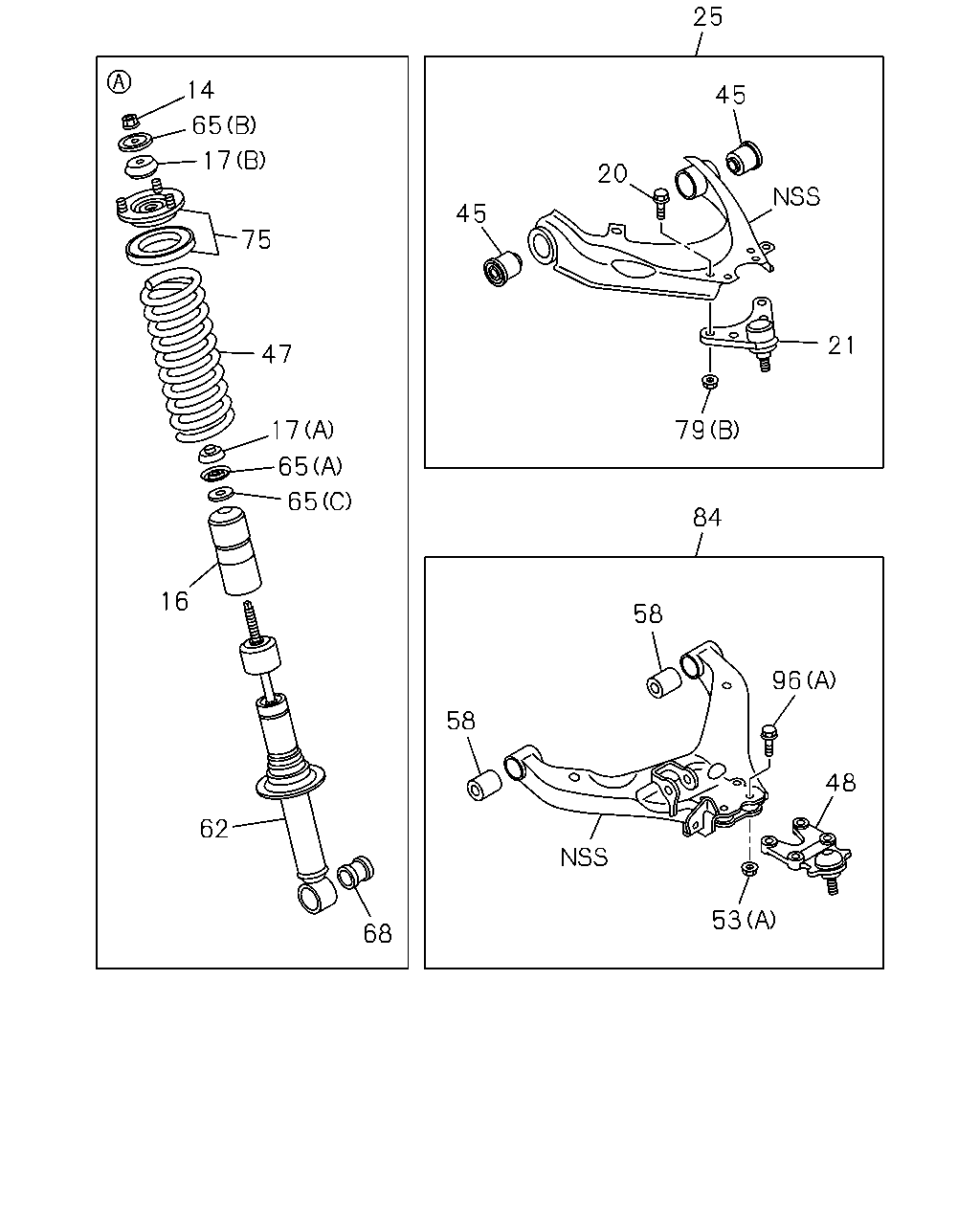

çizim 385550
25 45 21 79 45 20 84 58 96 48 53 58 68 62 16 65 65 17 47 75 17 65 14
BalonParca AdiParca NoAdetTipApplied Date
14 NUT; S/ABS,UPR
M12 		8-98010-412-0 04 1 1106-
62 ABSORBER ASM; SHOCK,FRT
FRONT STABILIZER SHAFT<F59> 		8-98021-302-0 02 1 1106-1310
62 ABSORBER ASM; SHOCK,FRT 8-98021-302-0 02 1 1311-
62 ABSORBER ASM; SHOCK,FRT
EXC. FRONT STABILIZER SHAFT<F59> 		8-98063-368-0 02 1 1106-1310
65 WASHER; S/ABS
ID=14.5 		9-51631-051-0 04 1 1106-
68 BUSHING; S/ABS
(B) 		1-51631-009-1 04 1 1106-
68 BUSHING; S/ABS
(A) 		9-51631-050-0 04 1 1106-
