4-42 — POWER STEERING OIL PUMP (#55177) — 43 parça

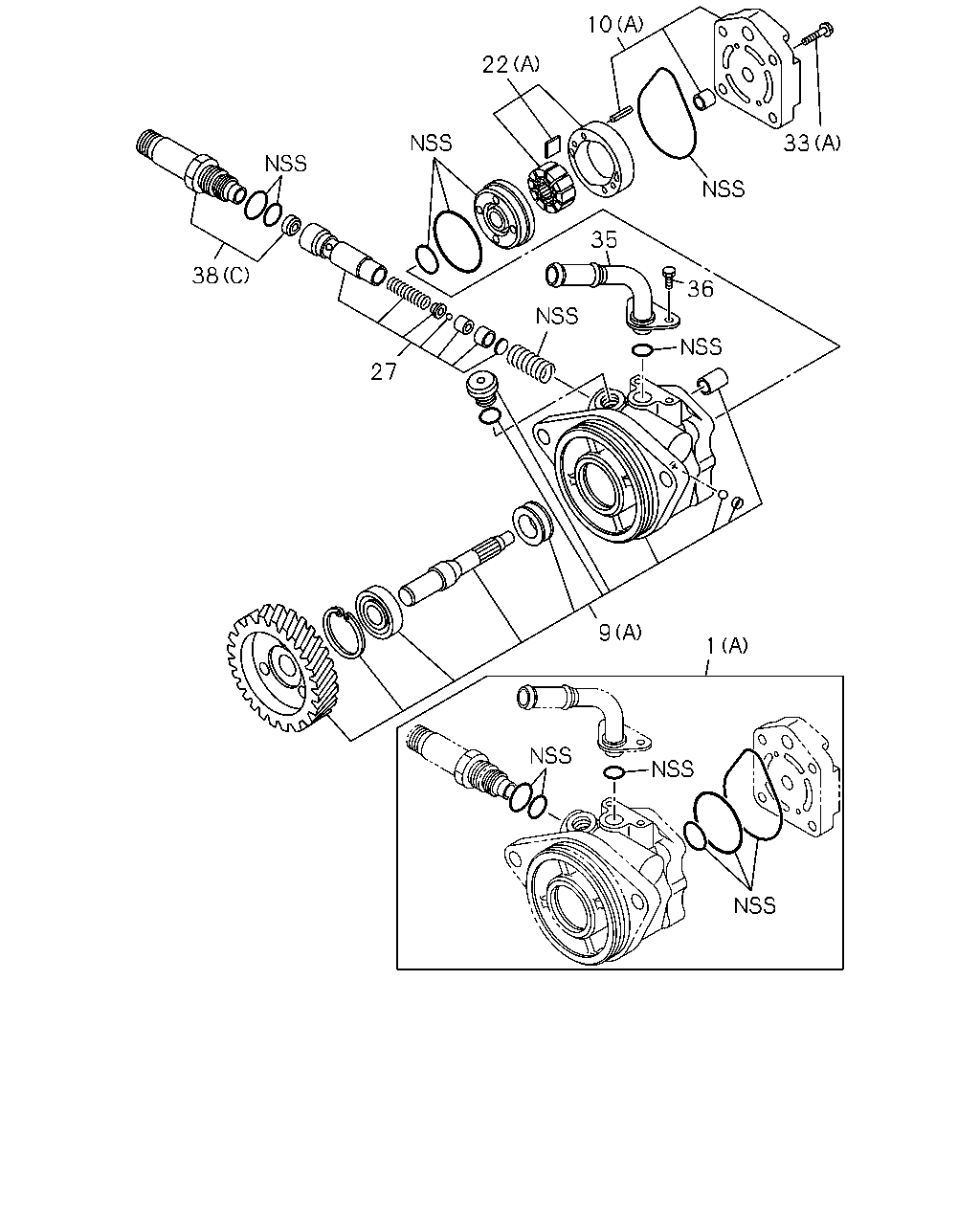

10 22 33 35 36 27 38 9 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP (B) ASM PART: B = 8-98190-459-0	1-85574-073-0	01	1	-
1	REPAIR KIT; OIL PUMP (A) ASM PART: A = 1-19500-629-1	8-98077-484-0	01	1	-
9	BODY ASM; FRT,OIL PUMP (B) ASM PART: B = 8-98190-459-0	1-19511-162-1	01	1	-
9	BODY ASM; FRT,OIL PUMP (A) ASM PART: A = 1-19500-629-1	8-98077-485-0	01	1	-
10	BODY ASM; RR,OIL PUMP (B) ASM PART: B = 8-98190-459-0	1-19511-160-0	01	1	-
10	BODY ASM; RR,OIL PUMP (A) ASM PART: A = 1-19500-629-1	8-98077-477-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP (B) ASM PART: B = 8-98190-459-0	1-19519-342-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP (A) ASM PART: A = 1-19500-629-1	8-98077-476-0	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: A = 1-19500-629-1	8-98077-479-0	01	1	-
33	BOLT; COVER (B) ASM PART: B = 8-98190-459-0	1-19519-346-1	04	1	-
33	BOLT; COVER (A) ASM PART: A = 1-19500-629-1	8-98077-478-0	04	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: A = 1-19500-629-1	8-98077-482-0	01	1	-
36	BOLT; CONN,PIPE ASM PART: A = 1-19500-629-1	8-97184-763-0	02	1	-
38	CONNECTOR; OIL PUMP (B) ASM PART: B = 8-98190-459-0	8-98072-517-0	01	1	-
38	CONNECTOR; OIL PUMP (C) ASM PART: A = 1-19500-629-1	8-98077-481-0	01	1	-
38	CONNECTOR; OIL PUMP (A) ASM PART: B = 8-98190-459-0	8-98162-180-0	01	1	-

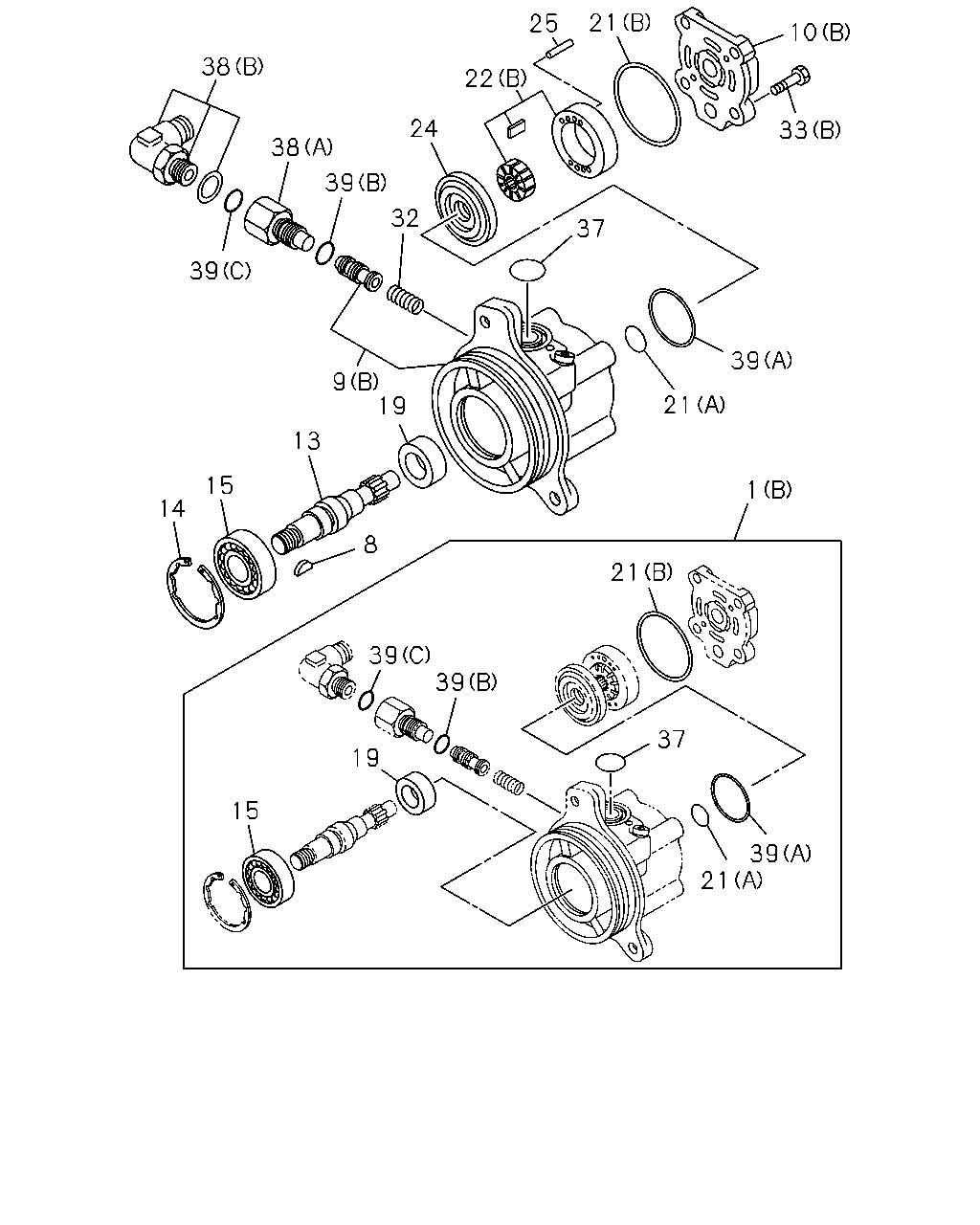

38 39 38 32 39 24 22 25 21 37 33 10 9 13 15 14 8 19 21 39 1 21 37 39 39 19 15 21 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP (B) ASM PART: B = 8-98190-459-0	1-85574-073-0	01	1	-
1	REPAIR KIT; OIL PUMP (A) ASM PART: A = 1-19500-629-1	8-98077-484-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: B = 8-98190-459-0	9-19519-089-0	01	1	-
9	BODY ASM; FRT,OIL PUMP (B) ASM PART: B = 8-98190-459-0	1-19511-162-1	01	1	-
9	BODY ASM; FRT,OIL PUMP (A) ASM PART: A = 1-19500-629-1	8-98077-485-0	01	1	-
10	BODY ASM; RR,OIL PUMP (B) ASM PART: B = 8-98190-459-0	1-19511-160-0	01	1	-
10	BODY ASM; RR,OIL PUMP (A) ASM PART: A = 1-19500-629-1	8-98077-477-0	01	1	-
13	SHAFT KIT; RET ASM PART: B = 8-98190-459-0	1-19521-038-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: B = 8-98190-459-0	1-19519-257-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: B = 8-98190-459-0	1-19519-264-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: B = 8-98190-459-0	1-19519-256-0	01	1	-
21	GASKET; FRT COVER TO BODY (B) ASM PART: B = 8-98190-459-0	1-19519-345-0	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: B = 8-98190-459-0	8-97182-099-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP (B) ASM PART: B = 8-98190-459-0	1-19519-342-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP (A) ASM PART: A = 1-19500-629-1	8-98077-476-0	01	1	-
24	PLATE ASM; THRUST ASM PART: B = 8-98190-459-0	8-97182-103-0	01	1	-
25	PIN; HSG,P/S ASM PART: B = 8-98190-459-0	1-33739-345-0	02	1	-
32	SPRING; OIL PUMP ASM PART: B = 8-98190-459-0	8-94475-376-0	01	1	-
33	BOLT; COVER (B) ASM PART: B = 8-98190-459-0	1-19519-346-1	04	1	-
33	BOLT; COVER (A) ASM PART: A = 1-19500-629-1	8-98077-478-0	04	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: B = 8-98190-459-0	1-33739-070-0	01	1	-
38	CONNECTOR; OIL PUMP (B) ASM PART: B = 8-98190-459-0	8-98072-517-0	01	1	-
38	CONNECTOR; OIL PUMP (C) ASM PART: A = 1-19500-629-1	8-98077-481-0	01	1	-
38	CONNECTOR; OIL PUMP (A) ASM PART: B = 8-98190-459-0	8-98162-180-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: B = 8-98190-459-0	1-19519-259-0	01	1	-
39	GASKET; OIL PUMP (C) ASM PART: B = 8-98190-459-0	1-19519-308-0	01	1	-
39	GASKET; OIL PUMP (B) ASM PART: B = 8-98190-459-0	9-48429-028-0	01	1	-
