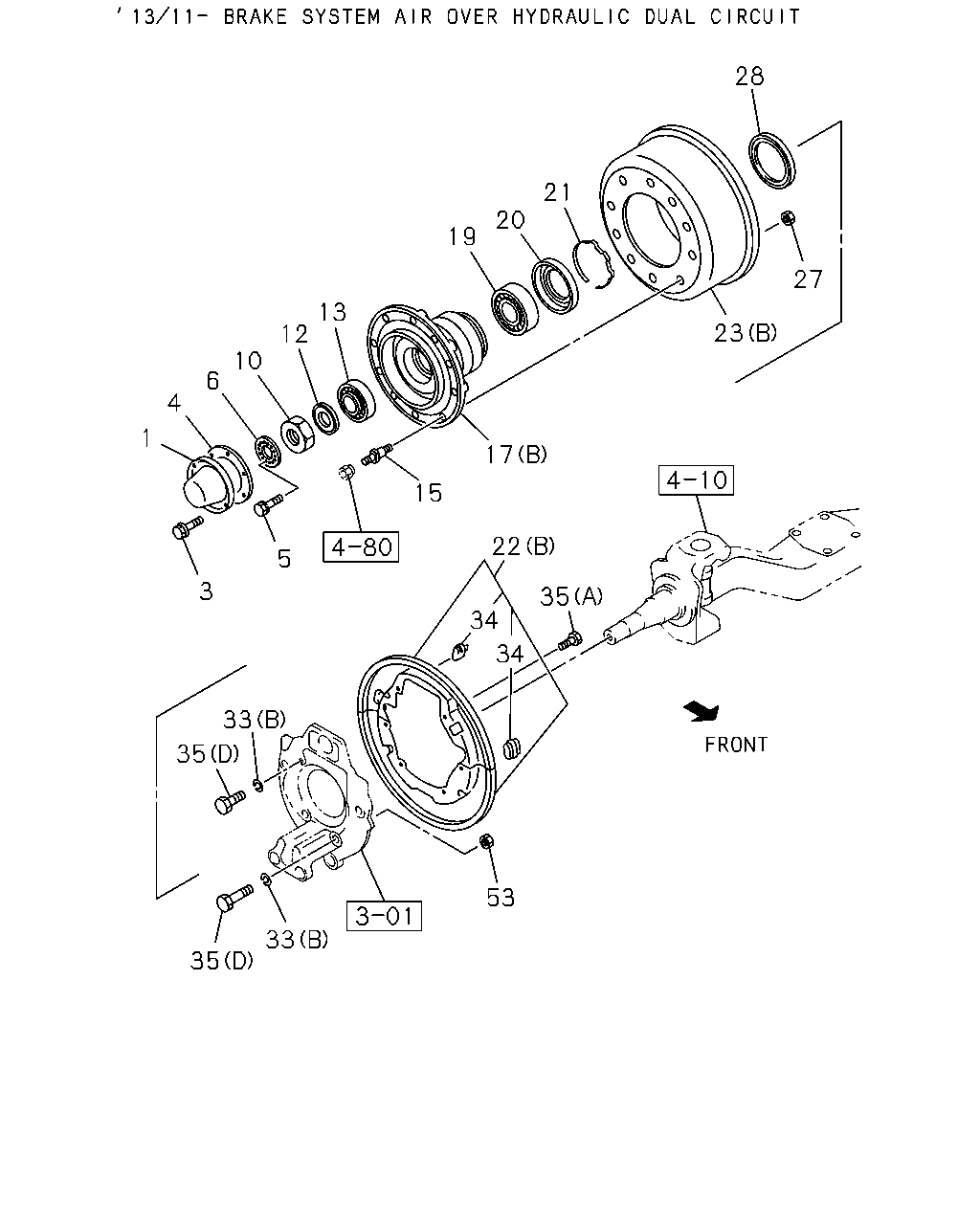

4-11 — FRONT HUB AND DRUM OR ROTOR (#55168) — 69 parça

28 21 20 19 13 12 10 6 4 1 3 5 15 17 23 27 34 34 22 33 35 33 35 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CAP; HUB,FRT AXLE OD=156	9-42313-123-2	02	1	1106-
3	BOLT; HUB CAP,FRT WHEEL M8X12 FLANGE	0-28050-812-0	12	1	1106-
4	GASKET; HUB CAP,FRT WHEEL	1-42319-185-2	02	1	1106-
5	BOLT; LK WASHER M6X16 HEX SOCKET	8-98084-271-0	04	1	1106-1201
5	BOLT; LK WASHER M6X16 HEX SOCKET	8-98200-943-0	04	1	1202-
6	WASHER; LK,FRT HUB ID=48	8-98084-561-0	02	1	1106-
10	NUT; FRT HUB BRG M48	1-09840-012-5	02	1	1106-
12	WASHER; LK,FRT HUB BRG ID=48	8-98156-755-0	02	1	1106-
13	BEARING; HUB OUTER,FRT AXLE JTEKT	1-09812-234-0	02	1	1106-
15	PIN; WHEEL,FRT AXLE M22X42.8,M22X55.5 RH THREAD	1-42337-067-1	20	1	1106-
17	HUB; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-42312-100-1	02	1	1311-
17	HUB; FRT AXLE (A)	1-42312-160-0	02	1	1106-1310
17	HUB; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-42312-160-0	02	1	1311-
19	BEARING; HUB INNER,FRT AXLE JTEKT	1-09812-231-0	02	1	1106-
20	COVER; HUB BRG INNER	1-42319-039-0	02	1	1106-
21	RING; SNAP,HUB	1-09587-017-0	02	1	1106-
22	COVER SET; FRT BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47151-458-1	02	1	1311-
22	COVER SET; FRT BRK DRUM (A)	1-87831-225-0	02	1	1106-1310
22	COVER SET; FRT BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-87831-225-0	02	1	1311-
23	DRUM; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-42315-380-0	02	1	1311-
23	DRUM; BRK,FRT (A)	1-42315-365-0	02	1	1106-1310
23	DRUM; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-42315-365-0	02	1	1311-
27	NUT; WHEEL PIN,FRT AXLE M22	1-09400-071-0	20	1	1106-
28	SEAL; OIL,FRT HUB OD=140	1-09625-041-0	02	1	1106-
33	WASHER; LK,DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=16.2	0-91510-816-0	04	1	1311-
33	WASHER; LK,DRUM COVER (A) ID=18.2	0-91510-818-0	12	1	1106-1310
33	WASHER; LK,DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=18.2	0-91510-818-0	12	1	1311-
34	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	1106-
35	BOLT; DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) M16X52	1-09044-120-0	04	1	1311-
35	BOLT; DRUM COVER (C) M18X65	1-09000-789-0	04	1	1106-1310
35	BOLT; DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M18X65	1-09000-789-0	04	1	1311-
35	BOLT; DRUM COVER (B) M18X45	1-09000-790-0	08	1	1106-1310
35	BOLT; DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M18X45	1-09000-790-0	08	1	1311-
35	BOLT; DRUM COVER (A) M10X12	1-47159-187-0	12	1	1106-

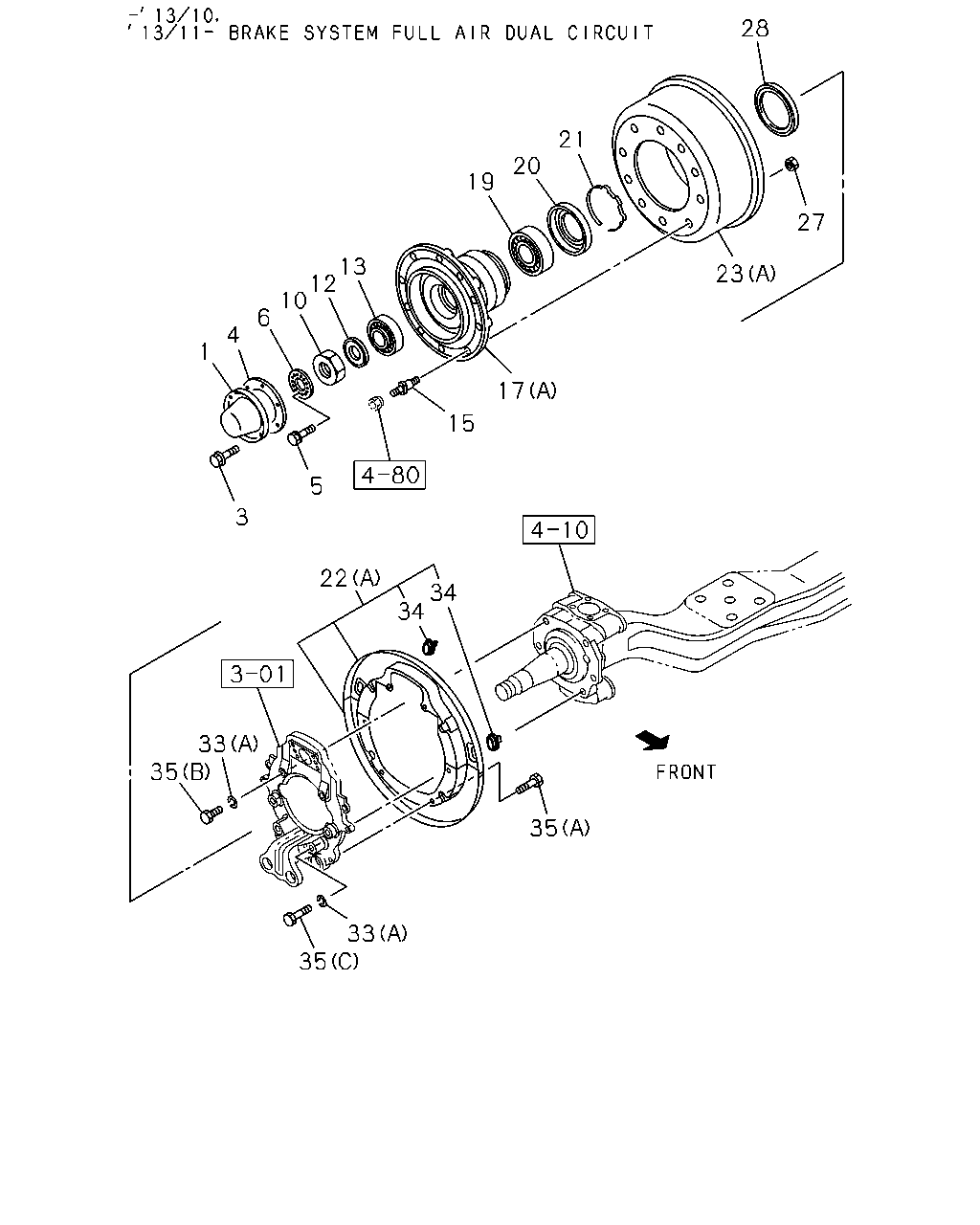

28 27 23 21 20 19 13 12 10 6 4 1 3 5 15 17 22 35 34 34 53 33 35 35 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CAP; HUB,FRT AXLE OD=156	9-42313-123-2	02	1	1106-
3	BOLT; HUB CAP,FRT WHEEL M8X12 FLANGE	0-28050-812-0	12	1	1106-
4	GASKET; HUB CAP,FRT WHEEL	1-42319-185-2	02	1	1106-
5	BOLT; LK WASHER M6X16 HEX SOCKET	8-98084-271-0	04	1	1106-1201
5	BOLT; LK WASHER M6X16 HEX SOCKET	8-98200-943-0	04	1	1202-
6	WASHER; LK,FRT HUB ID=48	8-98084-561-0	02	1	1106-
10	NUT; FRT HUB BRG M48	1-09840-012-5	02	1	1106-
12	WASHER; LK,FRT HUB BRG ID=48	8-98156-755-0	02	1	1106-
13	BEARING; HUB OUTER,FRT AXLE JTEKT	1-09812-234-0	02	1	1106-
15	PIN; WHEEL,FRT AXLE M22X42.8,M22X55.5 RH THREAD	1-42337-067-1	20	1	1106-
17	HUB; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-42312-100-1	02	1	1311-
17	HUB; FRT AXLE (A)	1-42312-160-0	02	1	1106-1310
17	HUB; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-42312-160-0	02	1	1311-
19	BEARING; HUB INNER,FRT AXLE JTEKT	1-09812-231-0	02	1	1106-
20	COVER; HUB BRG INNER	1-42319-039-0	02	1	1106-
21	RING; SNAP,HUB	1-09587-017-0	02	1	1106-
22	COVER SET; FRT BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-47151-458-1	02	1	1311-
22	COVER SET; FRT BRK DRUM (A)	1-87831-225-0	02	1	1106-1310
22	COVER SET; FRT BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-87831-225-0	02	1	1311-
23	DRUM; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-42315-380-0	02	1	1311-
23	DRUM; BRK,FRT (A)	1-42315-365-0	02	1	1106-1310
23	DRUM; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-42315-365-0	02	1	1311-
27	NUT; WHEEL PIN,FRT AXLE M22	1-09400-071-0	20	1	1106-
28	SEAL; OIL,FRT HUB OD=140	1-09625-041-0	02	1	1106-
33	WASHER; LK,DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=16.2	0-91510-816-0	04	1	1311-
33	WASHER; LK,DRUM COVER (A) ID=18.2	0-91510-818-0	12	1	1106-1310
33	WASHER; LK,DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=18.2	0-91510-818-0	12	1	1311-
34	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	1106-
35	BOLT; DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) M16X52	1-09044-120-0	04	1	1311-
35	BOLT; DRUM COVER (C) M18X65	1-09000-789-0	04	1	1106-1310
35	BOLT; DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M18X65	1-09000-789-0	04	1	1311-
35	BOLT; DRUM COVER (B) M18X45	1-09000-790-0	08	1	1106-1310
35	BOLT; DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M18X45	1-09000-790-0	08	1	1311-
35	BOLT; DRUM COVER (A) M10X12	1-47159-187-0	12	1	1106-
53	NUT; DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16	0-91110-516-0	04	1	1311-
