4-10 — FRONT AXLE (#55167) — 237 parça

45 44 295 21 48 8 6 2 9 313 275 17 61 6 18 8 21 45 8 44 48 73 304 74 81 304 74 68 36 32 80 66 58 68 59 25 30 33 34 30 1 18 313 17 2 18 17 80 66 58 275 59 220 40 61 73 3 48 44 21 295 45 6 8 33 34 25 6 8 48 21 44 45 32 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43111-113-6	01	1	1311-
1	AXLE; FRT (A)	8-98170-180-2	01	1	1106-1310
1	AXLE; FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98170-180-2	01	1	1311-
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43131-079-1	01	1	1311-
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43132-079-1	01	1	1311-
2	KNUCKLE; FRT AXLE (A)	1-43131-120-1	01	1	1106-1310
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43131-120-1	01	1	1311-
2	KNUCKLE; FRT AXLE (A)	1-43132-120-1	01	1	1106-1310
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43132-120-1	01	1	1311-
3	KING PIN SET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-87831-302-3	02	1	1311-
3	KING PIN SET (A)	1-87831-410-2	02	1	1106-1310
3	KING PIN SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-87831-410-3	02	1	1311-
6	SEAL; KING PIN	9-09926-024-0	04	1	1106-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1106-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1106-
9	PLUG; KNUCKLE OD=22	1-09600-011-2	02	1	1106-1310
9	PLUG; KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=22	1-09600-011-2	02	1	1311-
17	BOLT; STOPPER KNUCKLE (A) M18X53	1-09009-066-0	01	1	1106-1310
17	BOLT; STOPPER KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M18X53	1-09009-066-0	01	1	1311-
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	1106-
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	1106-
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	1106-1310
18	NUT; STOPPER BOLT,KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) OCTAGON M18	1-09469-011-1	01	1	1311-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1106-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1106-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1106-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1106-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1106-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1106-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1106-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1106-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1106-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1106-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1106-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1106-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1106-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1106-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1106-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1106-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1106-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	1106-
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1106-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-810-0	02	1	1106-1302
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1303-
36	ARM; KNUCKLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43133-063-3	01	1	1311-
36	ARM; KNUCKLE (A)	1-43133-073-3	01	1	1106-1310
36	ARM; KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43133-073-3	01	1	1311-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1106-
44	COVER; KING PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-43175-014-1	02	1	1311-
44	COVER; KING PIN (A)	8-98100-654-0	02	1	1106-1310
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98100-654-0	02	1	1311-
44	COVER; KING PIN (B)	8-98100-655-0	02	1	1106-1310
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98100-655-0	02	1	1311-
45	GASKET; KING PIN COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-42319-044-0	02	1	1311-
45	GASKET; KING PIN COVER (A)	8-98100-656-1	04	1	1106-1310
45	GASKET; KING PIN COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98100-656-1	04	1	1311-
48	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12X16 FLANGE	0-28051-216-0	08	1	1311-
48	BOLT; COVER (A) M10X25 FLANGE	0-28751-025-0	12	1	1106-1310
48	BOLT; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10X25 FLANGE	0-28751-025-0	12	1	1311-
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43134-042-3	01	1	1311-
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43135-042-3	01	1	1311-
58	ARM; TIE ROD (A)	1-43134-049-4	01	1	1106-1310
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43134-049-4	01	1	1311-
58	ARM; TIE ROD (A)	1-43135-049-4	01	1	1106-1310
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43135-049-4	01	1	1311-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1106-
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98236-800-0	01	1	1311-
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98236-801-0	01	1	1311-
61	ROD END; TIE ROD (A)	8-98096-753-0	01	1	1106-1306
61	ROD END; TIE ROD (A)	8-98228-106-0	01	1	1307-1310
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98228-106-0	01	1	1311-
61	ROD END; TIE ROD (A)	8-98096-754-0	01	1	1106-1306
61	ROD END; TIE ROD (A)	8-98228-107-0	01	1	1307-1310
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98228-107-0	01	1	1311-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1106-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1106-
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1106-
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1106-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1106-
81	ROD; TIE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98193-965-0	01	1	1311-
81	ROD; TIE (A)	8-98171-947-0	01	1	1106-1310
81	ROD; TIE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98171-947-0	01	1	1311-
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	1106-1310
220	STUD; KNUCKLE ARM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22X145	1-09300-127-1	02	1	1311-
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1106-1306
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	1106-1310
295	STUD; COVER,KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X20,M10X26 L=56	8-98010-334-0	04	1	1311-
304	WASHER; PL 6HK1-TCN ENG(82L) (B) ID=21	9-09164-520-0	02	1	1311-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1106-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	1106-1310
304	WASHER; PL 4HK1-TCS ENG(RJS) (B) ID=21	0-91614-520-0	02	1	1311-
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	1106-1310
313	STUD; TIE ROD ARM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22X145	1-09300-127-1	04	1	1311-

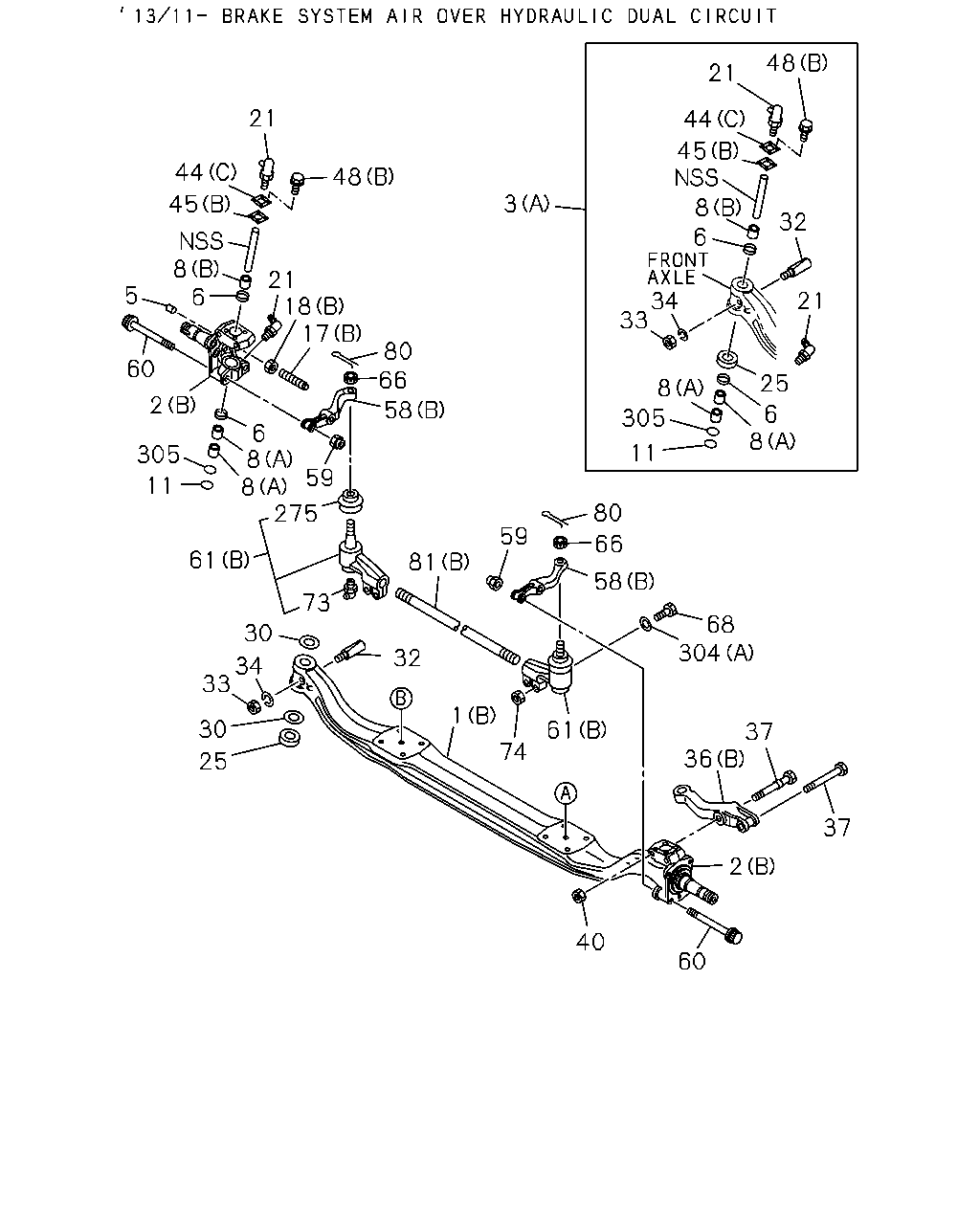

21 48 44 45 8 6 32 21 25 6 8 34 33 3 305 11 48 21 44 45 8 6 5 21 18 17 80 66 58 81 59 8 8 6 2 60 305 11 61 30 34 33 30 25 73 275 32 1 74 61 40 60 2 37 37 36 304 68 58 66 80 59 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43111-113-6	01	1	1311-
1	AXLE; FRT (A)	8-98170-180-2	01	1	1106-1310
1	AXLE; FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98170-180-2	01	1	1311-
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43131-079-1	01	1	1311-
2	KNUCKLE; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43132-079-1	01	1	1311-
2	KNUCKLE; FRT AXLE (A)	1-43131-120-1	01	1	1106-1310
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43131-120-1	01	1	1311-
2	KNUCKLE; FRT AXLE (A)	1-43132-120-1	01	1	1106-1310
2	KNUCKLE; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43132-120-1	01	1	1311-
3	KING PIN SET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-87831-302-3	02	1	1311-
3	KING PIN SET (A)	1-87831-410-2	02	1	1106-1310
3	KING PIN SET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-87831-410-3	02	1	1311-
5	PIN; KNUCKLE TO DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-09740-072-0	02	1	1311-
6	SEAL; KING PIN	9-09926-024-0	04	1	1106-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1106-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1106-
11	RING; SNAP,KNUCKLE PLUG BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-09950-204-0	02	1	1311-
17	BOLT; STOPPER KNUCKLE (A) M18X53	1-09009-066-0	01	1	1106-1310
17	BOLT; STOPPER KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M18X53	1-09009-066-0	01	1	1311-
17	BOLT; STOPPER KNUCKLE (B) M18X43	1-09009-190-0	02	1	1106-
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	1106-
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	1106-1310
18	NUT; STOPPER BOLT,KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) OCTAGON M18	1-09469-011-1	01	1	1311-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1106-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1106-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1106-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1106-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1106-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1106-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1106-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1106-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1106-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1106-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1106-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1106-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1106-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1106-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1106-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1106-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1106-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	1106-
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	1106-
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-810-0	02	1	1106-1302
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	1303-
36	ARM; KNUCKLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43133-063-3	01	1	1311-
36	ARM; KNUCKLE (A)	1-43133-073-3	01	1	1106-1310
36	ARM; KNUCKLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43133-073-3	01	1	1311-
37	BOLT; KNUCKLE ARM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M22X179	8-98052-380-1	01	1	1311-
37	BOLT; KNUCKLE ARM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M22X167	8-98052-381-1	01	1	1311-
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1106-
44	COVER; KING PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-43175-014-1	02	1	1311-
44	COVER; KING PIN (A)	8-98100-654-0	02	1	1106-1310
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98100-654-0	02	1	1311-
44	COVER; KING PIN (B)	8-98100-655-0	02	1	1106-1310
44	COVER; KING PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98100-655-0	02	1	1311-
45	GASKET; KING PIN COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-42319-044-0	02	1	1311-
45	GASKET; KING PIN COVER (A)	8-98100-656-1	04	1	1106-1310
45	GASKET; KING PIN COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98100-656-1	04	1	1311-
48	BOLT; COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M12X16 FLANGE	0-28051-216-0	08	1	1311-
48	BOLT; COVER (A) M10X25 FLANGE	0-28751-025-0	12	1	1106-1310
48	BOLT; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10X25 FLANGE	0-28751-025-0	12	1	1311-
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43134-042-3	01	1	1311-
58	ARM; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-43135-042-3	01	1	1311-
58	ARM; TIE ROD (A)	1-43134-049-4	01	1	1106-1310
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43134-049-4	01	1	1311-
58	ARM; TIE ROD (A)	1-43135-049-4	01	1	1106-1310
58	ARM; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-43135-049-4	01	1	1311-
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1106-
60	BOLT; TIE ROD ARM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M22X193	8-98052-379-1	04	1	1311-
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98236-800-0	01	1	1311-
61	ROD END; TIE ROD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98236-801-0	01	1	1311-
61	ROD END; TIE ROD (A)	8-98096-753-0	01	1	1106-1306
61	ROD END; TIE ROD (A)	8-98228-106-0	01	1	1307-1310
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98228-106-0	01	1	1311-
61	ROD END; TIE ROD (A)	8-98096-754-0	01	1	1106-1306
61	ROD END; TIE ROD (A)	8-98228-107-0	01	1	1307-1310
61	ROD END; TIE ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98228-107-0	01	1	1311-
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1106-
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1106-
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1106-
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	1106-
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1106-
81	ROD; TIE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98193-965-0	01	1	1311-
81	ROD; TIE (A)	8-98171-947-0	01	1	1106-1310
81	ROD; TIE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98171-947-0	01	1	1311-
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1106-1306
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-
304	WASHER; PL 6HK1-TCN ENG(82L) (B) ID=21	9-09164-520-0	02	1	1311-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1106-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	1106-1310
304	WASHER; PL 4HK1-TCS ENG(RJS) (B) ID=21	0-91614-520-0	02	1	1311-
305	COVER; KNUCKLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98052-291-0	02	1	1311-

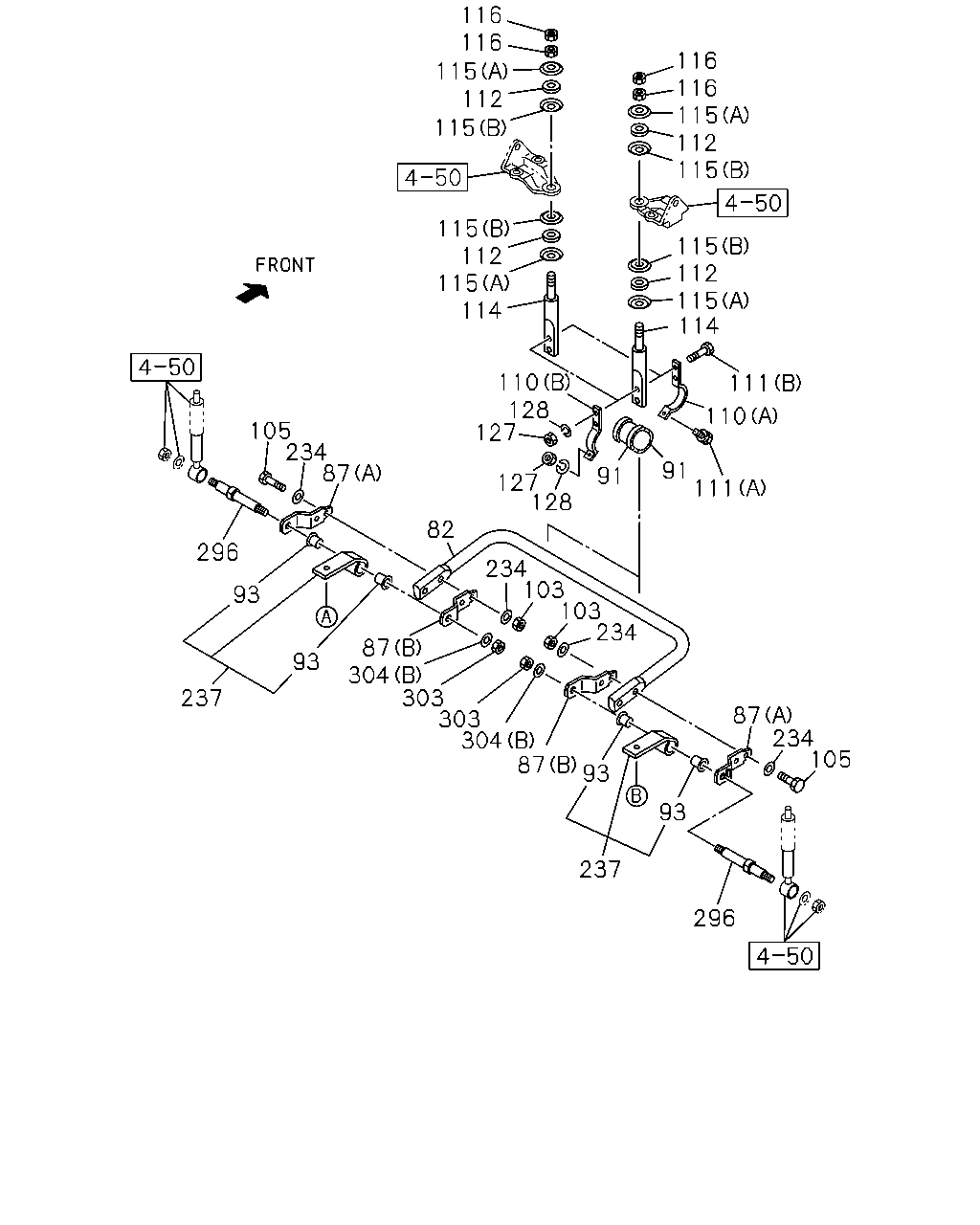

105 234 87 296 93 237 93 87 304 303 303 304 87 93 237 93 296 105 234 87 234 103 103 234 82 128 127 127 128 110 91 91 111 110 111 114 115 112 115 115 112 115 116 116 116 116 115 115 112 115 112 115 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	BAR; STAB,FRT SUSP 6HK1-TCN ENG(82L)	8-98012-961-1	01	1	1311-
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	8-98012-961-1	01	1	1106-1310
82	BAR; STAB,FRT SUSP 4HK1-TCS ENG(RJS)	8-98206-778-0	01	1	1311-
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	8-98012-958-0	02	1	1106-1310
87	BRACKET; STABILIZER (A)	8-98012-958-0	02	1	1311-
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	8-98012-959-0	02	1	1106-1310
87	BRACKET; STABILIZER (B)	8-98012-959-0	02	1	1311-
91	BUSHING; RUBBER,STAB BAR 6HK1-TCN ENG(82L)	1-51779-079-1	04	1	1311-
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-079-1	04	1	1106-1310
91	BUSHING; RUBBER,STAB BAR 4HK1-TCS ENG(RJS)	1-51779-121-1	04	1	1311-
93	BUSHING; STABILIZER FRONT STABILIZER SHAFT<F59>	1-51689-015-3	04	1	1106-1310
93	BUSHING; STABILIZER	1-51689-015-3	04	1	1311-
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	0-91110-514-0	04	1	1106-1310
103	NUT; BRKT FIX M14	0-91110-514-0	04	1	1311-
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	0-10956-470-0	04	1	1106-1310
105	BOLT; BRKT FIX M14X70	0-10956-470-0	04	1	1311-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	1106-1310
110	CLAMP; STAB TO ROD (A)	1-51789-027-2	02	1	1311-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	1106-1310
110	CLAMP; STAB TO ROD (B)	1-51789-028-1	02	1	1311-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20851-230-0	02	1	1106-1310
111	BOLT; CLAMP TO ROD (A) M12X30	0-20851-230-0	02	1	1311-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20851-250-0	04	1	1106-1310
111	BOLT; CLAMP TO ROD (B) M12X50	0-20851-250-0	04	1	1311-
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-050-0	04	1	1106-1310
112	BUSHING; ROD	9-51631-050-0	04	1	1311-
114	ROD; STAB BAR 6HK1-TCN ENG(82L)	1-51773-065-0	02	1	1311-
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-065-0	02	1	1106-1310
114	ROD; STAB BAR 4HK1-TCS ENG(RJS)	1-51773-084-0	02	1	1311-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=16.8	1-51631-022-0	04	1	1106-1310
115	WASHER; CENTER,STAB TO FRAME (B) ID=16.8	1-51631-022-0	04	1	1311-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=14.5	9-51631-051-0	04	1	1106-1310
115	WASHER; CENTER,STAB TO FRAME (A) ID=14.5	9-51631-051-0	04	1	1311-
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	0-91111-514-0	04	1	1106-1310
116	NUT; LK,STAB TO FRAME M14	0-91111-514-0	04	1	1311-
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	0-91110-512-0	06	1	1106-1310
127	NUT; CLAMP M12	0-91110-512-0	06	1	1311-
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-812-0	06	1	1106-1310
128	WASHER; LK,CLAMP ID=12.2	0-91510-812-0	06	1	1311-
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	8-98010-627-1	08	1	1106-1310
234	WASHER; STAB ID=15	8-98010-627-1	08	1	1311-
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-662-0	02	1	1106-1310
237	SUPPORT; STAB BAR	1-51681-662-0	02	1	1311-
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	8-98013-020-1	02	1	1106-1310
296	PIN; STAB	8-98013-020-1	02	1	1311-
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	0-91110-520-0	02	1	1106-1310
303	NUT; PIN M20	0-91110-520-0	02	1	1311-
304	WASHER; PL 6HK1-TCN ENG(82L) (B) ID=21	9-09164-520-0	02	1	1311-
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1106-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	1106-1310
304	WASHER; PL 4HK1-TCS ENG(RJS) (B) ID=21	0-91614-520-0	02	1	1311-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
