Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#55165) — 182 parça

81 71 133 133 173 71 174 172 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
71	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1106-1310
71	NUT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	09	1	1311-
71	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	1106-1310
71	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1106-1310
71	NUT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	01	1	1311-
81	BRACKET; CLIP WHEEL BASE 4200MM(42W) (I)	8-98182-764-0	01	1	1108-1310
81	BRACKET; CLIP 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (I)	8-98182-764-0	01	1	1311-
81	BRACKET; CLIP WHEEL BASE 5500MM(55W) (J)	8-98182-331-0	01	1	1108-1310
81	BRACKET; CLIP 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (J)	8-98182-331-0	01	1	1311-
81	BRACKET; CLIP WHEEL BASE 5500MM(55W) (I)	8-98182-760-0	01	1	1108-1310
81	BRACKET; CLIP 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (I)	8-98182-760-0	01	1	1311-
81	BRACKET; CLIP (A) L=150 H=30	1-47477-629-2	01	1	1106-1310
81	BRACKET; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=150 H=30	1-47477-629-2	01	1	1311-
81	BRACKET; CLIP (D) L=60 H=30	1-47477-716-1	02	1	1106-1310
81	BRACKET; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) L=60 H=30	1-47477-716-1	02	1	1311-
81	BRACKET; CLIP (F)	1-47479-693-0	01	1	1106-1310
81	BRACKET; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F)	1-47479-693-0	01	1	1311-
81	BRACKET; CLIP (B)	8-98031-420-2	01	1	1106-1310
81	BRACKET; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98031-420-2	01	1	1311-
81	BRACKET; CLIP (E) L=65 B=25	8-98135-584-0	01	1	1106-1310
81	BRACKET; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) L=65 B=25	8-98135-584-0	01	1	1311-
81	BRACKET; CLIP (G)	8-98169-434-0	01	1	1106-1107
81	BRACKET; CLIP WHEEL BASE 4200MM(42W) (J)	8-98182-332-0	01	1	1108-1310
81	BRACKET; CLIP 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (J)	8-98182-332-0	01	1	1311-
81	BRACKET; CLIP (C)	8-98177-873-0	03	1	1106-1107
81	BRACKET; CLIP (C)	8-98177-873-0	02	1	1108-1310
81	BRACKET; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	8-98177-873-0	02	1	1311-
81	BRACKET; CLIP (H)	8-98186-380-0	01	1	1106-1310
81	BRACKET; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (H)	8-98186-380-0	01	1	1311-
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1106-1310
133	BOLT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28650-820-0	02	1	1311-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1106-1310
133	BOLT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	01	1	1311-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1106-1310
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1106-1310
133	BOLT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	02	1	1311-
133	BOLT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	02	1	1311-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1106-1310
133	BOLT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28650-830-0	03	1	1311-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS) (J) L=115 H=30	1-47477-715-3	01	1	1311-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS) (C) L=60 H=30	1-47477-716-1	02	1	1311-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS) (K) L=125	1-47477-975-1	02	1	1311-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS) (L)	8-98217-203-0	01	1	1311-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	8-98031-420-2	01	1	1311-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) L=65 B=25	8-98135-584-0	01	1	1311-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=150 H=30	1-47477-629-2	01	1	1311-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=60 H=30	1-47477-716-1	05	1	1311-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E)	8-98166-032-0	01	1	1311-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (H)	8-98169-222-0	01	1	1311-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (I)	8-98177-873-0	02	1	1311-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G)	8-98182-332-0	01	1	1311-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98182-764-0	01	1	1311-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G)	8-98182-331-0	01	1	1311-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98182-760-0	01	1	1311-
173	BOLT; CLIP BRKT 4HK1-TCS ENG(RJS) M8X30 FLANGE	0-28650-830-0	05	1	1311-
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	02	1	1311-
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28650-825-0	02	1	1311-
173	BOLT; CLIP BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28650-830-0	06	1	1311-
174	NUT; CLIP BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	07	1	1311-
174	NUT; CLIP BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	13	1	1311-

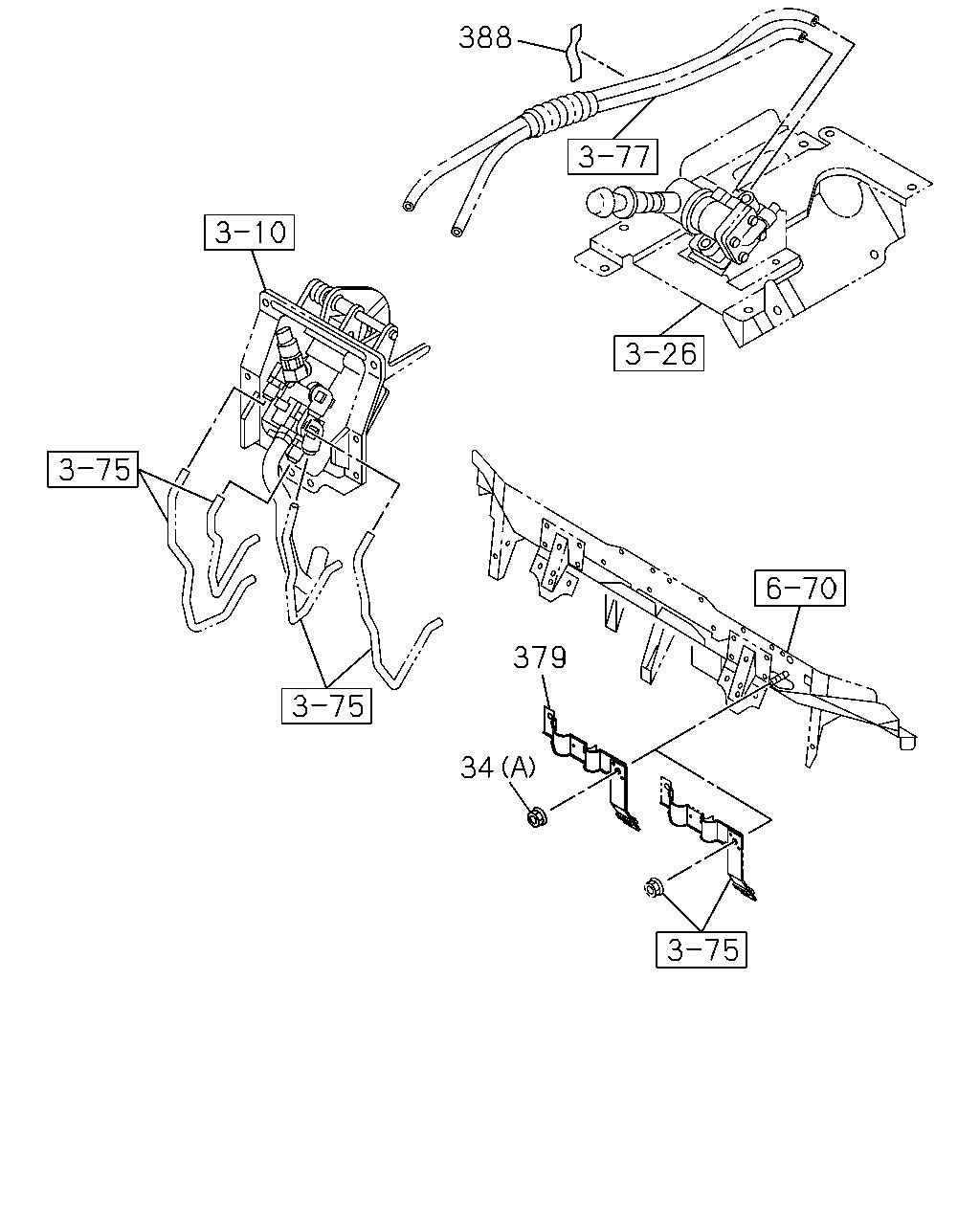

388 379 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M6 FLANGE	0-91180-106-0	02	1	1311-
34	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	1106-1310
34	NUT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8 FLANGE	0-91180-108-0	02	1	1311-
379	BRACKET; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98112-515-1	01	1	1311-
388	SEAL 100X40	1-72498-022-1	03	1	1106-1310
388	SEAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 100X40	1-72498-022-1	03	1	1311-

172 172 173 172 174 172 172 172

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS) (J) L=115 H=30	1-47477-715-3	01	1	1311-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS) (C) L=60 H=30	1-47477-716-1	02	1	1311-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS) (K) L=125	1-47477-975-1	02	1	1311-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS) (L)	8-98217-203-0	01	1	1311-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	8-98031-420-2	01	1	1311-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) L=65 B=25	8-98135-584-0	01	1	1311-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=150 H=30	1-47477-629-2	01	1	1311-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=60 H=30	1-47477-716-1	05	1	1311-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E)	8-98166-032-0	01	1	1311-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (H)	8-98169-222-0	01	1	1311-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (I)	8-98177-873-0	02	1	1311-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G)	8-98182-332-0	01	1	1311-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98182-764-0	01	1	1311-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G)	8-98182-331-0	01	1	1311-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98182-760-0	01	1	1311-
173	BOLT; CLIP BRKT 4HK1-TCS ENG(RJS) M8X30 FLANGE	0-28650-830-0	05	1	1311-
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	02	1	1311-
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28650-825-0	02	1	1311-
173	BOLT; CLIP BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28650-830-0	06	1	1311-
174	NUT; CLIP BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	07	1	1311-
174	NUT; CLIP BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	13	1	1311-

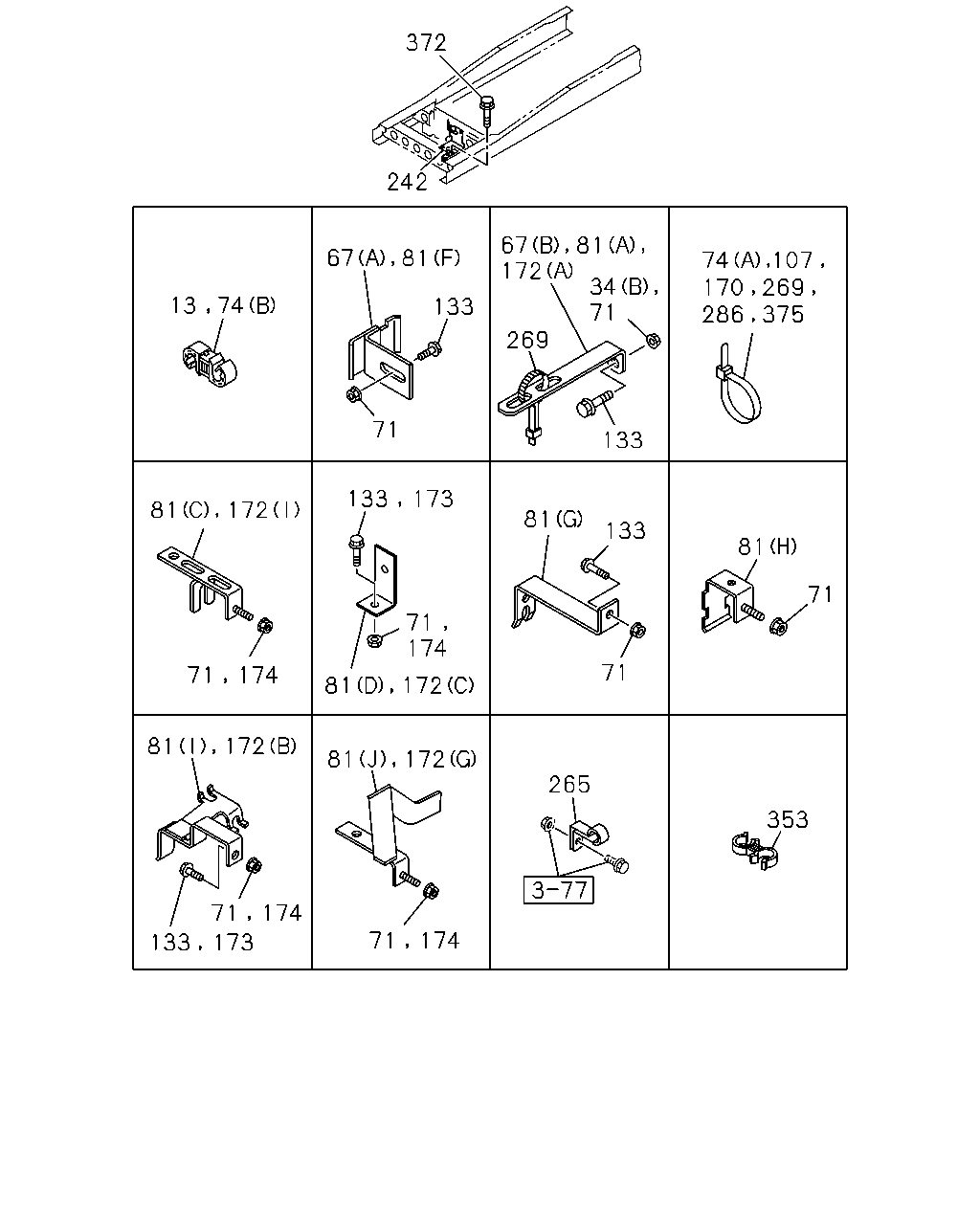

372 242 13 74 67 81 133 71 269 172 67 81 71 34 133 74 286 375 269 107 170 81 172 71 174 133 173 71 174 81 172 71 133 81 81 71 81 172 174 71 133 173 71 74 172 81 265 353

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	CLIP; AIR PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=6.35 & 6.35	1-09709-273-1	01	1	1311-
34	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M6 FLANGE	0-91180-106-0	02	1	1311-
34	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	1106-1310
34	NUT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8 FLANGE	0-91180-108-0	02	1	1311-
67	BRACKET; CLIP (B) L=150 H=30	1-47477-629-2	01	1	1106-1310
67	BRACKET; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=150 H=30	1-47477-629-2	01	1	1311-
67	BRACKET; CLIP (A)	1-47479-693-0	01	1	1106-1310
67	BRACKET; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47479-693-0	01	1	1311-
71	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1106-1310
71	NUT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	09	1	1311-
71	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	1106-1310
71	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1106-1310
71	NUT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	01	1	1311-
74	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	03	1	1106-1310
74	CLIP; NYLON TUBE 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=350	1-09707-183-0	14	1	1311-
74	CLIP; NYLON TUBE (B) ID=12 & 15	1-09709-281-1	01	1	1106-1310
74	CLIP; NYLON TUBE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=12 & 15	1-09709-281-1	01	1	1311-
74	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) (A) L=350	1-09707-183-0	07	1	1106-1310
74	CLIP; NYLON TUBE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=350	1-09707-183-0	03	1	1311-
74	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) (A) L=350	1-09707-183-0	12	1	1106-1310
74	CLIP; NYLON TUBE 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=350	1-09707-183-0	10	1	1311-
81	BRACKET; CLIP WHEEL BASE 4200MM(42W) (I)	8-98182-764-0	01	1	1108-1310
81	BRACKET; CLIP 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (I)	8-98182-764-0	01	1	1311-
81	BRACKET; CLIP WHEEL BASE 5500MM(55W) (J)	8-98182-331-0	01	1	1108-1310
81	BRACKET; CLIP 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (J)	8-98182-331-0	01	1	1311-
81	BRACKET; CLIP WHEEL BASE 5500MM(55W) (I)	8-98182-760-0	01	1	1108-1310
81	BRACKET; CLIP 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (I)	8-98182-760-0	01	1	1311-
81	BRACKET; CLIP (A) L=150 H=30	1-47477-629-2	01	1	1106-1310
81	BRACKET; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=150 H=30	1-47477-629-2	01	1	1311-
81	BRACKET; CLIP (D) L=60 H=30	1-47477-716-1	02	1	1106-1310
81	BRACKET; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) L=60 H=30	1-47477-716-1	02	1	1311-
81	BRACKET; CLIP (F)	1-47479-693-0	01	1	1106-1310
81	BRACKET; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F)	1-47479-693-0	01	1	1311-
81	BRACKET; CLIP (B)	8-98031-420-2	01	1	1106-1310
81	BRACKET; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98031-420-2	01	1	1311-
81	BRACKET; CLIP (E) L=65 B=25	8-98135-584-0	01	1	1106-1310
81	BRACKET; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) L=65 B=25	8-98135-584-0	01	1	1311-
81	BRACKET; CLIP (G)	8-98169-434-0	01	1	1106-1107
81	BRACKET; CLIP WHEEL BASE 4200MM(42W) (J)	8-98182-332-0	01	1	1108-1310
81	BRACKET; CLIP 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (J)	8-98182-332-0	01	1	1311-
81	BRACKET; CLIP (C)	8-98177-873-0	03	1	1106-1107
81	BRACKET; CLIP (C)	8-98177-873-0	02	1	1108-1310
81	BRACKET; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	8-98177-873-0	02	1	1311-
81	BRACKET; CLIP (H)	8-98186-380-0	01	1	1106-1310
81	BRACKET; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (H)	8-98186-380-0	01	1	1311-
107	CLIP; NYLON TUBE WHEEL BASE 5500MM(55W) L=350	1-09707-183-0	42	1	1106-1310
107	CLIP; NYLON TUBE 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=350	1-09707-183-0	43	1	1311-
107	CLIP; NYLON TUBE WHEEL BASE 4200MM(42W) L=350	1-09707-183-0	36	1	1106-1310
107	CLIP; NYLON TUBE 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=350	1-09707-183-0	39	1	1311-
133	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1106-1310
133	BOLT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28650-820-0	02	1	1311-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	1106-1310
133	BOLT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	01	1	1311-
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1106-1310
133	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1106-1310
133	BOLT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	02	1	1311-
133	BOLT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	02	1	1311-
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1106-1310
133	BOLT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28650-830-0	03	1	1311-
170	CLIP; NYLON TUBE 4HK1-TCS ENG(RJS) L=350	1-09707-183-0	24	1	1311-
170	CLIP; NYLON TUBE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=350	1-09707-183-0	30	1	1311-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS) (J) L=115 H=30	1-47477-715-3	01	1	1311-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS) (C) L=60 H=30	1-47477-716-1	02	1	1311-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS) (K) L=125	1-47477-975-1	02	1	1311-
172	BRACKET; TUBE CLIP 4HK1-TCS ENG(RJS) (L)	8-98217-203-0	01	1	1311-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	8-98031-420-2	01	1	1311-
172	BRACKET; TUBE CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) L=65 B=25	8-98135-584-0	01	1	1311-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=150 H=30	1-47477-629-2	01	1	1311-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) L=60 H=30	1-47477-716-1	05	1	1311-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E)	8-98166-032-0	01	1	1311-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (H)	8-98169-222-0	01	1	1311-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (I)	8-98177-873-0	02	1	1311-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G)	8-98182-332-0	01	1	1311-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98182-764-0	01	1	1311-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (G)	8-98182-331-0	01	1	1311-
172	BRACKET; TUBE CLIP 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-98182-760-0	01	1	1311-
173	BOLT; CLIP BRKT 4HK1-TCS ENG(RJS) M8X30 FLANGE	0-28650-830-0	05	1	1311-
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	02	1	1311-
173	BOLT; CLIP BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE	0-28650-825-0	02	1	1311-
173	BOLT; CLIP BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28650-830-0	06	1	1311-
174	NUT; CLIP BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	07	1	1311-
174	NUT; CLIP BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	13	1	1311-
242	BRACKET; PIPE CLIP	8-98158-602-0	01	1	1106-1310
242	BRACKET; PIPE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98158-602-0	01	1	1311-
265	CLIP; NYLON TUBE ID=21 H=25.5 L=26	8-94176-806-0	01	1	1106-1310
265	CLIP; NYLON TUBE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=21 H=25.5 L=26	8-94176-806-0	01	1	1311-
269	CLIP; BAND,NYLON TUBE L=350	1-09707-183-0	03	1	1106-1310
269	CLIP; BAND,NYLON TUBE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=350	1-09707-183-0	03	1	1311-
286	CLIP; NYLON TUBE L=350	1-09707-183-0	01	1	1106-1310
286	CLIP; NYLON TUBE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=350	1-09707-183-0	01	1	1311-
353	CLIP; AIR PIPE ID=18 & 18	8-94323-068-0	01	1	1106-1310
353	CLIP; AIR PIPE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=18 & 18	8-94323-068-0	01	1	1311-
372	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	1106-1310
372	BOLT; CLIP BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	02	1	1311-
375	CLIP; AIR PIPE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=350	1-09707-183-0	01	1	1311-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
