◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FORWARD ▶ 11412 - FORWARD 1100/1200 ▶ 3 - Brakes, Brake System ▶ 3-77 - BRAKE PIPING; AIR,REAR ▶
3-77 — BRAKE PIPING; AIR,REAR (#55164) — 111 parça

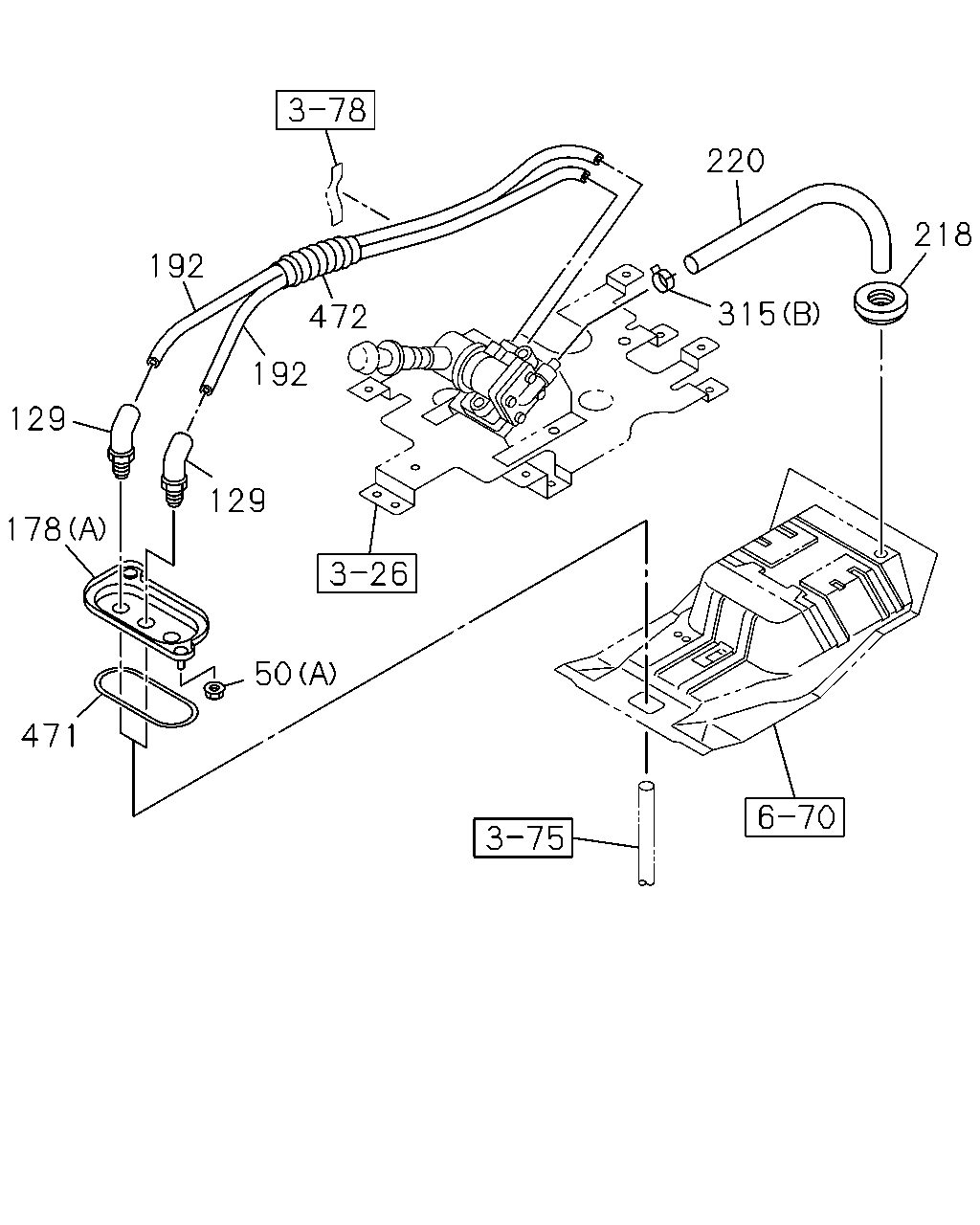

çizim 144890
192 129 178 471 50 129 192 472 315 220 218
BalonParca AdiParca NoAdetTipApplied Date
50 NUT; UNION BRKT
(B) M12 		0-91111-512-0 02 1 1106-1310
50 NUT; UNION BRKT
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12 		0-91111-512-0 02 1 1311-
50 NUT; UNION BRKT
(C) M16 		0-91111-516-0 01 1 1106-1310
50 NUT; UNION BRKT
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M16 		0-91111-516-0 01 1 1311-
50 NUT; UNION BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1106-1510
50 NUT; UNION BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1511-
129 CONNECTOR; NYLON TUBE
DIN13 & M18 ELBOW 		8-97611-963-1 02 1 1106-1310
129 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN13 & M18 ELBOW 		8-97611-963-1 01 1 1311-
129 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN13 & M18 ELBOW 		8-97611-963-1 01 1 1311-
178 BRACKET; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		8-98017-052-1 01 1 1311-
178 BRACKET; UNION
(A) 		8-98017-054-0 01 1 1106-1310
178 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		8-98017-054-1 01 1 1311-1510
178 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		8-98017-054-1 01 1 1511-
178 BRACKET; UNION
(C) 		8-98057-822-0 01 1 1106-1310
178 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		8-98057-822-0 01 1 1311-
178 BRACKET; UNION
(B) 		8-98057-823-0 01 1 1106-1310
178 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98057-823-0 01 1 1311-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1106-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1106-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1106-
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1106-
218 GROMMET; VINYL HOSE
OD=24 		9-61166-007-0 01 1 1106-1310
218 GROMMET; VINYL HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=24 		9-61166-007-0 01 1 1311-1510
218 GROMMET; VINYL HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=24 		9-61166-007-0 01 1 1511-
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 1106-1310
220 HOSE; VINYL,EXH,PARKING BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 1311-1510
220 HOSE; VINYL,EXH,PARKING BRK VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 1511-
315 CLIP
(B) ID=14 		8-94238-572-0 01 1 1106-1310
315 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=14 		8-94238-572-0 01 1 1311-1510
315 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=14 		8-94238-572-0 01 1 1511-
315 CLIP
(A) ID=18 & 18 		8-94323-068-0 01 1 1106-1310
315 CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=18 & 18 		8-94323-068-0 01 1 1311-
471 SEAL; BRKT 1-79738-832-0 01 1 1106-1510
471 SEAL; BRKT 1-79738-832-0 01 1 1511-
472 TUBE; SPUTTER 8-98067-708-0 01 1 1106-1310
472 TUBE; SPUTTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98067-708-0 01 1 1311-1510
472 TUBE; SPUTTER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98067-708-0 01 1 1511-

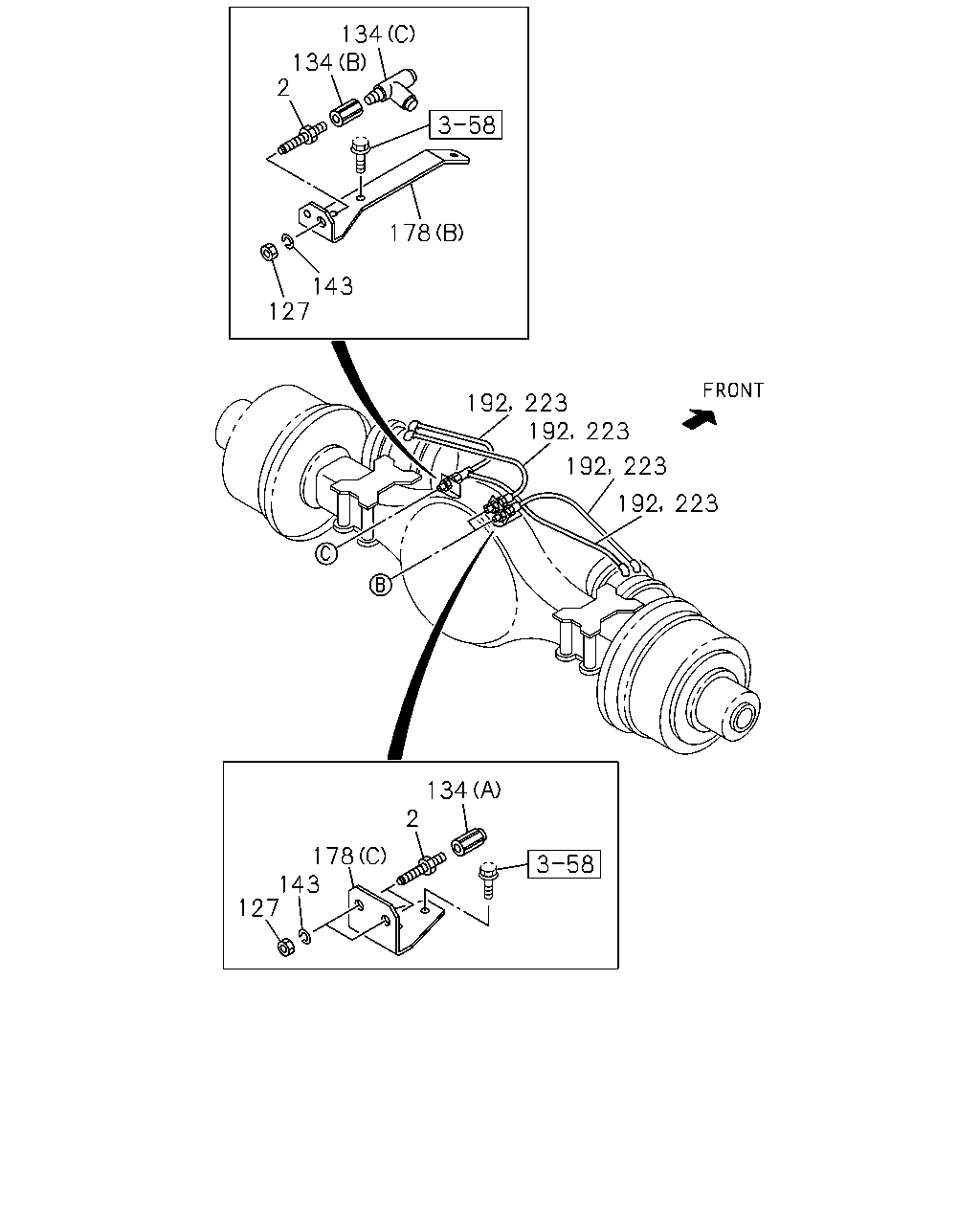

çizim 144948
2 134 134 178 143 127 192 223 192 223 223 192 223 192 134 2 178 143 127
BalonParca AdiParca NoAdetTipApplied Date
2 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 L=74 		0-92123-310-0 02 1 1312-
2 UNION; AIR PIPE
M16 L=74 		0-92123-310-0 03 1 1106-1310
2 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 L=74 		0-92123-310-0 03 1 1311-1311
2 UNION; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 L=74 		0-92123-310-0 01 1 1312-
127 NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 		0-91111-516-0 02 1 1312-
127 NUT; UNION
M16 		0-91111-516-0 03 1 1106-1310
127 NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 		0-91111-516-0 03 1 1311-1311
127 NUT; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 		0-91111-516-0 01 1 1312-
134 CONNECTOR
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 1106-1310
134 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 1311-
134 CONNECTOR
(B) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 1106-1310
134 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 1311-
134 CONNECTOR
(C) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 1106-1310
134 CONNECTOR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 1311-
143 WASHER; LK,UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2 		0-91510-816-0 02 1 1312-
143 WASHER; LK,UNION
ID=16.2 		0-91510-816-0 03 1 1106-1310
143 WASHER; LK,UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2 		0-91510-816-0 03 1 1311-1311
143 WASHER; LK,UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2 		0-91510-816-0 01 1 1312-
178 BRACKET; UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		8-98017-052-1 01 1 1311-
178 BRACKET; UNION
(A) 		8-98017-054-0 01 1 1106-1310
178 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		8-98017-054-1 01 1 1311-1510
178 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		8-98017-054-1 01 1 1511-
178 BRACKET; UNION
(C) 		8-98057-822-0 01 1 1106-1310
178 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) 		8-98057-822-0 01 1 1311-
178 BRACKET; UNION
(B) 		8-98057-823-0 01 1 1106-1310
178 BRACKET; UNION
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-98057-823-0 01 1 1311-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1106-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1106-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1106-
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1106-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1106-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1106-

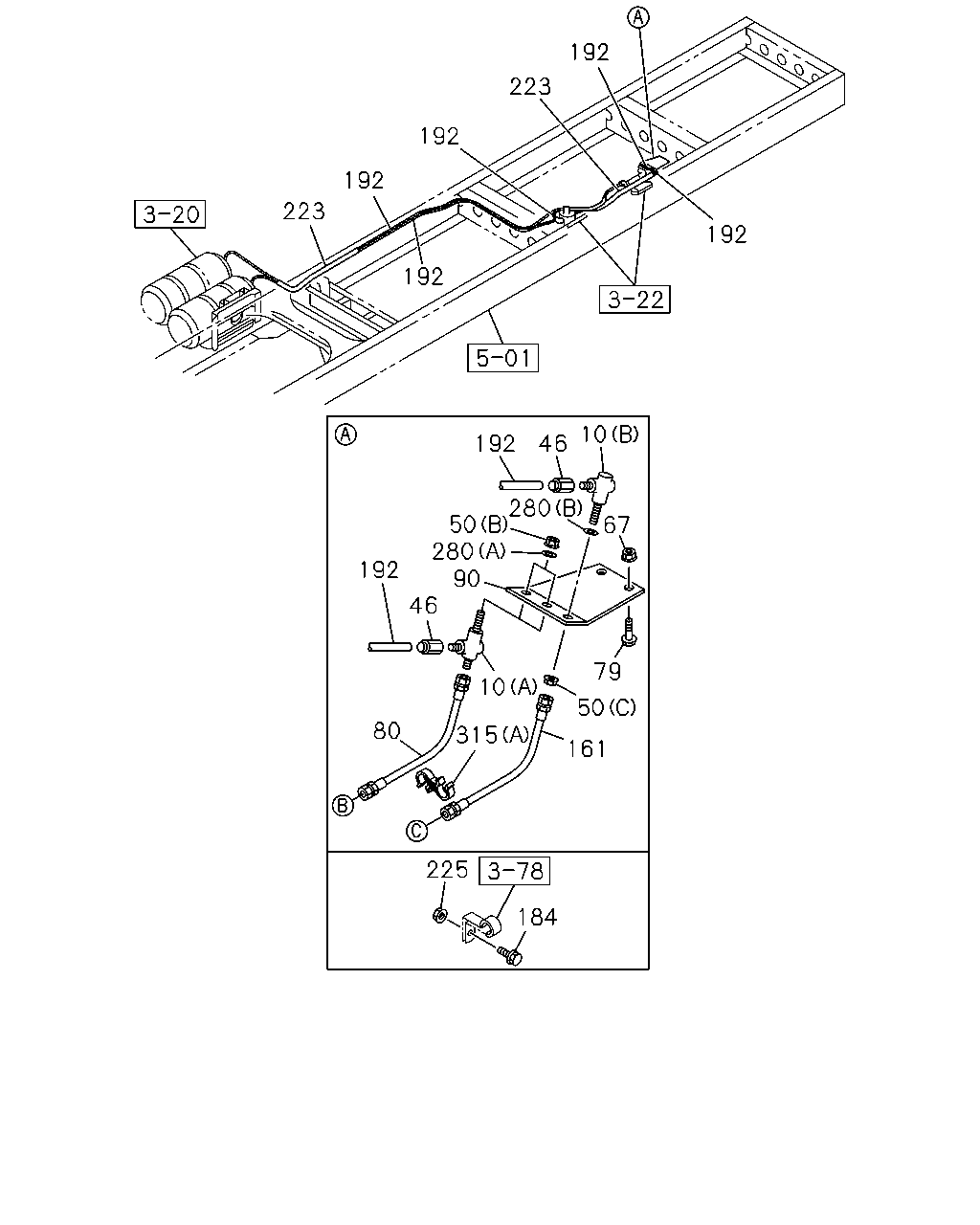

çizim 144950
223 192 192 223 192 192 192 192 46 10 67 280 50 280 192 90 46 10 315 79 50 161 80 225 184
BalonParca AdiParca NoAdetTipApplied Date
10 CONNECTOR; FLEX HOSE
(B) M16 ELBOW 		0-92135-210-0 01 1 1106-1310
10 CONNECTOR; FLEX HOSE
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M16 ELBOW 		0-92135-210-0 01 1 1311-
10 CONNECTOR; FLEX HOSE
(A) M16 2WAY 		1-09650-182-1 02 1 1106-1310
10 CONNECTOR; FLEX HOSE
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M16 2WAY 		1-09650-182-1 02 1 1311-
46 NIPPLE; AIR PIPE
DIN12 & M16 STRAIGHT 		1-09660-876-0 03 1 1106-1310
46 NIPPLE; AIR PIPE
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & M16 STRAIGHT 		1-09660-876-0 03 1 1311-
50 NUT; UNION BRKT
(B) M12 		0-91111-512-0 02 1 1106-1310
50 NUT; UNION BRKT
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12 		0-91111-512-0 02 1 1311-
50 NUT; UNION BRKT
(C) M16 		0-91111-516-0 01 1 1106-1310
50 NUT; UNION BRKT
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M16 		0-91111-516-0 01 1 1311-
50 NUT; UNION BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1106-1510
50 NUT; UNION BRKT
(A) M8 FLANGE 		0-91180-108-0 02 1 1511-
67 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 02 1 1106-1310
67 NUT; HOSE BRKT
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91180-108-0 02 1 1311-
79 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1106-1310
79 BOLT; HOSE BRKT
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE 		0-28650-825-0 02 1 1311-
80 HOSE; FLEX,POWER CHAMBER
L=580 		1-09363-772-0 02 1 1106-1310
80 HOSE; FLEX,POWER CHAMBER
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=580 		1-09363-772-0 01 1 1311-
80 HOSE; FLEX,POWER CHAMBER
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=580 		1-09363-772-0 01 1 1311-
90 BRACKET; PIPE UNION 1-47477-851-1 01 1 1106-1310
90 BRACKET; PIPE UNION
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-47477-851-1 01 1 1311-
161 HOSE; FLEX,QUICK RELEASE VLV
L=580 		1-09363-772-0 01 1 1106-1310
161 HOSE; FLEX,QUICK RELEASE VLV
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=580 		1-09363-772-0 01 1 1311-
184 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1106-1310
184 BOLT; TUBE CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE 		0-28650-820-0 01 1 1311-
192 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1106-
192 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1106-
192 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1106-
192 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1106-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1106-
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1106-
225 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 1106-1310
225 NUT; TUBE CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE 		0-91180-108-0 01 1 1311-
280 WASHER; LK
(A) ID=12.2 		0-91510-812-0 02 1 1106-1310
280 WASHER; LK
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=12.2 		0-91510-812-0 02 1 1311-
280 WASHER; LK
(B) ID=16.2 		0-91510-816-0 01 1 1106-1310
280 WASHER; LK
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=16.2 		0-91510-816-0 01 1 1311-
315 CLIP
(B) ID=14 		8-94238-572-0 01 1 1106-1310
315 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=14 		8-94238-572-0 01 1 1311-1510
315 CLIP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=14 		8-94238-572-0 01 1 1511-
315 CLIP
(A) ID=18 & 18 		8-94323-068-0 01 1 1106-1310
315 CLIP
6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=18 & 18 		8-94323-068-0 01 1 1311-
