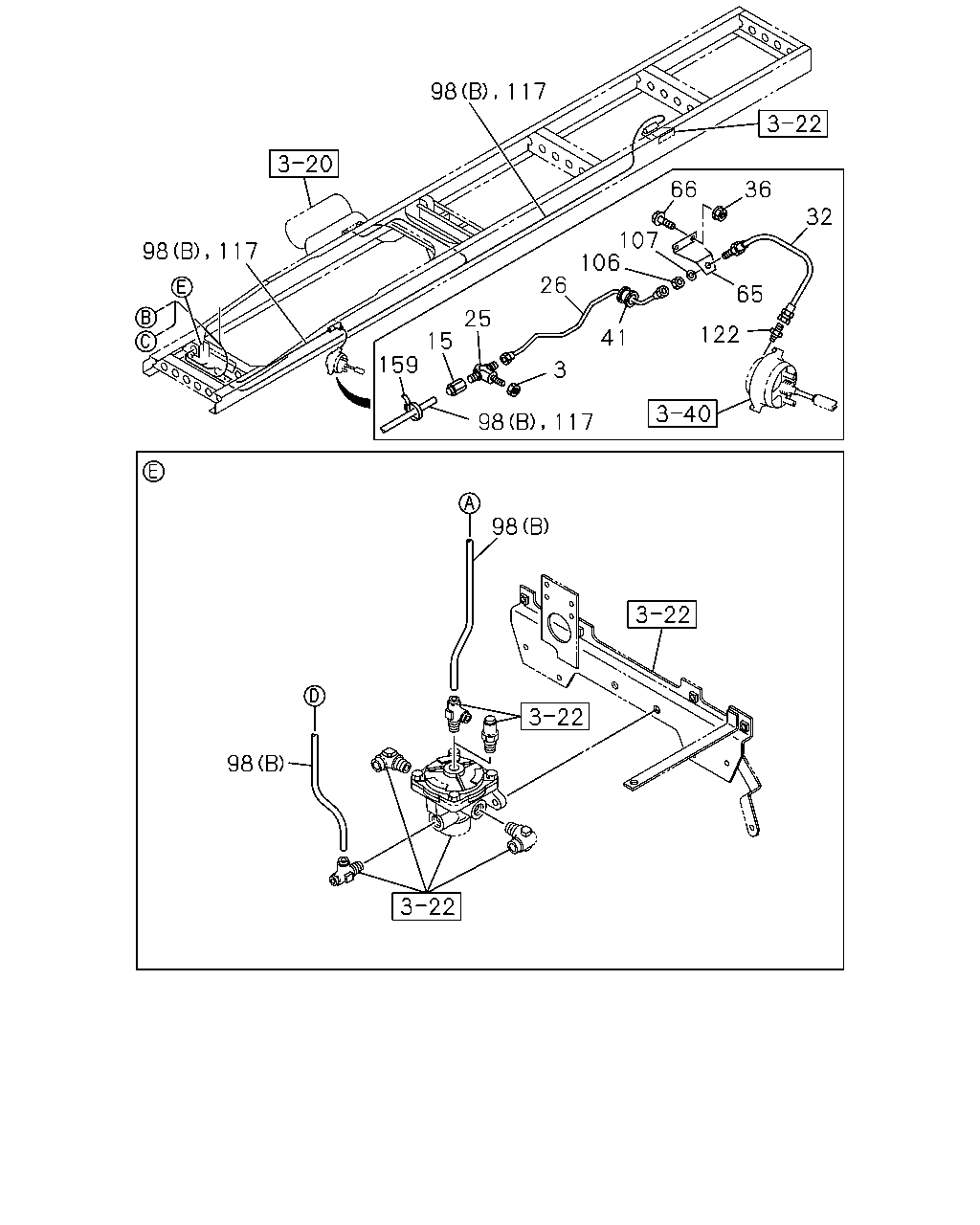

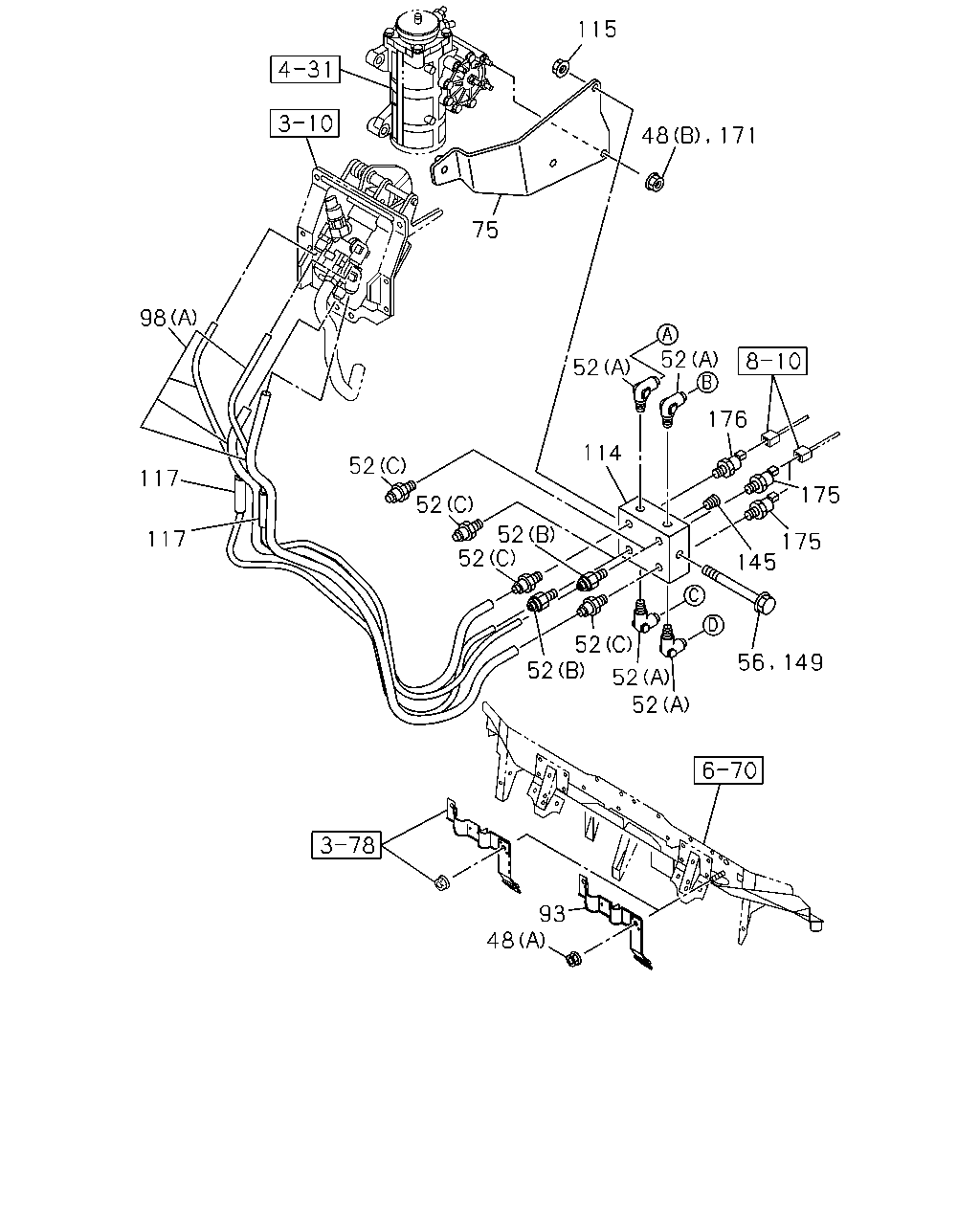

3-75 — BRAKE PIPING; AIR,FRONT (#55163) — 96 parça

98 117 98 117 26 25 15 159 3 98 117 41 106 107 66 65 32 36 122 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	NUT; PIPE UNION M12	0-91111-512-0	02	1	1106-1310
3	NUT; PIPE UNION 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12	0-91111-512-0	02	1	1311-
15	CONNECTOR; AIR PIPE DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	1106-1310
15	CONNECTOR; AIR PIPE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	1311-
25	UNION; AIR PIPE M16X2 2WAY ELBOW	1-09654-148-1	02	1	1106-1310
25	UNION; AIR PIPE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16X2 2WAY ELBOW	1-09654-148-1	02	1	1311-
26	PIPE; AIR,UNION TO FLEX HOSE L=500	8-98091-274-1	01	1	1106-1310
26	PIPE; AIR,UNION TO FLEX HOSE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=500	8-98091-274-1	01	1	1311-
26	PIPE; AIR,UNION TO FLEX HOSE L=657	8-98126-150-1	01	1	1106-1310
26	PIPE; AIR,UNION TO FLEX HOSE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=657	8-98126-150-1	01	1	1311-
32	HOSE; FLEX,FRT	8-98090-844-0	02	1	1106-1310
32	HOSE; FLEX,FRT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98090-844-0	02	1	1311-
36	NUT; HOSE BRKT M8 FLANGE	0-91180-108-0	04	1	1106-1310
36	NUT; HOSE BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	04	1	1311-
41	GROMMET; AIR PIPE ID=28 OD=35 T=25	1-09332-011-1	02	1	1106-1310
41	GROMMET; AIR PIPE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=28 OD=35 T=25	1-09332-011-1	02	1	1311-
65	BRACKET; FLEX HOSE	1-47476-210-0	01	1	1106-1310
65	BRACKET; FLEX HOSE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47476-210-0	01	1	1311-
65	BRACKET; FLEX HOSE	1-47476-211-0	01	1	1106-1310
65	BRACKET; FLEX HOSE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47476-211-0	01	1	1311-
66	BOLT; HOSE BRKT M8X25 FLANGE	0-28650-825-0	04	1	1106-1310
66	BOLT; HOSE BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	04	1	1311-
98	TUBE; NYLON BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98158-188-0	01	1	1311-
98	TUBE; NYLON 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98212-544-0	01	1	1311-
98	TUBE; NYLON (A)	8-98146-119-0	01	1	1106-1310
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1106-
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1106-
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1106-
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1106-
98	TUBE; NYLON (B) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	1106-
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1106-
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1106-
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1106-
106	NUT; FLEX HOSE M16	0-91111-516-0	02	1	1106-1310
106	NUT; FLEX HOSE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16	0-91111-516-0	02	1	1311-
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-816-0	02	1	1106-1310
107	WASHER; LK,FLEX HOSE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=16.2	0-91510-816-0	02	1	1311-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1106-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1106-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	1106-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	1106-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	1106-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1106-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	1106-
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=28	1-87411-034-0	AR	1	1106-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	1106-
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=32	1-87411-036-0	AR	1	1106-
122	CONNECTOR; FLEX HOSE M16 & PT3/8 STRAIGHT	1-09650-179-1	02	1	1106-1310
122	CONNECTOR; FLEX HOSE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M16 & PT3/8 STRAIGHT	1-09650-179-1	02	1	1311-
159	CLIP; NYLON TUBE L=350	1-09707-183-0	01	1	1106-1310
159	CLIP; NYLON TUBE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=350	1-09707-183-0	01	1	1311-

115 48 171 75 52 52 52 52 52 52 52 52 56 52 52 117 117 98 176 114 175 145 175 149 93 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	NUT; UNION BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10 FLANGE	0-91180-210-0	02	1	1311-
48	NUT; UNION BRKT (A) M6 FLANGE	0-91180-106-0	02	1	1106-1310
48	NUT; UNION BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M6 FLANGE	0-91180-106-0	02	1	1311-
52	CONNECTOR; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R1/4 ELBOW	1-09660-958-0	04	1	1311-
52	CONNECTOR; NYLON TUBE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	1311-
52	CONNECTOR; NYLON TUBE (A) DIN8 & R1/4 ELBOW	1-09660-956-0	04	1	1106-1310
52	CONNECTOR; NYLON TUBE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	04	1	1311-
52	CONNECTOR; NYLON TUBE (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	1106-1310
52	CONNECTOR; NYLON TUBE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	1311-
52	CONNECTOR; NYLON TUBE (C) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	1106-1310
52	CONNECTOR; NYLON TUBE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) DIN12 & R1/4 STRAIGHT	1-09660-967-0	04	1	1311-
56	BOLT; UNION BRKT M8X100 FLANGE	0-28050-800-0	01	1	1106-1310
56	BOLT; UNION BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X100 FLANGE	0-28050-800-0	01	1	1311-
75	BRACKET; UNION	8-98126-944-0	01	1	1106-
93	BRACKET; UNION,TUBE	8-98112-515-1	01	1	1106-1310
93	BRACKET; UNION,TUBE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98112-515-1	01	1	1311-
98	TUBE; NYLON BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98158-188-0	01	1	1311-
98	TUBE; NYLON 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98212-544-0	01	1	1311-
98	TUBE; NYLON (A)	8-98146-119-0	01	1	1106-1310
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1106-
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1106-
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1106-
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1106-
98	TUBE; NYLON (B) SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	1106-
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1106-
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1106-
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	1106-
114	UNION; NYLON TUBE	8-98057-394-1	01	1	1106-
115	NUT; TUBE UNION M8 FLANGE	0-91180-108-0	01	1	1106-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1106-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1106-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87411-025-0	AR	1	1106-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	1106-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	1106-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1106-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	1106-
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=28	1-87411-034-0	AR	1	1106-
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	1106-
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=32	1-87411-036-0	AR	1	1106-
145	PLUG PT1/4	9-99204-513-0	01	1	1106-
149	BOLT; UNION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X100 FLANGE	0-28050-800-0	01	1	1311-
171	NUT; BRACKET M10 FLANGE	0-91180-210-0	02	1	1106-1310
171	NUT; BRACKET 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	1311-
175	SENSOR; AIR PRESS THREAD R1/4	1-80220-023-1	02	1	1106-
176	SWITCH; AIR PRESS STAMP 0.3	8-98010-857-0	01	1	1106-
