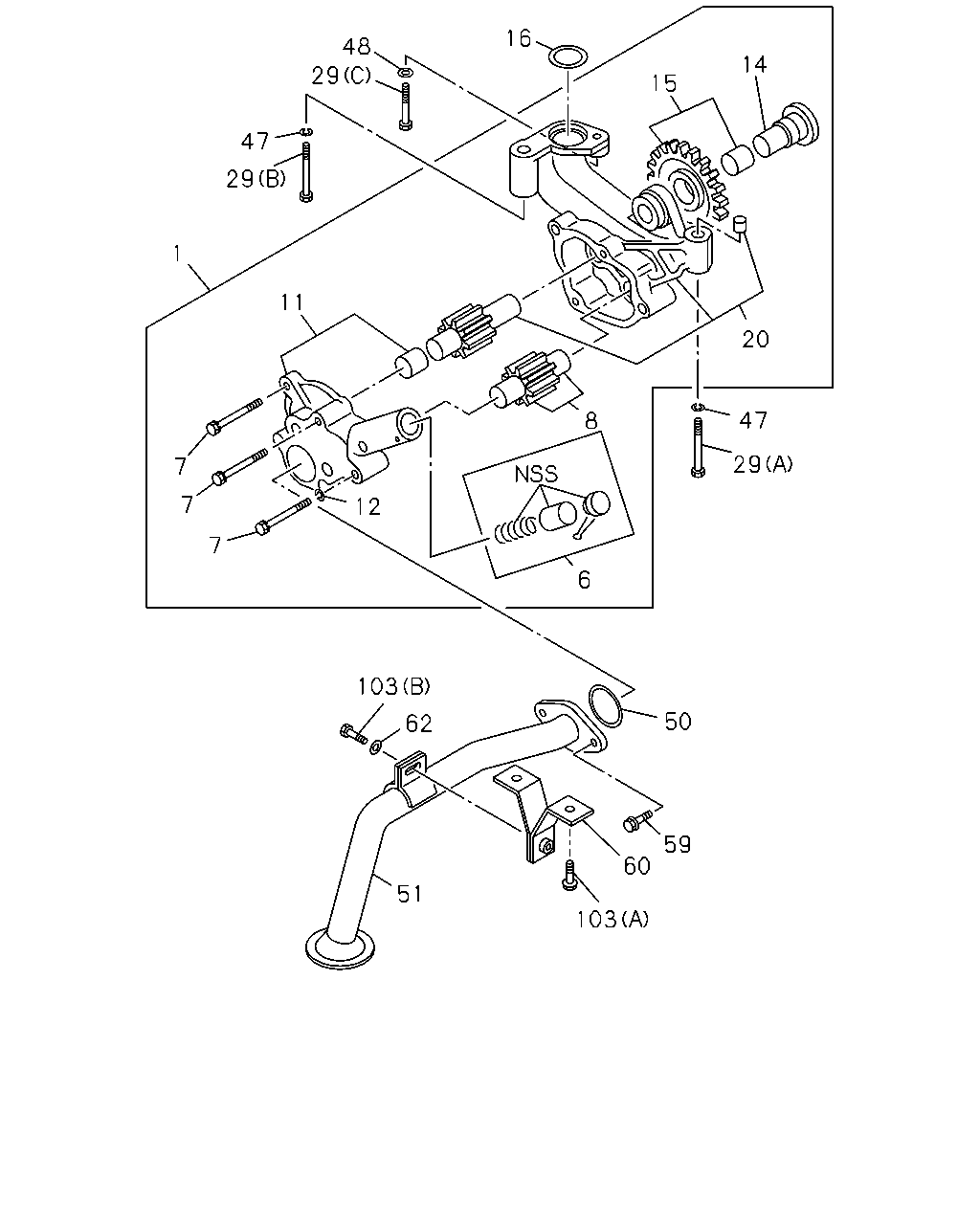

0-51B — OIL PUMP AND OIL STRAINER (#5516) — 147 parça

16 48 14 29 15 47 29 1 11 20 7 47 8 7 2 29 5 6 7 12 3 103 50 62 59 60 51 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; OIL	1-13100-279-0	01	1	9603-9705	●
1	PUMP ASM; OIL	1-13100-286-0	01	1	9706-9904	●
1	PUMP ASM; OIL	1-13100-286-0	01	1	9905-	●	●
2	SEAT; SPR	1-13165-014-0	01	1	9706-9904	●
2	SEAT; SPR	1-13165-014-0	01	1	9905-	●	●
3	PIN; SPLIT	9-08114-040-0	01	1	9603-9904	●
3	PIN; SPLIT	9-08114-040-0	01	1	9905-	●	●
5	SPRING; COIL	1-09580-202-0	01	1	9603-9705	●
5	SPRING; COIL	1-09580-552-0	01	1	9706-9904	●
5	SPRING; COIL	1-09580-552-0	01	1	9905-	●	●
6	VALVE ASM; RELIEF,OIL PUMP	1-13160-012-0	01	1	9603-9705	●
6	VALVE ASM; RELIEF,OIL PUMP	1-13161-026-0	01	1	9706-9904	●
6	VALVE ASM; RELIEF,OIL PUMP	1-13161-026-0	01	1	9905-	●	●
7	BOLT; COVER,OIL PUMP M10X55	0-16806-055-0	01	1	9603-9708	●
7	BOLT; COVER,OIL PUMP M10X70	0-16806-070-0	01	1	9603-9708	●
7	BOLT; COVER,OIL PUMP M10X35 W/LK WASHER	0-50051-035-0	01	1	9603-9708	●
7	BOLT; COVER,OIL PUMP M10X45 W/LK WASHER	0-50051-045-0	01	1	9603-9708	●
7	BOLT; COVER,OIL PUMP M10X55	0-16806-055-0	01	1	9709-9809	●
7	BOLT; COVER,OIL PUMP M10X70	0-16806-070-0	01	1	9709-9801	●
7	BOLT; COVER,OIL PUMP M10X35 W/LK WASHER	0-50051-035-0	01	1	9709-9710	●
7	BOLT; COVER,OIL PUMP M10X45 W/LK WASHER	0-50051-045-0	01	1	9709-9801	●
7	BOLT; COVER,OIL PUMP M10X35 W/LK WASHER	0-50051-035-0	01	1	9711-9904	●
7	BOLT; COVER,OIL PUMP M10X70	0-16806-070-0	01	1	9802-9809	●
7	BOLT; COVER,OIL PUMP M10X45 W/LK WASHER	0-50051-045-0	01	1	9802-9904	●
7	BOLT; COVER,OIL PUMP M10X55	0-16806-055-0	01	1	9810-9904	●
7	BOLT; COVER,OIL PUMP M10X70	0-16806-070-0	01	1	9810-9904	●
7	BOLT; COVER,OIL PUMP M10X55	0-16806-055-0	01	1	9905-	●	●
7	BOLT; COVER,OIL PUMP M10X70	0-16806-070-0	01	1	9905-	●	●
7	BOLT; COVER,OIL PUMP M10X35 W/LK WASHER	0-50051-035-0	01	1	9905-	●	●
7	BOLT; COVER,OIL PUMP M10X45 W/LK WASHER	0-50051-045-0	01	1	9905-	●	●
8	GEAR; DRIVEN,OIL PUMP	1-13125-049-0	01	1	9603-9904	●
8	GEAR; DRIVEN,OIL PUMP	1-13125-049-0	01	1	9905-	●	●
11	COVER ASM; OIL PUMP	1-13113-054-0	01	1	9603-9705	●
11	COVER ASM; OIL PUMP	1-13113-070-0	01	1	9706-9904	●
11	COVER ASM; OIL PUMP	1-13113-070-0	01	1	9905-	●	●
12	WASHER; LK,BOLT COVER ID=10.2	9-09150-510-0	02	1	9603-9904	●
12	WASHER; LK,BOLT COVER ID=10.2	9-09150-510-0	02	1	9905-	●	●
14	SPINDLE; DRIVEN GEAR	1-13129-010-1	01	1	9603-9904	●
14	SPINDLE; DRIVEN GEAR	1-13129-010-1	01	1	9905-	●	●
15	GEAR ASM; IDLE	1-13128-046-0	01	1	9603-9705	●
15	GEAR ASM; IDLE	1-13128-027-0	01	1	9706-9904	●
15	GEAR ASM; IDLE	1-13128-027-0	01	1	9905-	●	●
16	GASKET; OIL PUMP,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=31.2	1-09623-220-0	01	1	9603-9904	●
16	GASKET; OIL PUMP,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=31.2	1-09623-220-0	01	1	9905-	●	●
20	GEAR; DRIVE,OIL PUMP	1-13110-048-0	01	1	9603-9705	●
20	GEAR; DRIVE,OIL PUMP	1-13110-052-0	01	1	9706-9904	●
20	GEAR; DRIVE,OIL PUMP	1-13110-052-0	01	1	9905-	●	●
29	BOLT; OIL PUMP (A) M12X55	9-01666-255-0	01	1	9603-9708	●
29	BOLT; OIL PUMP (B) M12X70	9-01666-270-0	01	1	9603-9708	●
29	BOLT; OIL PUMP (C) M10X30	9-02361-030-0	01	1	9603-9708	●
29	BOLT; OIL PUMP (A) M12X55	9-01666-255-0	01	1	9709-9809	●
29	BOLT; OIL PUMP (B) M12X70	9-01666-270-0	01	1	9709-9809	●
29	BOLT; OIL PUMP (C) M10X30	9-02361-030-0	01	1	9709-9809	●
29	BOLT; OIL PUMP (A) M12X55	9-01666-255-0	01	1	9810-9904	●
29	BOLT; OIL PUMP (B) M12X70	9-01666-270-0	01	1	9810-9904	●
29	BOLT; OIL PUMP (C) M10X30	9-02361-030-0	01	1	9810-9904	●
29	BOLT; OIL PUMP (A) M12X55	9-01666-255-0	01	1	9905-	●	●
29	BOLT; OIL PUMP (C) M10X30	9-02361-030-0	01	1	9905-	●	●
29	BOLT; OIL PUMP (B) M12X70	9-01666-270-0	01	1	9905-	●	●
47	WASHER; LK,OIL PUMP ID=12.5	9-09851-682-0	02	1	9603-9904	●
47	WASHER; LK,OIL PUMP ID=12.5	9-09851-682-0	02	1	9905-	●	●
48	WASHER; PL,OIL PUMP ID=10	1-09503-033-1	01	1	9603-9904	●
48	WASHER; PL,OIL PUMP ID=10	1-09503-033-1	01	1	9905-	●	●
50	GASKET; OIL PIPE,STRAINER TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-397-0	01	1	9603-9904	●
50	GASKET; OIL PIPE,STRAINER TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-397-0	01	1	9905-	●	●
51	STRAINER & PIPE ASM; OIL	1-13140-112-0	01	1	9603-9904	●
51	STRAINER & PIPE ASM; OIL	1-13140-112-2	01	1	9905-	●	●
59	BOLT; BRKT,STRAINER M8X18 FLANGE	0-28080-818-0	02	1	9603-9904	●
59	BOLT; BRKT,STRAINER M8X18 FLANGE	0-28080-818-0	02	1	9905-	●	●
60	BRACKET; OIL STRAINER	1-13145-048-0	01	1	9603-9904	●
60	BRACKET; OIL STRAINER	1-13145-048-0	01	1	9905-	●	●
62	WASHER; PL,STAY ID=8.4 OD=18	9-09160-608-0	01	1	9603-9904	●
62	WASHER; PL,STAY ID=8.4 OD=18	9-09160-608-0	01	1	9905-	●	●
103	BOLT; STRAINER (A) M8X18 FLANGE	0-28080-818-0	02	1	9603-9904	●
103	BOLT; STRAINER (A) M8X18 FLANGE	0-28080-818-0	02	1	9905-	●	●
103	BOLT; STRAINER (B) M8X25 W/LK WASHER	0-50040-825-0	01	1	9603-9904	●
103	BOLT; STRAINER (B) M8X25 W/LK WASHER	0-50040-825-0	01	1	9905-	●	●

16 48 29 14 15 47 29 1 11 20 47 8 29 7 7 12 7 6 103 50 62 59 60 51 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; OIL	1-13100-279-0	01	1	9603-9705	●
1	PUMP ASM; OIL	1-13100-286-0	01	1	9706-9904	●
1	PUMP ASM; OIL	1-13100-286-0	01	1	9905-	●	●
6	VALVE ASM; RELIEF,OIL PUMP	1-13160-012-0	01	1	9603-9705	●
6	VALVE ASM; RELIEF,OIL PUMP	1-13161-026-0	01	1	9706-9904	●
6	VALVE ASM; RELIEF,OIL PUMP	1-13161-026-0	01	1	9905-	●	●
7	BOLT; COVER,OIL PUMP M10X55	0-16806-055-0	01	1	9603-9708	●
7	BOLT; COVER,OIL PUMP M10X70	0-16806-070-0	01	1	9603-9708	●
7	BOLT; COVER,OIL PUMP M10X35 W/LK WASHER	0-50051-035-0	01	1	9603-9708	●
7	BOLT; COVER,OIL PUMP M10X45 W/LK WASHER	0-50051-045-0	01	1	9603-9708	●
7	BOLT; COVER,OIL PUMP M10X55	0-16806-055-0	01	1	9709-9809	●
7	BOLT; COVER,OIL PUMP M10X70	0-16806-070-0	01	1	9709-9801	●
7	BOLT; COVER,OIL PUMP M10X35 W/LK WASHER	0-50051-035-0	01	1	9709-9710	●
7	BOLT; COVER,OIL PUMP M10X45 W/LK WASHER	0-50051-045-0	01	1	9709-9801	●
7	BOLT; COVER,OIL PUMP M10X35 W/LK WASHER	0-50051-035-0	01	1	9711-9904	●
7	BOLT; COVER,OIL PUMP M10X70	0-16806-070-0	01	1	9802-9809	●
7	BOLT; COVER,OIL PUMP M10X45 W/LK WASHER	0-50051-045-0	01	1	9802-9904	●
7	BOLT; COVER,OIL PUMP M10X55	0-16806-055-0	01	1	9810-9904	●
7	BOLT; COVER,OIL PUMP M10X70	0-16806-070-0	01	1	9810-9904	●
7	BOLT; COVER,OIL PUMP M10X55	0-16806-055-0	01	1	9905-	●	●
7	BOLT; COVER,OIL PUMP M10X70	0-16806-070-0	01	1	9905-	●	●
7	BOLT; COVER,OIL PUMP M10X35 W/LK WASHER	0-50051-035-0	01	1	9905-	●	●
7	BOLT; COVER,OIL PUMP M10X45 W/LK WASHER	0-50051-045-0	01	1	9905-	●	●
8	GEAR; DRIVEN,OIL PUMP	1-13125-049-0	01	1	9603-9904	●
8	GEAR; DRIVEN,OIL PUMP	1-13125-049-0	01	1	9905-	●	●
11	COVER ASM; OIL PUMP	1-13113-054-0	01	1	9603-9705	●
11	COVER ASM; OIL PUMP	1-13113-070-0	01	1	9706-9904	●
11	COVER ASM; OIL PUMP	1-13113-070-0	01	1	9905-	●	●
12	WASHER; LK,BOLT COVER ID=10.2	9-09150-510-0	02	1	9603-9904	●
12	WASHER; LK,BOLT COVER ID=10.2	9-09150-510-0	02	1	9905-	●	●
14	SPINDLE; DRIVEN GEAR	1-13129-010-1	01	1	9603-9904	●
14	SPINDLE; DRIVEN GEAR	1-13129-010-1	01	1	9905-	●	●
15	GEAR ASM; IDLE	1-13128-046-0	01	1	9603-9705	●
15	GEAR ASM; IDLE	1-13128-027-0	01	1	9706-9904	●
15	GEAR ASM; IDLE	1-13128-027-0	01	1	9905-	●	●
16	GASKET; OIL PUMP,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=31.2	1-09623-220-0	01	1	9603-9904	●
16	GASKET; OIL PUMP,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=31.2	1-09623-220-0	01	1	9905-	●	●
20	GEAR; DRIVE,OIL PUMP	1-13110-048-0	01	1	9603-9705	●
20	GEAR; DRIVE,OIL PUMP	1-13110-052-0	01	1	9706-9904	●
20	GEAR; DRIVE,OIL PUMP	1-13110-052-0	01	1	9905-	●	●
29	BOLT; OIL PUMP (A) M12X55	9-01666-255-0	01	1	9603-9708	●
29	BOLT; OIL PUMP (B) M12X70	9-01666-270-0	01	1	9603-9708	●
29	BOLT; OIL PUMP (C) M10X30	9-02361-030-0	01	1	9603-9708	●
29	BOLT; OIL PUMP (A) M12X55	9-01666-255-0	01	1	9709-9809	●
29	BOLT; OIL PUMP (B) M12X70	9-01666-270-0	01	1	9709-9809	●
29	BOLT; OIL PUMP (C) M10X30	9-02361-030-0	01	1	9709-9809	●
29	BOLT; OIL PUMP (A) M12X55	9-01666-255-0	01	1	9810-9904	●
29	BOLT; OIL PUMP (B) M12X70	9-01666-270-0	01	1	9810-9904	●
29	BOLT; OIL PUMP (C) M10X30	9-02361-030-0	01	1	9810-9904	●
29	BOLT; OIL PUMP (A) M12X55	9-01666-255-0	01	1	9905-	●	●
29	BOLT; OIL PUMP (C) M10X30	9-02361-030-0	01	1	9905-	●	●
29	BOLT; OIL PUMP (B) M12X70	9-01666-270-0	01	1	9905-	●	●
47	WASHER; LK,OIL PUMP ID=12.5	9-09851-682-0	02	1	9603-9904	●
47	WASHER; LK,OIL PUMP ID=12.5	9-09851-682-0	02	1	9905-	●	●
48	WASHER; PL,OIL PUMP ID=10	1-09503-033-1	01	1	9603-9904	●
48	WASHER; PL,OIL PUMP ID=10	1-09503-033-1	01	1	9905-	●	●
50	GASKET; OIL PIPE,STRAINER TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-397-0	01	1	9603-9904	●
50	GASKET; OIL PIPE,STRAINER TO PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-397-0	01	1	9905-	●	●
51	STRAINER & PIPE ASM; OIL	1-13140-112-0	01	1	9603-9904	●
51	STRAINER & PIPE ASM; OIL	1-13140-112-2	01	1	9905-	●	●
59	BOLT; BRKT,STRAINER M8X18 FLANGE	0-28080-818-0	02	1	9603-9904	●
59	BOLT; BRKT,STRAINER M8X18 FLANGE	0-28080-818-0	02	1	9905-	●	●
60	BRACKET; OIL STRAINER	1-13145-048-0	01	1	9603-9904	●
60	BRACKET; OIL STRAINER	1-13145-048-0	01	1	9905-	●	●
62	WASHER; PL,STAY ID=8.4 OD=18	9-09160-608-0	01	1	9603-9904	●
62	WASHER; PL,STAY ID=8.4 OD=18	9-09160-608-0	01	1	9905-	●	●
103	BOLT; STRAINER (A) M8X18 FLANGE	0-28080-818-0	02	1	9603-9904	●
103	BOLT; STRAINER (A) M8X18 FLANGE	0-28080-818-0	02	1	9905-	●	●
103	BOLT; STRAINER (B) M8X25 W/LK WASHER	0-50040-825-0	01	1	9603-9904	●
103	BOLT; STRAINER (B) M8X25 W/LK WASHER	0-50040-825-0	01	1	9905-	●	●
