3-46 — AIR DRYER (#55159) — 159 parça

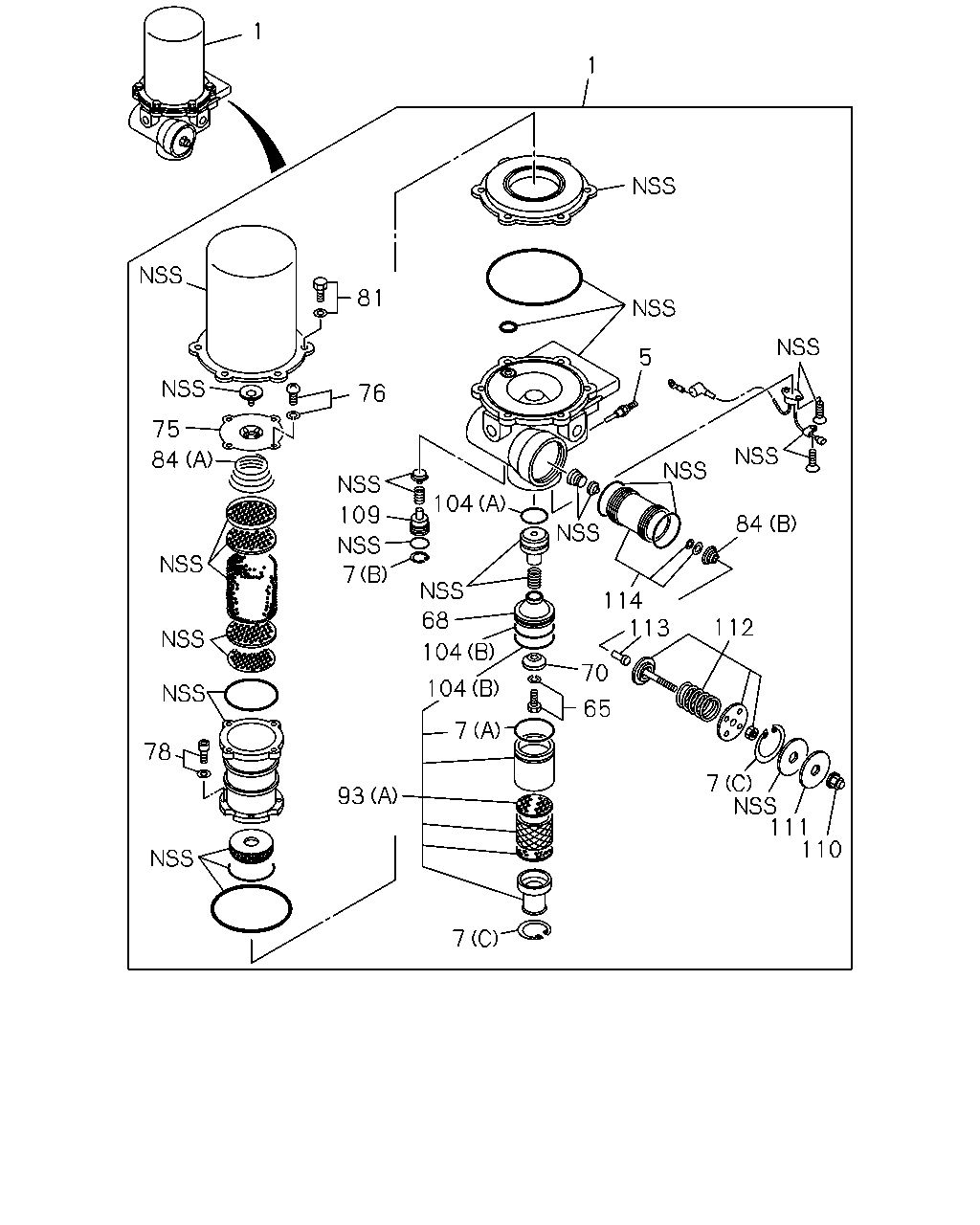

1 1 81 76 75 78 84 7 93 7 104 104 68 104 65 7 110 111 7 112 113 114 70 84 5 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98225-285-0	01	1	1311-
1	DRYER; AIR	1-48190-371-2	01	1	1106-1211
1	DRYER; AIR	8-98225-292-0	01	1	1212-1310
1	DRYER; AIR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98225-292-0	01	1	1311-
5	HEATER ASM; AIR DRYER	1-48199-530-0	01	1	1106-1405
5	HEATER ASM; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-530-0	01	1	1406-
5	HEATER ASM; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-530-0	01	1	1406-
7	RING; SNAP,AIR DRYER (D)	1-47769-017-0	01	1	1106-1310
7	RING; SNAP,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-47769-017-0	01	1	1311-
7	RING; SNAP,AIR DRYER (C)	1-48199-520-0	02	1	1106-1405
7	RING; SNAP,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48199-520-0	02	1	1406-
7	RING; SNAP,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-48199-520-0	02	1	1406-
7	RING; SNAP,AIR DRYER (B)	1-48199-529-0	01	1	1106-1405
7	RING; SNAP,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48199-529-0	01	1	1406-
7	RING; SNAP,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48199-529-0	01	1	1406-
7	RING; SNAP,AIR DRYER (A)	1-48199-579-0	01	1	1106-1405
7	RING; SNAP,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48199-579-0	01	1	1406-
7	RING; SNAP,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48199-579-0	01	1	1406-
65	BOLT; PURGE VLV	1-48199-517-0	01	1	1106-1405
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-517-0	01	1	1406-
65	BOLT; PURGE VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-517-0	01	1	1406-
68	BODY; VALVE	1-48199-515-0	01	1	1106-1405
68	BODY; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-515-0	01	1	1406-
68	BODY; VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-515-0	01	1	1406-
70	VALVE; AIR DRYER	1-48199-504-0	01	1	1106-1405
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-504-0	01	1	1406-
70	VALVE; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-504-0	01	1	1406-
75	COVER; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-427-0	01	1	1311-
75	COVER; CASE,AIR DRYER	1-48199-562-0	01	1	1106-1310
75	COVER; CASE,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-562-0	01	1	1311-
76	BOLT; COVER,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-412-0	04	1	1311-
76	BOLT; COVER,AIR DRYER	1-48199-561-0	06	1	1106-1310
76	BOLT; COVER,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-561-0	06	1	1311-
78	BOLT; OIL FILTER,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-417-0	04	1	1311-
78	BOLT; OIL FILTER,AIR DRYER	1-48199-557-0	04	1	1106-1310
78	BOLT; OIL FILTER,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-557-0	04	1	1311-
81	BOLT; CASE,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-436-0	08	1	1311-
81	BOLT; CASE,AIR DRYER	1-48199-436-0	08	1	1106-1310
81	BOLT; CASE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-436-0	06	1	1311-
84	SPRING; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48199-425-0	01	1	1311-
84	SPRING; AIR DRYER (B)	1-48199-523-0	01	1	1106-1405
84	SPRING; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48199-523-0	01	1	1406-
84	SPRING; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48199-523-0	01	1	1406-
84	SPRING; AIR DRYER (A)	1-48199-564-0	01	1	1106-1310
84	SPRING; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48199-564-0	01	1	1311-
93	SILENCER; AIR DRYER (B)	1-48199-581-0	01	1	1106-1310
93	SILENCER; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48199-581-0	01	1	1311-
93	SILENCER; AIR DRYER (A)	1-48199-619-0	01	1	1106-1405
93	SILENCER; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48199-619-0	01	1	1406-
93	SILENCER; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48199-619-0	01	1	1406-
104	GASKET 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48199-496-0	02	1	1311-
104	GASKET (A)	1-48199-495-0	01	1	1106-1211
104	GASKET (A)	8-98226-321-0	01	1	1212-1405
104	GASKET 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98226-321-0	01	1	1406-
104	GASKET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98226-321-0	01	1	1406-
104	GASKET (B)	1-48199-496-0	02	1	1106-1310
104	GASKET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48199-496-0	02	1	1311-
109	STOPPER; CHECK VALVE	1-48199-539-0	01	1	1106-1405
109	STOPPER; CHECK VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-539-0	01	1	1406-
109	STOPPER; CHECK VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-539-0	01	1	1406-
110	NUT; CAP	1-48199-527-0	01	1	1106-1405
110	NUT; CAP 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-527-0	01	1	1406-
110	NUT; CAP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-527-0	01	1	1406-
111	PLATE; GOVERNOR	1-48199-526-0	01	1	1106-1405
111	PLATE; GOVERNOR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-526-0	01	1	1406-
111	PLATE; GOVERNOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-526-0	01	1	1406-
112	SCREW & SPRING ASM; AIR DRYER	1-48199-524-0	01	1	1106-1405
112	SCREW & SPRING ASM; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-524-0	01	1	1406-
112	SCREW & SPRING ASM; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-524-0	01	1	1406-
113	STEM; EXHAUST	1-48199-522-0	01	1	1106-1405
113	STEM; EXHAUST 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-522-0	01	1	1406-
113	STEM; EXHAUST BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-522-0	01	1	1406-
114	PISTON ASM; GOVERNOR	1-48199-521-0	01	1	1106-1405
114	PISTON ASM; GOVERNOR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-521-0	01	1	1406-
114	PISTON ASM; GOVERNOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-521-0	01	1	1406-

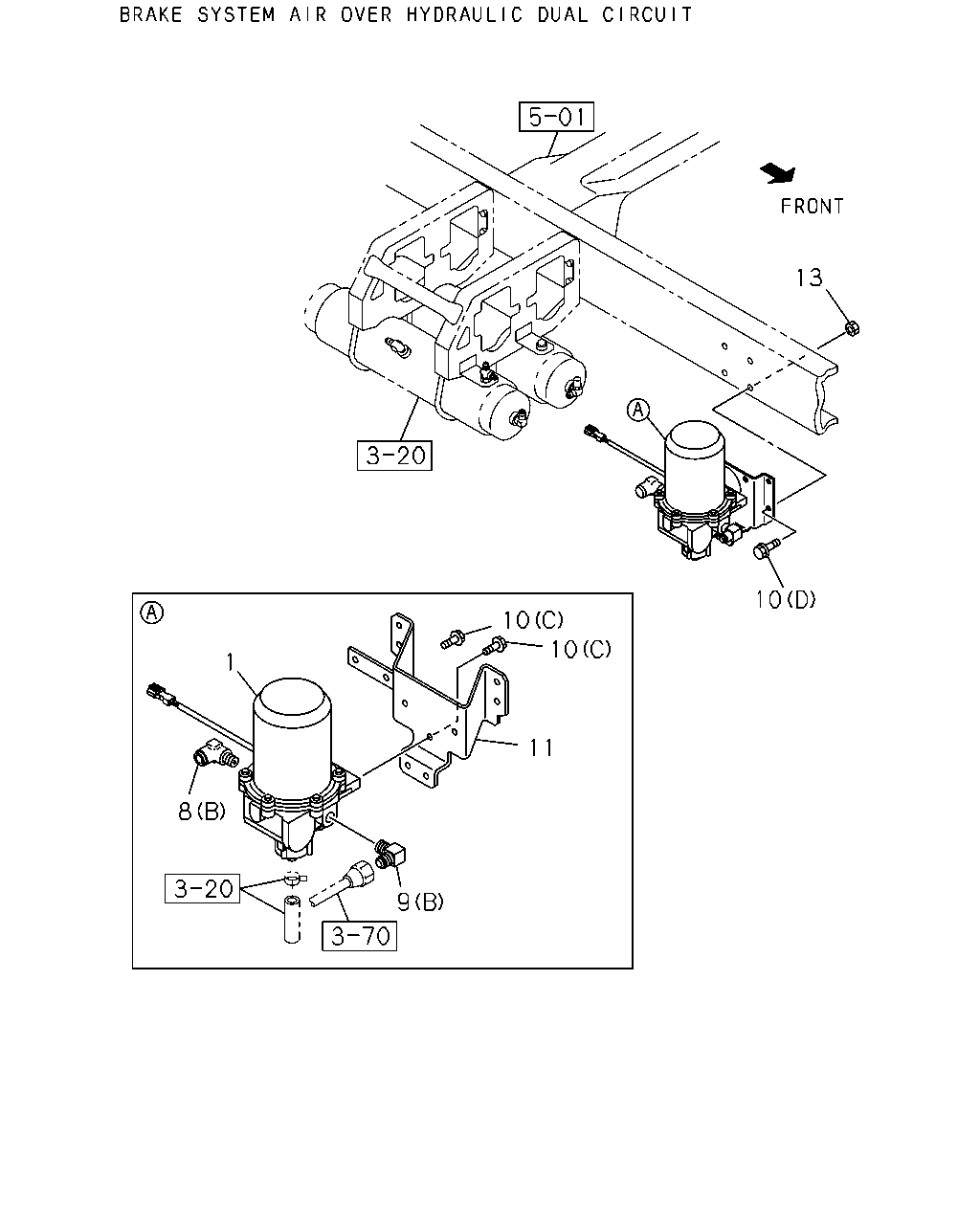

11 9 8 1 10 10 10 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98225-285-0	01	1	1311-
1	DRYER; AIR	1-48190-371-2	01	1	1106-1211
1	DRYER; AIR	8-98225-292-0	01	1	1212-1310
1	DRYER; AIR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98225-292-0	01	1	1311-
8	CONNECTOR; OUT,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	1311-
8	CONNECTOR; OUT,AIR DRYER (A) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	1106-1310
8	CONNECTOR; OUT,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	1311-
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M22 & PT1/2 ELBOW	0-92134-315-0	01	1	1311-
9	CONNECTOR; PIPE,AIR DRYER (A) M22 & PT1/2 FLARE	0-92121-815-0	01	1	1106-1310
9	CONNECTOR; PIPE,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M22 & PT1/2 FLARE	0-92121-815-0	01	1	1311-
10	BOLT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M10X25 FLANGE	0-28051-025-0	03	1	1311-
10	BOLT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) M10X35 FLANGE	0-28651-035-0	02	1	1311-
10	BOLT; AIR DRYER (A) M12X25 FLANGE	0-28051-225-0	03	1	1106-1310
10	BOLT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12X25 FLANGE	0-28051-225-0	03	1	1311-
10	BOLT; AIR DRYER (B) M8X20 FLANGE	0-28650-820-0	02	1	1106-1310
10	BOLT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X20 FLANGE	0-28650-820-0	02	1	1311-
11	BRACKET; AIR DRYER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98225-807-0	01	1	1311-
11	BRACKET; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98120-190-0	01	1	1311-
13	NUT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91180-210-0	04	1	1311-

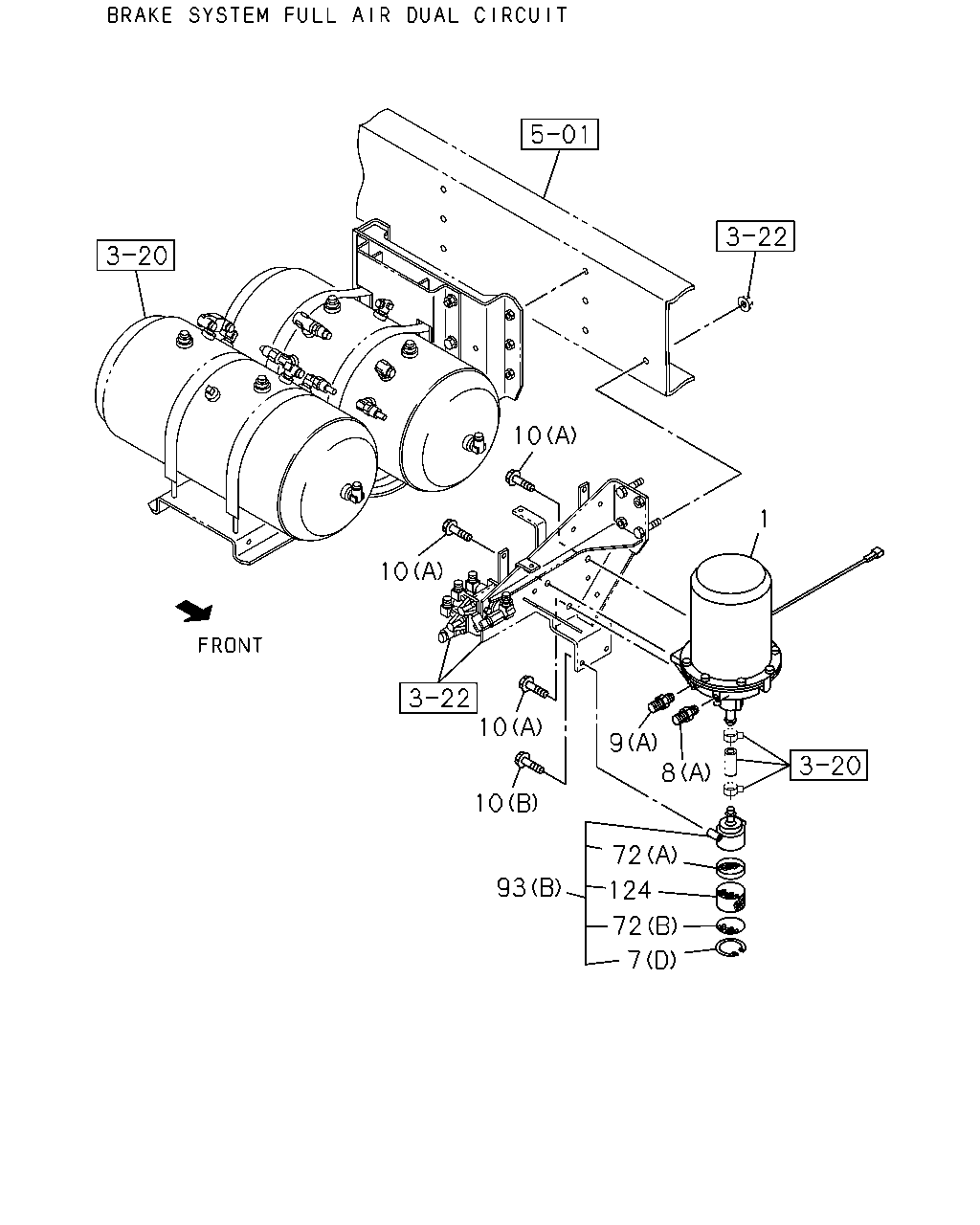

1 9 8 10 10 93 124 72 7 72 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRYER; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98225-285-0	01	1	1311-
1	DRYER; AIR	1-48190-371-2	01	1	1106-1211
1	DRYER; AIR	8-98225-292-0	01	1	1212-1310
1	DRYER; AIR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98225-292-0	01	1	1311-
7	RING; SNAP,AIR DRYER (D)	1-47769-017-0	01	1	1106-1310
7	RING; SNAP,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	1-47769-017-0	01	1	1311-
7	RING; SNAP,AIR DRYER (C)	1-48199-520-0	02	1	1106-1405
7	RING; SNAP,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C)	1-48199-520-0	02	1	1406-
7	RING; SNAP,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-48199-520-0	02	1	1406-
7	RING; SNAP,AIR DRYER (B)	1-48199-529-0	01	1	1106-1405
7	RING; SNAP,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48199-529-0	01	1	1406-
7	RING; SNAP,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48199-529-0	01	1	1406-
7	RING; SNAP,AIR DRYER (A)	1-48199-579-0	01	1	1106-1405
7	RING; SNAP,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48199-579-0	01	1	1406-
7	RING; SNAP,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48199-579-0	01	1	1406-
8	CONNECTOR; OUT,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	1311-
8	CONNECTOR; OUT,AIR DRYER (A) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	1106-1310
8	CONNECTOR; OUT,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	1311-
9	CONNECTOR; PIPE,AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M22 & PT1/2 ELBOW	0-92134-315-0	01	1	1311-
9	CONNECTOR; PIPE,AIR DRYER (A) M22 & PT1/2 FLARE	0-92121-815-0	01	1	1106-1310
9	CONNECTOR; PIPE,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M22 & PT1/2 FLARE	0-92121-815-0	01	1	1311-
10	BOLT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) M10X25 FLANGE	0-28051-025-0	03	1	1311-
10	BOLT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) M10X35 FLANGE	0-28651-035-0	02	1	1311-
10	BOLT; AIR DRYER (A) M12X25 FLANGE	0-28051-225-0	03	1	1106-1310
10	BOLT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M12X25 FLANGE	0-28051-225-0	03	1	1311-
10	BOLT; AIR DRYER (B) M8X20 FLANGE	0-28650-820-0	02	1	1106-1310
10	BOLT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X20 FLANGE	0-28650-820-0	02	1	1311-
72	PLATE; FILTER,AIR DRYER (A)	1-48199-585-0	01	1	1106-1310
72	PLATE; FILTER,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48199-585-0	01	1	1311-
72	PLATE; FILTER,AIR DRYER (B)	1-48199-602-0	01	1	1106-1310
72	PLATE; FILTER,AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48199-602-0	01	1	1311-
93	SILENCER; AIR DRYER (B)	1-48199-581-0	01	1	1106-1310
93	SILENCER; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48199-581-0	01	1	1311-
93	SILENCER; AIR DRYER (A)	1-48199-619-0	01	1	1106-1405
93	SILENCER; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48199-619-0	01	1	1406-
93	SILENCER; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-48199-619-0	01	1	1406-
124	FILTER; SILENCER	1-48199-465-0	01	1	1106-1310
124	FILTER; SILENCER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-465-0	01	1	1311-

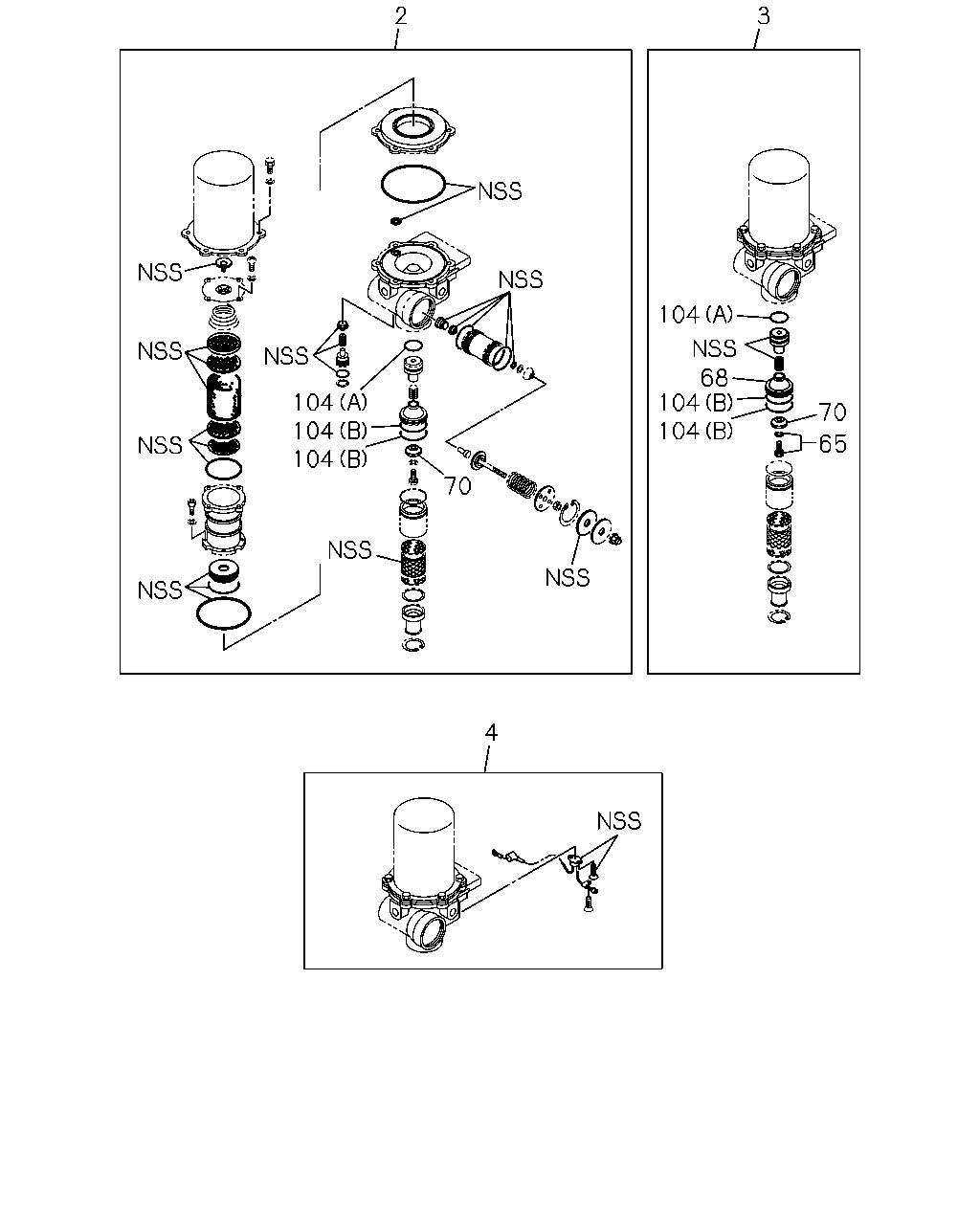

4 104 104 70 68 65 104 3 2 104 104 104 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	REPAIR KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98226-323-0	01	1	1311-
2	REPAIR KIT; AIR DRYER	1-85576-448-0	01	1	1106-1211
2	REPAIR KIT; AIR DRYER	8-98226-328-0	01	1	1212-1310
2	REPAIR KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98226-328-0	01	1	1311-
3	PISTON KIT; AIR DRYER	1-85576-383-0	01	1	1106-1211
3	PISTON KIT; AIR DRYER	8-98226-322-0	01	1	1212-1405
3	PISTON KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98226-322-0	01	1	1406-
3	PISTON KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98226-322-0	01	1	1406-
4	THERMOSTAT KIT; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-85576-443-0	01	1	1311-
4	THERMOSTAT KIT; AIR DRYER	1-85576-444-0	01	1	1106-1310
4	THERMOSTAT KIT; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-444-0	01	1	1311-
65	BOLT; PURGE VLV	1-48199-517-0	01	1	1106-1405
65	BOLT; PURGE VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-517-0	01	1	1406-
65	BOLT; PURGE VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-517-0	01	1	1406-
68	BODY; VALVE	1-48199-515-0	01	1	1106-1405
68	BODY; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-515-0	01	1	1406-
68	BODY; VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-515-0	01	1	1406-
70	VALVE; AIR DRYER	1-48199-504-0	01	1	1106-1405
70	VALVE; AIR DRYER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48199-504-0	01	1	1406-
70	VALVE; AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48199-504-0	01	1	1406-
104	GASKET 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48199-496-0	02	1	1311-
104	GASKET (A)	1-48199-495-0	01	1	1106-1211
104	GASKET (A)	8-98226-321-0	01	1	1212-1405
104	GASKET 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98226-321-0	01	1	1406-
104	GASKET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98226-321-0	01	1	1406-
104	GASKET (B)	1-48199-496-0	02	1	1106-1310
104	GASKET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-48199-496-0	02	1	1311-
