◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FORWARD ▶ 11412 - FORWARD 1100/1200 ▶ 3 - Brakes, Brake System ▶ 3-41 - REAR BRAKE POWER CHAMBER ▶
3-41 — REAR BRAKE POWER CHAMBER (#55158) — 32 parça
çizim 144940
1 1 32
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING 1-48250-877-4 01 1 1106-1310
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48250-877-4 01 1 1311-
1 CHAMBER ASM; SPRING 1-48250-878-4 01 1 1106-1310
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48250-878-4 01 1 1311-
32 CONNECTOR; SPR CHAMBER
DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1106-1310
32 CONNECTOR; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1311-

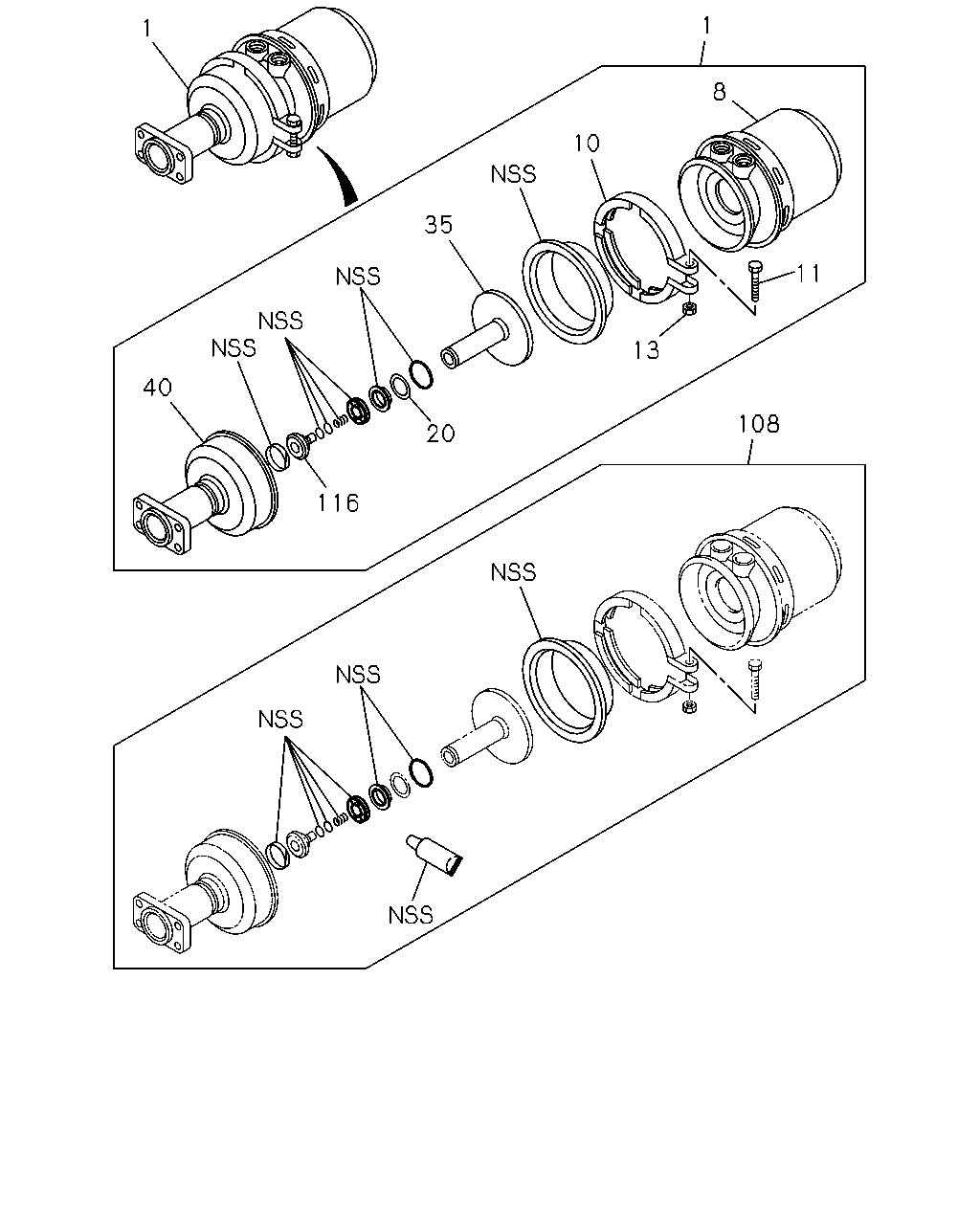

çizim 144944
1 1 8 11 13 10 35 20 116 40 108
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING 1-48250-877-4 01 1 1106-1310
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48250-877-4 01 1 1311-
1 CHAMBER ASM; SPRING 1-48250-878-4 01 1 1106-1310
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48250-878-4 01 1 1311-
8 SHELL; CYL,SPR CHAMBER 1-48251-173-2 01 1 1106-1310
8 SHELL; CYL,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48251-173-2 01 1 1311-
8 SHELL; CYL,SPR CHAMBER 1-48251-174-2 01 1 1106-1310
8 SHELL; CYL,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48251-174-2 01 1 1311-
10 RING; CLAMP,SPR CHAMBER 1-48269-231-0 02 1 1106-1310
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48269-231-0 02 1 1311-
11 BOLT; CLAMP RING 1-48269-232-0 02 1 1106-1310
11 BOLT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48269-232-0 02 1 1311-
13 NUT; CLAMP RING 1-48269-233-0 02 1 1106-1310
13 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48269-233-0 02 1 1311-
20 RING; RET 1-48269-236-0 02 1 1106-1310
20 RING; RET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48269-236-0 02 1 1311-
35 PLATE; ROD END,SPR CHAMBER 1-48269-253-0 02 1 1106-1310
35 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48269-253-0 02 1 1311-
40 COVER ASM; LWR,SPR CHAMBER 1-48251-179-0 01 1 1106-1310
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48251-179-0 01 1 1311-
40 COVER ASM; LWR,SPR CHAMBER 1-48251-180-0 01 1 1106-1310
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48251-180-0 01 1 1311-
108 REPAIR KIT; SPR CHAMBER 1-85576-407-1 02 1 1106-1310
108 REPAIR KIT; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-85576-407-1 02 1 1311-
116 GUIDE; SPR CHAMBER 1-48269-237-0 02 1 1106-1310
116 GUIDE; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48269-237-0 02 1 1311-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
