◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FORWARD ▶ 11412 - FORWARD 1100/1200 ▶ 3 - Brakes, Brake System ▶ 3-40 - FRONT BRAKE POWER CHAMBER ▶
3-40 — FRONT BRAKE POWER CHAMBER (#55157) — 23 parça

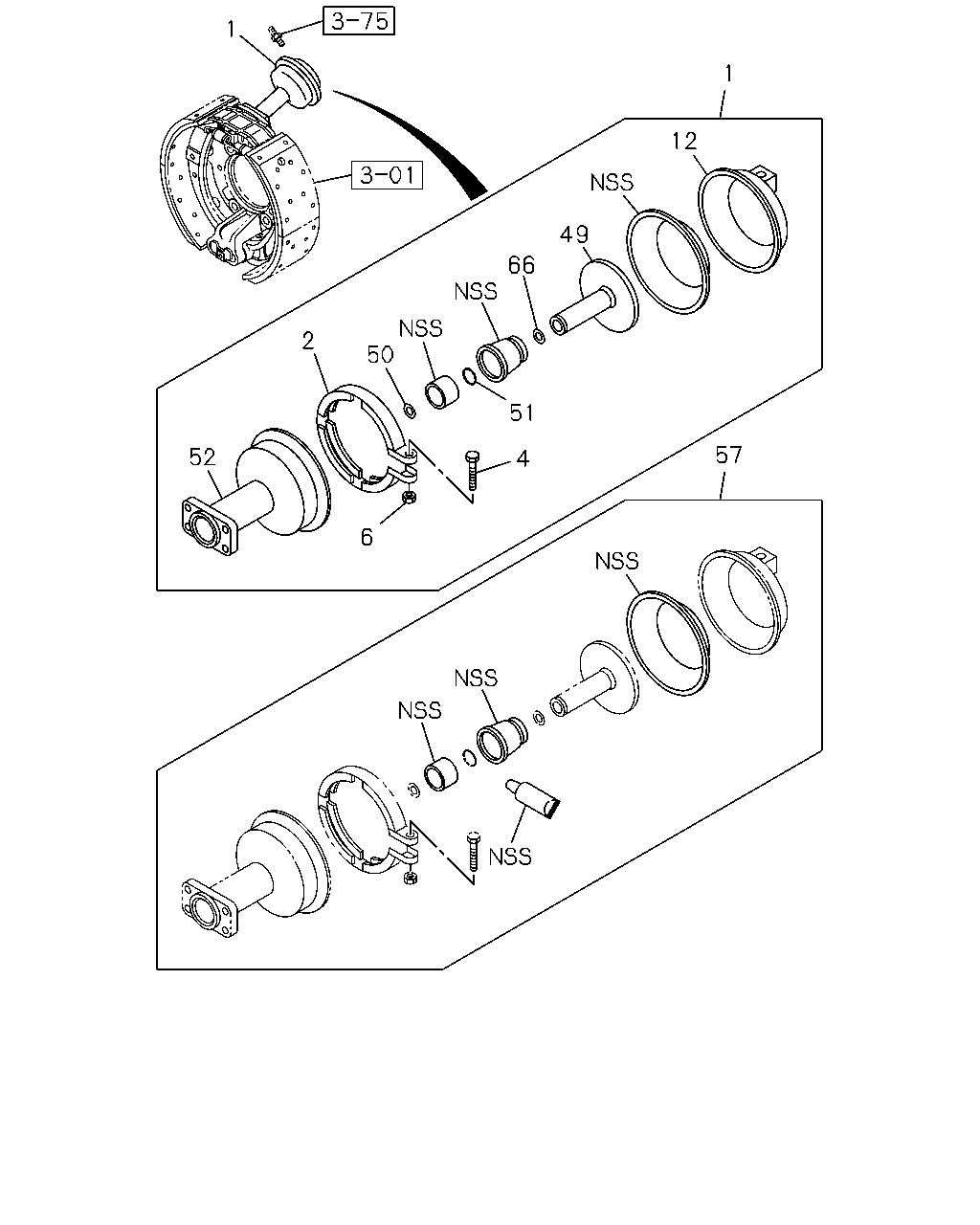

çizim 144942
1 1 12 49 66 50 2 52 6 4 51 57
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; POWER,FRT BRK 8-98145-680-0 02 1 1106-1310
1 CHAMBER ASM; POWER,FRT BRK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98145-680-1 02 1 1311-
2 RING; CLAMP,SPR CHAMBER 1-48269-256-0 02 1 1106-1310
2 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48269-256-0 02 1 1311-
4 BOLT; CLAMP RING 1-48269-257-0 02 1 1106-1310
4 BOLT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48269-257-0 02 1 1311-
6 NUT; CLAMP RING 1-48269-147-0 02 1 1106-1310
6 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48269-147-0 02 1 1311-
12 COVER ASM; LWR,SPR CHAMBER 1-48251-103-0 02 1 1106-1310
12 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48251-103-0 02 1 1311-
49 ROD; PUSH,SPR CHAMBER 8-98146-969-0 02 1 1106-1310
49 ROD; PUSH,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98146-969-1 02 1 1311-
50 GUIDE; SPR CHAMBER 8-98146-963-0 02 1 1106-1310
50 GUIDE; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98146-963-1 02 1 1311-
51 RING; SPR CHAMBER 8-98146-966-0 02 1 1106-1310
51 RING; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98146-966-0 02 1 1311-
52 HOUSING; SPR CHAMBER 1-48251-195-1 02 1 1106-1310
52 HOUSING; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48251-195-1 02 1 1311-1403
52 HOUSING; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98248-793-0 02 1 1404-
57 REPAIR KIT; SPR CHAMBER 8-98146-978-0 02 1 1106-1310
57 REPAIR KIT; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98146-978-0 02 1 1311-
66 SHIM 8-98146-965-0 AR 1 1106-1310
66 SHIM
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98146-965-0 AR 1 1311-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
