3-26 — TRAILER CONTROL (#55155) — 71 parça

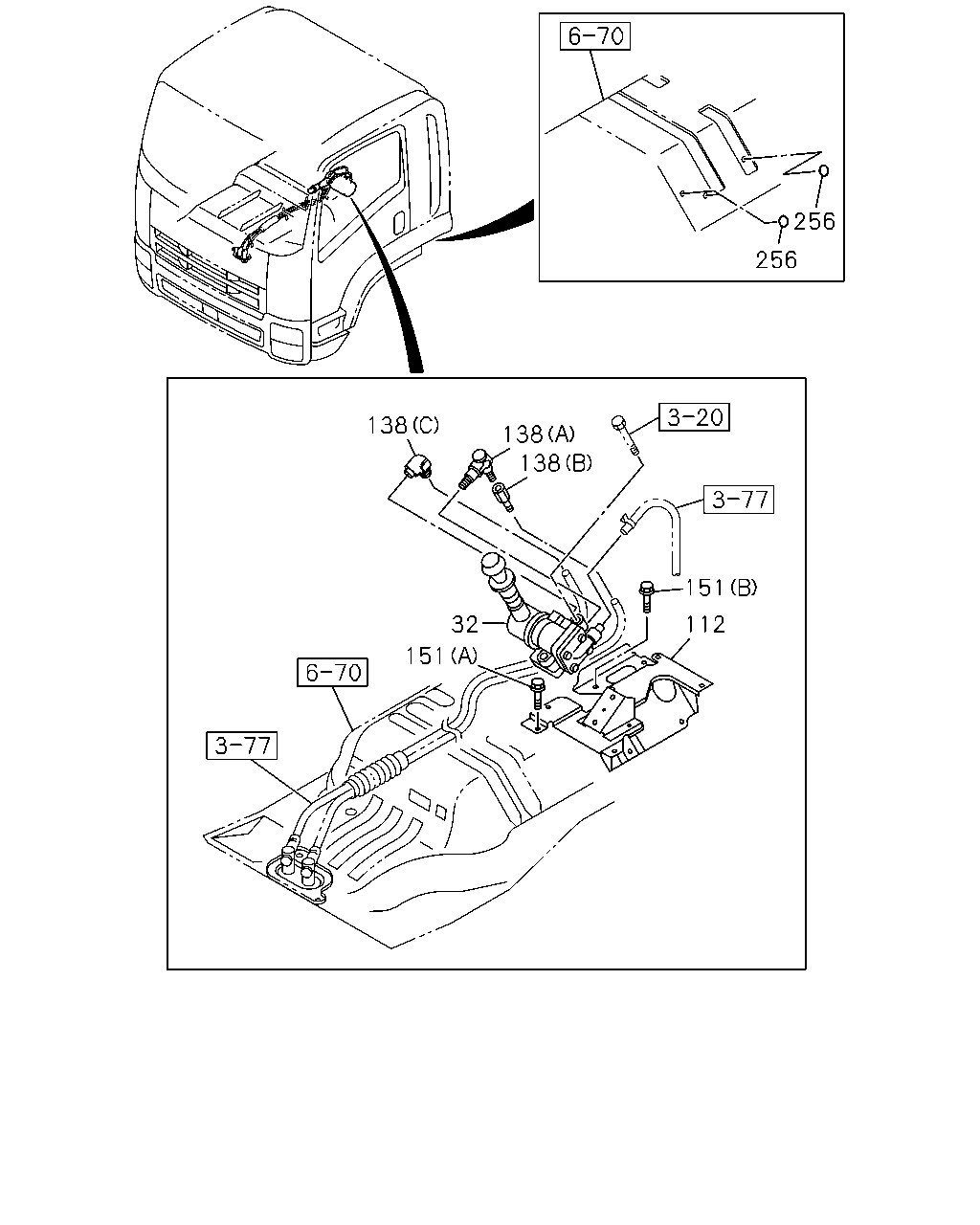

256 256 138 138 32 151 151 112 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	VALVE; BRK,HAND CONT	1-48460-306-0	01	1	1106-1310
32	VALVE; BRK,HAND CONT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48460-306-0	01	1	1311-
112	BRACKET; CONT VLV	8-97616-923-1	01	1	1106-1310
112	BRACKET; CONT VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-97616-923-1	01	1	1311-1510
112	BRACKET; CONT VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-97616-923-1	01	1	1511-
138	CONNECTOR; DELIVERY (A) DIN6 & PT1/4 ELBOW	1-09650-240-1	01	1	1106-1310
138	CONNECTOR; DELIVERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN6 & PT1/4 ELBOW	1-09650-240-1	01	1	1311-1510
138	CONNECTOR; DELIVERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN6 & PT1/4 ELBOW	1-09650-240-1	01	1	1511-
138	CONNECTOR; DELIVERY (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1106-1310
138	CONNECTOR; DELIVERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1311-1510
138	CONNECTOR; DELIVERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1511-
138	CONNECTOR; DELIVERY (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1106-1310
138	CONNECTOR; DELIVERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1311-1510
138	CONNECTOR; DELIVERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1511-
151	BOLT; VLV BRKT (A) M6X16	0-52000-616-0	03	1	1106-1310
151	BOLT; VLV BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M6X16	0-52000-616-0	03	1	1311-
151	BOLT; VLV BRKT (B) M8X20 W/LK&PL WASHER	0-52000-820-0	02	1	1106-1310
151	BOLT; VLV BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X20 W/LK&PL WASHER	0-52000-820-0	02	1	1311-
256	SEAL OD=25 BLACK	1-76798-019-0	09	1	1106-1310
256	SEAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=25 BLACK	1-76798-019-0	09	1	1311-1510
256	SEAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=25 BLACK	1-76798-019-0	09	1	1511-

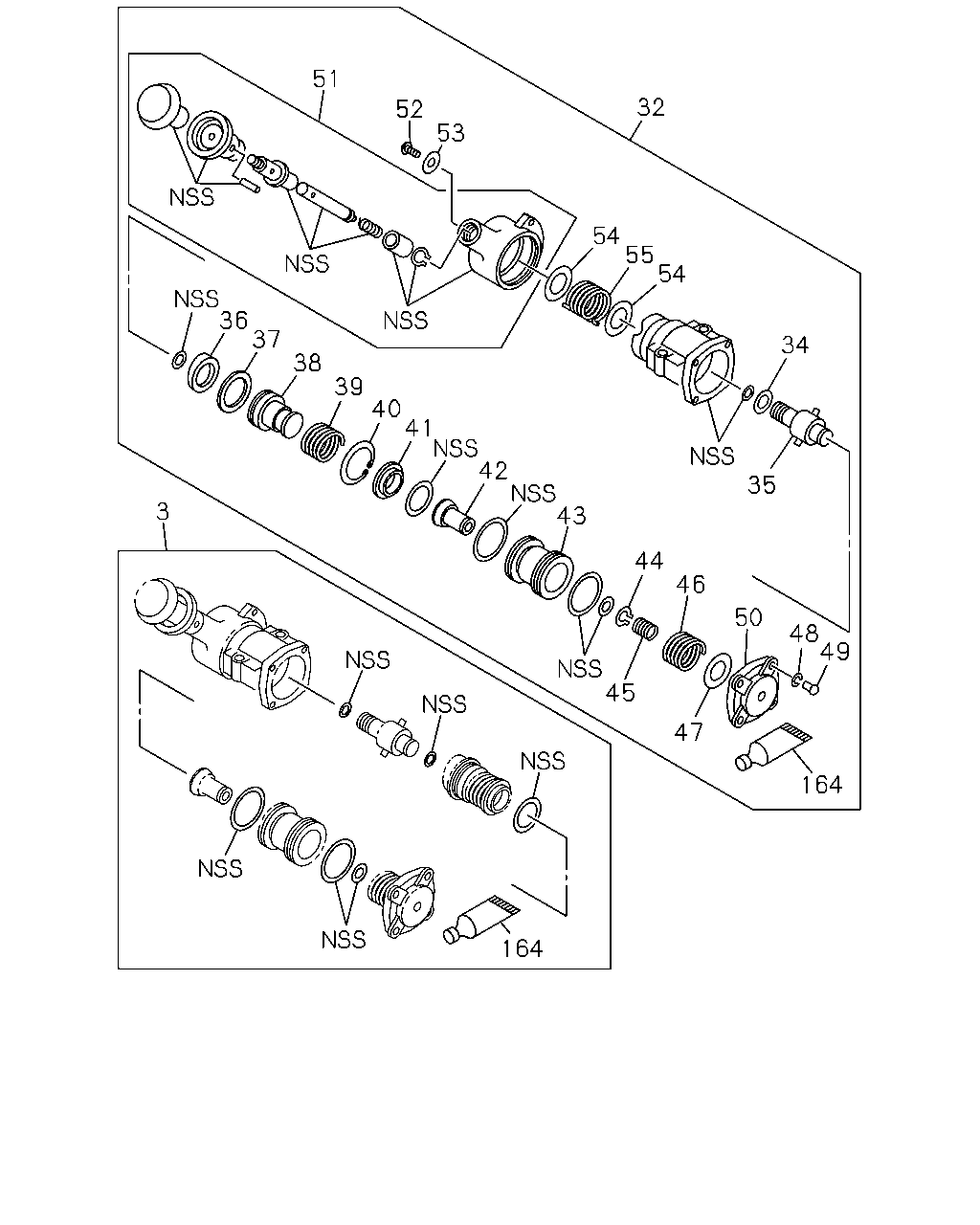

34 54 55 54 32 53 52 51 36 37 38 39 40 41 42 43 35 44 46 50 48 49 164 47 45 164 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	REPAIR KIT; HAND BRK VLV W/GREASE	1-48469-096-0	01	1	1106-1310
3	REPAIR KIT; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) W/GREASE	1-48469-096-0	01	1	1311-
32	VALVE; BRK,HAND CONT	1-48460-306-0	01	1	1106-1310
32	VALVE; BRK,HAND CONT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48460-306-0	01	1	1311-
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	1106-1310
34	SHIM; CAM HOLDER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-055-0	AR	1	1311-
35	HOLDER; CAM	1-48469-054-0	01	1	1106-1310
35	HOLDER; CAM REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-054-0	01	1	1311-
36	RING; CAM	1-48469-056-0	01	1	1106-1310
36	RING; CAM REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-056-0	01	1	1311-
37	GUIDE; CAM RING	1-48469-058-0	01	1	1106-1310
37	GUIDE; CAM RING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-058-0	01	1	1311-
38	SEAT; EXH VLV	1-48469-057-0	01	1	1106-1310
38	SEAT; EXH VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-057-0	01	1	1311-
39	SPRING; RETURN,CAM RING	1-48469-063-0	01	1	1106-1310
39	SPRING; RETURN,CAM RING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-063-0	01	1	1311-
40	RING; SNAP	1-48469-067-0	01	1	1106-1310
40	RING; SNAP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-067-0	01	1	1311-
41	SEAT; FEED VLV	1-48469-066-0	01	1	1106-1310
41	SEAT; FEED VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-066-0	01	1	1311-
42	VALVE; FEED	1-48469-065-0	01	1	1106-1310
42	VALVE; FEED REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-065-0	01	1	1311-
43	PISTON; HAND BRK VLV	1-48469-064-0	01	1	1106-1310
43	PISTON; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-064-0	01	1	1311-
44	RING; SNAP,FEED VLV	1-48469-068-0	02	1	1106-1310
44	RING; SNAP,FEED VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-068-0	02	1	1311-
45	SPRING; FEED VLV	1-48469-070-0	01	1	1106-1310
45	SPRING; FEED VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-070-0	01	1	1311-
46	SPRING; MAIN,PISTON	1-48469-089-0	01	1	1106-1310
46	SPRING; MAIN,PISTON REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-089-0	01	1	1311-
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	1106-1310
47	SHIM; MAIN SPRING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-072-0	AR	1	1311-
48	WASHER; COVER	1-48469-091-0	04	1	1106-1310
48	WASHER; COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-091-0	04	1	1311-
49	SCREW; COVER	1-48469-092-0	04	1	1106-1310
49	SCREW; COVER REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-092-0	04	1	1311-
50	COVER; HAND BRK VLV	1-48469-090-0	01	1	1106-1310
50	COVER; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-090-0	01	1	1311-
51	HANDLE ASM; HAND BRK VLV	1-48469-122-0	01	1	1106-1310
51	HANDLE ASM; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-122-0	01	1	1311-
52	SCREW; HANDLE	1-48469-062-0	01	1	1106-1310
52	SCREW; HANDLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-062-0	01	1	1311-
53	WASHER; HANDLE	1-48469-061-0	01	1	1106-1310
53	WASHER; HANDLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-061-0	01	1	1311-
54	SEAT; SPRING	1-48469-082-0	02	1	1106-1310
54	SEAT; SPRING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-082-0	02	1	1311-
55	SPRING; RETURN,HANDLE	1-48469-059-0	01	1	1106-1310
55	SPRING; RETURN,HANDLE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-059-0	01	1	1311-
164	GREASE; HAND BRK VLV	1-48469-084-0	01	1	1106-1310
164	GREASE; HAND BRK VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-48469-084-0	01	1	1311-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
