Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#55154) — 207 parça

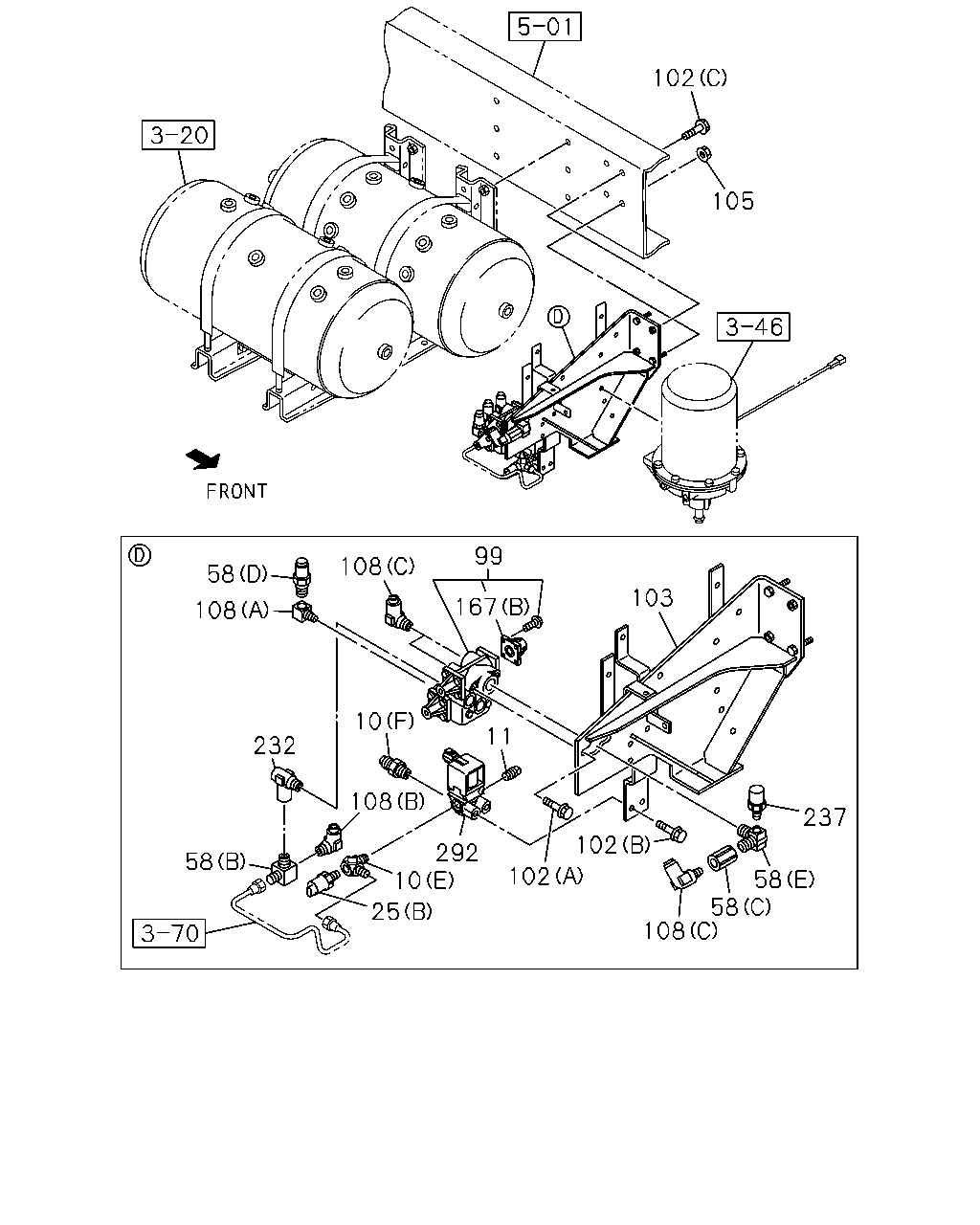

102 105 58 108 108 99 167 103 237 58 58 108 102 102 11 10 232 58 108 292 10 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	CONNECTOR (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1106-1310
10	CONNECTOR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1311-
10	CONNECTOR (E) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1106-1310
10	CONNECTOR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1311-
10	CONNECTOR (A) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1106-1310
10	CONNECTOR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1311-
10	CONNECTOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1106-1310
10	CONNECTOR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1311-
10	CONNECTOR (C) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1106-1310
10	CONNECTOR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1311-
10	CONNECTOR (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1106-1310
10	CONNECTOR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1311-
11	PLUG PT1/4	9-99204-513-0	01	1	1106-1310
11	PLUG 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/4	9-99204-513-0	01	1	1311-
25	SWITCH; PRESSURE (B) STAMP 5.5	8-97609-249-0	01	1	1106-1310
25	SWITCH; PRESSURE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) STAMP 5.5	8-97609-249-0	01	1	1311-
25	SWITCH; PRESSURE (A) STAMP 2.0	8-98010-856-1	01	1	1106-1310
25	SWITCH; PRESSURE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) STAMP 2.0	8-98010-856-2	01	1	1311-
58	ADAPTER (A) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1106-1310
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1311-
58	ADAPTER (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1106-1310
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1311-
58	ADAPTER (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1106-1310
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1311-
58	ADAPTER (E) DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1106-1310
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1311-
58	ADAPTER (B)	8-98148-475-0	01	1	1106-1310
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98148-475-0	01	1	1311-
99	VALVE; PROTECTION	1-48110-288-1	01	1	1106-1310
99	VALVE; PROTECTION 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48110-288-3	01	1	1311-
102	BOLT; PROTECTION VALVE (A) M8X16 FLANGE	0-28050-816-0	02	1	1106-1310
102	BOLT; PROTECTION VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X16 FLANGE	0-28050-816-0	02	1	1311-
102	BOLT; PROTECTION VALVE (B) M8X20 FLANGE	0-28650-820-0	02	1	1106-1310
102	BOLT; PROTECTION VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X20 FLANGE	0-28650-820-0	02	1	1311-
102	BOLT; PROTECTION VALVE (C) M10X35 FLANGE	0-28651-035-0	02	1	1106-1310
102	BOLT; PROTECTION VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M10X35 FLANGE	0-28651-035-0	02	1	1311-
103	BRACKET; PROTECTION VALVE	8-98177-510-0	01	1	1106-1310
103	BRACKET; PROTECTION VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98226-215-0	01	1	1311-
105	NUT; BRKT,VALVE M10 FLANGE	0-91180-210-0	02	1	1106-1310
105	NUT; BRKT,VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	1311-
108	CONNECTOR; ELBOW (A) PT3/8 ELBOW	1-09660-696-0	01	1	1106-1310
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) PT3/8 ELBOW	1-09660-696-0	01	1	1311-
108	CONNECTOR; ELBOW (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1106-1310
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1311-
108	CONNECTOR; ELBOW (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1106-1310
108	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1311-
167	COVER; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48119-625-0	04	1	1311-
167	COVER; VALVE (A)	1-48219-070-0	01	1	1106-1310
167	COVER; VALVE (A)	1-48219-070-0	01	1	1106-1310
167	COVER; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48219-070-0	01	1	1311-
167	COVER; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48219-070-0	01	1	1311-
232	VALVE; CHECK DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1106-1310
232	VALVE; CHECK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1311-

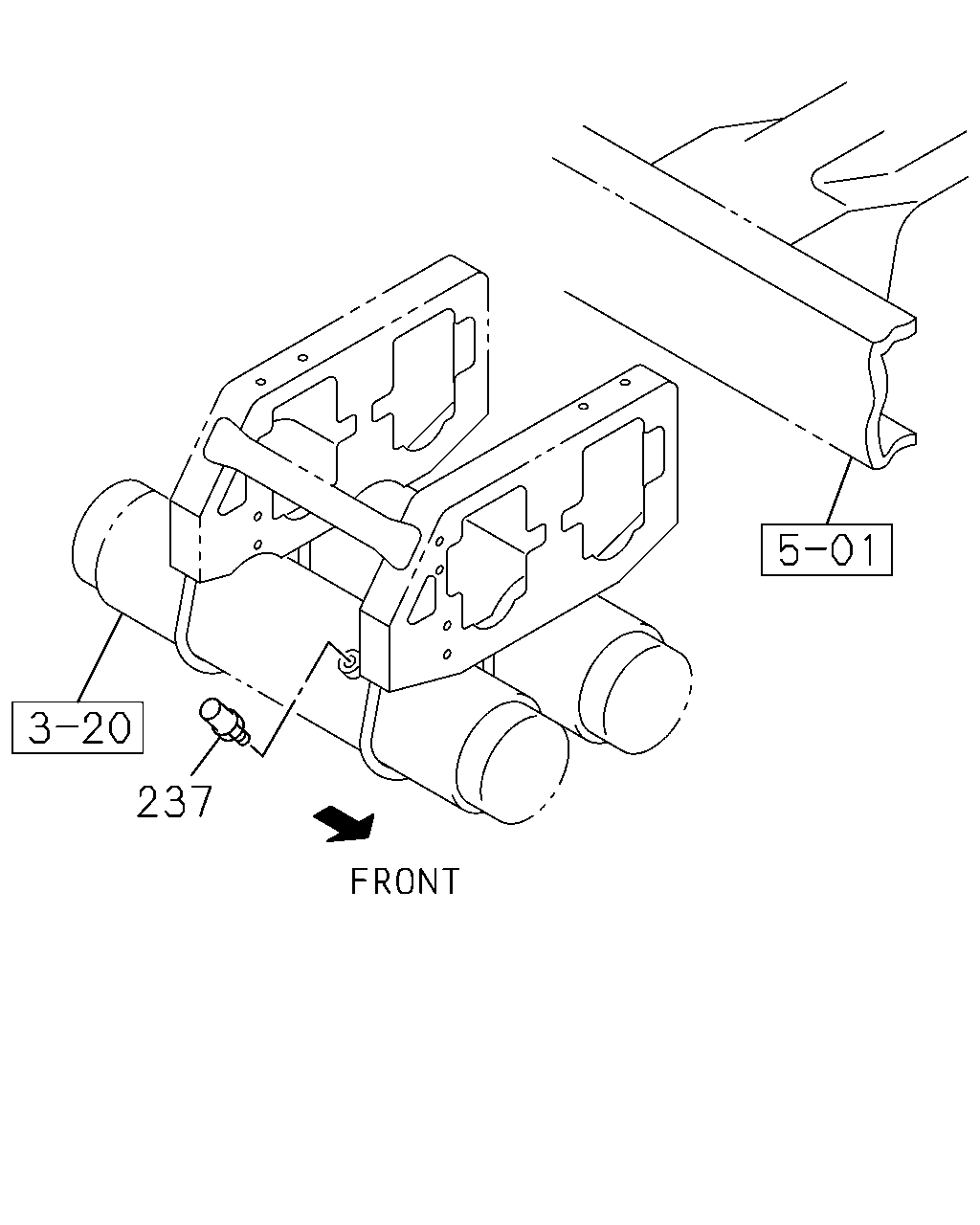

237	VALVE; SAFETY	1-48320-012-2	01	1	1106-
292	VALVE ASM; MAGNETIC	1-82563-871-2	01	1	1106-1310
292	VALVE ASM; MAGNETIC 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-82563-871-2	01	1	1311-

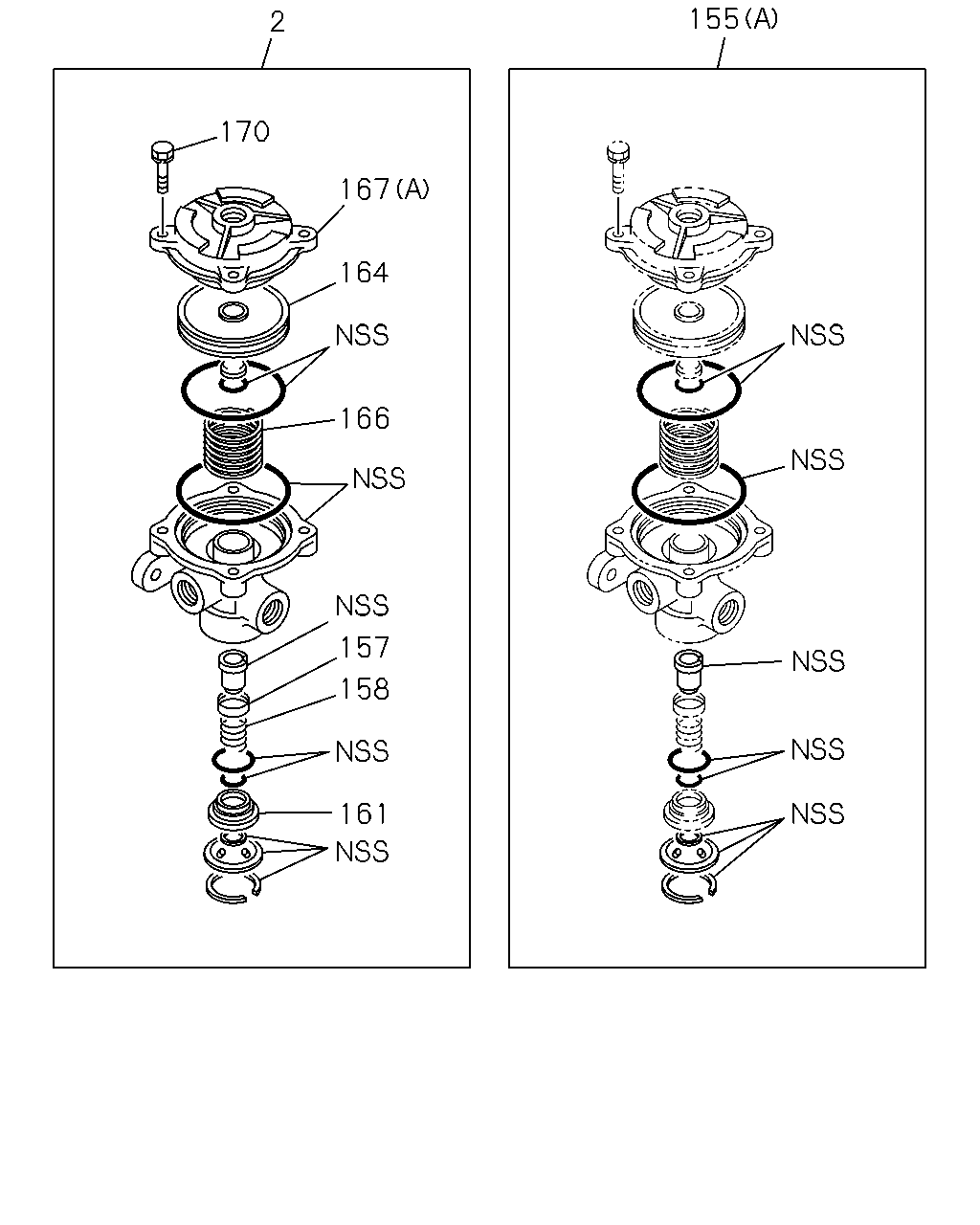

2 170 167 164 166 157 158 161 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY	1-48210-875-0	01	1	1106-1310
2	VALVE; RELAY	1-48210-875-0	01	1	1106-1310
2	VALVE; RELAY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-875-0	01	1	1311-
2	VALVE; RELAY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-875-0	01	1	1311-
155	REPAIR KIT; RELAY VALVE (A)	1-85576-033-0	01	1	1106-1310
155	REPAIR KIT; RELAY VALVE (A)	1-85576-033-0	01	1	1106-1310
155	REPAIR KIT; RELAY VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-85576-033-0	01	1	1311-
155	REPAIR KIT; RELAY VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-85576-033-0	01	1	1311-
155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	1106-1310
155	REPAIR KIT; RELAY VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-85576-408-0	01	1	1311-
157	RETAINER; VALVE	1-48213-002-0	01	1	1106-1310
157	RETAINER; VALVE	1-48213-002-0	01	1	1106-1310
157	RETAINER; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48213-002-0	01	1	1311-
157	RETAINER; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48213-002-0	01	1	1311-
158	SPRING; VALVE	1-47819-089-0	01	1	1106-1310
158	SPRING; VALVE	1-47819-089-0	01	1	1106-1310
158	SPRING; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-089-0	01	1	1311-
158	SPRING; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-089-0	01	1	1311-
161	GUIDE; VALVE	1-48129-014-0	01	1	1106-1310
161	GUIDE; VALVE	1-48129-014-0	01	1	1106-1310
161	GUIDE; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	01	1	1311-
161	GUIDE; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	01	1	1311-
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	1106-1310
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	1106-1310
164	PISTON; RELAY VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-071-0	01	1	1311-
164	PISTON; RELAY VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-071-0	01	1	1311-
166	SPRING; PISTON	1-47819-090-0	01	1	1106-1310
166	SPRING; PISTON	1-47819-090-0	01	1	1106-1310
166	SPRING; PISTON 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-090-0	01	1	1311-
166	SPRING; PISTON 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-090-0	01	1	1311-
167	COVER; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48119-625-0	04	1	1311-
167	COVER; VALVE (A)	1-48219-070-0	01	1	1106-1310
167	COVER; VALVE (A)	1-48219-070-0	01	1	1106-1310
167	COVER; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48219-070-0	01	1	1311-
167	COVER; VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48219-070-0	01	1	1311-
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	1106-1310
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	1106-1310
170	SCREW; COVER TO BODY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-039-0	04	1	1311-
170	SCREW; COVER TO BODY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-039-0	04	1	1311-

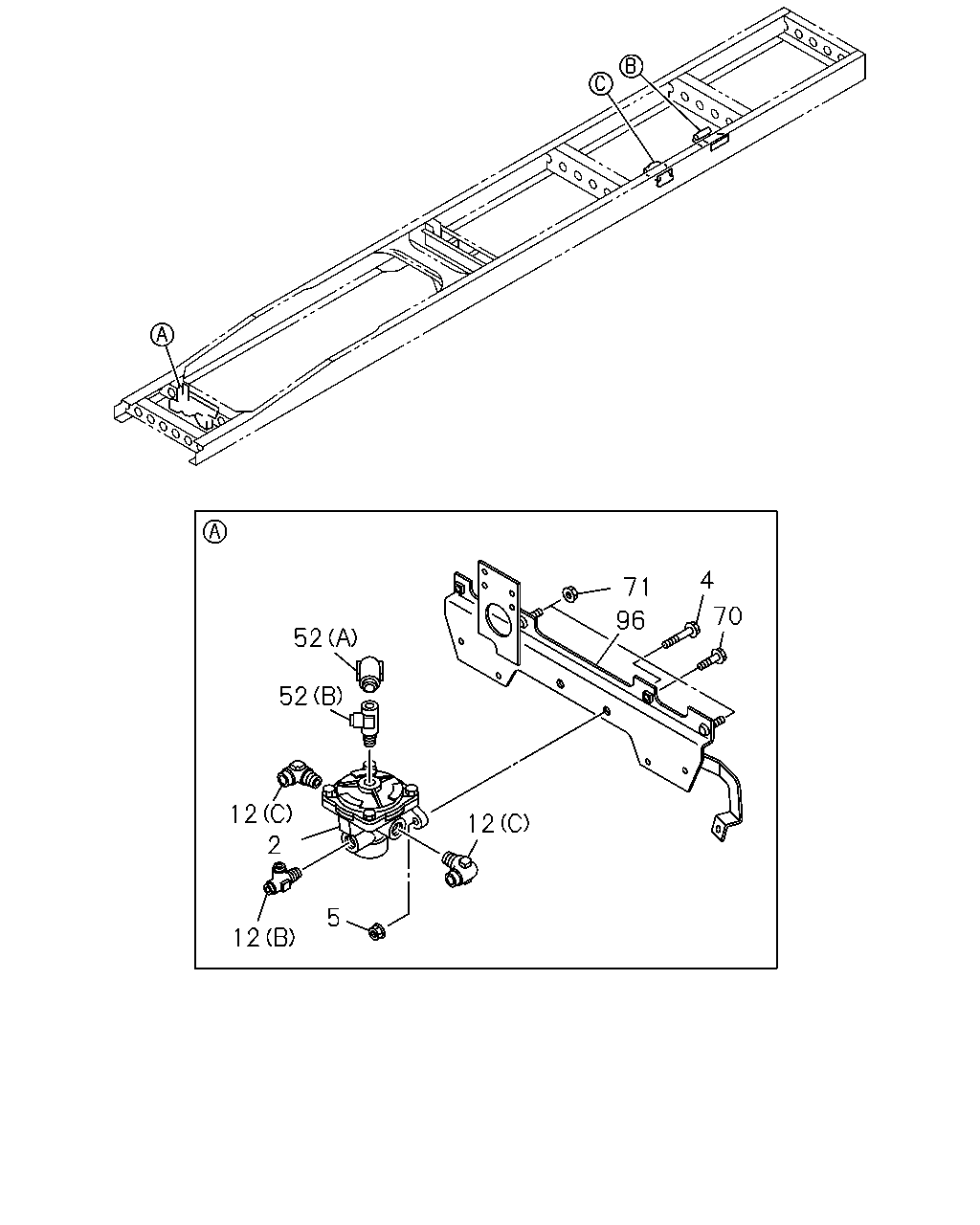

71 96 4 70 52 52 12 12 2 12 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY	1-48210-875-0	01	1	1106-1310
2	VALVE; RELAY	1-48210-875-0	01	1	1106-1310
2	VALVE; RELAY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-875-0	01	1	1311-
2	VALVE; RELAY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-875-0	01	1	1311-
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	02	1	1106-1310
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	02	1	1106-1310
4	BOLT; RELAY VLV TO BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE	0-28651-035-0	02	1	1311-
4	BOLT; RELAY VLV TO BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE	0-28651-035-0	02	1	1311-
5	NUT M10 FLANGE	0-91180-210-0	02	1	1106-1310
5	NUT M10 FLANGE	0-91180-210-0	02	1	1106-1310
5	NUT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	1311-
5	NUT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	1311-
12	CONNECTOR; RELAY VLV (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1106-1310
12	CONNECTOR; RELAY VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1311-
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1106-1310
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1106-1310
12	CONNECTOR; RELAY VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1311-
12	CONNECTOR; RELAY VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1311-
12	CONNECTOR; RELAY VLV (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1106-1310
12	CONNECTOR; RELAY VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1311-
12	CONNECTOR; RELAY VLV (B) M12 & M8 & RC3/8 3WAY	1-09661-207-0	01	1	1106-1310
12	CONNECTOR; RELAY VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12 & M8 & RC3/8 3WAY	1-09661-207-0	01	1	1311-
52	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1106-1310
52	CONNECTOR; RELAY VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1311-
52	CONNECTOR; RELAY VLV (B) DIN8 & R3/8 & RC3/8 3WAY	1-09661-271-0	01	1	1106-1310
52	CONNECTOR; RELAY VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 & R3/8 & RC3/8 3WAY	1-09661-271-0	01	1	1311-
70	BOLT; AIR VLV M8X25 FLANGE	0-28650-825-0	02	1	1106-1310
70	BOLT; AIR VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	02	1	1311-
71	NUT; AIR VLV M8 FLANGE	0-91180-108-0	02	1	1106-1310
71	NUT; AIR VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	1311-
96	BRACKET	8-98094-851-2	01	1	1106-1310
96	BRACKET 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98094-851-2	01	1	1311-

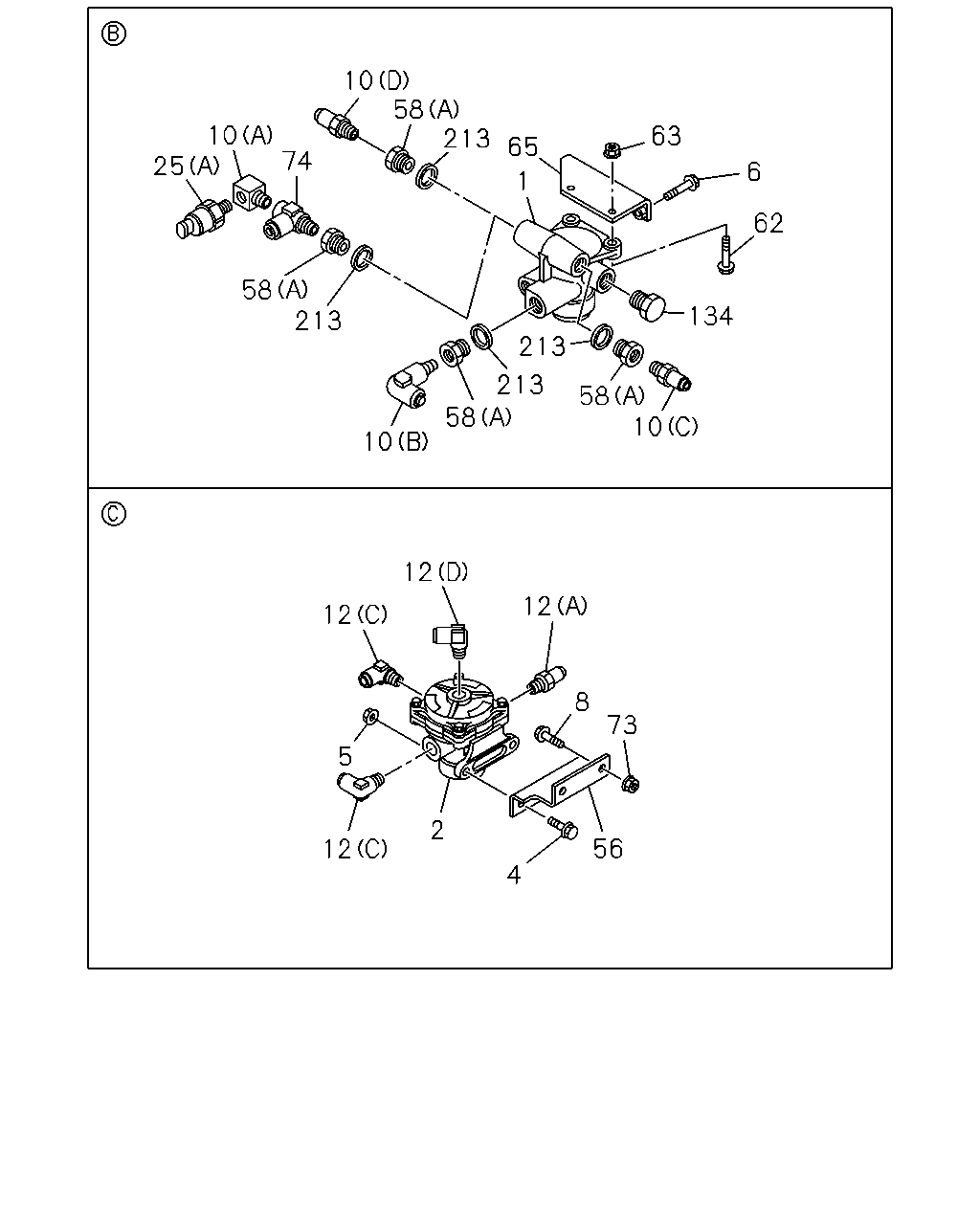

73 56 4 8 12 12 12 5 12 2 10 58 213 213 58 10 134 62 6 63 65 213 58 10 74 10 25 58 213 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR	1-48240-354-1	01	1	1106-1310
1	VALVE; RELAY RWD RR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48240-354-1	01	1	1311-
2	VALVE; RELAY	1-48210-875-0	01	1	1106-1310
2	VALVE; RELAY	1-48210-875-0	01	1	1106-1310
2	VALVE; RELAY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-875-0	01	1	1311-
2	VALVE; RELAY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48210-875-0	01	1	1311-
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	02	1	1106-1310
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	02	1	1106-1310
4	BOLT; RELAY VLV TO BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE	0-28651-035-0	02	1	1311-
4	BOLT; RELAY VLV TO BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE	0-28651-035-0	02	1	1311-
5	NUT M10 FLANGE	0-91180-210-0	02	1	1106-1310
5	NUT M10 FLANGE	0-91180-210-0	02	1	1106-1310
5	NUT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	1311-
5	NUT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	1311-
6	BOLT; VLV M8X35 FLANGE	0-28650-835-0	02	1	1106-1310
6	BOLT; VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X35 FLANGE	0-28650-835-0	02	1	1311-
8	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1106-1310
8	BOLT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE	0-28651-035-0	02	1	1311-
10	CONNECTOR (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1106-1310
10	CONNECTOR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1311-
10	CONNECTOR (E) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1106-1310
10	CONNECTOR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1311-
10	CONNECTOR (A) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1106-1310
10	CONNECTOR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1311-
10	CONNECTOR (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1106-1310
10	CONNECTOR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1311-
10	CONNECTOR (C) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1106-1310
10	CONNECTOR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1311-
10	CONNECTOR (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1106-1310
10	CONNECTOR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1311-
12	CONNECTOR; RELAY VLV (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1106-1310
12	CONNECTOR; RELAY VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1311-
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1106-1310
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1106-1310
12	CONNECTOR; RELAY VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1311-
12	CONNECTOR; RELAY VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1311-
12	CONNECTOR; RELAY VLV (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1106-1310
12	CONNECTOR; RELAY VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1311-
12	CONNECTOR; RELAY VLV (B) M12 & M8 & RC3/8 3WAY	1-09661-207-0	01	1	1106-1310
12	CONNECTOR; RELAY VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12 & M8 & RC3/8 3WAY	1-09661-207-0	01	1	1311-
25	SWITCH; PRESSURE (B) STAMP 5.5	8-97609-249-0	01	1	1106-1310
25	SWITCH; PRESSURE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) STAMP 5.5	8-97609-249-0	01	1	1311-
25	SWITCH; PRESSURE (A) STAMP 2.0	8-98010-856-1	01	1	1106-1310
25	SWITCH; PRESSURE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) STAMP 2.0	8-98010-856-2	01	1	1311-
56	BRACKET; RELAY VLV	8-98126-366-0	01	1	1106-1310
56	BRACKET; RELAY VLV 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98126-366-0	01	1	1311-
58	ADAPTER (A) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1106-1310
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1311-
58	ADAPTER (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1106-1310
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1311-
58	ADAPTER (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1106-1310
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1311-
58	ADAPTER (E) DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1106-1310
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1311-
58	ADAPTER (B)	8-98148-475-0	01	1	1106-1310
58	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98148-475-0	01	1	1311-
62	BOLT; BRKT FIX M8X30 FLANGE	0-28650-830-0	02	1	1106-1310
62	BOLT; BRKT FIX 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28650-830-0	02	1	1311-
63	NUT; BRKT FIX M8 FLANGE	0-91180-108-0	02	1	1106-1310
63	NUT; BRKT FIX 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	1311-
65	BRACKET; RELAY VLV RR	1-47471-032-0	01	1	1106-1310
65	BRACKET; RELAY VLV RR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47471-032-0	01	1	1311-
73	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1106-1310
73	NUT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	1311-
74	CONNECTOR; 3WAY DIN8 & R3/8 & RC1/4 3WAY	1-09661-536-0	01	1	1106-1310
74	CONNECTOR; 3WAY 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN8 & R3/8 & RC1/4 3WAY	1-09661-536-0	01	1	1311-
134	PLUG; RELAY VALVE M22	1-09661-502-0	01	1	1106-1310
134	PLUG; RELAY VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22	1-09661-502-0	01	1	1311-
213	GASKET ID=22.5	9-09571-422-0	04	1	1106-1310
213	GASKET 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=22.5	9-09571-422-0	04	1	1311-

155 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
155	REPAIR KIT; RELAY VALVE (A)	1-85576-033-0	01	1	1106-1310
155	REPAIR KIT; RELAY VALVE (A)	1-85576-033-0	01	1	1106-1310
155	REPAIR KIT; RELAY VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-85576-033-0	01	1	1311-
155	REPAIR KIT; RELAY VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-85576-033-0	01	1	1311-
155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	1106-1310
155	REPAIR KIT; RELAY VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-85576-408-0	01	1	1311-
279	REPAIR KIT; SILENCER	1-85576-409-0	01	1	1106-1310
279	REPAIR KIT; SILENCER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-409-0	01	1	1311-

237

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	237	VALVE; SAFETY	1-48320-012-2	01	1	1106-

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	REPAIR KIT; PROTECTION VALVE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-451-2	01	1	1311-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
