Sayfa 3-20 - Isuzu EPC

3-20 — AIR TANK (#55153) — 224 parça

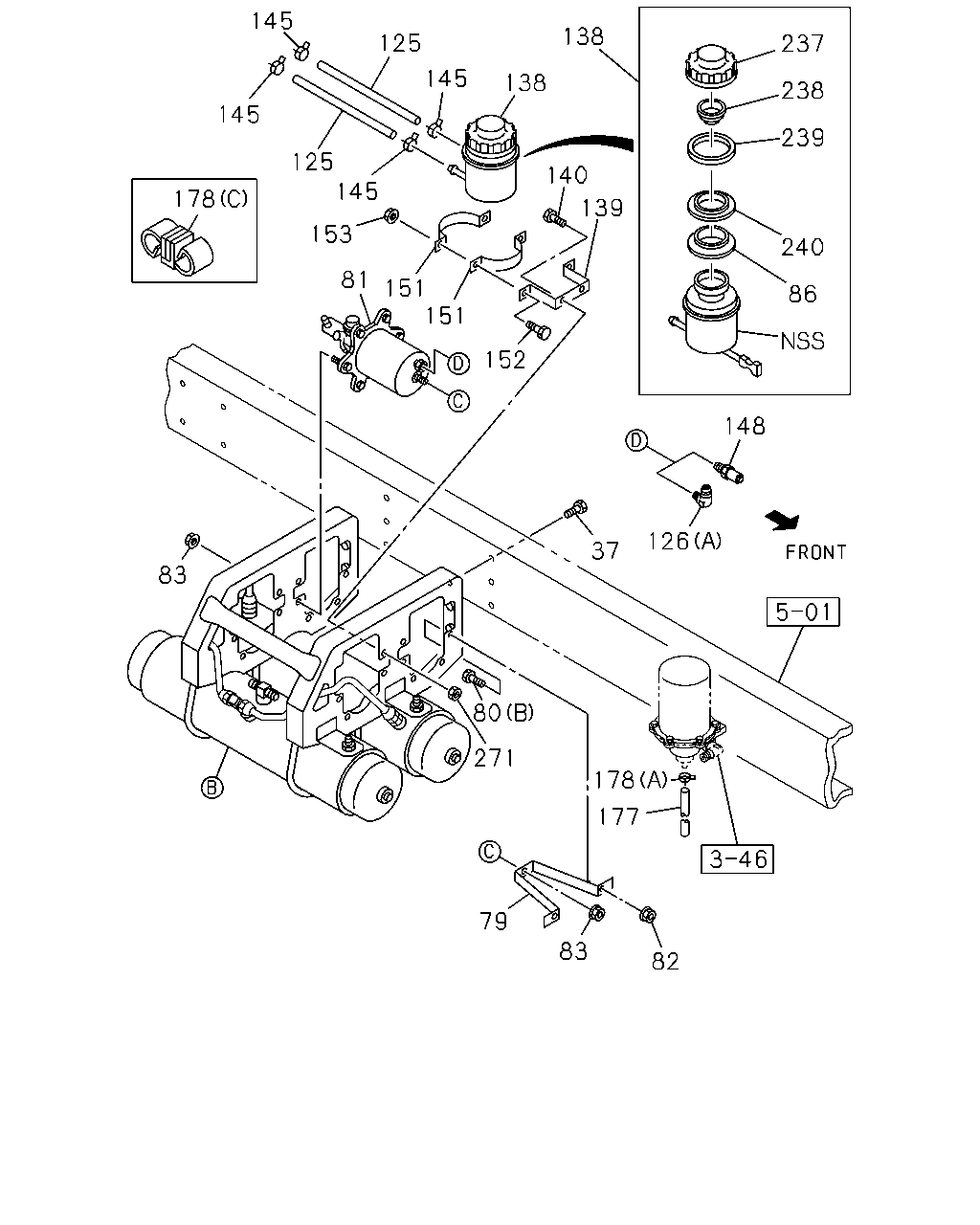

145 145 125 125 145 138 138 140 139 152 151 151 81 153 145 148 86 240 239 238 237 126 37 178 177 82 83 79 271 80 83 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	BOLT; AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28651-240-0	08	1	1311-
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	08	1	1106-1310
37	BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X40 FLANGE	0-28651-240-0	06	1	1311-
79	STAY; AIR MASTER TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98120-254-0	02	1	1311-
80	BOLT; BRKT 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X20 FLANGE	0-28650-820-0	04	1	1311-
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10X30 FLANGE	0-28651-030-0	04	1	1311-
80	BOLT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X20 FLANGE	0-28650-820-0	05	1	1311-
81	AIR MASTER ASM; BRK SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47800-663-1	02	1	1311-
82	NUT; STAY,AIR MASTER BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91180-210-0	04	1	1311-
83	NUT; AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91180-210-0	10	1	1311-
86	SEAL; DUST BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-019-0	01	1	1311-
125	HOSE; OIL TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=270 SERVICED BY L=1800	1-09360-320-0	01	1	1311-
125	HOSE; OIL TANK TO AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98197-596-0	01	1	1311-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (H) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	1311-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (J) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	1311-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (I) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1311-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) PT1/4 & PT1/4 2WAY	1-09660-693-0	04	1	1311-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1311-
126	CONNECTOR; ELBOW (D) M22 & PT3/4 STRAIGHT	1-09650-275-1	01	1	1106-1310
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M22 & PT3/4 STRAIGHT	1-09650-275-1	01	1	1311-
126	CONNECTOR; ELBOW (E) PT1/4 & PT1/4 2WAY	1-09660-693-0	04	1	1106-1310
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1311-
126	CONNECTOR; ELBOW (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1106-1310
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1311-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1311-
126	CONNECTOR; ELBOW (G) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1106-1310
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1311-
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1106-1310
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1311-
126	CONNECTOR; ELBOW (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1106-1310
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1311-
126	CONNECTOR; ELBOW (C) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1106-1310
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1311-
138	TANK ASM; OIL,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47530-185-1	01	1	1311-
139	BRACKET; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47537-081-2	01	1	1311-
140	BOLT; OIL TANK TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X25 FLANGE	0-28651-025-0	02	1	1311-
145	CLIP; OIL TANK TO AIR MASTER HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09704-102-0	04	1	1311-
148	CONNECTOR; AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1311-
151	BAND; OIL TANK,AIR MASTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47537-056-2	02	1	1311-
152	BOLT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	02	1	1311-
153	NUT; OIL TANK TO BAND BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	0-91110-508-0	02	1	1311-
177	HOSE; RUBBER,DRAIN L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1106-1405
177	HOSE; RUBBER,DRAIN 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1406-
177	HOSE; RUBBER,DRAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1406-
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=12 & 12	1-09709-280-1	01	1	1311-
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN15X2	9-09917-171-0	01	1	1311-
178	CLIP; HOSE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=21	8-94242-034-0	02	1	1311-
178	CLIP; HOSE (A) ID=21	8-94242-034-0	02	1	1106-1310
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=21	8-94242-034-0	01	1	1311-
237	CAP; OIL TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47525-030-0	01	1	1311-
238	PLATE; BAFFLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-022-0	01	1	1311-
239	FILTER; DUST BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-017-0	01	1	1311-
240	HOLDER; FILTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47529-018-0	01	1	1311-
271	NUT; BRKT,HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10 FLANGE	0-91180-210-0	02	1	1311-

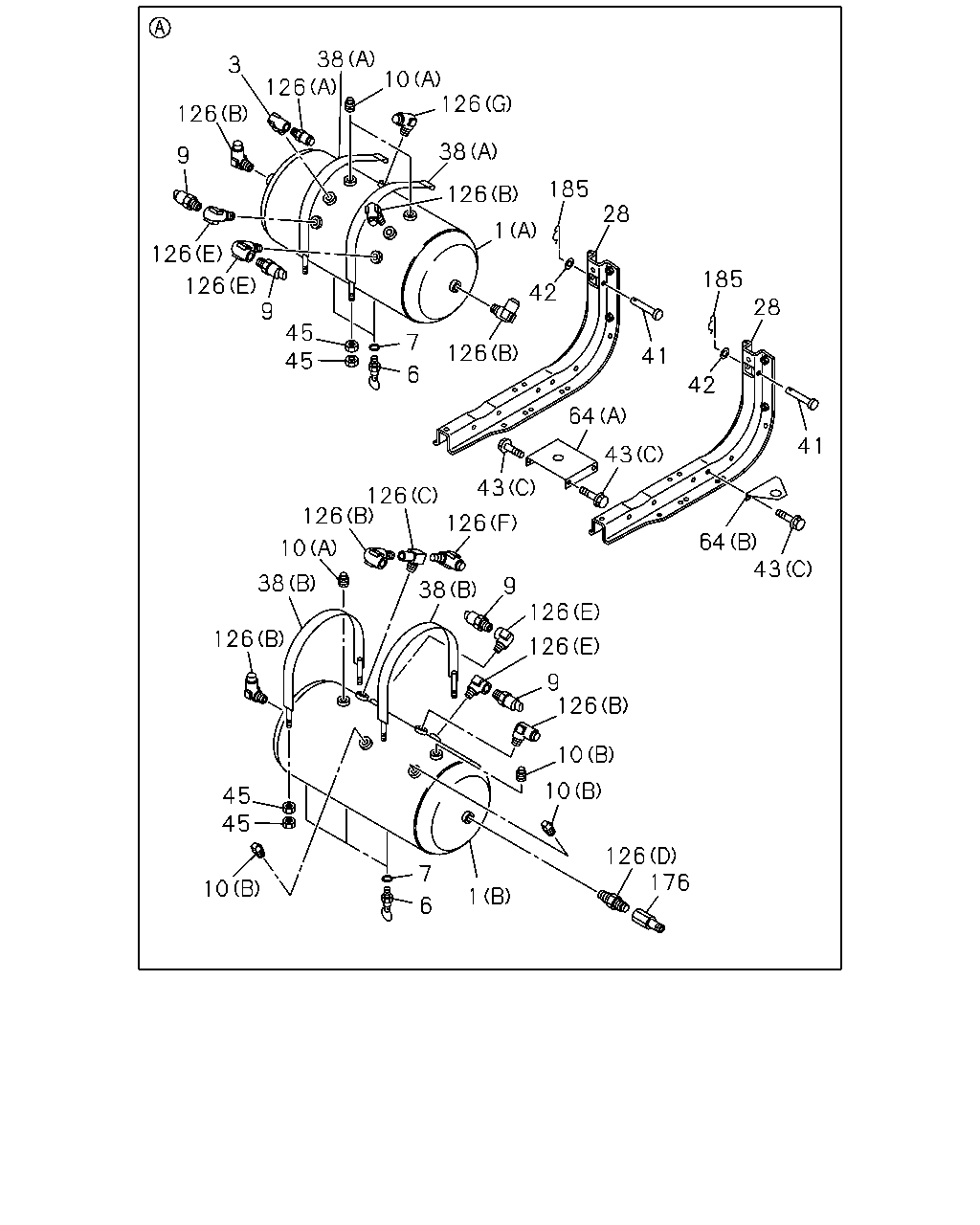

126 3 126 38 10 126 38 126 1 185 28 41 185 41 42 64 43 126 42 43 64 43 126 126 126 9 10 10 126 176 1 7 6 10 45 45 126 38 10 126 126 126 38 9 28 7 6 45 45 9 126 126 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-48330-598-0	01	1	1311-
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-48370-541-0	01	1	1311-
1	TANK ASM; AIR (A)	1-48370-181-1	01	1	1106-1310
1	TANK ASM; AIR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48370-181-1	01	1	1311-
1	TANK ASM; AIR (B)	8-98184-783-0	01	1	1106-1310
1	TANK ASM; AIR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98184-783-0	01	1	1311-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M20 & PT3/4 STRAIGHT	1-48410-182-3	02	1	1311-
3	VALVE; CHECK,AIR TANK	1-48320-031-1	01	1	1106-1310
3	VALVE; CHECK,AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48320-031-1	01	1	1311-
6	COCK; DRAIN,AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-015-0	05	1	1311-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	1106-1310
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48312-015-0	04	1	1311-
7	GASKET; DRAIN COCK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14	1-09630-145-0	05	1	1311-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	1106-1310
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	04	1	1311-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) STAMP 5.5	8-97609-249-0	04	1	1311-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK STAMP 5.5	8-97609-249-0	04	1	1106-1310
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) STAMP 5.5	8-97609-249-0	01	1	1311-
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) PT1/4	9-99204-513-0	06	1	1311-
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	03	1	1106-1310
10	PLUG; AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) PT3/8	9-09204-517-0	03	1	1311-
10	PLUG; AIR TANK (A) PT3/4	9-09204-526-0	03	1	1106-1310
10	PLUG; AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) PT3/4	9-09204-526-0	03	1	1311-
28	BRACKET; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-53318-338-6	02	1	1311-
28	BRACKET; AIR TANK	1-48317-601-5	02	1	1106-1310
28	BRACKET; AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-601-5	02	1	1311-
38	BAND; AIR TANK (A)	1-48317-108-2	02	1	1106-1310
38	BAND; AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48317-108-2	02	1	1311-
38	BAND; AIR TANK (B)	1-48317-109-2	02	1	1106-1310
38	BAND; AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48317-109-2	02	1	1311-
41	PIN; BAND FIX OD=10 L=60	0-82254-060-0	02	1	1106-1310
41	PIN; BAND FIX 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) OD=10 L=60	0-82254-060-0	02	1	1311-
42	WASHER; PL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=8.4 OD=18	0-91610-608-0	04	1	1311-
42	WASHER; PL ID=10.5	0-91614-510-0	02	1	1106-1310
42	WASHER; PL 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.5	0-91614-510-0	02	1	1311-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X20 FLANGE	0-28650-820-0	02	1	1311-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10X25 FLANGE	0-28651-025-0	04	1	1311-
43	BOLT; STAY,AIR TANK,MAIN (C) M8X25 FLANGE	0-28650-825-0	06	1	1106-1310
43	BOLT; STAY,AIR TANK,MAIN 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X25 FLANGE	0-28650-825-0	06	1	1311-
45	NUT; AIR TANK,MAIN M8	0-91110-508-0	12	1	1106-1310
45	NUT; AIR TANK,MAIN 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8	0-91110-508-0	12	1	1311-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-53318-293-1	01	1	1311-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-94301-490-0	01	1	1311-
64	STAY; AIR TANK,MAIN (A)	1-48317-607-0	01	1	1106-1310
64	STAY; AIR TANK,MAIN 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48317-607-0	01	1	1311-
64	STAY; AIR TANK,MAIN (B)	1-48317-691-0	01	1	1106-1310
64	STAY; AIR TANK,MAIN 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48317-691-0	01	1	1311-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (H) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	1311-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (J) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	1311-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (I) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1311-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) PT1/4 & PT1/4 2WAY	1-09660-693-0	04	1	1311-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1311-
126	CONNECTOR; ELBOW (D) M22 & PT3/4 STRAIGHT	1-09650-275-1	01	1	1106-1310
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M22 & PT3/4 STRAIGHT	1-09650-275-1	01	1	1311-
126	CONNECTOR; ELBOW (E) PT1/4 & PT1/4 2WAY	1-09660-693-0	04	1	1106-1310
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1311-
126	CONNECTOR; ELBOW (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1106-1310
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1311-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1311-
126	CONNECTOR; ELBOW (G) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1106-1310
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1311-
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1106-1310
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1311-
126	CONNECTOR; ELBOW (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1106-1310
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1311-
126	CONNECTOR; ELBOW (C) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1106-1310
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1311-
176	ADAPTER DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1106-1310
176	ADAPTER 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1311-
185	PIN; SNAP L=32.6	8-98062-280-0	02	1	1106-1310
185	PIN; SNAP 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=32.6	8-98062-280-0	02	1	1311-

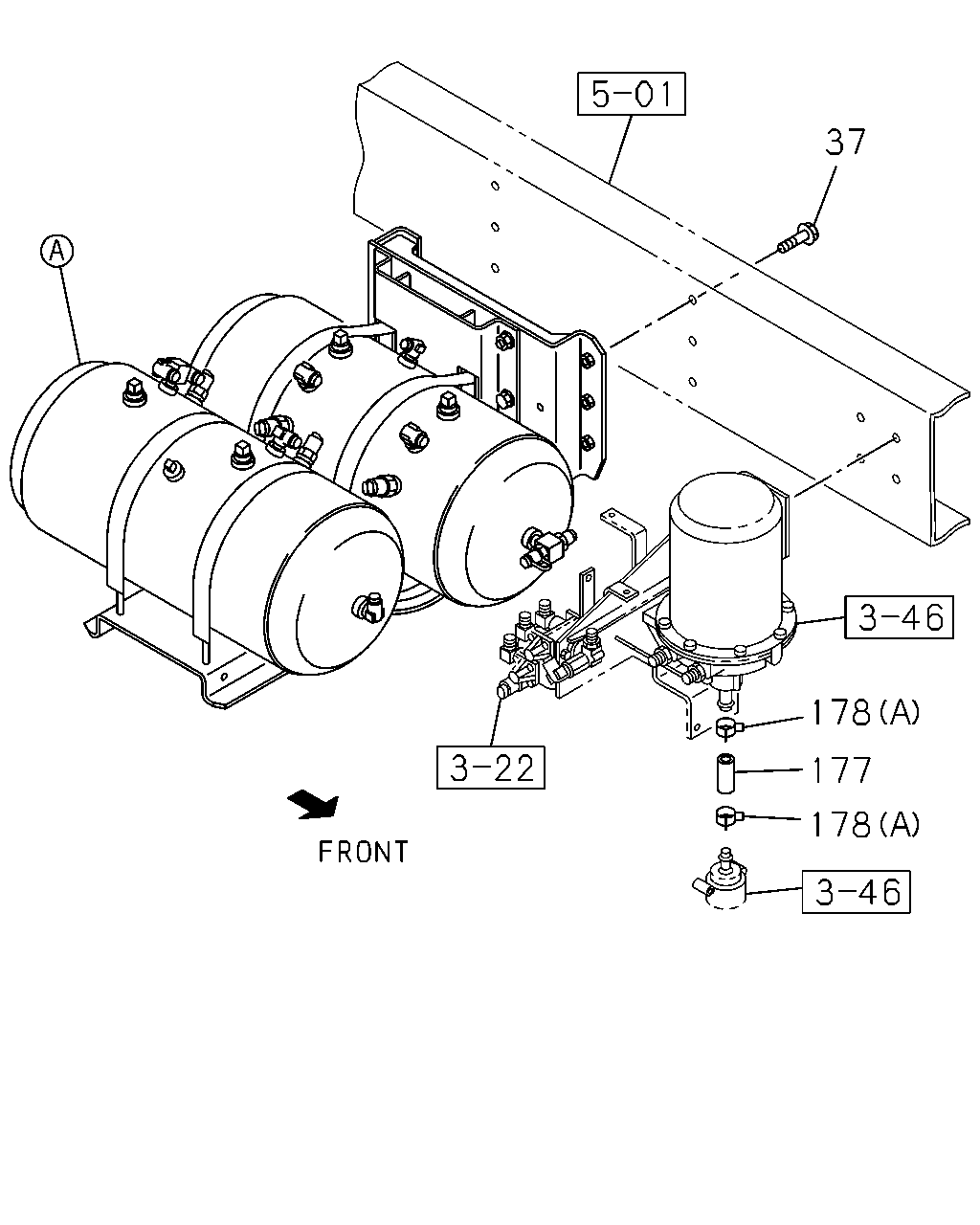

37 178 177 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	BOLT; AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M12X40 FLANGE	0-28651-240-0	08	1	1311-
37	BOLT; AIR TANK M12X40 FLANGE	0-28651-240-0	08	1	1106-1310
37	BOLT; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X40 FLANGE	0-28651-240-0	06	1	1311-
177	HOSE; RUBBER,DRAIN L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1106-1405
177	HOSE; RUBBER,DRAIN 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1406-
177	HOSE; RUBBER,DRAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=60 SERVICED BY L=3000	0-03566-300-0	01	1	1406-
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=12 & 12	1-09709-280-1	01	1	1311-
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN15X2	9-09917-171-0	01	1	1311-
178	CLIP; HOSE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=21	8-94242-034-0	02	1	1311-
178	CLIP; HOSE (A) ID=21	8-94242-034-0	02	1	1106-1310
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=21	8-94242-034-0	01	1	1311-

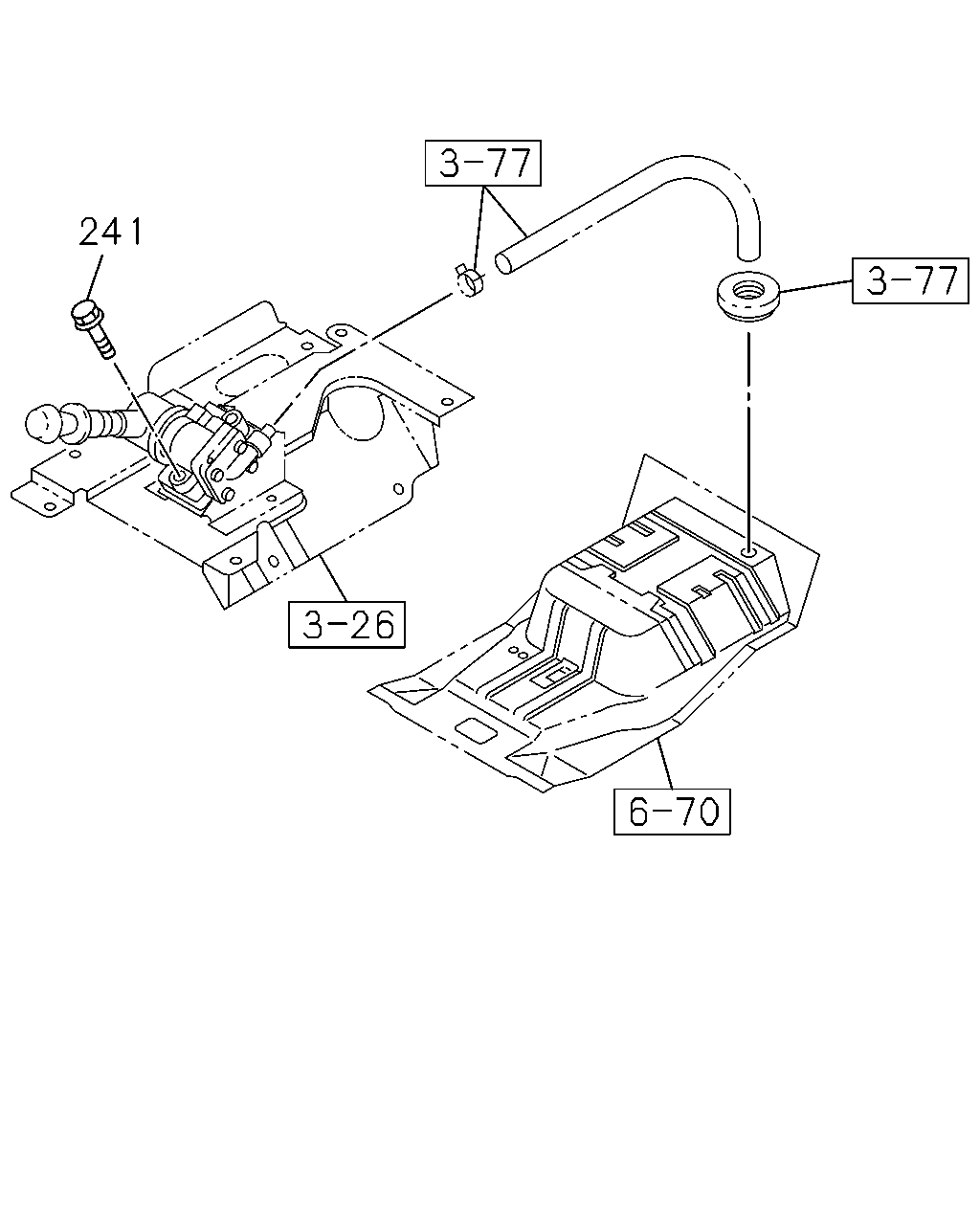

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28050-870-0	02	1	1106-1310
	241	BOLT; SET,CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X70 FLANGE	0-28050-870-0	02	1	1311-

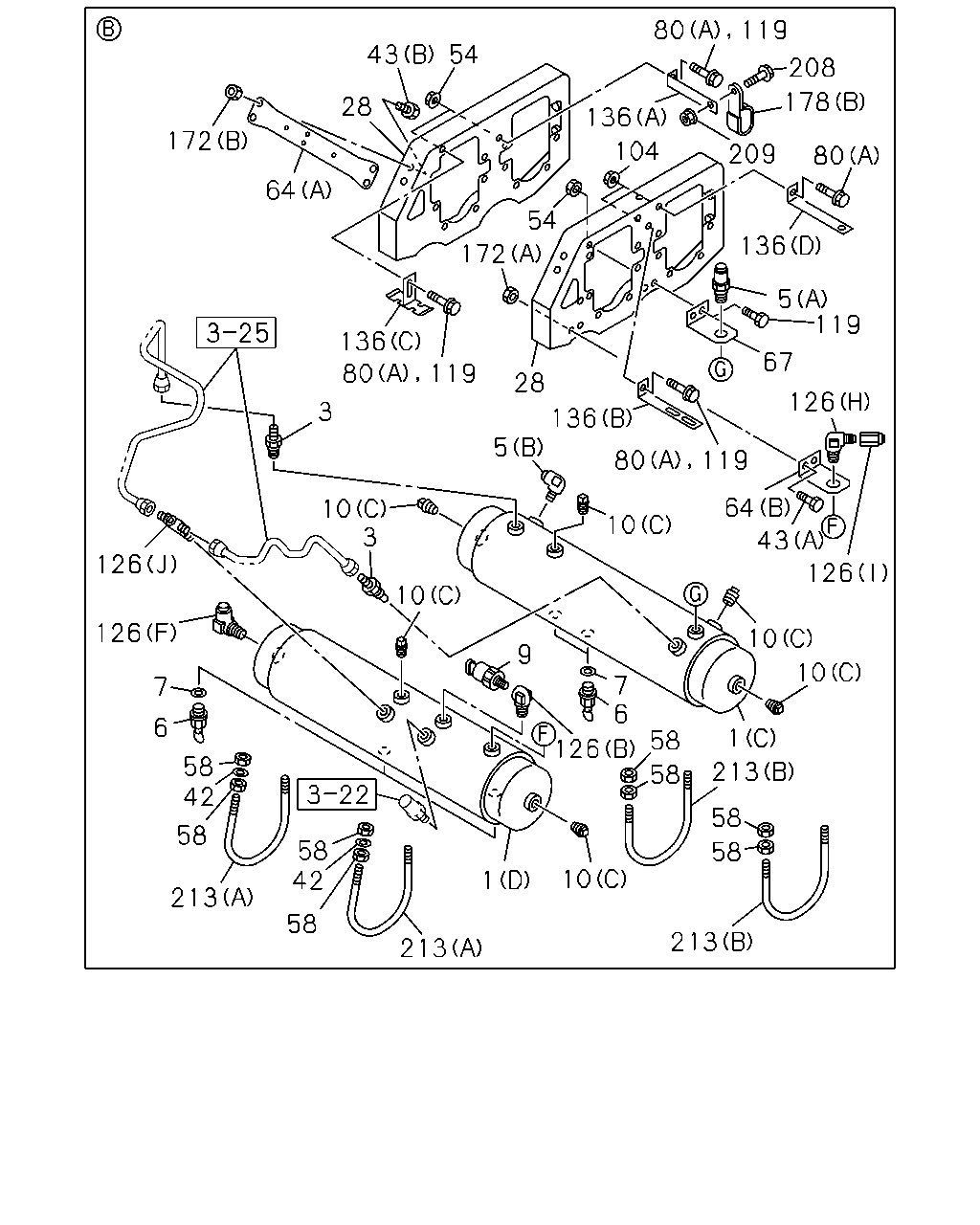

43 54 28 64 172 80 119 208 178 80 209 136 104 136 5 67 119 126 54 172 136 80 3 119 28 136 5 80 119 64 43 126 10 10 10 10 3 126 126 7 6 58 42 58 213 10 58 42 58 213 1 10 213 58 58 213 58 58 126 6 7 1 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D)	1-48330-598-0	01	1	1311-
1	TANK ASM; AIR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-48370-541-0	01	1	1311-
1	TANK ASM; AIR (A)	1-48370-181-1	01	1	1106-1310
1	TANK ASM; AIR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48370-181-1	01	1	1311-
1	TANK ASM; AIR (B)	8-98184-783-0	01	1	1106-1310
1	TANK ASM; AIR 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98184-783-0	01	1	1311-
3	VALVE; CHECK,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M20 & PT3/4 STRAIGHT	1-48410-182-3	02	1	1311-
3	VALVE; CHECK,AIR TANK	1-48320-031-1	01	1	1106-1310
3	VALVE; CHECK,AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48320-031-1	01	1	1311-
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1311-
5	UNION; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1311-
6	COCK; DRAIN,AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48312-015-0	05	1	1311-
6	COCK; DRAIN,AIR TANK	1-48312-015-0	05	1	1106-1310
6	COCK; DRAIN,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48312-015-0	04	1	1311-
7	GASKET; DRAIN COCK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=14	1-09630-145-0	05	1	1311-
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	05	1	1106-1310
7	GASKET; DRAIN COCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=14	1-09630-145-0	04	1	1311-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) STAMP 5.5	8-97609-249-0	04	1	1311-
9	SWITCH; LOW PRESSURE GAGE,AIR TANK STAMP 5.5	8-97609-249-0	04	1	1106-1310
9	SWITCH; LOW PRESSURE GAGE,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) STAMP 5.5	8-97609-249-0	01	1	1311-
10	PLUG; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) PT1/4	9-99204-513-0	06	1	1311-
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	03	1	1106-1310
10	PLUG; AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) PT3/8	9-09204-517-0	03	1	1311-
10	PLUG; AIR TANK (A) PT3/4	9-09204-526-0	03	1	1106-1310
10	PLUG; AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) PT3/4	9-09204-526-0	03	1	1311-
28	BRACKET; AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-53318-338-6	02	1	1311-
28	BRACKET; AIR TANK	1-48317-601-5	02	1	1106-1310
28	BRACKET; AIR TANK 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48317-601-5	02	1	1311-
42	WASHER; PL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=8.4 OD=18	0-91610-608-0	04	1	1311-
42	WASHER; PL ID=10.5	0-91614-510-0	02	1	1106-1310
42	WASHER; PL 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10.5	0-91614-510-0	02	1	1311-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X20 FLANGE	0-28650-820-0	02	1	1311-
43	BOLT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10X25 FLANGE	0-28651-025-0	04	1	1311-
43	BOLT; STAY,AIR TANK,MAIN (C) M8X25 FLANGE	0-28650-825-0	06	1	1106-1310
43	BOLT; STAY,AIR TANK,MAIN 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M8X25 FLANGE	0-28650-825-0	06	1	1311-
54	NUT; STAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	02	1	1311-
58	NUT; BAND,AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8	0-91110-508-0	16	1	1311-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-53318-293-1	01	1	1311-
64	STAY; AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	8-94301-490-0	01	1	1311-
64	STAY; AIR TANK,MAIN (A)	1-48317-607-0	01	1	1106-1310
64	STAY; AIR TANK,MAIN 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48317-607-0	01	1	1311-
64	STAY; AIR TANK,MAIN (B)	1-48317-691-0	01	1	1106-1310
64	STAY; AIR TANK,MAIN 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48317-691-0	01	1	1311-
67	STAY; SUB TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-48317-349-0	01	1	1311-
80	BOLT; BRKT 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X20 FLANGE	0-28650-820-0	04	1	1311-
80	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10X30 FLANGE	0-28651-030-0	04	1	1311-
80	BOLT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8X20 FLANGE	0-28650-820-0	05	1	1311-
104	NUT; BRKT 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	04	1	1311-
104	NUT; BRKT 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	05	1	1311-
119	BOLT; STAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	02	1	1311-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (H) M22 & PT3/4 ELBOW	1-09650-277-0	01	1	1311-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (J) M20X2 & PT3/8 3WAY	1-09656-340-1	01	1	1311-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (I) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	1311-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) PT1/4 & PT1/4 2WAY	1-09660-693-0	04	1	1311-
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1311-
126	CONNECTOR; ELBOW (D) M22 & PT3/4 STRAIGHT	1-09650-275-1	01	1	1106-1310
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) M22 & PT3/4 STRAIGHT	1-09650-275-1	01	1	1311-
126	CONNECTOR; ELBOW (E) PT1/4 & PT1/4 2WAY	1-09660-693-0	04	1	1106-1310
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1311-
126	CONNECTOR; ELBOW (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1106-1310
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1311-
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1311-
126	CONNECTOR; ELBOW (G) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1106-1310
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1311-
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	1106-1310
126	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1311-
126	CONNECTOR; ELBOW (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1106-1310
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1311-
126	CONNECTOR; ELBOW (C) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1106-1310
126	CONNECTOR; ELBOW 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) R3/8 & RC3/8 & RC1/4 3WAY	8-98166-127-0	01	1	1311-
136	BRACKET; CLIP 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=225	1-47477-646-3	01	1	1311-
136	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=112	1-47475-694-1	01	1	1311-
136	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-47479-693-0	02	1	1311-
136	BRACKET; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=90 B=25	1-47475-530-0	01	1	1311-
136	BRACKET; CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=150 H=30	1-47477-629-2	01	1	1311-
172	NUT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M8 FLANGE	0-91180-108-0	02	1	1311-
172	NUT; STAY,AIR TANK,MAIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M10 FLANGE	0-91180-210-0	04	1	1311-
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=12 & 12	1-09709-280-1	01	1	1311-
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) DIN15X2	9-09917-171-0	01	1	1311-
178	CLIP; HOSE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=21	8-94242-034-0	02	1	1311-
178	CLIP; HOSE (A) ID=21	8-94242-034-0	02	1	1106-1310
178	CLIP; HOSE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=21	8-94242-034-0	01	1	1311-
208	BOLT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X20 FLANGE	0-28650-820-0	01	1	1311-
209	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	1311-
213	BOLT; U AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=97.5	1-48317-323-1	02	1	1311-
213	BOLT; U AIR TANK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=195	1-48317-367-2	02	1	1311-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
