3-11 — PARKING BRAKE CONTROL (#55152) — 54 parça

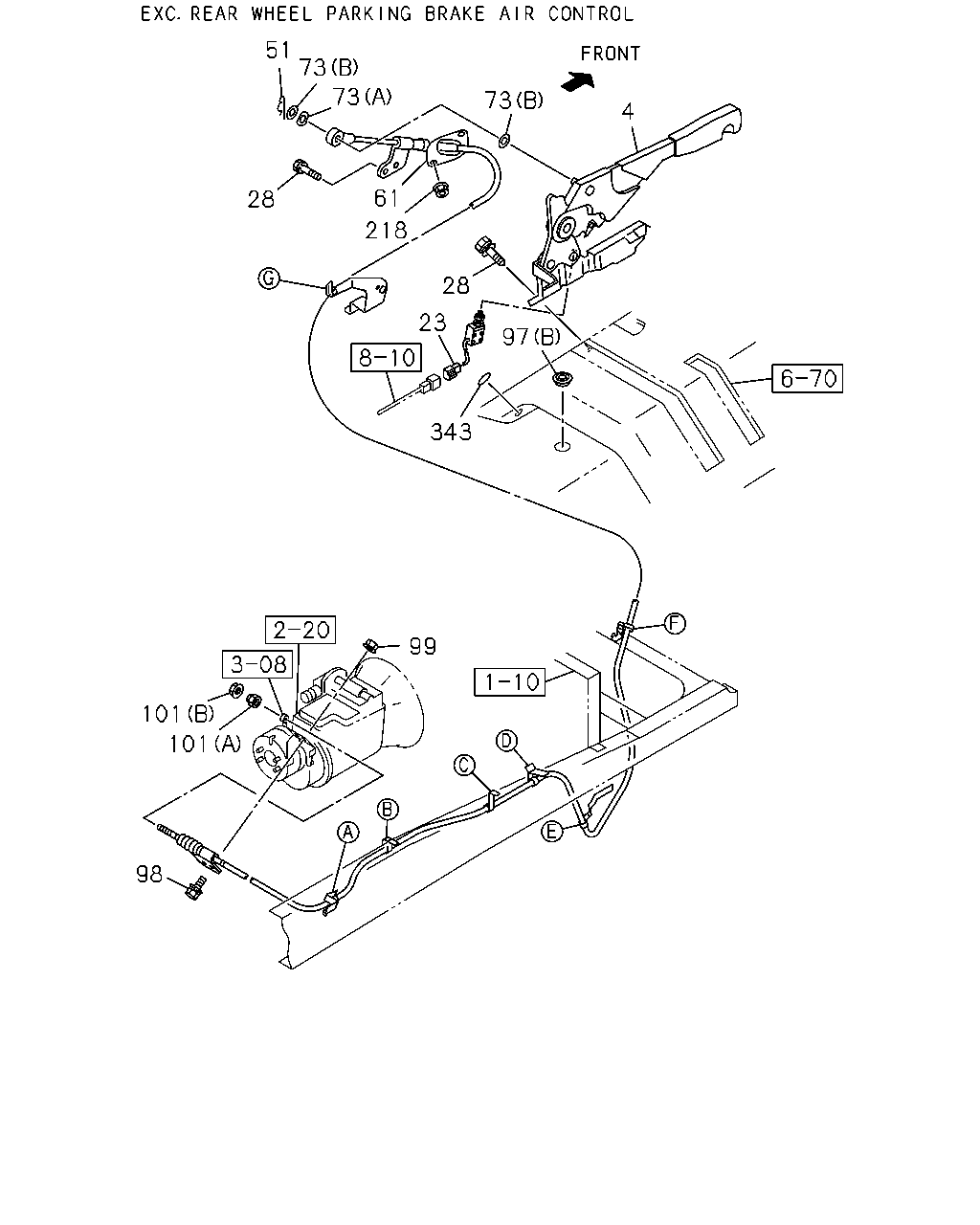

çizim 144917
51 73 73 73 4 61 28 218 28 23 343 97 99 101 101 98
BalonParca AdiParca NoAdetTipApplied Date
4 STEM; PARKING BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-79996-697-0 01 1 1311-
23 SWITCH; PARKING BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-82440-100-0 01 1 1311-
28 BOLT; HAND BRK LEVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1311-
51 PIN; JOINT,RELAY LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09987-243-1 01 1 1311-
61 CABLE; PARKING BRK
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4379 		8-98208-211-3 01 1 1311-
61 CABLE; PARKING BRK
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4740 		8-98135-025-1 01 1 1311-
73 WASHER; PL,CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=17 OD=30 		0-91610-516-0 01 1 1311-
73 WASHER; PL,CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=19 		8-94206-429-1 02 1 1311-
97 GROMMET; PARKING BRK CABLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) OD=35 		8-94122-971-0 01 1 1311-
97 GROMMET; PARKING BRK CABLE
(A) 		8-98029-219-1 01 1 1106-1310
97 GROMMET; PARKING BRK CABLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		8-98029-219-1 01 1 1311-1510
97 GROMMET; PARKING BRK CABLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		8-98029-219-1 01 1 1511-
98 BOLT; RR COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE 		0-28651-030-0 02 1 1311-
99 NUT; CONT CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91180-210-0 02 1 1311-
101 NUT; CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8 FLANGE 		0-91180-108-0 01 1 1311-
101 NUT; CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8 		1-46259-007-0 01 1 1311-
218 NUT; BRKT,PARKING BRK CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 1311-
343 SEAL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=25 BLACK 		1-76798-019-0 07 1 1311-

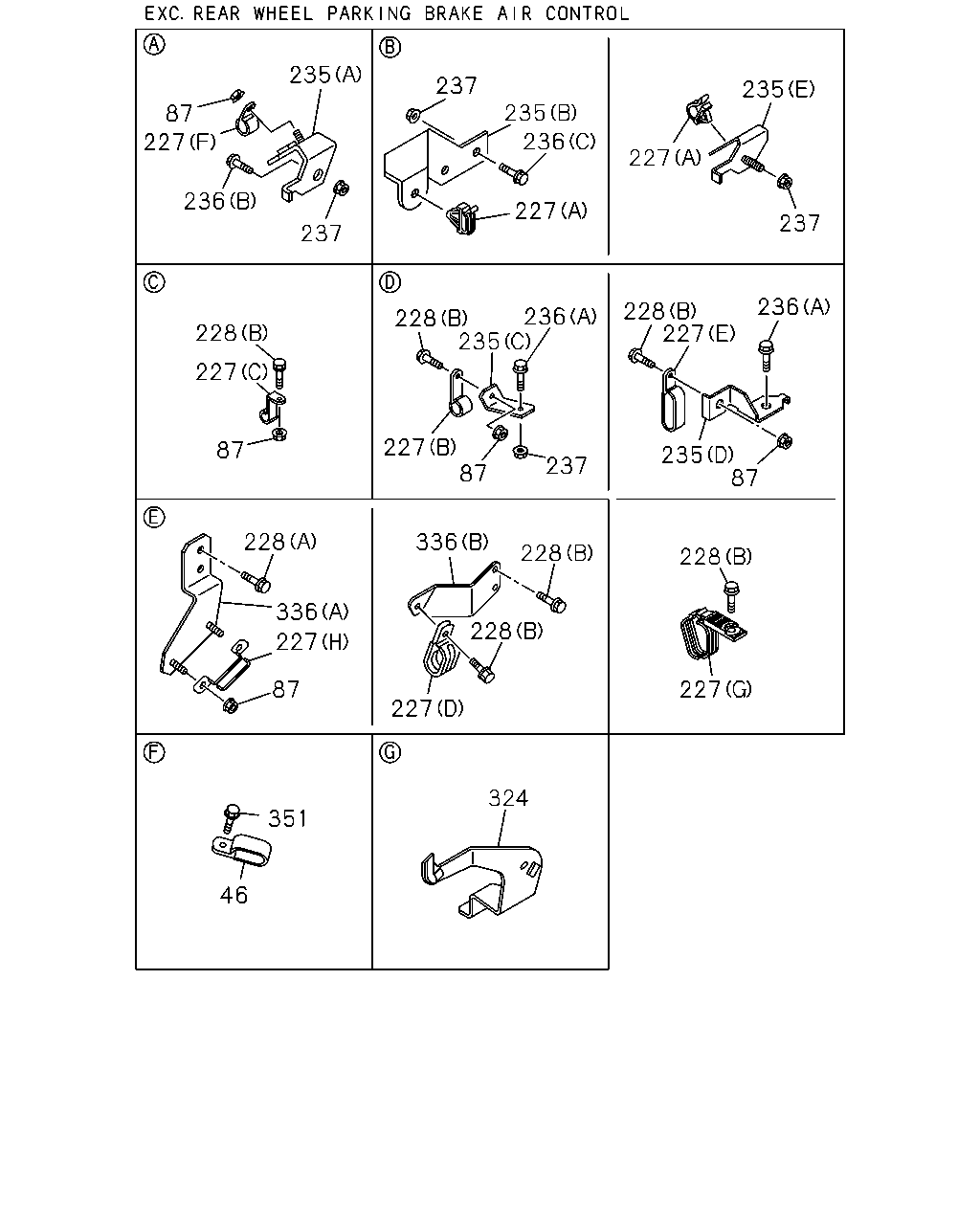

çizim 385854
235 87 227 236 237 228 227 87 228 336 227 87 351 46 237 235 236 227 228 236 235 227 87 237 336 228 228 227 324 235 227 237 228 236 227 235 87 228 227
BalonParca AdiParca NoAdetTipApplied Date
46 CLIP; FRT CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20 		0-95235-535-0 01 1 1311-
87 NUT
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 04 1 1311-
87 NUT
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 1311-
227 CLIP; RAD
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (F) ID=16 L=20 		0-95235-535-0 01 1 1311-
227 CLIP; RAD
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=9.5 		5-09709-020-0 01 1 1311-
227 CLIP; RAD
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) ID=13 & 13 L=32 		8-97389-264-0 01 1 1311-
227 CLIP; RAD
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (G) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 1311-
227 CLIP; RAD
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (H) 		8-98080-966-0 01 1 1311-
227 CLIP; RAD
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=13 L=20 		0-95235-235-0 01 1 1311-
227 CLIP; RAD
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) ID=14.5 L=40 		1-09701-014-0 01 1 1311-
227 CLIP; RAD
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=25 H=60 L=35 		1-09701-103-0 01 1 1311-
227 CLIP; RAD
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=9.5 		5-09709-020-0 02 1 1311-
227 CLIP; RAD
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=14.5 L=40 		8-98119-885-0 01 1 1311-
228 BOLT; CLIP RAD MTG
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 1311-
228 BOLT; CLIP RAD MTG
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X25 FLANGE 		0-28650-825-0 03 1 1311-
228 BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X25 FLANGE 		0-28650-825-0 02 1 1311-
235 BRACKET; CONT CABLE TO FRAME
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) 		8-98126-426-0 01 1 1311-
235 BRACKET; CONT CABLE TO FRAME
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) 		8-98126-934-0 01 1 1311-
235 BRACKET; CONT CABLE TO FRAME
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) 		1-82699-199-0 01 1 1311-
235 BRACKET; CONT CABLE TO FRAME
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98100-152-0 01 1 1311-
235 BRACKET; CONT CABLE TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98077-903-2 01 1 1311-
236 BOLT; BRKT TO FRAME
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X30 FLANGE 		0-28650-830-0 02 1 1311-
236 BOLT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1311-
236 BOLT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X30 FLANGE 		0-28651-030-0 01 1 1311-1504
236 BOLT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M10X30 FLANGE 		0-28051-030-0 01 1 1505-
237 NUT; BRKT TO FRAME
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91180-210-0 02 1 1311-
237 NUT; BRKT TO FRAME
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE 		0-91180-108-0 02 1 1311-
237 NUT; BRKT TO FRAME
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE 		0-91180-210-0 01 1 1311-
324 BRACKET
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		8-98208-213-4 01 1 1311-
336 BRACKET; RADIATOR
4HK1-TCS ENG(RJS) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) 		8-98232-681-1 01 1 1311-
336 BRACKET; RADIATOR
6HK1-TCN ENG(82L) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) 		8-98105-405-0 01 1 1311-
351 BOLT; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER 		0-51640-825-0 03 1 1311-
çizim 385946
97
BalonParca AdiParca NoAdetTipApplied Date
97 GROMMET; PARKING BRK CABLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) OD=35 		8-94122-971-0 01 1 1311-
97 GROMMET; PARKING BRK CABLE
(A) 		8-98029-219-1 01 1 1106-1310
97 GROMMET; PARKING BRK CABLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		8-98029-219-1 01 1 1311-1510
97 GROMMET; PARKING BRK CABLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		8-98029-219-1 01 1 1511-
