3-10 — BRAKE PEDAL AND CONTROL
(#55151) — 34 parça
◀

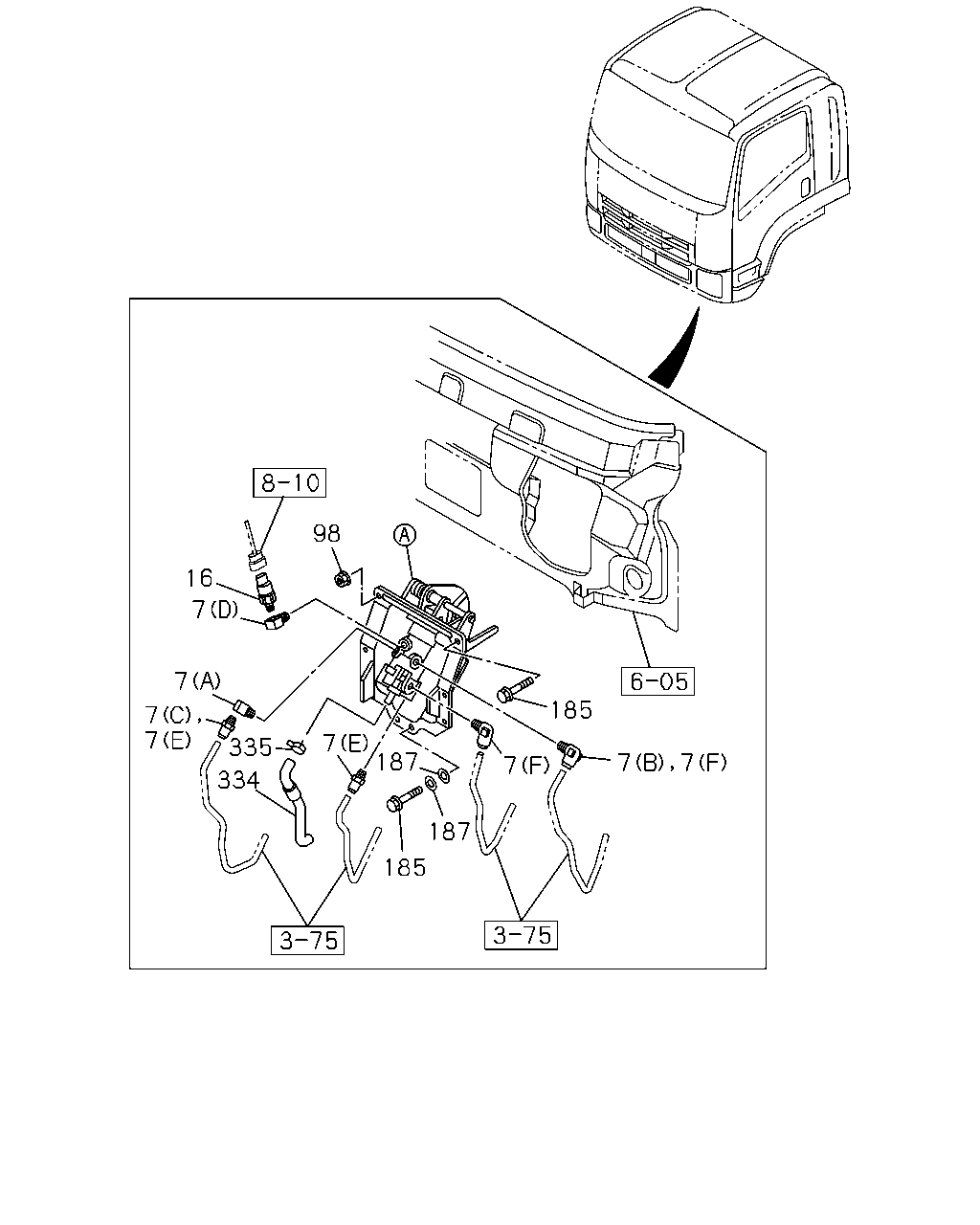

[310A] FIXING (20 parça)

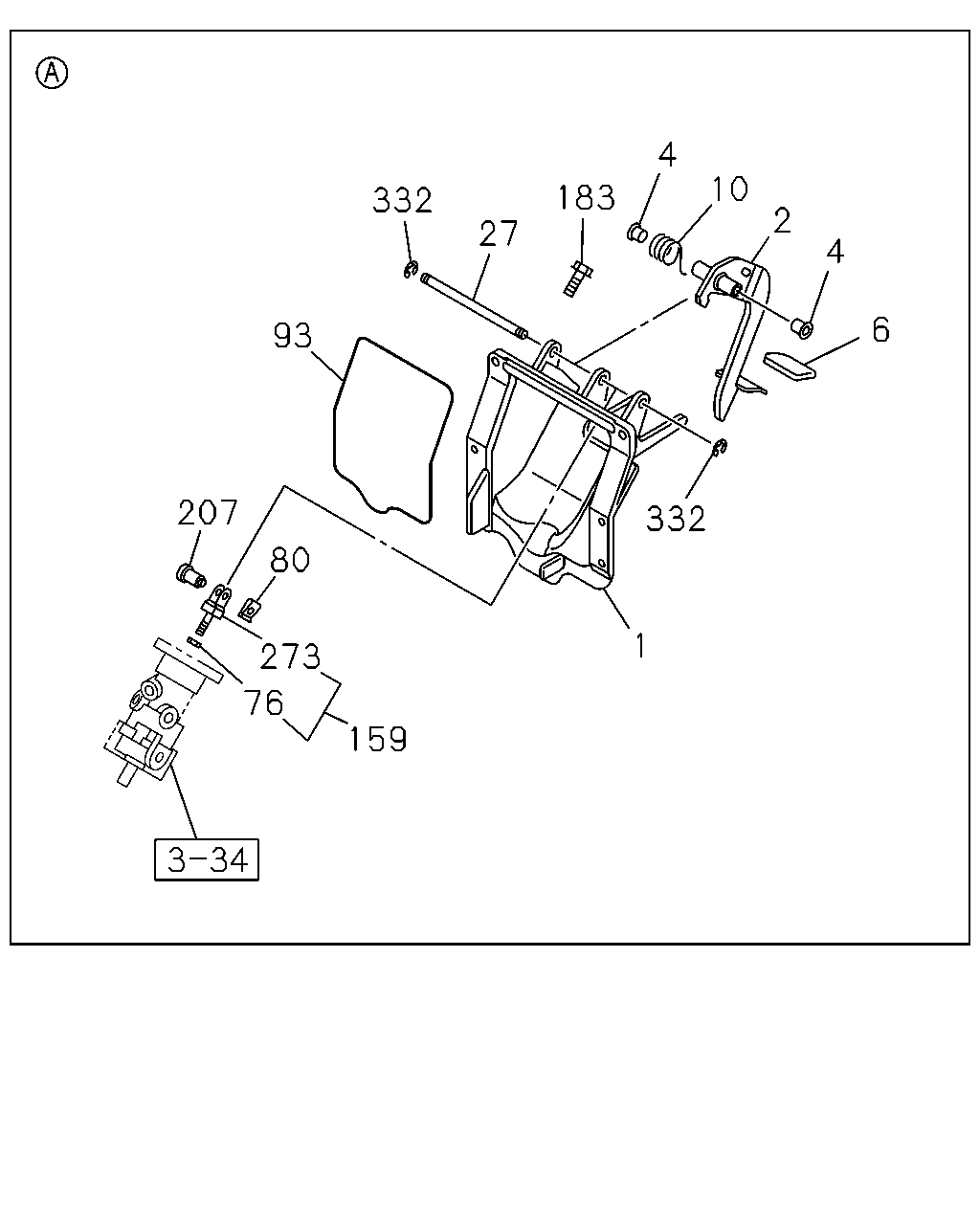

[310A] COMPONENT (14 parça)
▶
98
16
7
7
7
335
334
187
187
7
185
7
185
7
7
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
CONNECTOR; BRK VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
1311-
7
CONNECTOR; BRK VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
1311-
7
CONNECTOR; BRK VALVE
(D) PT1/4 & PT1/4 2WAY
1-09660-693-0
01
1
1106-
7
CONNECTOR; BRK VALVE
(A) PT3/8 ELBOW
1-09660-696-0
01
1
1106-
7
CONNECTOR; BRK VALVE
(B) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
1106-1310
7
CONNECTOR; BRK VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
1311-
7
CONNECTOR; BRK VALVE
(F) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
1106-1310
7
CONNECTOR; BRK VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (F) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
1311-
7
CONNECTOR; BRK VALVE
(C) DIN8 & R3/8 STRAIGHT
1-09660-964-0
01
1
1106-1310
7
CONNECTOR; BRK VALVE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN8 & R3/8 STRAIGHT
1-09660-964-0
01
1
1311-
7
CONNECTOR; BRK VALVE
(E) DIN12 & R3/8 STRAIGHT
1-09660-965-0
01
1
1106-1310
7
CONNECTOR; BRK VALVE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E) DIN12 & R3/8 STRAIGHT
1-09660-965-0
02
1
1311-
16
SWITCH; STOP LAMP
STAMP 0.3
8-98010-857-0
01
1
1106-
98
NUT; BRKT
M8 FLANGE
0-91180-208-0
01
1
1106-
185
BOLT; BRKT
M8X25 FLANGE
8-98057-109-0
07
1
1106-1506
185
BOLT; BRKT
M8X25 HEXALOBULAR
8-98316-699-0
07
1
1507-
187
WASHER; PL,BRKT
ID=8.4 OD=26
0-91614-808-0
04
1
1106-1506
187
WASHER; PL,BRKT
ID=8.4 OD=26
8-98316-762-0
04
1
1507-
334
HOSE; AIR,BRK
8-97611-147-2
01
1
1106-
335
CLAMP; HOSE
ID=24
8-98025-921-0
01
1
1106-
93
332
183
27
4
10
2
4
6
332
1
80
273
76
159
207
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET ASM; PEDAL
8-98071-972-1
01
1
1106-
2
PEDAL; BRK
8-98064-200-0
01
1
1106-
4
BUSHING; BRK PEDAL
8-94238-596-0
02
1
1106-
6
COVER; BRK PEDAL
8-98056-865-0
01
1
1106-
10
SPRING; RETURN,BRK PEDAL
8-98057-232-1
01
1
1106-
27
SHAFT; BRK PEDAL
8-98057-231-0
01
1
1106-
76
NUT; PUSH ROD
M8 FLANGE
0-91180-108-0
01
1
1106-
80
PIN; SNAP,BRK PEDAL
8-98007-161-0
01
1
1106-
93
SEAL; BRK PEDAL
1-48199-534-0
01
1
1106-
159
ROD ASM; PUSH,BRK
8-98057-234-0
01
1
1106-
183
BOLT; BRK VLV
M8X30 FLANGE
0-28660-830-0
04
1
1106-
207
PIN; JOINT,BRK PEDAL LINK
8-98147-657-0
01
1
1106-
273
ROD; PULL
8-98057-233-0
01
1
1106-
332
RING; SNAP
ID=12
0-91805-512-0
02
1
1106-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
