3-01 — FRONT WHEEL BRAKE (#55149) — 330 parça

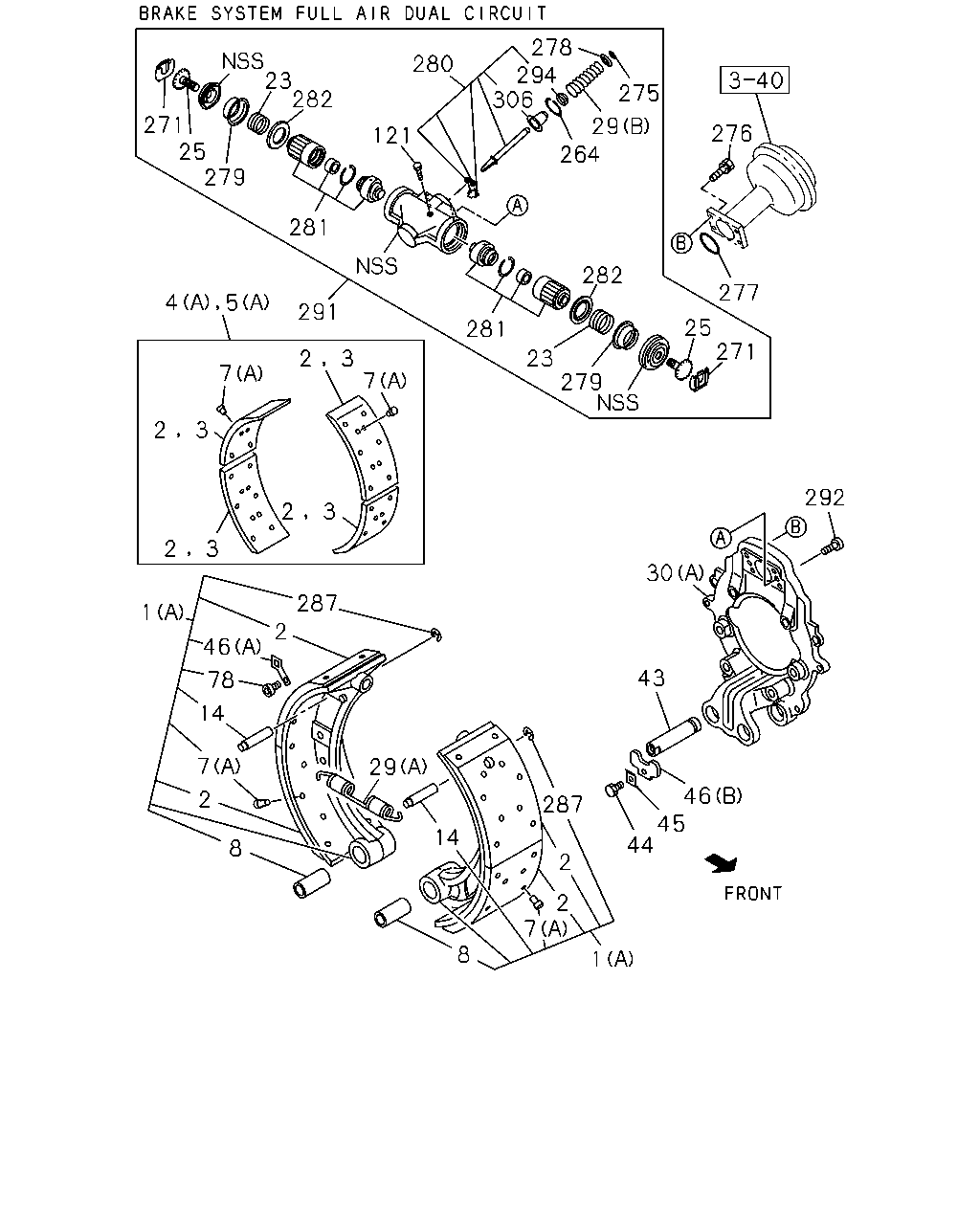

271 271 305 279 23 282 271 264 29 275 278 294 306 304 121 282 23 271 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
23	SPRING; COIL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	9-09940-435-0	02	1	1311-
23	SPRING; COIL	1-47629-196-0	04	1	1106-1310
23	SPRING; COIL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-196-0	04	1	1311-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-09583-269-1	02	1	1311-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-09583-359-0	04	1	1311-
29	SPRING; RETURN,FRT BRK SHOE (A)	1-09583-365-1	02	1	1106-1310
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09583-365-1	04	1	1311-
29	SPRING; RETURN,FRT BRK SHOE (B)	1-47649-041-0	02	1	1106-1310
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47649-041-0	02	1	1311-
121	SCREW; LK SPR FRT WHEEL CYL	1-47619-149-1	04	1	1106-1310
121	SCREW; LK SPR FRT WHEEL CYL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47619-149-1	04	1	1311-
264	RING; SNAP,SPR PIN	1-47649-034-1	02	1	1106-1310
264	RING; SNAP,SPR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-034-1	02	1	1311-
271	CLIP; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	1311-
271	CLIP; ADJ	1-47621-017-0	04	1	1106-1310
271	CLIP; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47621-017-0	04	1	1311-
275	RING; RETAINER	1-47649-031-0	02	1	1106-1310
275	RING; RETAINER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-031-0	02	1	1311-
278	RETAINER; SPRING	1-47649-020-0	02	1	1106-1310
278	RETAINER; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-020-0	02	1	1311-
279	CAGE; SPRING	1-47629-192-0	04	1	1106-1310
279	CAGE; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-192-0	04	1	1311-
282	RING; DRIVE	1-47629-200-0	04	1	1106-1310
282	RING; DRIVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-200-0	04	1	1311-
294	BOOT; WEDGE	1-47649-042-0	02	1	1106-1310
294	BOOT; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-042-0	02	1	1311-
304	REPAIR KIT; EXPANDER	1-85576-403-0	02	1	1106-1310
304	REPAIR KIT; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-403-0	02	1	1311-
305	REPAIR KIT; BOOT,EXPANDER	1-85576-404-0	02	1	1106-1310
305	REPAIR KIT; BOOT,EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-404-0	02	1	1311-
306	CAP; EXPANDER	1-47649-044-0	02	1	1106-1310
306	CAP; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-044-0	02	1	1311-

1 7 2 2 287 44 45 46 43 30 292 29 14 8 287 46 2 78 14 7 2 8 1 2 3 2 3 2 3 3 7 4 5 291 281 23 279 282 25 271 277 276 275 29 264 306 294 278 280 121 282 23 271 279 25 281 2 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47170-441-0	04	1	1311-
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-47170-496-0	01	1	1311-
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-47170-497-0	01	1	1311-
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-47170-498-0	01	1	1311-
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-47170-499-0	01	1	1311-
1	SHOE; BRK,FRT (A) LEADING	1-47170-316-0	01	1	1106-1310
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) LEADING	1-47170-316-0	01	1	1311-
1	SHOE; BRK,FRT (A) TRAILING	1-47170-317-0	01	1	1106-1310
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) TRAILING	1-47170-317-0	01	1	1311-
1	SHOE; BRK,FRT (A) LEADING	1-47170-318-0	01	1	1106-1310
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) LEADING	1-47170-318-0	01	1	1311-
1	SHOE; BRK,FRT (A) TRAILING	1-47170-319-0	01	1	1106-1310
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) TRAILING	1-47170-319-0	01	1	1311-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-758-0	08	1	1311-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-812-0	08	1	1311-
2	LINING; FRT BRK SHOE,STANDARD	1-47126-698-0	08	1	1106-1310
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-698-0	08	1	1311-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-759-0	08	1	1311-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-813-0	08	1	1311-
3	LINING; FRT BRK SHOE,OVER SIZE	1-47126-699-0	08	1	1106-1310
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-699-0	08	1	1311-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-88311-353-1	02	1	1311-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-88311-390-0	01	1	1311-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-88311-394-0	01	1	1311-
4	LINING SET; FRT BRK,STANDARD (A)	1-88311-314-0	02	1	1106-1310
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-88311-314-0	02	1	1311-
4	LINING SET; FRT BRK,STANDARD (A) BEST VALUE PARTS	1-87610-128-0	01	1	1106-1310
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) BEST VALUE PARTS	1-87610-128-0	01	1	1311-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-88311-354-1	02	1	1311-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-88311-391-0	01	1	1311-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-88311-395-0	01	1	1311-
5	LINING SET; FRT BRK,OVER SIZE (A)	1-88311-315-0	02	1	1106-1310
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-88311-315-0	02	1	1311-
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5	1-09732-034-0	80	1	1311-
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5	1-09732-034-0	40	1	1311-
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) L=15.5	1-09732-053-0	40	1	1311-
7	RIVET; LINING,FRT BRK (A) L=15.5	1-09732-053-0	80	1	1106-1310
7	RIVET; LINING,FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=15.5	1-09732-053-0	80	1	1311-
8	BUSHING; BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47112-011-0	04	1	1311-
8	BUSHING; BRK SHOE	1-47112-020-0	04	1	1106-1310
8	BUSHING; BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47112-020-0	04	1	1311-
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> L=73.5	1-47119-017-1	04	1	1311-
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47119-134-0	04	1	1311-
14	PIN; SHOE RETURN SPR	1-47119-177-1	04	1	1106-1310
14	PIN; SHOE RETURN SPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-177-1	04	1	1311-
23	SPRING; COIL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	9-09940-435-0	02	1	1311-
23	SPRING; COIL	1-47629-196-0	04	1	1106-1310
23	SPRING; COIL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-196-0	04	1	1311-
25	SCREW; ADJ,FRT WHEEL CYL	1-47623-035-2	04	1	1106-1310
25	SCREW; ADJ,FRT WHEEL CYL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47623-035-2	04	1	1311-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-09583-269-1	02	1	1311-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-09583-359-0	04	1	1311-
29	SPRING; RETURN,FRT BRK SHOE (A)	1-09583-365-1	02	1	1106-1310
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09583-365-1	04	1	1311-
29	SPRING; RETURN,FRT BRK SHOE (B)	1-47649-041-0	02	1	1106-1310
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47649-041-0	02	1	1311-
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47137-435-0	02	1	1311-
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47137-519-0	02	1	1311-
30	BRACKET; ANCHOR,FRT (A)	8-98091-252-0	02	1	1106-1310
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98091-252-0	02	1	1311-
43	PIN; ANCHOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=106.5	1-47131-038-0	04	1	1311-
43	PIN; ANCHOR L=115.5	1-47131-044-0	04	1	1106-1310
43	PIN; ANCHOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=115.5	1-47131-044-0	04	1	1311-
44	BOLT; LOCK,ANCHOR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16	0-20851-016-0	02	1	1311-
44	BOLT; LOCK,ANCHOR PIN M10X16	1-47139-173-0	02	1	1106-1310
44	BOLT; LOCK,ANCHOR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X16	1-47139-173-0	02	1	1311-
45	WASHER; LK	1-47133-011-0	02	1	1106-
46	PLATE; LOCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-47133-005-0	02	1	1311-
46	PLATE; LOCK (A)	1-47119-152-0	04	1	1106-1310
46	PLATE; LOCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47119-152-0	04	1	1311-
46	PLATE; LOCK (B)	1-47133-010-0	02	1	1106-1310
46	PLATE; LOCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47133-010-0	02	1	1311-
78	BOLT; LK,PLATE	1-47119-153-0	04	1	1106-1310
78	BOLT; LK,PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-153-0	04	1	1311-
121	SCREW; LK SPR FRT WHEEL CYL	1-47619-149-1	04	1	1106-1310
121	SCREW; LK SPR FRT WHEEL CYL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47619-149-1	04	1	1311-
264	RING; SNAP,SPR PIN	1-47649-034-1	02	1	1106-1310
264	RING; SNAP,SPR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-034-1	02	1	1311-
271	CLIP; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	1311-
271	CLIP; ADJ	1-47621-017-0	04	1	1106-1310
271	CLIP; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47621-017-0	04	1	1311-
275	RING; RETAINER	1-47649-031-0	02	1	1106-1310
275	RING; RETAINER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-031-0	02	1	1311-
276	BOLT; CHAMBER M10X42.5	1-47139-163-0	08	1	1106-1310
276	BOLT; CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X42.5	1-47139-163-0	08	1	1311-
277	RING; CHAMBER	1-48259-231-0	02	1	1106-1310
277	RING; CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-231-0	02	1	1311-
278	RETAINER; SPRING	1-47649-020-0	02	1	1106-1310
278	RETAINER; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-020-0	02	1	1311-
279	CAGE; SPRING	1-47629-192-0	04	1	1106-1310
279	CAGE; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-192-0	04	1	1311-
280	WEDGE; FRT WHEEL CYL	1-47640-012-0	02	1	1106-1310
280	WEDGE; FRT WHEEL CYL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47640-012-0	02	1	1311-
281	SLEEVE	1-47629-247-1	04	1	1106-1310
281	SLEEVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-247-1	04	1	1311-
282	RING; DRIVE	1-47629-200-0	04	1	1106-1310
282	RING; DRIVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-200-0	04	1	1311-
287	RING; SNAP ID=10	0-91805-510-0	08	1	1106-1310
287	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10	0-91805-510-0	08	1	1311-
291	EXPANDER	1-47601-087-0	02	1	1106-1310
291	EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47601-087-0	02	1	1311-
292	BOLT; EXPANDER M8X16 HEXALOBULAR SOCKET	1-47634-008-0	04	1	1106-1310
292	BOLT; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 HEXALOBULAR SOCKET	1-47634-008-0	04	1	1311-
294	BOOT; WEDGE	1-47649-042-0	02	1	1106-1310
294	BOOT; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-042-0	02	1	1311-
306	CAP; EXPANDER	1-47649-044-0	02	1	1106-1310
306	CAP; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-044-0	02	1	1311-

26 272 271 35 34 24 120 245 21 20 21 22 17 246 120 271 272 245 24 273 274 15 4 5 4 5 3 2 7 3 2 7 2 3 2 7 3 7 7 7 2 3 2 3 2 3 7 3 2 7 33 30 15 43 45 44 46 7 2 2 7 1 8 14 29 7 1 2 14 7 2 8 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47170-441-0	04	1	1311-
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-47170-496-0	01	1	1311-
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-47170-497-0	01	1	1311-
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-47170-498-0	01	1	1311-
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-47170-499-0	01	1	1311-
1	SHOE; BRK,FRT (A) LEADING	1-47170-316-0	01	1	1106-1310
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) LEADING	1-47170-316-0	01	1	1311-
1	SHOE; BRK,FRT (A) TRAILING	1-47170-317-0	01	1	1106-1310
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) TRAILING	1-47170-317-0	01	1	1311-
1	SHOE; BRK,FRT (A) LEADING	1-47170-318-0	01	1	1106-1310
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) LEADING	1-47170-318-0	01	1	1311-
1	SHOE; BRK,FRT (A) TRAILING	1-47170-319-0	01	1	1106-1310
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) TRAILING	1-47170-319-0	01	1	1311-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-758-0	08	1	1311-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-812-0	08	1	1311-
2	LINING; FRT BRK SHOE,STANDARD	1-47126-698-0	08	1	1106-1310
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-698-0	08	1	1311-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-759-0	08	1	1311-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-813-0	08	1	1311-
3	LINING; FRT BRK SHOE,OVER SIZE	1-47126-699-0	08	1	1106-1310
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-699-0	08	1	1311-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-88311-353-1	02	1	1311-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-88311-390-0	01	1	1311-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-88311-394-0	01	1	1311-
4	LINING SET; FRT BRK,STANDARD (A)	1-88311-314-0	02	1	1106-1310
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-88311-314-0	02	1	1311-
4	LINING SET; FRT BRK,STANDARD (A) BEST VALUE PARTS	1-87610-128-0	01	1	1106-1310
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) BEST VALUE PARTS	1-87610-128-0	01	1	1311-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-88311-354-1	02	1	1311-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-88311-391-0	01	1	1311-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-88311-395-0	01	1	1311-
5	LINING SET; FRT BRK,OVER SIZE (A)	1-88311-315-0	02	1	1106-1310
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-88311-315-0	02	1	1311-
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5	1-09732-034-0	80	1	1311-
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5	1-09732-034-0	40	1	1311-
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) L=15.5	1-09732-053-0	40	1	1311-
7	RIVET; LINING,FRT BRK (A) L=15.5	1-09732-053-0	80	1	1106-1310
7	RIVET; LINING,FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=15.5	1-09732-053-0	80	1	1311-
8	BUSHING; BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47112-011-0	04	1	1311-
8	BUSHING; BRK SHOE	1-47112-020-0	04	1	1106-1310
8	BUSHING; BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47112-020-0	04	1	1311-
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> L=73.5	1-47119-017-1	04	1	1311-
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47119-134-0	04	1	1311-
14	PIN; SHOE RETURN SPR	1-47119-177-1	04	1	1106-1310
14	PIN; SHOE RETURN SPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-177-1	04	1	1311-
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47601-122-0	01	1	1311-
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47601-123-0	01	1	1311-
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-041-1	01	1	1311-
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-042-1	01	1	1311-
17	CAP; BLEEDER,FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=12	1-47619-011-0	02	1	1311-
20	BOLT; JOINT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X40.5 EYE BOLT	1-47634-006-0	02	1	1311-
21	GASKET; UNION BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=15.2	1-09630-019-0	02	1	1311-
21	GASKET; UNION BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=12.2	1-09630-020-0	02	1	1311-
22	JOINT; PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47631-057-1	02	1	1311-
24	PISTON; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47624-389-0	04	1	1311-
24	PISTON; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47624-370-0	04	1	1311-
26	CUP SET; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-87830-676-0	02	1	1311-
26	CUP SET; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-87830-931-0	02	1	1311-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-09583-269-1	02	1	1311-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-09583-359-0	04	1	1311-
29	SPRING; RETURN,FRT BRK SHOE (A)	1-09583-365-1	02	1	1106-1310
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09583-365-1	04	1	1311-
29	SPRING; RETURN,FRT BRK SHOE (B)	1-47649-041-0	02	1	1106-1310
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47649-041-0	02	1	1311-
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47137-435-0	02	1	1311-
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47137-519-0	02	1	1311-
30	BRACKET; ANCHOR,FRT (A)	8-98091-252-0	02	1	1106-1310
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98091-252-0	02	1	1311-
33	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47159-080-0	02	1	1311-
33	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-197-0	02	1	1311-
34	PLATE; DIRECTION,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47159-094-0	02	1	1311-
35	BOLT; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X35 W/LK WASHER	0-50551-235-0	04	1	1311-
43	PIN; ANCHOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=106.5	1-47131-038-0	04	1	1311-
43	PIN; ANCHOR L=115.5	1-47131-044-0	04	1	1106-1310
43	PIN; ANCHOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=115.5	1-47131-044-0	04	1	1311-
44	BOLT; LOCK,ANCHOR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16	0-20851-016-0	02	1	1311-
44	BOLT; LOCK,ANCHOR PIN M10X16	1-47139-173-0	02	1	1106-1310
44	BOLT; LOCK,ANCHOR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X16	1-47139-173-0	02	1	1311-
45	WASHER; LK	1-47133-011-0	02	1	1106-
46	PLATE; LOCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-47133-005-0	02	1	1311-
46	PLATE; LOCK (A)	1-47119-152-0	04	1	1106-1310
46	PLATE; LOCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47119-152-0	04	1	1311-
46	PLATE; LOCK (B)	1-47133-010-0	02	1	1106-1310
46	PLATE; LOCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47133-010-0	02	1	1311-
120	SPRING; LK,ADJ,FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-544-0	04	1	1311-
245	SHAFT; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47623-027-1	04	1	1311-
246	BLEEDER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47615-002-0	02	1	1311-
271	CLIP; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	1311-
271	CLIP; ADJ	1-47621-017-0	04	1	1106-1310
271	CLIP; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47621-017-0	04	1	1311-
272	ADJUSTER; MANUAL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-015-0	04	1	1311-
273	HANGER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47619-145-0	02	1	1311-
274	BOLT; HANGER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> M8X16 W/LK WASHER	0-50540-816-0	02	1	1311-

3 2 7 2 3 4 5 3 2 3 2 2 7 1 2 8 15 14 28 29 33 34 35 41 40 39 38 37 42 2 7 2 1 8 26 36 30 46 43 36 45 44 15 16 17 21 20 22 21 23 24 27 24 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47170-441-0	04	1	1311-
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-47170-496-0	01	1	1311-
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-47170-497-0	01	1	1311-
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-47170-498-0	01	1	1311-
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-47170-499-0	01	1	1311-
1	SHOE; BRK,FRT (A) LEADING	1-47170-316-0	01	1	1106-1310
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) LEADING	1-47170-316-0	01	1	1311-
1	SHOE; BRK,FRT (A) TRAILING	1-47170-317-0	01	1	1106-1310
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) TRAILING	1-47170-317-0	01	1	1311-
1	SHOE; BRK,FRT (A) LEADING	1-47170-318-0	01	1	1106-1310
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) LEADING	1-47170-318-0	01	1	1311-
1	SHOE; BRK,FRT (A) TRAILING	1-47170-319-0	01	1	1106-1310
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) TRAILING	1-47170-319-0	01	1	1311-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-758-0	08	1	1311-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-812-0	08	1	1311-
2	LINING; FRT BRK SHOE,STANDARD	1-47126-698-0	08	1	1106-1310
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-698-0	08	1	1311-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-759-0	08	1	1311-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-813-0	08	1	1311-
3	LINING; FRT BRK SHOE,OVER SIZE	1-47126-699-0	08	1	1106-1310
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-699-0	08	1	1311-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-88311-353-1	02	1	1311-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-88311-390-0	01	1	1311-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-88311-394-0	01	1	1311-
4	LINING SET; FRT BRK,STANDARD (A)	1-88311-314-0	02	1	1106-1310
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-88311-314-0	02	1	1311-
4	LINING SET; FRT BRK,STANDARD (A) BEST VALUE PARTS	1-87610-128-0	01	1	1106-1310
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) BEST VALUE PARTS	1-87610-128-0	01	1	1311-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-88311-354-1	02	1	1311-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-88311-391-0	01	1	1311-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-88311-395-0	01	1	1311-
5	LINING SET; FRT BRK,OVER SIZE (A)	1-88311-315-0	02	1	1106-1310
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-88311-315-0	02	1	1311-
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5	1-09732-034-0	80	1	1311-
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) L=18.5	1-09732-034-0	40	1	1311-
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (A) L=15.5	1-09732-053-0	40	1	1311-
7	RIVET; LINING,FRT BRK (A) L=15.5	1-09732-053-0	80	1	1106-1310
7	RIVET; LINING,FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) L=15.5	1-09732-053-0	80	1	1311-
8	BUSHING; BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47112-011-0	04	1	1311-
8	BUSHING; BRK SHOE	1-47112-020-0	04	1	1106-1310
8	BUSHING; BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47112-020-0	04	1	1311-
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> L=73.5	1-47119-017-1	04	1	1311-
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47119-134-0	04	1	1311-
14	PIN; SHOE RETURN SPR	1-47119-177-1	04	1	1106-1310
14	PIN; SHOE RETURN SPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-177-1	04	1	1311-
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47601-122-0	01	1	1311-
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47601-123-0	01	1	1311-
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-041-1	01	1	1311-
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-042-1	01	1	1311-
16	SCREW; BLEEDER,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> L=66.5	1-47615-005-0	02	1	1311-
17	CAP; BLEEDER,FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=12	1-47619-011-0	02	1	1311-
20	BOLT; JOINT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X40.5 EYE BOLT	1-47634-006-0	02	1	1311-
21	GASKET; UNION BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=15.2	1-09630-019-0	02	1	1311-
21	GASKET; UNION BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=12.2	1-09630-020-0	02	1	1311-
22	JOINT; PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47631-057-1	02	1	1311-
23	SPRING; COIL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	9-09940-435-0	02	1	1311-
23	SPRING; COIL	1-47629-196-0	04	1	1106-1310
23	SPRING; COIL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-196-0	04	1	1311-
24	PISTON; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47624-389-0	04	1	1311-
24	PISTON; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47624-370-0	04	1	1311-
26	CUP SET; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-87830-676-0	02	1	1311-
26	CUP SET; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-87830-931-0	02	1	1311-
27	ROD; PUSH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47621-009-0	04	1	1311-
28	PIN; SHOE ADJ CAM GUIDE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47116-002-0	04	1	1311-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-09583-269-1	02	1	1311-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (C)	1-09583-359-0	04	1	1311-
29	SPRING; RETURN,FRT BRK SHOE (A)	1-09583-365-1	02	1	1106-1310
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09583-365-1	04	1	1311-
29	SPRING; RETURN,FRT BRK SHOE (B)	1-47649-041-0	02	1	1106-1310
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47649-041-0	02	1	1311-
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47137-435-0	02	1	1311-
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47137-519-0	02	1	1311-
30	BRACKET; ANCHOR,FRT (A)	8-98091-252-0	02	1	1106-1310
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98091-252-0	02	1	1311-
33	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47159-080-0	02	1	1311-
33	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-197-0	02	1	1311-
34	PLATE; DIRECTION,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47159-094-0	02	1	1311-
35	BOLT; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12X35 W/LK WASHER	0-50551-235-0	04	1	1311-
36	CAM ASM; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (A)	1-47165-058-1	02	1	1311-
36	CAM ASM; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (B)	1-47165-059-1	02	1	1311-
37	WASHER; ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-033-0	04	1	1311-
38	SPRING; ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-046-0	04	1	1311-
39	BOOT; ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-034-0	04	1	1311-
40	COVER; BOOT,ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-031-0	04	1	1311-
41	INDICATOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-032-1	04	1	1311-
42	PIN; SPINDLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-030-0	04	1	1311-
43	PIN; ANCHOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=106.5	1-47131-038-0	04	1	1311-
43	PIN; ANCHOR L=115.5	1-47131-044-0	04	1	1106-1310
43	PIN; ANCHOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=115.5	1-47131-044-0	04	1	1311-
44	BOLT; LOCK,ANCHOR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16	0-20851-016-0	02	1	1311-
44	BOLT; LOCK,ANCHOR PIN M10X16	1-47139-173-0	02	1	1106-1310
44	BOLT; LOCK,ANCHOR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X16	1-47139-173-0	02	1	1311-
45	WASHER; LK	1-47133-011-0	02	1	1106-
46	PLATE; LOCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C)	1-47133-005-0	02	1	1311-
46	PLATE; LOCK (A)	1-47119-152-0	04	1	1106-1310
46	PLATE; LOCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47119-152-0	04	1	1311-
46	PLATE; LOCK (B)	1-47133-010-0	02	1	1106-1310
46	PLATE; LOCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47133-010-0	02	1	1311-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
