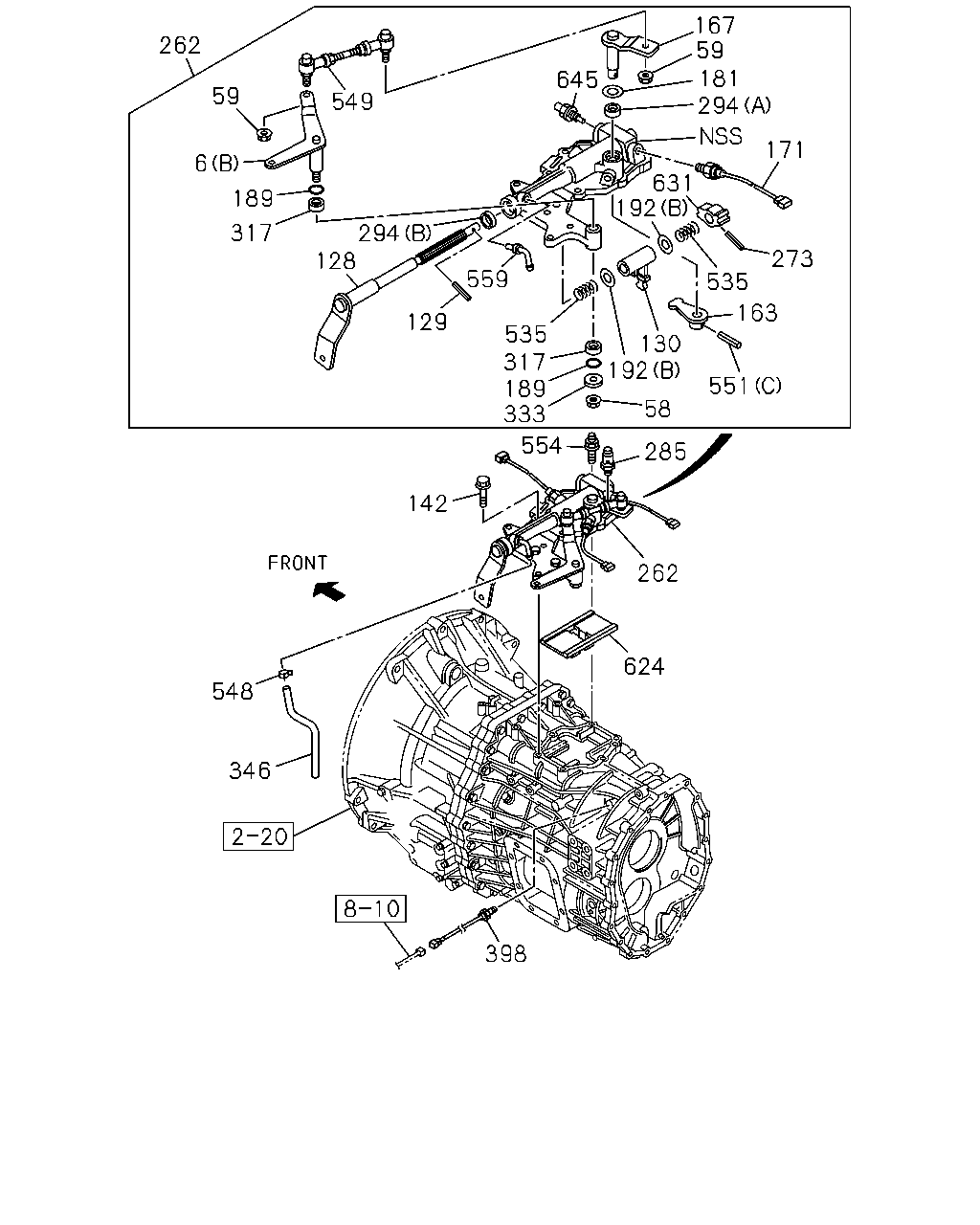

2-30 — GEAR SHIFTER AND QUADRANT BOX (#55143) — 159 parça

262 59 6 189 549 294 128 129 559 535 317 189 333 554 142 548 346 398 624 262 285 58 192 130 551 163 535 192 631 167 645 317 273 171 294 181 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1311-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1106-1310
6	LEVER; RELAY 4HK1-TCS ENG(RJS) (B)	8-98014-157-1	01	1	1311-
6	LEVER; RELAY (B)	8-98022-855-0	01	1	1106-1310
6	LEVER; RELAY 6HK1-TCN ENG(82L) (B)	8-98022-855-0	01	1	1311-
58	NUT M10 FLANGE	0-91180-110-0	01	1	1106-
59	NUT M8 FLANGE	0-91180-108-0	02	1	1106-
128	LEVER; SHIFT,EXTERNAL 4HK1-TCS ENG(RJS)	8-98212-106-0	01	1	1311-1507
128	LEVER; SHIFT,EXTERNAL 4HK1-TCS ENG(RJS)	8-98305-345-0	01	1	1508-
128	LEVER; SHIFT,EXTERNAL	8-97306-927-0	01	1	1106-1310
128	LEVER; SHIFT,EXTERNAL 6HK1-TCN ENG(82L)	8-97306-927-0	01	1	1311-1507
128	LEVER; SHIFT,EXTERNAL 6HK1-TCN ENG(82L)	8-98305-346-0	01	1	1508-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1106-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1106-
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1106-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1106-
167	LEVER; SELECT,EXTERNAL 4HK1-TCS ENG(RJS)	8-98021-489-0	01	1	1311-
167	LEVER; SELECT,EXTERNAL	8-98022-857-0	01	1	1106-1310
167	LEVER; SELECT,EXTERNAL 6HK1-TCN ENG(82L)	8-98022-857-0	01	1	1311-
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1106-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1106-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1106-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1106-
192	WASHER; PL (B)	8-97305-661-0	02	1	1106-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS)	8-98249-037-0	01	1	1311-1312
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS)	8-98240-991-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS)	8-98276-157-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS)	8-98305-332-1	01	1	1508-
262	BOX ASM; SHIFT CONT	8-98004-477-0	01	1	1106-1204
262	BOX ASM; SHIFT CONT	8-98207-566-0	01	1	1205-1306
262	BOX ASM; SHIFT CONT	8-98249-041-0	01	1	1307-1310
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L)	8-98249-041-0	01	1	1311-1312
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L)	8-98241-010-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L)	8-98276-161-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L)	8-98305-336-1	01	1	1508-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1106-
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	1205-1404
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1106-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1106-
317	BUSHING; LEVER	1-09330-119-0	02	1	1106-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1106-
346	HOSE; AIR	8-97309-855-0	01	1	1405-
346	HOSE; AIR	8-97309-855-0	01	1	1106-1204
398	SWITCH; REV LAMP	8-98023-050-0	01	1	1106-1312
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1401-
535	SPRING; LEVER	8-97385-713-0	02	1	1106-
548	CLIP; HOSE	8-97031-674-0	01	1	1405-
548	CLIP; HOSE	8-97031-674-0	01	1	1106-1204
549	ROD; LINK 4HK1-TCS ENG(RJS)	8-98023-095-0	01	1	1311-
549	ROD; LINK	8-98022-841-0	01	1	1106-1310
549	ROD; LINK 6HK1-TCN ENG(82L)	8-98022-841-0	01	1	1311-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1106-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1106-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1106-
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1106-
559	PIPE; BREATHER	8-97358-318-0	01	1	1405-
559	PIPE; BREATHER	8-97358-318-0	01	1	1106-1204
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1106-
631	STOPPER; SPRING 4HK1-TCS ENG(RJS)	8-98014-158-0	01	1	1311-
631	STOPPER; SPRING	8-97305-666-0	01	1	1106-1310
631	STOPPER; SPRING 6HK1-TCN ENG(82L)	8-97305-666-0	01	1	1311-
645	DETENT ASM	8-98019-536-0	01	1	1106-

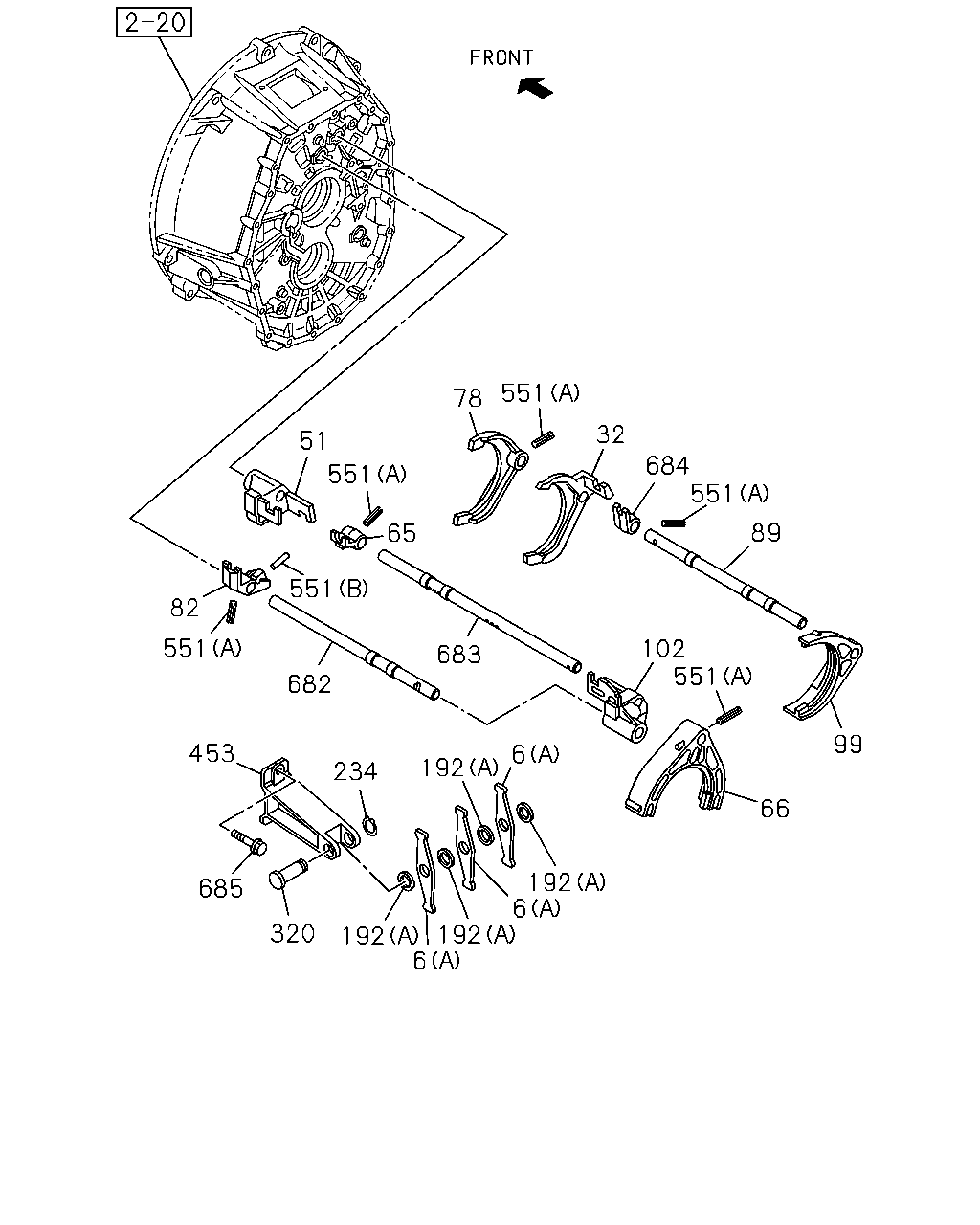

551 551 89 551 551 551 99 66 551 51 65 683 192 6 192 6 192 6 192 320 685 453 82 682 102 32 78 684 234

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1311-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1106-1310
6	LEVER; RELAY 4HK1-TCS ENG(RJS) (B)	8-98014-157-1	01	1	1311-
6	LEVER; RELAY (B)	8-98022-855-0	01	1	1106-1310
6	LEVER; RELAY 6HK1-TCN ENG(82L) (B)	8-98022-855-0	01	1	1311-
32	ARM; SHIFT,1ST & 2ND	8-98062-167-0	01	1	1106-1307
32	ARM; SHIFT,1ST & 2ND	8-98236-424-1	01	1	1308-
51	BLOCK; SHIFT,1ST & 2ND	8-98074-457-1	01	1	1106-
65	BLOCK ASM; SHIFT,5TH & 6TH	8-97388-980-1	01	1	1106-
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	1106-
78	ARM; SHIFT,REV	8-97388-975-1	01	1	1106-
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	1106-
89	ROD; SHIFT,REV	8-98062-172-0	01	1	1106-
99	ARM; SHIFT,4TH & 3RD	8-98062-170-0	01	1	1106-1506
99	ARM; SHIFT,4TH & 3RD	8-98309-861-0	01	1	1507-
102	BLOCK; SHIFT,3RD & 4TH	8-97388-978-2	01	1	1106-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1106-
192	WASHER; PL (B)	8-97305-661-0	02	1	1106-
234	RING; SNAP ID=16.5	0-91800-618-0	01	1	1106-
320	SHAFT; LEVER	8-97377-928-0	01	1	1106-
453	BLOCK; RELAY LEVER	8-97377-927-1	01	1	1106-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1106-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1106-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1106-
682	ROD; SHIFT,REV,SUB	8-97388-974-0	01	1	1106-
683	ROD; SHIFT,5TH & 6TH	8-98062-173-1	01	1	1106-
684	BLOCK; SHIFT,REV,SUB	8-97388-970-0	01	1	1106-
685	BOLT; BLOCK M8X30 FLANGE	8-98034-764-0	02	1	1106-

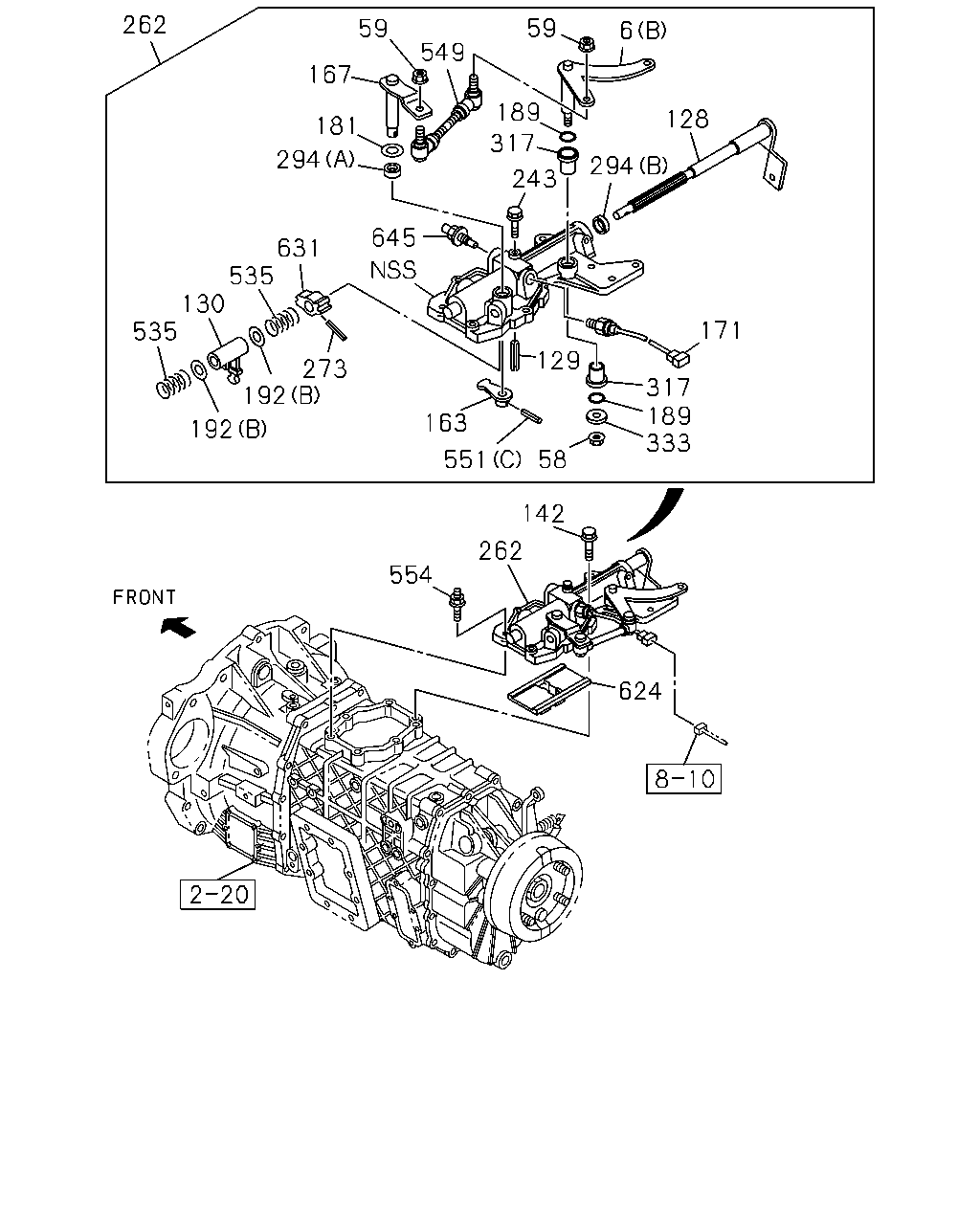

535 130 535 631 294 181 167 59 262 59 189 549 6 128 294 243 645 129 163 317 189 333 171 551 58 142 262 554 624 192 273 192 317

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1311-
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1106-1310
6	LEVER; RELAY 4HK1-TCS ENG(RJS) (B)	8-98014-157-1	01	1	1311-
6	LEVER; RELAY (B)	8-98022-855-0	01	1	1106-1310
6	LEVER; RELAY 6HK1-TCN ENG(82L) (B)	8-98022-855-0	01	1	1311-
58	NUT M10 FLANGE	0-91180-110-0	01	1	1106-
59	NUT M8 FLANGE	0-91180-108-0	02	1	1106-
128	LEVER; SHIFT,EXTERNAL 4HK1-TCS ENG(RJS)	8-98212-106-0	01	1	1311-1507
128	LEVER; SHIFT,EXTERNAL 4HK1-TCS ENG(RJS)	8-98305-345-0	01	1	1508-
128	LEVER; SHIFT,EXTERNAL	8-97306-927-0	01	1	1106-1310
128	LEVER; SHIFT,EXTERNAL 6HK1-TCN ENG(82L)	8-97306-927-0	01	1	1311-1507
128	LEVER; SHIFT,EXTERNAL 6HK1-TCN ENG(82L)	8-98305-346-0	01	1	1508-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1106-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1106-
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1106-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1106-
167	LEVER; SELECT,EXTERNAL 4HK1-TCS ENG(RJS)	8-98021-489-0	01	1	1311-
167	LEVER; SELECT,EXTERNAL	8-98022-857-0	01	1	1106-1310
167	LEVER; SELECT,EXTERNAL 6HK1-TCN ENG(82L)	8-98022-857-0	01	1	1311-
171	SWITCH; NEUTRAL	8-98023-050-0	01	1	1106-1312
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1401-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1106-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1106-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1106-
192	WASHER; PL (B)	8-97305-661-0	02	1	1106-
243	BOLT; COVER 4HK1-TCS ENG(RJS) M6X12 FLANGE	1-33739-842-0	01	1	1311-
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS)	8-98249-037-0	01	1	1311-1312
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS)	8-98240-991-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS)	8-98276-157-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 4HK1-TCS ENG(RJS)	8-98305-332-1	01	1	1508-
262	BOX ASM; SHIFT CONT	8-98004-477-0	01	1	1106-1204
262	BOX ASM; SHIFT CONT	8-98207-566-0	01	1	1205-1306
262	BOX ASM; SHIFT CONT	8-98249-041-0	01	1	1307-1310
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L)	8-98249-041-0	01	1	1311-1312
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L)	8-98241-010-0	01	1	1401-1404
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L)	8-98276-161-1	01	1	1405-1507
262	BOX ASM; SHIFT CONT 6HK1-TCN ENG(82L)	8-98305-336-1	01	1	1508-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1106-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1106-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1106-
317	BUSHING; LEVER	1-09330-119-0	02	1	1106-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1106-
535	SPRING; LEVER	8-97385-713-0	02	1	1106-
549	ROD; LINK 4HK1-TCS ENG(RJS)	8-98023-095-0	01	1	1311-
549	ROD; LINK	8-98022-841-0	01	1	1106-1310
549	ROD; LINK 6HK1-TCN ENG(82L)	8-98022-841-0	01	1	1311-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1106-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1106-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1106-
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1106-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1106-
631	STOPPER; SPRING 4HK1-TCS ENG(RJS)	8-98014-158-0	01	1	1311-
631	STOPPER; SPRING	8-97305-666-0	01	1	1106-1310
631	STOPPER; SPRING 6HK1-TCN ENG(82L)	8-97305-666-0	01	1	1311-
645	DETENT ASM	8-98019-536-0	01	1	1106-

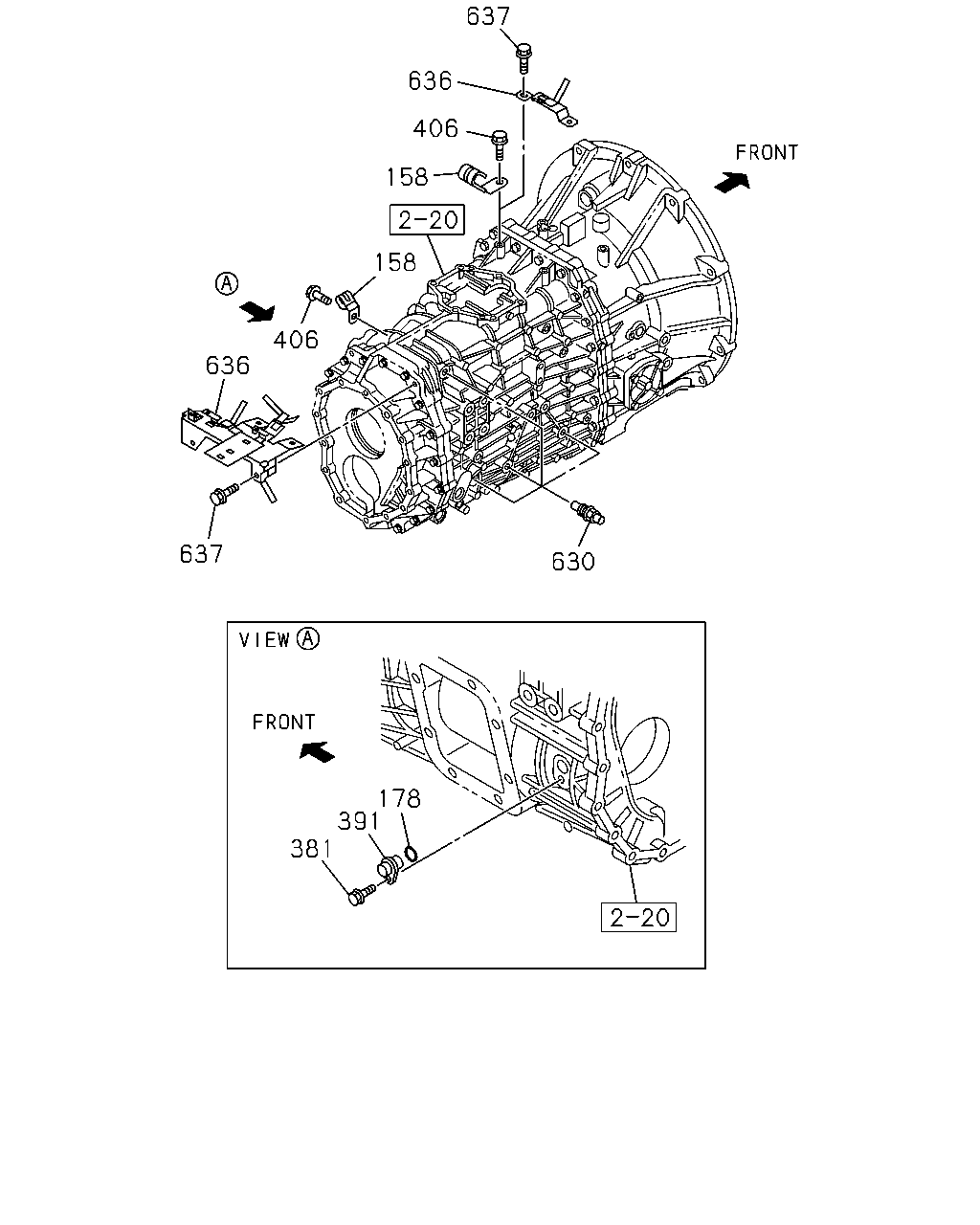

637 636 406 158 158 406 636 637 630 178 391 381

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	1106-
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	1106-
381	BOLT M6X16 FLANGE	0-28650-616-0	01	1	1106-
391	PLUG; SW HOLE	8-97300-273-1	01	1	1106-
406	BOLT; HARNESS CLIP M8X16 FLANGE	0-28050-816-0	02	1	1106-
630	DETENT ASM	8-98019-536-0	04	1	1106-
636	BRACKET; CLIP 4HK1-TCS ENG(RJS)	8-97610-092-1	01	1	1311-1502
636	BRACKET; CLIP	8-97610-096-2	01	1	1106-1310
636	BRACKET; CLIP 6HK1-TCN ENG(82L)	8-97610-096-2	01	1	1311-
637	BOLT; BRACKET M8X16 FLANGE	0-28050-816-0	02	1	1106-1502
