2-01 — CLUTCH (#55134) — 110 parça

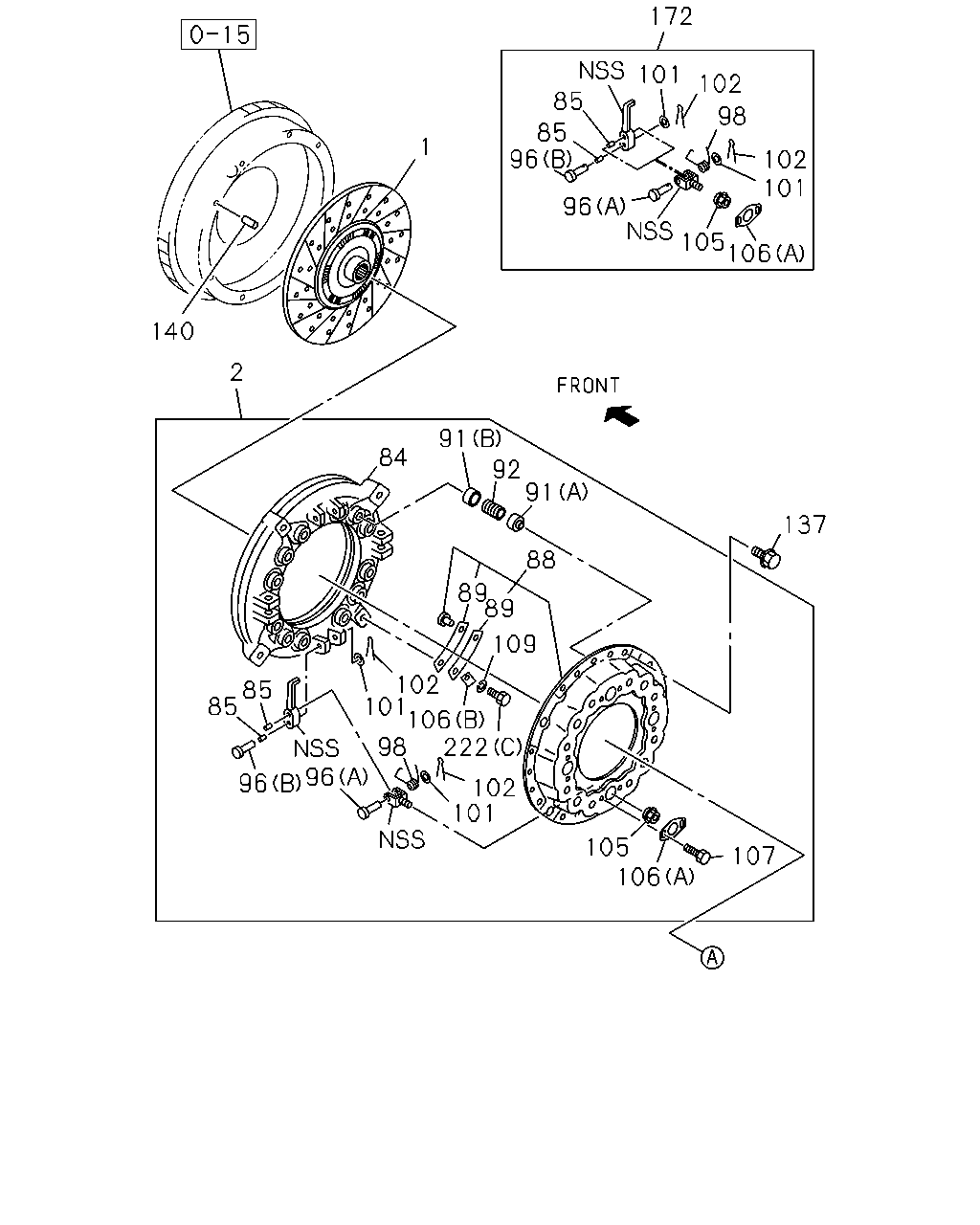

137 91 92 91 84 2 1 140 101 102 102 101 105 106 96 96 85 85 172 102 89 106 101 88 89 222 102 105 101 106 107 96 96 85 85 98 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DISC; CLUTCH 6HK1-TCN ENG(82L) BEST VALUE PARTS	1-87610-119-0	01	1	1106-
1	DISC; CLUTCH 4HK1-TCS ENG(RJS) 14"	1-31240-971-1	01	1	1311-1401
1	DISC; CLUTCH 4HK1-TCS ENG(RJS) 14"	1-31260-040-1	01	1	1402-
1	DISC; CLUTCH 6HK1-TCN ENG(82L) 15"	1-31240-851-2	01	1	1106-
1	DISC; CLUTCH 4HK1-TCS ENG(RJS) BEST VALUE PARTS	1-87610-140-0	01	1	1402-
2	PLATE ASM; PRESSURE,CLU 4HK1-TCS ENG(RJS)	1-31220-451-0	01	1	1311-
2	PLATE ASM; PRESSURE,CLU	1-31220-374-2	01	1	1106-1310
2	PLATE ASM; PRESSURE,CLU 6HK1-TCN ENG(82L)	1-31220-374-2	01	1	1311-
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-120-0	01	1	1106-1310
2	PLATE ASM; PRESSURE,CLU 6HK1-TCN ENG(82L) BEST VALUE PARTS	1-87610-120-0	01	1	1311-
84	PLATE; PRESSURE 4HK1-TCS ENG(RJS) 14"	1-31221-136-0	01	1	1311-
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	1106-1310
84	PLATE; PRESSURE 6HK1-TCN ENG(82L) 15"	1-31221-100-0	01	1	1311-
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	1106-
88	COVER SUB ASM; CLU 4HK1-TCS ENG(RJS)	1-31211-038-0	01	1	1311-
89	PLATE; STRAP 4HK1-TCS ENG(RJS)	1-31229-001-0	08	1	1311-
89	PLATE; STRAP	1-31229-050-0	16	1	1106-1310
89	PLATE; STRAP 6HK1-TCN ENG(82L)	1-31229-050-0	16	1	1311-
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	1106-
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	1106-
92	SPRING; CLU 4HK1-TCS ENG(RJS)	1-31214-092-0	12	1	1311-
92	SPRING; CLU	1-31214-086-0	12	1	1106-1310
92	SPRING; CLU 6HK1-TCN ENG(82L)	1-31214-086-0	12	1	1311-
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	1106-
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	1106-
98	SPRING; RETURN	1-31233-003-0	04	1	1106-
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	1106-
102	PIN; SPLIT,RELEASE LEVER 4HK1-TCS ENG(RJS) OD=2.7 L=22	9-08113-022-0	08	1	1311-
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	1106-1310
102	PIN; SPLIT,RELEASE LEVER 6HK1-TCN ENG(82L) OD=2.7 L=22	9-08103-022-0	08	1	1311-
105	NUT; SUPPORT	1-31235-014-0	04	1	1106-
106	PLATE; LK,LEVER SUPPORT 4HK1-TCS ENG(RJS) (B)	1-31235-008-0	04	1	1311-
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	1106-
107	BOLT; LK PLATE	1-31239-061-0	08	1	1106-
109	WASHER; LK,STRAP 4HK1-TCS ENG(RJS) ID=10.2	0-91510-510-0	04	1	1311-
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	1106-
140	PIN; STRAIGHT 4HK1-TCS ENG(RJS) L=25	8-94410-361-0	02	1	1311-
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	1106-
222	BOLT; STRAP 4HK1-TCS ENG(RJS) (C)	1-31239-059-0	04	1	1311-
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	1106-1310
222	BOLT; STRAP 6HK1-TCN ENG(82L) (B) M10X23.2	1-09040-042-0	04	1	1311-
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	1106-1310
222	BOLT; STRAP 6HK1-TCN ENG(82L) (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	1311-

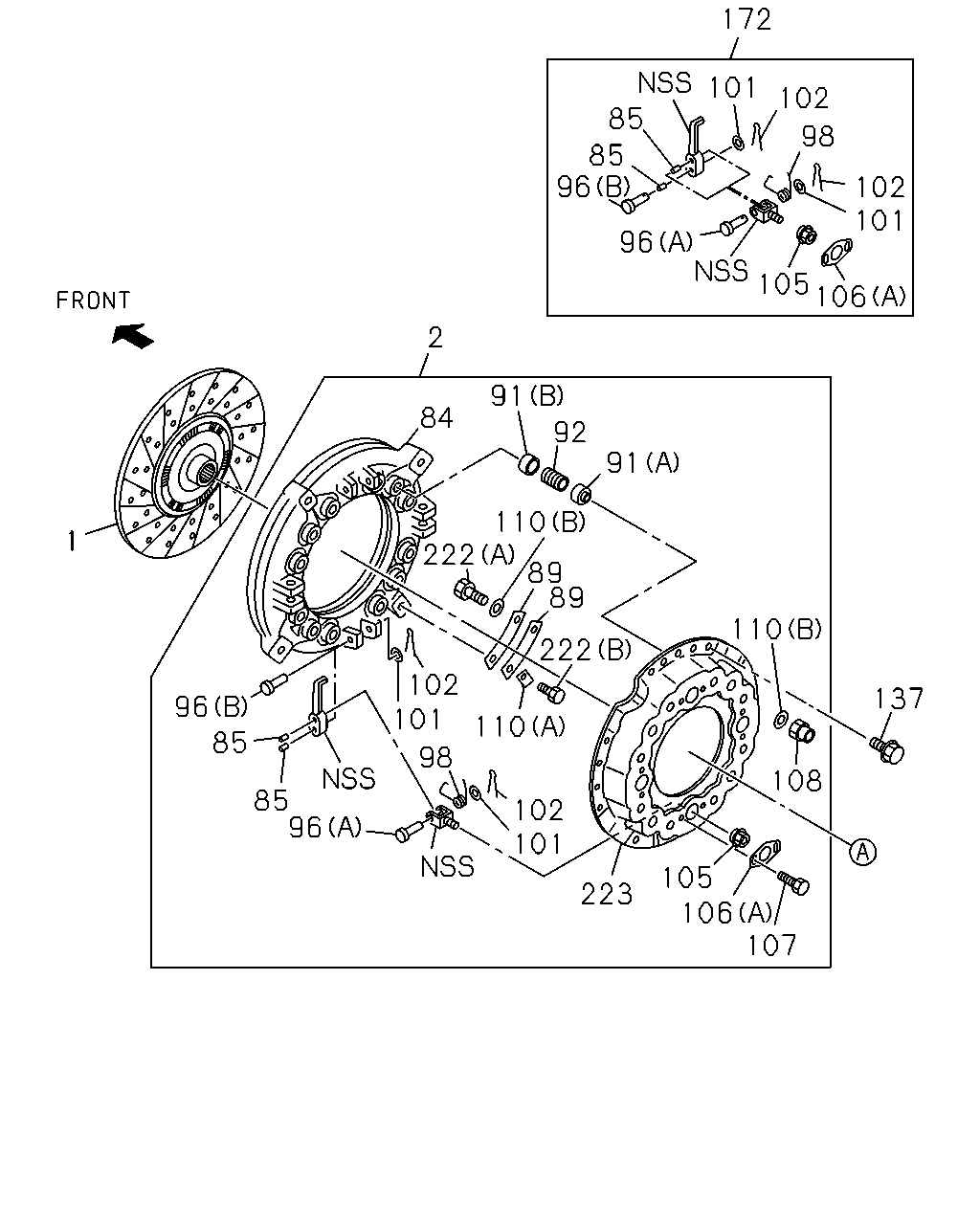

105 101 106 102 98 102 172 101 85 85 96 96 2 84 91 91 110 222 222 110 108 137 105 106 107 223 101 110 98 101 102 96 85 85 96 89 89 92 102 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DISC; CLUTCH 6HK1-TCN ENG(82L) BEST VALUE PARTS	1-87610-119-0	01	1	1106-
1	DISC; CLUTCH 4HK1-TCS ENG(RJS) 14"	1-31240-971-1	01	1	1311-1401
1	DISC; CLUTCH 4HK1-TCS ENG(RJS) 14"	1-31260-040-1	01	1	1402-
1	DISC; CLUTCH 6HK1-TCN ENG(82L) 15"	1-31240-851-2	01	1	1106-
1	DISC; CLUTCH 4HK1-TCS ENG(RJS) BEST VALUE PARTS	1-87610-140-0	01	1	1402-
2	PLATE ASM; PRESSURE,CLU 4HK1-TCS ENG(RJS)	1-31220-451-0	01	1	1311-
2	PLATE ASM; PRESSURE,CLU	1-31220-374-2	01	1	1106-1310
2	PLATE ASM; PRESSURE,CLU 6HK1-TCN ENG(82L)	1-31220-374-2	01	1	1311-
2	PLATE ASM; PRESSURE,CLU BEST VALUE PARTS	1-87610-120-0	01	1	1106-1310
2	PLATE ASM; PRESSURE,CLU 6HK1-TCN ENG(82L) BEST VALUE PARTS	1-87610-120-0	01	1	1311-
84	PLATE; PRESSURE 4HK1-TCS ENG(RJS) 14"	1-31221-136-0	01	1	1311-
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	1106-1310
84	PLATE; PRESSURE 6HK1-TCN ENG(82L) 15"	1-31221-100-0	01	1	1311-
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	1106-
89	PLATE; STRAP 4HK1-TCS ENG(RJS)	1-31229-001-0	08	1	1311-
89	PLATE; STRAP	1-31229-050-0	16	1	1106-1310
89	PLATE; STRAP 6HK1-TCN ENG(82L)	1-31229-050-0	16	1	1311-
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	1106-
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	1106-
92	SPRING; CLU 4HK1-TCS ENG(RJS)	1-31214-092-0	12	1	1311-
92	SPRING; CLU	1-31214-086-0	12	1	1106-1310
92	SPRING; CLU 6HK1-TCN ENG(82L)	1-31214-086-0	12	1	1311-
96	PIN; RELEASE LEVER (A) L=49.0	1-31232-005-0	04	1	1106-
96	PIN; RELEASE LEVER (B) L=57.0	1-31232-014-0	04	1	1106-
98	SPRING; RETURN	1-31233-003-0	04	1	1106-
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	1106-
102	PIN; SPLIT,RELEASE LEVER 4HK1-TCS ENG(RJS) OD=2.7 L=22	9-08113-022-0	08	1	1311-
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	1106-1310
102	PIN; SPLIT,RELEASE LEVER 6HK1-TCN ENG(82L) OD=2.7 L=22	9-08103-022-0	08	1	1311-
105	NUT; SUPPORT	1-31235-014-0	04	1	1106-
106	PLATE; LK,LEVER SUPPORT 4HK1-TCS ENG(RJS) (B)	1-31235-008-0	04	1	1311-
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	1106-
107	BOLT; LK PLATE	1-31239-061-0	08	1	1106-
108	NUT; STRAP	1-09449-036-0	04	1	1106-1310
108	NUT; STRAP 6HK1-TCN ENG(82L)	1-09449-036-0	04	1	1311-
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	1106-1310
110	WASHER; SPECIAL,STRAP 6HK1-TCN ENG(82L) (A) T=1.2	1-31229-009-0	04	1	1311-
110	WASHER; SPECIAL,STRAP (B) T=3.2	8-97374-512-0	08	1	1106-1310
110	WASHER; SPECIAL,STRAP 6HK1-TCN ENG(82L) (B) T=3.2	8-97374-512-0	08	1	1311-
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	1106-
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	1106-
222	BOLT; STRAP 4HK1-TCS ENG(RJS) (C)	1-31239-059-0	04	1	1311-
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	1106-1310
222	BOLT; STRAP 6HK1-TCN ENG(82L) (B) M10X23.2	1-09040-042-0	04	1	1311-
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	1106-1310
222	BOLT; STRAP 6HK1-TCN ENG(82L) (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	1311-
223	COVER; CLU	1-31211-019-1	01	1	1106-1310
223	COVER; CLU 6HK1-TCN ENG(82L)	1-31211-019-1	01	1	1311-

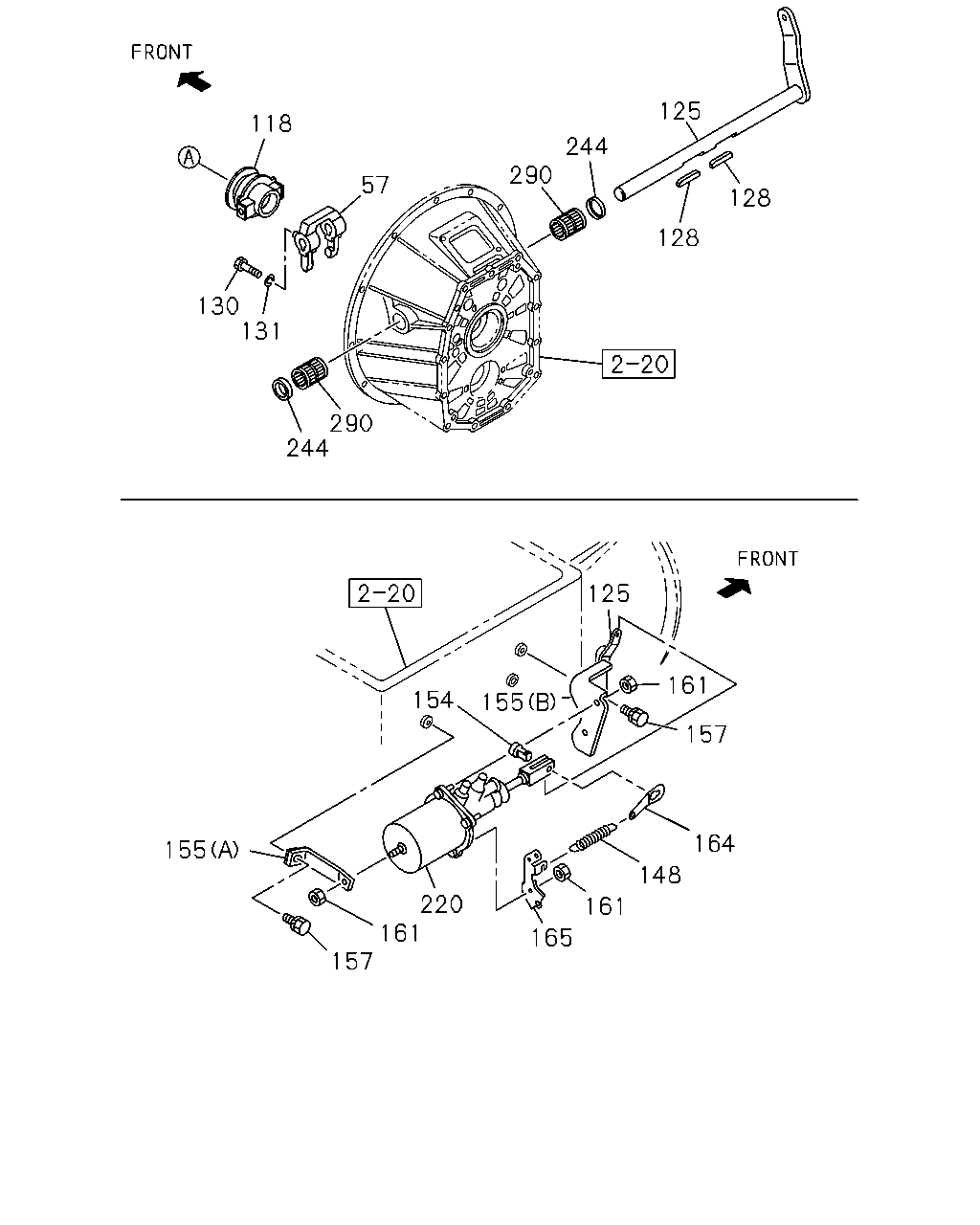

118 57 130 131 290 244 290 244 125 128 128 155 157 161 220 154 155 125 161 157 164 148 161 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
57	FORK; SHIFT,CLU	1-31341-048-2	01	1	1106-
118	BEARING; CLU RELEASE	1-31310-026-0	01	1	1106-
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-109-0	01	1	1106-
125	SHAFT; CLU	1-31342-335-0	01	1	1106-
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	1106-
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	1106-
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	1106-
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	1106-
154	PIN; JAW JOINT	1-31424-009-0	01	1	1106-
155	BRACKET; MINIPACK (A)	1-31429-475-1	01	1	1106-
155	BRACKET; MINIPACK (B)	1-31429-478-0	01	1	1106-
157	BOLT; BRKT M10X25 FLANGE	0-28751-025-0	03	1	1106-
161	NUT; BRKT M10 FLANGE	0-91180-210-0	05	1	1106-
164	EYE; SPRING	1-31426-041-0	01	1	1106-
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE	1-47477-789-0	01	1	1106-
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-511-2	01	1	1106-
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-089-0	01	1	1106-
244	SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	1106-
290	BEARING; NEEDLE NTN	1-09811-002-1	02	1	1106-
