Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#55132) — 387 parça

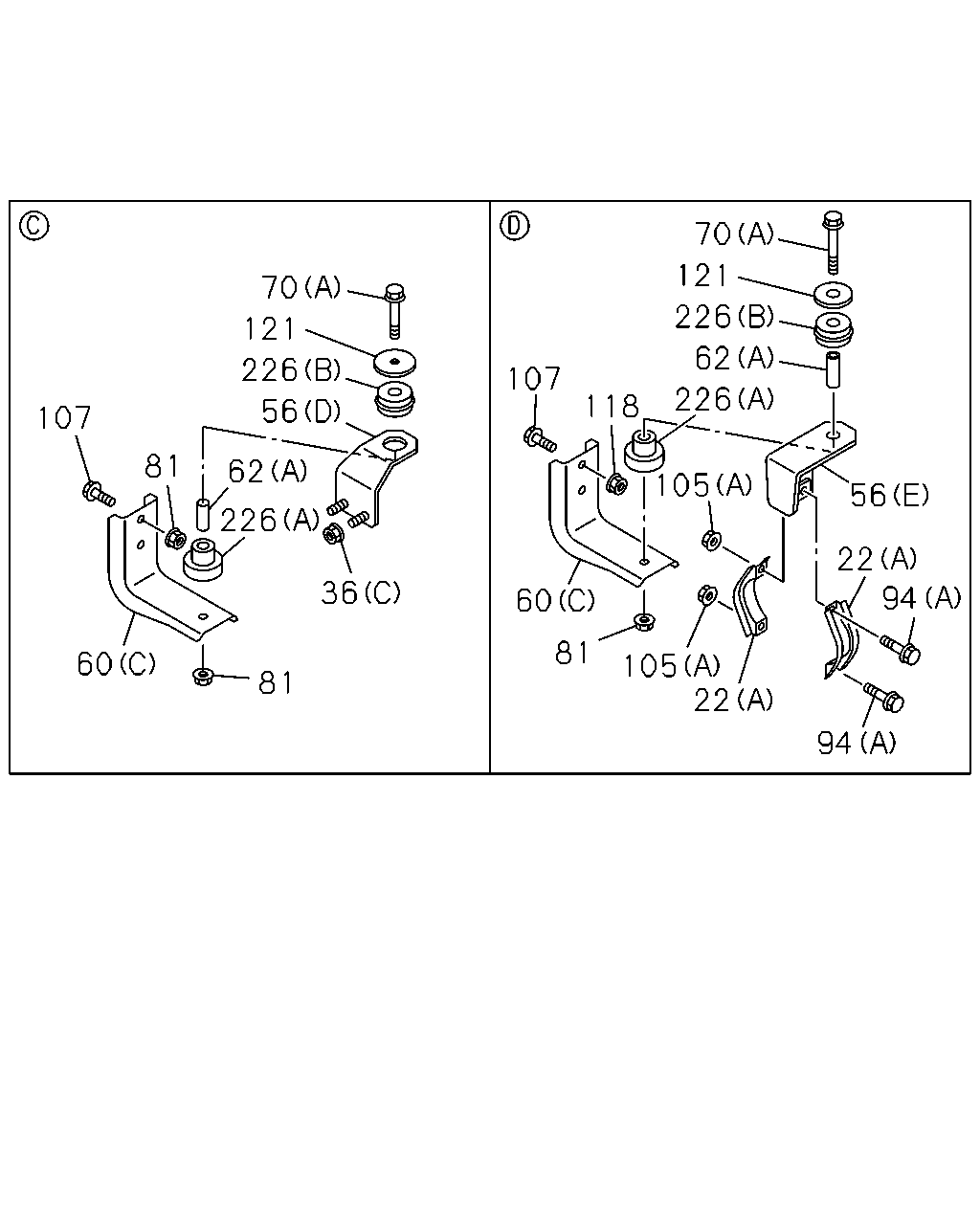

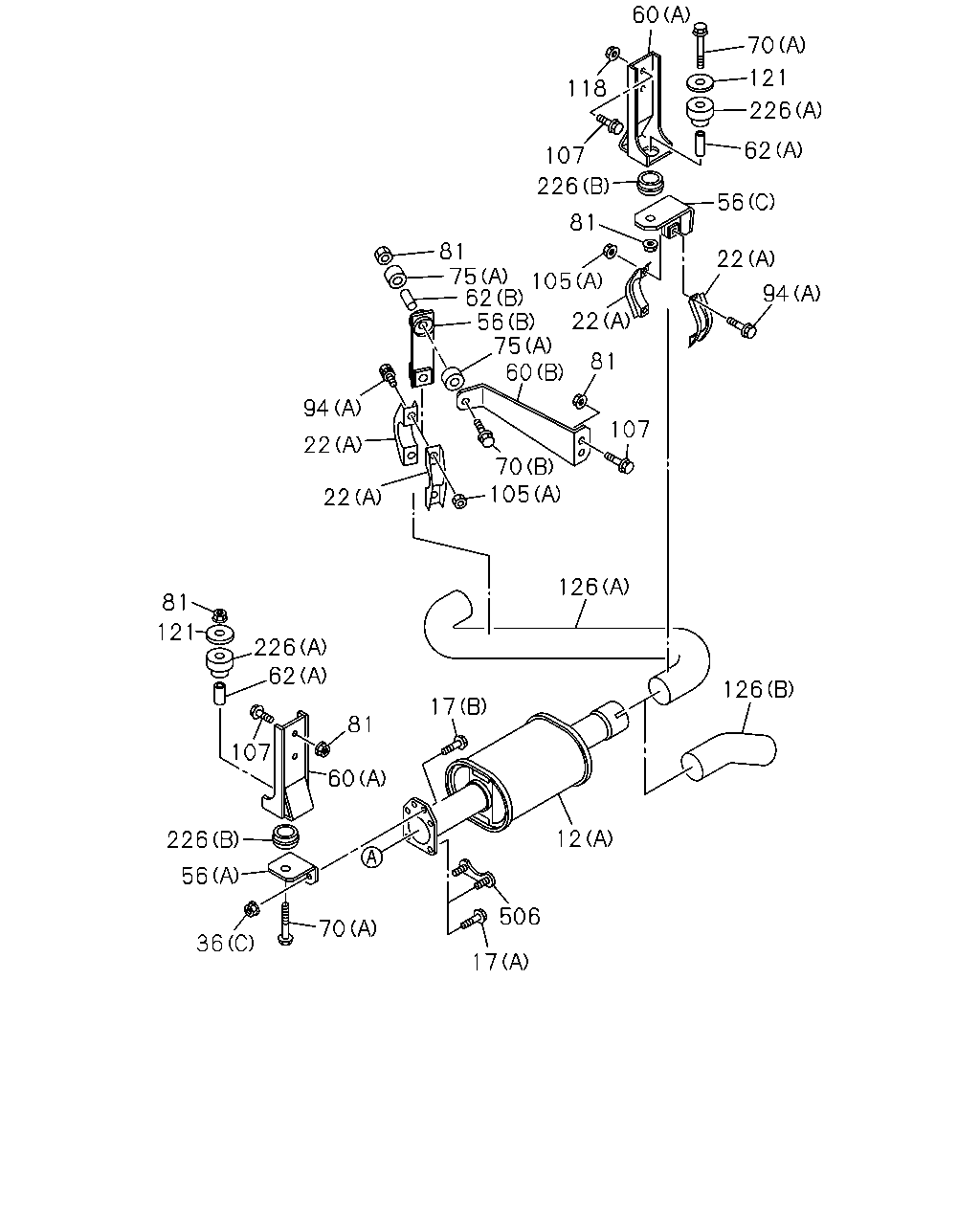

60 70 121 226 62 56 22 94 22 81 105 81 226 107 118 107 70 105 60 75 56 62 75 81 94 22 22 126 126 12 17 81 60 70 17 506 36 56 226 107 62 226 121 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	SILENCER ASM; EXH 4HK1-TCS ENG(RJS) (B)	8-98219-189-0	01	1	1311-
12	SILENCER ASM; EXH (A)	8-98165-988-0	01	1	1106-1310
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) (A)	8-98165-988-0	01	1	1311-
17	BOLT; EXH PIPE (A) M12X35 FLANGE	0-28051-235-0	04	1	1204-1310
17	BOLT; EXH PIPE (A) M12X35 FLANGE	0-28051-235-0	03	1	1106-1310
17	BOLT; EXH PIPE 6HK1-TCN ENG(82L) (A) M12X35 FLANGE	0-28051-235-0	03	1	1311-
17	BOLT; EXH PIPE (B) M10X35 FLANGE	0-28651-035-0	02	1	1106-1310
17	BOLT; EXH PIPE 6HK1-TCN ENG(82L) (B) M10X35 FLANGE	0-28651-035-0	02	1	1311-
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-97646-674-0	01	1	1311-
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1106-1310
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1106-1310
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1311-
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) ID=80-84	1-22133-233-0	02	1	1311-
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (B) M12 FLANGE	0-91180-212-0	07	1	1311-
36	NUT; EXH PIPE (C) M10 FLANGE	0-91180-210-0	02	1	1106-
36	NUT; EXH PIPE (B) M12 FLANGE	0-91180-212-0	07	1	1106-1310
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (D) M10 FLANGE	8-97096-192-1	03	1	1311-
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	1106-1310
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (A) M12	1-09400-010-0	03	1	1311-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (D)	8-98206-303-0	01	1	1311-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (E)	8-98206-304-0	01	1	1311-
56	BRACKET; CLAMP,EXH PIPE (B)	1-22131-528-1	01	1	1106-1310
56	BRACKET; CLAMP,EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-528-1	01	1	1311-
56	BRACKET; CLAMP,EXH PIPE (A)	1-22152-324-0	01	1	1106-1310
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (A)	1-22152-324-0	01	1	1311-
56	BRACKET; CLAMP,EXH PIPE (C)	8-98070-639-0	01	1	1106-1309
56	BRACKET; CLAMP,EXH PIPE (C)	8-98245-536-0	01	1	1310-1310
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (C)	8-98245-536-0	01	1	1311-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (C)	8-98206-302-0	02	1	1311-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (F)	1-22131-435-1	01	1	1311-
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	1106-1301
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	1106-1301
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	02	1	1302-1309
60	BRACKET; FRAME TO BRKT (A)	8-98245-532-0	02	1	1310-1310
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (A)	8-98245-532-0	02	1	1311-
60	BRACKET; FRAME TO BRKT (B)	8-98108-507-0	01	1	1106-1310
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98108-507-0	01	1	1311-
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1106-1301
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1106-1301
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	02	1	1302-
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	1106-1310
62	TUBE; DIST,BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=22	9-22159-024-0	01	1	1311-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C) M10X50	0-10856-050-0	01	1	1311-
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	1106-1310
70	BOLT; BRKT 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50 FLANGE	0-28051-050-0	01	1	1311-
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1106-1301
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1106-1301
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	1302-
75	RUBBER; SUPPORT,BRKT 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) OD=40	1-22159-094-0	02	1	1311-
75	RUBBER; SUPPORT,BRKT (A) OD=40	1-22159-193-0	02	1	1106-1310
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) OD=40	1-22159-193-0	02	1	1311-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE	0-91180-210-0	01	1	1311-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1106-1301
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1106-1301
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1106-1301
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1302-1310
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1311-1511
81	NUT; BRKT 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	02	1	1311-1511
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE	0-91180-210-0	02	1	1311-1511
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1106-1301
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1106-1301
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1106-1301
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-1310
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-1310
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-1310
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-1310
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	04	1	1311-1511
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1311-
94	BOLT; CLAMP (A) M10X40 FLANGE	0-28651-040-0	02	1	1106-1310
94	BOLT; CLAMP (A) M10X40 FLANGE	0-28651-040-0	02	1	1106-1310
94	BOLT; CLAMP 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1311-
94	BOLT; CLAMP (A) M10X40 FLANGE	0-28651-040-0	02	1	1311-
105	NUT; CLAMP 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10	0-91110-510-0	02	1	1311-
105	NUT; CLAMP (A) M10 FLANGE	0-91180-210-0	02	1	1106-1310
105	NUT; CLAMP (A) M10 FLANGE	0-91180-210-0	02	1	1106-1310
105	NUT; CLAMP 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1311-
105	NUT; CLAMP (A) M10 FLANGE	0-91180-210-0	02	1	1311-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1204-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1106-1203
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1106-1203
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1106-1203
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1204-1310
107	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X35 FLANGE	0-28651-035-0	02	1	1311-
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	1106-
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1106-1301
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1106-1301
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	02	1	1302-
126	PIPE; EXH,RR 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-98206-305-0	01	1	1311-
126	PIPE; EXH,RR TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98210-836-0	01	1	1311-
126	PIPE; EXH,RR (A)	8-98069-920-0	01	1	1106-1310
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	8-98069-920-0	01	1	1311-
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1106-1301
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1106-1301
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	1302-
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1106-1301
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1106-1301
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	1302-
506	BRACKET; STUD M12X35	1-22131-963-0	02	1	1311-
506	BRACKET; STUD M12X35	1-22131-963-0	02	1	1106-1203

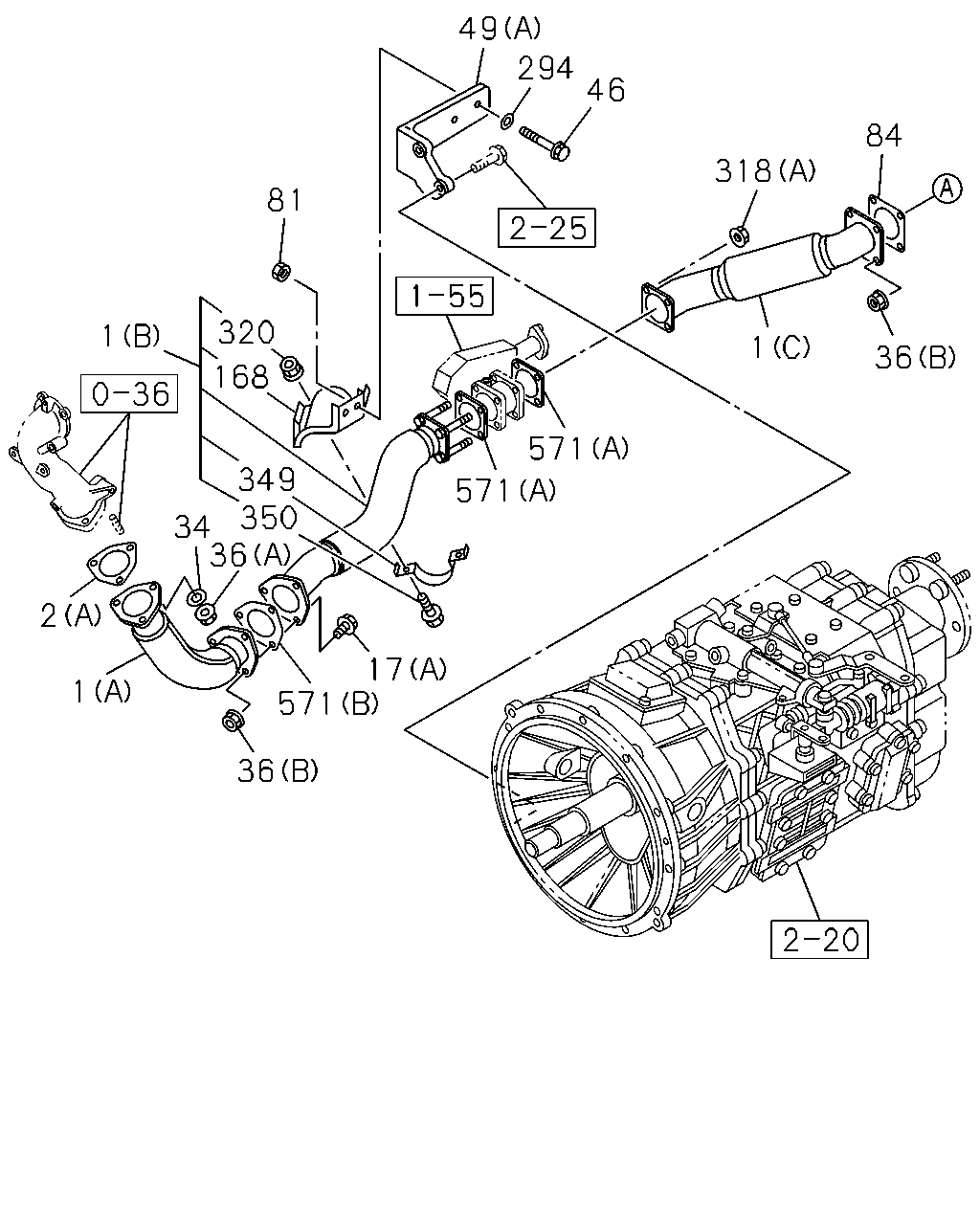

81 1 320 168 349 34 2 1 571 36 17 571 571 49 294 46 318 1 84 36 36 350

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH 4HK1-TCS ENG(RJS) (E)	8-98206-298-0	01	1	1311-
1	PIPE; EXH 4HK1-TCS ENG(RJS) (D)	8-98243-546-0	01	1	1311-
1	PIPE; EXH (C)	8-98096-668-1	01	1	1106-1310
1	PIPE; EXH 6HK1-TCN ENG(82L) (C)	8-98096-668-2	01	1	1311-
1	PIPE; EXH (B)	8-98119-515-0	01	1	1106-1209
1	PIPE; EXH (B)	8-98230-001-0	01	1	1210-1301
1	PIPE; EXH (B)	8-98234-516-0	01	1	1302-1310
1	PIPE; EXH 6HK1-TCN ENG(82L) (B)	8-98234-516-1	01	1	1311-
1	PIPE; EXH (A)	8-98182-389-0	01	1	1106-1301
1	PIPE; EXH (A)	8-98234-511-0	01	1	1302-1310
1	PIPE; EXH 6HK1-TCN ENG(82L) (A)	8-98234-511-0	01	1	1311-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L) (A) ID=81	8-98043-481-0	01	1	1311-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=81	8-98043-481-0	01	1	1106-1310
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) (B)	8-97381-455-0	01	1	1311-
17	BOLT; EXH PIPE (A) M12X35 FLANGE	0-28051-235-0	04	1	1204-1310
17	BOLT; EXH PIPE (A) M12X35 FLANGE	0-28051-235-0	03	1	1106-1310
17	BOLT; EXH PIPE 6HK1-TCN ENG(82L) (A) M12X35 FLANGE	0-28051-235-0	03	1	1311-
17	BOLT; EXH PIPE (B) M10X35 FLANGE	0-28651-035-0	02	1	1106-1310
17	BOLT; EXH PIPE 6HK1-TCN ENG(82L) (B) M10X35 FLANGE	0-28651-035-0	02	1	1311-
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	1106-1310
34	WASHER; EXH PIPE 6HK1-TCN ENG(82L) ID=13 OD=24 DISH	1-09500-030-0	03	1	1311-
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (B) M12 FLANGE	0-91180-212-0	07	1	1311-
36	NUT; EXH PIPE (C) M10 FLANGE	0-91180-210-0	02	1	1106-
36	NUT; EXH PIPE (B) M12 FLANGE	0-91180-212-0	07	1	1106-1310
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (D) M10 FLANGE	8-97096-192-1	03	1	1311-
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	1106-1310
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (A) M12	1-09400-010-0	03	1	1311-
46	BOLT; BRKT,EXH PIPE M10X25 L=40	0-44011-025-0	02	1	1106-1310
46	BOLT; BRKT,EXH PIPE 6HK1-TCN ENG(82L) M10X25 L=40	0-44011-025-0	02	1	1311-
49	BRACKET; EXH PIPE TO TRANS 4HK1-TCS ENG(RJS) (B)	8-98234-530-0	01	1	1311-
49	BRACKET; EXH PIPE TO TRANS (A)	8-98120-493-0	01	1	1106-1310
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCN ENG(82L) (A)	8-98120-493-0	01	1	1311-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE	0-91180-210-0	01	1	1311-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1106-1301
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1106-1301
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1106-1301
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1302-1310
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1311-1511
81	NUT; BRKT 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	02	1	1311-1511
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE	0-91180-210-0	02	1	1311-1511
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1106-1301
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1106-1301
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1106-1301
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-1310
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-1310
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-1310
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-1310
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	04	1	1311-1511
84	GASKET; EXH PIPE	8-98096-305-0	01	1	1106-1310
84	GASKET; EXH PIPE 6HK1-TCN ENG(82L)	8-98096-305-0	01	1	1311-
168	BRACKET; EXH PIPE,FRT	8-98071-144-0	01	1	1106-1209
168	BRACKET; EXH PIPE,FRT	8-98221-369-1	01	1	1210-1310
168	BRACKET; EXH PIPE,FRT 6HK1-TCN ENG(82L)	8-98221-369-1	01	1	1311-
294	WASHER; PL,CLAMP TO BRKT,EXH PIPE ID=10.5	8-98073-091-0	02	1	1106-1310
294	WASHER; PL,CLAMP TO BRKT,EXH PIPE 6HK1-TCN ENG(82L) ID=10.5	8-98073-091-0	02	1	1311-
318	NUT; EXH PIPE,FRT 6HK1-TCN ENG(82L) (A) M10 FLANGE	0-91180-210-0	04	1	1311-
318	NUT; EXH PIPE,FRT (A) M10 FLANGE	0-91180-210-0	04	1	1106-1310
318	NUT; EXH PIPE,FRT 4HK1-TCS ENG(RJS) (B) M8 W/LK WASHER	8-97581-234-0	04	1	1311-
320	NUT; CLAMP,EXH PIPE M10 FLANGE	0-91180-210-0	02	1	1106-1310
320	NUT; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	1311-
349	CLAMP; EXH PIPE	8-98115-162-0	01	1	1106-1310
349	CLAMP; EXH PIPE 6HK1-TCN ENG(82L)	8-98115-162-0	01	1	1311-
350	BOLT; CLAMP,EXH PIPE M10X30 FLANGE	0-28651-030-0	02	1	1106-1310
350	BOLT; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) M10X30 FLANGE	0-28651-030-0	02	1	1311-
571	GASKET 6HK1-TCN ENG(82L) (A) ID=85.8	1-22116-043-0	02	1	1311-
571	GASKET (A) ID=85.8	1-22116-043-0	02	1	1106-1310
571	GASKET 4HK1-TCS ENG(RJS) (C) ID=64	8-97373-108-0	02	1	1311-
571	GASKET (B) ID=81	8-98043-481-0	01	1	1106-1310
571	GASKET 6HK1-TCN ENG(82L) (B) ID=81	8-98043-481-0	01	1	1311-

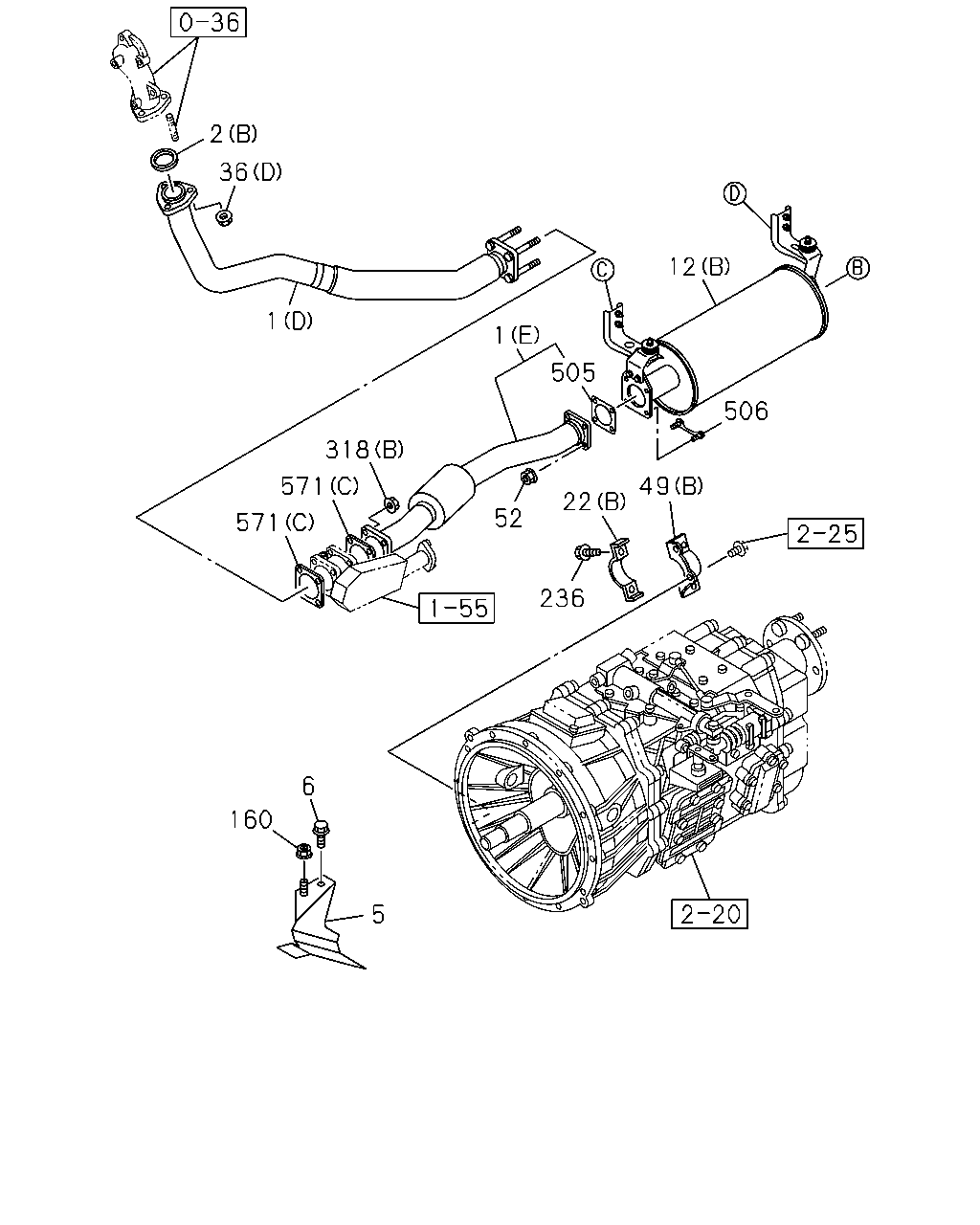

2 36 1 1 12 318 571 571 160 6 5 52 22 236 49 506 505

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH 4HK1-TCS ENG(RJS) (E)	8-98206-298-0	01	1	1311-
1	PIPE; EXH 4HK1-TCS ENG(RJS) (D)	8-98243-546-0	01	1	1311-
1	PIPE; EXH (C)	8-98096-668-1	01	1	1106-1310
1	PIPE; EXH 6HK1-TCN ENG(82L) (C)	8-98096-668-2	01	1	1311-
1	PIPE; EXH (B)	8-98119-515-0	01	1	1106-1209
1	PIPE; EXH (B)	8-98230-001-0	01	1	1210-1301
1	PIPE; EXH (B)	8-98234-516-0	01	1	1302-1310
1	PIPE; EXH 6HK1-TCN ENG(82L) (B)	8-98234-516-1	01	1	1311-
1	PIPE; EXH (A)	8-98182-389-0	01	1	1106-1301
1	PIPE; EXH (A)	8-98234-511-0	01	1	1302-1310
1	PIPE; EXH 6HK1-TCN ENG(82L) (A)	8-98234-511-0	01	1	1311-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L) (A) ID=81	8-98043-481-0	01	1	1311-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=81	8-98043-481-0	01	1	1106-1310
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) (B)	8-97381-455-0	01	1	1311-
5	PROTECTOR; HEAT 4HK1-TCS ENG(RJS)	8-98208-210-1	01	1	1311-
6	BOLT; HEAT PROTECTOR 4HK1-TCS ENG(RJS) M8X25 FLANGE	0-28650-825-0	01	1	1311-
12	SILENCER ASM; EXH 4HK1-TCS ENG(RJS) (B)	8-98219-189-0	01	1	1311-
12	SILENCER ASM; EXH (A)	8-98165-988-0	01	1	1106-1310
12	SILENCER ASM; EXH 6HK1-TCN ENG(82L) (A)	8-98165-988-0	01	1	1311-
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-97646-674-0	01	1	1311-
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1106-1310
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1106-1310
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1311-
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) ID=80-84	1-22133-233-0	02	1	1311-
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (B) M12 FLANGE	0-91180-212-0	07	1	1311-
36	NUT; EXH PIPE (C) M10 FLANGE	0-91180-210-0	02	1	1106-
36	NUT; EXH PIPE (B) M12 FLANGE	0-91180-212-0	07	1	1106-1310
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (D) M10 FLANGE	8-97096-192-1	03	1	1311-
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	1106-1310
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (A) M12	1-09400-010-0	03	1	1311-
49	BRACKET; EXH PIPE TO TRANS 4HK1-TCS ENG(RJS) (B)	8-98234-530-0	01	1	1311-
49	BRACKET; EXH PIPE TO TRANS (A)	8-98120-493-0	01	1	1106-1310
49	BRACKET; EXH PIPE TO TRANS 6HK1-TCN ENG(82L) (A)	8-98120-493-0	01	1	1311-
52	NUT; BRKT 4HK1-TCS ENG(RJS) M12 FLANGE	0-91180-212-0	04	1	1311-
160	NUT; HEAT PROTECTOR 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	1311-
236	BOLT; PIPE CLAMP TO BRKT 4HK1-TCS ENG(RJS) M10X30 FLANGE	0-28051-030-0	02	1	1311-
318	NUT; EXH PIPE,FRT 6HK1-TCN ENG(82L) (A) M10 FLANGE	0-91180-210-0	04	1	1311-
318	NUT; EXH PIPE,FRT (A) M10 FLANGE	0-91180-210-0	04	1	1106-1310
318	NUT; EXH PIPE,FRT 4HK1-TCS ENG(RJS) (B) M8 W/LK WASHER	8-97581-234-0	04	1	1311-
505	GASKET; CONV TO EXH PIPE 4HK1-TCS ENG(RJS)	8-98096-305-0	01	1	1311-
506	BRACKET; STUD M12X35	1-22131-963-0	02	1	1311-
506	BRACKET; STUD M12X35	1-22131-963-0	02	1	1106-1203
571	GASKET 6HK1-TCN ENG(82L) (A) ID=85.8	1-22116-043-0	02	1	1311-
571	GASKET (A) ID=85.8	1-22116-043-0	02	1	1106-1310
571	GASKET 4HK1-TCS ENG(RJS) (C) ID=64	8-97373-108-0	02	1	1311-
571	GASKET (B) ID=81	8-98043-481-0	01	1	1106-1310
571	GASKET 6HK1-TCN ENG(82L) (B) ID=81	8-98043-481-0	01	1	1311-

126 126 107 81 60 81 97 22 22 97 94 75 105 75 56 62 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-97646-674-0	01	1	1311-
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1106-1310
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1106-1310
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1311-
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) ID=80-84	1-22133-233-0	02	1	1311-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (D)	8-98206-303-0	01	1	1311-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (E)	8-98206-304-0	01	1	1311-
56	BRACKET; CLAMP,EXH PIPE (B)	1-22131-528-1	01	1	1106-1310
56	BRACKET; CLAMP,EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-528-1	01	1	1311-
56	BRACKET; CLAMP,EXH PIPE (A)	1-22152-324-0	01	1	1106-1310
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (A)	1-22152-324-0	01	1	1311-
56	BRACKET; CLAMP,EXH PIPE (C)	8-98070-639-0	01	1	1106-1309
56	BRACKET; CLAMP,EXH PIPE (C)	8-98245-536-0	01	1	1310-1310
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (C)	8-98245-536-0	01	1	1311-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (C)	8-98206-302-0	02	1	1311-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (F)	1-22131-435-1	01	1	1311-
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	1106-1301
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	1106-1301
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	02	1	1302-1309
60	BRACKET; FRAME TO BRKT (A)	8-98245-532-0	02	1	1310-1310
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (A)	8-98245-532-0	02	1	1311-
60	BRACKET; FRAME TO BRKT (B)	8-98108-507-0	01	1	1106-1310
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98108-507-0	01	1	1311-
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1106-1301
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1106-1301
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	02	1	1302-
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	1106-1310
62	TUBE; DIST,BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=22	9-22159-024-0	01	1	1311-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C) M10X50	0-10856-050-0	01	1	1311-
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	1106-1310
70	BOLT; BRKT 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50 FLANGE	0-28051-050-0	01	1	1311-
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1106-1301
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1106-1301
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	1302-
75	RUBBER; SUPPORT,BRKT 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) OD=40	1-22159-094-0	02	1	1311-
75	RUBBER; SUPPORT,BRKT (A) OD=40	1-22159-193-0	02	1	1106-1310
75	RUBBER; SUPPORT,BRKT 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) OD=40	1-22159-193-0	02	1	1311-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE	0-91180-210-0	01	1	1311-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1106-1301
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1106-1301
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1106-1301
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1302-1310
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1311-1511
81	NUT; BRKT 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	02	1	1311-1511
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE	0-91180-210-0	02	1	1311-1511
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1106-1301
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1106-1301
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1106-1301
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-1310
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-1310
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-1310
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-1310
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	04	1	1311-1511
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1311-
94	BOLT; CLAMP (A) M10X40 FLANGE	0-28651-040-0	02	1	1106-1310
94	BOLT; CLAMP (A) M10X40 FLANGE	0-28651-040-0	02	1	1106-1310
94	BOLT; CLAMP 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1311-
94	BOLT; CLAMP (A) M10X40 FLANGE	0-28651-040-0	02	1	1311-
97	WASHER; PL,CLAMP 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> ID=10.5	9-09164-510-0	02	1	1311-
105	NUT; CLAMP 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10	0-91110-510-0	02	1	1311-
105	NUT; CLAMP (A) M10 FLANGE	0-91180-210-0	02	1	1106-1310
105	NUT; CLAMP (A) M10 FLANGE	0-91180-210-0	02	1	1106-1310
105	NUT; CLAMP 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1311-
105	NUT; CLAMP (A) M10 FLANGE	0-91180-210-0	02	1	1311-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1204-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1106-1203
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1106-1203
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1106-1203
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1204-1310
107	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X35 FLANGE	0-28651-035-0	02	1	1311-
126	PIPE; EXH,RR 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C)	8-98206-305-0	01	1	1311-
126	PIPE; EXH,RR TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98210-836-0	01	1	1311-
126	PIPE; EXH,RR (A)	8-98069-920-0	01	1	1106-1310
126	PIPE; EXH,RR 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A)	8-98069-920-0	01	1	1311-

70 121 226 56 107 81 62 226 36 81 60 107 118 226 62 226 121 70 105 56 22 94 94 22 105 81 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	CLAMP; EXH PIPE 4HK1-TCS ENG(RJS) (B)	8-97646-674-0	01	1	1311-
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1106-1310
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1106-1310
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	1311-
22	CLAMP; EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) ID=80-84	1-22133-233-0	02	1	1311-
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (B) M12 FLANGE	0-91180-212-0	07	1	1311-
36	NUT; EXH PIPE (C) M10 FLANGE	0-91180-210-0	02	1	1106-
36	NUT; EXH PIPE (B) M12 FLANGE	0-91180-212-0	07	1	1106-1310
36	NUT; EXH PIPE 4HK1-TCS ENG(RJS) (D) M10 FLANGE	8-97096-192-1	03	1	1311-
36	NUT; EXH PIPE (A) M12	1-09400-010-0	03	1	1106-1310
36	NUT; EXH PIPE 6HK1-TCN ENG(82L) (A) M12	1-09400-010-0	03	1	1311-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (D)	8-98206-303-0	01	1	1311-
56	BRACKET; CLAMP,EXH PIPE 4HK1-TCS ENG(RJS) (E)	8-98206-304-0	01	1	1311-
56	BRACKET; CLAMP,EXH PIPE (B)	1-22131-528-1	01	1	1106-1310
56	BRACKET; CLAMP,EXH PIPE EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	1-22131-528-1	01	1	1311-
56	BRACKET; CLAMP,EXH PIPE (A)	1-22152-324-0	01	1	1106-1310
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (A)	1-22152-324-0	01	1	1311-
56	BRACKET; CLAMP,EXH PIPE (C)	8-98070-639-0	01	1	1106-1309
56	BRACKET; CLAMP,EXH PIPE (C)	8-98245-536-0	01	1	1310-1310
56	BRACKET; CLAMP,EXH PIPE 6HK1-TCN ENG(82L) (C)	8-98245-536-0	01	1	1311-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) (C)	8-98206-302-0	02	1	1311-
60	BRACKET; FRAME TO BRKT 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (F)	1-22131-435-1	01	1	1311-
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	1106-1301
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	01	1	1106-1301
60	BRACKET; FRAME TO BRKT (A)	8-98070-628-0	02	1	1302-1309
60	BRACKET; FRAME TO BRKT (A)	8-98245-532-0	02	1	1310-1310
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) (A)	8-98245-532-0	02	1	1311-
60	BRACKET; FRAME TO BRKT (B)	8-98108-507-0	01	1	1106-1310
60	BRACKET; FRAME TO BRKT 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B)	8-98108-507-0	01	1	1311-
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1106-1301
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	01	1	1106-1301
62	TUBE; DIST,BRKT (A) L=39	8-98060-852-0	02	1	1302-
62	TUBE; DIST,BRKT (B) L=22	9-22159-024-0	01	1	1106-1310
62	TUBE; DIST,BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) L=22	9-22159-024-0	01	1	1311-
70	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (C) M10X50	0-10856-050-0	01	1	1311-
70	BOLT; BRKT (B) M10X50 FLANGE	0-28051-050-0	01	1	1106-1310
70	BOLT; BRKT 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X50 FLANGE	0-28051-050-0	01	1	1311-
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1106-1301
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	01	1	1106-1301
70	BOLT; BRKT (A) M10X70 FLANGE	0-28051-070-0	02	1	1302-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE	0-91180-210-0	01	1	1311-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1106-1301
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1106-1301
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1106-1301
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1302-1310
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1311-1511
81	NUT; BRKT 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	02	1	1311-1511
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE	0-91180-210-0	02	1	1311-1511
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1512-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1106-1301
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1106-1301
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1106-1301
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-1310
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-1310
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-1310
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1302-1310
81	NUT; BRKT 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	04	1	1311-1511
94	BOLT; CLAMP 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	1311-
94	BOLT; CLAMP (A) M10X40 FLANGE	0-28651-040-0	02	1	1106-1310
94	BOLT; CLAMP (A) M10X40 FLANGE	0-28651-040-0	02	1	1106-1310
94	BOLT; CLAMP 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10X40 FLANGE	0-28651-040-0	02	1	1311-
94	BOLT; CLAMP (A) M10X40 FLANGE	0-28651-040-0	02	1	1311-
105	NUT; CLAMP 4HK1-TCS ENG(RJS) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (B) M10	0-91110-510-0	02	1	1311-
105	NUT; CLAMP (A) M10 FLANGE	0-91180-210-0	02	1	1106-1310
105	NUT; CLAMP (A) M10 FLANGE	0-91180-210-0	02	1	1106-1310
105	NUT; CLAMP 6HK1-TCN ENG(82L) EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> (A) M10 FLANGE	0-91180-210-0	02	1	1311-
105	NUT; CLAMP (A) M10 FLANGE	0-91180-210-0	02	1	1311-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	04	1	1204-
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1106-1203
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1106-1203
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1106-1203
107	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	02	1	1204-1310
107	BOLT; BRKT EXC. TAILPIPE SINGLE SHORT TYPE<8JJ> M10X35 FLANGE	0-28651-035-0	02	1	1311-
118	NUT; SILENCER MTG BRKT M10 FLANGE	0-91180-210-0	02	1	1106-
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1106-1301
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	1106-1301
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	02	1	1302-
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1106-1301
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	1106-1301
226	RUBBER; CUSHION (A)	8-94457-277-1	02	1	1302-
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1106-1301
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	1106-1301
226	RUBBER; CUSHION (B)	8-94457-278-1	02	1	1302-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
