◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10725 - EXR LHD FUEL TANK 200L+200L/400L ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-50A - OIL COOLER AND OIL FILTER ▶
0-50A — OIL COOLER AND OIL FILTER (#5513) — 219 parça

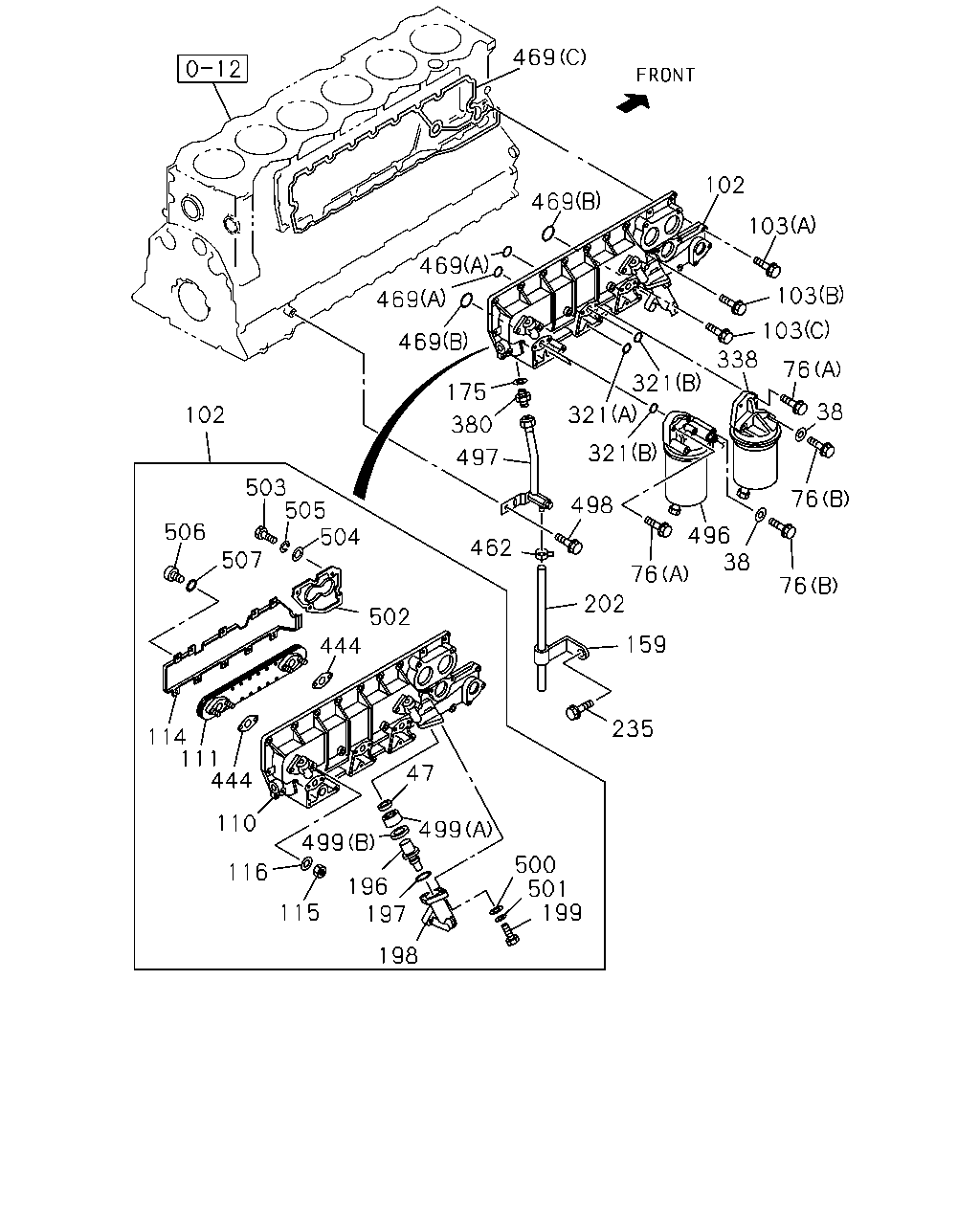

çizim 9227
469 102 469 103 469 103 469 103 469 338 76 321 175 38 102 321 380 321 497 503 505 504 76 498 506 496 38 462 507 76 76 202 502 159 444 235 114 111 444 47 110 499 499 500 199 116 196 197 115 198 501
BalonParca AdiParca NoAdetTipApplied Date A B C D
38 WASHER; LK,OIL COOLER
ID=10.2 		9-09150-510-0 04 1 9603-9810 ●
38 WASHER; LK,OIL COOLER
ID=10.2 		9-09150-510-0 04 1 9811-9904 ● ●
38 WASHER; LK,OIL COOLER
ID=10.2 		9-09150-510-0 04 1 9905-9905 ● ● ●
38 WASHER; LK,OIL COOLER
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) ID=10.2 		9-09150-510-0 04 1 9905-9907 ● ● ●
47 RING; SEAL,THERMO VLV 1-21779-001-0 01 1 9603-9810 ●
47 RING; SEAL,THERMO VLV 1-21779-001-0 01 1 9811-9904 ● ●
47 RING; SEAL,THERMO VLV 1-21779-001-0 01 1 9905- ● ● ●
76 BOLT; OIL FILTER
(A) M10X50 FLANGE 		0-28181-050-0 04 1 9603-9810 ●
76 BOLT; OIL FILTER
(A) M10X50 FLANGE 		0-28181-050-0 04 1 9811-9904 ● ●
76 BOLT; OIL FILTER
(A) M10X50 FLANGE 		0-28181-050-0 04 1 9905- ● ● ●
76 BOLT; OIL FILTER
(B) M10X95 FLANGE 		8-94397-027-1 04 1 9603-9810 ●
76 BOLT; OIL FILTER
(B) M10X95 FLANGE 		8-94397-027-1 04 1 9811-9904 ● ●
76 BOLT; OIL FILTER
(B) M10X95 FLANGE 		8-94397-027-1 04 1 9905- ● ● ●
102 COOLER ASM; OIL 1-21700-307-0 01 1 9603-9702 ●
102 COOLER ASM; OIL 1-21700-319-0 01 1 9703-9810 ●
102 COOLER ASM; OIL 1-21700-319-0 01 1 9811-9904 ● ●
102 COOLER ASM; OIL 1-21700-337-2 01 1 9905- ● ● ●
103 BOLT; OIL COOLER
(A) M10X30 FLANGE 		0-28181-030-0 17 1 9603-9810 ●
103 BOLT; OIL COOLER
(A) M10X30 FLANGE 		0-28181-030-0 17 1 9811-9904 ● ●
103 BOLT; OIL COOLER
(A) M10X30 FLANGE 		0-28181-030-0 17 1 9905- ● ● ●
103 BOLT; OIL COOLER
(B) M10X65 FLANGE 		8-94344-540-1 08 1 9603-9810 ●
103 BOLT; OIL COOLER
(B) M10X65 FLANGE 		8-94344-540-1 08 1 9811-9904 ● ●
103 BOLT; OIL COOLER
(C) M10X107 FLANGE 		8-94399-488-1 01 1 9603-9604 ●
103 BOLT; OIL COOLER
(C) M10X110 FLANGE 		0-28186-011-0 01 1 9605-9810 ●
103 BOLT; OIL COOLER
(C) M10X110 FLANGE 		0-28186-011-0 01 1 9811-9904 ● ●
103 BOLT; OIL COOLER
(B) M10X65 FLANGE 		8-94344-540-1 08 1 9905- ● ● ●
103 BOLT; OIL COOLER
(C) M10X110 FLANGE 		0-28186-011-0 01 1 9905- ● ● ●
110 BODY; CASE,OIL COOLER 1-21721-089-0 01 1 9603-9702 ●
110 BODY; CASE,OIL COOLER 1-21721-092-0 01 1 9703-9810 ●
110 BODY; CASE,OIL COOLER 1-21721-092-0 01 1 9811-9904 ● ●
110 BODY; CASE,OIL COOLER 1-21721-092-2 01 1 9905- ● ● ●
111 CORE; OIL COOLER 1-21723-047-0 01 1 9603-9810 ●
111 CORE; OIL COOLER 1-21723-047-0 01 1 9811-9904 ● ●
111 CORE; OIL COOLER 1-21723-053-1 01 1 9905- ● ● ●
114 PLATE; BAFFLE,OIL COOLER 1-21729-086-1 01 1 9603-9810 ●
114 PLATE; BAFFLE,OIL COOLER 1-21729-086-1 01 1 9811-9904 ● ●
114 PLATE; BAFFLE,OIL COOLER 1-21729-086-1 01 1 9905- ● ● ●
115 NUT; ELEMENT
M10 		9-09120-410-0 04 1 9603-9810 ●
115 NUT; ELEMENT
M10 		9-09120-410-0 04 1 9811-9904 ● ●
115 NUT; ELEMENT
M10 		9-09120-410-0 04 1 9905-9907 ● ● ●
115 NUT; ELEMENT
M10 FLANGE 		0-91150-110-0 04 1 9908- ● ● ●
116 WASHER; PL,ELEMENT
ID=10.5 OD=22 		9-09160-610-0 04 1 9603-9810 ●
116 WASHER; PL,ELEMENT
ID=10.5 OD=22 		9-09160-610-0 04 1 9811-9904 ● ●
116 WASHER; PL,ELEMENT
ID=10.5 OD=22 		9-09160-610-0 04 1 9905-9905 ● ● ●
116 WASHER; PL,ELEMENT
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) ID=10.5 OD=22 		9-09160-610-0 04 1 9905-9907 ● ● ●
159 CLIP; CABLE HARNESS,OIL COOLER
L=20 H=31 		1-09700-770-0 01 1 9603-9810 ●
159 CLIP; CABLE HARNESS,OIL COOLER
L=20 H=31 		1-09700-770-0 01 1 9811-9904 ● ●
159 CLIP; CABLE HARNESS,OIL COOLER
L=20 H=31 		1-09700-770-0 01 1 9905- ● ● ●
175 GASKET; DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4 		1-09630-087-0 01 1 9603-9810 ●
175 GASKET; DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4 		1-09630-087-0 01 1 9811-9904 ● ●
175 GASKET; DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4 		1-09630-087-0 01 1 9905- ● ● ●
196 THERMOSTAT; OIL COOLER 1-21770-004-0 01 1 9603-9810 ●
196 THERMOSTAT; OIL COOLER 1-21770-004-0 01 1 9811-9904 ● ●
196 THERMOSTAT; OIL COOLER 1-21770-004-0 01 1 9905- ● ● ●
197 GASKET; THERMOSTAT 1-09623-419-0 01 1 9603-9810 ●
197 GASKET; THERMOSTAT 1-09623-419-0 01 1 9811-9904 ● ●
197 GASKET; THERMOSTAT 1-09623-419-0 01 1 9905- ● ● ●
198 JOINT; THERMOSTAT 1-21726-054-0 01 1 9603-9810 ●
198 JOINT; THERMOSTAT 1-21726-054-0 01 1 9811-9904 ● ●
198 JOINT; THERMOSTAT 1-21726-054-0 01 1 9905-9907 ● ● ●
198 JOINT; THERMOSTAT 1-21726-053-2 01 1 9908- ● ● ●
199 BOLT; JOINT,THERMOSTAT
M10X35 		0-20801-035-0 02 1 9603-9810 ●
199 BOLT; JOINT,THERMOSTAT
M10X35 		0-20801-035-0 02 1 9811-9904 ● ●
199 BOLT; JOINT,THERMOSTAT
M10X35 		0-20801-035-0 02 1 9905- ● ● ●
202 HOSE; WATER,WATER DRAIN
L=310 SERVICED BY L=3000 		0-03259-300-0 01 1 9603-9810 ●
202 HOSE; WATER,WATER DRAIN
L=310 SERVICED BY L=3000 		0-03259-300-0 01 1 9811-9904 ● ●
202 HOSE; WATER,WATER DRAIN
L=310 SERVICED BY L=3000 		0-03259-300-0 01 1 9905- ● ● ●
235 BOLT; CLIP TO OIL COOLER
M10X20 FLANGE 		0-28181-020-0 01 1 9603-9810 ●
235 BOLT; CLIP TO OIL COOLER
M10X20 FLANGE 		0-28181-020-0 01 1 9811-9904 ● ●
235 BOLT; CLIP TO OIL COOLER
M10X20 FLANGE 		0-28181-020-0 01 1 9905- ● ● ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8 		1-09623-478-0 01 1 9603-9810 ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8 		1-09623-478-0 01 1 9811-9904 ● ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8 		1-09623-478-0 01 1 9905- ● ● ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2 		1-09623-479-0 03 1 9603-9810 ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2 		1-09623-479-0 03 1 9811-9904 ● ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2 		1-09623-479-0 03 1 9905- ● ● ●
338 FILTER ASM; OIL PARTIAL 1-13200-863-4 01 1 9603-9810 ●
338 FILTER ASM; OIL PARTIAL 1-13200-863-4 01 1 9811-9904 ● ●
338 FILTER ASM; OIL PARTIAL 1-13200-863-4 01 1 9905- ● ● ●
380 CONNECTOR; WATER 1-09660-011-1 01 1 9603-9810 ●
380 CONNECTOR; WATER 1-09660-011-1 01 1 9811-9904 ● ●
380 CONNECTOR; WATER 1-09660-011-1 01 1 9905- ● ● ●
444 GASKET; ELEMENT TO BODY 1-21729-093-1 02 1 9603-9810 ●
444 GASKET; ELEMENT TO BODY 1-21729-093-1 02 1 9811-9904 ● ●
444 GASKET; ELEMENT TO BODY 1-21729-093-1 02 1 9905- ● ● ●
462 CLIP; HOSE,DRAIN
ID=14 		5-09707-004-1 01 1 9603-9810 ●
462 CLIP; HOSE,DRAIN
ID=14 		5-09707-004-1 01 1 9811-9904 ● ●
462 CLIP; HOSE,DRAIN
ID=14 		5-09707-004-1 01 1 9905- ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8 		1-09623-478-0 02 1 9603-9810 ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8 		1-09623-478-0 02 1 9811-9904 ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18.8 		1-09623-478-0 02 1 9905- ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2 		1-09623-479-0 02 1 9603-9810 ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2 		1-09623-479-0 02 1 9811-9904 ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (C) 		1-11219-180-0 01 1 9703-9709 ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (C) 		1-11219-186-0 01 1 9710-9810 ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (C) 		1-11219-186-0 01 1 9811-9904 ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=31.2 		1-09623-479-0 02 1 9905- ● ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (C) 		1-11219-186-0 01 1 9905- ● ● ●
496 FILTER ASM; OIL 1-13200-862-7 01 1 9603-9810 ●
496 FILTER ASM; OIL 1-13200-862-7 01 1 9811-9904 ● ●
496 FILTER ASM; OIL 1-13200-862-7 01 1 9905- ● ● ●
497 PIPE; WATER DRAIN
W/COCK 		1-13721-496-3 01 1 9603-9810 ●
497 PIPE; WATER DRAIN
W/COCK 		1-13721-496-3 01 1 9811-9904 ● ●
497 PIPE; WATER DRAIN
W/COCK 		1-13721-496-3 01 1 9905- ● ● ●
498 BOLT; WATER PIPE
M10X18 FLANGE 		0-28181-018-0 01 1 9603-9604 ●
498 BOLT; WATER PIPE
M10X20 FLANGE 		0-28181-020-0 01 1 9605-9810 ●
498 BOLT; WATER PIPE
M10X20 FLANGE 		0-28181-020-0 01 1 9811-9904 ● ●
498 BOLT; WATER PIPE
M10X20 FLANGE 		0-28181-020-0 01 1 9905- ● ● ●
499 SUPPORT; THERMOSTAT
(A) 		1-21729-101-0 01 1 9603-9810 ●
499 SUPPORT; THERMOSTAT
(A) 		1-21729-101-0 01 1 9811-9904 ● ●
499 SUPPORT; THERMOSTAT
(A) 		1-21729-101-0 01 1 9905-9907 ● ● ●
499 SUPPORT; THERMOSTAT
(A) 		1-21729-085-4 01 1 9908- ● ● ●
499 SUPPORT; THERMOSTAT
(B) 		1-21729-102-0 01 1 9603-9810 ●
499 SUPPORT; THERMOSTAT
(B) 		1-21729-102-0 01 1 9811-9904 ● ●
499 SUPPORT; THERMOSTAT
(B) 		1-21729-102-0 01 1 9905-9907 ● ● ●
499 SUPPORT; THERMOSTAT
(B) 		1-21729-094-1 01 1 9908- ● ● ●
500 WASHER; PL,JOINT
ID=10.5 OD=22 		9-09160-610-0 02 1 9603-9810 ●
500 WASHER; PL,JOINT
ID=10.5 OD=22 		9-09160-610-0 02 1 9811-9904 ● ●
500 WASHER; PL,JOINT
ID=10.5 OD=22 		9-09160-610-0 02 1 9905- ● ● ●
501 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 02 1 9603-9810 ●
501 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 02 1 9811-9904 ● ●
501 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 02 1 9905- ● ● ●
502 COVER; THERMOSTAT 1-21722-032-0 01 1 9603-9702 ●
502 COVER; THERMOSTAT 1-21722-041-0 01 1 9703-9810 ●
502 COVER; THERMOSTAT 1-21722-041-0 01 1 9811-9904 ● ●
502 COVER; THERMOSTAT 1-21722-041-0 01 1 9905- ● ● ●
503 BOLT; COVER 1-21729-089-0 04 1 9603-9810 ●
503 BOLT; COVER 1-21729-089-0 04 1 9811-9904 ● ●
503 BOLT; COVER 1-21729-089-0 04 1 9905- ● ● ●
504 WASHER; PL,COVER 1-21729-090-0 04 1 9603-9810 ●
504 WASHER; PL,COVER 1-21729-090-0 04 1 9811-9904 ● ●
504 WASHER; PL,COVER 1-21729-090-0 04 1 9905- ● ● ●
505 WASHER; LK,COVER 1-21729-091-0 04 1 9603-9810 ●
505 WASHER; LK,COVER 1-21729-091-0 04 1 9811-9904 ● ●
505 WASHER; LK,COVER 1-21729-091-0 04 1 9905-9905 ● ● ●
505 WASHER; LK,COVER
HEATER & DEFROSTER(C41),AIR CON MANUAL CONTROL(C60) 		1-21729-091-0 04 1 9905-9907 ● ● ●
506 SCREW; BAFFLE
M6X10 		9-03486-608-0 10 1 9603-9810 ●
506 SCREW; BAFFLE
M6X10 		9-03486-608-0 10 1 9811-9904 ● ●
506 SCREW; BAFFLE
M6X10 		9-03486-608-0 10 1 9905- ● ● ●
507 WASHER; LK,BAFFLE 1-21729-092-0 10 1 9603-9810 ●
507 WASHER; LK,BAFFLE 1-21729-092-0 10 1 9811-9904 ● ●
507 WASHER; LK,BAFFLE 1-21729-092-0 10 1 9905- ● ● ●

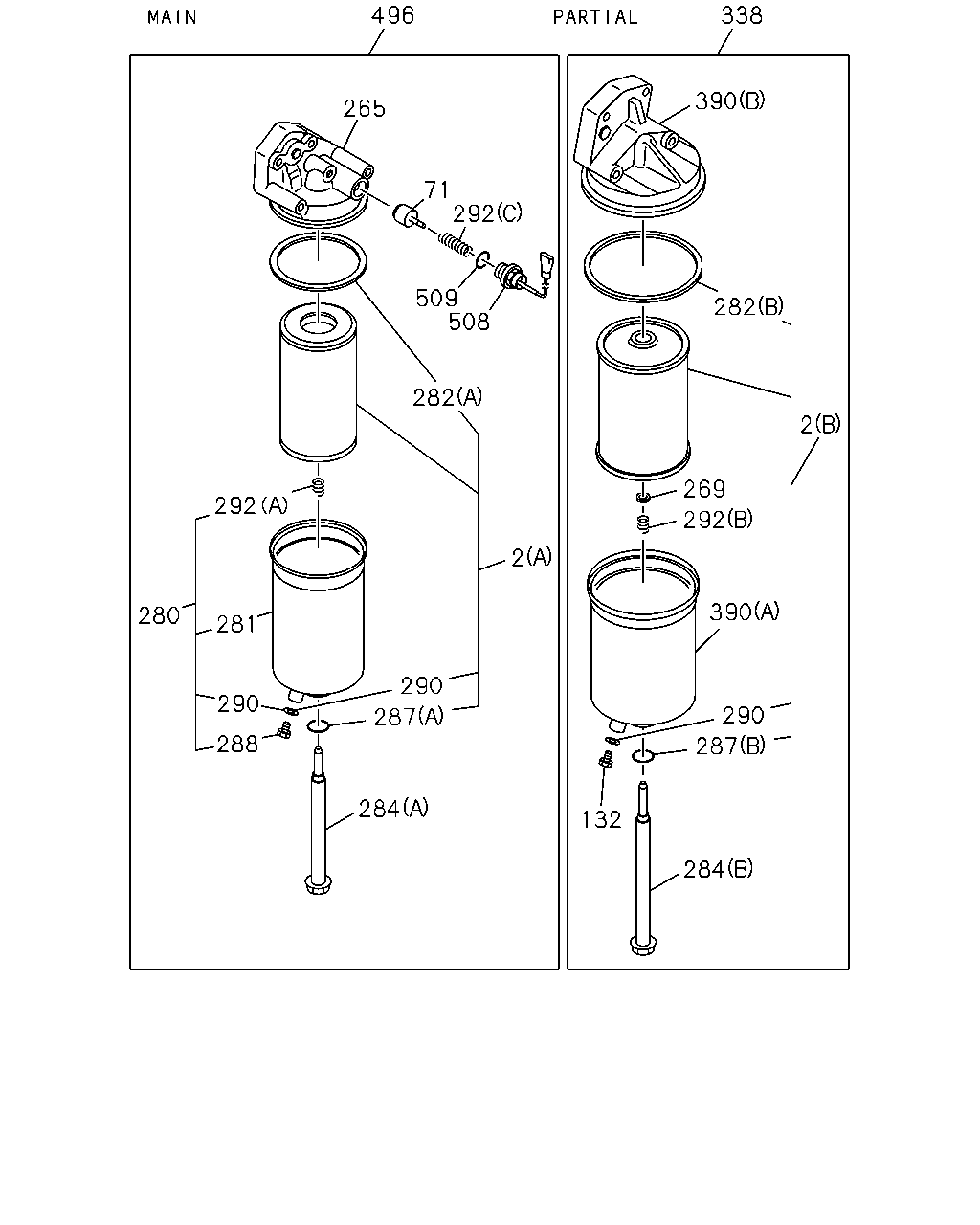

çizim 40923
496 338 390 265 71 292 509 508 282 282 2 269 292 292 2 390 280 281 290 290 290 287 288 287 284 132 284
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 ELEMENT; OIL FILTER
(A) TSUCHIYA 		1-13240-165-0 01 1 9603-9810 ●
2 ELEMENT; OIL FILTER
(A) TSUCHIYA 		1-13240-165-0 01 1 9811-9904 ● ●
2 ELEMENT; OIL FILTER
(A) TSUCHIYA 		1-13240-165-0 01 1 9905- ● ● ●
2 ELEMENT; OIL FILTER
(B) TSUCHIYA 		1-13240-166-0 01 1 9603-9707 ●
2 ELEMENT; OIL FILTER
(B) TSUCHIYA 		1-13240-200-0 01 1 9708-9810 ●
2 ELEMENT; OIL FILTER
(B) TSUCHIYA 		1-13240-200-0 01 1 9811-9904 ● ●
2 ELEMENT; OIL FILTER
(B) TSUCHIYA 		1-13240-200-0 01 1 9905- ● ● ●
71 VALVE ASM; RELIEF,OIL FILTER 1-13262-005-0 01 1 9603-9810 ●
71 VALVE ASM; RELIEF,OIL FILTER 1-13262-005-0 01 1 9811-9904 ● ●
71 VALVE ASM; RELIEF,OIL FILTER 1-13262-005-0 01 1 9905- ● ● ●
132 PLUG; PARTIAL OIL FILTER 1-13219-272-0 01 1 9603-9707 ●
132 PLUG; PARTIAL OIL FILTER 1-13219-272-0 02 1 9708-9810 ●
132 PLUG; PARTIAL OIL FILTER 1-13219-272-0 02 1 9811-9904 ● ●
132 PLUG; PARTIAL OIL FILTER 1-13219-272-0 01 1 9905- ● ● ●
265 BODY; OIL FILTER 1-13211-216-1 01 1 9603-9810 ●
265 BODY; OIL FILTER 1-13211-216-1 01 1 9811-9904 ● ●
265 BODY; OIL FILTER 1-13211-216-1 01 1 9905- ● ● ●
269 WASHER; ELEMENT,OIL FILTER 1-13234-005-0 01 1 9603-9810 ●
269 WASHER; ELEMENT,OIL FILTER 1-13234-005-0 01 1 9811-9904 ● ●
269 WASHER; ELEMENT,OIL FILTER 1-13234-005-0 01 1 9905- ● ● ●
280 CASE ASM; OIL FILTER 1-13210-038-2 01 1 9603-9810 ●
280 CASE ASM; OIL FILTER 1-13210-038-2 01 1 9811-9904 ● ●
280 CASE ASM; OIL FILTER 1-13210-038-2 01 1 9905- ● ● ●
281 COVER; OIL FILTER 1-13211-206-1 01 1 9603-9810 ●
281 COVER; OIL FILTER 1-13211-206-1 01 1 9811-9904 ● ●
281 COVER; OIL FILTER 1-13211-206-1 01 1 9905- ● ● ●
282 GASKET; BODY TO CASE
(A) 		1-09623-548-0 01 1 9603-9810 ●
282 GASKET; BODY TO CASE
(A) 		1-09623-548-0 01 1 9811-9904 ● ●
282 GASKET; BODY TO CASE
(A) 		1-09623-548-0 01 1 9905- ● ● ●
282 GASKET; BODY TO CASE
(B) 		1-09623-552-0 01 1 9603-9810 ●
282 GASKET; BODY TO CASE
(B) 		1-09623-552-0 01 1 9811-9904 ● ●
282 GASKET; BODY TO CASE
(B) 		1-09623-552-0 01 1 9905- ● ● ●
284 BOLT; CENTER,OIL FILTER
(A) 		1-13219-281-1 01 1 9603-9810 ●
284 BOLT; CENTER,OIL FILTER
(A) 		1-13219-281-1 01 1 9811-9904 ● ●
284 BOLT; CENTER,OIL FILTER
(A) 		1-13219-281-1 01 1 9905- ● ● ●
284 BOLT; CENTER,OIL FILTER
(B) 		1-13231-075-0 01 1 9603-9810 ●
284 BOLT; CENTER,OIL FILTER
(B) 		1-13231-075-0 01 1 9811-9904 ● ●
284 BOLT; CENTER,OIL FILTER
(B) 		1-13231-075-0 01 1 9905- ● ● ●
287 GASKET; CENTER BOLT
(A) 		1-09623-549-0 01 1 9603-9810 ●
287 GASKET; CENTER BOLT
(A) 		1-09623-549-0 01 1 9811-9904 ● ●
287 GASKET; CENTER BOLT
(A) 		1-09623-549-0 01 1 9905- ● ● ●
287 GASKET; CENTER BOLT
(B) 		1-09623-551-0 01 1 9603-9810 ●
287 GASKET; CENTER BOLT
(B) 		1-09623-551-0 01 1 9811-9904 ● ●
287 GASKET; CENTER BOLT
(B) 		1-09623-551-0 01 1 9905- ● ● ●
288 PLUG; OIL DRAIN 1-13219-272-0 01 1 9603-9810 ●
288 PLUG; OIL DRAIN 1-13219-272-0 01 1 9811-9904 ● ●
288 PLUG; OIL DRAIN 1-13219-272-0 01 1 9905- ● ● ●
290 GASKET; PLUG,OIL DRAIN 1-09623-550-0 02 1 9603-9810 ●
290 GASKET; PLUG,OIL DRAIN 1-09623-550-0 02 1 9811-9904 ● ●
290 GASKET; PLUG,OIL DRAIN 1-09623-550-0 02 1 9905- ● ● ●
292 SPRING; ELEMENT
(A) 		1-09580-387-0 01 1 9603-9810 ●
292 SPRING; ELEMENT
(A) 		1-09580-387-0 01 1 9811-9904 ● ●
292 SPRING; ELEMENT
(A) 		1-09580-387-0 01 1 9905- ● ● ●
292 SPRING; ELEMENT
(B) 		1-09580-484-0 01 1 9603-9810 ●
292 SPRING; ELEMENT
(B) 		1-09580-484-0 01 1 9811-9904 ● ●
292 SPRING; ELEMENT
(C) 		1-13263-007-0 01 1 9603-9810 ●
292 SPRING; ELEMENT
(C) 		1-13263-007-0 01 1 9811-9904 ● ●
292 SPRING; ELEMENT
(B) 		1-09580-484-0 01 1 9905- ● ● ●
292 SPRING; ELEMENT
(C) 		1-13263-007-0 01 1 9905- ● ● ●
338 FILTER ASM; OIL PARTIAL 1-13200-863-4 01 1 9603-9810 ●
338 FILTER ASM; OIL PARTIAL 1-13200-863-4 01 1 9811-9904 ● ●
338 FILTER ASM; OIL PARTIAL 1-13200-863-4 01 1 9905- ● ● ●
390 BODY; OIL FILTER,PARTIAL
(A) 		1-13211-217-1 01 1 9603-9810 ●
390 BODY; OIL FILTER,PARTIAL
(A) 		1-13211-217-1 01 1 9811-9904 ● ●
390 BODY; OIL FILTER,PARTIAL
(A) 		1-13211-217-1 01 1 9905- ● ● ●
390 BODY; OIL FILTER,PARTIAL
(B) 		1-13211-218-1 01 1 9603-9810 ●
390 BODY; OIL FILTER,PARTIAL
(B) 		1-13211-218-1 01 1 9811-9904 ● ●
390 BODY; OIL FILTER,PARTIAL
(B) 		1-13211-218-1 01 1 9905- ● ● ●
496 FILTER ASM; OIL 1-13200-862-7 01 1 9603-9810 ●
496 FILTER ASM; OIL 1-13200-862-7 01 1 9811-9904 ● ●
496 FILTER ASM; OIL 1-13200-862-7 01 1 9905- ● ● ●
508 CHAMBER ASM; SW,FILTER 1-13260-107-1 01 1 9603-9810 ●
508 CHAMBER ASM; SW,FILTER 1-13260-107-1 01 1 9811-9904 ● ●
508 CHAMBER ASM; SW,FILTER 1-13260-107-1 01 1 9905- ● ● ●
509 GASKET; SW 1-09630-114-0 01 1 9603-9810 ●
509 GASKET; SW 1-09630-114-0 01 1 9811-9904 ● ●
509 GASKET; SW 1-09630-114-0 01 1 9905- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
