1-31 — AIR DUCT (#55127) — 201 parça

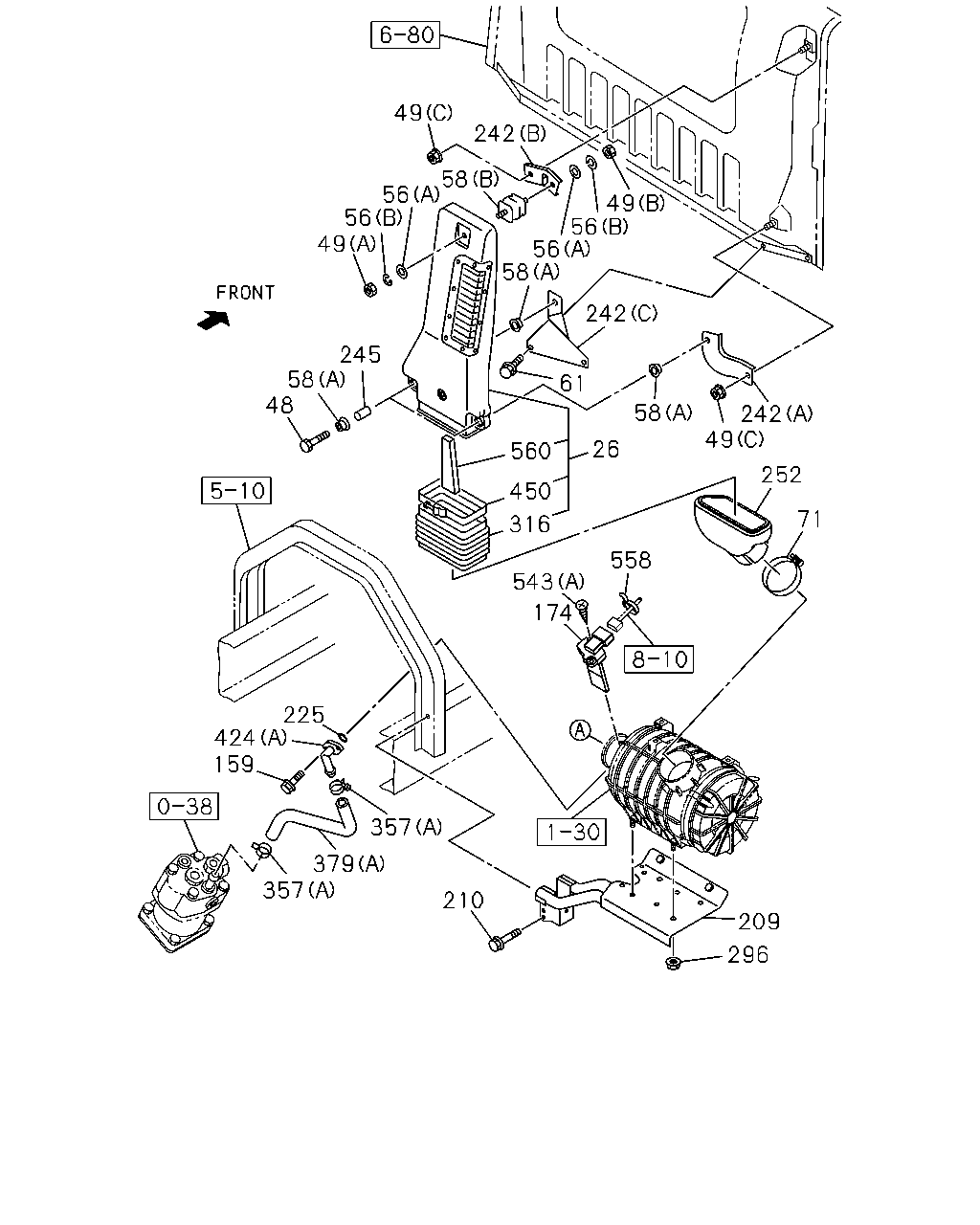

çizim 144906
209 296 210 357 379 357 225 424 159 48 58 245 49 56 56 58 49 242 58 56 56 49 242 61 560 450 26 316 543 174 558 242 49 252 71 58
BalonParca AdiParca NoAdetTipApplied Date A B
26 DUCT; AIR INT 8-98010-361-2 01 1 1106-1310 ●
26 DUCT; AIR INT 8-98010-361-2 01 1 1311- ● ●
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 1106-1310 ●
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 1311- ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1106-1310 ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1311- ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1106-1310 ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1311- ● ●
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 1106-1310 ●
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 1311- ● ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1106-1310 ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1311- ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1106-1310 ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1311- ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1106-1310 ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1311- ● ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1106-1310 ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1311- ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1106-1310 ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1311- ● ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1106-1310 ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1311- ● ●
159 BOLT; AIR PIPE
M6X16 FLANGE 		0-28050-616-0 02 1 1106-1310 ●
159 BOLT; AIR PIPE
M6X16 FLANGE 		0-28050-616-0 02 1 1311- ● ●
174 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 1106-1310 ●
174 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 1311- ● ●
209 BRACKET; ACL 8-98021-995-1 01 1 1106-1310 ●
209 BRACKET; ACL 8-98021-995-1 01 1 1311- ● ●
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1106-1310 ●
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1311- ● ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1106-1310 ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1311- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1106-1310 ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1311- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1106-1310 ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1311- ● ●
242 BRACKET; AIR DUCT
(A) 		8-98019-304-1 01 1 1106-1310 ●
242 BRACKET; AIR DUCT
(A) 		8-98019-304-1 01 1 1311- ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1106-1310 ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1311- ● ●
252 DUCT; AIR INT 8-98012-861-1 01 1 1106-1310 ●
252 DUCT; AIR INT 8-98012-861-1 01 1 1311- ● ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1106-1310 ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1311- ● ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1106-1310 ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1311- ● ●
357 CLIP; RUBBER HOSE
(B) ID=24 		8-98025-921-0 02 1 1311- ●
357 CLIP; RUBBER HOSE
(C) ID=65-85 		8-98133-350-0 01 1 1311- ●
357 CLIP; RUBBER HOSE
(C) ID=65-85 		8-98133-350-0 02 1 1311- ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=29.5 		8-97354-979-0 01 1 1311- ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=26 		1-09707-091-0 02 1 1311- ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 02 1 1106-1310 ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=26 		1-09707-091-0 01 1 1311- ●
379 HOSE; RUBBER
(B) 		8-98232-625-0 01 1 1311- ●
379 HOSE; RUBBER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		8-97619-194-0 01 1 1311- ●
379 HOSE; RUBBER
(A) 		8-98077-469-0 01 1 1106-1310 ●
379 HOSE; RUBBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		8-98077-469-0 01 1 1311- ●
424 PIPE; AIR,INL
(B) 		8-98208-938-1 01 1 1311- ●
424 PIPE; AIR,INL
(A) 		8-98081-834-0 01 1 1106- ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1106-1310 ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1311- ● ●
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1311- ●
543 SCREW; SENSOR
(A) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1106-1310 ●
543 SCREW; SENSOR
(A) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1311- ● ●
558 CLIP; AIR FLOW SENSOR
L=600 		1-09707-107-1 01 1 1106-1310 ●
558 CLIP; AIR FLOW SENSOR
L=600 		1-09707-107-1 01 1 1311- ● ●
558 CLIP; AIR FLOW SENSOR
L=250 		5-09707-030-1 02 1 1106-1310 ●
558 CLIP; AIR FLOW SENSOR
L=250 		5-09707-030-1 02 1 1311- ● ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1311- ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 02 1 1106-1310 ●

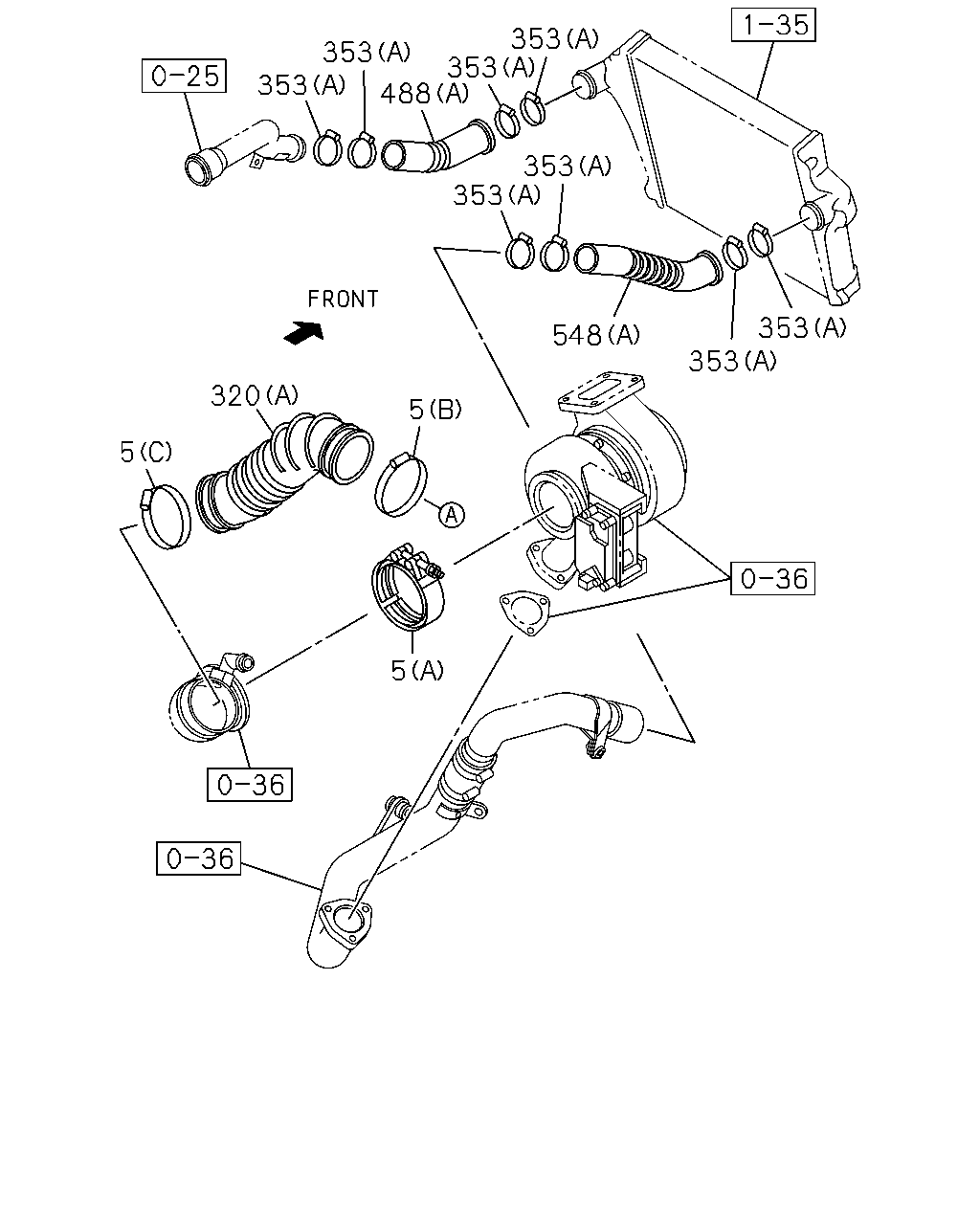

çizim 144907
353 353 353 353 353 353 353 353 548 5 5 5 488 320
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(D) ID=75-95 		8-98133-357-0 01 1 1311- ●
5 CLIP; AIR DUCT
(A) ID=114 		8-15178-030-0 01 1 1106- ●
5 CLIP; AIR DUCT
(C) ID=100-120 		8-98133-366-0 01 1 1106- ●
5 CLIP; AIR DUCT
(B) ID=110-130 		8-98133-359-0 01 1 1106- ●
320 HOSE; CONN,ACL
(B) 		8-98251-226-0 01 1 1311- ●
320 HOSE; CONN,ACL
(A) 		8-98012-859-2 01 1 1106- ●
353 CLIP; RUBBER HOSE
(C) ID=65-85 		8-98133-350-0 02 1 1311- ●
353 CLIP; RUBBER HOSE
(A) ID=55-75 		8-98133-349-0 08 1 1106- ●
353 CLIP; RUBBER HOSE
(B) ID=45-65 		8-98133-348-0 02 1 1311- ●
488 HOSE; RUBBER,PIPE
(A) 		8-98012-936-1 01 1 1106-1310 ●
488 HOSE; RUBBER,PIPE
(B) 		8-98204-041-0 01 1 1311- ●
488 HOSE; RUBBER,PIPE
(A) 		8-98012-936-1 01 1 1311- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98204-039-0 01 1 1311-1511 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98317-803-0 01 1 1512- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-98204-040-0 01 1 1311-1511 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-98317-804-0 01 1 1512- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98065-044-0 01 1 1106- ●

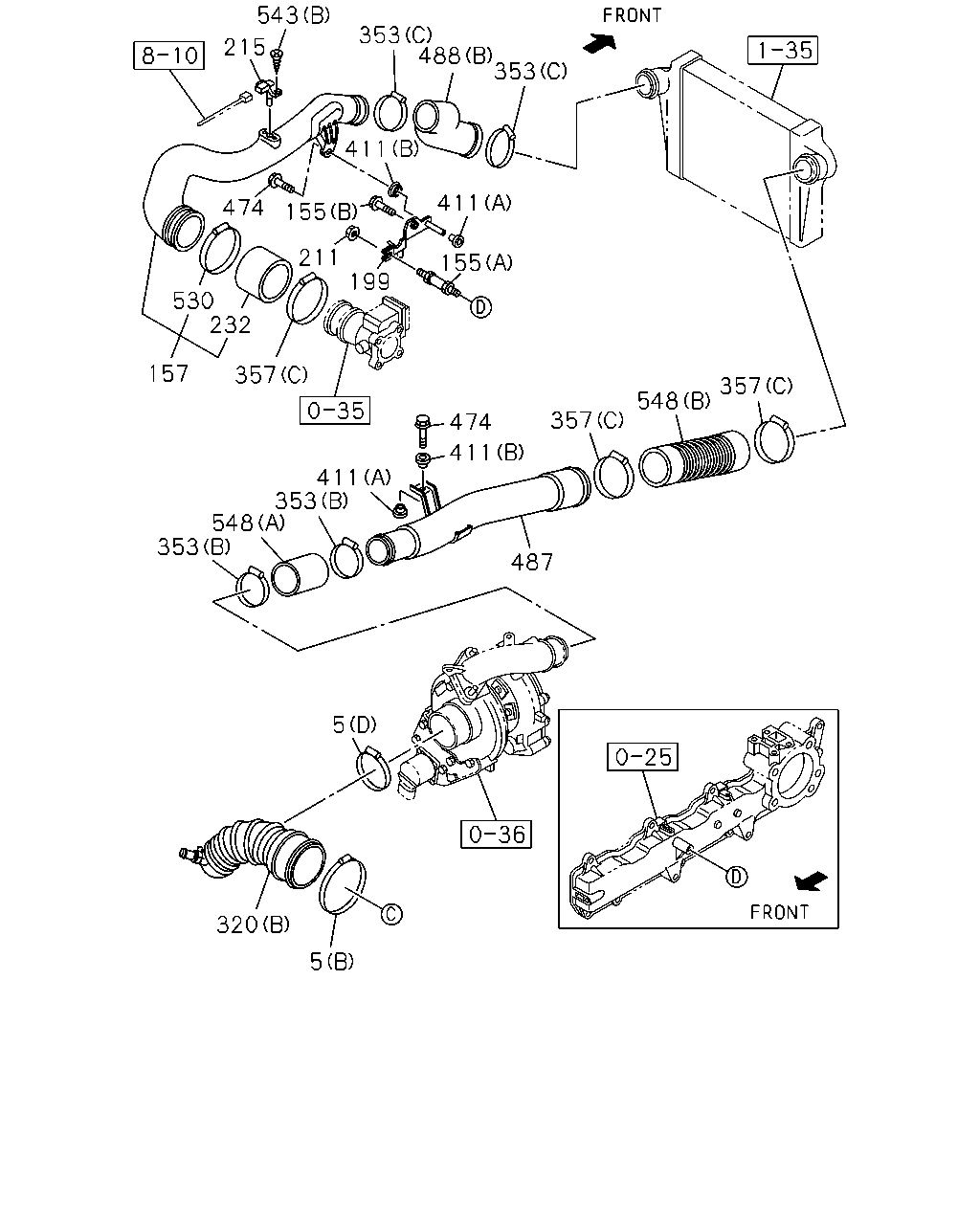

çizim 385346
215 543 353 488 353 411 411 155 474 211 155 199 357 157 232 530 474 411 411 353 548 353 357 548 357 487 5 320 5
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(D) ID=75-95 		8-98133-357-0 01 1 1311- ●
5 CLIP; AIR DUCT
(A) ID=114 		8-15178-030-0 01 1 1106- ●
5 CLIP; AIR DUCT
(C) ID=100-120 		8-98133-366-0 01 1 1106- ●
5 CLIP; AIR DUCT
(B) ID=110-130 		8-98133-359-0 01 1 1106- ●
155 BOLT; BRKT
(B) M10X110 FLANGE 		0-28156-011-0 01 1 1311- ●
155 BOLT; BRKT
(A) M10X17,M10X30 L=105 		8-97233-428-0 01 1 1311- ●
157 PIPE; AIR 8-98166-967-0 01 1 1311- ●
199 BRACKET; PIPE 8-98109-137-1 01 1 1311-1403 ●
199 BRACKET; PIPE 8-98252-223-0 01 1 1404- ●
211 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1311- ●
215 SENSOR; MAP 8-98009-418-0 01 1 1311- ●
232 HOSE; CONN 8-98128-293-0 01 1 1311- ●
320 HOSE; CONN,ACL
(B) 		8-98251-226-0 01 1 1311- ●
320 HOSE; CONN,ACL
(A) 		8-98012-859-2 01 1 1106- ●
353 CLIP; RUBBER HOSE
(C) ID=65-85 		8-98133-350-0 02 1 1311- ●
353 CLIP; RUBBER HOSE
(A) ID=55-75 		8-98133-349-0 08 1 1106- ●
353 CLIP; RUBBER HOSE
(B) ID=45-65 		8-98133-348-0 02 1 1311- ●
357 CLIP; RUBBER HOSE
(B) ID=24 		8-98025-921-0 02 1 1311- ●
357 CLIP; RUBBER HOSE
(C) ID=65-85 		8-98133-350-0 01 1 1311- ●
357 CLIP; RUBBER HOSE
(C) ID=65-85 		8-98133-350-0 02 1 1311- ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=29.5 		8-97354-979-0 01 1 1311- ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=26 		1-09707-091-0 02 1 1311- ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 02 1 1106-1310 ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=26 		1-09707-091-0 01 1 1311- ●
411 RUBBER; CUSHION
(A) OD=32 		8-94395-766-0 02 1 1311- ●
411 RUBBER; CUSHION
(B) OD=23 		8-97105-689-6 02 1 1311- ●
474 BOLT; PIPE
M8X40 FLANGE 		0-28650-840-0 02 1 1311- ●
487 PIPE; TURBO TO CHARGE AIR COOLER 8-98204-042-0 01 1 1311- ●
488 HOSE; RUBBER,PIPE
(A) 		8-98012-936-1 01 1 1106-1310 ●
488 HOSE; RUBBER,PIPE
(B) 		8-98204-041-0 01 1 1311- ●
488 HOSE; RUBBER,PIPE
(A) 		8-98012-936-1 01 1 1311- ●
530 CLAMP; AIR DUCT
ID=65-85 		8-98133-350-0 01 1 1311- ●
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1311- ●
543 SCREW; SENSOR
(A) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1106-1310 ●
543 SCREW; SENSOR
(A) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1311- ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98204-039-0 01 1 1311-1511 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98317-803-0 01 1 1512- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-98204-040-0 01 1 1311-1511 ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) 		8-98317-804-0 01 1 1512- ●
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) 		8-98065-044-0 01 1 1106- ●

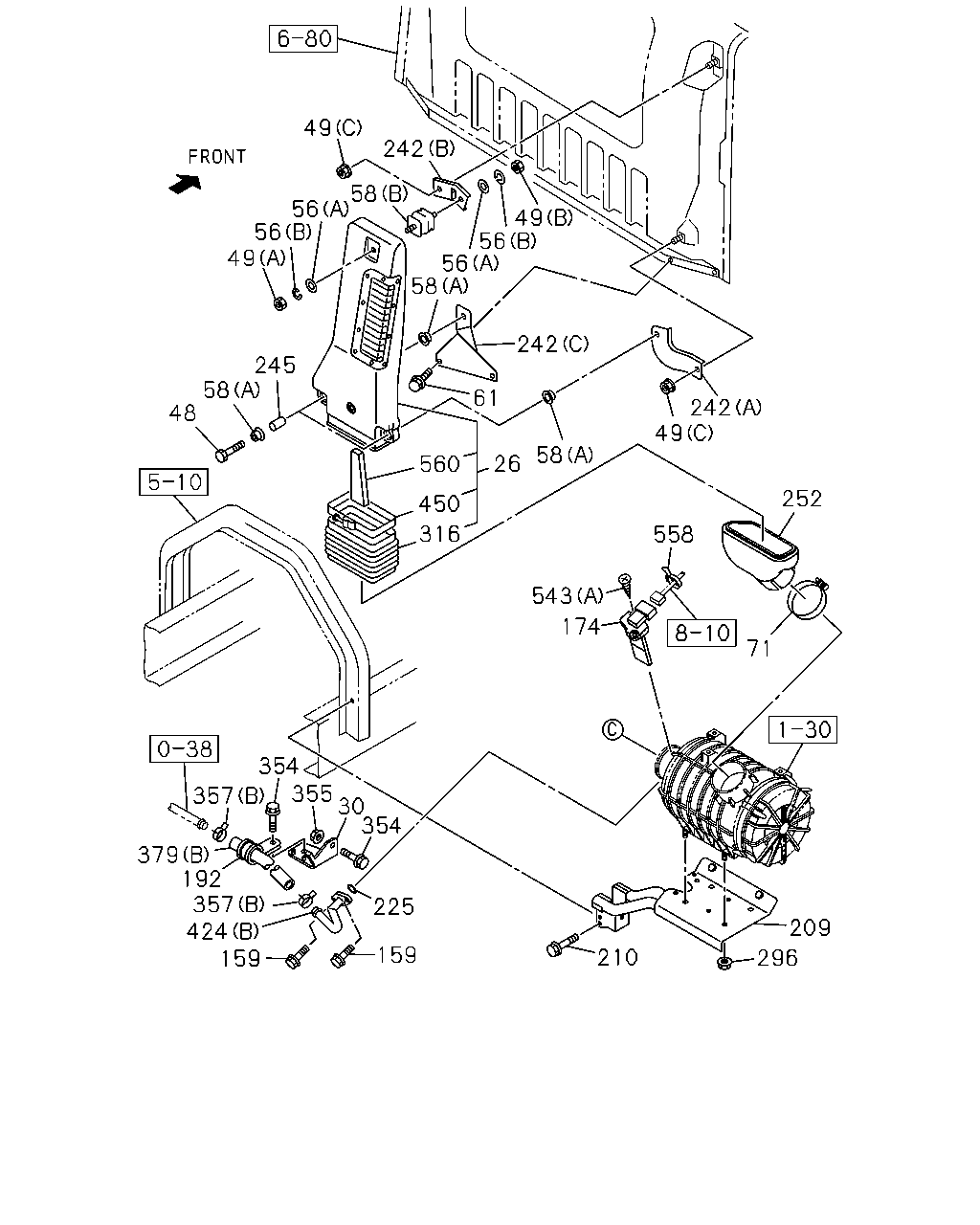

çizim 386008
49 56 56 49 245 58 48 58 242 56 49 56 58 242 242 49 58 26 560 450 316 543 558 252 71 174 209 296 210 225 159 159 424 379 357 355 30 354 354 357 192 61
BalonParca AdiParca NoAdetTipApplied Date A B
26 DUCT; AIR INT 8-98010-361-2 01 1 1106-1310 ●
26 DUCT; AIR INT 8-98010-361-2 01 1 1311- ● ●
30 BRACKET; HOSE 8-98232-578-2 01 1 1311- ●
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 1106-1310 ●
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 1311- ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1106-1310 ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1311- ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1106-1310 ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1311- ● ●
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 1106-1310 ●
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 1311- ● ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1106-1310 ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1311- ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1106-1310 ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1311- ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1106-1310 ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1311- ● ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1106-1310 ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1311- ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1106-1310 ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1311- ● ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1106-1310 ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1311- ● ●
159 BOLT; AIR PIPE
M6X16 FLANGE 		0-28050-616-0 02 1 1106-1310 ●
159 BOLT; AIR PIPE
M6X16 FLANGE 		0-28050-616-0 02 1 1311- ● ●
174 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 1106-1310 ●
174 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 1311- ● ●
192 CLIP; HOSE
ID=28 L=40 		1-09701-261-0 01 1 1311- ●
209 BRACKET; ACL 8-98021-995-1 01 1 1106-1310 ●
209 BRACKET; ACL 8-98021-995-1 01 1 1311- ● ●
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1106-1310 ●
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1311- ● ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1106-1310 ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1311- ● ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1106-1310 ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1311- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1106-1310 ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1311- ● ●
242 BRACKET; AIR DUCT
(A) 		8-98019-304-1 01 1 1106-1310 ●
242 BRACKET; AIR DUCT
(A) 		8-98019-304-1 01 1 1311- ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1106-1310 ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1311- ● ●
252 DUCT; AIR INT 8-98012-861-1 01 1 1106-1310 ●
252 DUCT; AIR INT 8-98012-861-1 01 1 1311- ● ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1106-1310 ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1311- ● ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1106-1310 ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1311- ● ●
354 BOLT; BRKT,AIR INT HOSE
M8X25 FLANGE 		0-28650-825-0 02 1 1311- ●
355 NUT; AIR INT HOSE TO BRKT
M8 FLANGE 		0-91180-108-0 01 1 1311- ●
357 CLIP; RUBBER HOSE
(B) ID=24 		8-98025-921-0 02 1 1311- ●
357 CLIP; RUBBER HOSE
(C) ID=65-85 		8-98133-350-0 01 1 1311- ●
357 CLIP; RUBBER HOSE
(C) ID=65-85 		8-98133-350-0 02 1 1311- ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=29.5 		8-97354-979-0 01 1 1311- ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=26 		1-09707-091-0 02 1 1311- ●
357 CLIP; RUBBER HOSE
(A) ID=26 		1-09707-091-0 02 1 1106-1310 ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=26 		1-09707-091-0 01 1 1311- ●
379 HOSE; RUBBER
(B) 		8-98232-625-0 01 1 1311- ●
379 HOSE; RUBBER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		8-97619-194-0 01 1 1311- ●
379 HOSE; RUBBER
(A) 		8-98077-469-0 01 1 1106-1310 ●
379 HOSE; RUBBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		8-98077-469-0 01 1 1311- ●
424 PIPE; AIR,INL
(B) 		8-98208-938-1 01 1 1311- ●
424 PIPE; AIR,INL
(A) 		8-98081-834-0 01 1 1106- ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1106-1310 ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1311- ● ●
543 SCREW; SENSOR
(B) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1311- ●
543 SCREW; SENSOR
(A) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1106-1310 ●
543 SCREW; SENSOR
(A) M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1311- ● ●
558 CLIP; AIR FLOW SENSOR
L=600 		1-09707-107-1 01 1 1106-1310 ●
558 CLIP; AIR FLOW SENSOR
L=600 		1-09707-107-1 01 1 1311- ● ●
558 CLIP; AIR FLOW SENSOR
L=250 		5-09707-030-1 02 1 1106-1310 ●
558 CLIP; AIR FLOW SENSOR
L=250 		5-09707-030-1 02 1 1311- ● ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1311- ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 02 1 1106-1310 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
