1-10 — RADIATOR (#55124) — 263 parça

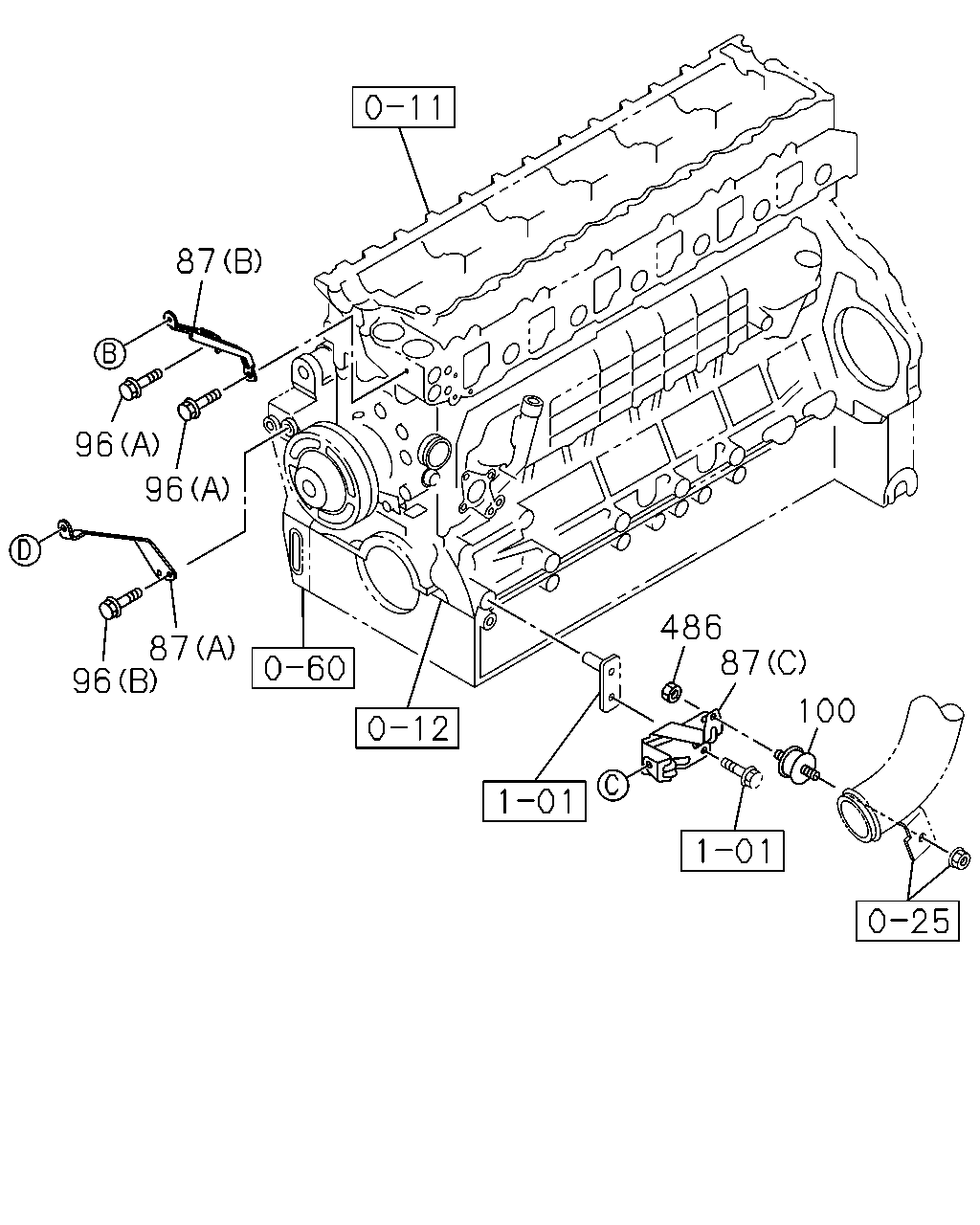

çizim 144875
100 87 486 96 87 96 96 87
BalonParca AdiParca NoAdetTipApplied Date A B
87 STAY; FAN GUIDE
(B) 		8-94393-776-1 01 1 1106- ●
87 STAY; FAN GUIDE
(C) 		8-94393-778-2 01 1 1106- ●
87 STAY; FAN GUIDE
(A) 		8-97602-988-0 01 1 1106- ●
96 BOLT; STAY FIX
(A) M10X20 FLANGE 		0-28151-020-0 02 1 1311- ●
96 BOLT; STAY FIX
(A) M10X75 FLANGE 		8-94399-669-1 02 1 1311- ●
96 BOLT; STAY FIX
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1106- ●
96 BOLT; STAY FIX
(A) M10X16 FLANGE 		0-28151-016-0 02 1 1106- ●
100 RUBBER; MTG 8-98148-109-0 01 1 1106- ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 1106- ●

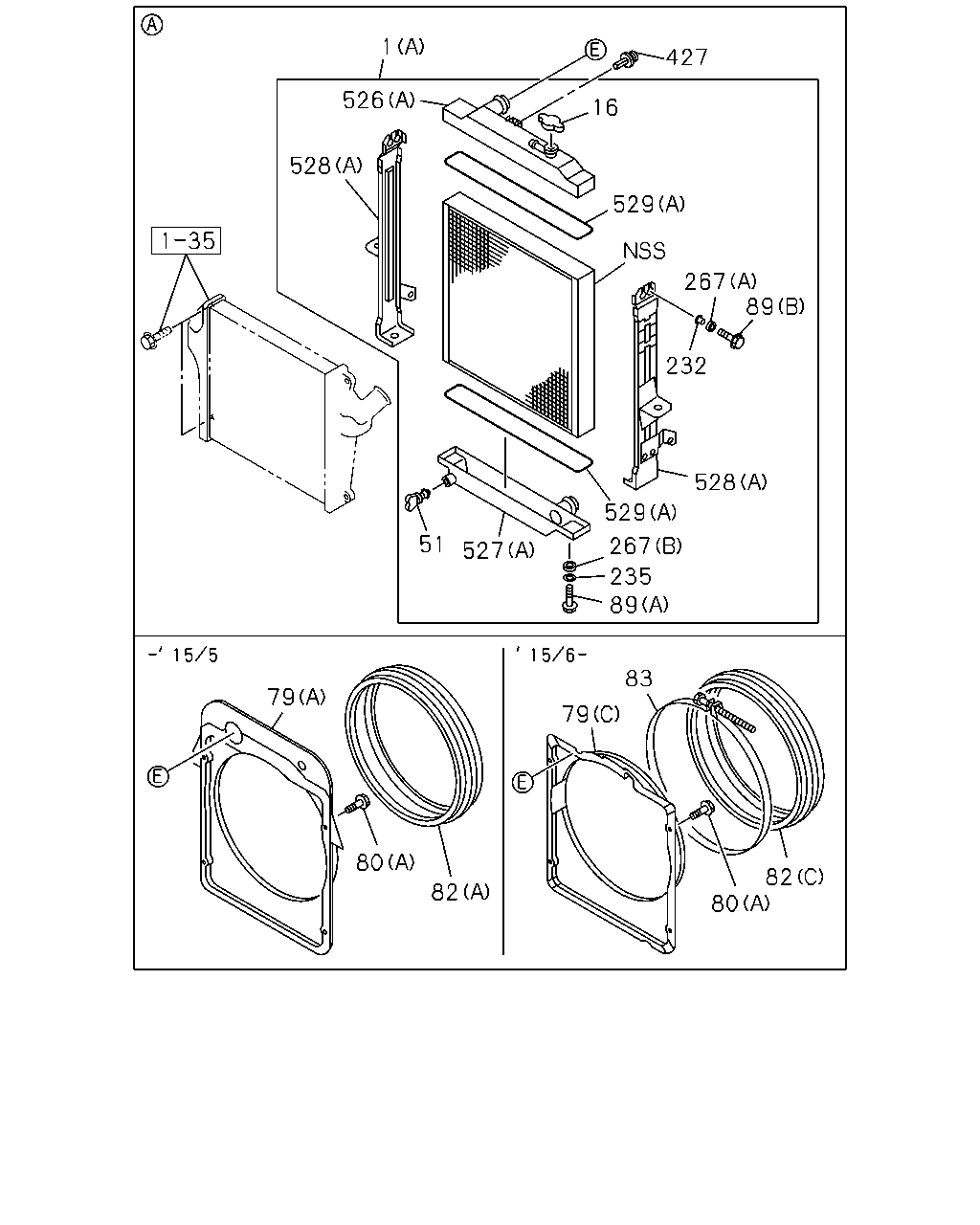

çizim 144876
1 526 528 16 427 529 267 232 528 529 267 235 89 527 51 89 79 80 82 79 80 83 82
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM
RADIATOR HEAVY DUTY<V05> (C) 		8-98206-625-0 01 1 1311- ●
1 RADIATOR ASM
EXC. RADIATOR HEAVY DUTY<V05> (B) 		8-98206-624-0 01 1 1311- ●
1 RADIATOR ASM
(A) 		8-98139-310-0 01 1 1106- ●
16 CAP; RAD 8-98096-226-0 01 1 1106-1310 ●
16 CAP; RAD 8-98096-226-0 01 1 1311- ● ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1106-1310 ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1311- ● ●
79 GUIDE; FAN,RAD
(B) 		8-98010-297-0 01 1 1311- ●
79 GUIDE; FAN,RAD
(A) 		8-98004-207-0 01 1 1106-1505 ●
79 GUIDE; FAN,RAD
(C) 		8-98286-937-0 01 1 1506- ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1106-1310 ●
80 BOLT; FAN GUIDE
(C) M6X16 		1-21559-481-0 04 1 1311- ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1311- ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1106-1310 ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1311-1505 ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ●
82 COVER; FAN,RAD
(B) 		8-98006-478-0 01 1 1311- ●
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 1106-1505 ●
82 COVER; FAN,RAD
(C) 		8-98293-253-0 01 1 1506- ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 1506- ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 02 1 1311- ●
89 BOLT
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1311- ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 1106- ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 1106- ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 02 1 1311- ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 1106- ●
235 WASHER; CUSHION RUBBER 1-21469-133-0 02 1 1106- ●
267 RUBBER; CUSHION
(C) 		1-21467-023-0 02 1 1311- ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 1106- ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 1106- ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1106-1310 ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1311-1505 ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1506- ●
526 TANK; UPR,RADIATOR CORE
(B) 		8-98107-793-0 01 1 1311- ●
526 TANK; UPR,RADIATOR CORE
(A) 		8-98004-202-2 01 1 1106- ●
527 TANK; LWR,RADIATOR CORE
(B) 		8-98032-433-1 01 1 1311- ●
527 TANK; LWR,RADIATOR CORE
(A) 		8-98004-203-0 01 1 1106- ●
528 PLATE; SIDE,RADIATOR CORE
RADIATOR HEAVY DUTY<V05> (C) 		8-98206-628-0 01 1 1311- ●
528 PLATE; SIDE,RADIATOR CORE
RADIATOR HEAVY DUTY<V05> (C) 		8-98206-629-0 01 1 1311- ●
528 PLATE; SIDE,RADIATOR CORE
EXC. RADIATOR HEAVY DUTY<V05> (B) 		8-98206-626-0 01 1 1311- ●
528 PLATE; SIDE,RADIATOR CORE
EXC. RADIATOR HEAVY DUTY<V05> (B) 		8-98206-627-0 01 1 1311- ●
528 PLATE; SIDE,RADIATOR CORE
(A) 		8-98042-838-3 01 1 1106- ●
528 PLATE; SIDE,RADIATOR CORE
(A) 		8-98042-839-2 01 1 1106- ●
529 GASKET; CORE,RADIATOR
(B) 		8-98032-435-0 02 1 1311- ●
529 GASKET; CORE,RADIATOR
(A) 		8-98004-206-0 02 1 1106- ●

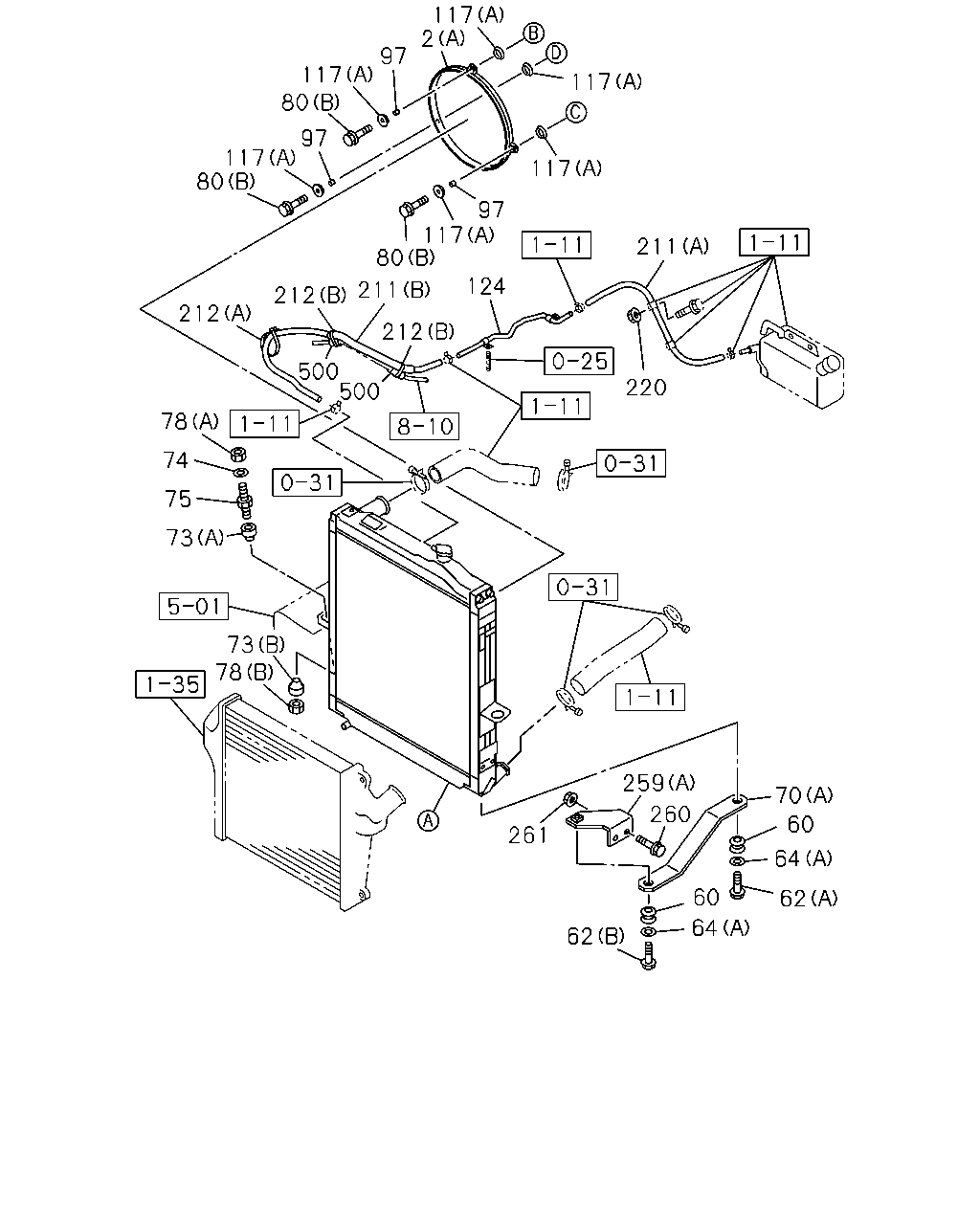

çizim 144878
117 117 117 117 117 212 212 211 500 78 73 74 73 75 78 500 212 80 220 211 117 124 97 2 97 80 97 80 62 64 62 60 70 60 64 260 259 261
BalonParca AdiParca NoAdetTipApplied Date A B
2 GUIDE; FAN
(B) 		8-97350-995-0 01 1 1311- ●
2 GUIDE; FAN
(A) 		8-94393-779-1 01 1 1106- ●
60 GROMMET 1-09332-117-0 04 1 1106- ●
62 BOLT; STAY
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1311- ●
62 BOLT; STAY
(A) M8X30 		1-09009-020-1 02 1 1106- ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 1106- ●
64 WASHER; STAY TO RAD
(B) ID=10.5 		0-91610-510-0 02 1 1311- ●
64 WASHER; STAY TO RAD
(A) ID=12.5 OD=26 		0-91610-612-0 04 1 1106- ●
70 STAY; RAD
(B) 		8-98010-657-0 01 1 1311- ●
70 STAY; RAD
(C) 		8-98018-941-0 01 1 1311- ●
70 STAY; RAD
(A) 		8-98004-132-2 02 1 1106- ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 1106-1310 ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 1311- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 1106-1310 ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 1311- ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1106-1310 ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1311- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 1106-1310 ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 1311- ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1106-1310 ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1311- ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 1106-1310 ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 1311- ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1106-1310 ●
80 BOLT; FAN GUIDE
(C) M6X16 		1-21559-481-0 04 1 1311- ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1311- ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1106-1310 ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1311-1505 ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 1106- ●
117 RUBBER; MTG,FAN GUIDE
(B) 		1-09337-027-0 06 1 1311- ●
117 RUBBER; MTG,FAN GUIDE
(A) OD=32 		8-94395-766-0 06 1 1106- ●
124 PIPE; WATER,TANK TO RAD 8-97611-022-1 01 1 1106- ●
211 HOSE; RAD TO PIPE
(C) 		8-98206-622-3 01 1 1311- ●
211 HOSE; RAD TO PIPE
(B) L=940 		8-98073-544-0 01 1 1106- ●
211 HOSE; RAD TO PIPE
(A) L=560 		8-98119-375-0 01 1 1106- ●
212 CLIP; HOSE
(A) L=250 		5-09707-030-1 01 1 1106- ●
212 CLIP; HOSE
(B) L=140 		5-09707-031-1 02 1 1106- ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1106-1310 ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1311- ● ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1311- ●
259 BRACKET; RAD STAY
(B) 		8-98179-846-0 01 1 1311- ●
259 BRACKET; RAD STAY
(A) 		8-98071-821-0 01 1 1106- ●
259 BRACKET; RAD STAY
(A) 		8-98071-822-0 01 1 1106- ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1311- ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1106- ●
261 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1311- ●
261 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1106- ●
500 SLEEVE; RUBBER
ID=17 OD=21 L=40 		1-09337-012-0 02 1 1106- ●

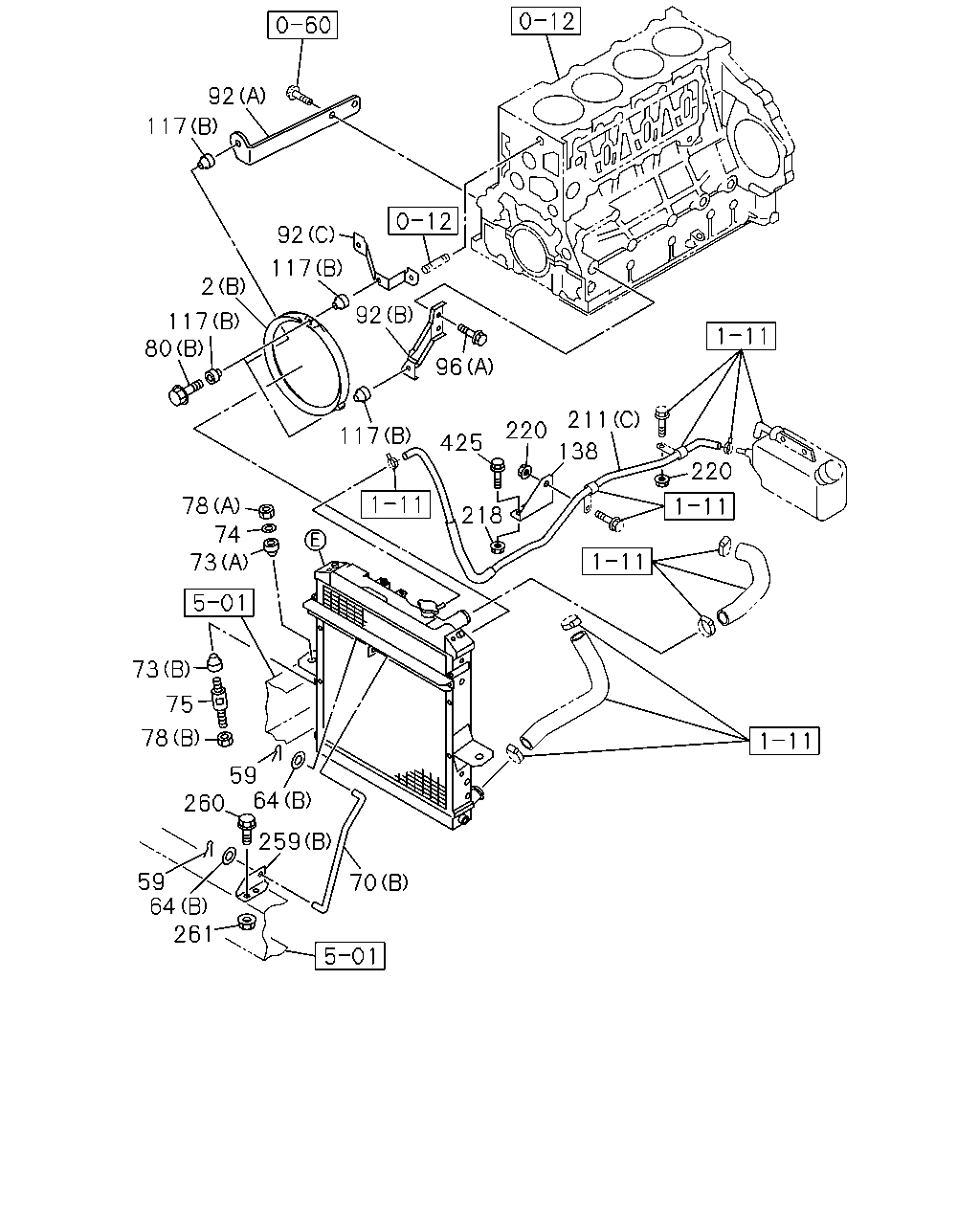

çizim 385323
220 211 220 425 117 96 92 261 70 64 59 260 64 259 78 73 73 78 59 74 80 117 2 117 92 117 92 138 75 218
BalonParca AdiParca NoAdetTipApplied Date A B
2 GUIDE; FAN
(B) 		8-97350-995-0 01 1 1311- ●
2 GUIDE; FAN
(A) 		8-94393-779-1 01 1 1106- ●
59 PIN; SNAP,STAY
L=32.6 		8-97359-052-0 02 1 1311- ●
64 WASHER; STAY TO RAD
(B) ID=10.5 		0-91610-510-0 02 1 1311- ●
64 WASHER; STAY TO RAD
(A) ID=12.5 OD=26 		0-91610-612-0 04 1 1106- ●
70 STAY; RAD
(B) 		8-98010-657-0 01 1 1311- ●
70 STAY; RAD
(C) 		8-98018-941-0 01 1 1311- ●
70 STAY; RAD
(A) 		8-98004-132-2 02 1 1106- ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 1106-1310 ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 1311- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 1106-1310 ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 1311- ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1106-1310 ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1311- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 1106-1310 ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 1311- ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1106-1310 ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1311- ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 1106-1310 ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 1311- ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1106-1310 ●
80 BOLT; FAN GUIDE
(C) M6X16 		1-21559-481-0 04 1 1311- ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1311- ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1106-1310 ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1311-1505 ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ●
92 BRACKET; FAN GUIDE
(A) 		8-97350-997-0 01 1 1311- ●
92 BRACKET; FAN GUIDE
(C) 		8-97382-827-2 01 1 1311- ●
92 BRACKET; FAN GUIDE
(B) 		8-97386-233-0 01 1 1311- ●
96 BOLT; STAY FIX
(A) M10X20 FLANGE 		0-28151-020-0 02 1 1311- ●
96 BOLT; STAY FIX
(A) M10X75 FLANGE 		8-94399-669-1 02 1 1311- ●
96 BOLT; STAY FIX
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1106- ●
96 BOLT; STAY FIX
(A) M10X16 FLANGE 		0-28151-016-0 02 1 1106- ●
117 RUBBER; MTG,FAN GUIDE
(B) 		1-09337-027-0 06 1 1311- ●
117 RUBBER; MTG,FAN GUIDE
(A) OD=32 		8-94395-766-0 06 1 1106- ●
138 BRACKET; CLIP 8-98226-427-0 01 1 1311- ●
211 HOSE; RAD TO PIPE
(C) 		8-98206-622-3 01 1 1311- ●
211 HOSE; RAD TO PIPE
(B) L=940 		8-98073-544-0 01 1 1106- ●
211 HOSE; RAD TO PIPE
(A) L=560 		8-98119-375-0 01 1 1106- ●
218 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1311- ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1106-1310 ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1311- ● ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1311- ●
259 BRACKET; RAD STAY
(B) 		8-98179-846-0 01 1 1311- ●
259 BRACKET; RAD STAY
(A) 		8-98071-821-0 01 1 1106- ●
259 BRACKET; RAD STAY
(A) 		8-98071-822-0 01 1 1106- ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1311- ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1106- ●
261 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1311- ●
261 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1106- ●
425 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 1311- ●

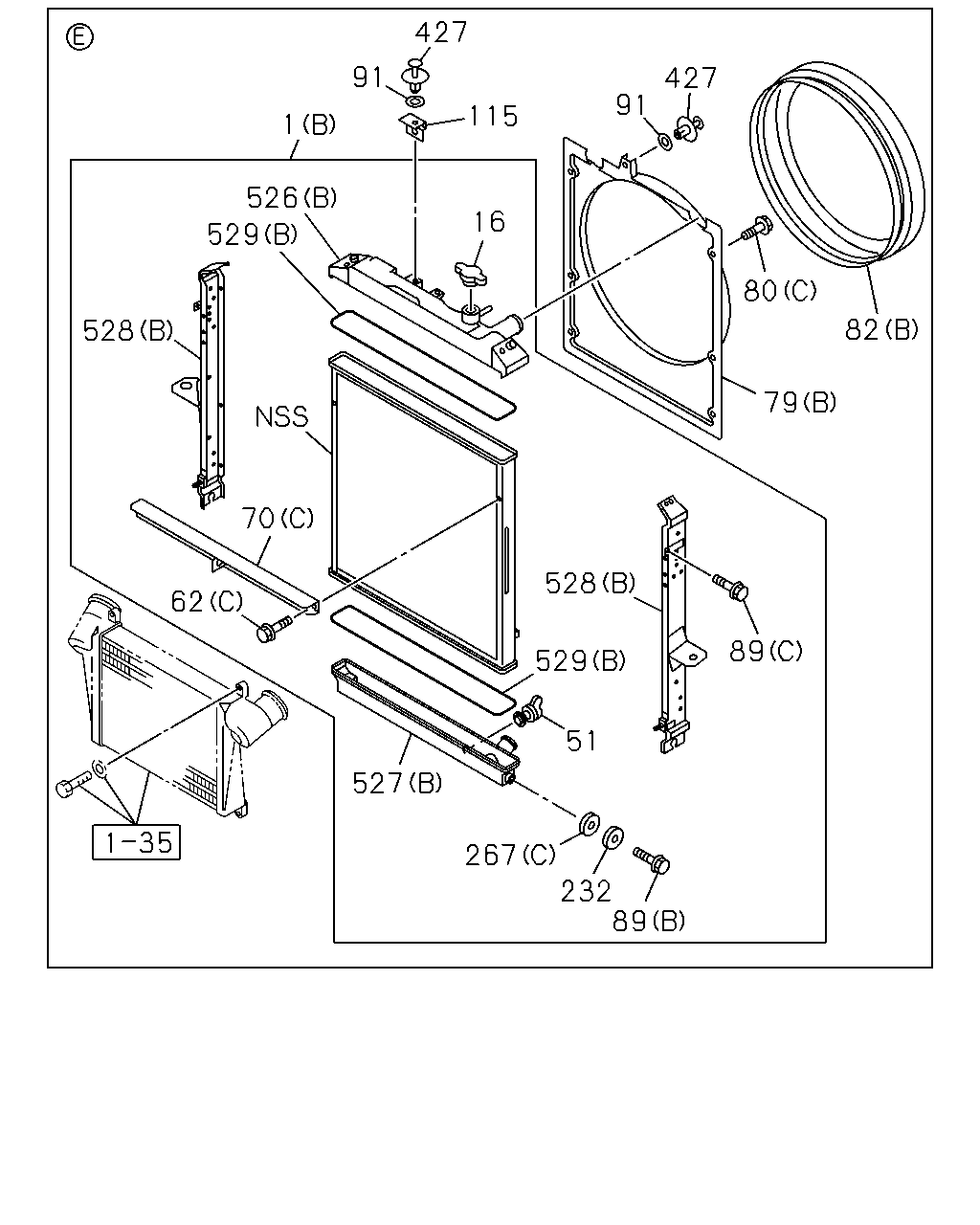

çizim 385324
427 91 1 526 529 528 70 62 527 257 232 89 51 529 528 89 79 82 80 91 427 115 16
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM
RADIATOR HEAVY DUTY<V05> (C) 		8-98206-625-0 01 1 1311- ●
1 RADIATOR ASM
EXC. RADIATOR HEAVY DUTY<V05> (B) 		8-98206-624-0 01 1 1311- ●
1 RADIATOR ASM
(A) 		8-98139-310-0 01 1 1106- ●
16 CAP; RAD 8-98096-226-0 01 1 1106-1310 ●
16 CAP; RAD 8-98096-226-0 01 1 1311- ● ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1106-1310 ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1311- ● ●
62 BOLT; STAY
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1311- ●
62 BOLT; STAY
(A) M8X30 		1-09009-020-1 02 1 1106- ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 1106- ●
70 STAY; RAD
(B) 		8-98010-657-0 01 1 1311- ●
70 STAY; RAD
(C) 		8-98018-941-0 01 1 1311- ●
70 STAY; RAD
(A) 		8-98004-132-2 02 1 1106- ●
79 GUIDE; FAN,RAD
(B) 		8-98010-297-0 01 1 1311- ●
79 GUIDE; FAN,RAD
(A) 		8-98004-207-0 01 1 1106-1505 ●
79 GUIDE; FAN,RAD
(C) 		8-98286-937-0 01 1 1506- ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1106-1310 ●
80 BOLT; FAN GUIDE
(C) M6X16 		1-21559-481-0 04 1 1311- ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1311- ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1106-1310 ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1311-1505 ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ●
82 COVER; FAN,RAD
(B) 		8-98006-478-0 01 1 1311- ●
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 1106-1505 ●
82 COVER; FAN,RAD
(C) 		8-98293-253-0 01 1 1506- ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 02 1 1311- ●
89 BOLT
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1311- ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 1106- ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 1106- ●
91 WASHER; PL 1-21469-111-0 02 1 1311- ●
115 BRACKET; FAN GUIDE
EXC. RADIATOR HEAVY DUTY<V05> 		8-98204-117-0 01 1 1311- ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 02 1 1311- ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 1106- ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1106-1310 ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1311-1505 ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1506- ●
526 TANK; UPR,RADIATOR CORE
(B) 		8-98107-793-0 01 1 1311- ●
526 TANK; UPR,RADIATOR CORE
(A) 		8-98004-202-2 01 1 1106- ●
527 TANK; LWR,RADIATOR CORE
(B) 		8-98032-433-1 01 1 1311- ●
527 TANK; LWR,RADIATOR CORE
(A) 		8-98004-203-0 01 1 1106- ●
528 PLATE; SIDE,RADIATOR CORE
RADIATOR HEAVY DUTY<V05> (C) 		8-98206-628-0 01 1 1311- ●
528 PLATE; SIDE,RADIATOR CORE
RADIATOR HEAVY DUTY<V05> (C) 		8-98206-629-0 01 1 1311- ●
528 PLATE; SIDE,RADIATOR CORE
EXC. RADIATOR HEAVY DUTY<V05> (B) 		8-98206-626-0 01 1 1311- ●
528 PLATE; SIDE,RADIATOR CORE
EXC. RADIATOR HEAVY DUTY<V05> (B) 		8-98206-627-0 01 1 1311- ●
528 PLATE; SIDE,RADIATOR CORE
(A) 		8-98042-838-3 01 1 1106- ●
528 PLATE; SIDE,RADIATOR CORE
(A) 		8-98042-839-2 01 1 1106- ●
529 GASKET; CORE,RADIATOR
(B) 		8-98032-435-0 02 1 1311- ●
529 GASKET; CORE,RADIATOR
(A) 		8-98004-206-0 02 1 1106- ●

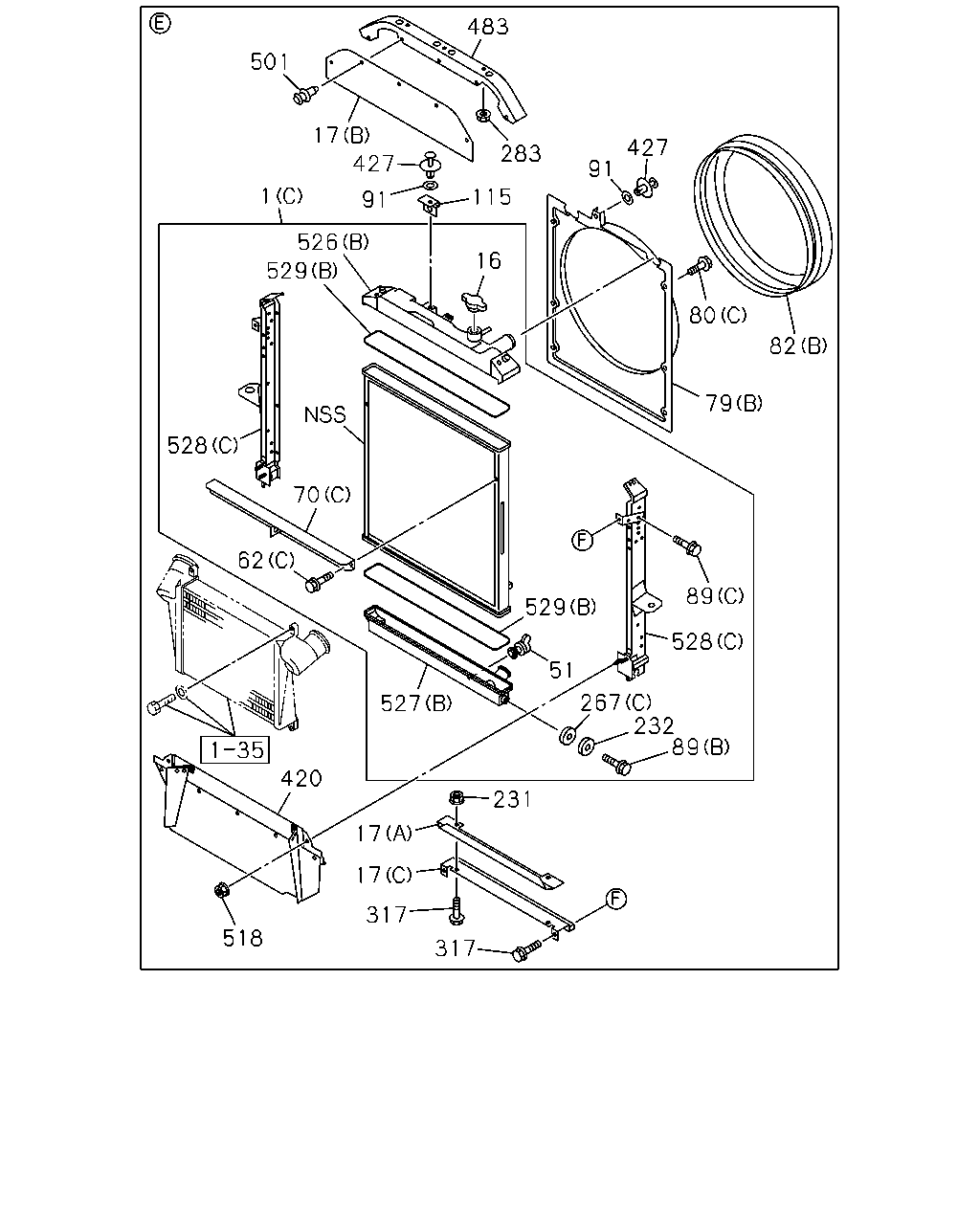

çizim 386091
483 501 17 1 427 91 526 529 528 70 62 527 420 518 317 317 17 17 231 89 232 267 51 529 528 89 79 82 80 91 427 283 115 16
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM
RADIATOR HEAVY DUTY<V05> (C) 		8-98206-625-0 01 1 1311- ●
1 RADIATOR ASM
EXC. RADIATOR HEAVY DUTY<V05> (B) 		8-98206-624-0 01 1 1311- ●
1 RADIATOR ASM
(A) 		8-98139-310-0 01 1 1106- ●
16 CAP; RAD 8-98096-226-0 01 1 1106-1310 ●
16 CAP; RAD 8-98096-226-0 01 1 1311- ● ●
17 SEAL; RAD,UPR
RADIATOR HEAVY DUTY<V05> (A) 		8-98206-598-0 01 1 1311- ●
17 SEAL; RAD,UPR
RADIATOR HEAVY DUTY<V05> (C) 		8-98217-447-0 01 1 1311- ●
17 SEAL; RAD,UPR
RADIATOR HEAVY DUTY<V05> (B) 		8-98207-481-0 01 1 1311- ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1106-1310 ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1311- ● ●
62 BOLT; STAY
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1311- ●
62 BOLT; STAY
(A) M8X30 		1-09009-020-1 02 1 1106- ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 1106- ●
70 STAY; RAD
(B) 		8-98010-657-0 01 1 1311- ●
70 STAY; RAD
(C) 		8-98018-941-0 01 1 1311- ●
70 STAY; RAD
(A) 		8-98004-132-2 02 1 1106- ●
79 GUIDE; FAN,RAD
(B) 		8-98010-297-0 01 1 1311- ●
79 GUIDE; FAN,RAD
(A) 		8-98004-207-0 01 1 1106-1505 ●
79 GUIDE; FAN,RAD
(C) 		8-98286-937-0 01 1 1506- ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1106-1310 ●
80 BOLT; FAN GUIDE
(C) M6X16 		1-21559-481-0 04 1 1311- ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1311- ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1106-1310 ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1311-1505 ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ●
82 COVER; FAN,RAD
(B) 		8-98006-478-0 01 1 1311- ●
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 1106-1505 ●
82 COVER; FAN,RAD
(C) 		8-98293-253-0 01 1 1506- ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 02 1 1311- ●
89 BOLT
(C) M8X12 FLANGE 		0-28050-812-0 02 1 1311- ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 1106- ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 1106- ●
91 WASHER; PL 1-21469-111-0 02 1 1311- ●
115 BRACKET; FAN GUIDE
EXC. RADIATOR HEAVY DUTY<V05> 		8-98204-117-0 01 1 1311- ●
231 NUT; SEAL RUBBER
RADIATOR HEAVY DUTY<V05> M8 FLANGE 		0-91180-108-0 02 1 1311- ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 02 1 1311- ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 1106- ●
267 RUBBER; CUSHION
(C) 		1-21467-023-0 02 1 1311- ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 1106- ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 1106- ●
283 NUT; BRKT
RADIATOR HEAVY DUTY<V05> M6 FLANGE 		0-91180-106-0 03 1 1311- ●
317 BOLT; SEAL
RADIATOR HEAVY DUTY<V05> M8X20 FLANGE 		0-28650-820-0 04 1 1311- ●
420 GUIDE; AIR,RAD
RADIATOR HEAVY DUTY<V05> 		8-98206-597-0 01 1 1311- ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1106-1310 ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1311-1505 ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1506- ●
483 BRACKET; SEAL
RADIATOR HEAVY DUTY<V05> 		8-98207-480-1 01 1 1311- ●
501 SCREW
RADIATOR HEAVY DUTY<V05> D6X16 PUSH RIVET 		1-09983-105-0 05 1 1311- ●
518 NUT
RADIATOR HEAVY DUTY<V05> M8 FLANGE 		0-91180-108-0 02 1 1311- ●
526 TANK; UPR,RADIATOR CORE
(B) 		8-98107-793-0 01 1 1311- ●
526 TANK; UPR,RADIATOR CORE
(A) 		8-98004-202-2 01 1 1106- ●
527 TANK; LWR,RADIATOR CORE
(B) 		8-98032-433-1 01 1 1311- ●
527 TANK; LWR,RADIATOR CORE
(A) 		8-98004-203-0 01 1 1106- ●
528 PLATE; SIDE,RADIATOR CORE
RADIATOR HEAVY DUTY<V05> (C) 		8-98206-628-0 01 1 1311- ●
528 PLATE; SIDE,RADIATOR CORE
RADIATOR HEAVY DUTY<V05> (C) 		8-98206-629-0 01 1 1311- ●
528 PLATE; SIDE,RADIATOR CORE
EXC. RADIATOR HEAVY DUTY<V05> (B) 		8-98206-626-0 01 1 1311- ●
528 PLATE; SIDE,RADIATOR CORE
EXC. RADIATOR HEAVY DUTY<V05> (B) 		8-98206-627-0 01 1 1311- ●
528 PLATE; SIDE,RADIATOR CORE
(A) 		8-98042-838-3 01 1 1106- ●
528 PLATE; SIDE,RADIATOR CORE
(A) 		8-98042-839-2 01 1 1106- ●
529 GASKET; CORE,RADIATOR
(B) 		8-98032-435-0 02 1 1311- ●
529 GASKET; CORE,RADIATOR
(A) 		8-98004-206-0 02 1 1106- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
