1-01 — ACCELERATOR PEDAL AND CONTROL (#55123) — 48 parça

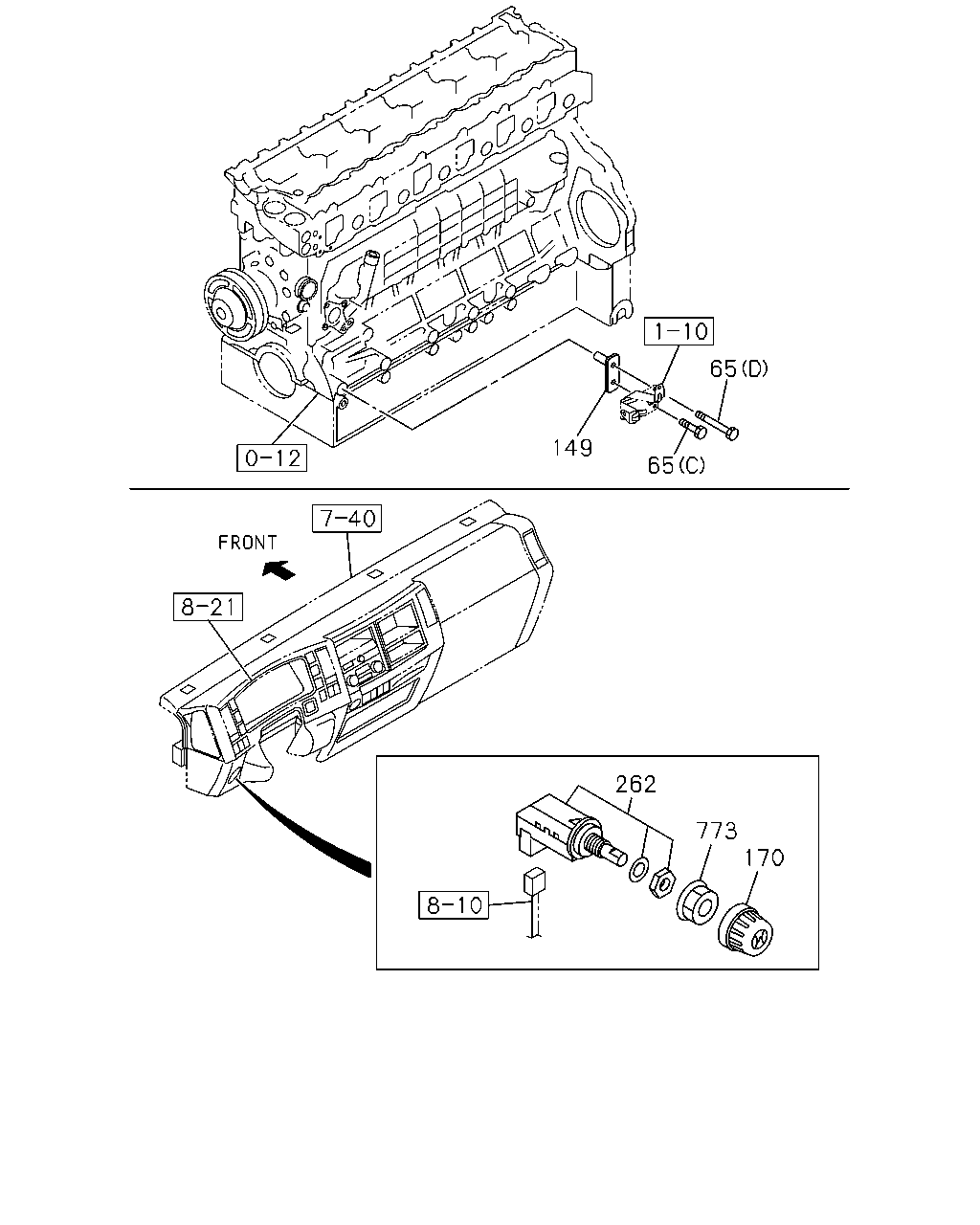

çizim 144877
149 65 65 170 773 262
BalonParca AdiParca NoAdetTipApplied Date A B
65 BOLT
(D) M10X60 		0-16861-060-0 01 1 1106- ●
65 BOLT
(C) M10X20 FLANGE 		0-28151-020-0 01 1 1106- ●
65 BOLT
(B) M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 1106-1310 ●
65 BOLT
(B) M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 1311- ● ●
65 BOLT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1106-1310 ●
65 BOLT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1311- ● ●
149 BRACKET; ENG CONT 8-98045-009-0 01 1 1106- ●
170 KNOB 8-98013-420-0 01 1 1106- ● ●
262 SWITCH; ACCEL,IDLE 8-98013-418-0 01 1 1106- ● ●
773 HOLDER; ACCEL PEDAL 8-97352-127-0 01 1 1106- ● ●

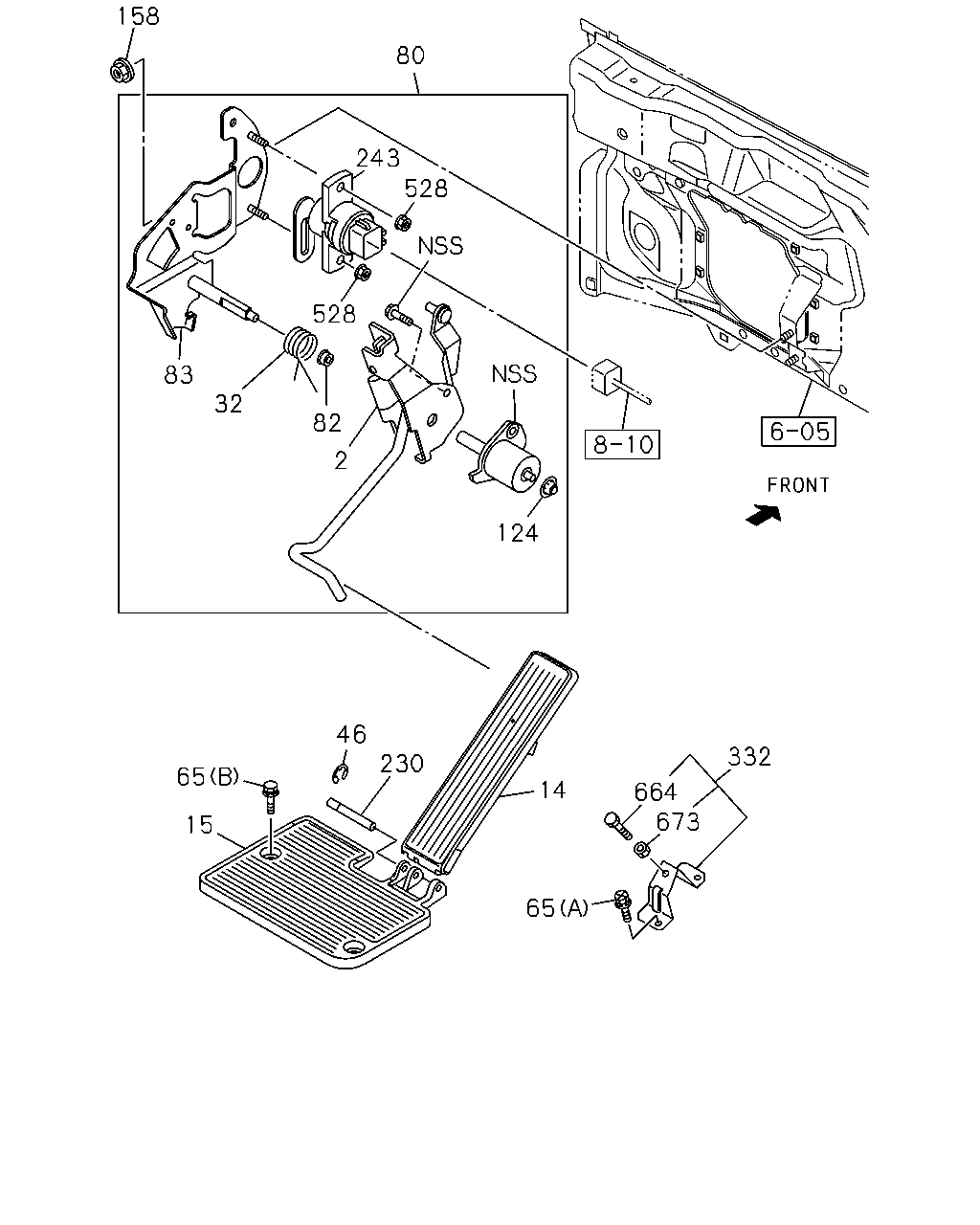

çizim 144892
158 80 243 528 32 83 82 124 2 528 46 65 230 14 332 664 673 65 15
BalonParca AdiParca NoAdetTipApplied Date A B
2 LEVER; ENG CONT 8-98118-386-0 01 1 1106-1310 ●
2 LEVER; ENG CONT 8-98118-386-0 01 1 1311- ● ●
14 PAD; PEDAL,ACCEL 8-97859-101-0 01 1 1106-1310 ●
14 PAD; PEDAL,ACCEL 8-97859-101-0 01 1 1311- ● ●
15 STAND; HEEL,ACCEL PEDAL 8-98022-259-2 01 1 1106-1310 ●
15 STAND; HEEL,ACCEL PEDAL 8-98022-259-2 01 1 1311- ● ●
32 SPRING; RETURN,ACCEL PEDAL 8-98031-665-0 01 1 1106-1310 ●
32 SPRING; RETURN,ACCEL PEDAL 8-98031-665-0 01 1 1311- ● ●
46 RING; SNAP,ACCEL CONT PEDAL
ID=4 		0-91805-504-0 01 1 1106-1310 ●
46 RING; SNAP,ACCEL CONT PEDAL
ID=4 		0-91805-504-0 01 1 1311- ● ●
65 BOLT
(D) M10X60 		0-16861-060-0 01 1 1106- ●
65 BOLT
(C) M10X20 FLANGE 		0-28151-020-0 01 1 1106- ●
65 BOLT
(B) M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 1106-1310 ●
65 BOLT
(B) M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 1311- ● ●
65 BOLT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1106-1310 ●
65 BOLT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1311- ● ●
80 LINK ASM; ENG CONT 8-98117-200-2 01 1 1106-1310 ●
80 LINK ASM; ENG CONT 8-98117-200-2 01 1 1311- ● ●
82 BUSHING; ENG CONT LVR 8-97581-053-0 01 1 1106-1310 ●
82 BUSHING; ENG CONT LVR 8-97581-053-0 01 1 1311- ● ●
83 BRACKET; CONT LINK 8-98023-885-2 01 1 1106-1310 ●
83 BRACKET; CONT LINK 8-98023-885-2 01 1 1311- ● ●
124 NUT; LEVER
ID=7.9 PUSH NUT 		8-94368-617-0 01 1 1106-1310 ●
124 NUT; LEVER
ID=7.9 PUSH NUT 		8-94368-617-0 01 1 1311- ● ●
158 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1106-1310 ●
158 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1311- ● ●
230 PIN; JOINT,ACCEL PEDAL TO BRKT 8-98026-806-0 01 1 1106-1310 ●
230 PIN; JOINT,ACCEL PEDAL TO BRKT 8-98026-806-0 01 1 1311- ● ●
243 SENSOR; ACCEL 8-98131-263-0 01 1 1106-1310 ●
243 SENSOR; ACCEL 8-98131-263-0 01 1 1311- ● ●
332 BRACKET; ACCEL PEDAL STOPPER 8-98050-880-0 01 1 1106-1310 ●
332 BRACKET; ACCEL PEDAL STOPPER 8-98050-880-0 01 1 1311- ● ●
528 NUT; ACCEL SENSOR
M5 		8-94169-022-0 02 1 1106-1310 ●
528 NUT; ACCEL SENSOR
M5 		8-94169-022-0 02 1 1311- ● ●
664 BOLT; STOPPER
M8X40 		0-20850-840-0 01 1 1106-1310 ●
664 BOLT; STOPPER
M8X40 		0-20850-840-0 01 1 1311- ● ●
673 NUT; STOPPER
M8 		0-91110-508-0 01 1 1106-1310 ●
673 NUT; STOPPER
M8 		0-91110-508-0 01 1 1311- ● ●
