0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#55120) — 283 parça

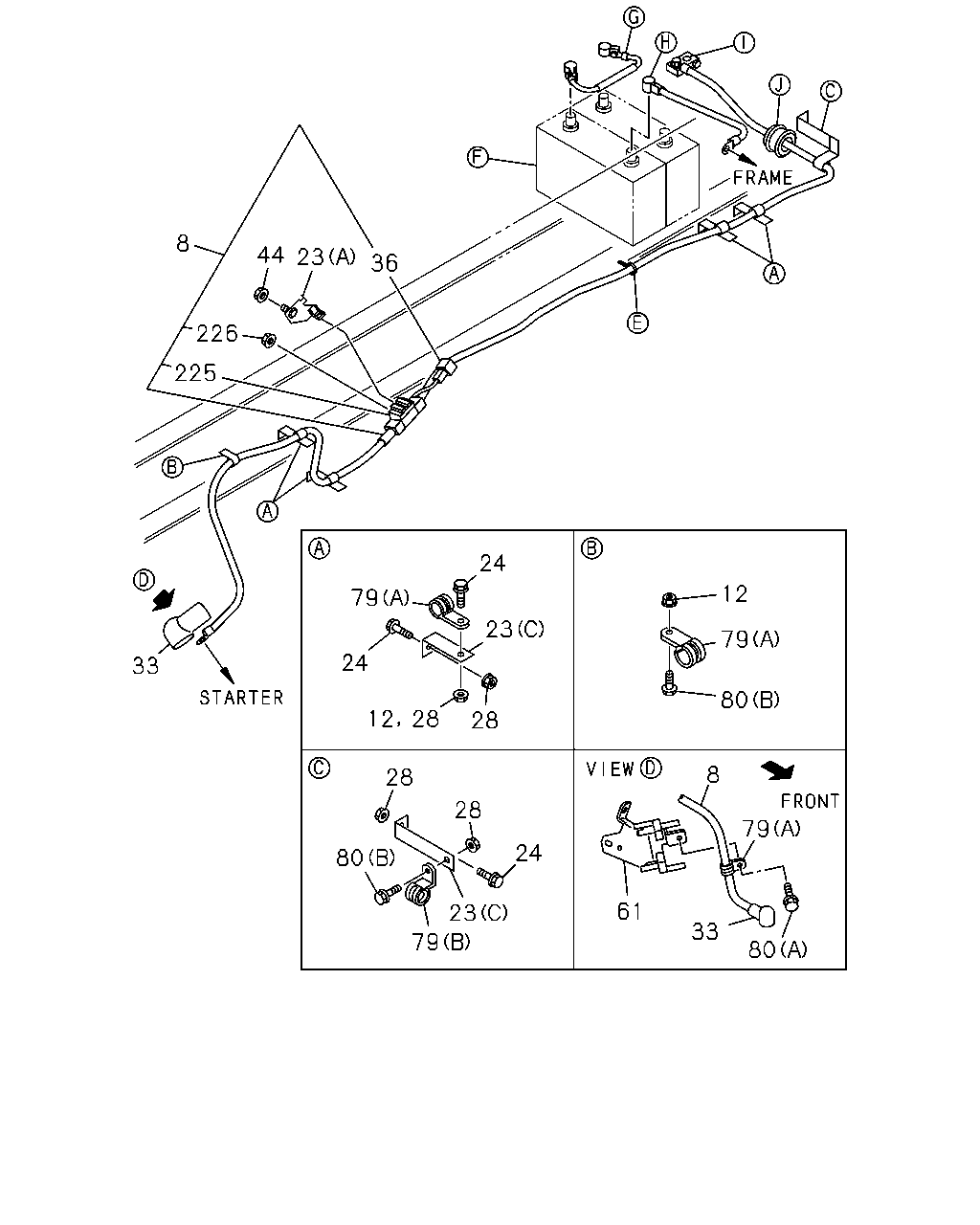

44 226 225 8 23 33 79 24 12 79 79 33 61 23 24 28 28 28 28 12 24 36 79 80 80 8 23 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98204-511-2	01	1	1311-1502
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-629-0	01	1	1503-1510
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-629-0	01	1	1511-
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) BATTERY 115E41L<8MA>	8-98204-509-2	01	1	1311-1502
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) BATTERY 115E41L<8MA>	8-98295-627-0	01	1	1503-1510
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 115E41L<8MA>	8-98295-627-0	01	1	1511-
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2720	8-98159-419-0	01	1	1311-1502
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-518-0	01	1	1503-1510
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 115E41L<8MA> L=2920	8-98159-420-0	01	1	1311-1502
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 115E41L<8MA>	8-98295-519-0	01	1	1503-1510
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2720	8-98159-421-0	01	1	1311-1502
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-520-0	01	1	1503-1510
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 115E41L<8MA> L=2920	8-98159-422-0	01	1	1311-1502
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 115E41L<8MA>	8-98295-521-0	01	1	1503-1510
8	CABLE; BATTERY,STARTER WHEEL BASE 4200MM(42W) BATTERY 115E41L<8MA> L=2970	8-98174-097-0	01	1	1106-1310
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BATTERY 115E41L<8MA> L=2970	8-98174-097-0	01	1	1311-1502
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BATTERY 115E41L<8MA>	8-98295-571-0	01	1	1503-
8	CABLE; BATTERY,STARTER WHEEL BASE 4200MM(42W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2770	8-98174-091-0	01	1	1106-1310
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2770	8-98174-091-0	01	1	1311-1502
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-570-0	01	1	1503-
8	CABLE; BATTERY,STARTER WHEEL BASE 5500MM(55W) BATTERY 115E41L<8MA> L=2960	8-98174-099-0	01	1	1106-1310
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BATTERY 115E41L<8MA> L=2960	8-98174-099-0	01	1	1311-1502
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BATTERY 115E41L<8MA>	8-98295-573-0	01	1	1503-
8	CABLE; BATTERY,STARTER WHEEL BASE 5500MM(55W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2760	8-98174-094-0	01	1	1106-1310
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2760	8-98174-094-0	01	1	1311-1502
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-572-0	01	1	1503-
12	NUT; BATTERY CABLE CLIP 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	1311-1511
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	02	1	1106-1310
12	NUT; BATTERY CABLE CLIP 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	03	1	1311-
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	03	1	1106-1310
12	NUT; BATTERY CABLE CLIP 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	02	1	1311-
12	NUT; BATTERY CABLE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	1311-
23	BRACKET; CABLE CLIP TO FRAME 4HK1-TCS ENG(RJS) (F)	8-98091-358-0	02	1	1311-
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E)	8-98201-024-0	01	1	1311-
23	BRACKET; CABLE CLIP TO FRAME (C) L=65	1-47479-064-0	01	1	1106-1310
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG(82L) (C) L=65	1-47479-064-1	01	1	1311-
23	BRACKET; CABLE CLIP TO FRAME (C) L=95	1-82699-085-0	03	1	1106-1310
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=95	1-82699-085-0	01	1	1311-
23	BRACKET; CABLE CLIP TO FRAME (A)	8-98044-882-0	01	1	1106-
23	BRACKET; CABLE CLIP TO FRAME (B)	8-98085-160-4	01	1	1106-1111
23	BRACKET; CABLE CLIP TO FRAME (D)	8-98201-025-0	01	1	1112-1310
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	8-98201-025-0	01	1	1311-
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 4200MM(42W) (C) L=95	1-82699-085-0	01	1	1106-1310
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG(82L) (C) L=95	1-82699-085-0	03	1	1311-
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 5500MM(55W) (C) L=55	1-47475-304-0	01	1	1106-1310
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (C) L=55	1-47475-304-0	01	1	1311-
24	BOLT; BRKT TO FRAME M8X25 FLANGE	0-28650-825-0	01	1	1106-1310
24	BOLT; BRKT TO FRAME 6HK1-TCN ENG(82L) M8X25 FLANGE	0-28650-825-0	01	1	1311-
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	01	1	1106-1310
24	BOLT; BRKT TO FRAME 6HK1-TCN ENG(82L) M8X30 FLANGE	0-28650-830-0	03	1	1311-
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	03	1	1106-1310
24	BOLT; BRKT TO FRAME 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28650-830-0	01	1	1311-
24	BOLT; BRKT TO FRAME 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) M8X30 FLANGE	0-28650-830-0	01	1	1311-
28	NUT; BRKT TO FRAME 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	02	1	1311-
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	1106-1111
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	1112-1310
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	1112-1310
28	NUT; BRKT TO FRAME 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	1311-
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	1106-1310
28	NUT; BRKT TO FRAME 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	05	1	1311-
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	03	1	1106-1310
28	NUT; BRKT TO FRAME 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	02	1	1311-
28	NUT; BRKT TO FRAME 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	1311-
33	CAP; INSULATOR	1-82699-431-0	01	1	1106-1310
33	CAP; INSULATOR 6HK1-TCN ENG(82L)	1-82699-431-0	01	1	1311-
36	FUSIBLE LINK; BATTERY	8-97615-498-1	01	1	1106-1502
36	FUSIBLE LINK; BATTERY	8-98295-762-0	01	1	1503-
44	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1106-
61	BRACKET; BATTERY CABLE	8-98051-379-1	01	1	1106-1310
61	BRACKET; BATTERY CABLE 6HK1-TCN ENG(82L)	8-98051-379-1	01	1	1311-
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) (A) ID=15 L=28	1-09701-216-0	01	1	1311-
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=20 L=50	9-09917-430-0	02	1	1311-
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=13-18 L=18	1-09709-291-0	02	1	1311-
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=21 L=24	8-98019-191-0	02	1	1311-1510
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=21 L=24	8-98019-191-0	02	1	1511-1511
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=21 L=24	8-98019-191-0	02	1	1511-1511
79	CLIP; BATTERY CABLE (A) ID=15 L=28	1-09701-216-0	01	1	1106-1310
79	CLIP; BATTERY CABLE 4HK1-TCS ENG(RJS) (C) ID=20 L=50	9-09917-430-0	06	1	1311-
79	CLIP; BATTERY CABLE (B) ID=13-18 L=26	1-09709-293-0	02	1	1106-1310
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=13-18 L=26	1-09709-293-0	02	1	1311-
79	CLIP; BATTERY CABLE (A) ID=21 L=24	8-98019-191-0	03	1	1106-1310
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=21 L=24	8-98019-191-0	01	1	1311-1511
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=21 L=24	8-98019-191-0	02	1	1512-
79	CLIP; BATTERY CABLE (C) ID=20 L=50	9-09917-430-0	01	1	1106-1310
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) (C) ID=20 L=50	9-09917-430-0	01	1	1311-
79	CLIP; BATTERY CABLE WHEEL BASE 4200MM(42W) (A) ID=21 L=24	8-98019-191-0	02	1	1106-1310
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) (A) ID=21 L=24	8-98019-191-0	03	1	1311-1510
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) (A) ID=21 L=24	8-98019-191-0	03	1	1511-
79	CLIP; BATTERY CABLE WHEEL BASE 5500MM(55W) (A) ID=19 L=40	0-95235-876-0	01	1	1106-1310
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (A) ID=19 L=40	0-95235-876-0	01	1	1311-1510
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=19 L=40	0-95235-876-0	01	1	1511-
79	CLIP; BATTERY CABLE WHEEL BASE 5500MM(55W) (B) ID=19 L=24 H=21	1-09700-109-1	01	1	1106-1310
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (B) ID=19 L=24 H=21	1-09700-109-1	01	1	1311-1510
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=19 L=24 H=21	1-09700-109-1	01	1	1511-
80	BOLT; BATTERY CABLE CLIP 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X25 FLANGE	0-28650-825-0	01	1	1311-
80	BOLT; BATTERY CABLE CLIP (A) M8X16 FLANGE	0-28050-816-0	01	1	1106-1310
80	BOLT; BATTERY CABLE CLIP 6HK1-TCN ENG(82L) (A) M8X16 FLANGE	0-28050-816-0	01	1	1311-
80	BOLT; BATTERY CABLE CLIP (B) M8X25 FLANGE	0-28650-825-0	02	1	1106-1310
80	BOLT; BATTERY CABLE CLIP 6HK1-TCN ENG(82L) (B) M8X25 FLANGE	0-28650-825-0	03	1	1311-
80	BOLT; BATTERY CABLE CLIP (B) M8X25 FLANGE	0-28650-825-0	03	1	1106-1310
80	BOLT; BATTERY CABLE CLIP 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X25 FLANGE	0-28650-825-0	02	1	1311-
80	BOLT; BATTERY CABLE CLIP 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X25 FLANGE	0-28650-825-0	02	1	1311-
225	BLOCK; TERMINAL	8-98029-689-0	01	1	1106-1502
225	BLOCK; TERMINAL	8-98294-524-0	01	1	1503-
226	NUT; FUSIBLE LINK M6 W/LK WASHER	8-94424-179-0	01	1	1106-1502
226	NUT; FUSIBLE LINK M6 FLANGE STAINLESS	8-98297-112-0	01	1	1503-

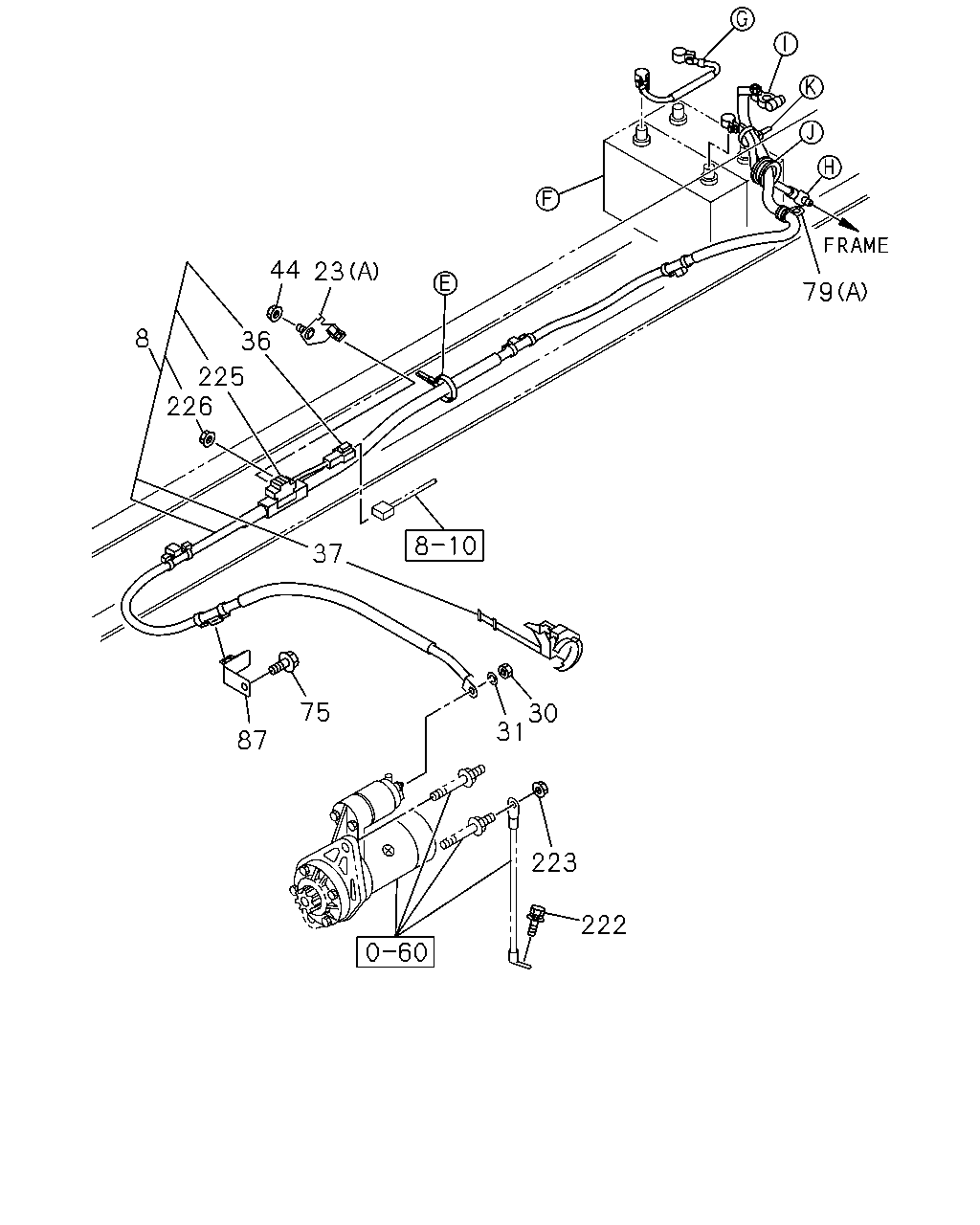

23 44 36 225 226 37 75 87 223 222 30 31 79 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98204-511-2	01	1	1311-1502
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-629-0	01	1	1503-1510
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-629-0	01	1	1511-
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) BATTERY 115E41L<8MA>	8-98204-509-2	01	1	1311-1502
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) BATTERY 115E41L<8MA>	8-98295-627-0	01	1	1503-1510
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 115E41L<8MA>	8-98295-627-0	01	1	1511-
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2720	8-98159-419-0	01	1	1311-1502
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-518-0	01	1	1503-1510
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 115E41L<8MA> L=2920	8-98159-420-0	01	1	1311-1502
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 115E41L<8MA>	8-98295-519-0	01	1	1503-1510
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2720	8-98159-421-0	01	1	1311-1502
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-520-0	01	1	1503-1510
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 115E41L<8MA> L=2920	8-98159-422-0	01	1	1311-1502
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 115E41L<8MA>	8-98295-521-0	01	1	1503-1510
8	CABLE; BATTERY,STARTER WHEEL BASE 4200MM(42W) BATTERY 115E41L<8MA> L=2970	8-98174-097-0	01	1	1106-1310
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BATTERY 115E41L<8MA> L=2970	8-98174-097-0	01	1	1311-1502
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BATTERY 115E41L<8MA>	8-98295-571-0	01	1	1503-
8	CABLE; BATTERY,STARTER WHEEL BASE 4200MM(42W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2770	8-98174-091-0	01	1	1106-1310
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2770	8-98174-091-0	01	1	1311-1502
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-570-0	01	1	1503-
8	CABLE; BATTERY,STARTER WHEEL BASE 5500MM(55W) BATTERY 115E41L<8MA> L=2960	8-98174-099-0	01	1	1106-1310
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BATTERY 115E41L<8MA> L=2960	8-98174-099-0	01	1	1311-1502
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BATTERY 115E41L<8MA>	8-98295-573-0	01	1	1503-
8	CABLE; BATTERY,STARTER WHEEL BASE 5500MM(55W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2760	8-98174-094-0	01	1	1106-1310
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2760	8-98174-094-0	01	1	1311-1502
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-572-0	01	1	1503-
23	BRACKET; CABLE CLIP TO FRAME 4HK1-TCS ENG(RJS) (F)	8-98091-358-0	02	1	1311-
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E)	8-98201-024-0	01	1	1311-
23	BRACKET; CABLE CLIP TO FRAME (C) L=65	1-47479-064-0	01	1	1106-1310
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG(82L) (C) L=65	1-47479-064-1	01	1	1311-
23	BRACKET; CABLE CLIP TO FRAME (C) L=95	1-82699-085-0	03	1	1106-1310
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=95	1-82699-085-0	01	1	1311-
23	BRACKET; CABLE CLIP TO FRAME (A)	8-98044-882-0	01	1	1106-
23	BRACKET; CABLE CLIP TO FRAME (B)	8-98085-160-4	01	1	1106-1111
23	BRACKET; CABLE CLIP TO FRAME (D)	8-98201-025-0	01	1	1112-1310
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	8-98201-025-0	01	1	1311-
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 4200MM(42W) (C) L=95	1-82699-085-0	01	1	1106-1310
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG(82L) (C) L=95	1-82699-085-0	03	1	1311-
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 5500MM(55W) (C) L=55	1-47475-304-0	01	1	1106-1310
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (C) L=55	1-47475-304-0	01	1	1311-
30	NUT; CABLE,STARTER TO BATTERY 4HK1-TCS ENG(RJS) M8	0-91110-508-0	01	1	1311-
31	WASHER; LK,CABLE,STARTER TO BATTERY 4HK1-TCS ENG(RJS) ID=8.2	0-91510-808-0	01	1	1311-
36	FUSIBLE LINK; BATTERY	8-97615-498-1	01	1	1106-1502
36	FUSIBLE LINK; BATTERY	8-98295-762-0	01	1	1503-
37	CAP; TERMINAL,BATTERY CABLE 4HK1-TCS ENG(RJS)	8-98042-507-0	01	1	1311-
44	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1106-
75	BOLT; BRKT 4HK1-TCS ENG(RJS) M8X20 FLANGE	0-28650-820-0	01	1	1311-
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) (A) ID=15 L=28	1-09701-216-0	01	1	1311-
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=20 L=50	9-09917-430-0	02	1	1311-
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=13-18 L=18	1-09709-291-0	02	1	1311-
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=21 L=24	8-98019-191-0	02	1	1311-1510
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=21 L=24	8-98019-191-0	02	1	1511-1511
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=21 L=24	8-98019-191-0	02	1	1511-1511
79	CLIP; BATTERY CABLE (A) ID=15 L=28	1-09701-216-0	01	1	1106-1310
79	CLIP; BATTERY CABLE 4HK1-TCS ENG(RJS) (C) ID=20 L=50	9-09917-430-0	06	1	1311-
79	CLIP; BATTERY CABLE (B) ID=13-18 L=26	1-09709-293-0	02	1	1106-1310
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=13-18 L=26	1-09709-293-0	02	1	1311-
79	CLIP; BATTERY CABLE (A) ID=21 L=24	8-98019-191-0	03	1	1106-1310
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=21 L=24	8-98019-191-0	01	1	1311-1511
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=21 L=24	8-98019-191-0	02	1	1512-
79	CLIP; BATTERY CABLE (C) ID=20 L=50	9-09917-430-0	01	1	1106-1310
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) (C) ID=20 L=50	9-09917-430-0	01	1	1311-
79	CLIP; BATTERY CABLE WHEEL BASE 4200MM(42W) (A) ID=21 L=24	8-98019-191-0	02	1	1106-1310
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) (A) ID=21 L=24	8-98019-191-0	03	1	1311-1510
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) (A) ID=21 L=24	8-98019-191-0	03	1	1511-
79	CLIP; BATTERY CABLE WHEEL BASE 5500MM(55W) (A) ID=19 L=40	0-95235-876-0	01	1	1106-1310
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (A) ID=19 L=40	0-95235-876-0	01	1	1311-1510
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=19 L=40	0-95235-876-0	01	1	1511-
79	CLIP; BATTERY CABLE WHEEL BASE 5500MM(55W) (B) ID=19 L=24 H=21	1-09700-109-1	01	1	1106-1310
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (B) ID=19 L=24 H=21	1-09700-109-1	01	1	1311-1510
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=19 L=24 H=21	1-09700-109-1	01	1	1511-
87	BRACKET; HARNESS 4HK1-TCS ENG(RJS)	8-98126-428-0	01	1	1311-
222	BOLT; EARTH CABLE M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1106-
223	NUT; EARTH CABLE 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	01	1	1311-
225	BLOCK; TERMINAL	8-98029-689-0	01	1	1106-1502
225	BLOCK; TERMINAL	8-98294-524-0	01	1	1503-
226	NUT; FUSIBLE LINK M6 W/LK WASHER	8-94424-179-0	01	1	1106-1502
226	NUT; FUSIBLE LINK M6 FLANGE STAINLESS	8-98297-112-0	01	1	1503-

222 56 57 76 107 217 13 112 8 23 23 79 23 23 23 10 11 28 1 79 2 55

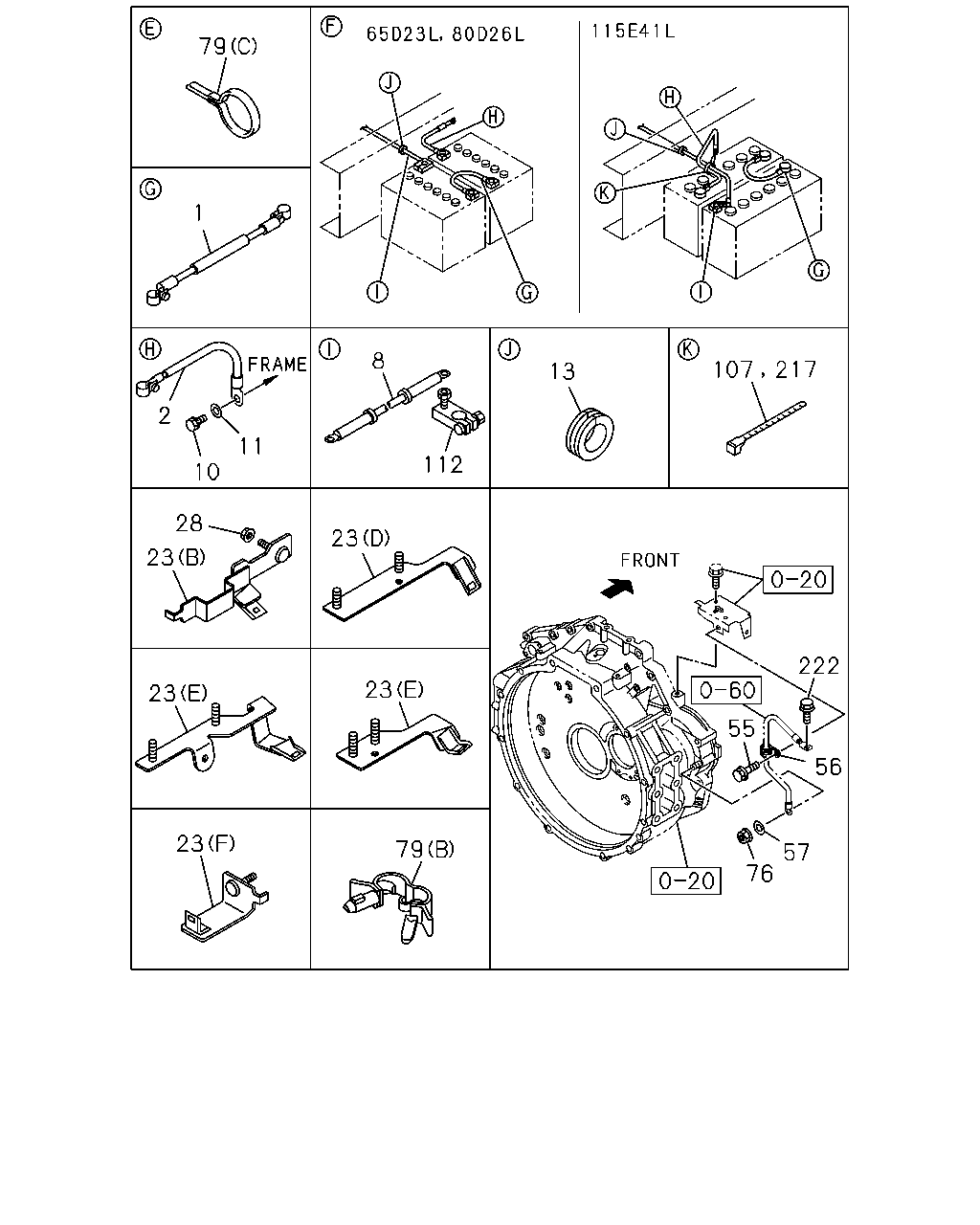

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; BATTERY L=280	8-98025-412-3	01	1	1106-
2	CABLE; BATTERY 6HK1-TCN ENG(82L) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=280	8-98035-647-1	01	1	1311-
2	CABLE; BATTERY BATTERY 115E41L<8MA> L=440	8-97615-309-1	01	1	1106-
2	CABLE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=280	8-98035-647-1	01	1	1106-1310
2	CABLE; BATTERY 4HK1-TCS ENG(RJS) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=240	1-82650-403-1	01	1	1311-
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98204-511-2	01	1	1311-1502
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-629-0	01	1	1503-1510
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-629-0	01	1	1511-
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) BATTERY 115E41L<8MA>	8-98204-509-2	01	1	1311-1502
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) BATTERY 115E41L<8MA>	8-98295-627-0	01	1	1503-1510
8	CABLE; BATTERY,STARTER 4HK1-TCS ENG(RJS) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 115E41L<8MA>	8-98295-627-0	01	1	1511-
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2720	8-98159-419-0	01	1	1311-1502
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-518-0	01	1	1503-1510
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 115E41L<8MA> L=2920	8-98159-420-0	01	1	1311-1502
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 115E41L<8MA>	8-98295-519-0	01	1	1503-1510
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2720	8-98159-421-0	01	1	1311-1502
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-520-0	01	1	1503-1510
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 115E41L<8MA> L=2920	8-98159-422-0	01	1	1311-1502
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BATTERY 115E41L<8MA>	8-98295-521-0	01	1	1503-1510
8	CABLE; BATTERY,STARTER WHEEL BASE 4200MM(42W) BATTERY 115E41L<8MA> L=2970	8-98174-097-0	01	1	1106-1310
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BATTERY 115E41L<8MA> L=2970	8-98174-097-0	01	1	1311-1502
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BATTERY 115E41L<8MA>	8-98295-571-0	01	1	1503-
8	CABLE; BATTERY,STARTER WHEEL BASE 4200MM(42W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2770	8-98174-091-0	01	1	1106-1310
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2770	8-98174-091-0	01	1	1311-1502
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-570-0	01	1	1503-
8	CABLE; BATTERY,STARTER WHEEL BASE 5500MM(55W) BATTERY 115E41L<8MA> L=2960	8-98174-099-0	01	1	1106-1310
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BATTERY 115E41L<8MA> L=2960	8-98174-099-0	01	1	1311-1502
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BATTERY 115E41L<8MA>	8-98295-573-0	01	1	1503-
8	CABLE; BATTERY,STARTER WHEEL BASE 5500MM(55W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2760	8-98174-094-0	01	1	1106-1310
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=2760	8-98174-094-0	01	1	1311-1502
8	CABLE; BATTERY,STARTER 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-572-0	01	1	1503-
10	BOLT; BATTERY CABLE CLIP M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1106-
11	WASHER; BATTERY CABLE EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1106-
13	GROMMET; BATTERY CABLE WHEEL BASE 4200MM(42W) ID=32 OD=40 T=18	1-09891-003-0	01	1	1311-
13	GROMMET; BATTERY CABLE ID=32 OD=40 T=23	1-09332-112-0	01	1	1106-1310
13	GROMMET; BATTERY CABLE WHEEL BASE 5500MM(55W) ID=32 OD=40 T=23	1-09332-112-0	01	1	1311-
23	BRACKET; CABLE CLIP TO FRAME 4HK1-TCS ENG(RJS) (F)	8-98091-358-0	02	1	1311-
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (E)	8-98201-024-0	01	1	1311-
23	BRACKET; CABLE CLIP TO FRAME (C) L=65	1-47479-064-0	01	1	1106-1310
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG(82L) (C) L=65	1-47479-064-1	01	1	1311-
23	BRACKET; CABLE CLIP TO FRAME (C) L=95	1-82699-085-0	03	1	1106-1310
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) L=95	1-82699-085-0	01	1	1311-
23	BRACKET; CABLE CLIP TO FRAME (A)	8-98044-882-0	01	1	1106-
23	BRACKET; CABLE CLIP TO FRAME (B)	8-98085-160-4	01	1	1106-1111
23	BRACKET; CABLE CLIP TO FRAME (D)	8-98201-025-0	01	1	1112-1310
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D)	8-98201-025-0	01	1	1311-
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 4200MM(42W) (C) L=95	1-82699-085-0	01	1	1106-1310
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG(82L) (C) L=95	1-82699-085-0	03	1	1311-
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 5500MM(55W) (C) L=55	1-47475-304-0	01	1	1106-1310
23	BRACKET; CABLE CLIP TO FRAME 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (C) L=55	1-47475-304-0	01	1	1311-
28	NUT; BRKT TO FRAME 4HK1-TCS ENG(RJS) M10 FLANGE	0-91180-210-0	02	1	1311-
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	1106-1111
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	1112-1310
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	01	1	1112-1310
28	NUT; BRKT TO FRAME 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	1311-
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	1106-1310
28	NUT; BRKT TO FRAME 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	05	1	1311-
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	03	1	1106-1310
28	NUT; BRKT TO FRAME 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	02	1	1311-
28	NUT; BRKT TO FRAME 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	1311-
55	BOLT; CLIP,BATTERY CABLE M8X16 FLANGE	0-28050-816-0	01	1	1106-1310
55	BOLT; CLIP,BATTERY CABLE 6HK1-TCN ENG(82L) M8X16 FLANGE	0-28050-816-0	01	1	1311-
56	CLIP; BATTERY CABLE ID=16 L=28	1-09700-872-0	01	1	1106-1310
56	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) ID=16 L=28	1-09700-872-0	01	1	1311-
57	WASHER; PL,BATTERY CABLE ID=10.5 OD=22 T=1.6	0-91610-610-0	01	1	1106-1310
57	WASHER; PL,BATTERY CABLE 6HK1-TCN ENG(82L) ID=10.5 OD=22 T=1.6	0-91610-610-0	01	1	1311-
76	NUT; BATTERY CABLE M10 FLANGE	0-91180-210-0	01	1	1106-1310
76	NUT; BATTERY CABLE 6HK1-TCN ENG(82L) M10 FLANGE	0-91180-210-0	01	1	1311-
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) (A) ID=15 L=28	1-09701-216-0	01	1	1311-
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) ID=20 L=50	9-09917-430-0	02	1	1311-
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=13-18 L=18	1-09709-291-0	02	1	1311-
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=21 L=24	8-98019-191-0	02	1	1311-1510
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=21 L=24	8-98019-191-0	02	1	1511-1511
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=21 L=24	8-98019-191-0	02	1	1511-1511
79	CLIP; BATTERY CABLE (A) ID=15 L=28	1-09701-216-0	01	1	1106-1310
79	CLIP; BATTERY CABLE 4HK1-TCS ENG(RJS) (C) ID=20 L=50	9-09917-430-0	06	1	1311-
79	CLIP; BATTERY CABLE (B) ID=13-18 L=26	1-09709-293-0	02	1	1106-1310
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=13-18 L=26	1-09709-293-0	02	1	1311-
79	CLIP; BATTERY CABLE (A) ID=21 L=24	8-98019-191-0	03	1	1106-1310
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=21 L=24	8-98019-191-0	01	1	1311-1511
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) WHEEL BASE 4200MM(42W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=21 L=24	8-98019-191-0	02	1	1512-
79	CLIP; BATTERY CABLE (C) ID=20 L=50	9-09917-430-0	01	1	1106-1310
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) (C) ID=20 L=50	9-09917-430-0	01	1	1311-
79	CLIP; BATTERY CABLE WHEEL BASE 4200MM(42W) (A) ID=21 L=24	8-98019-191-0	02	1	1106-1310
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) (A) ID=21 L=24	8-98019-191-0	03	1	1311-1510
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) (A) ID=21 L=24	8-98019-191-0	03	1	1511-
79	CLIP; BATTERY CABLE WHEEL BASE 5500MM(55W) (A) ID=19 L=40	0-95235-876-0	01	1	1106-1310
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (A) ID=19 L=40	0-95235-876-0	01	1	1311-1510
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=19 L=40	0-95235-876-0	01	1	1511-
79	CLIP; BATTERY CABLE WHEEL BASE 5500MM(55W) (B) ID=19 L=24 H=21	1-09700-109-1	01	1	1106-1310
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) (B) ID=19 L=24 H=21	1-09700-109-1	01	1	1311-1510
79	CLIP; BATTERY CABLE 6HK1-TCN ENG(82L) WHEEL BASE 5500MM(55W) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=19 L=24 H=21	1-09700-109-1	01	1	1511-
107	CLIP; BAND L=140	5-09707-031-1	01	1	1106-
112	TERMINAL; BATTERY <+>	8-97365-771-0	01	1	1106-1408
112	TERMINAL; BATTERY <+>	8-98290-356-0	01	1	1409-
217	CLIP; BAND,CABLE L=250	5-09707-030-1	01	1	1106-1310
217	CLIP; BAND,CABLE 4HK1-TCS ENG(RJS) L=250	5-09707-030-1	01	1	1311-
217	CLIP; BAND,CABLE 6HK1-TCN ENG(82L) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=250	5-09707-030-1	01	1	1311-
222	BOLT; EARTH CABLE M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1106-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
