0-42B — FUEL PUMP AND PIPE (#5512) — 124 parça

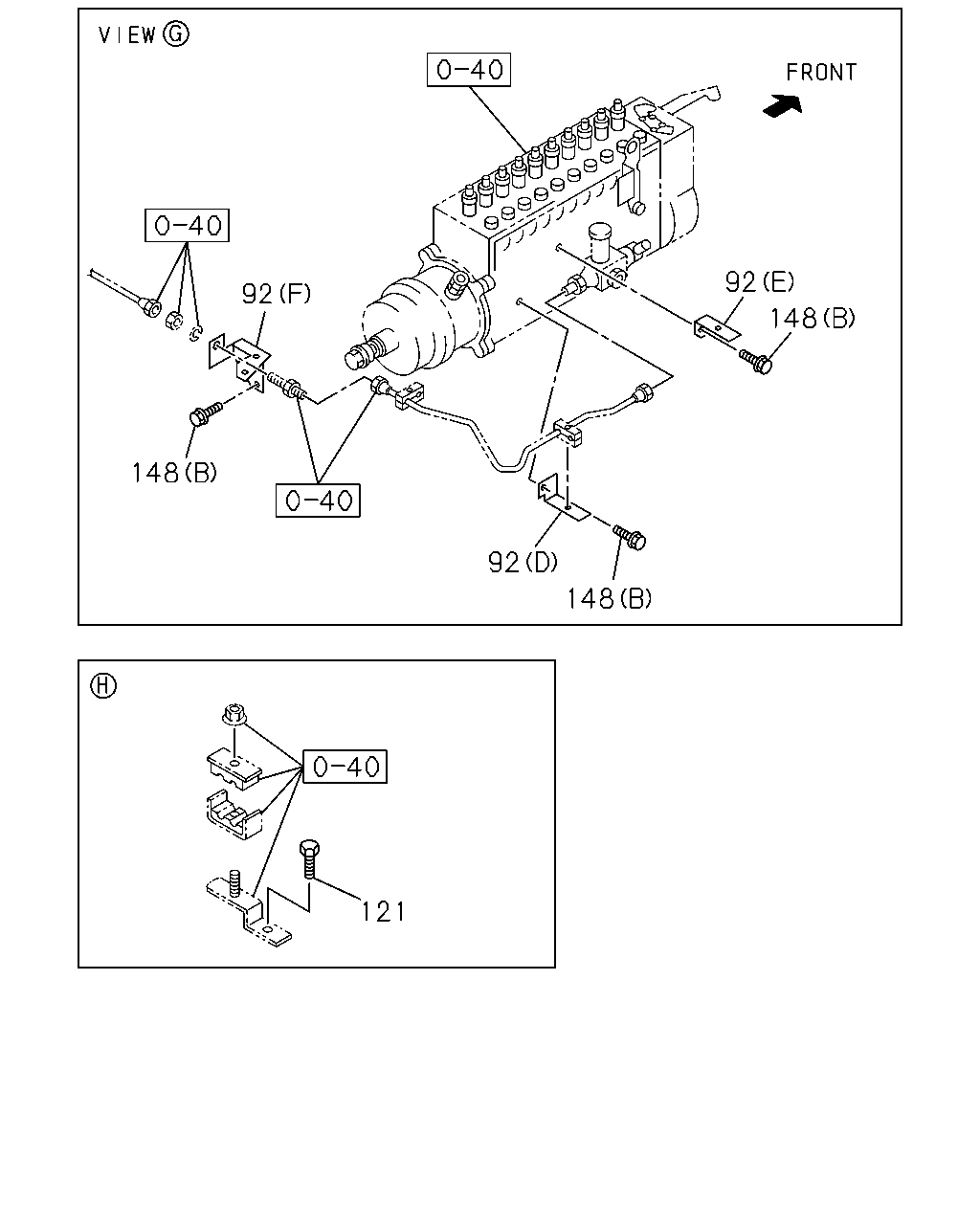

92 92 148 148 92 148 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
92	BRACKET; FUEL PIPE (A)	1-15419-363-1	01	1	9603-9612	●
92	BRACKET; FUEL PIPE (C)	1-15419-428-0	01	1	9603-9612	●
92	BRACKET; FUEL PIPE (B)	1-15419-462-0	01	1	9603-9612	●
92	BRACKET; FUEL PIPE (A)	1-15419-363-1	01	1	9701-9708	●
92	BRACKET; FUEL PIPE (C)	1-15419-428-0	01	1	9701-9708	●
92	BRACKET; FUEL PIPE (B)	1-15419-462-0	01	1	9701-9708	●
92	BRACKET; FUEL PIPE (D)	1-15419-455-0	01	1	9703-9705	●
92	BRACKET; FUEL PIPE (E)	1-15419-456-0	01	1	9703-9705	●
92	BRACKET; FUEL PIPE (F)	1-15419-458-0	01	1	9703-9708	●
92	BRACKET; FUEL PIPE (D)	1-15419-455-0	01	1	9706-9710	●
92	BRACKET; FUEL PIPE (D)	1-15419-455-0	01	1	9711-9801	●
92	BRACKET; FUEL PIPE (E)	1-15419-456-0	01	1	9706-9801	●
92	BRACKET; FUEL PIPE (A)	1-15419-363-1	01	1	9709-9904	●
92	BRACKET; FUEL PIPE (C)	1-15419-428-0	01	1	9709-9711	●
92	BRACKET; FUEL PIPE (F)	1-15419-458-0	01	1	9709-9809	●
92	BRACKET; FUEL PIPE (B)	1-15419-462-0	01	1	9709-9904	●
92	BRACKET; FUEL PIPE (C)	1-15419-428-0	01	1	9712-9904	●
92	BRACKET; FUEL PIPE (D)	1-15419-455-0	01	1	9802-9904	●
92	BRACKET; FUEL PIPE (A)	1-15419-363-1	01	1	9905-9910	●	●
92	BRACKET; FUEL PIPE (A)	1-15419-622-0	01	1	9911-	●	●
92	BRACKET; FUEL PIPE (E)	1-15419-456-0	01	1	9802-9904	●
92	BRACKET; FUEL PIPE (F)	1-15419-458-0	01	1	9810-9904	●
92	BRACKET; FUEL PIPE (B)	1-15419-462-0	01	1	9905-9905	●
92	BRACKET; FUEL PIPE (B)	1-15419-462-0	01	1	9905-	●	●
92	BRACKET; FUEL PIPE (C)	1-15419-428-0	01	1	9905-	●	●
92	BRACKET; FUEL PIPE (D)	1-15419-455-0	01	1	9905-	●	●
92	BRACKET; FUEL PIPE (B)	1-15419-384-1	01	1	9905-		●
92	BRACKET; FUEL PIPE (E)	1-15419-456-0	01	1	9905-	●	●
92	BRACKET; FUEL PIPE (F)	1-15419-458-0	01	1	9905-	●	●
121	BOLT; CLIP M6X30 FLANGE	0-28080-630-0	01	1	9905-	●	●
148	BOLT; BRKT EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M10X20 FLANGE	0-28181-020-0	02	1	9603-9603	●
148	BOLT; BRKT (C) M10X20 FLANGE	0-28181-020-0	02	1	9604-9604	●
148	BOLT; BRKT (C) M10X20 FLANGE	0-28181-020-0	02	1	9605-9904	●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	01	1	9603-9603	●
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	02	1	9603-9603	●
148	BOLT; BRKT EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M10X16 FLANGE	0-28181-016-0	02	1	9603-9603	●
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	02	1	9604-9612	●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	01	1	9604-9702	●
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	02	1	9701-9708	●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	06	1	9703-9708	●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	06	1	9709-9904	●
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	02	1	9709-9904	●
148	BOLT; BRKT (C) M10X20 FLANGE	0-28181-020-0	02	1	9905-	●	●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	06	1	9905-	●	●
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	02	1	9905-0003	●	●
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	02	1	0004-	●	●

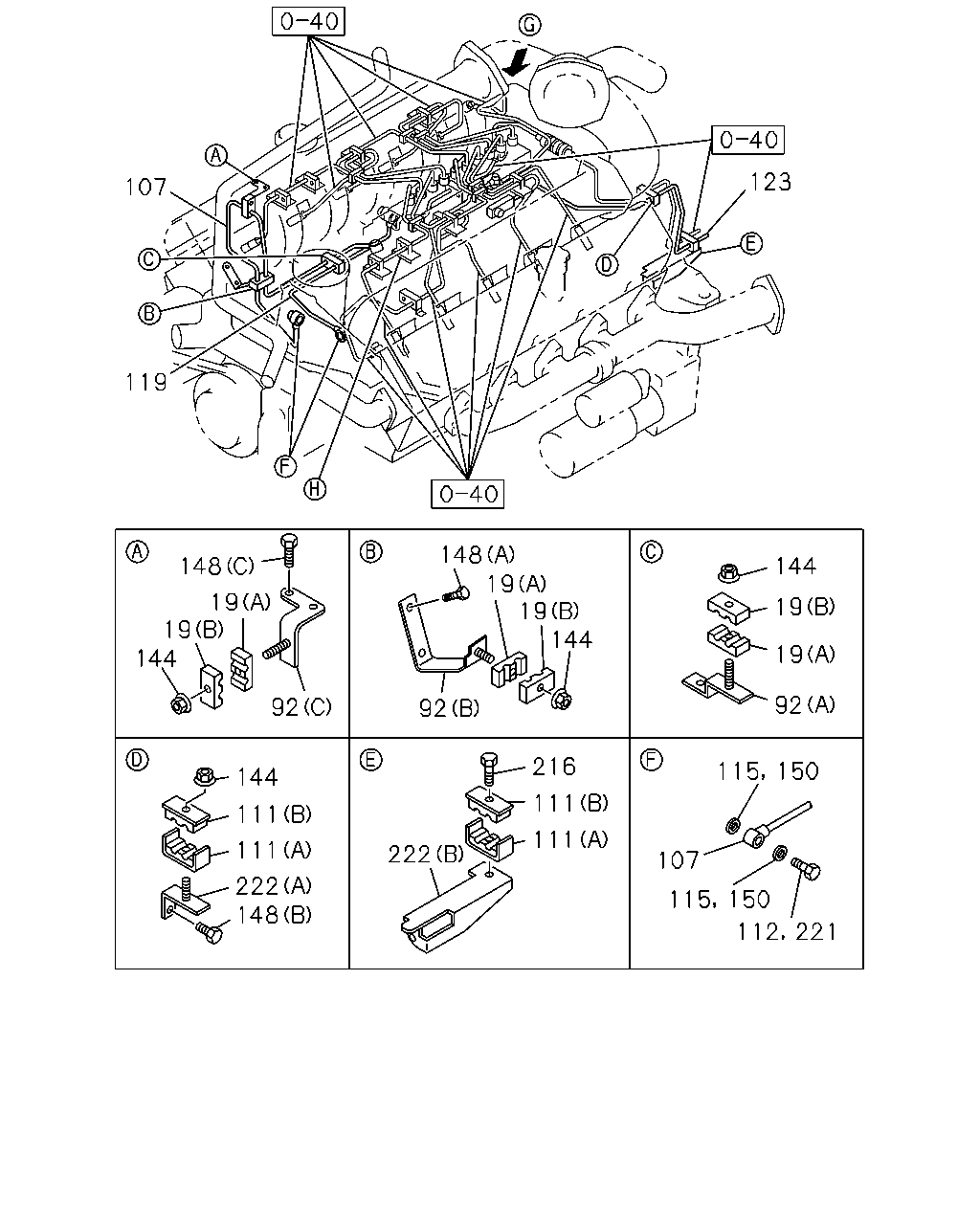

123 107 119 148 19 19 144 148 144 19 19 144 19 19 92 92 92 216 115 150 144 111 111 111 111 222 107 222 148 115 150 112 221

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	CLIP; FUEL PIPE (A)	1-09701-180-0	03	1	9603-9904	●
19	CLIP; FUEL PIPE (A)	1-09701-180-0	03	1	9905-	●	●
19	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-1	03	1	9603-9904	●
19	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-2	03	1	9905-	●	●
92	BRACKET; FUEL PIPE (A)	1-15419-363-1	01	1	9603-9612	●
92	BRACKET; FUEL PIPE (C)	1-15419-428-0	01	1	9603-9612	●
92	BRACKET; FUEL PIPE (B)	1-15419-462-0	01	1	9603-9612	●
92	BRACKET; FUEL PIPE (A)	1-15419-363-1	01	1	9701-9708	●
92	BRACKET; FUEL PIPE (C)	1-15419-428-0	01	1	9701-9708	●
92	BRACKET; FUEL PIPE (B)	1-15419-462-0	01	1	9701-9708	●
92	BRACKET; FUEL PIPE (D)	1-15419-455-0	01	1	9703-9705	●
92	BRACKET; FUEL PIPE (E)	1-15419-456-0	01	1	9703-9705	●
92	BRACKET; FUEL PIPE (F)	1-15419-458-0	01	1	9703-9708	●
92	BRACKET; FUEL PIPE (D)	1-15419-455-0	01	1	9706-9710	●
92	BRACKET; FUEL PIPE (D)	1-15419-455-0	01	1	9711-9801	●
92	BRACKET; FUEL PIPE (E)	1-15419-456-0	01	1	9706-9801	●
92	BRACKET; FUEL PIPE (A)	1-15419-363-1	01	1	9709-9904	●
92	BRACKET; FUEL PIPE (C)	1-15419-428-0	01	1	9709-9711	●
92	BRACKET; FUEL PIPE (F)	1-15419-458-0	01	1	9709-9809	●
92	BRACKET; FUEL PIPE (B)	1-15419-462-0	01	1	9709-9904	●
92	BRACKET; FUEL PIPE (C)	1-15419-428-0	01	1	9712-9904	●
92	BRACKET; FUEL PIPE (D)	1-15419-455-0	01	1	9802-9904	●
92	BRACKET; FUEL PIPE (A)	1-15419-363-1	01	1	9905-9910	●	●
92	BRACKET; FUEL PIPE (A)	1-15419-622-0	01	1	9911-	●	●
92	BRACKET; FUEL PIPE (E)	1-15419-456-0	01	1	9802-9904	●
92	BRACKET; FUEL PIPE (F)	1-15419-458-0	01	1	9810-9904	●
92	BRACKET; FUEL PIPE (B)	1-15419-462-0	01	1	9905-9905	●
92	BRACKET; FUEL PIPE (B)	1-15419-462-0	01	1	9905-	●	●
92	BRACKET; FUEL PIPE (C)	1-15419-428-0	01	1	9905-	●	●
92	BRACKET; FUEL PIPE (D)	1-15419-455-0	01	1	9905-	●	●
92	BRACKET; FUEL PIPE (B)	1-15419-384-1	01	1	9905-		●
92	BRACKET; FUEL PIPE (E)	1-15419-456-0	01	1	9905-	●	●
92	BRACKET; FUEL PIPE (F)	1-15419-458-0	01	1	9905-	●	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-726-1	01	1	9603-9904	●
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-726-2	01	1	9905-	●	●
111	CLIP; FUEL PIPE (A)	1-09701-193-1	02	1	9603-9904	●
111	CLIP; FUEL PIPE (A)	1-09701-193-1	02	1	9905-	●	●
111	CLIP; FUEL PIPE (B)	1-09701-194-0	02	1	9603-9904	●
111	CLIP; FUEL PIPE (B)	1-09701-194-1	02	1	9905-	●	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9603-9609	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9610-9810	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9811-9904	●
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	9905-	●	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9603-9810	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9811-9904	●
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-	●	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-641-0	01	1	9603-9904	●
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-641-1	01	1	9905-	●	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15415-659-1	01	1	9603-9904	●
123	PIPE; FUEL,FUEL FILTER LEAK OFF	1-15415-659-1	01	1	9905-	●	●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	04	1	9603-9904	●
144	NUT; CLIP M6 FLANGE	0-91150-106-0	04	1	9905-	●	●
148	BOLT; BRKT EXC. EMISSION SYSTEM ECE REQUIREMENTS<SFV> (C) M10X20 FLANGE	0-28181-020-0	02	1	9603-9603	●
148	BOLT; BRKT (C) M10X20 FLANGE	0-28181-020-0	02	1	9604-9604	●
148	BOLT; BRKT (C) M10X20 FLANGE	0-28181-020-0	02	1	9605-9904	●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	01	1	9603-9603	●
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	02	1	9603-9603	●
148	BOLT; BRKT EMISSION SYSTEM ECE REQUIREMENTS<SFV> (A) M10X16 FLANGE	0-28181-016-0	02	1	9603-9603	●
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	02	1	9604-9612	●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	01	1	9604-9702	●
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	02	1	9701-9708	●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	06	1	9703-9708	●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	06	1	9709-9904	●
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	02	1	9709-9904	●
148	BOLT; BRKT (C) M10X20 FLANGE	0-28181-020-0	02	1	9905-	●	●
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	06	1	9905-	●	●
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	02	1	9905-0003	●	●
148	BOLT; BRKT (A) M10X16 FLANGE	0-28181-016-0	02	1	0004-	●	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9603-9904	●
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9905-	●	●
216	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28080-635-0	01	1	9603-9904	●
216	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28080-635-0	01	1	9905-	●	●
221	BOLT; FUEL PIPE M14X27 FLANGE	1-09675-086-0	01	1	9603-9904	●
221	BOLT; FUEL PIPE M14X27 FLANGE	1-09675-086-0	01	1	9905-	●	●
222	BRACKET; CLIP (A)	1-15419-383-1	01	1	9603-9904	●
222	BRACKET; CLIP (A)	1-15419-383-1	01	1	9905-	●	●
222	BRACKET; CLIP (B)	1-15419-402-1	01	1	9603-9904	●
222	BRACKET; CLIP (B)	1-15419-402-1	01	1	9905-	●	●
