0-60 — ENGINE ELECTRICAL CONTROL PARTS (#55119) — 145 parça

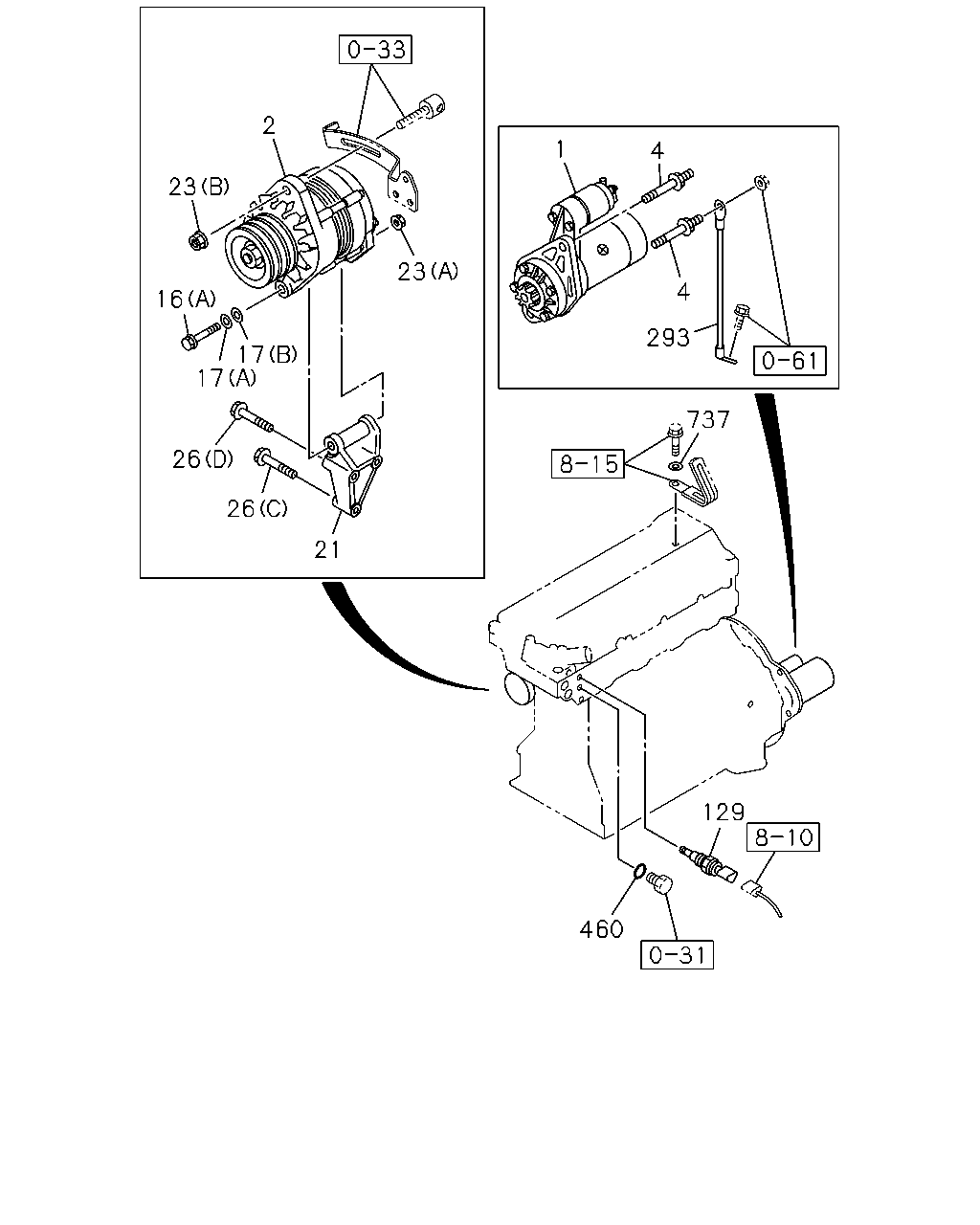

2 23 16 17 17 23 26 26 21 1 4 293 737 460 129 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) 24V 4.5KW HITACHI	8-98222-023-0	01	1	1311-1311
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) 24V 4.5KW HITACHI	8-98245-260-1	01	1	1312-
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI	8-98141-206-2	01	1	1106-1310
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6HK1-TCN ENG(82L) 24V 5.0KW MITSUBISHI	8-98141-206-3	01	1	1311-1409
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6HK1-TCN ENG(82L) 24V 5.0KW MITSUBISHI	8-98261-669-0	01	1	1410-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 4HK1-TCS ENG(RJS) 24V 60A NIKKO	8-98013-456-4	01	1	1311-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 60A NIKKO	8-98013-462-3	01	1	1106-1310
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) 24V 60A NIKKO	8-98013-462-5	01	1	1311-
4	BOLT; STARTER 4HK1-TCS ENG(RJS) M10X15,M14X82 L=110	8-98029-095-0	02	1	1311-
16	BOLT; GEN (A) M14X135	1-09000-133-1	01	1	1106-
16	BOLT; GEN AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE	0-28050-610-0	02	1	1106-1310
16	BOLT; GEN 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE	0-28050-610-0	02	1	1311-
16	BOLT; GEN 6HK1-TCN ENG(82L) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE	0-28050-610-0	01	1	1106-1310
16	BOLT; GEN 6HK1-TCN ENG(82L) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE	0-28050-610-0	01	1	1311-
17	WASHER; PL,GEN 4HK1-TCS ENG(RJS) (A) ID=14.2	0-91510-814-0	01	1	1311-
17	WASHER; PL,GEN 4HK1-TCS ENG(RJS) (B) ID=12.5	0-91610-712-0	01	1	1311-
17	WASHER; PL,GEN (A) ID=15	0-91610-514-0	01	1	1106-
21	BRACKET; GEN 4HK1-TCS ENG(RJS)	8-97381-404-0	01	1	1311-
23	NUT; GEN 4HK1-TCS ENG(RJS) (B) M12 FLANGE	0-91180-112-0	01	1	1311-
23	NUT; GEN (A) M14	0-91110-514-0	01	1	1106-
26	BOLT; GEN BRKT 4HK1-TCS ENG(RJS) (C) M10X50 FLANGE	0-28151-050-0	01	1	1311-
26	BOLT; GEN BRKT 4HK1-TCS ENG(RJS) (D) M10X70 FLANGE	0-28151-070-0	02	1	1311-
26	BOLT; GEN BRKT (A) M10X40 FLANGE	0-28151-040-0	02	1	1106-1310
26	BOLT; GEN BRKT 6HK1-TCN ENG(82L) (A) M10X40 FLANGE	0-28151-040-0	02	1	1311-
26	BOLT; GEN BRKT (B) M10X80 FLANGE	0-28151-080-0	02	1	1106-1310
26	BOLT; GEN BRKT 6HK1-TCN ENG(82L) (B) M10X80 FLANGE	0-28151-080-0	02	1	1311-
129	SENSOR; GLOW PLUG,THERMO 4HK1-TCS ENG(RJS) MITSUBISHI	8-98023-883-0	01	1	1311-1503
129	SENSOR; GLOW PLUG,THERMO 4HK1-TCS ENG(RJS) NISHIDA	8-98260-257-0	01	1	1504-
293	CABLE; STARTER EARTH 4HK1-TCS ENG(RJS)	8-98176-541-0	01	1	1311-
293	CABLE; STARTER EARTH L=430	8-97621-357-0	01	1	1106-1310
293	CABLE; STARTER EARTH 6HK1-TCN ENG(82L) L=430	8-97621-357-0	01	1	1311-
460	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). 4HK1-TCS ENG(RJS) ID=16.2	1-09630-086-0	01	1	1311-
737	WASHER; PL 4HK1-TCS ENG(RJS) ID=6.4 OD=18	0-91610-706-0	01	1	1311-
737	WASHER; PL 4HK1-TCS ENG(RJS) ID=9 OD=18 T=5	9-14149-173-0	01	1	1311-

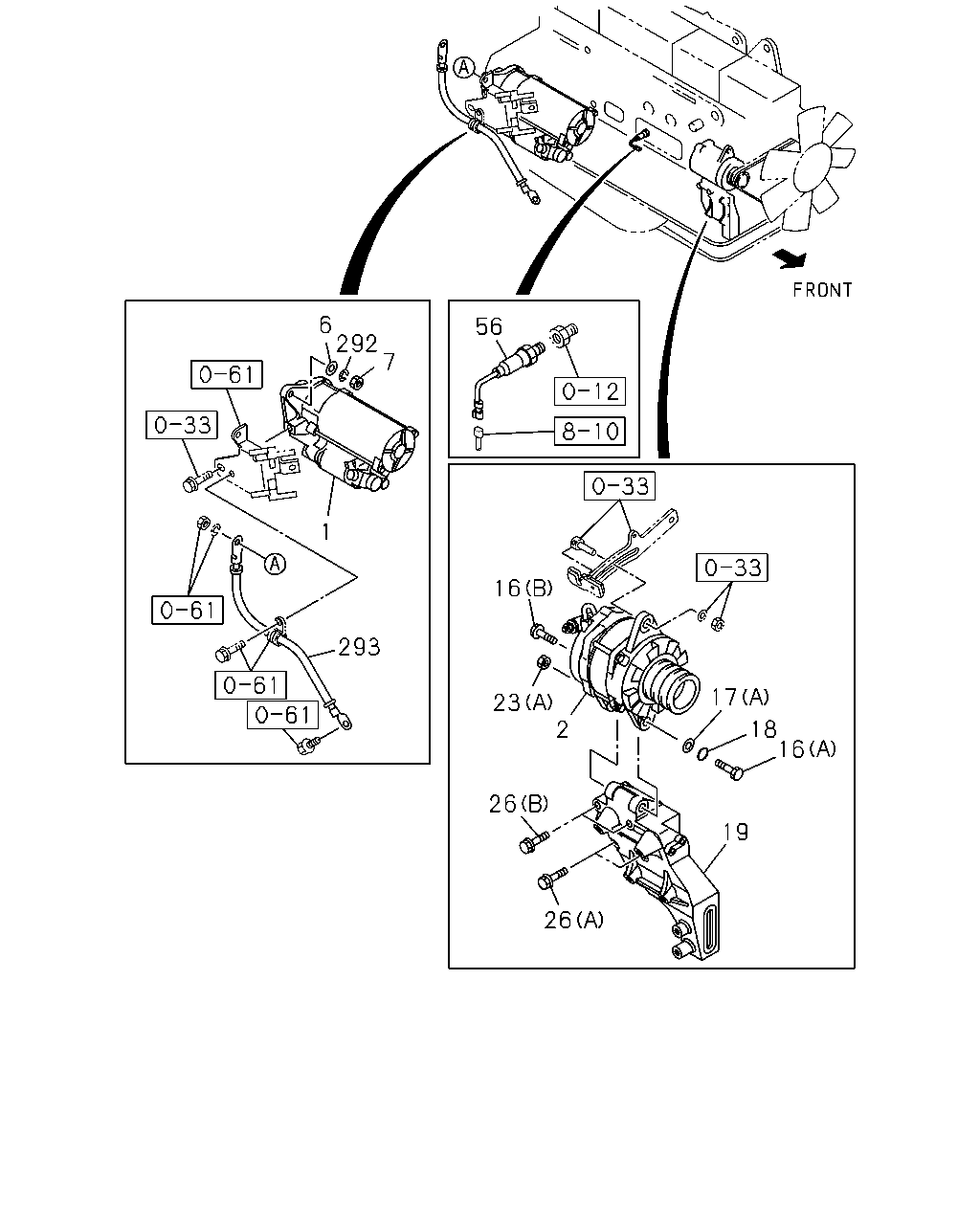

6 292 7 1 293 16 56 17 18 16 19 26 26 2 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) 24V 4.5KW HITACHI	8-98222-023-0	01	1	1311-1311
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 4HK1-TCS ENG(RJS) 24V 4.5KW HITACHI	8-98245-260-1	01	1	1312-
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI	8-98141-206-2	01	1	1106-1310
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6HK1-TCN ENG(82L) 24V 5.0KW MITSUBISHI	8-98141-206-3	01	1	1311-1409
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 6HK1-TCN ENG(82L) 24V 5.0KW MITSUBISHI	8-98261-669-0	01	1	1410-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 4HK1-TCS ENG(RJS) 24V 60A NIKKO	8-98013-456-4	01	1	1311-
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 24V 60A NIKKO	8-98013-462-3	01	1	1106-1310
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 6HK1-TCN ENG(82L) 24V 60A NIKKO	8-98013-462-5	01	1	1311-
6	WASHER; PL,STARTER ID=15	0-91610-514-0	01	1	1106-1310
6	WASHER; PL,STARTER 6HK1-TCN ENG(82L) ID=15	0-91610-514-0	01	1	1311-
7	NUT; STARTER M14	0-91110-514-0	02	1	1106-1310
7	NUT; STARTER 6HK1-TCN ENG(82L) M14	0-91110-514-0	02	1	1311-
16	BOLT; GEN (A) M14X135	1-09000-133-1	01	1	1106-
16	BOLT; GEN AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE	0-28050-610-0	02	1	1106-1310
16	BOLT; GEN 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE	0-28050-610-0	02	1	1311-
16	BOLT; GEN 6HK1-TCN ENG(82L) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE	0-28050-610-0	01	1	1106-1310
16	BOLT; GEN 6HK1-TCN ENG(82L) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE	0-28050-610-0	01	1	1311-
17	WASHER; PL,GEN 4HK1-TCS ENG(RJS) (A) ID=14.2	0-91510-814-0	01	1	1311-
17	WASHER; PL,GEN 4HK1-TCS ENG(RJS) (B) ID=12.5	0-91610-712-0	01	1	1311-
17	WASHER; PL,GEN (A) ID=15	0-91610-514-0	01	1	1106-
18	WASHER; LK,GEN ID=14.2	0-91510-514-0	01	1	1106-1310
18	WASHER; LK,GEN 6HK1-TCN ENG(82L) ID=14.2	0-91510-514-0	01	1	1311-
19	BRACKET; GEN	8-98082-615-1	01	1	1106-1310
19	BRACKET; GEN 6HK1-TCN ENG(82L)	8-98082-615-1	01	1	1311-
23	NUT; GEN 4HK1-TCS ENG(RJS) (B) M12 FLANGE	0-91180-112-0	01	1	1311-
23	NUT; GEN (A) M14	0-91110-514-0	01	1	1106-
26	BOLT; GEN BRKT 4HK1-TCS ENG(RJS) (C) M10X50 FLANGE	0-28151-050-0	01	1	1311-
26	BOLT; GEN BRKT 4HK1-TCS ENG(RJS) (D) M10X70 FLANGE	0-28151-070-0	02	1	1311-
26	BOLT; GEN BRKT (A) M10X40 FLANGE	0-28151-040-0	02	1	1106-1310
26	BOLT; GEN BRKT 6HK1-TCN ENG(82L) (A) M10X40 FLANGE	0-28151-040-0	02	1	1311-
26	BOLT; GEN BRKT (B) M10X80 FLANGE	0-28151-080-0	02	1	1106-1310
26	BOLT; GEN BRKT 6HK1-TCN ENG(82L) (B) M10X80 FLANGE	0-28151-080-0	02	1	1311-
56	SWITCH; OIL PRESSURE WARNING	1-82410-170-1	01	1	1106-1310
56	SWITCH; OIL PRESSURE WARNING 6HK1-TCN ENG(82L)	1-82410-170-1	01	1	1311-
292	WASHER; LK,STARTER ID=14.2	0-91510-514-0	01	1	1106-1310
292	WASHER; LK,STARTER 6HK1-TCN ENG(82L) ID=14.2	0-91510-514-0	01	1	1311-
293	CABLE; STARTER EARTH 4HK1-TCS ENG(RJS)	8-98176-541-0	01	1	1311-
293	CABLE; STARTER EARTH L=430	8-97621-357-0	01	1	1106-1310
293	CABLE; STARTER EARTH 6HK1-TCN ENG(82L) L=430	8-97621-357-0	01	1	1311-

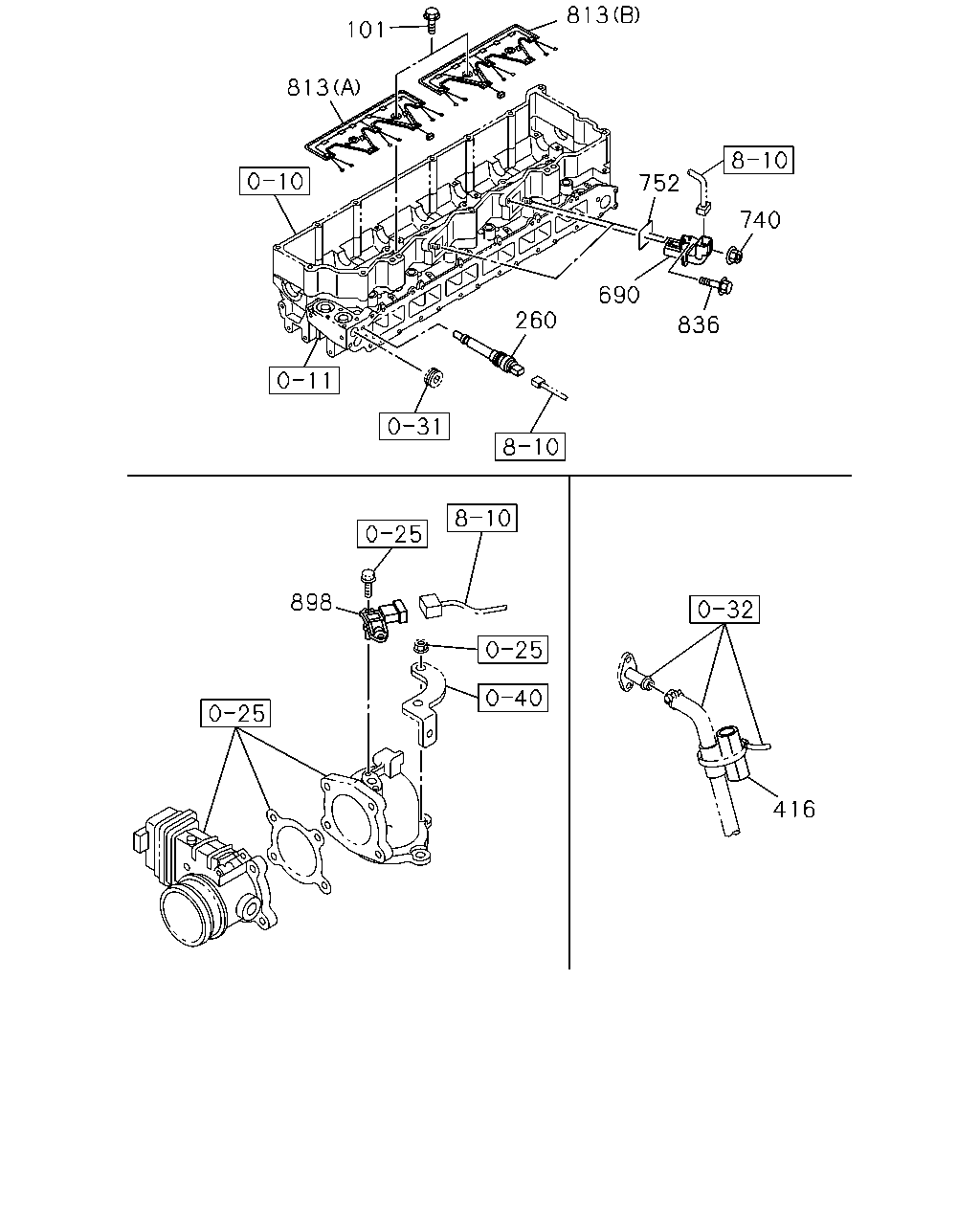

101 813 813 752 740 690 260 836 898 416

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
101	BOLT; HARNESS M8X40 FLANGE	0-28650-840-0	04	1	1106-1310
101	BOLT; HARNESS 6HK1-TCN ENG(82L) M8X40 FLANGE	0-28650-840-0	04	1	1311-
260	SENSOR; WATER TEMP MITSUBISHI	8-98023-883-0	01	1	1106-1310
260	SENSOR; WATER TEMP 6HK1-TCN ENG(82L) MITSUBISHI	8-98023-883-0	01	1	1311-1503
260	SENSOR; WATER TEMP 6HK1-TCN ENG(82L) NISHIDA	8-98260-257-0	01	1	1504-
416	SLEEVE; RUBBER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) ID=17 OD=21 L=40	1-09337-012-0	01	1	1106-1310
416	SLEEVE; RUBBER 6HK1-TCN ENG(82L) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) ID=17 OD=21 L=40	1-09337-012-0	01	1	1311-
690	CONNECTOR	8-94390-858-1	02	1	1106-1310
690	CONNECTOR 6HK1-TCN ENG(82L)	8-94390-858-1	02	1	1311-
740	NUT M8 FLANGE	0-91180-108-0	02	1	1106-1310
740	NUT 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1311-
752	GASKET ALSO INCLUDED IN GASKET SET(ENGINE).	8-94391-310-0	02	1	1106-1310
752	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1-TCN ENG(82L)	8-94391-310-0	02	1	1311-
813	HARNESS; INJECTOR (A) FRONT	8-98177-447-0	01	1	1106-1112
813	HARNESS; INJECTOR (A) FRONT	8-98204-717-0	01	1	1201-1310
813	HARNESS; INJECTOR 6HK1-TCN ENG(82L) (A) FRONT	8-98204-717-0	01	1	1311-
813	HARNESS; INJECTOR (B) REAR	8-98177-448-0	01	1	1106-1112
813	HARNESS; INJECTOR (B) REAR	8-98204-718-0	01	1	1201-1310
813	HARNESS; INJECTOR 6HK1-TCN ENG(82L) (B) REAR	8-98204-718-0	01	1	1311-
836	BOLT; CONNECTOR M8X12 FLANGE	0-28050-812-0	02	1	1106-1310
836	BOLT; CONNECTOR 6HK1-TCN ENG(82L) M8X12 FLANGE	0-28050-812-0	02	1	1311-
898	SENSOR; BOOST	8-98009-418-0	01	1	1106-1310
898	SENSOR; BOOST 6HK1-TCN ENG(82L)	8-98009-418-0	01	1	1311-

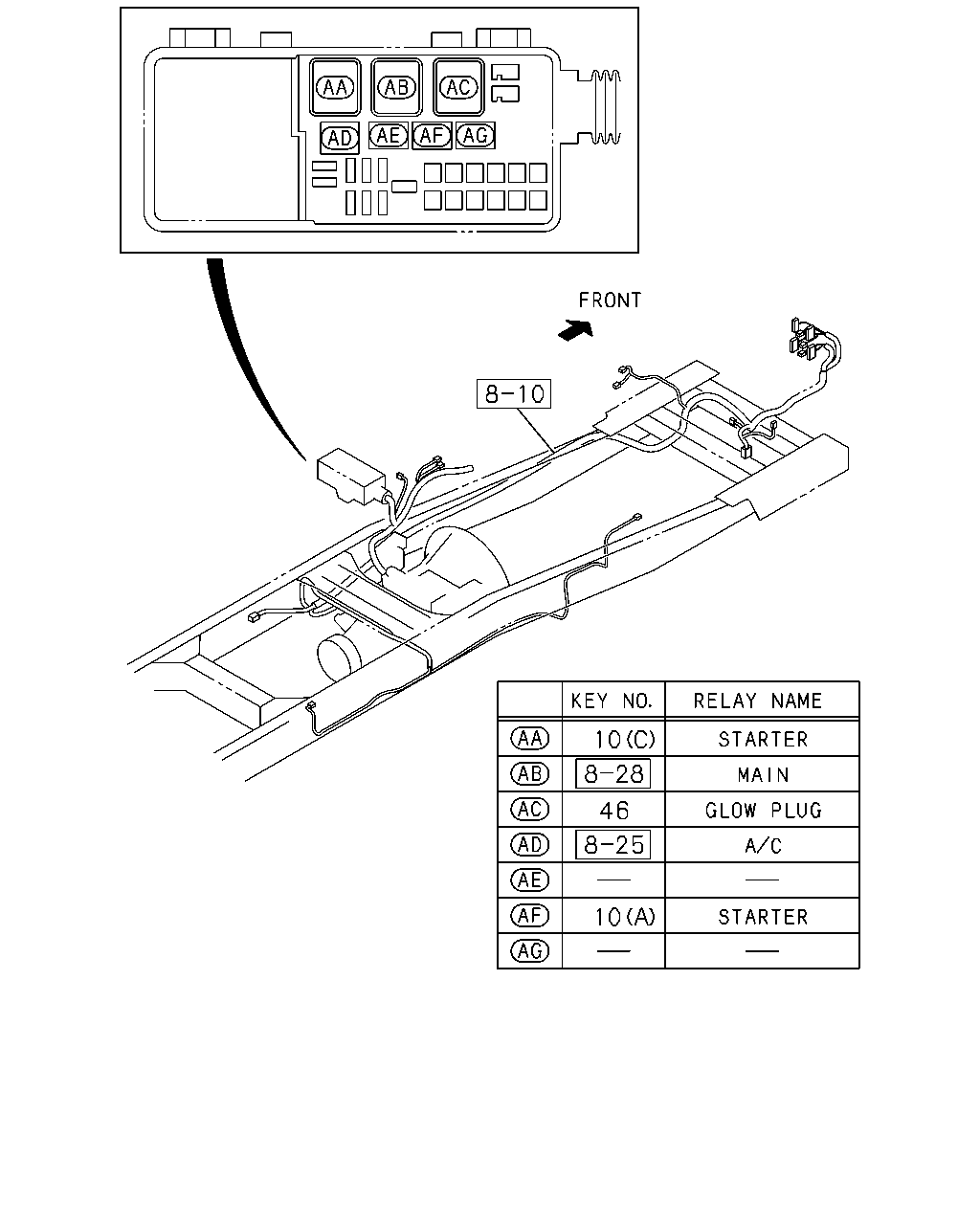

10 46 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	RELAY; STARTER 4HK1-TCS ENG(RJS) (C) 24V 50A	8-97264-947-0	01	1	1311-
10	RELAY; STARTER (B) 24V NIKKO	8-98005-631-0	01	1	1106-1310
10	RELAY; STARTER 6HK1-TCN ENG(82L) (B) 24V NIKKO	8-98005-631-1	01	1	1311-
10	RELAY; STARTER (A) 24V 10A PANASONIC	8-98167-173-0	01	1	1106-
46	RELAY; GLOW PLUG 24V 50A	8-97173-947-0	01	1	1106-

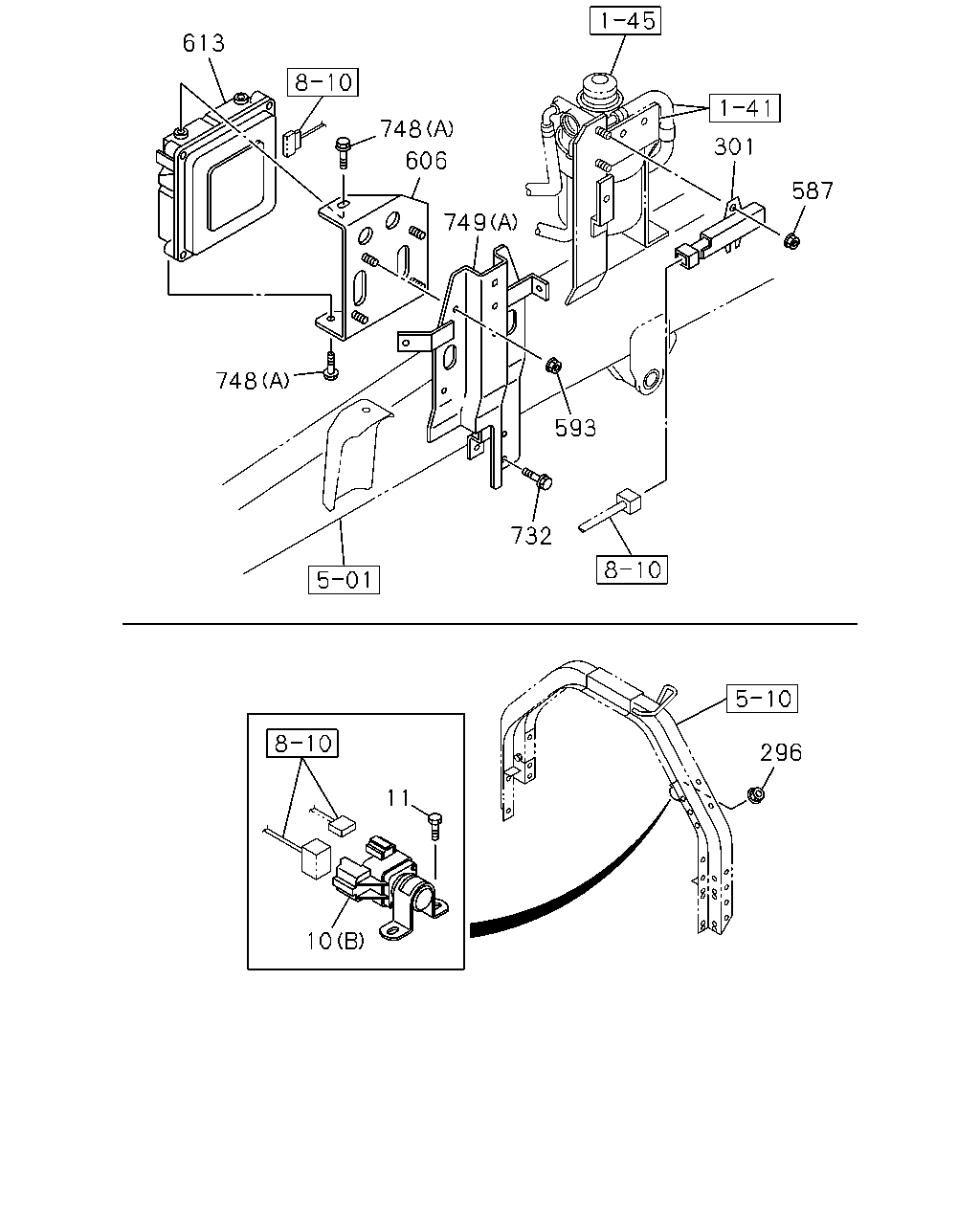

613 748 749 301 587 593 732 748 11 10 296 606

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	RELAY; STARTER 4HK1-TCS ENG(RJS) (C) 24V 50A	8-97264-947-0	01	1	1311-
10	RELAY; STARTER (B) 24V NIKKO	8-98005-631-0	01	1	1106-1310
10	RELAY; STARTER 6HK1-TCN ENG(82L) (B) 24V NIKKO	8-98005-631-1	01	1	1311-
10	RELAY; STARTER (A) 24V 10A PANASONIC	8-98167-173-0	01	1	1106-
11	BOLT; RELAY STARTER M8X20 FLANGE	0-28650-820-0	02	1	1106-1310
11	BOLT; RELAY STARTER 6HK1-TCN ENG(82L) M8X20 FLANGE	0-28650-820-0	02	1	1311-
296	NUT; RELAY,STARTER M8 FLANGE	0-91180-108-0	02	1	1106-1310
296	NUT; RELAY,STARTER 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1311-
301	RESISTOR; DROPPING	8-97357-613-0	01	1	1106-
587	NUT; RESISTOR & RELAY M6 FLANGE	0-91180-106-0	02	1	1106-
593	NUT; BRKT M6 FLANGE	0-91180-106-0	04	1	1106-
606	BRACKET; CONT UNIT	1-53194-675-0	01	1	1106-
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) SPEED LIMITER 90KM(NMJ)	8-98233-307-0	01	1	1508-
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS)	8-98213-014-1	01	1	1311-1407
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS)	8-98233-298-0	01	1	1408-1507
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) EXC. SPEED LIMITER 90KM(NMJ)	8-98233-298-0	01	1	1508-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L)	8-98174-778-1	01	1	1106-1310
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L)	8-98175-630-0	01	1	1311-1407
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L)	8-98175-634-0	01	1	1408-
732	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	03	1	1106-
748	BOLT; CONT UNIT (A) M6X12 FLANGE	0-28050-612-0	03	1	1106-
748	BOLT; CONT UNIT (B) M6X16 FLANGE	0-28650-616-0	02	1	1106-
749	STAY; CONT UNIT 4HK1-TCS ENG(RJS) (B)	8-98206-457-0	01	1	1311-
749	STAY; CONT UNIT (A)	1-53194-595-3	01	1	1106-1310
749	STAY; CONT UNIT 6HK1-TCN ENG(82L) (A)	1-53194-595-3	01	1	1311-

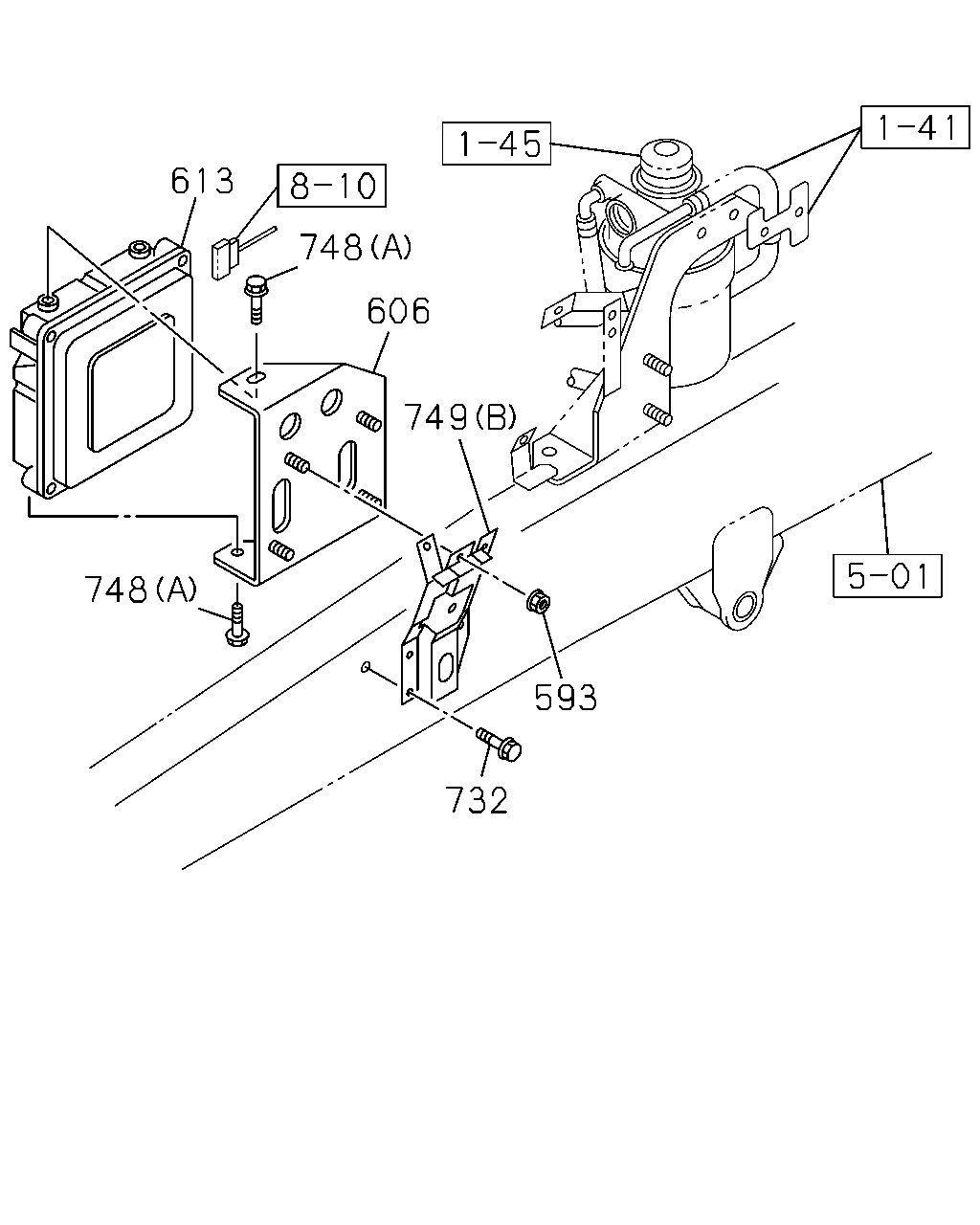

732 593 748 749 606 748 613

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
593	NUT; BRKT M6 FLANGE	0-91180-106-0	04	1	1106-
606	BRACKET; CONT UNIT	1-53194-675-0	01	1	1106-
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) SPEED LIMITER 90KM(NMJ)	8-98233-307-0	01	1	1508-
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS)	8-98213-014-1	01	1	1311-1407
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS)	8-98233-298-0	01	1	1408-1507
613	CONTROL UNIT; ENG 4HK1-TCS ENG(RJS) EXC. SPEED LIMITER 90KM(NMJ)	8-98233-298-0	01	1	1508-
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L)	8-98174-778-1	01	1	1106-1310
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L)	8-98175-630-0	01	1	1311-1407
613	CONTROL UNIT; ENG 6HK1-TCN ENG(82L)	8-98175-634-0	01	1	1408-
732	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	03	1	1106-
748	BOLT; CONT UNIT (A) M6X12 FLANGE	0-28050-612-0	03	1	1106-
748	BOLT; CONT UNIT (B) M6X16 FLANGE	0-28650-616-0	02	1	1106-
749	STAY; CONT UNIT 4HK1-TCS ENG(RJS) (B)	8-98206-457-0	01	1	1311-
749	STAY; CONT UNIT (A)	1-53194-595-3	01	1	1106-1310
749	STAY; CONT UNIT 6HK1-TCN ENG(82L) (A)	1-53194-595-3	01	1	1311-

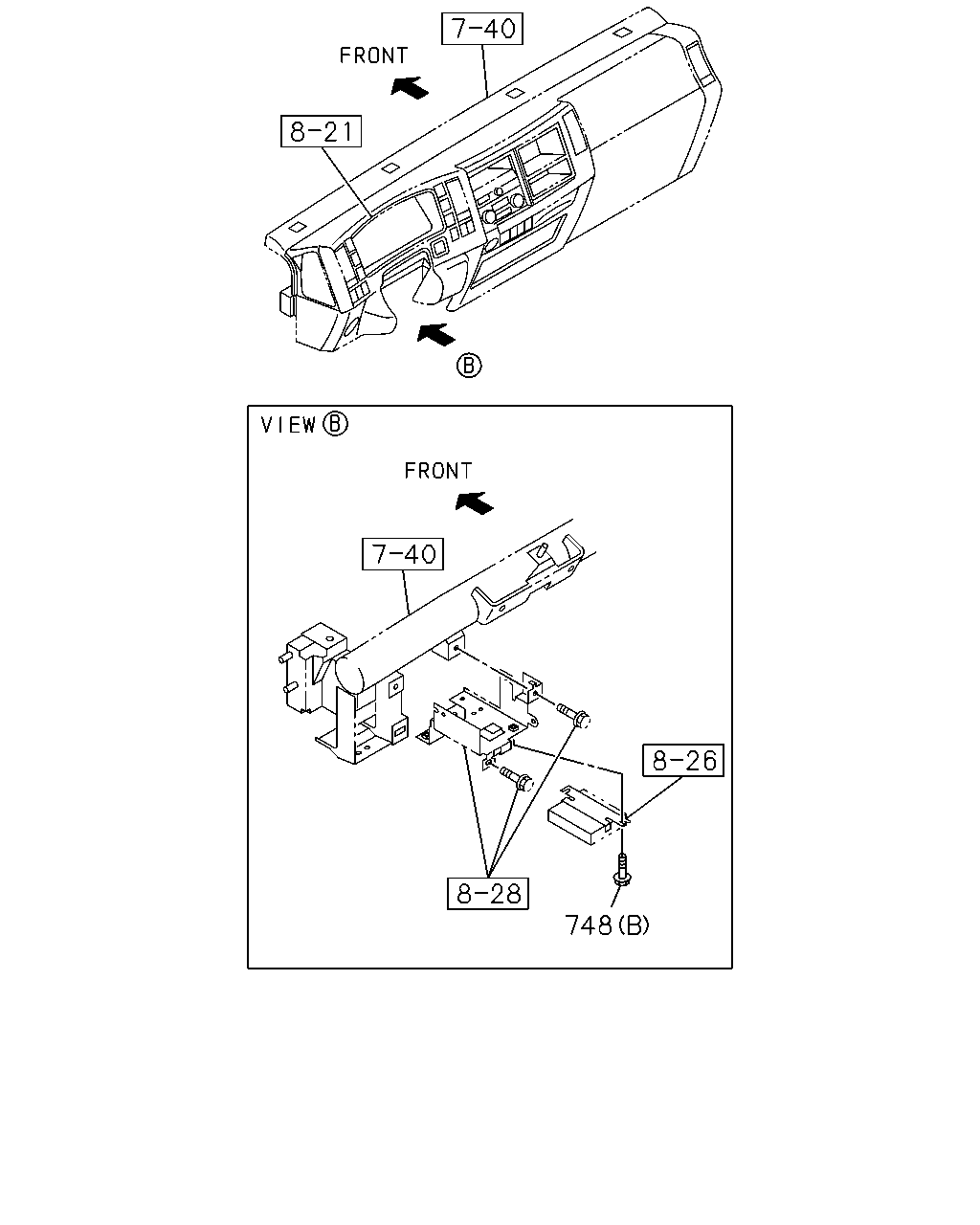

748

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	748	BOLT; CONT UNIT (A) M6X12 FLANGE	0-28050-612-0	03	1	1106-
	748	BOLT; CONT UNIT (B) M6X16 FLANGE	0-28650-616-0	02	1	1106-

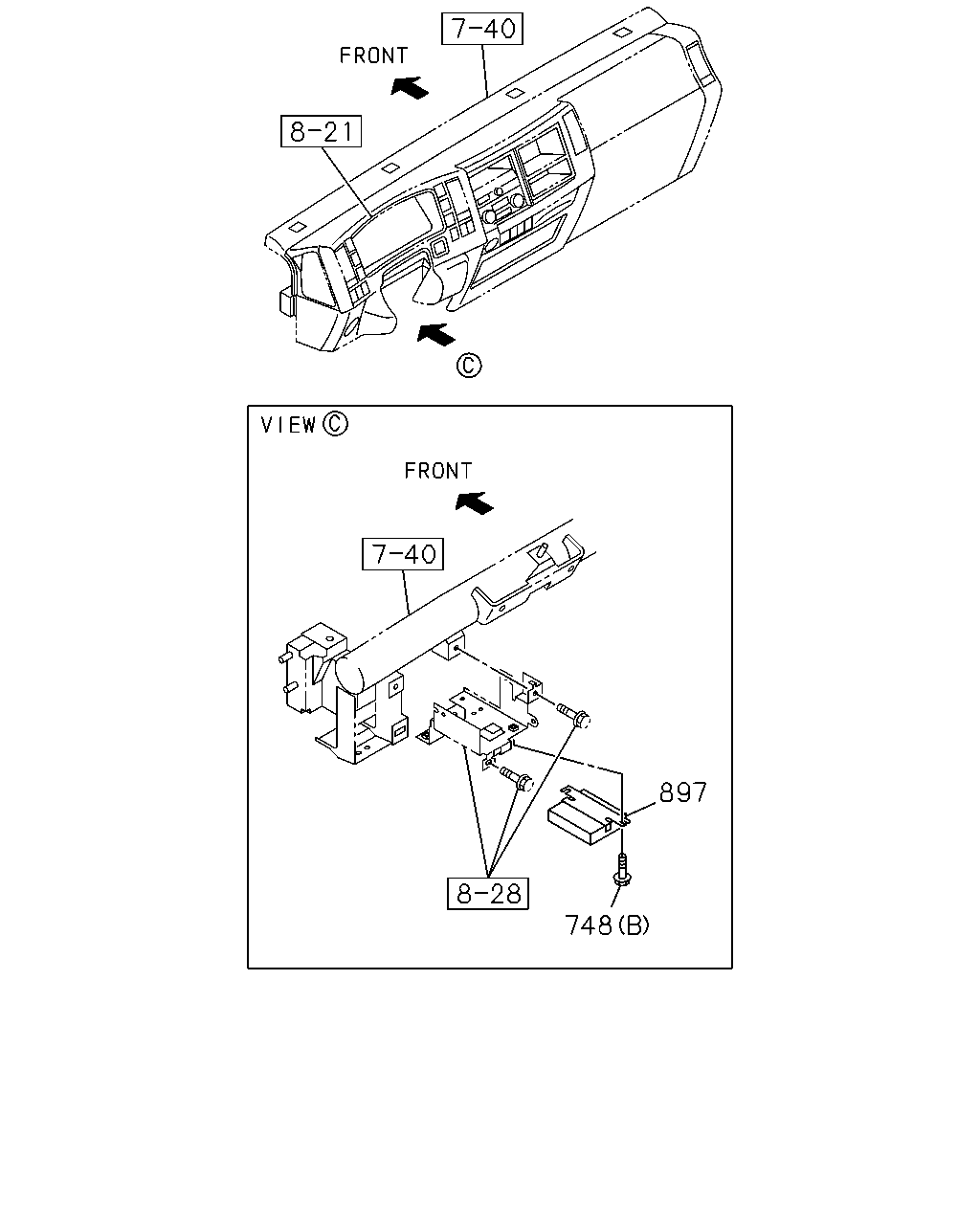

897 748

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	748	BOLT; CONT UNIT (A) M6X12 FLANGE	0-28050-612-0	03	1	1106-
	748	BOLT; CONT UNIT (B) M6X16 FLANGE	0-28650-616-0	02	1	1106-
