◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FORWARD ▶ 11412 - FORWARD 1100/1200 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-57 - EMISSION PIPING ▶
0-57 — EMISSION PIPING (#55118) — 105 parça

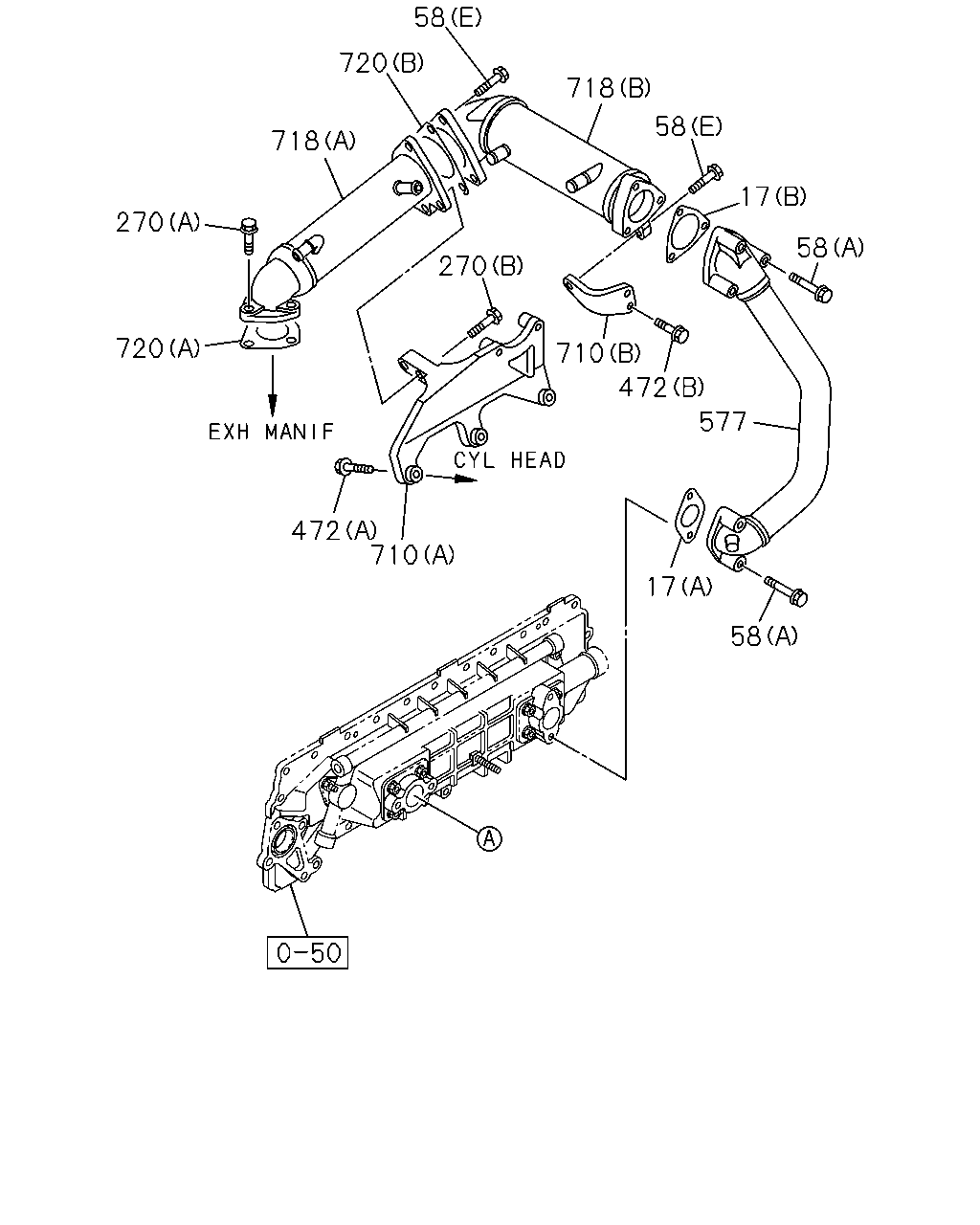

çizim 144842
58 17 58 718 58 720 718 270 720 472 710 270 472 17 58 710 577
BalonParca AdiParca NoAdetTipApplied Date A B
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=51.5 		8-98046-192-1 01 1 1311- ●
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=55 		8-97600-167-0 01 1 1106- ●
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=44.5 		8-97601-144-0 02 1 1106- ●
58 BOLT; PIPE
(A) M8X60 FLANGE 		0-28050-860-0 05 1 1106- ●
58 BOLT; PIPE
(B) M10X30 FLANGE 		0-28151-030-0 01 1 1106- ●
58 BOLT; PIPE
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1106- ●
58 BOLT; PIPE
(E) M10X35 FLANGE 		0-28751-035-0 04 1 1106- ●
58 BOLT; PIPE
(D) M8X30 FLANGE 		8-98034-764-0 01 1 1106- ●
270 BOLT
(D) M8X25 FLANGE 		0-28050-825-0 02 1 1106- ●
270 BOLT
(B) M8X35 FLANGE 		0-28050-835-0 02 1 1106- ●
270 BOLT
(C) M10X45 FLANGE 		0-28151-045-0 02 1 1106- ●
270 BOLT
(A) M8X28 FLANGE 		8-98043-528-0 03 1 1106- ●
472 BOLT; BRKT
(C) M8X25 FLANGE 		0-28660-825-0 02 1 1311- ●
472 BOLT; BRKT
(D) M10X40 FLANGE 		0-28751-040-0 02 1 1311- ●
472 BOLT; BRKT
(B) M8X30 FLANGE 		0-28050-830-0 02 1 1106- ●
472 BOLT; BRKT
(A) M8X35 FLANGE 		0-28060-835-0 03 1 1106- ●
577 PIPE; AIR,EGR 8-97604-968-1 01 1 1106- ●
710 BRACKET; EGR COOLER
(D) 		8-98025-253-2 01 1 1311- ●
710 BRACKET; EGR COOLER
(E) 		8-98025-254-1 01 1 1311- ●
710 BRACKET; EGR COOLER
(C) 		8-98055-940-1 01 1 1311- ●
710 BRACKET; EGR COOLER
(B) 		8-98030-584-0 01 1 1106- ●
710 BRACKET; EGR COOLER
(A) 		8-98125-359-0 01 1 1106-1202 ●
710 BRACKET; EGR COOLER
(A) 		8-98186-437-0 01 1 1203- ●
718 COOLER; EGR
(A) 		8-98030-582-3 01 1 1106-1401 ●
718 COOLER; EGR
(A) 		8-98250-860-0 01 1 1402- ●
718 COOLER; EGR
(B) 		8-98030-583-1 01 1 1106- ●
720 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). (C) 		8-98200-753-0 03 1 1311- ●
720 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=80 		8-97603-889-0 01 1 1106- ●
720 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=51.5 		8-98046-192-1 01 1 1106- ●

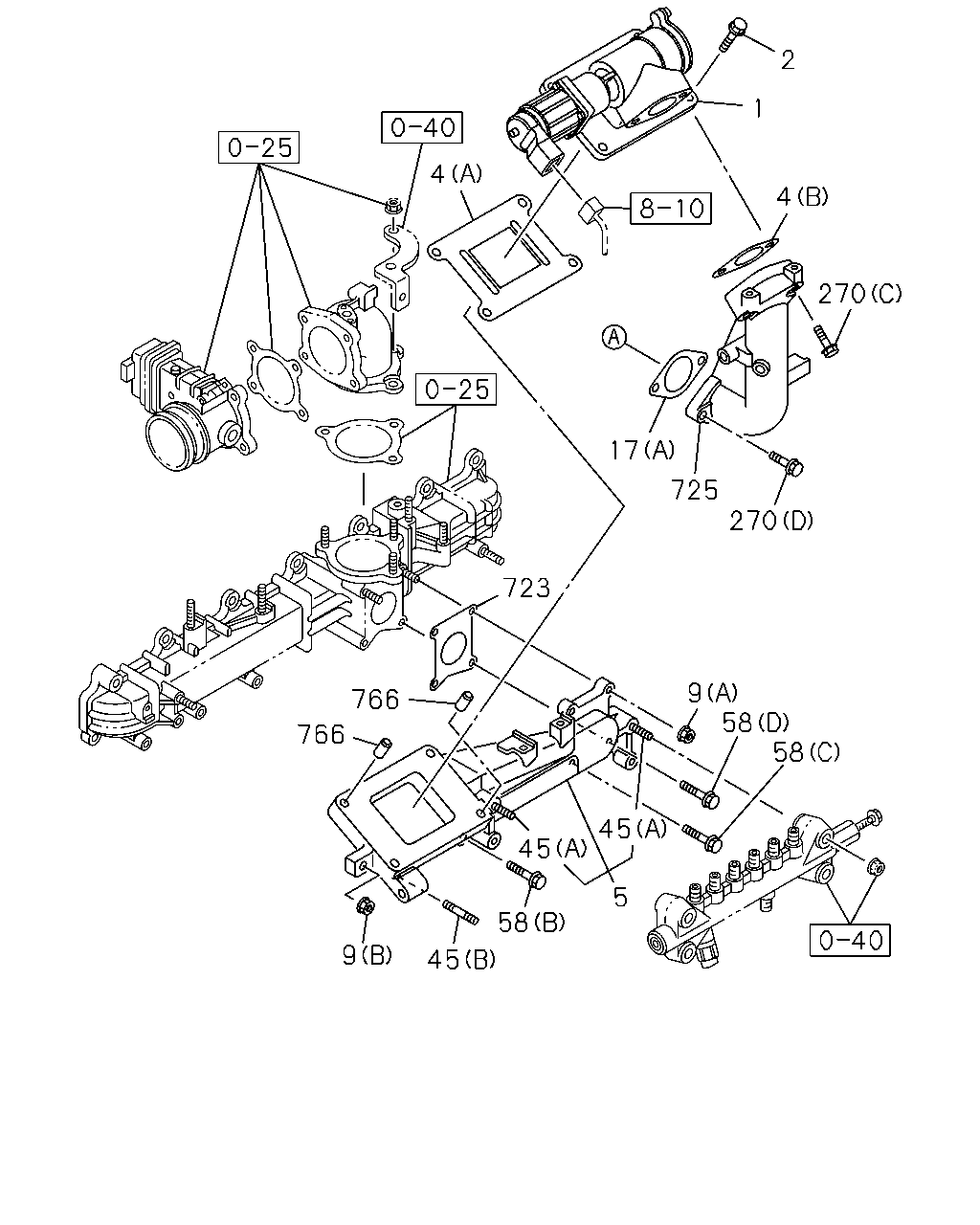

çizim 144844
2 1 4 270 270 725 17 723 9 58 58 45 45 5 58 45 9 766 766 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; EGR 8-98219-180-0 01 1 1311- ●
1 VALVE; EGR 8-97383-005-9 01 1 1106- ●
2 BOLT; EGR VLV
M8X25 FLANGE 		0-28650-825-0 01 1 1311- ●
2 BOLT; EGR VLV
M10X35 FLANGE 		0-28751-035-0 04 1 1106- ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (C) 		8-97306-040-0 01 1 1311- ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (D) 		8-98036-507-0 01 1 1311- ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=47 		8-97603-282-0 01 1 1106- ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97608-423-0 01 1 1106- ●
5 ADAPTER ASM 8-97377-804-0 01 1 1311- ●
5 ADAPTER ASM 8-97606-201-3 01 1 1106-1305 ●
5 ADAPTER ASM 8-98240-157-0 01 1 1306- ●
9 NUT; EGR ADAPTER
(A) M8 FLANGE 		0-91180-108-0 02 1 1106- ●
9 NUT; EGR ADAPTER
(B) M10 FLANGE 		0-91180-110-0 02 1 1106- ●
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=51.5 		8-98046-192-1 01 1 1311- ●
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=55 		8-97600-167-0 01 1 1106- ●
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=44.5 		8-97601-144-0 02 1 1106- ●
45 STUD; ADAPTER,EGR
(B) M10X30 L=45 		0-44011-030-0 01 1 1106- ●
45 STUD; ADAPTER,EGR
(A) M10X50 L=65 		0-44011-050-0 02 1 1106- ●
58 BOLT; PIPE
(A) M8X60 FLANGE 		0-28050-860-0 05 1 1106- ●
58 BOLT; PIPE
(B) M10X30 FLANGE 		0-28151-030-0 01 1 1106- ●
58 BOLT; PIPE
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1106- ●
58 BOLT; PIPE
(E) M10X35 FLANGE 		0-28751-035-0 04 1 1106- ●
58 BOLT; PIPE
(D) M8X30 FLANGE 		8-98034-764-0 01 1 1106- ●
270 BOLT
(D) M8X25 FLANGE 		0-28050-825-0 02 1 1106- ●
270 BOLT
(B) M8X35 FLANGE 		0-28050-835-0 02 1 1106- ●
270 BOLT
(C) M10X45 FLANGE 		0-28151-045-0 02 1 1106- ●
270 BOLT
(A) M8X28 FLANGE 		8-98043-528-0 03 1 1106- ●
723 GASKET; REED VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=52 		8-97605-995-0 01 1 1106- ●
725 DUCT; EGR VLV 8-97604-972-2 01 1 1106-1305 ●
725 DUCT; EGR VLV 8-98240-120-0 01 1 1306- ●
766 DOWEL; EGR VLV
OD=14 L=10 		9-11319-065-3 02 1 1106- ●

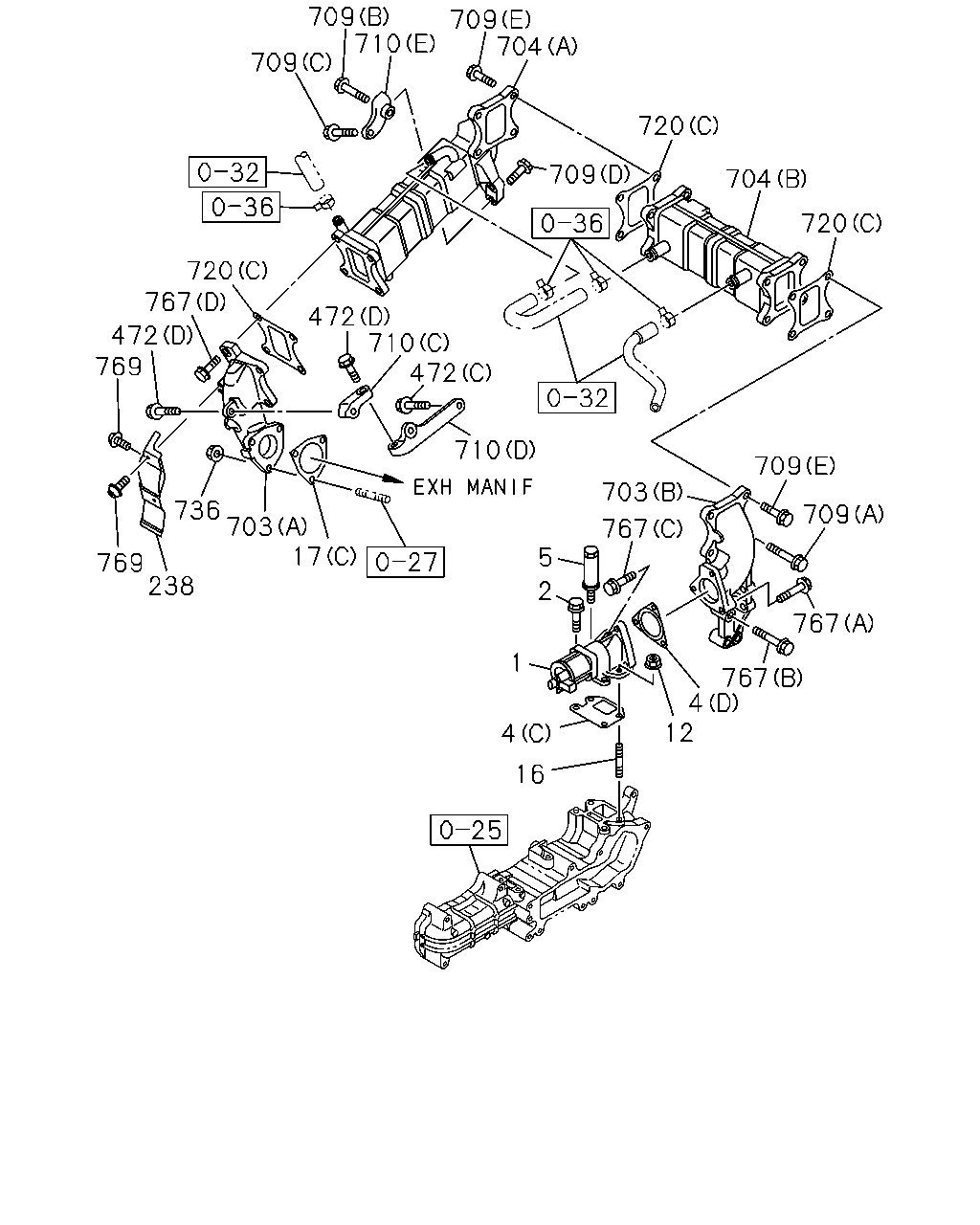

çizim 385974
709 709 710 709 704 720 709 704 720 720 767 472 769 736 769 238 703 17 472 710 472 710 709 709 767 767 4 12 16 4 1 2 5 703 767
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; EGR 8-98219-180-0 01 1 1311- ●
1 VALVE; EGR 8-97383-005-9 01 1 1106- ●
2 BOLT; EGR VLV
M8X25 FLANGE 		0-28650-825-0 01 1 1311- ●
2 BOLT; EGR VLV
M10X35 FLANGE 		0-28751-035-0 04 1 1106- ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (C) 		8-97306-040-0 01 1 1311- ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (D) 		8-98036-507-0 01 1 1311- ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=47 		8-97603-282-0 01 1 1106- ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97608-423-0 01 1 1106- ●
5 ADAPTER ASM 8-97377-804-0 01 1 1311- ●
5 ADAPTER ASM 8-97606-201-3 01 1 1106-1305 ●
5 ADAPTER ASM 8-98240-157-0 01 1 1306- ●
12 NUT; EGR VLV
M8 FLANGE 		0-91180-108-0 02 1 1311- ●
16 STUD; EGR VLV
M8X20 L=32 		0-41010-820-0 02 1 1311- ●
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=51.5 		8-98046-192-1 01 1 1311- ●
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=55 		8-97600-167-0 01 1 1106- ●
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=44.5 		8-97601-144-0 02 1 1106- ●
238 PROTECTOR; HEAT,EGR 8-98176-249-0 01 1 1311- ●
472 BOLT; BRKT
(C) M8X25 FLANGE 		0-28660-825-0 02 1 1311- ●
472 BOLT; BRKT
(D) M10X40 FLANGE 		0-28751-040-0 02 1 1311- ●
472 BOLT; BRKT
(B) M8X30 FLANGE 		0-28050-830-0 02 1 1106- ●
472 BOLT; BRKT
(A) M8X35 FLANGE 		0-28060-835-0 03 1 1106- ●
703 DUCT; EGR
(A) 		8-98115-663-0 01 1 1311- ●
703 DUCT; EGR
(B) 		8-98115-665-1 01 1 1311- ●
704 COOLER ASM; EGR
(A) 		8-98025-248-5 01 1 1311- ●
704 COOLER ASM; EGR
(B) 		8-98212-718-0 01 1 1311- ●
709 BOLT; EGR COOLER
(A) M8X45 FLANGE 		0-28060-845-0 01 1 1311- ●
709 BOLT; EGR COOLER
(B) M12X60 FLANGE 		0-28151-260-0 01 1 1311- ●
709 BOLT; EGR COOLER
(C) M8X25 FLANGE 		0-28660-825-0 01 1 1311- ●
709 BOLT; EGR COOLER
(E) M8X30 FLANGE 		0-28660-830-0 07 1 1311- ●
709 BOLT; EGR COOLER
(D) M10X40 FLANGE 		0-28751-040-0 02 1 1311- ●
710 BRACKET; EGR COOLER
(D) 		8-98025-253-2 01 1 1311- ●
710 BRACKET; EGR COOLER
(E) 		8-98025-254-1 01 1 1311- ●
710 BRACKET; EGR COOLER
(C) 		8-98055-940-1 01 1 1311- ●
710 BRACKET; EGR COOLER
(B) 		8-98030-584-0 01 1 1106- ●
710 BRACKET; EGR COOLER
(A) 		8-98125-359-0 01 1 1106-1202 ●
710 BRACKET; EGR COOLER
(A) 		8-98186-437-0 01 1 1203- ●
720 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). (C) 		8-98200-753-0 03 1 1311- ●
720 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=80 		8-97603-889-0 01 1 1106- ●
720 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=51.5 		8-98046-192-1 01 1 1106- ●
736 NUT; DUCT,EGR VLV
M8 FLANGE 		8-97061-401-1 03 1 1311- ●
767 BOLT; DUCT,EGR
(A) M8X45 FLANGE 		0-28050-845-0 02 1 1311- ●
767 BOLT; DUCT,EGR
(B) M12X50 FLANGE 		0-28151-250-0 02 1 1311- ●
767 BOLT; DUCT,EGR
(C) M8X30 FLANGE 		0-28650-830-0 01 1 1311- ●
767 BOLT; DUCT,EGR
(D) M8X28 FLANGE 		8-98043-528-0 04 1 1311- ●
769 BOLT; HEAT PROTECTOR
M6X12 W/PL WASHER 		8-98054-289-0 04 1 1311- ●
