Sayfa 0-40 - Isuzu EPC

0-40 — FUEL INJECTION SYSTEM (#55113) — 290 parça

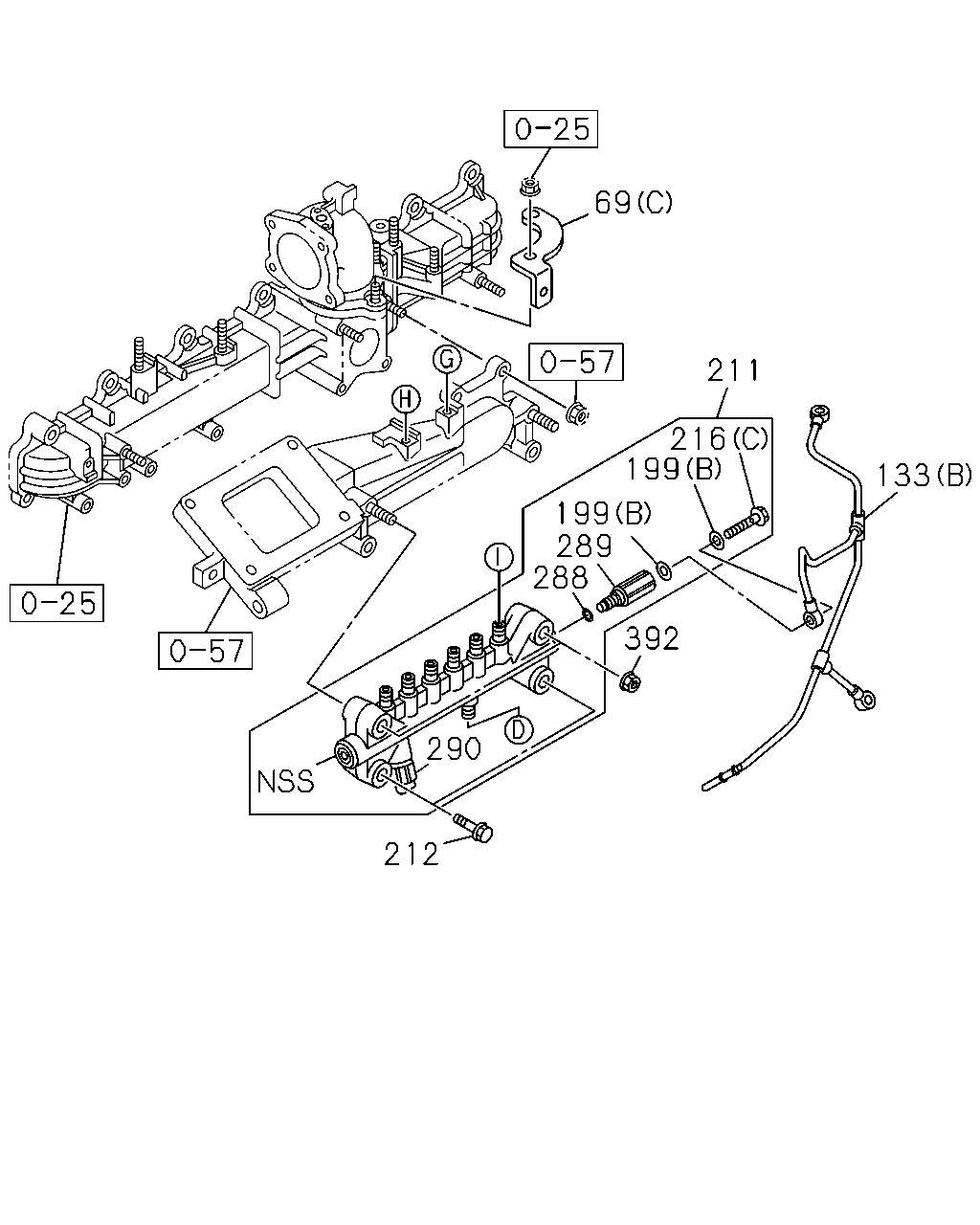

69 211 216 199 199 289 288 392 133 290 212

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
69	BRACKET; INJ PIPE CLIP (B)	8-98038-940-0	01	1	1106-	●
69	BRACKET; INJ PIPE CLIP (C)	8-98038-941-0	01	1	1106-	●
69	BRACKET; INJ PIPE CLIP (A)	8-98049-015-0	01	1	1106-	●
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-94391-311-0	01	1	1106-1206	●
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-98203-705-1	01	1	1207-	●
133	PIPE; INJ NOZZLE LEAK OFF (B)	8-97610-504-0	01	1	1106-	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1106-1310	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1311-	●	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1106-1310	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1311-	●	●
211	RAIL ASM; COMMON	8-98011-888-2	01	1	1311-		●
211	RAIL ASM; COMMON	8-97609-980-2	01	1	1106-	●
212	BOLT; RAIL ASM M10X50 FLANGE	8-97372-243-0	02	1	1106-	●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1106-1310	●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1311-	●	●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1106-1310	●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1311-	●	●
216	BOLT; EYE (C)	8-98043-033-0	01	1	1106-1310	●
216	BOLT; EYE (C)	8-98043-033-0	01	1	1311-	●	●
288	GASKET ID=11 OD=16.3	1-15641-046-0	01	1	1106-1310	●
288	GASKET ID=11 OD=16.3	1-15641-046-0	01	1	1311-	●	●
289	LIMITER; FUEL PRESS	8-98032-549-0	01	1	1106-1310	●
289	LIMITER; FUEL PRESS	8-98032-549-0	01	1	1311-	●	●
290	SENSOR; PRESS	8-98119-790-0	01	1	1106-1310	●
290	SENSOR; PRESS	8-98119-790-0	01	1	1311-	●	●
392	NUT; RAIL ASM M8 FLANGE	0-91180-108-0	02	1	1311-		●
392	NUT; RAIL ASM M10 FLANGE	0-91180-110-0	02	1	1106-	●

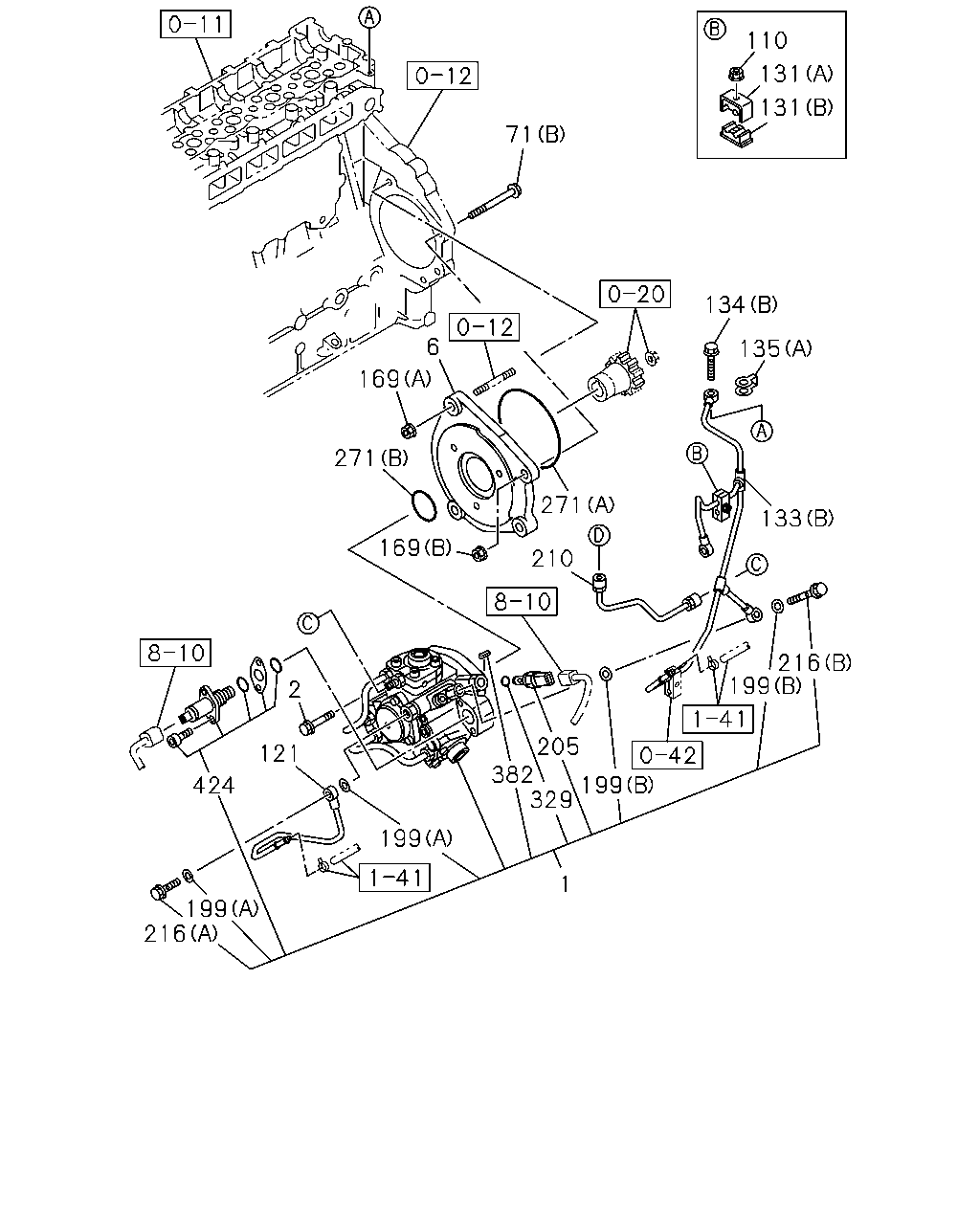

110 131 131 71 134 135 133 216 199 205 382 329 199 199 121 424 2 271 169 271 210 169 1 199 216 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ	8-97386-557-5	01	1	1311-		●
1	PUMP ASM; INJ	8-97605-946-7	01	1	1106-	●
2	BOLT; INJ PUMP M8X28	8-94399-256-0	03	1	1106-	●
6	BRACKET; INJ PUMP TO C/BL	8-97601-154-1	01	1	1106-	●
71	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	1311-		●
71	BOLT; BRKT (C) M8X40 FLANGE	0-28050-840-0	01	1	1311-		●
71	BOLT; BRKT (D) M8X60 FLANGE	0-28050-860-0	01	1	1311-		●
71	BOLT; BRKT (E) M10X60 FLANGE	0-28051-060-0	03	1	1311-		●
71	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	1106-	●
71	BOLT; BRKT (B) M12X100 FLANGE	0-28151-200-0	01	1	1106-	●
110	NUT; CLIP M6 FLANGE	0-91180-106-0	05	1	1106-	●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-98126-331-0	01	1	1106-	●
131	CLIP; OVERFLOW LEAK OFF (A) ID=7 & 9 L=25	8-98000-010-2	01	1	1106-	●
131	CLIP; OVERFLOW LEAK OFF (B) ID=7 & 9 L=25	8-98000-011-2	01	1	1106-	●
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-94391-311-0	01	1	1106-1206	●
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-98203-705-1	01	1	1207-	●
133	PIPE; INJ NOZZLE LEAK OFF (B)	8-97610-504-0	01	1	1106-	●
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	06	1	1106-	●
134	BOLT; JOINT,LEAK OFF PIPE (B) M10X21 FLANGE	8-94396-711-0	02	1	1106-	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6	8-97240-975-0	01	1	1106-1301	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6	8-98231-393-0	01	1	1302-	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0	8-98065-992-0	06	1	1106-	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17	8-98079-755-0	01	1	1106-	●
169	NUT; BRKT (C) M8 FLANGE	0-91180-108-0	02	1	1311-		●
169	NUT; BRKT (A) M10 FLANGE	0-91180-110-0	02	1	1106-	●
169	NUT; BRKT (B) M12 FLANGE	0-91180-112-0	01	1	1106-	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1106-1310	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1311-	●	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1106-1310	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1311-	●	●
205	SENSOR; FUEL TEMP	8-98023-581-0	01	1	1106-1310	●
205	SENSOR; FUEL TEMP	8-98023-581-0	01	1	1311-	●	●
210	PIPE; INJ,C/R	8-98172-184-0	01	1	1311-		●
210	PIPE; INJ,C/R	8-98145-414-0	01	1	1106-	●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1106-1310	●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1311-	●	●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1106-1310	●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1311-	●	●
216	BOLT; EYE (C)	8-98043-033-0	01	1	1106-1310	●
216	BOLT; EYE (C)	8-98043-033-0	01	1	1311-	●	●
271	GASKET; INJ PUMP (A) ID=139.6	1-09623-464-0	01	1	1106-	●
271	GASKET; INJ PUMP (B) ID=52	8-98031-844-0	01	1	1106-	●
329	GASKET; SENSOR,FUEL TEMP ID=9.8 OD=11.7	9-09566-110-0	01	1	1106-1201	●
382	KEY; DRIVE SHAFT	8-98161-995-0	01	1	1106-1310	●
382	KEY; DRIVE SHAFT	8-98161-995-0	01	1	1311-	●	●
424	OVERHAUL KIT; SUPPLY PUMP	8-98145-501-1	01	1	1311-		●
424	OVERHAUL KIT; SUPPLY PUMP	8-98145-449-1	01	1	1106-	●

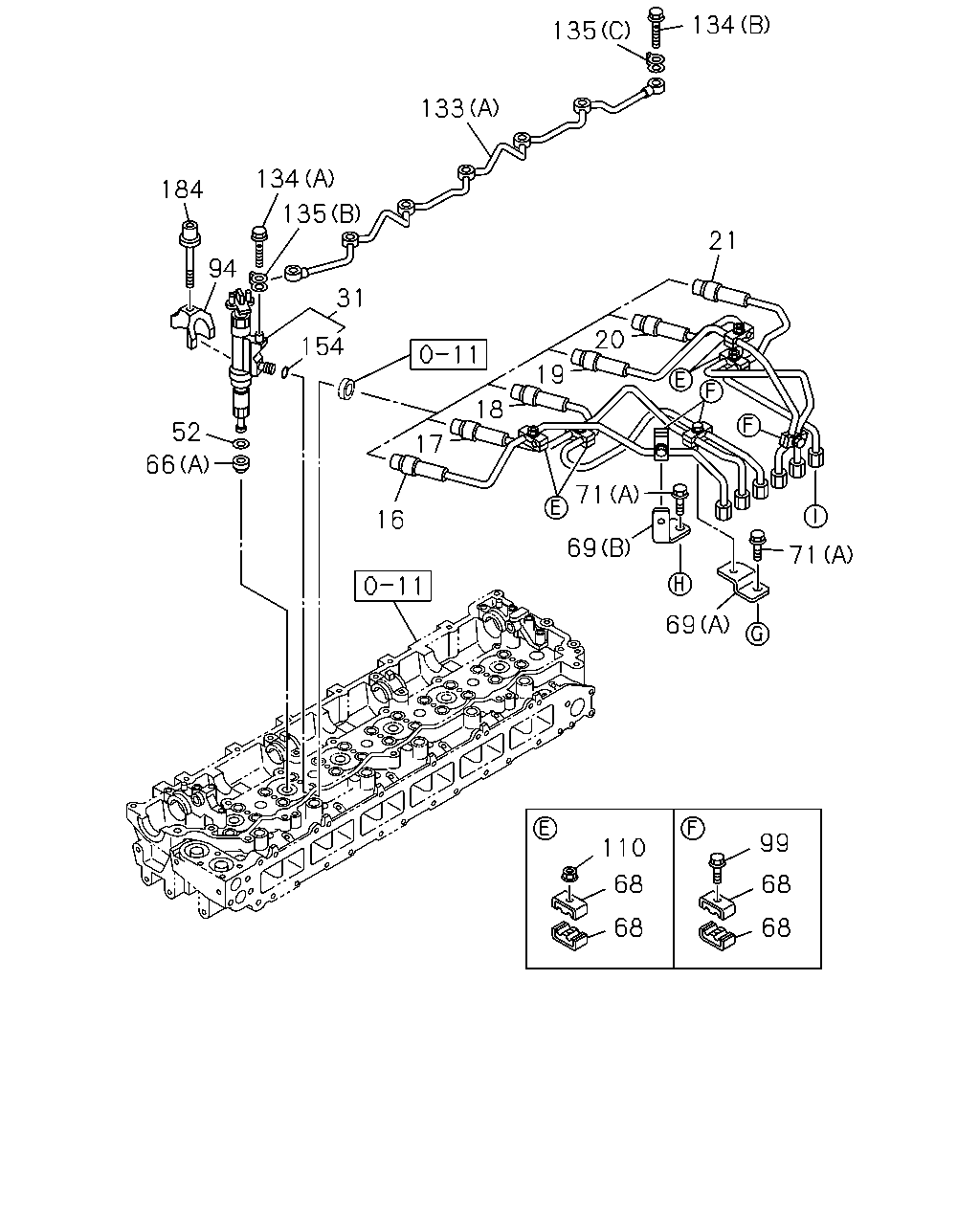

134 135 133 134 135 184 31 154 52 66 16 17 18 19 20 21 71 69 69 71 99 68 68 68 68 110 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	PIPE; INJ NO.1	8-98185-352-0	01	1	1311-1404		●
16	PIPE; INJ NO.1	8-98271-218-0	01	1	1405-1502		●
16	PIPE; INJ NO.1	8-98298-628-0	01	1	1503-		●
16	PIPE; INJ NO.1	8-98185-362-0	01	1	1106-1403	●
16	PIPE; INJ NO.1	8-98271-207-0	01	1	1404-1501	●
16	PIPE; INJ NO.1	8-98298-611-0	01	1	1502-	●
17	PIPE; INJ NO.2	8-98185-353-0	01	1	1311-1404		●
17	PIPE; INJ NO.2	8-98271-219-0	01	1	1405-1502		●
17	PIPE; INJ NO.2	8-98298-629-0	01	1	1503-		●
17	PIPE; INJ NO.2	8-98185-363-0	01	1	1106-1403	●
17	PIPE; INJ NO.2	8-98271-208-0	01	1	1404-1501	●
17	PIPE; INJ NO.2	8-98298-612-0	01	1	1502-	●
18	PIPE; INJ NO.3	8-98185-354-0	01	1	1311-1404		●
18	PIPE; INJ NO.3	8-98271-220-0	01	1	1405-1502		●
18	PIPE; INJ NO.3	8-98298-630-0	01	1	1503-		●
18	PIPE; INJ NO.3	8-98185-364-0	01	1	1106-1403	●
18	PIPE; INJ NO.3	8-98271-209-0	01	1	1404-1501	●
18	PIPE; INJ NO.3	8-98298-613-0	01	1	1502-	●
19	PIPE; INJ NO.4	8-98185-355-0	01	1	1311-1404		●
19	PIPE; INJ NO.4	8-98271-221-0	01	1	1405-1502		●
19	PIPE; INJ NO.4	8-98298-631-0	01	1	1503-		●
19	PIPE; INJ NO.4	8-98185-365-0	01	1	1106-1403	●
19	PIPE; INJ NO.4	8-98271-210-0	01	1	1404-1501	●
19	PIPE; INJ NO.4	8-98298-614-0	01	1	1502-	●
20	PIPE; INJ NO.5	8-98185-368-0	01	1	1106-1403	●
20	PIPE; INJ NO.5	8-98272-050-0	01	1	1404-1501	●
20	PIPE; INJ NO.5	8-98298-616-0	01	1	1502-	●
21	PIPE; INJ NO.6	8-98185-367-0	01	1	1106-1403	●
21	PIPE; INJ NO.6	8-98271-212-0	01	1	1404-1501	●
21	PIPE; INJ NO.6	8-98298-617-0	01	1	1502-	●
31	NOZZLE ASM; INJ	8-98219-181-0	04	1	1311-		●
31	NOZZLE ASM; INJ	8-98160-061-3	06	1	1106-	●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=23.3	8-94173-412-0	06	1	1106-	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=23.3	8-94173-412-0	04	1	1311-		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1	8-98079-248-0	04	1	1311-		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1	8-98079-248-0	06	1	1106-	●
68	CLIP; INJ PIPE ID=11 & 11 L=19	8-98039-293-0	10	1	1311-1405		●
68	CLIP; INJ PIPE ID=11 & 11 L=19	8-98148-996-2	10	1	1406-		●
68	CLIP; INJ PIPE ID=11 & 11 L=19	8-98039-293-0	14	1	1106-1405	●
68	CLIP; INJ PIPE ID=11 & 11 L=19	8-98148-996-2	14	1	1406-	●
69	BRACKET; INJ PIPE CLIP (B)	8-98038-940-0	01	1	1106-	●
69	BRACKET; INJ PIPE CLIP (C)	8-98038-941-0	01	1	1106-	●
69	BRACKET; INJ PIPE CLIP (A)	8-98049-015-0	01	1	1106-	●
71	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	1311-		●
71	BOLT; BRKT (C) M8X40 FLANGE	0-28050-840-0	01	1	1311-		●
71	BOLT; BRKT (D) M8X60 FLANGE	0-28050-860-0	01	1	1311-		●
71	BOLT; BRKT (E) M10X60 FLANGE	0-28051-060-0	03	1	1311-		●
71	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	1106-	●
71	BOLT; BRKT (B) M12X100 FLANGE	0-28151-200-0	01	1	1106-	●
94	BRACKET; INJ NOZZLE	8-98028-999-1	04	1	1311-		●
94	BRACKET; INJ NOZZLE	8-98028-999-1	06	1	1106-	●
99	BOLT; CLIP,INJ,PIPE M6X35 FLANGE	0-28050-635-0	03	1	1106-	●
110	NUT; CLIP M6 FLANGE	0-91180-106-0	05	1	1106-	●
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-94391-311-0	01	1	1106-1206	●
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-98203-705-1	01	1	1207-	●
133	PIPE; INJ NOZZLE LEAK OFF (B)	8-97610-504-0	01	1	1106-	●
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	06	1	1106-	●
134	BOLT; JOINT,LEAK OFF PIPE (B) M10X21 FLANGE	8-94396-711-0	02	1	1106-	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6	8-97240-975-0	01	1	1106-1301	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6	8-98231-393-0	01	1	1302-	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0	8-98065-992-0	06	1	1106-	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17	8-98079-755-0	01	1	1106-	●
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	0-95690-111-0	04	1	1311-		●
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	9-09561-111-0	06	1	1106-1106	●
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	0-95690-111-0	06	1	1107-	●
184	BOLT; NOZZLE HOLDER M8X54	8-98008-895-0	06	1	1106-	●

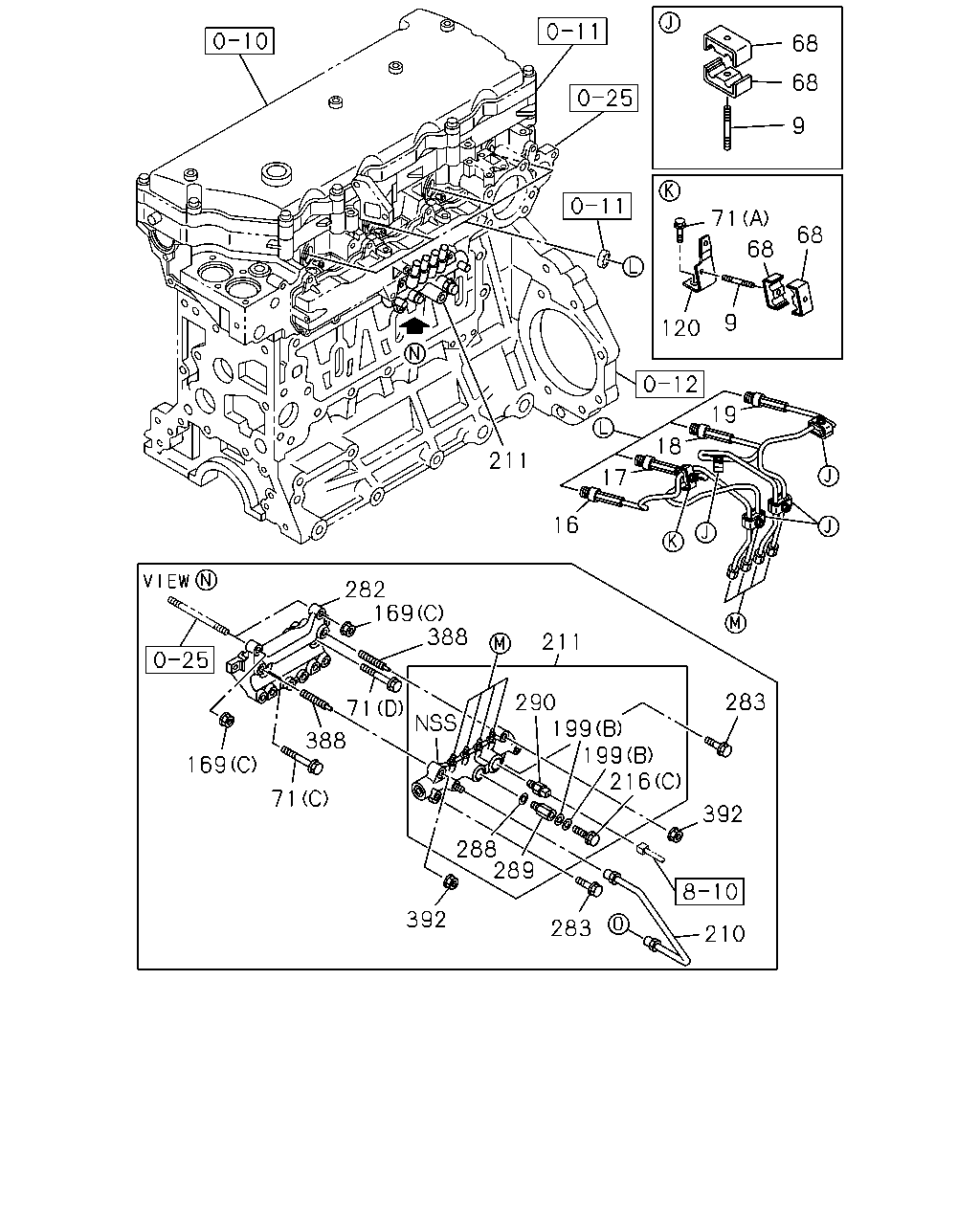

68 68 68 71 120 9 68 19 18 17 16 211 282 169 71 388 290 388 169 211 283 199 199 216 392 210 283 289 288 392 71 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	STUD; CLIP M6X30 L=38	0-41010-630-0	04	1	1311-		●
9	STUD; CLIP M6X35 L=43	8-97203-278-0	01	1	1311-		●
16	PIPE; INJ NO.1	8-98185-352-0	01	1	1311-1404		●
16	PIPE; INJ NO.1	8-98271-218-0	01	1	1405-1502		●
16	PIPE; INJ NO.1	8-98298-628-0	01	1	1503-		●
16	PIPE; INJ NO.1	8-98185-362-0	01	1	1106-1403	●
16	PIPE; INJ NO.1	8-98271-207-0	01	1	1404-1501	●
16	PIPE; INJ NO.1	8-98298-611-0	01	1	1502-	●
17	PIPE; INJ NO.2	8-98185-353-0	01	1	1311-1404		●
17	PIPE; INJ NO.2	8-98271-219-0	01	1	1405-1502		●
17	PIPE; INJ NO.2	8-98298-629-0	01	1	1503-		●
17	PIPE; INJ NO.2	8-98185-363-0	01	1	1106-1403	●
17	PIPE; INJ NO.2	8-98271-208-0	01	1	1404-1501	●
17	PIPE; INJ NO.2	8-98298-612-0	01	1	1502-	●
18	PIPE; INJ NO.3	8-98185-354-0	01	1	1311-1404		●
18	PIPE; INJ NO.3	8-98271-220-0	01	1	1405-1502		●
18	PIPE; INJ NO.3	8-98298-630-0	01	1	1503-		●
18	PIPE; INJ NO.3	8-98185-364-0	01	1	1106-1403	●
18	PIPE; INJ NO.3	8-98271-209-0	01	1	1404-1501	●
18	PIPE; INJ NO.3	8-98298-613-0	01	1	1502-	●
19	PIPE; INJ NO.4	8-98185-355-0	01	1	1311-1404		●
19	PIPE; INJ NO.4	8-98271-221-0	01	1	1405-1502		●
19	PIPE; INJ NO.4	8-98298-631-0	01	1	1503-		●
19	PIPE; INJ NO.4	8-98185-365-0	01	1	1106-1403	●
19	PIPE; INJ NO.4	8-98271-210-0	01	1	1404-1501	●
19	PIPE; INJ NO.4	8-98298-614-0	01	1	1502-	●
68	CLIP; INJ PIPE ID=11 & 11 L=19	8-98039-293-0	10	1	1311-1405		●
68	CLIP; INJ PIPE ID=11 & 11 L=19	8-98148-996-2	10	1	1406-		●
68	CLIP; INJ PIPE ID=11 & 11 L=19	8-98039-293-0	14	1	1106-1405	●
68	CLIP; INJ PIPE ID=11 & 11 L=19	8-98148-996-2	14	1	1406-	●
71	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	1311-		●
71	BOLT; BRKT (C) M8X40 FLANGE	0-28050-840-0	01	1	1311-		●
71	BOLT; BRKT (D) M8X60 FLANGE	0-28050-860-0	01	1	1311-		●
71	BOLT; BRKT (E) M10X60 FLANGE	0-28051-060-0	03	1	1311-		●
71	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	1106-	●
71	BOLT; BRKT (B) M12X100 FLANGE	0-28151-200-0	01	1	1106-	●
120	BRACKET; INJ PIPE	8-98001-041-0	01	1	1311-		●
169	NUT; BRKT (C) M8 FLANGE	0-91180-108-0	02	1	1311-		●
169	NUT; BRKT (A) M10 FLANGE	0-91180-110-0	02	1	1106-	●
169	NUT; BRKT (B) M12 FLANGE	0-91180-112-0	01	1	1106-	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1106-1310	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1311-	●	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1106-1310	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1311-	●	●
210	PIPE; INJ,C/R	8-98172-184-0	01	1	1311-		●
210	PIPE; INJ,C/R	8-98145-414-0	01	1	1106-	●
211	RAIL ASM; COMMON	8-98011-888-2	01	1	1311-		●
211	RAIL ASM; COMMON	8-97609-980-2	01	1	1106-	●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1106-1310	●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1311-	●	●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1106-1310	●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1311-	●	●
216	BOLT; EYE (C)	8-98043-033-0	01	1	1106-1310	●
216	BOLT; EYE (C)	8-98043-033-0	01	1	1311-	●	●
282	BRACKET; COMMON RAIL	8-98106-661-1	01	1	1311-		●
283	BOLT; COMMON RAIL M8X20 FLANGE	0-28050-820-0	02	1	1311-		●
288	GASKET ID=11 OD=16.3	1-15641-046-0	01	1	1106-1310	●
288	GASKET ID=11 OD=16.3	1-15641-046-0	01	1	1311-	●	●
289	LIMITER; FUEL PRESS	8-98032-549-0	01	1	1106-1310	●
289	LIMITER; FUEL PRESS	8-98032-549-0	01	1	1311-	●	●
290	SENSOR; PRESS	8-98119-790-0	01	1	1106-1310	●
290	SENSOR; PRESS	8-98119-790-0	01	1	1311-	●	●
388	STUD; RAIL M8X35 L=53	0-49140-835-0	02	1	1311-		●
392	NUT; RAIL ASM M8 FLANGE	0-91180-108-0	02	1	1311-		●
392	NUT; RAIL ASM M10 FLANGE	0-91180-110-0	02	1	1106-	●

15 15 158 219 80 71 382 216 199 199 87 1 199 199 216 226 424 205 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ	8-97386-557-5	01	1	1311-		●
1	PUMP ASM; INJ	8-97605-946-7	01	1	1106-	●
15	COUPLING ASM; INJ PUMP (A)	8-97306-054-0	01	1	1311-		●
15	COUPLING ASM; INJ PUMP (B) SEE FIG-NO 0-87 FOR COMPONENT.	8-97306-059-1	01	1	1311-		●
71	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	1311-		●
71	BOLT; BRKT (C) M8X40 FLANGE	0-28050-840-0	01	1	1311-		●
71	BOLT; BRKT (D) M8X60 FLANGE	0-28050-860-0	01	1	1311-		●
71	BOLT; BRKT (E) M10X60 FLANGE	0-28051-060-0	03	1	1311-		●
71	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	1106-	●
71	BOLT; BRKT (B) M12X100 FLANGE	0-28151-200-0	01	1	1106-	●
80	BRACKET; PUMP	8-98061-699-0	01	1	1311-		●
87	BOLT; PUMP M8X30 FLANGE	0-28650-830-0	03	1	1311-		●
158	NUT; INJ PUMP M14 FLANGE	0-91180-114-0	01	1	1311-		●
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97066-386-1	02	1	1311-		●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1106-1310	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1311-	●	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1106-1310	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1311-	●	●
205	SENSOR; FUEL TEMP	8-98023-581-0	01	1	1106-1310	●
205	SENSOR; FUEL TEMP	8-98023-581-0	01	1	1311-	●	●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1106-1310	●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1311-	●	●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1106-1310	●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1311-	●	●
216	BOLT; EYE (C)	8-98043-033-0	01	1	1106-1310	●
216	BOLT; EYE (C)	8-98043-033-0	01	1	1311-	●	●
219	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=94.6	1-09623-593-0	01	1	1311-		●
226	PIPE; FUEL	8-98126-332-0	01	1	1311-		●
382	KEY; DRIVE SHAFT	8-98161-995-0	01	1	1106-1310	●
382	KEY; DRIVE SHAFT	8-98161-995-0	01	1	1311-	●	●
424	OVERHAUL KIT; SUPPLY PUMP	8-98145-501-1	01	1	1311-		●
424	OVERHAUL KIT; SUPPLY PUMP	8-98145-449-1	01	1	1106-	●

154 31 63 124 31 36 61 94 66 66 16 17 18 19 211 199 199 216 216 199 199 445 1 1

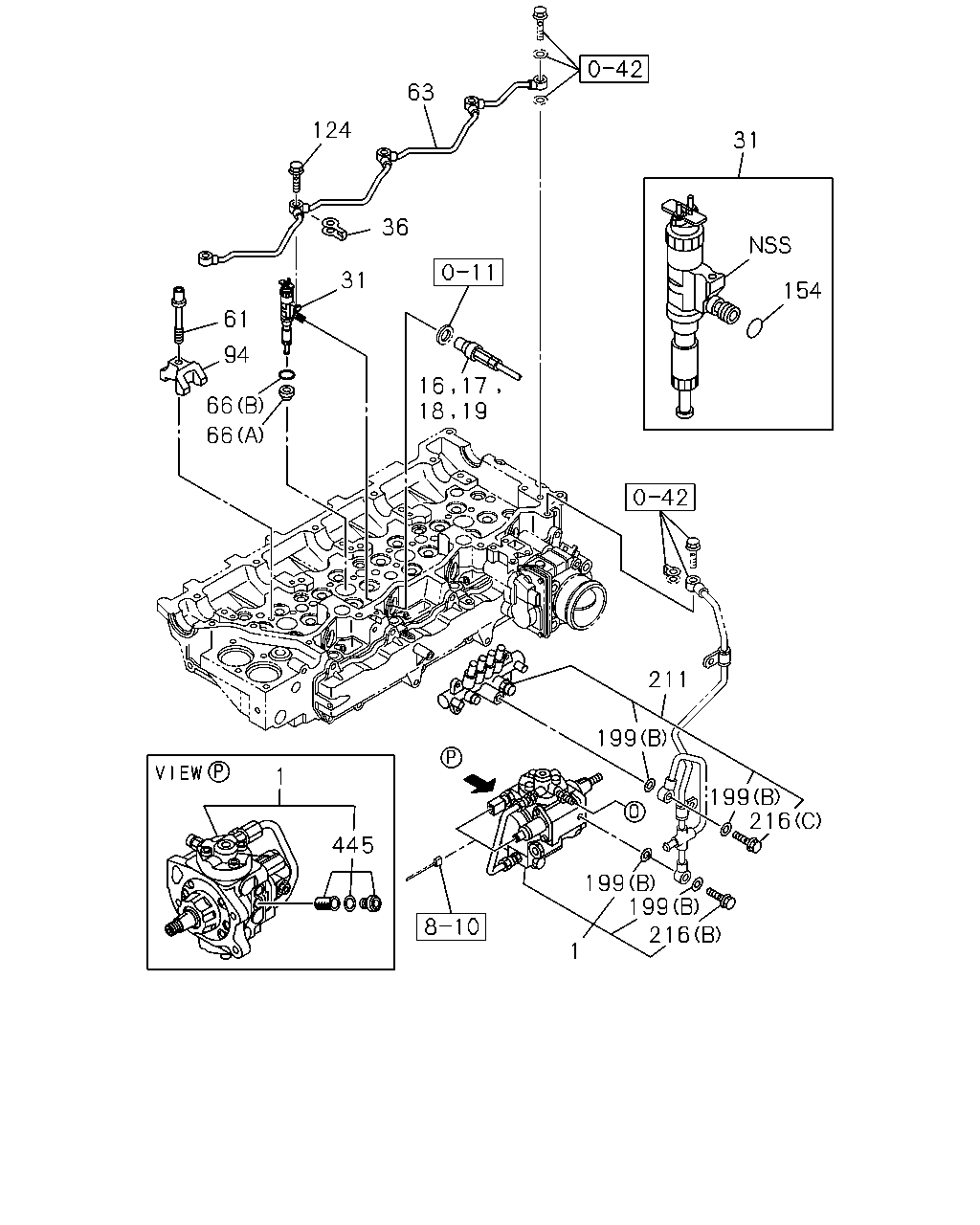

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ	8-97386-557-5	01	1	1311-		●
1	PUMP ASM; INJ	8-97605-946-7	01	1	1106-	●
16	PIPE; INJ NO.1	8-98185-352-0	01	1	1311-1404		●
16	PIPE; INJ NO.1	8-98271-218-0	01	1	1405-1502		●
16	PIPE; INJ NO.1	8-98298-628-0	01	1	1503-		●
16	PIPE; INJ NO.1	8-98185-362-0	01	1	1106-1403	●
16	PIPE; INJ NO.1	8-98271-207-0	01	1	1404-1501	●
16	PIPE; INJ NO.1	8-98298-611-0	01	1	1502-	●
17	PIPE; INJ NO.2	8-98185-353-0	01	1	1311-1404		●
17	PIPE; INJ NO.2	8-98271-219-0	01	1	1405-1502		●
17	PIPE; INJ NO.2	8-98298-629-0	01	1	1503-		●
17	PIPE; INJ NO.2	8-98185-363-0	01	1	1106-1403	●
17	PIPE; INJ NO.2	8-98271-208-0	01	1	1404-1501	●
17	PIPE; INJ NO.2	8-98298-612-0	01	1	1502-	●
18	PIPE; INJ NO.3	8-98185-354-0	01	1	1311-1404		●
18	PIPE; INJ NO.3	8-98271-220-0	01	1	1405-1502		●
18	PIPE; INJ NO.3	8-98298-630-0	01	1	1503-		●
18	PIPE; INJ NO.3	8-98185-364-0	01	1	1106-1403	●
18	PIPE; INJ NO.3	8-98271-209-0	01	1	1404-1501	●
18	PIPE; INJ NO.3	8-98298-613-0	01	1	1502-	●
19	PIPE; INJ NO.4	8-98185-355-0	01	1	1311-1404		●
19	PIPE; INJ NO.4	8-98271-221-0	01	1	1405-1502		●
19	PIPE; INJ NO.4	8-98298-631-0	01	1	1503-		●
19	PIPE; INJ NO.4	8-98185-365-0	01	1	1106-1403	●
19	PIPE; INJ NO.4	8-98271-210-0	01	1	1404-1501	●
19	PIPE; INJ NO.4	8-98298-614-0	01	1	1502-	●
31	NOZZLE ASM; INJ	8-98219-181-0	04	1	1311-		●
31	NOZZLE ASM; INJ	8-98160-061-3	06	1	1106-	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0	8-98065-992-0	04	1	1311-		●
61	BOLT; CLAMP NOZZLE HOLDER M8X54	8-98008-895-0	04	1	1311-		●
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97306-081-0	01	1	1311-		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=23.3	8-94173-412-0	04	1	1311-		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1	8-98079-248-0	04	1	1311-		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1	8-98079-248-0	06	1	1106-	●
94	BRACKET; INJ NOZZLE	8-98028-999-1	04	1	1311-		●
94	BRACKET; INJ NOZZLE	8-98028-999-1	06	1	1106-	●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	04	1	1311-		●
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	0-95690-111-0	04	1	1311-		●
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	9-09561-111-0	06	1	1106-1106	●
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	0-95690-111-0	06	1	1107-	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1106-1310	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1311-	●	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1106-1310	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1311-	●	●
211	RAIL ASM; COMMON	8-98011-888-2	01	1	1311-		●
211	RAIL ASM; COMMON	8-97609-980-2	01	1	1106-	●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1106-1310	●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1311-	●	●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1106-1310	●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1311-	●	●
216	BOLT; EYE (C)	8-98043-033-0	01	1	1106-1310	●
216	BOLT; EYE (C)	8-98043-033-0	01	1	1311-	●	●
445	SCREW; FILTER,INLET	8-98204-986-0	01	1	1311-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
