0-36 — TURBOCHARGER SYSTEM (#55110) — 125 parça

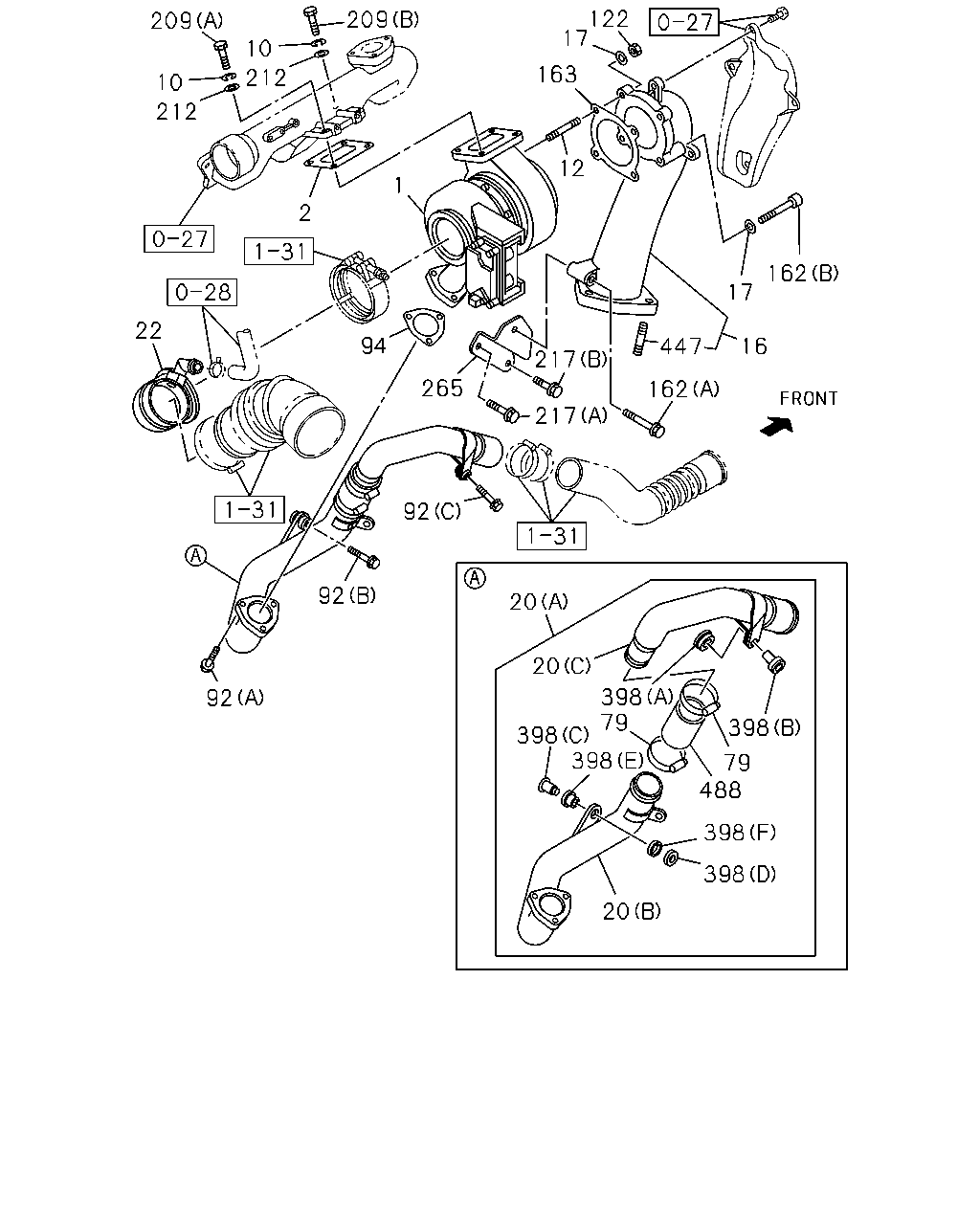

çizim 144828
209 10 209 212 1 2 212 10 22 92 92 94 265 92 217 217 162 16 17 162 12 163 17 122 20 20 398 398 398 79 398 79 488 398 20 398 447
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM 8-98203-610-0 01 1 1311- ●
1 TURBOCHARGER ASM 8-97604-975-9 01 1 1106- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97024-124-0 01 1 1106- ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 04 1 1106- ●
12 STUD; TURBOCHARGER
M10X30 L=45 		1-09302-106-0 02 1 1311- ●
12 STUD; TURBOCHARGER
M8X25 L=36 		8-94476-282-0 02 1 1106- ●
16 ADAPTER; EXH PIPE 8-98030-080-3 01 1 1311- ●
16 ADAPTER; EXH PIPE 8-98018-241-1 01 1 1106- ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 04 1 1106- ●
20 PIPE; INL,TURBOCHARGER OUT
(A) 		8-98046-167-4 01 1 1106-1408 ●
20 PIPE; INL,TURBOCHARGER OUT
(A) 		8-98251-581-0 01 1 1409- ●
20 PIPE; INL,TURBOCHARGER OUT
(B) 		8-98046-168-1 01 1 1106- ●
20 PIPE; INL,TURBOCHARGER OUT
(C) 		8-98046-169-2 01 1 1106- ●
22 DUCT; INL,ACL TO TURBOCHARGER 8-98036-164-1 01 1 1106- ●
79 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 02 1 1106- ●
92 BOLT; INL PIPE
(A) M8X30 FLANGE 		0-28650-830-0 03 1 1106- ●
92 BOLT; INL PIPE
(B) M8X35 FLANGE 		0-28650-835-0 01 1 1106- ●
92 BOLT; INL PIPE
(C) M8X40 FLANGE 		0-28650-840-0 01 1 1106- ●
94 GASKET; INL PIPE
ID=56 		8-98107-962-0 01 1 1311- ●
94 GASKET; INL PIPE
ID=55 		8-98053-830-0 01 1 1106- ●
122 NUT; ADAPTER
M8 		1-09400-118-1 02 1 1106- ●
162 BOLT; ADAPTER
(C) M8X57 		5-09000-275-0 01 1 1311- ●
162 BOLT; ADAPTER
(A) M10X60 FLANGE 		0-28051-060-0 01 1 1106- ●
162 BOLT; ADAPTER
(B) M8X60 		8-98158-604-0 02 1 1106- ●
163 GASKET; ADAPTER TO EXH PIPE
ID=83 		8-94392-553-2 01 1 1106- ●
209 BOLT; BRACE,TURBOCHARGER
(B) M10X80 		8-98049-825-0 02 1 1106- ●
209 BOLT; BRACE,TURBOCHARGER
(A) M10X40 		9-09604-007-1 02 1 1106- ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 1106- ●
217 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1106- ●
217 BOLT; BRKT
(B) M10X25 FLANGE 		0-28751-025-0 01 1 1106- ●
265 BRACKET; EXH PIPE 8-98260-415-0 01 1 1311- ●
265 BRACKET; EXH PIPE 8-97609-517-1 01 1 1106-1310 ●
398 MOUNTING
(F) ID=19 OD=26 		8-94160-177-0 01 1 1106- ●
398 MOUNTING
(C) OD=28 		8-94390-551-1 01 1 1106- ●
398 MOUNTING
(D) ID=13 OD=28 		8-94394-504-0 01 1 1106- ●
398 MOUNTING
(E) OD=26 		8-94394-529-0 01 1 1106- ●
398 MOUNTING
(A) OD=32 		8-94395-766-0 01 1 1106- ●
398 MOUNTING
(B) OD=23 		8-97105-689-6 01 1 1106- ●
447 STUD; ADAPTER
M12X30 L=48 		0-44011-230-0 03 1 1106- ●
488 HOSE; RUBBER 8-98046-356-0 01 1 1106-1408 ●
488 HOSE; RUBBER
ID=52.5 L=70 		8-98245-242-0 01 1 1409- ●

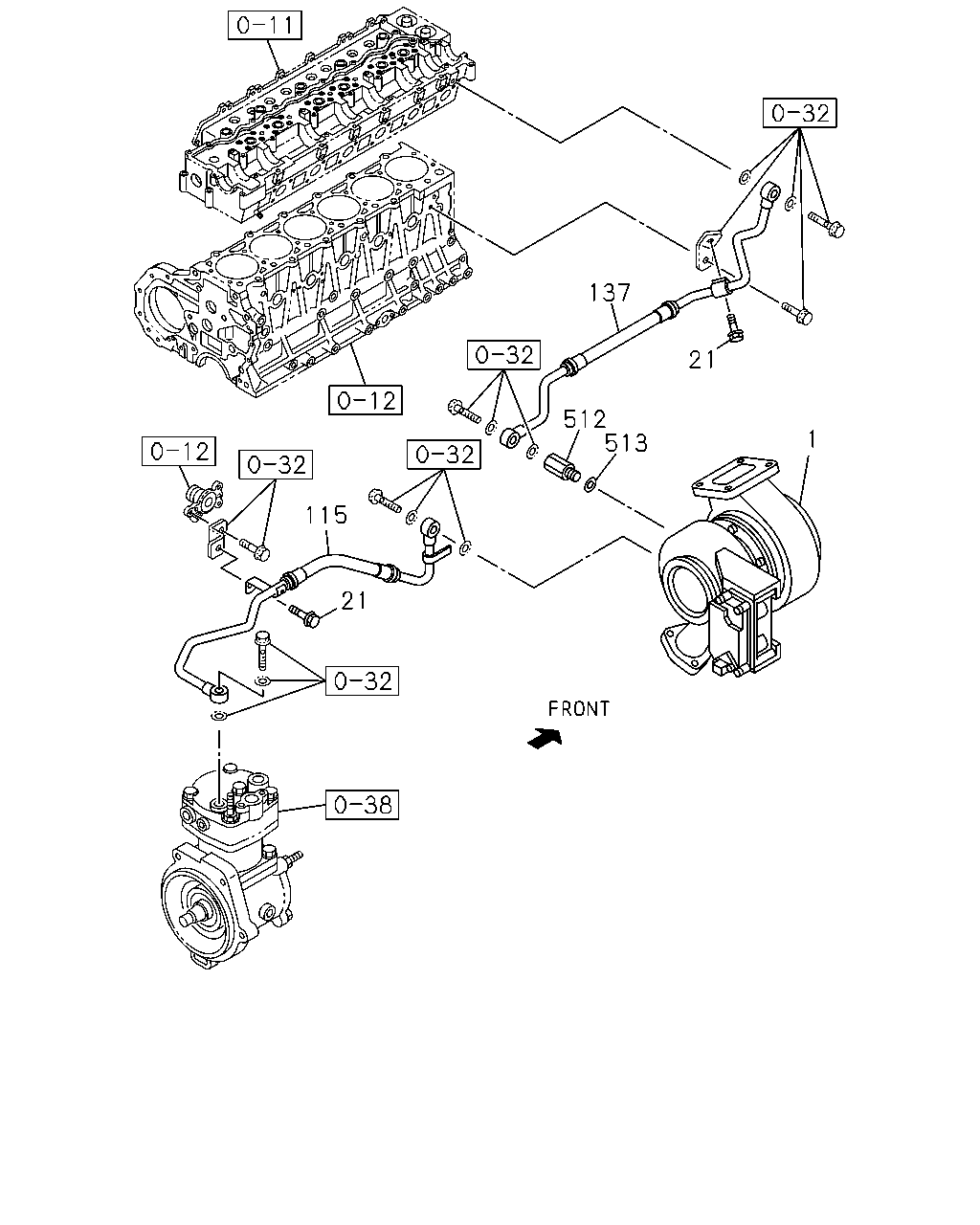

çizim 145100
115 21 512 513 21 137 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM 8-98203-610-0 01 1 1311- ●
1 TURBOCHARGER ASM 8-97604-975-9 01 1 1106- ●
21 BOLT; PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 1106- ●
115 PIPE; WATER,TURBOCHARGER OUT 8-97387-270-2 01 1 1311- ●
115 PIPE; WATER,TURBOCHARGER OUT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-97615-877-0 01 1 1311- ●
115 PIPE; WATER,TURBOCHARGER OUT 8-97610-087-2 01 1 1106-1310 ●
115 PIPE; WATER,TURBOCHARGER OUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-97610-087-2 01 1 1311- ●
137 PIPE; WATER,TURBOCHARGER IN 8-97387-271-0 01 1 1311- ●
137 PIPE; WATER,TURBOCHARGER IN 8-98046-783-0 01 1 1106- ●
512 CONNECTOR; TURBO 8-98031-856-0 01 1 1106- ●
513 GASKET; CONNECTOR
ID=14.2 OD=19.2 		1-09630-085-0 01 1 1106-1312 ●
513 GASKET; CONNECTOR
ID=14.2 OD=19.2 		8-98251-345-0 01 1 1401- ●

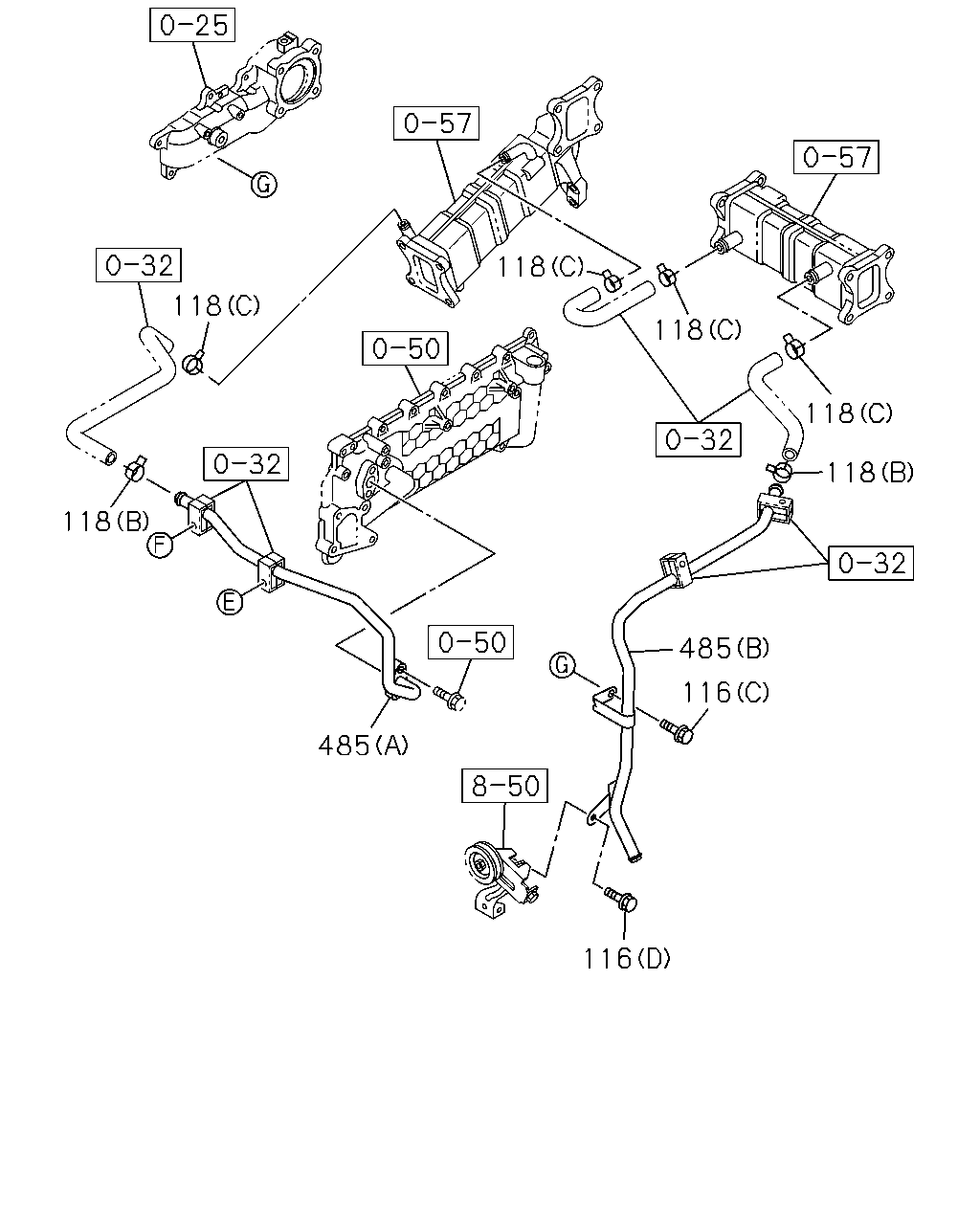

çizim 385153
116 116 485 118 118 118 118 118 118 485
BalonParca AdiParca NoAdetTipApplied Date A B
116 BOLT; WATER PIPE
(D) M8X16 FLANGE 		0-28050-816-0 01 1 1311- ●
116 BOLT; WATER PIPE
(C) M8X20 FLANGE 		0-28650-820-0 01 1 1311- ●
116 BOLT; WATER PIPE
(B) M12X24 EYE-BOLT 		1-09675-081-0 02 1 1311- ●
116 BOLT; WATER PIPE
(A) M14X30 EYE-BOLT 		8-94455-144-0 01 1 1311- ●
118 CLIP; WATER HOSE
(A) ID=15.5 		8-94221-519-0 06 1 1311- ●
118 CLIP; WATER HOSE
(B) ID=22 		8-97359-141-0 02 1 1311- ●
118 CLIP; WATER HOSE
(C) ID=24 		8-98025-921-0 04 1 1311- ●
485 PIPE; WATER EGR
(A) 		8-97376-773-0 01 1 1311- ●
485 PIPE; WATER EGR
(B) 		8-98036-855-1 01 1 1311- ●

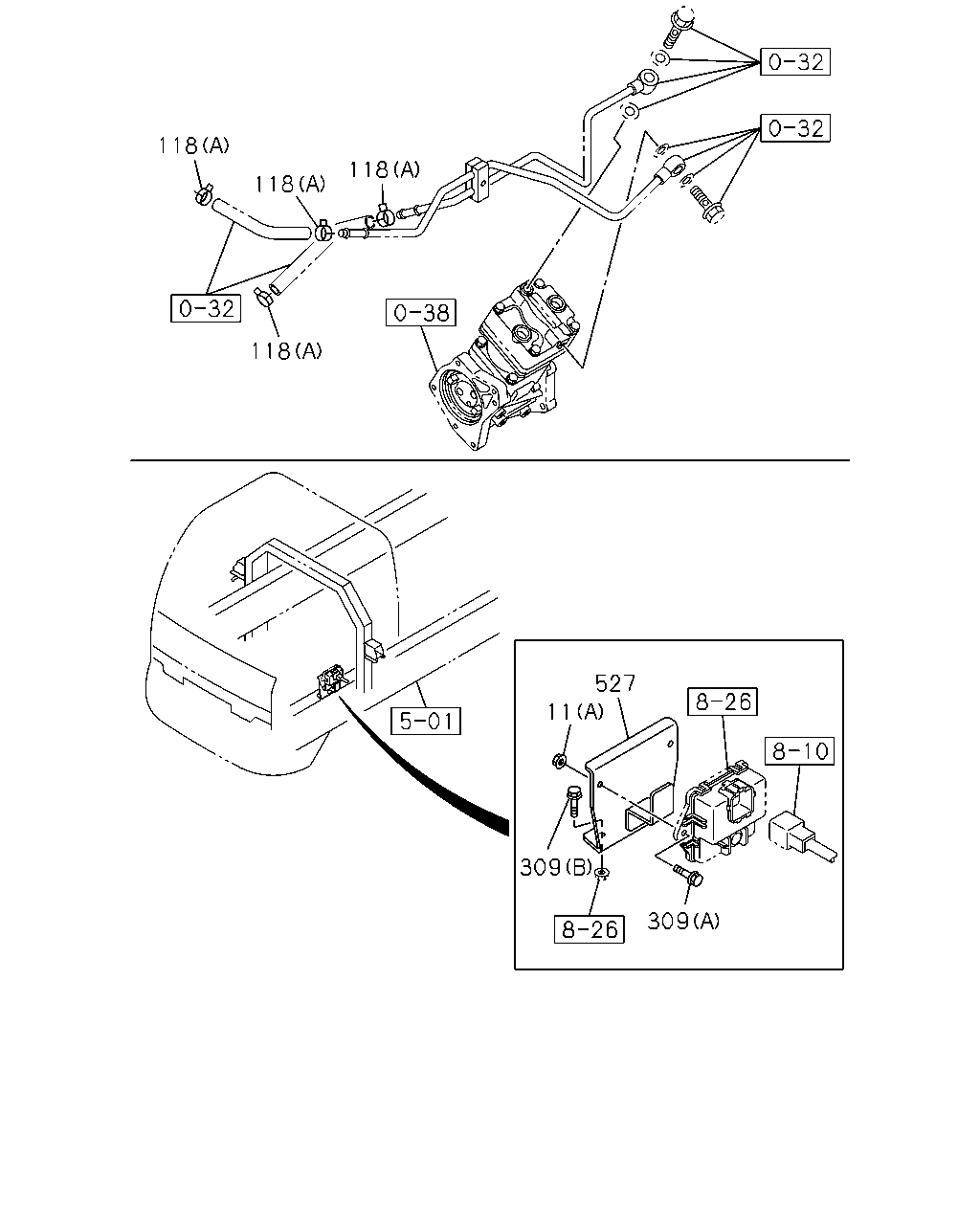

çizim 385156
118 118 118 118 11 527 309 309
BalonParca AdiParca NoAdetTipApplied Date A B
11 NUT; TURBOCHARGER
(A) M6 FLANGE 		0-91180-106-0 02 1 1311- ●
11 NUT; TURBOCHARGER
(B) M10 FLANGE 		8-97381-617-0 04 1 1311- ●
118 CLIP; WATER HOSE
(A) ID=15.5 		8-94221-519-0 06 1 1311- ●
118 CLIP; WATER HOSE
(B) ID=22 		8-97359-141-0 02 1 1311- ●
118 CLIP; WATER HOSE
(C) ID=24 		8-98025-921-0 04 1 1311- ●
309 BOLT; TURBOCHARGER
(A) M6X20 FLANGE 		0-28650-620-0 02 1 1311- ●
309 BOLT; TURBOCHARGER
(B) M8X25 FLANGE 		0-28650-825-0 02 1 1311- ●
527 BRACKET; TURBOCHARGER 8-98206-458-0 01 1 1311- ●

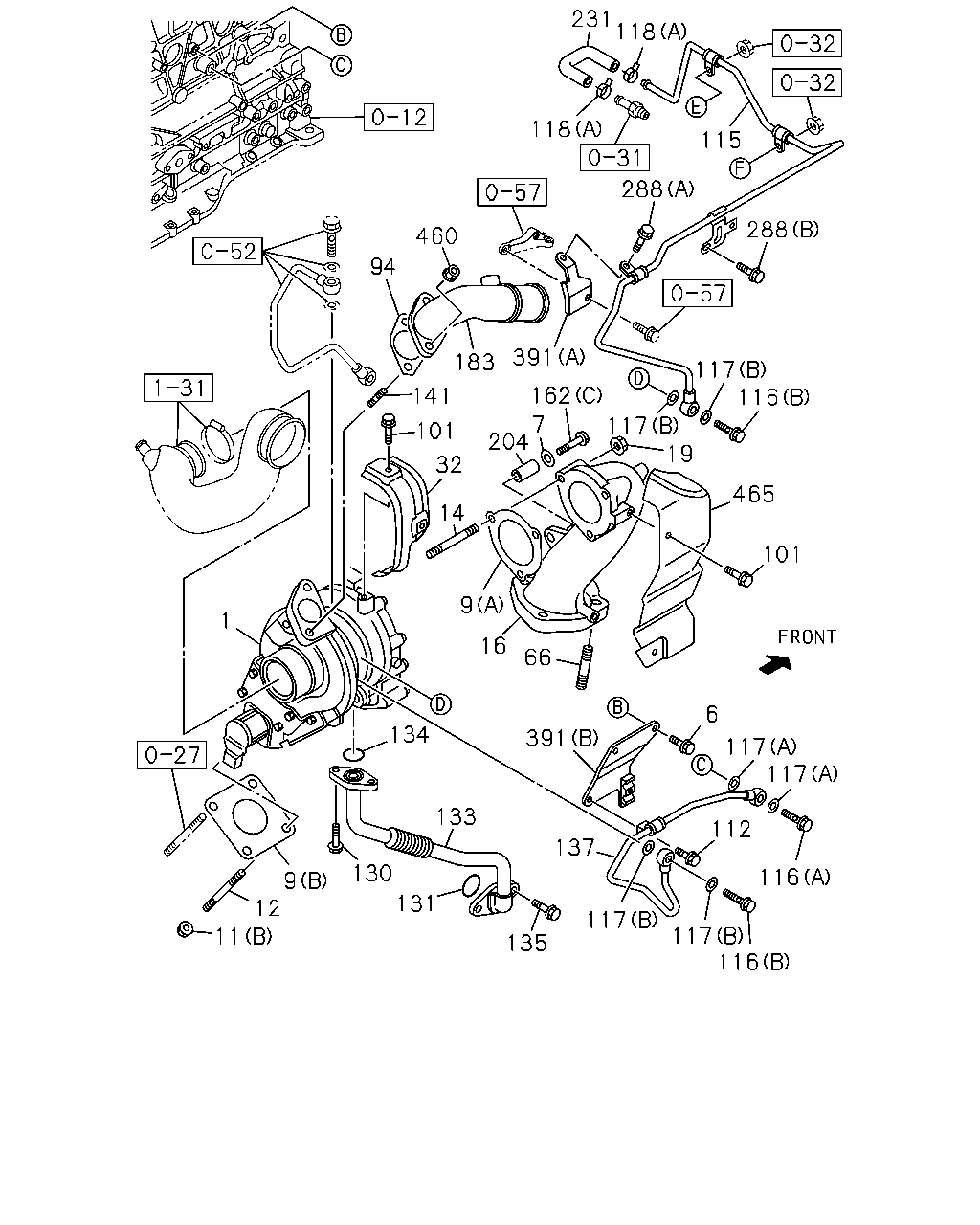

çizim 385887
231 118 118 288 115 288 117 116 19 465 101 117 162 7 391 183 141 101 204 32 14 9 16 66 391 6 117 117 112 116 116 117 117 137 133 135 131 130 9 12 11 1 94 460 134
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM 8-98203-610-0 01 1 1311- ●
1 TURBOCHARGER ASM 8-97604-975-9 01 1 1106- ●
6 BOLT; BRKT TO C/BL
M8X16 FLANGE 		0-28050-816-0 02 1 1311- ●
7 WASHER; PL,BRKT
ID=8 OD=18 T=3 		8-94174-537-0 01 1 1311- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=54 		8-97376-758-0 01 1 1311- ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=49 		8-98046-241-0 01 1 1311- ●
11 NUT; TURBOCHARGER
(A) M6 FLANGE 		0-91180-106-0 02 1 1311- ●
11 NUT; TURBOCHARGER
(B) M10 FLANGE 		8-97381-617-0 04 1 1311- ●
12 STUD; TURBOCHARGER
M10X30 L=45 		1-09302-106-0 02 1 1311- ●
12 STUD; TURBOCHARGER
M8X25 L=36 		8-94476-282-0 02 1 1106- ●
14 STUD; TURBOCHARGER TO EXH PIPE
M8X49 L=63 		8-97019-478-0 03 1 1311- ●
16 ADAPTER; EXH PIPE 8-98030-080-3 01 1 1311- ●
16 ADAPTER; EXH PIPE 8-98018-241-1 01 1 1106- ●
19 NUT; EXH PIPE,TURBOCHARGER
M8 FLANGE 		8-94170-486-0 03 1 1311- ●
32 PROTECTOR; HEAT,TURBOCHARGER 8-98031-888-3 01 1 1311- ●
66 STUD; EXH PIPE
M10X25 L=40 		0-44011-025-0 03 1 1311- ●
94 GASKET; INL PIPE
ID=56 		8-98107-962-0 01 1 1311- ●
94 GASKET; INL PIPE
ID=55 		8-98053-830-0 01 1 1106- ●
101 BOLT; HEAT PROTECTOR
M6X12 W/PL WASHER 		8-98054-289-0 06 1 1311- ●
112 BOLT; CLIP
M8X12 FLANGE 		0-28050-812-0 01 1 1311- ●
115 PIPE; WATER,TURBOCHARGER OUT 8-97387-270-2 01 1 1311- ●
115 PIPE; WATER,TURBOCHARGER OUT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-97615-877-0 01 1 1311- ●
115 PIPE; WATER,TURBOCHARGER OUT 8-97610-087-2 01 1 1106-1310 ●
115 PIPE; WATER,TURBOCHARGER OUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-97610-087-2 01 1 1311- ●
116 BOLT; WATER PIPE
(D) M8X16 FLANGE 		0-28050-816-0 01 1 1311- ●
116 BOLT; WATER PIPE
(C) M8X20 FLANGE 		0-28650-820-0 01 1 1311- ●
116 BOLT; WATER PIPE
(B) M12X24 EYE-BOLT 		1-09675-081-0 02 1 1311- ●
116 BOLT; WATER PIPE
(A) M14X30 EYE-BOLT 		8-94455-144-0 01 1 1311- ●
117 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2 		1-09630-085-0 02 1 1311-1312 ●
117 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ●
117 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2 		9-09571-412-0 04 1 1311- ●
118 CLIP; WATER HOSE
(A) ID=15.5 		8-94221-519-0 06 1 1311- ●
118 CLIP; WATER HOSE
(B) ID=22 		8-97359-141-0 02 1 1311- ●
118 CLIP; WATER HOSE
(C) ID=24 		8-98025-921-0 04 1 1311- ●
130 BOLT; OIL PIPE TO TURBOCHARGER DRAIN
M6X20 W/LK WASHER 		0-50540-620-0 02 1 1311- ●
131 GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 		8-94394-671-0 01 1 1311- ●
133 PIPE; OIL DRAIN,TURBOCHARGER 8-98172-661-0 01 1 1311- ●
134 GASKET; OIL PIPE,TURBOCHARGER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8 		1-09623-462-0 01 1 1311- ●
135 BOLT; OIL PIPE TO C/BL
M8X20 FLANGE 		0-28050-820-0 02 1 1311- ●
137 PIPE; WATER,TURBOCHARGER IN 8-97387-271-0 01 1 1311- ●
137 PIPE; WATER,TURBOCHARGER IN 8-98046-783-0 01 1 1106- ●
141 STUD; INL PIPE TO BRKT
M10X28 L=43 		0-44011-028-0 02 1 1311- ●
162 BOLT; ADAPTER
(C) M8X57 		5-09000-275-0 01 1 1311- ●
162 BOLT; ADAPTER
(A) M10X60 FLANGE 		0-28051-060-0 01 1 1106- ●
162 BOLT; ADAPTER
(B) M8X60 		8-98158-604-0 02 1 1106- ●
183 PIPE; INL,TURBOCHARGER 8-98205-124-1 01 1 1311-1409 ●
183 PIPE; INL,TURBOCHARGER 8-98239-380-0 01 1 1410- ●
204 COLLAR; PIPE ADAPTER 8-97214-384-1 01 1 1311- ●
231 HOSE; RUBBER,TURBOCHARGER OUT 8-97209-950-0 01 1 1311- ●
288 BOLT; WATER PIPE CLIP
(B) M8X10 FLANGE 		0-28050-810-0 01 1 1311- ●
288 BOLT; WATER PIPE CLIP
(A) M8X16 FLANGE 		0-28050-816-0 01 1 1311- ●
391 BRACKET; WATER PIPE
(A) 		8-98013-958-0 01 1 1311- ●
391 BRACKET; WATER PIPE
(B) 		8-98057-168-2 01 1 1311- ●
460 NUT; PIPE
M10 FLANGE 		0-91180-110-0 02 1 1311- ●
465 PROTECTOR; HEAT,EXH ADAPTER 8-98052-394-0 01 1 1311- ●
