◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10725 - EXR LHD FUEL TANK 200L+200L/400L ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-42A - FUEL PUMP AND PIPE ▶
0-42A — FUEL PUMP AND PIPE (#5511) — 95 parça

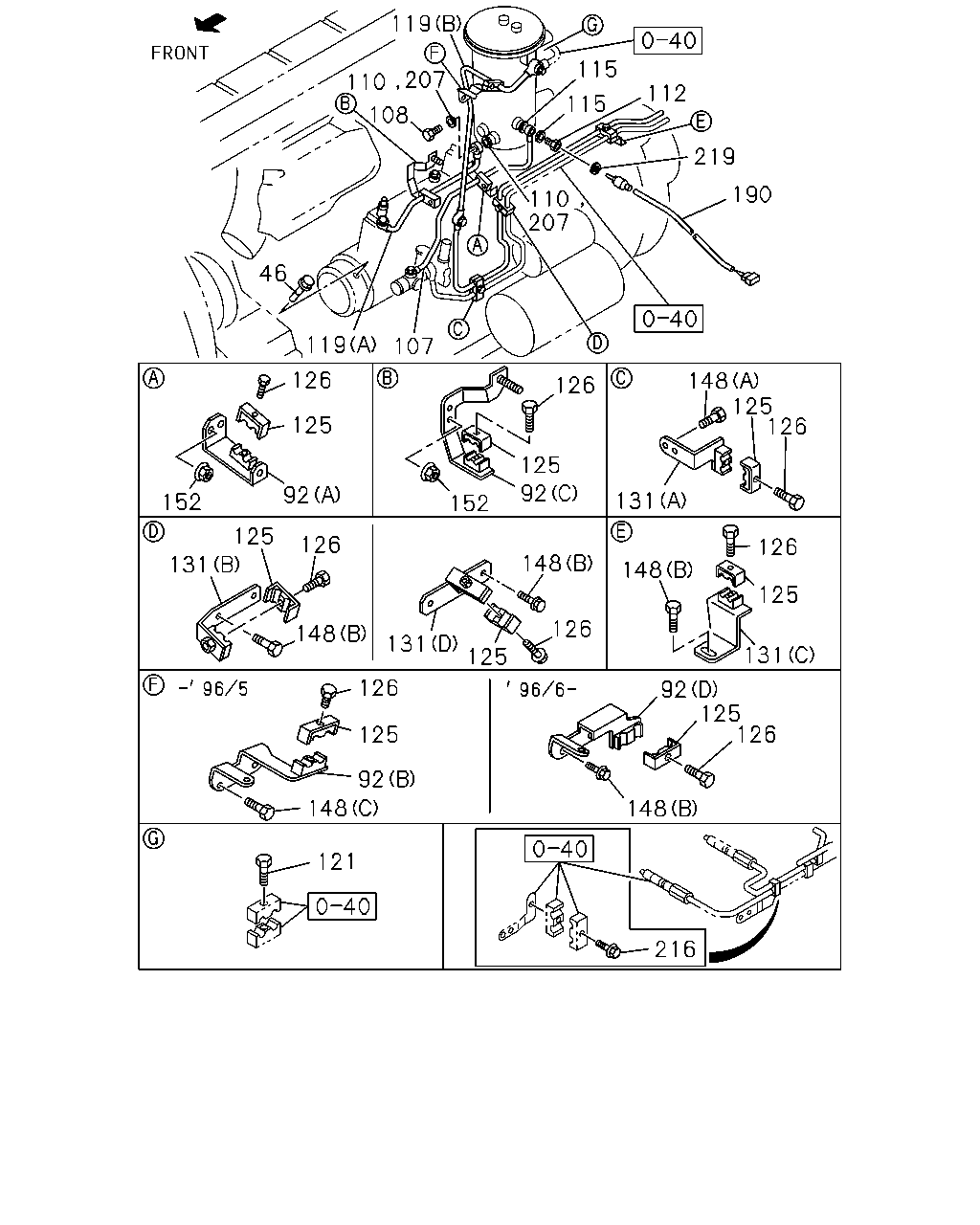

çizim 9671
119 207 115 110 112 115 108 219 110 207 190 46 119 107 126 148 125 126 126 125 125 92 92 131 152 152 125 126 126 148 131 148 125 126 148 131 131 125 126 92 125 126 125 92 148 148 121 216
BalonParca AdiParca NoAdetTipApplied Date A B C D
46 PLUG
M14X9 		9-99202-314-0 01 1 9603-9810 ●
46 PLUG
M14X9 		9-99202-314-0 01 1 9811-9904 ● ●
46 PLUG
M14X9 		9-99202-314-0 01 1 9905- ● ●
46 PLUG
EXC. ELECTRONIC GOV RED3(KG5) M14X9 		9-99202-314-0 01 1 9905- ●
92 BRACKET; FUEL PIPE
(A) 		1-15419-425-0 01 1 9603-9810 ●
92 BRACKET; FUEL PIPE
(A) 		1-15419-425-0 01 1 9811-9904 ● ●
92 BRACKET; FUEL PIPE
(A) 		1-15419-425-0 01 1 9905- ● ● ●
92 BRACKET; FUEL PIPE
(C) 		1-15419-427-0 01 1 9603-9810 ●
92 BRACKET; FUEL PIPE
(C) 		1-15419-427-0 01 1 9811-9904 ● ●
92 BRACKET; FUEL PIPE
(B) 		1-15419-468-0 01 1 9603-9605 ●
92 BRACKET; FUEL PIPE
(D) 		1-15419-474-1 01 1 9606-9810 ●
92 BRACKET; FUEL PIPE
(D) 		1-15419-474-1 01 1 9811-9904 ● ●
92 BRACKET; FUEL PIPE
(C) 		1-15419-427-0 01 1 9905- ● ● ●
92 BRACKET; FUEL PIPE
(D) 		1-15419-474-1 01 1 9905- ● ● ●
107 PIPE; FUEL,FEED PUMP TO FUEL FILTER 1-15415-731-0 01 1 9603-9810 ●
107 PIPE; FUEL,FEED PUMP TO FUEL FILTER 1-15415-731-0 01 1 9811-9904 ● ●
107 PIPE; FUEL,FEED PUMP TO FUEL FILTER 1-15415-731-0 01 1 9905- ● ● ●
108 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 9603-9810 ●
108 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 9811-9904 ● ●
108 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 9905- ● ● ●
110 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9603-9810 ●
110 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9811-9904 ● ●
110 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9905- ● ● ●
112 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 9603-9609 ●
112 BOLT; JOINT,FUEL FILTER
EXC. EURO2 SPECIFICATION<THN> M14X27 FLANGE 		1-09675-086-0 01 1 9610-9810 ●
112 BOLT; JOINT,FUEL FILTER
EXC. EURO2 SPECIFICATION<THN> M14X27 FLANGE 		1-09675-086-0 01 1 9811-9904 ●
112 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 9811-9904 ●
112 BOLT; JOINT,FUEL FILTER
EURO2 SPECIFICATION<THN> 		1-09675-156-1 01 1 9610-9904 ●
112 BOLT; JOINT,FUEL FILTER 1-09675-156-1 01 1 9905- ●
112 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 9905- ● ●
115 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9603-9810 ●
115 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9811-9904 ● ●
115 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 02 1 9905- ● ● ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
(A) 		1-15415-538-1 01 1 9603-9810 ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
EXC. EURO2 SPECIFICATION<THN> (A) 		1-15415-538-1 01 1 9811-9904 ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
(A) 		1-15415-538-1 01 1 9811-9904 ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
EURO2 SPECIFICATION<THN> (B) 		1-15416-090-0 01 1 9610-9904 ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
(B) 		1-15416-090-0 01 1 9905- ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
EURO2 SPECIFICATION<THN> (A) 		1-15415-539-1 01 1 9811-9904 ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
(A) 		1-15415-539-1 01 1 9905- ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (B) 		1-15416-091-0 01 1 9606-9810 ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (B) 		1-15416-091-0 01 1 9811-9902 ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (B) 		1-15416-091-0 01 1 9811-9902 ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
EXC. EURO2 SPECIFICATION<THN>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (B) 		1-15416-091-0 01 1 9903-9904 ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
(B) 		1-15416-091-0 01 1 9903-9904 ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
EXC. EURO2 SPECIFICATION<THN> (B) 		1-15416-092-0 01 1 9608-9611 ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
EXC. EURO2 SPECIFICATION<THN> (B) 		1-15416-137-0 01 1 9612-9904 ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (B) 		1-15416-137-0 01 1 9905- ● ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (B) 		1-15415-540-1 01 1 9603-9605 ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
(A) 		1-15415-538-1 01 1 9905- ● ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP
EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (B) 		1-15416-091-0 01 1 9905- ●
121 BOLT; CLIP
M6X30 FLANGE 		0-28080-630-0 01 1 9603-9810 ●
121 BOLT; CLIP
M6X30 FLANGE 		0-28080-630-0 01 1 9811-9904 ● ●
121 BOLT; CLIP
M6X30 FLANGE 		0-28080-630-0 01 1 9905- ● ● ●
125 CLIP; FUEL PIPE
ID=10 & 10 L=25 		8-94393-280-1 06 1 9603-9810 ●
125 CLIP; FUEL PIPE
ID=10 & 10 L=25 		8-94393-280-1 06 1 9811-9904 ● ●
125 CLIP; FUEL PIPE
ID=10 & 10 L=25 		8-94393-280-2 06 1 9905- ● ● ●
126 BOLT; CLIP,FUEL PIPE
M6X30 FLANGE 		0-28080-630-0 06 1 9603-9810 ●
126 BOLT; CLIP,FUEL PIPE
M6X30 FLANGE 		0-28080-630-0 06 1 9811-9904 ● ●
126 BOLT; CLIP,FUEL PIPE
M6X30 FLANGE 		0-28080-630-0 06 1 9905- ● ● ●
131 BRACKET; FUEL PIPE CLIP
(A) 		1-15419-336-0 01 1 9603-9810 ●
131 BRACKET; FUEL PIPE CLIP
(A) 		1-15419-336-0 01 1 9811-9904 ● ●
131 BRACKET; FUEL PIPE CLIP
(A) 		1-15419-336-0 01 1 9905- ● ● ●
131 BRACKET; FUEL PIPE CLIP
(B) 		1-15419-372-0 01 1 9603-9607 ●
131 BRACKET; FUEL PIPE CLIP
EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (B) 		1-15419-372-0 01 1 9608-9810 ●
131 BRACKET; FUEL PIPE CLIP
EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (B) 		1-15419-372-0 01 1 9811-9904 ● ●
131 BRACKET; FUEL PIPE CLIP
(C) 		1-15419-423-1 01 1 9603-9810 ●
131 BRACKET; FUEL PIPE CLIP
(C) 		1-15419-423-1 01 1 9811-9902 ● ●
131 BRACKET; FUEL PIPE CLIP
EXC. EURO2 SPECIFICATION<THN> (D) 		1-15419-467-0 01 1 9608-9611 ●
131 BRACKET; FUEL PIPE CLIP
EXC. EURO2 SPECIFICATION<THN> (D) 		1-15419-484-0 01 1 9612-9904 ●
131 BRACKET; FUEL PIPE CLIP
INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (D) 		1-15419-484-0 01 1 9905- ● ●
131 BRACKET; FUEL PIPE CLIP
(C) 		1-15419-423-1 01 1 9903-9904 ● ●
131 BRACKET; FUEL PIPE CLIP
EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> (B) 		1-15419-372-0 01 1 9905- ● ●
131 BRACKET; FUEL PIPE CLIP
(C) 		1-15419-423-1 01 1 9905- ● ● ●
148 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 02 1 9603-9810 ●
148 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 02 1 9811-9904 ● ●
148 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 02 1 9905- ● ● ●
148 BOLT; BRKT
(B) M10X18 FLANGE 		0-28181-018-0 03 1 9603-9604 ●
148 BOLT; BRKT
(B) M10X20 FLANGE 		0-28181-020-0 05 1 9605-9810 ●
148 BOLT; BRKT
(B) M10X20 FLANGE 		0-28181-020-0 05 1 9811-9904 ● ●
148 BOLT; BRKT
(C) M10X20 FLANGE 		0-28181-020-0 02 1 9603-9603 ●
148 BOLT; BRKT
(C) M10X20 FLANGE 		0-28181-020-0 02 1 9604-9604 ●
148 BOLT; BRKT
(B) M10X20 FLANGE 		0-28181-020-0 05 1 9905- ● ● ●
148 BOLT; BRKT
(A) M10X16 FLANGE 		0-28181-016-0 02 1 0004- ● ●
152 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 9603-9810 ●
152 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 9811-9904 ● ●
152 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 9905- ● ● ●
190 SENSOR; FUEL TEMP
EURO2 SPECIFICATION<THN> 		1-81535-036-5 01 1 9610-9904 ●
190 SENSOR; FUEL TEMP 1-81535-036-6 01 1 9905- ●
207 GASKET; EYE BOLT
ID=14.2 OD=19.2 		1-09630-085-0 02 1 9905- ● ● ●
216 BOLT; CLIP,FUEL PIPE
M6X40 FLANGE 		0-28080-640-0 01 1 9603-9810 ●
216 BOLT; CLIP,FUEL PIPE
M6X40 FLANGE 		0-28080-640-0 01 1 9811-9904 ● ●
216 BOLT; CLIP,FUEL PIPE
M6X40 FLANGE 		0-28080-640-0 01 1 9905- ● ● ●
219 GASKET; SENSOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<THN> ID=14.2 OD=19.2 		1-09630-085-0 01 1 9610-9904 ●
219 GASKET; SENSOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		1-09630-085-0 01 1 9905- ●
