Isuzu WW
▶
TRUCKS
▶
FORWARD
▶
11412 - FORWARD 1100/1200
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶

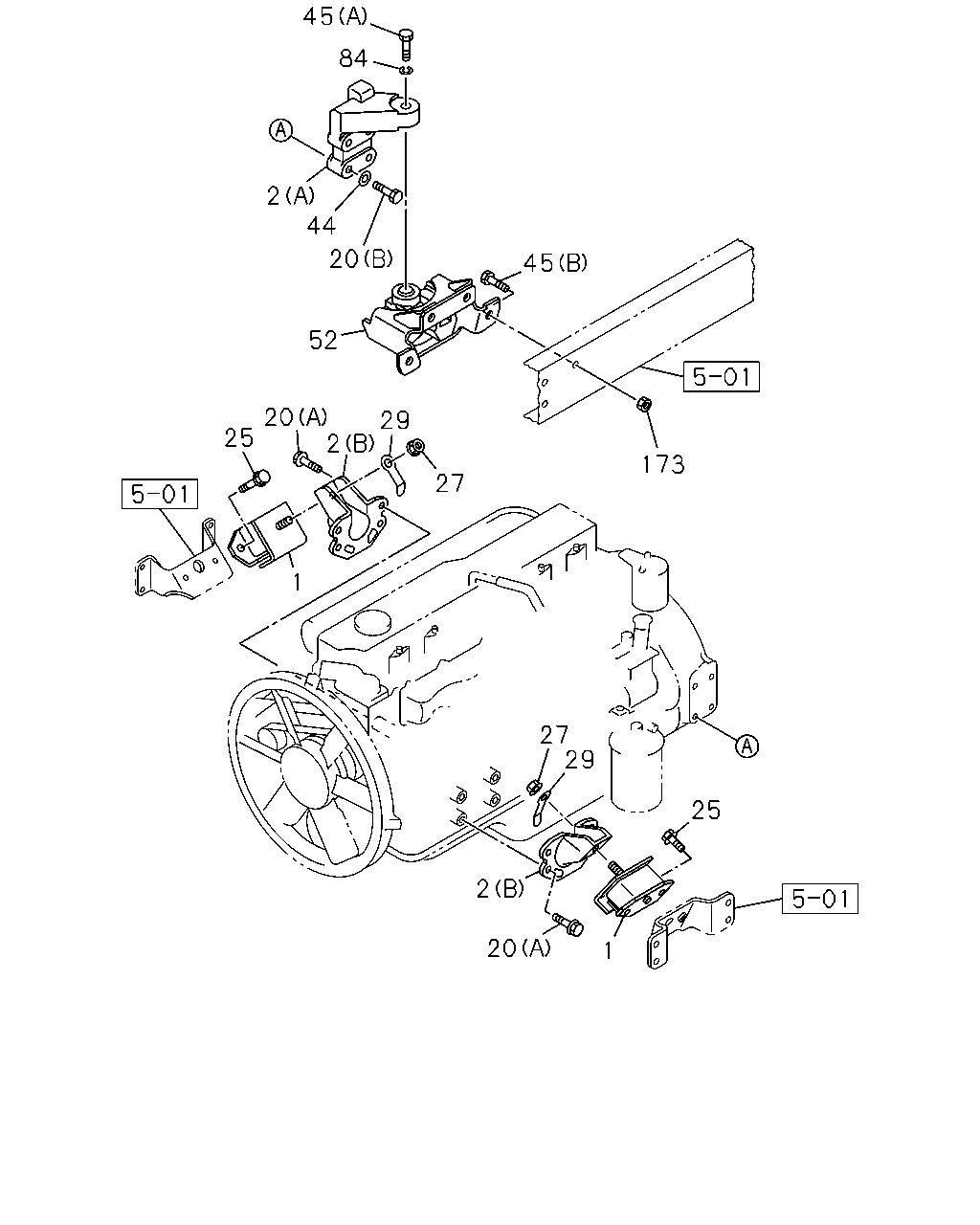

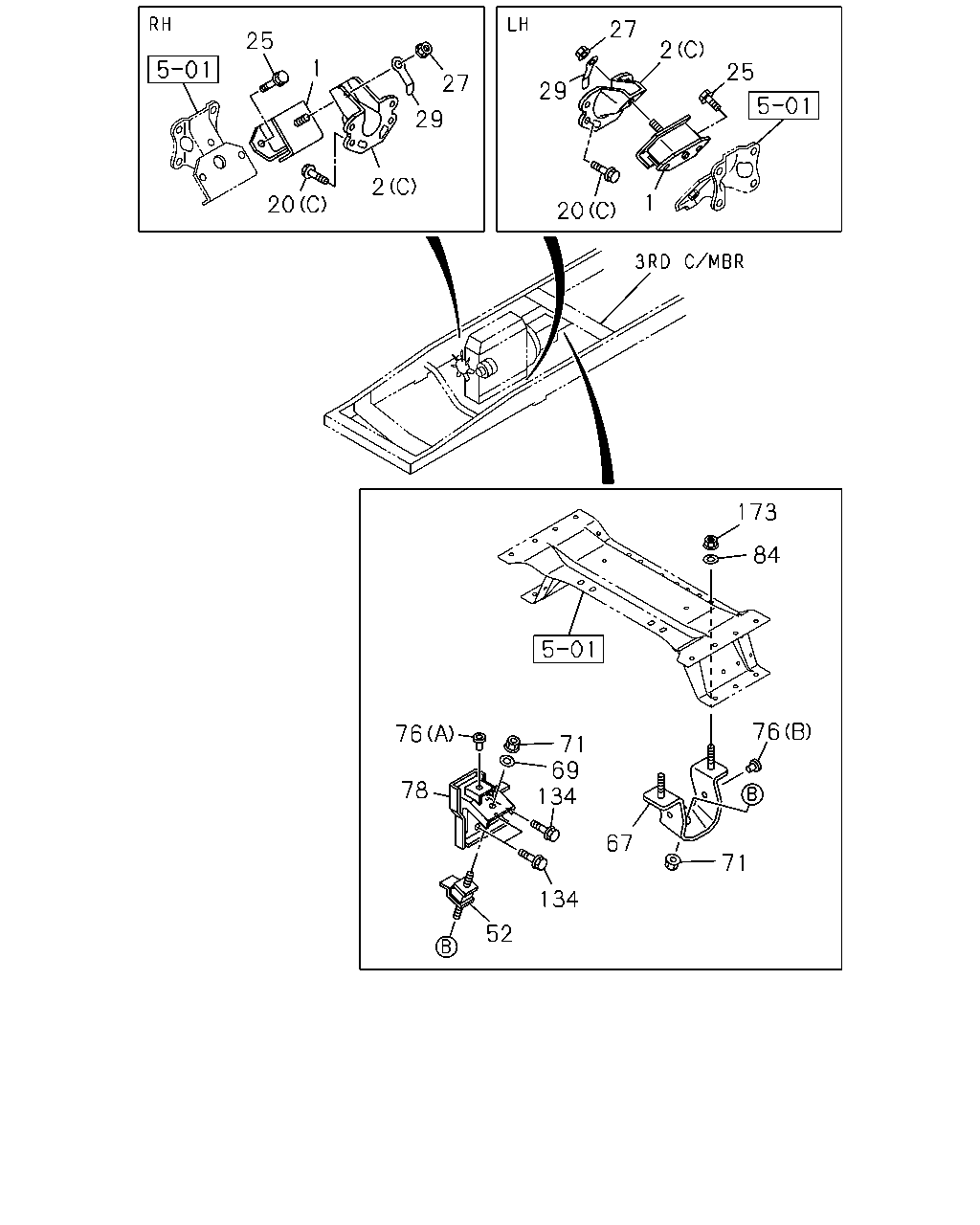

0-22 — ENGINE MOUNTING
(#55101) — 53 parça
Tümü
A - 4HK1-TCS ENG
B - 6HK1-TCN ENG
◀
[022A] 6HK1 (24 parça)
[022A] 4HK1 (29 parça)
▶
25
1
20
2
29
27
173
27
29
2
20
25
1
52
20
44
2
45
84
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
RUBBER; ENG FOOT,FRT
1-53215-184-0
02
1
1311-
●
1
RUBBER; ENG FOOT,FRT
1-53215-172-0
02
1
1106-
●
2
FOOT; ENG
(C)
8-97376-076-1
02
1
1311-
●
2
FOOT; ENG
(B)
8-97602-589-1
02
1
1106-
●
2
FOOT; ENG
(A)
8-97611-988-0
01
1
1106-
●
2
FOOT; ENG
(A)
8-97611-989-0
01
1
1106-
●
20
BOLT; ENG FOOT
(C) M10X30 FLANGE
0-28161-030-0
08
1
1311-
●
20
BOLT; ENG FOOT
(B) M12X50
0-16956-250-0
08
1
1106-
●
20
BOLT; ENG FOOT
(A) M10X20 FLANGE
8-94395-721-0
08
1
1106-
●
25
BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE
0-28651-235-0
04
1
1106-1310
●
25
BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE
0-28651-235-0
04
1
1311-
●
●
27
NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE
0-91180-212-0
02
1
1106-1310
●
27
NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE
0-91180-212-0
02
1
1311-
●
●
29
PLATE; LK,CUSHION RUBBER,FRT
8-98010-312-0
02
1
1106-1310
●
29
PLATE; LK,CUSHION RUBBER,FRT
8-98010-312-0
02
1
1311-
●
●
44
WASHER; LK,ENG FOOT
ID=12.5
0-91614-512-0
08
1
1106-
●
45
BOLT; CUSHION RUBBER TO FRAME
(B) M14X50
0-29261-450-0
08
1
1106-
●
45
BOLT; CUSHION RUBBER TO FRAME
(A) M18X65
8-94393-260-1
02
1
1106-
●
52
RUBBER; CUSHION,ENG MTG,RR
8-97039-277-0
02
1
1311-
●
52
RUBBER; CUSHION,ENG MTG,RR
8-98013-021-1
02
1
1106-
●
84
WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32
0-91614-810-0
04
1
1311-
●
84
WASHER; PL,ENG MTG RR TO FRAME
ID=19 OD=36
0-91614-618-0
02
1
1106-
●
173
NUT; ENG MTG RR TO FRAME
M10 FLANGE
0-91180-210-0
04
1
1311-
●
173
NUT; ENG MTG RR TO FRAME
M14 FLANGE
0-91180-214-0
08
1
1106-
●
25
20
1
27
29
2
27
29
20
25
2
1
173
84
76
76
78
71
69
134
67
71
134
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
RUBBER; ENG FOOT,FRT
1-53215-184-0
02
1
1311-
●
1
RUBBER; ENG FOOT,FRT
1-53215-172-0
02
1
1106-
●
2
FOOT; ENG
(C)
8-97376-076-1
02
1
1311-
●
2
FOOT; ENG
(B)
8-97602-589-1
02
1
1106-
●
2
FOOT; ENG
(A)
8-97611-988-0
01
1
1106-
●
2
FOOT; ENG
(A)
8-97611-989-0
01
1
1106-
●
20
BOLT; ENG FOOT
(C) M10X30 FLANGE
0-28161-030-0
08
1
1311-
●
20
BOLT; ENG FOOT
(B) M12X50
0-16956-250-0
08
1
1106-
●
20
BOLT; ENG FOOT
(A) M10X20 FLANGE
8-94395-721-0
08
1
1106-
●
25
BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE
0-28651-235-0
04
1
1106-1310
●
25
BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE
0-28651-235-0
04
1
1311-
●
●
27
NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE
0-91180-212-0
02
1
1106-1310
●
27
NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE
0-91180-212-0
02
1
1311-
●
●
29
PLATE; LK,CUSHION RUBBER,FRT
8-98010-312-0
02
1
1106-1310
●
29
PLATE; LK,CUSHION RUBBER,FRT
8-98010-312-0
02
1
1311-
●
●
52
RUBBER; CUSHION,ENG MTG,RR
8-97039-277-0
02
1
1311-
●
52
RUBBER; CUSHION,ENG MTG,RR
8-98013-021-1
02
1
1106-
●
67
BRACKET; SUPPORT,ENG MTG,RR
8-98055-142-0
02
1
1311-
●
69
WASHER; PL,SUPPORT RUBBER TO BRKT
ID=10.5 OD=22 T=4
1-09503-045-0
02
1
1311-
●
71
NUT; SUPPORT RUBBER TO BRKT
M10 FLANGE
0-91180-110-0
04
1
1311-
●
76
STOPPER; ENG MTG RUBBER
(A)
8-94111-904-0
02
1
1311-
●
76
STOPPER; ENG MTG RUBBER
(B)
8-97039-947-1
04
1
1311-
●
78
BRACKET; ENG MTG,RR
8-98180-441-1
01
1
1311-
●
78
BRACKET; ENG MTG,RR
8-98180-442-1
01
1
1311-
●
84
WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32
0-91614-810-0
04
1
1311-
●
84
WASHER; PL,ENG MTG RR TO FRAME
ID=19 OD=36
0-91614-618-0
02
1
1106-
●
134
BOLT; SUPPORT BRKT
M14X35 FLANGE
0-28751-435-0
08
1
1311-
●
173
NUT; ENG MTG RR TO FRAME
M10 FLANGE
0-91180-210-0
04
1
1311-
●
173
NUT; ENG MTG RR TO FRAME
M14 FLANGE
0-91180-214-0
08
1
1106-
●
