Sayfa 6-01 - Isuzu EPC

6-01 — FRONT BUMPER (#551) — 317 parça

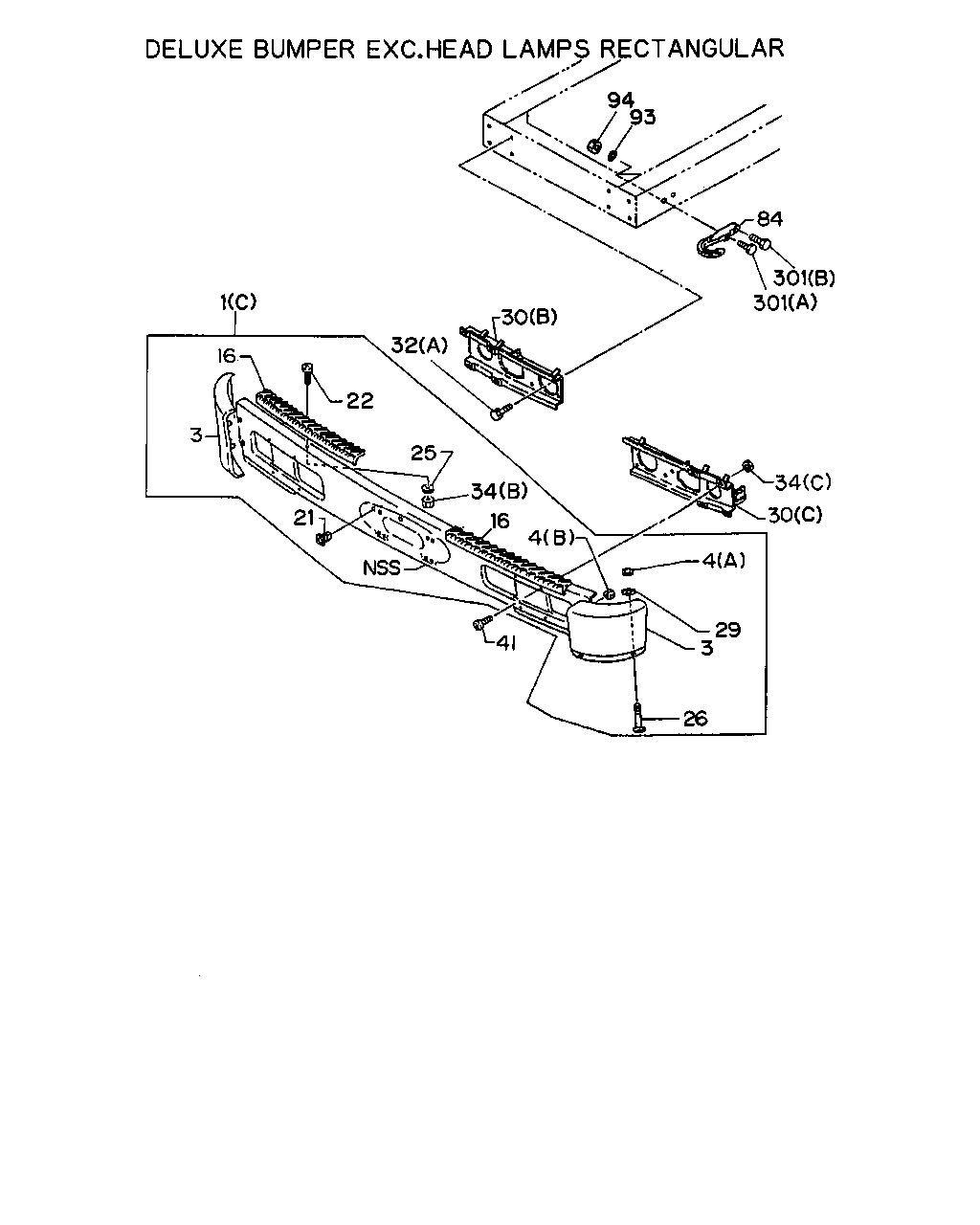

26 3 29 4 30 34 4 41 16 34 25 22 21 3 16 1 32 30 301 301 84 93 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT DELUXE BUMPER<VH7> (C)	1-71210-420-2	01	1	9002-9306
1	BUMPER ASM; FRT DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	1-71210-420-2	01	1	9307-
1	BUMPER ASM; FRT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (D)	1-71210-489-1	01	1	9307-
1	BUMPER ASM; FRT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> (A)	1-71210-168-3	01	1	9307-
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-238-2	01	1	8712-
1	BUMPER ASM; FRT EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71210-168-3	01	1	8712-9001
1	BUMPER ASM; FRT EXC. REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> (A)	1-71210-168-3	01	1	9002-9306
3	BUMPER; FRT,SIDE DELUXE BUMPER<VH7>	1-71210-431-1	01	1	9002-9306
3	BUMPER; FRT,SIDE DELUXE BUMPER<VH7>	1-71210-430-1	01	1	9002-9306
3	BUMPER; FRT,SIDE DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71210-431-1	01	1	9307-
3	BUMPER; FRT,SIDE DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71210-430-1	01	1	9307-
4	NUT; CTR BUMPER DELUXE BUMPER<VH7> (A) M8 FLANGE	0-91150-108-0	02	1	9002-9306
4	NUT; CTR BUMPER DELUXE BUMPER<VH7> (B) M10 FLANGE	5-09440-006-0	04	1	9002-9306
4	NUT; CTR BUMPER DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A) M8 FLANGE	0-91150-108-0	02	1	9307-
4	NUT; CTR BUMPER DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) M10 FLANGE	5-09440-006-0	04	1	9307-
16	PLATFORM DELUXE BUMPER<VH7>	1-71260-035-2	01	1	9002-9306
16	PLATFORM DELUXE BUMPER<VH7>	1-71260-034-2	01	1	9002-9306
16	PLATFORM DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71260-035-2	01	1	9307-
16	PLATFORM DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71260-034-2	01	1	9307-
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. REINFORCEMENT BUMPER<VG7> D=9.7X9.7 L=8	8-94222-314-0	04	1	8712-
22	BOLT; BUMPER TO PLATFORM DELUXE BUMPER<VH7>	1-09164-018-0	10	1	9002-9306
22	BOLT; BUMPER TO PLATFORM HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-09164-018-0	10	1	9307-
22	BOLT; BUMPER TO PLATFORM DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>	1-09164-018-0	10	1	9307-
25	SPACER; PLATFORM DELUXE BUMPER<VH7>	1-53497-260-0	10	1	9002-9306
25	SPACER; PLATFORM HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-53497-260-0	10	1	9307-
25	SPACER; PLATFORM DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>	1-53497-260-0	10	1	9307-
26	BOLT; CTR BUMPER DELUXE BUMPER<VH7>	1-09060-008-0	02	1	9002-9306
26	BOLT; CTR BUMPER DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-09060-008-0	02	1	9307-
29	WASHER; FRT BUMPER DELUXE BUMPER<VH7> ID=12.5 OD=32	9-09160-712-0	02	1	9002-9306
29	WASHER; FRT BUMPER DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> ID=12.5 OD=32	9-09160-712-0	02	1	9307-
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	1-71230-206-2	01	1	9307-
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B)	1-71230-205-2	01	1	9307-
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (C)	1-71230-168-1	01	1	9307-
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (B)	1-71230-169-0	01	1	9307-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (A)	1-71230-122-1	02	1	8712-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	1-71230-137-0	01	1	8712-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-136-0	01	1	8712-
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (C)	1-71230-115-3	01	1	8712-9003
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (C)	1-71230-168-1	01	1	9004-9306
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (B)	1-71230-116-3	01	1	8712-9003
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (B)	1-71230-169-0	01	1	9004-9306
32	BOLT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9307-
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> (A) M10X25	9-01911-025-0	08	1	8712-9002
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> (A) M10X25 W/LK WASHER	0-50041-025-0	08	1	9003-9511
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	08	1	9512-
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A) M10X20 W/LK WASHER	9-01911-020-0	08	1	8712-9002
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A) M10X20 W/LK WASHER	0-50041-020-0	08	1	9003-9511
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A) M10X20 FLANGE	0-28081-020-0	08	1	9512-
34	NUT; BRKT,BUMPER DELUXE BUMPER<VH7> (B)	1-09440-034-0	10	1	9002-9306
34	NUT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B)	1-09440-034-0	10	1	9307-
34	NUT; BRKT,BUMPER DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (B)	1-09440-034-0	10	1	9307-
34	NUT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A)	0-91150-108-0	04	1	9307-
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> (C) M10	9-09110-510-0	04	1	8712-
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> (C) M10 FLANGE	5-09440-006-0	08	1	8712-
41	SCREW; BUMPER TO BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M10X25	1-09060-010-1	08	1	9307-
41	SCREW; BUMPER TO BRKT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> M10X25	1-09122-020-0	08	1	9307-
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7> M10X25	9-01971-025-0	08	1	8712-9002
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7> M10X25 W/LK&PL WASHER	0-50141-025-0	08	1	9003-9306
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M10X25 W/LK&PL WASHER	0-50141-025-0	08	1	9307-
41	SCREW; BUMPER TO BRKT EXC. REINFORCEMENT BUMPER<VG7> M10X25	1-09122-008-0	08	1	8712-9001
41	SCREW; BUMPER TO BRKT EXC. REINFORCEMENT BUMPER<VG7> M10X25	1-09122-020-0	08	1	9002-9306
84	HOOK CAB UP +50MM<W60>	1-57181-009-0	01	1	8712-
84	HOOK EXC. CAB UP +50MM<W60>	9-53511-016-0	01	1	8712-8801
84	HOOK EXC. CAB UP +50MM<W60>	1-57181-024-0	01	1	8802-9006
84	HOOK EXC. CAB UP +50MM<W60>	1-57181-027-1	01	1	9007-
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	8712-
94	NUT; HOOK M16	9-99110-416-0	02	1	8712-9001
94	NUT; HOOK CAB UP +50MM<W60> M16	9-99110-416-0	02	1	9002-
94	NUT; HOOK EXC. CAB UP +50MM<W60> M16	9-99110-416-0	01	1	9002-
301	BOLT; HOOK TO FRAME CAB UP +50MM<W60> EXC. REINFORCEMENT BUMPER<VG7> (A) M16X70	9-91051-670-0	01	1	8712-8912
301	BOLT; HOOK TO FRAME CAB UP +50MM<W60> EXC. REINFORCEMENT BUMPER<VG7> (B) M16X85	9-91051-685-0	01	1	8712-9005
301	BOLT; HOOK TO FRAME CAB UP +50MM<W60> EXC. REINFORCEMENT BUMPER<VG7> (B) M16X85	0-10811-685-0	01	1	9006-
301	BOLT; HOOK TO FRAME EXC. CAB UP +50MM<W60> (B) M16X55	9-91051-655-0	01	1	8712-8912
301	BOLT; HOOK TO FRAME EXC. CAB UP +50MM<W60> (B) M16X55	9-92051-655-0	01	1	9001-9008
301	BOLT; HOOK TO FRAME EXC. CAB UP +50MM<W60> (B) M16X55	0-20801-655-0	01	1	9009-9306
301	BOLT; HOOK TO FRAME EXC. CAB UP +50MM<W60> (B) M16X60	0-20801-660-0	01	1	9307-
301	BOLT; HOOK TO FRAME EXC. CAB UP +50MM<W60> (A) M16X70	9-91051-670-0	01	1	9001-9005
301	BOLT; HOOK TO FRAME CAB UP +50MM<W60> EXC. REINFORCEMENT BUMPER<VG7> (A) M16X70	9-91051-670-0	01	1	9001-9005
301	BOLT; HOOK TO FRAME EXC. CAB UP +50MM<W60> (A) M16X70	0-10811-670-0	01	1	9006-
301	BOLT; HOOK TO FRAME CAB UP +50MM<W60> EXC. REINFORCEMENT BUMPER<VG7> (A) M16X70	0-10811-670-0	01	1	9006-
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> CAB UP +50MM<W60> (A) M16X120	5-09000-124-0	01	1	8712-
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> CAB UP +50MM<W60> (A) M16X140	9-09801-144-1	01	1	8712-

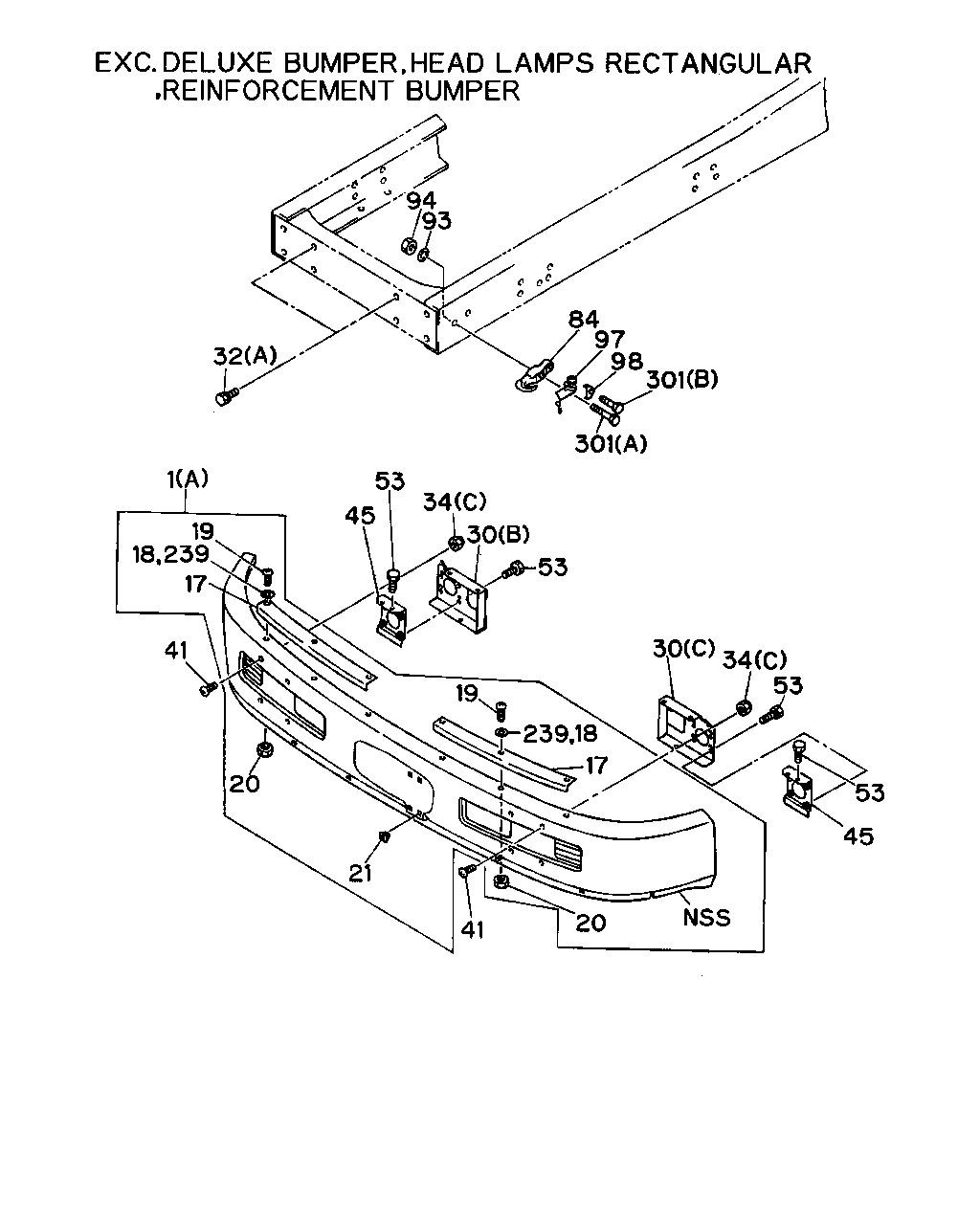

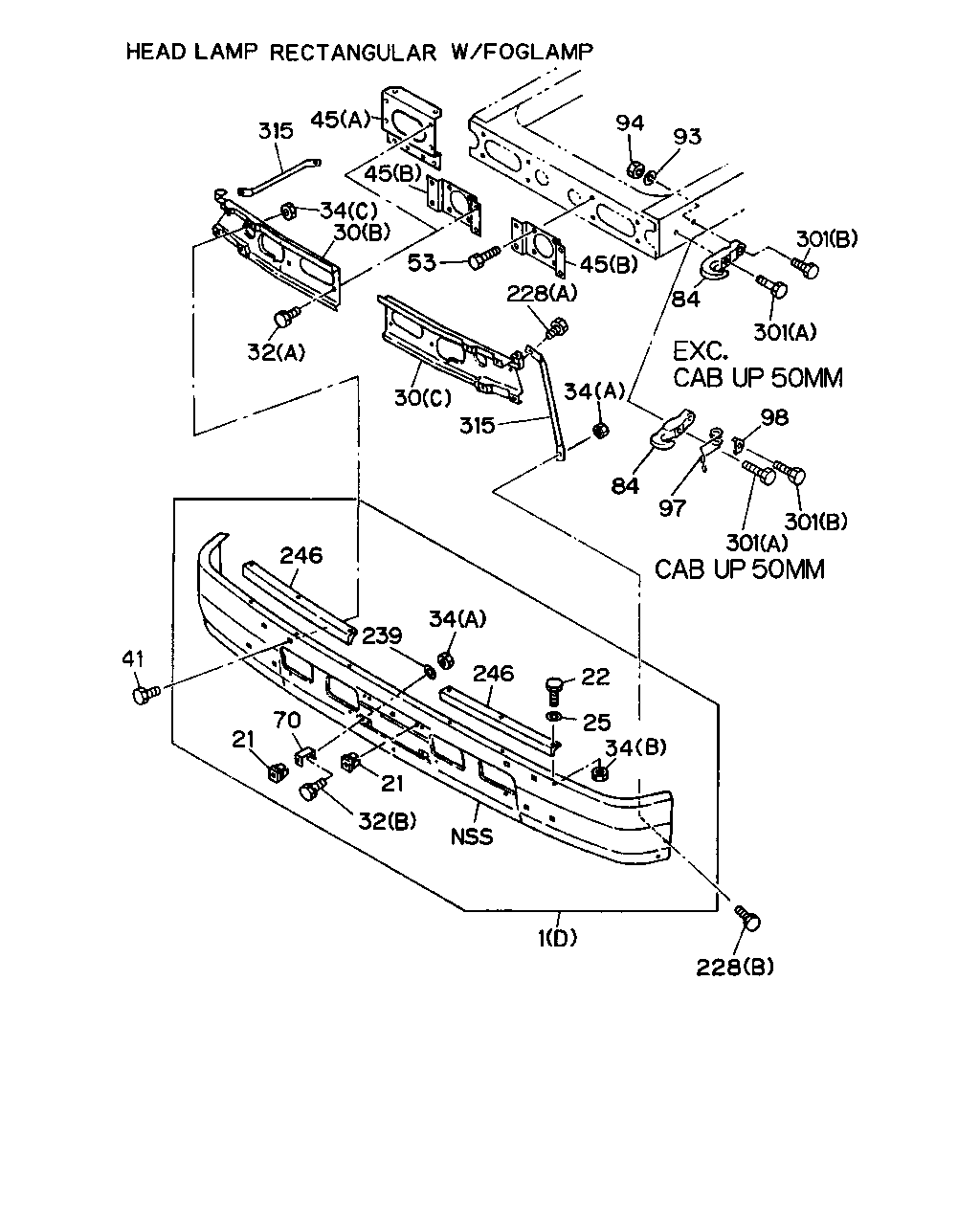

228 1 34 25 22 246 34 239 246 41 21 70 21 32 32 315 30 34 84 97 301 301 98 301 84 301 93 94 45 228 53 30 34 45 45 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT DELUXE BUMPER<VH7> (C)	1-71210-420-2	01	1	9002-9306
1	BUMPER ASM; FRT DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	1-71210-420-2	01	1	9307-
1	BUMPER ASM; FRT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (D)	1-71210-489-1	01	1	9307-
1	BUMPER ASM; FRT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> (A)	1-71210-168-3	01	1	9307-
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-238-2	01	1	8712-
1	BUMPER ASM; FRT EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71210-168-3	01	1	8712-9001
1	BUMPER ASM; FRT EXC. REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> (A)	1-71210-168-3	01	1	9002-9306
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. REINFORCEMENT BUMPER<VG7> D=9.7X9.7 L=8	8-94222-314-0	04	1	8712-
22	BOLT; BUMPER TO PLATFORM DELUXE BUMPER<VH7>	1-09164-018-0	10	1	9002-9306
22	BOLT; BUMPER TO PLATFORM HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-09164-018-0	10	1	9307-
22	BOLT; BUMPER TO PLATFORM DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>	1-09164-018-0	10	1	9307-
25	SPACER; PLATFORM DELUXE BUMPER<VH7>	1-53497-260-0	10	1	9002-9306
25	SPACER; PLATFORM HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-53497-260-0	10	1	9307-
25	SPACER; PLATFORM DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>	1-53497-260-0	10	1	9307-
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	1-71230-206-2	01	1	9307-
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B)	1-71230-205-2	01	1	9307-
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (C)	1-71230-168-1	01	1	9307-
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (B)	1-71230-169-0	01	1	9307-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (A)	1-71230-122-1	02	1	8712-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	1-71230-137-0	01	1	8712-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-136-0	01	1	8712-
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (C)	1-71230-115-3	01	1	8712-9003
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (C)	1-71230-168-1	01	1	9004-9306
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (B)	1-71230-116-3	01	1	8712-9003
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (B)	1-71230-169-0	01	1	9004-9306
32	BOLT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9307-
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> (A) M10X25	9-01911-025-0	08	1	8712-9002
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> (A) M10X25 W/LK WASHER	0-50041-025-0	08	1	9003-9511
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	08	1	9512-
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A) M10X20 W/LK WASHER	9-01911-020-0	08	1	8712-9002
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A) M10X20 W/LK WASHER	0-50041-020-0	08	1	9003-9511
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A) M10X20 FLANGE	0-28081-020-0	08	1	9512-
34	NUT; BRKT,BUMPER DELUXE BUMPER<VH7> (B)	1-09440-034-0	10	1	9002-9306
34	NUT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B)	1-09440-034-0	10	1	9307-
34	NUT; BRKT,BUMPER DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (B)	1-09440-034-0	10	1	9307-
34	NUT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A)	0-91150-108-0	04	1	9307-
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> (C) M10	9-09110-510-0	04	1	8712-
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> (C) M10 FLANGE	5-09440-006-0	08	1	8712-
41	SCREW; BUMPER TO BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M10X25	1-09060-010-1	08	1	9307-
41	SCREW; BUMPER TO BRKT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> M10X25	1-09122-020-0	08	1	9307-
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7> M10X25	9-01971-025-0	08	1	8712-9002
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7> M10X25 W/LK&PL WASHER	0-50141-025-0	08	1	9003-9306
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M10X25 W/LK&PL WASHER	0-50141-025-0	08	1	9307-
41	SCREW; BUMPER TO BRKT EXC. REINFORCEMENT BUMPER<VG7> M10X25	1-09122-008-0	08	1	8712-9001
41	SCREW; BUMPER TO BRKT EXC. REINFORCEMENT BUMPER<VG7> M10X25	1-09122-020-0	08	1	9002-9306
45	BRACKET; BRKT TO BUMPER CAB UP +50MM<W60>	8-94300-476-1	02	1	8712-9306
45	BRACKET; BRKT TO BUMPER CAB UP +50MM<W60> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	8-94300-476-1	02	1	9307-
45	BRACKET; BRKT TO BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> CAB UP +50MM<W60> (A)	1-71210-545-0	02	1	9307-
45	BRACKET; BRKT TO BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. CAB UP +50MM<W60> (B)	1-71210-538-1	02	1	9307-
53	BOLT; BRKT TO FRAME CAB UP +50MM<W60> M10X25	9-01911-025-0	04	1	8712-9002
53	BOLT; BRKT TO FRAME CAB UP +50MM<W60> M10X25 W/LK WASHER	0-50041-025-0	04	1	9003-
53	BOLT; BRKT TO FRAME CAB UP +50MM<W60> M12X40	9-01911-240-0	04	1	8712-9005
53	BOLT; BRKT TO FRAME CAB UP +50MM<W60> M12X40 W/LK WASHER	0-50041-240-0	04	1	9006-
53	BOLT; BRKT TO FRAME HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. CAB UP +50MM<W60> M10X25 W/LK WASHER	0-50041-025-0	08	1	9307-
70	BRACKET; LICENSE PLATE,FRT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-53485-046-0	02	1	9307-
84	HOOK CAB UP +50MM<W60>	1-57181-009-0	01	1	8712-
84	HOOK EXC. CAB UP +50MM<W60>	9-53511-016-0	01	1	8712-8801
84	HOOK EXC. CAB UP +50MM<W60>	1-57181-024-0	01	1	8802-9006
84	HOOK EXC. CAB UP +50MM<W60>	1-57181-027-1	01	1	9007-
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	8712-
94	NUT; HOOK M16	9-99110-416-0	02	1	8712-9001
94	NUT; HOOK CAB UP +50MM<W60> M16	9-99110-416-0	02	1	9002-
94	NUT; HOOK EXC. CAB UP +50MM<W60> M16	9-99110-416-0	01	1	9002-
97	SPRING; FRT HOOK CAB UP +50MM<W60>	9-53519-003-0	01	1	8712-
98	STOPPER; SPR,FRT HOOK CAB UP +50MM<W60>	9-53519-006-0	01	1	8712-
228	BOLT; BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A)	0-28080-820-0	02	1	9307-
228	BOLT; BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B)	1-09164-023-0	02	1	9307-
239	WASHER; PL,BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> ID=8.4 OD=22	9-09160-708-0	02	1	9307-
239	WASHER; PL,BRKT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> ID=4.3 OD=10	8-94212-740-0	06	1	9307-
239	WASHER; PL,BRKT EXC. REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> ID=4.3 OD=10	8-94212-740-0	06	1	9002-9306
246	PROTECTOR; BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71260-034-2	01	1	9307-
246	PROTECTOR; BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71260-035-2	01	1	9307-
301	BOLT; HOOK TO FRAME CAB UP +50MM<W60> EXC. REINFORCEMENT BUMPER<VG7> (A) M16X70	9-91051-670-0	01	1	8712-8912
301	BOLT; HOOK TO FRAME CAB UP +50MM<W60> EXC. REINFORCEMENT BUMPER<VG7> (B) M16X85	9-91051-685-0	01	1	8712-9005
301	BOLT; HOOK TO FRAME CAB UP +50MM<W60> EXC. REINFORCEMENT BUMPER<VG7> (B) M16X85	0-10811-685-0	01	1	9006-
301	BOLT; HOOK TO FRAME EXC. CAB UP +50MM<W60> (B) M16X55	9-91051-655-0	01	1	8712-8912
301	BOLT; HOOK TO FRAME EXC. CAB UP +50MM<W60> (B) M16X55	9-92051-655-0	01	1	9001-9008
301	BOLT; HOOK TO FRAME EXC. CAB UP +50MM<W60> (B) M16X55	0-20801-655-0	01	1	9009-9306
301	BOLT; HOOK TO FRAME EXC. CAB UP +50MM<W60> (B) M16X60	0-20801-660-0	01	1	9307-
301	BOLT; HOOK TO FRAME EXC. CAB UP +50MM<W60> (A) M16X70	9-91051-670-0	01	1	9001-9005
301	BOLT; HOOK TO FRAME CAB UP +50MM<W60> EXC. REINFORCEMENT BUMPER<VG7> (A) M16X70	9-91051-670-0	01	1	9001-9005
301	BOLT; HOOK TO FRAME EXC. CAB UP +50MM<W60> (A) M16X70	0-10811-670-0	01	1	9006-
301	BOLT; HOOK TO FRAME CAB UP +50MM<W60> EXC. REINFORCEMENT BUMPER<VG7> (A) M16X70	0-10811-670-0	01	1	9006-
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> CAB UP +50MM<W60> (A) M16X120	5-09000-124-0	01	1	8712-
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> CAB UP +50MM<W60> (A) M16X140	9-09801-144-1	01	1	8712-
315	STAY; BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71230-307-0	02	1	9307-

32 94 93 96 84 97 98 301 301 41 30 41 30 34 34 43 30 42 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT DELUXE BUMPER<VH7> (C)	1-71210-420-2	01	1	9002-9306
1	BUMPER ASM; FRT DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	1-71210-420-2	01	1	9307-
1	BUMPER ASM; FRT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (D)	1-71210-489-1	01	1	9307-
1	BUMPER ASM; FRT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> (A)	1-71210-168-3	01	1	9307-
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-238-2	01	1	8712-
1	BUMPER ASM; FRT EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71210-168-3	01	1	8712-9001
1	BUMPER ASM; FRT EXC. REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> (A)	1-71210-168-3	01	1	9002-9306
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	1-71230-206-2	01	1	9307-
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B)	1-71230-205-2	01	1	9307-
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (C)	1-71230-168-1	01	1	9307-
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (B)	1-71230-169-0	01	1	9307-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (A)	1-71230-122-1	02	1	8712-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	1-71230-137-0	01	1	8712-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-136-0	01	1	8712-
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (C)	1-71230-115-3	01	1	8712-9003
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (C)	1-71230-168-1	01	1	9004-9306
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (B)	1-71230-116-3	01	1	8712-9003
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (B)	1-71230-169-0	01	1	9004-9306
32	BOLT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9307-
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> (A) M10X25	9-01911-025-0	08	1	8712-9002
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> (A) M10X25 W/LK WASHER	0-50041-025-0	08	1	9003-9511
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	08	1	9512-
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A) M10X20 W/LK WASHER	9-01911-020-0	08	1	8712-9002
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A) M10X20 W/LK WASHER	0-50041-020-0	08	1	9003-9511
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A) M10X20 FLANGE	0-28081-020-0	08	1	9512-
34	NUT; BRKT,BUMPER DELUXE BUMPER<VH7> (B)	1-09440-034-0	10	1	9002-9306
34	NUT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B)	1-09440-034-0	10	1	9307-
34	NUT; BRKT,BUMPER DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (B)	1-09440-034-0	10	1	9307-
34	NUT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A)	0-91150-108-0	04	1	9307-
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> (C) M10	9-09110-510-0	04	1	8712-
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> (C) M10 FLANGE	5-09440-006-0	08	1	8712-
41	SCREW; BUMPER TO BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M10X25	1-09060-010-1	08	1	9307-
41	SCREW; BUMPER TO BRKT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> M10X25	1-09122-020-0	08	1	9307-
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7> M10X25	9-01971-025-0	08	1	8712-9002
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7> M10X25 W/LK&PL WASHER	0-50141-025-0	08	1	9003-9306
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M10X25 W/LK&PL WASHER	0-50141-025-0	08	1	9307-
41	SCREW; BUMPER TO BRKT EXC. REINFORCEMENT BUMPER<VG7> M10X25	1-09122-008-0	08	1	8712-9001
41	SCREW; BUMPER TO BRKT EXC. REINFORCEMENT BUMPER<VG7> M10X25	1-09122-020-0	08	1	9002-9306
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> M10X25	9-01911-025-0	04	1	8712-9002
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> M10X25 W/LK WASHER	0-50041-025-0	04	1	9003-
43	NUT; BRKT TO BUMPER REINFORCEMENT BUMPER<VG7> M10	9-09110-510-0	04	1	8712-
84	HOOK CAB UP +50MM<W60>	1-57181-009-0	01	1	8712-
84	HOOK EXC. CAB UP +50MM<W60>	9-53511-016-0	01	1	8712-8801
84	HOOK EXC. CAB UP +50MM<W60>	1-57181-024-0	01	1	8802-9006
84	HOOK EXC. CAB UP +50MM<W60>	1-57181-027-1	01	1	9007-
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	8712-
94	NUT; HOOK M16	9-99110-416-0	02	1	8712-9001
94	NUT; HOOK CAB UP +50MM<W60> M16	9-99110-416-0	02	1	9002-
94	NUT; HOOK EXC. CAB UP +50MM<W60> M16	9-99110-416-0	01	1	9002-
96	PLATE; DIST,HOOK REINFORCEMENT BUMPER<VG7> CAB UP +50MM<W60>	8-94300-894-0	01	1	8712-
97	SPRING; FRT HOOK CAB UP +50MM<W60>	9-53519-003-0	01	1	8712-
98	STOPPER; SPR,FRT HOOK CAB UP +50MM<W60>	9-53519-006-0	01	1	8712-
301	BOLT; HOOK TO FRAME CAB UP +50MM<W60> EXC. REINFORCEMENT BUMPER<VG7> (A) M16X70	9-91051-670-0	01	1	8712-8912
301	BOLT; HOOK TO FRAME CAB UP +50MM<W60> EXC. REINFORCEMENT BUMPER<VG7> (B) M16X85	9-91051-685-0	01	1	8712-9005
301	BOLT; HOOK TO FRAME CAB UP +50MM<W60> EXC. REINFORCEMENT BUMPER<VG7> (B) M16X85	0-10811-685-0	01	1	9006-
301	BOLT; HOOK TO FRAME EXC. CAB UP +50MM<W60> (B) M16X55	9-91051-655-0	01	1	8712-8912
301	BOLT; HOOK TO FRAME EXC. CAB UP +50MM<W60> (B) M16X55	9-92051-655-0	01	1	9001-9008
301	BOLT; HOOK TO FRAME EXC. CAB UP +50MM<W60> (B) M16X55	0-20801-655-0	01	1	9009-9306
301	BOLT; HOOK TO FRAME EXC. CAB UP +50MM<W60> (B) M16X60	0-20801-660-0	01	1	9307-
301	BOLT; HOOK TO FRAME EXC. CAB UP +50MM<W60> (A) M16X70	9-91051-670-0	01	1	9001-9005
301	BOLT; HOOK TO FRAME CAB UP +50MM<W60> EXC. REINFORCEMENT BUMPER<VG7> (A) M16X70	9-91051-670-0	01	1	9001-9005
301	BOLT; HOOK TO FRAME EXC. CAB UP +50MM<W60> (A) M16X70	0-10811-670-0	01	1	9006-
301	BOLT; HOOK TO FRAME CAB UP +50MM<W60> EXC. REINFORCEMENT BUMPER<VG7> (A) M16X70	0-10811-670-0	01	1	9006-
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> CAB UP +50MM<W60> (A) M16X120	5-09000-124-0	01	1	8712-
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> CAB UP +50MM<W60> (A) M16X140	9-09801-144-1	01	1	8712-

45 53 53 34 30 239 18 17 20 41 21 20 41 17 18 239 19 1 45 53 34 30 53 301 301 98 97 84 32 93 94 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT DELUXE BUMPER<VH7> (C)	1-71210-420-2	01	1	9002-9306
1	BUMPER ASM; FRT DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	1-71210-420-2	01	1	9307-
1	BUMPER ASM; FRT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (D)	1-71210-489-1	01	1	9307-
1	BUMPER ASM; FRT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> (A)	1-71210-168-3	01	1	9307-
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-238-2	01	1	8712-
1	BUMPER ASM; FRT EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71210-168-3	01	1	8712-9001
1	BUMPER ASM; FRT EXC. REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> (A)	1-71210-168-3	01	1	9002-9306
17	PROTECTOR; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7>	1-71260-023-0	01	1	9307-
17	PROTECTOR; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7>	1-71260-022-0	01	1	9307-
17	PROTECTOR; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7>	1-71260-023-0	01	1	8712-9306
17	PROTECTOR; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7>	1-71260-022-0	01	1	8712-9306
18	WASHER; PL,BUMPER PROTECTOR EXC. REINFORCEMENT BUMPER<VG7> ID=4.3 OD=10	8-94212-740-0	06	1	8712-8901
19	SCREW; BUMPER PROTECTOR EXC. REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> M4X10	1-09104-016-0	06	1	8712-9306
19	SCREW; BUMPER PROTECTOR EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> M4X10	1-09104-016-0	06	1	9307-9310
19	SCREW; BUMPER PROTECTOR EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> M4X10	9-03486-410-0	06	1	9311-
20	NUT; BUMPER PROTECTOR EXC. REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7>	9-09112-004-0	06	1	8712-9306
20	NUT; BUMPER PROTECTOR EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7>	9-09112-004-0	06	1	9307-
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. REINFORCEMENT BUMPER<VG7> D=9.7X9.7 L=8	8-94222-314-0	04	1	8712-
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	1-71230-206-2	01	1	9307-
30	BRACKET; FRT BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B)	1-71230-205-2	01	1	9307-
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (C)	1-71230-168-1	01	1	9307-
30	BRACKET; FRT BUMPER EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (B)	1-71230-169-0	01	1	9307-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (A)	1-71230-122-1	02	1	8712-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (C)	1-71230-137-0	01	1	8712-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-136-0	01	1	8712-
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (C)	1-71230-115-3	01	1	8712-9003
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (C)	1-71230-168-1	01	1	9004-9306
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (B)	1-71230-116-3	01	1	8712-9003
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (B)	1-71230-169-0	01	1	9004-9306
32	BOLT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B) M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9307-
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> (A) M10X25	9-01911-025-0	08	1	8712-9002
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> (A) M10X25 W/LK WASHER	0-50041-025-0	08	1	9003-9511
32	BOLT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	08	1	9512-
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A) M10X20 W/LK WASHER	9-01911-020-0	08	1	8712-9002
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A) M10X20 W/LK WASHER	0-50041-020-0	08	1	9003-9511
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A) M10X20 FLANGE	0-28081-020-0	08	1	9512-
34	NUT; BRKT,BUMPER DELUXE BUMPER<VH7> (B)	1-09440-034-0	10	1	9002-9306
34	NUT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B)	1-09440-034-0	10	1	9307-
34	NUT; BRKT,BUMPER DELUXE BUMPER<VH7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> (B)	1-09440-034-0	10	1	9307-
34	NUT; BRKT,BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (A)	0-91150-108-0	04	1	9307-
34	NUT; BRKT,BUMPER REINFORCEMENT BUMPER<VG7> (C) M10	9-09110-510-0	04	1	8712-
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> (C) M10 FLANGE	5-09440-006-0	08	1	8712-
41	SCREW; BUMPER TO BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M10X25	1-09060-010-1	08	1	9307-
41	SCREW; BUMPER TO BRKT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7> M10X25	1-09122-020-0	08	1	9307-
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7> M10X25	9-01971-025-0	08	1	8712-9002
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7> M10X25 W/LK&PL WASHER	0-50141-025-0	08	1	9003-9306
41	SCREW; BUMPER TO BRKT REINFORCEMENT BUMPER<VG7> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M10X25 W/LK&PL WASHER	0-50141-025-0	08	1	9307-
41	SCREW; BUMPER TO BRKT EXC. REINFORCEMENT BUMPER<VG7> M10X25	1-09122-008-0	08	1	8712-9001
41	SCREW; BUMPER TO BRKT EXC. REINFORCEMENT BUMPER<VG7> M10X25	1-09122-020-0	08	1	9002-9306
45	BRACKET; BRKT TO BUMPER CAB UP +50MM<W60>	8-94300-476-1	02	1	8712-9306
45	BRACKET; BRKT TO BUMPER CAB UP +50MM<W60> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	8-94300-476-1	02	1	9307-
45	BRACKET; BRKT TO BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> CAB UP +50MM<W60> (A)	1-71210-545-0	02	1	9307-
45	BRACKET; BRKT TO BUMPER HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. CAB UP +50MM<W60> (B)	1-71210-538-1	02	1	9307-
53	BOLT; BRKT TO FRAME CAB UP +50MM<W60> M10X25	9-01911-025-0	04	1	8712-9002
53	BOLT; BRKT TO FRAME CAB UP +50MM<W60> M10X25 W/LK WASHER	0-50041-025-0	04	1	9003-
53	BOLT; BRKT TO FRAME CAB UP +50MM<W60> M12X40	9-01911-240-0	04	1	8712-9005
53	BOLT; BRKT TO FRAME CAB UP +50MM<W60> M12X40 W/LK WASHER	0-50041-240-0	04	1	9006-
53	BOLT; BRKT TO FRAME HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. CAB UP +50MM<W60> M10X25 W/LK WASHER	0-50041-025-0	08	1	9307-
84	HOOK CAB UP +50MM<W60>	1-57181-009-0	01	1	8712-
84	HOOK EXC. CAB UP +50MM<W60>	9-53511-016-0	01	1	8712-8801
84	HOOK EXC. CAB UP +50MM<W60>	1-57181-024-0	01	1	8802-9006
84	HOOK EXC. CAB UP +50MM<W60>	1-57181-027-1	01	1	9007-
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	8712-
94	NUT; HOOK M16	9-99110-416-0	02	1	8712-9001
94	NUT; HOOK CAB UP +50MM<W60> M16	9-99110-416-0	02	1	9002-
94	NUT; HOOK EXC. CAB UP +50MM<W60> M16	9-99110-416-0	01	1	9002-
97	SPRING; FRT HOOK CAB UP +50MM<W60>	9-53519-003-0	01	1	8712-
98	STOPPER; SPR,FRT HOOK CAB UP +50MM<W60>	9-53519-006-0	01	1	8712-
239	WASHER; PL,BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> ID=8.4 OD=22	9-09160-708-0	02	1	9307-
239	WASHER; PL,BRKT EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>, REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> ID=4.3 OD=10	8-94212-740-0	06	1	9307-
239	WASHER; PL,BRKT EXC. REINFORCEMENT BUMPER<VG7>,DELUXE BUMPER<VH7> ID=4.3 OD=10	8-94212-740-0	06	1	9002-9306
301	BOLT; HOOK TO FRAME CAB UP +50MM<W60> EXC. REINFORCEMENT BUMPER<VG7> (A) M16X70	9-91051-670-0	01	1	8712-8912
301	BOLT; HOOK TO FRAME CAB UP +50MM<W60> EXC. REINFORCEMENT BUMPER<VG7> (B) M16X85	9-91051-685-0	01	1	8712-9005
301	BOLT; HOOK TO FRAME CAB UP +50MM<W60> EXC. REINFORCEMENT BUMPER<VG7> (B) M16X85	0-10811-685-0	01	1	9006-
301	BOLT; HOOK TO FRAME EXC. CAB UP +50MM<W60> (B) M16X55	9-91051-655-0	01	1	8712-8912
301	BOLT; HOOK TO FRAME EXC. CAB UP +50MM<W60> (B) M16X55	9-92051-655-0	01	1	9001-9008
301	BOLT; HOOK TO FRAME EXC. CAB UP +50MM<W60> (B) M16X55	0-20801-655-0	01	1	9009-9306
301	BOLT; HOOK TO FRAME EXC. CAB UP +50MM<W60> (B) M16X60	0-20801-660-0	01	1	9307-
301	BOLT; HOOK TO FRAME EXC. CAB UP +50MM<W60> (A) M16X70	9-91051-670-0	01	1	9001-9005
301	BOLT; HOOK TO FRAME CAB UP +50MM<W60> EXC. REINFORCEMENT BUMPER<VG7> (A) M16X70	9-91051-670-0	01	1	9001-9005
301	BOLT; HOOK TO FRAME EXC. CAB UP +50MM<W60> (A) M16X70	0-10811-670-0	01	1	9006-
301	BOLT; HOOK TO FRAME CAB UP +50MM<W60> EXC. REINFORCEMENT BUMPER<VG7> (A) M16X70	0-10811-670-0	01	1	9006-
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> CAB UP +50MM<W60> (A) M16X120	5-09000-124-0	01	1	8712-
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> CAB UP +50MM<W60> (A) M16X140	9-09801-144-1	01	1	8712-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
