0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#55099) — 107 parça

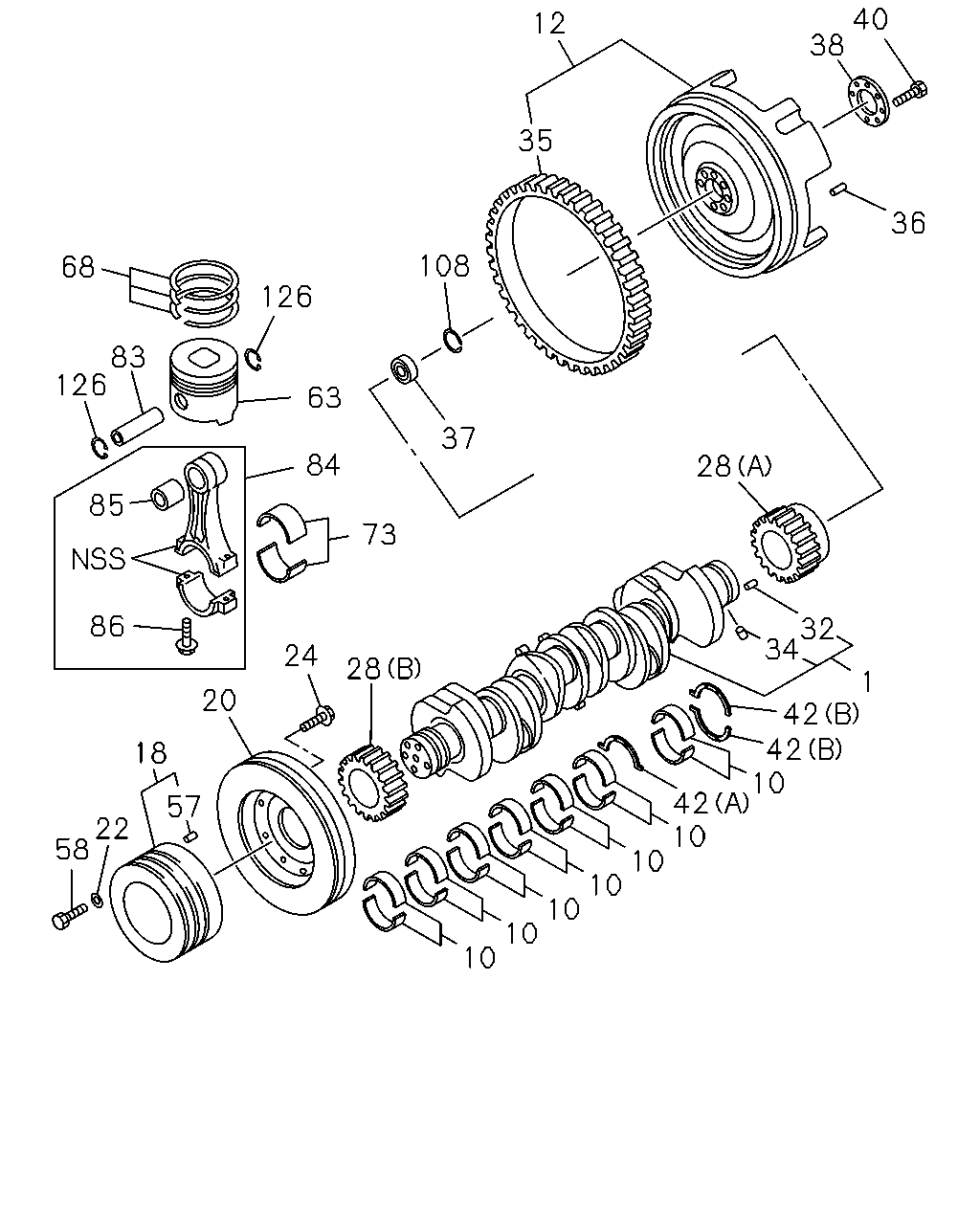

28 42 42 10 42 10 10 10 10 10 10 32 34 36 40 38 12 35 108 37 63 84 73 24 28 20 18 22 58 85 86 83 68 126 126 57 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CRANKSHAFT	8-98029-270-0	01	1	1311-	●
1	CRANKSHAFT	8-97603-004-0	01	1	1106-		●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	1311-	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	1311-	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	1311-	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	1106-		●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	1106-		●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	1106-		●
12	FLYWHEEL	8-98056-355-2	01	1	1311-	●
12	FLYWHEEL	8-97602-463-2	01	1	1106-		●
18	PULLEY; CR/SHF 3-GROOVE	8-97606-944-0	01	1	1106-		●
20	DAMPER; CR/SHF	8-97613-696-1	01	1	1106-		●
22	PLATE; PULLEY ID=17 OD=30	9-09851-935-0	04	1	1106-		●
24	BOLT; DAMPER M16X42	8-97028-733-0	04	1	1311-	●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	1106-		●
28	GEAR; CR/SHF (C) Z=42	8-94394-342-4	01	1	1311-	●
28	GEAR; CR/SHF (A) Z=42	8-94392-255-1	01	1	1106-		●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	1106-		●
32	PIN; FLYWHEEL OD=8 L=16	9-08150-816-0	02	1	1106-		●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	1106-1310		●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	1311-	●	●
35	GEAR; RING Z=143	8-97375-675-1	01	1	1311-	●
35	GEAR; RING Z=140	8-94396-784-1	01	1	1106-		●
36	PIN; FLYWHEEL OD=10 L=22	9-08151-022-0	02	1	1106-		●
37	BEARING; PILOT,TOP GEAR SHAFT	8-94392-288-0	01	1	1106-		●
37	BEARING; PILOT,TOP GEAR SHAFT BEST VALUE PARTS	1-87610-157-0	01	1	1106-		●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	1106-1310		●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	1311-	●	●
40	BOLT; FLYWHEEL M16X51	8-94334-870-1	08	1	1311-	●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	1106-		●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	1106-1310		●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	1311-	●	●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1106-1310		●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1311-	●	●
57	PIN; PULLEY OD=8 L=20	9-08150-820-0	02	1	1311-	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	1106-		●
58	BOLT; CR/SHF PULLEY M16X50	0-20951-650-0	04	1	1106-		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98215-307-0	04	1	1311-	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	06	1	1106-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	04	1	1311-	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	06	1	1106-		●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-98055-479-0	04	1	1311-	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-98055-480-0	04	1	1311-	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97616-358-0	06	1	1106-		●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97616-359-0	06	1	1106-		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	04	1	1311-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	06	1	1106-		●
84	ROD ASM; CONN	8-98018-425-3	04	1	1311-	●
84	ROD ASM; CONN	8-98018-425-3	06	1	1106-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	04	1	1311-	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	06	1	1106-		●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	08	1	1311-	●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	12	1	1106-		●
108	RING; SNAP,BRG SET OD=59.2	9-09180-155-0	01	1	1106-		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	08	1	1311-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	12	1	1106-		●

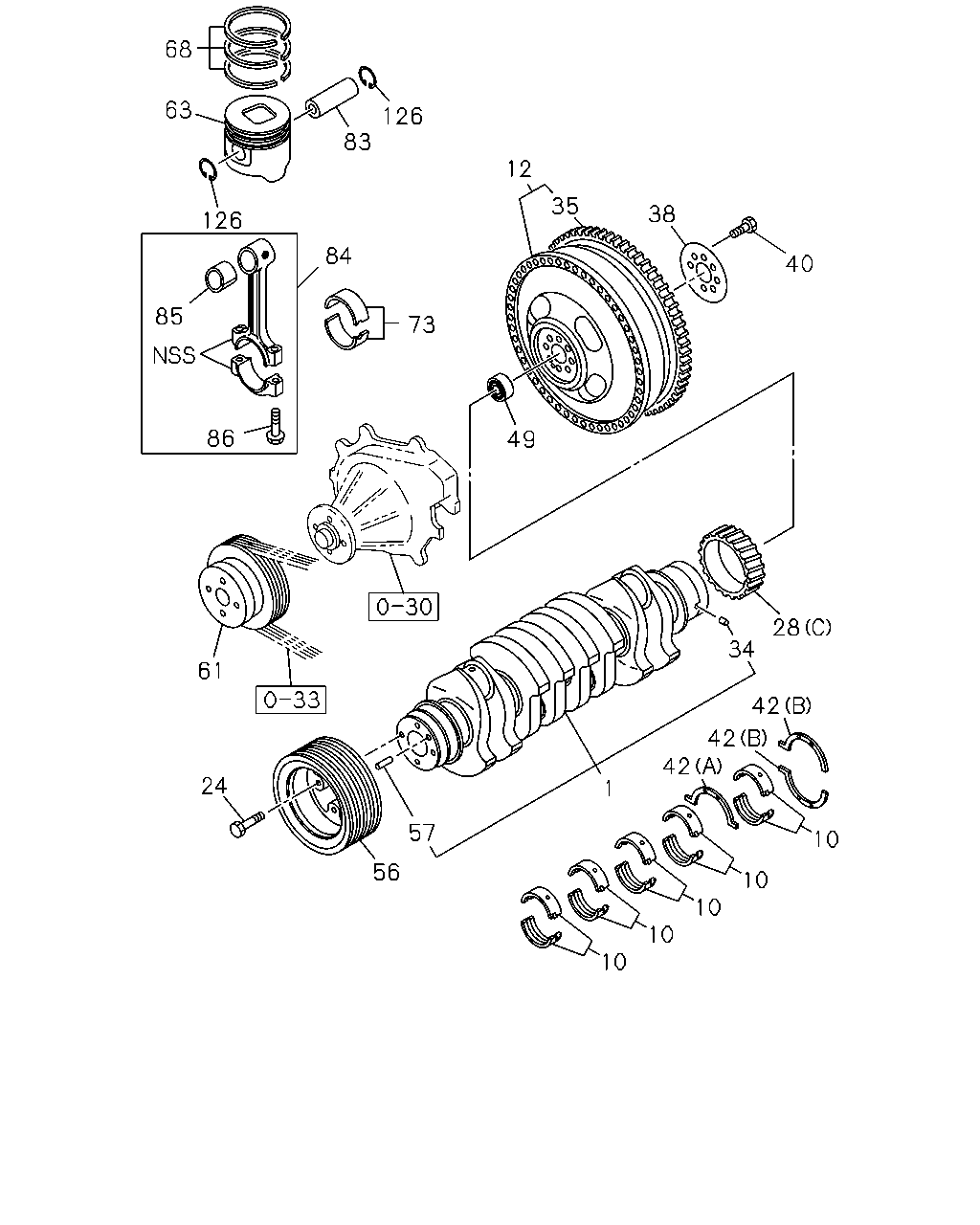

68 63 126 85 86 84 73 83 126 12 35 38 40 49 61 24 56 57 1 42 42 42 34 28 10 10 10 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CRANKSHAFT	8-98029-270-0	01	1	1311-	●
1	CRANKSHAFT	8-97603-004-0	01	1	1106-		●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	1311-	●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	1311-	●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	1311-	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	07	1	1106-		●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	07	1	1106-		●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	07	1	1106-		●
12	FLYWHEEL	8-98056-355-2	01	1	1311-	●
12	FLYWHEEL	8-97602-463-2	01	1	1106-		●
24	BOLT; DAMPER M16X42	8-97028-733-0	04	1	1311-	●
24	BOLT; DAMPER M10X16 FLANGE	0-28151-016-0	06	1	1106-		●
28	GEAR; CR/SHF (C) Z=42	8-94394-342-4	01	1	1311-	●
28	GEAR; CR/SHF (A) Z=42	8-94392-255-1	01	1	1106-		●
28	GEAR; CR/SHF (B) Z=41	8-94396-954-2	01	1	1106-		●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	1106-1310		●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	1311-	●	●
35	GEAR; RING Z=143	8-97375-675-1	01	1	1311-	●
35	GEAR; RING Z=140	8-94396-784-1	01	1	1106-		●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	1106-1310		●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	1311-	●	●
40	BOLT; FLYWHEEL M16X51	8-94334-870-1	08	1	1311-	●
40	BOLT; FLYWHEEL M16X62	8-94393-070-2	08	1	1106-		●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	1106-1310		●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	1311-	●	●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1106-1310		●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	1311-	●	●
49	BEARING; PILOT	8-97258-239-0	01	1	1311-	●
49	BEARING; PILOT BEST VALUE PARTS	5-87610-164-0	01	1	1311-	●
56	PULLEY; CR/SHF DAMPER 3-GROOVE	8-98004-024-3	01	1	1311-	●
57	PIN; PULLEY OD=8 L=20	9-08150-820-0	02	1	1311-	●
57	PIN; PULLEY OD=8 L=16	8-94391-156-0	01	1	1106-		●
61	PULLEY; FAN DRIVE 1-GROOVE	8-98003-384-1	01	1	1311-	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98215-307-0	04	1	1311-	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98041-141-2	06	1	1106-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	04	1	1311-	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-98040-125-0	06	1	1106-		●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-98055-479-0	04	1	1311-	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-98055-480-0	04	1	1311-	●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97616-358-0	06	1	1106-		●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97616-359-0	06	1	1106-		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	04	1	1311-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-98018-863-1	06	1	1106-		●
84	ROD ASM; CONN	8-98018-425-3	04	1	1311-	●
84	ROD ASM; CONN	8-98018-425-3	06	1	1106-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	04	1	1311-	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94391-794-1	06	1	1106-		●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	08	1	1311-	●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	12	1	1106-		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	08	1	1311-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET. OD=43.7	8-98006-828-0	12	1	1106-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
