0-12 — CYLINDER BLOCK (#55096) — 138 parça

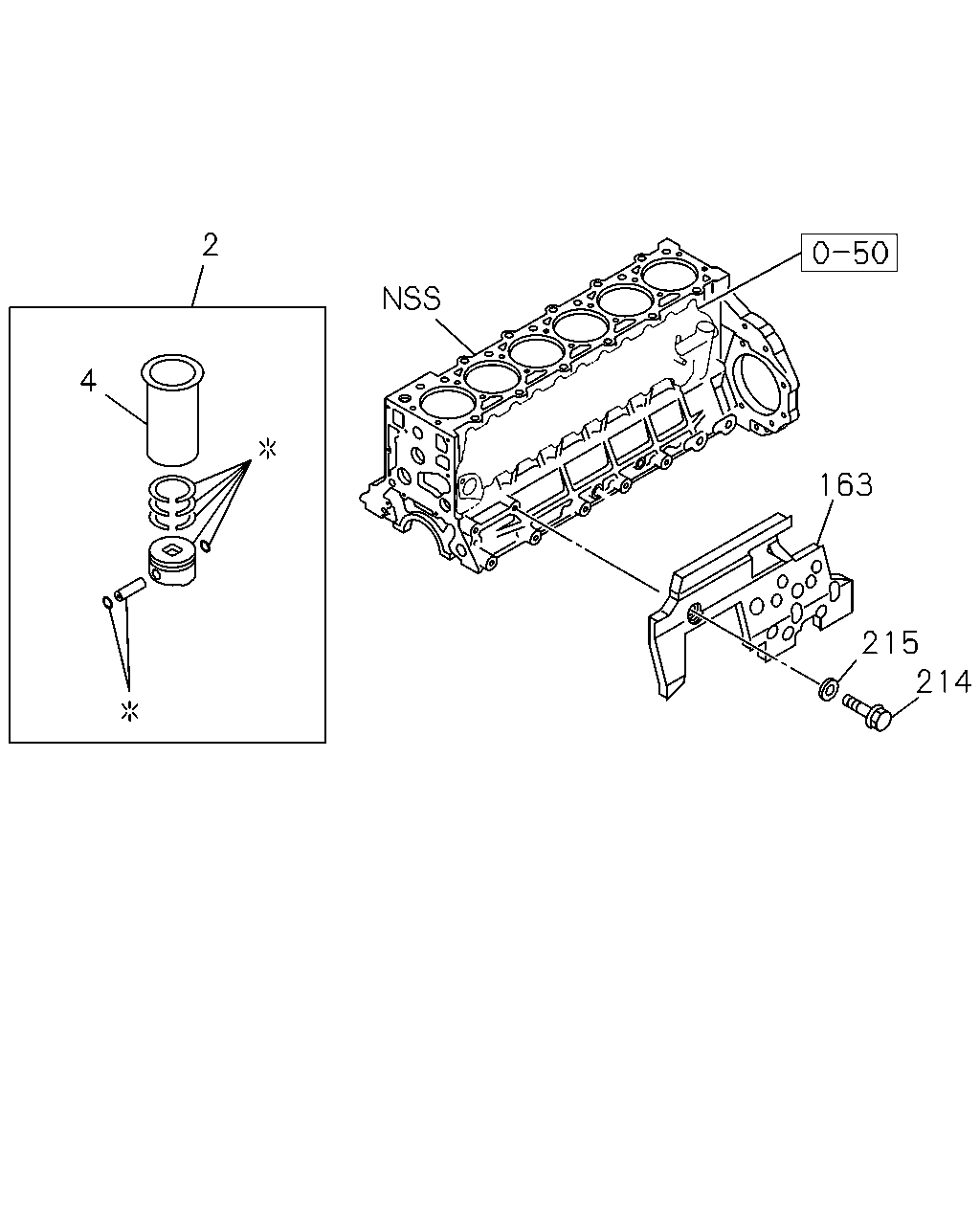

163 215 214 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	LINER SET; ENG CYL GRADE=1X	1-87814-897-0	04	1	1311-1405	●
2	LINER SET; ENG CYL GRADE=1X	1-87814-728-0	04	1	1406-	●
2	LINER SET; ENG CYL GRADE=3X	1-87814-898-0	04	1	1311-1405	●
2	LINER SET; ENG CYL GRADE=3X	1-87814-729-0	04	1	1406-	●
2	LINER SET; ENG CYL GRADE=1X	1-87813-119-6	06	1	1106-		●
2	LINER SET; ENG CYL GRADE=3X	1-87813-120-6	06	1	1106-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	04	1	1311-1405	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	04	1	1406-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	04	1	1311-1405	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	04	1	1406-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	06	1	1106-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	06	1	1106-		●
163	COVER ASM; C/BL SKIRT	8-97601-248-0	01	1	1106-1310		●
214	BOLT; NOISE COVER M10X16 FLANGE	0-28151-016-0	03	1	1106-1310		●
215	WASHER; PL,NOISE COVER ID=10.5 OD=32	0-91614-810-0	02	1	1106-1310		●

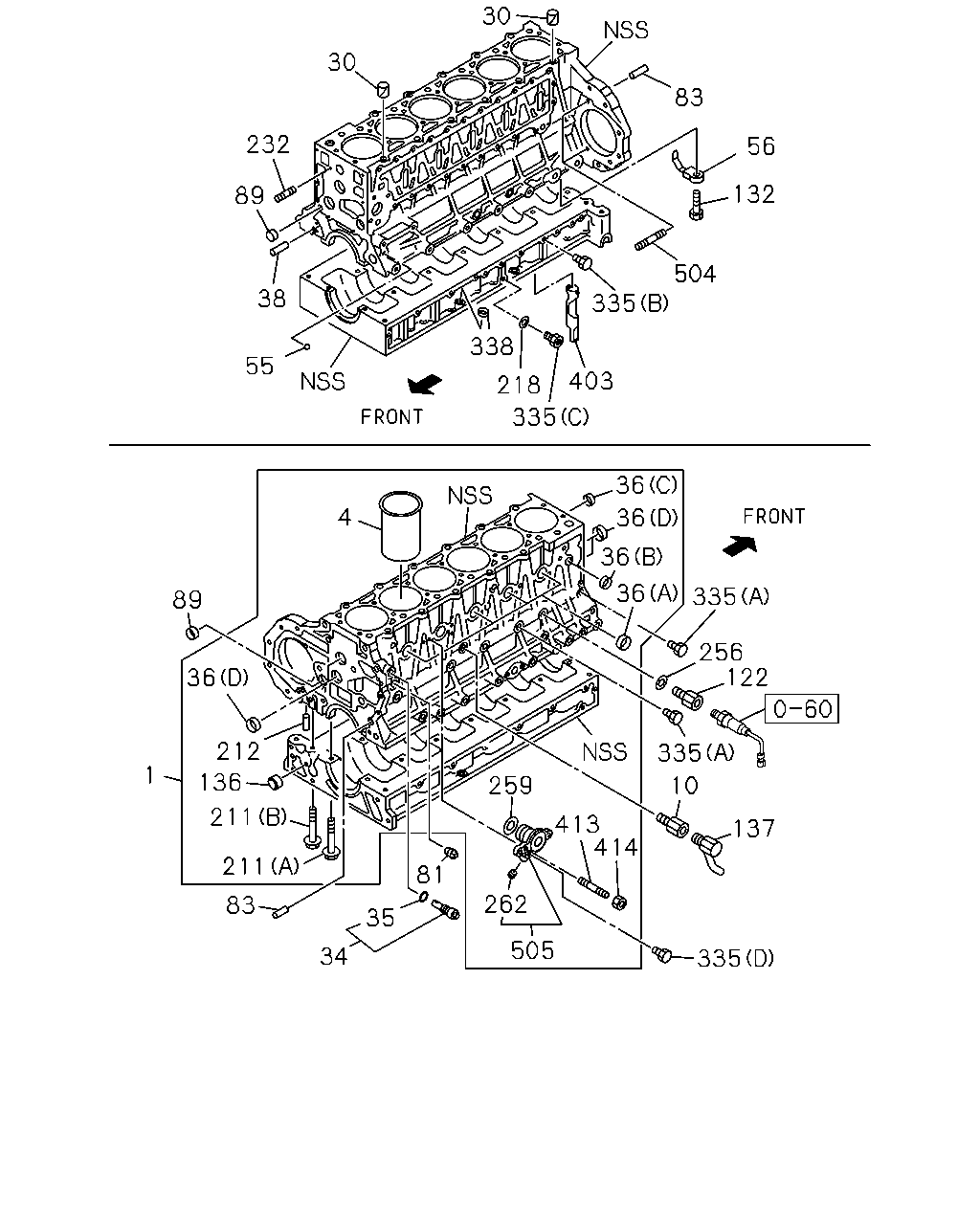

30 30 232 89 38 55 338 335 218 335 504 132 56 83 403 4 89 36 1 136 211 212 211 83 34 81 35 262 505 413 414 335 137 335 256 122 335 36 36 36 36 259 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	8-98204-529-0	01	1	1311-1405	●
1	BLOCK ASM; CYL	8-98204-528-0	01	1	1406-	●
1	BLOCK ASM; CYL	8-97618-664-3	01	1	1106-1209		●
1	BLOCK ASM; CYL	8-98206-967-0	01	1	1210-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	04	1	1311-1405	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	04	1	1406-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	04	1	1311-1405	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	04	1	1406-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	06	1	1106-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	06	1	1106-		●
10	CONNECTOR; WATER DRAIN	8-94396-378-0	01	1	1106-		●
30	PIN; CYL HD GASKET SETTING OD=18.15	8-94399-688-1	02	1	1106-		●
34	VALVE; OIL RELIEF	8-97328-859-0	01	1	1311-	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	1106-		●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	1311-		●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=23.3	8-94173-412-0	01	1	1311-	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	1106-1310		●
36	CUP; SEALING,WATER JACKET (A) OD=45	1-09600-005-2	04	1	1106-		●
36	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	01	1	1106-		●
36	CUP; SEALING,WATER JACKET (C) OD=25	8-94399-005-0	01	1	1106-		●
36	CUP; SEALING,WATER JACKET (D) OD=40	8-97096-824-0	04	1	1106-		●
38	PIN; TIMING GEAR CASE L=22	8-94483-674-0	02	1	1106-		●
55	PLUG; OIL GALLERY 3/8" BALL	9-00097-011-0	01	1	1106-		●
56	JET; OIL,PISTON COOLING	8-98173-342-0	04	1	1311-	●
56	JET; OIL,PISTON COOLING	8-98173-342-0	06	1	1106-		●
81	PLUG; WATER JACKET PT3/8	8-94397-338-0	01	1	1106-		●
83	PIN; FLYWHEEL HSG L=22	8-94483-674-0	02	1	1106-		●
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	1106-1310		●
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	1311-	●	●
122	ADAPTER; OIL PRESSURE SWITCH	8-97603-667-0	01	1	1106-		●
132	VALVE; CHECK,OIL M10X18.5	8-97329-618-0	04	1	1311-	●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	1106-		●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	1311-	●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	1106-		●
137	COCK; DRAIN,WATER	8-94393-716-1	01	1	1106-		●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	17	1	1311-	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	10	1	1311-	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	1106-		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	1106-		●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	1311-	●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	1106-		●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	1-09630-084-0	01	1	1106-1312		●
218	GASKET; PLUG,C/BL SIDE ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2	8-98251-344-0	01	1	1401-		●
232	STUD; WATER PUMP M8X55 L=67	0-41010-855-0	03	1	1106-		●
256	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25	1-09630-141-0	01	1	1106-		●
259	GASKET; ADAPTER ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7	1-09623-184-0	01	1	1106-		●
262	PLUG; ADAPTER	1-13163-002-0	01	1	1106-		●
335	PLUG; C/BL,SIDE (E) M14X18	8-98038-403-0	01	1	1311-	●
335	PLUG; C/BL,SIDE (C) M12X10	5-13265-001-0	01	1	1106-		●
335	PLUG; C/BL,SIDE (D) M14	8-94399-225-0	01	1	1106-		●
335	PLUG; C/BL,SIDE (A) M14X16.5	8-97329-617-0	02	1	1106-1310		●
335	PLUG; C/BL,SIDE (A) M14X16.5	8-97329-617-0	02	1	1311-	●	●
335	PLUG; C/BL,SIDE (B) M8X10	8-98003-416-0	01	1	1106-		●
338	CUP; SEALING,GUIDE TUBE HOLE OD=15.6	5-11129-003-0	02	1	1106-		●
403	GUIDE; GALLERY	8-94395-351-1	01	1	1106-		●
413	STUD; ADAPTER M8X30 L=41	0-41010-830-0	02	1	1106-		●
414	NUT; ADAPTER M8 FLANGE	0-91180-208-0	02	1	1106-		●
504	STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	1106-		●
505	ADAPTER; WATER FEED	8-98145-412-1	01	1	1106-		●

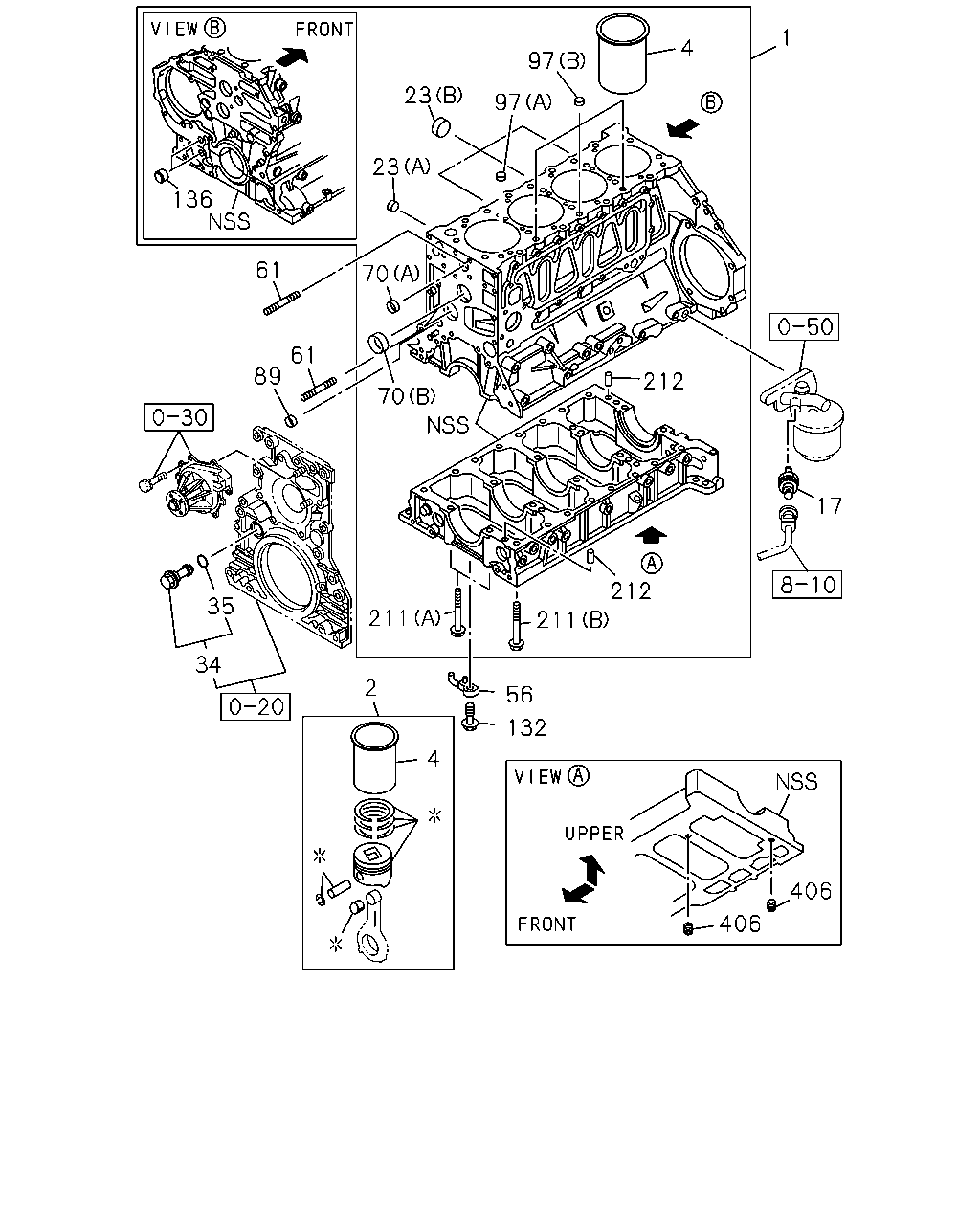

17 212 211 211 70 212 97 97 4 1 23 23 61 136 61 89 70 132 56 34 35 2 4 406 406

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	8-98204-529-0	01	1	1311-1405	●
1	BLOCK ASM; CYL	8-98204-528-0	01	1	1406-	●
1	BLOCK ASM; CYL	8-97618-664-3	01	1	1106-1209		●
1	BLOCK ASM; CYL	8-98206-967-0	01	1	1210-		●
2	LINER SET; ENG CYL GRADE=1X	1-87814-897-0	04	1	1311-1405	●
2	LINER SET; ENG CYL GRADE=1X	1-87814-728-0	04	1	1406-	●
2	LINER SET; ENG CYL GRADE=3X	1-87814-898-0	04	1	1311-1405	●
2	LINER SET; ENG CYL GRADE=3X	1-87814-729-0	04	1	1406-	●
2	LINER SET; ENG CYL GRADE=1X	1-87813-119-6	06	1	1106-		●
2	LINER SET; ENG CYL GRADE=3X	1-87813-120-6	06	1	1106-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	04	1	1311-1405	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-94391-602-1	04	1	1406-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	04	1	1311-1405	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-94391-603-1	04	1	1406-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-046-1	06	1	1106-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-047-1	06	1	1106-		●
17	SWITCH; OIL PRESSURE	8-97176-230-0	01	1	1311-	●
23	CUP; SEALING,C/BL FRT & RR (A) OD=25	1-09600-016-0	01	1	1311-	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	1311-	●
34	VALVE; OIL RELIEF	8-97328-859-0	01	1	1311-	●
34	VALVE; OIL RELIEF	8-94393-077-1	01	1	1106-		●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	1311-		●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=23.3	8-94173-412-0	01	1	1311-	●
35	GASKET; RELIEF VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	5-09623-035-0	01	1	1106-1310		●
56	JET; OIL,PISTON COOLING	8-98173-342-0	04	1	1311-	●
56	JET; OIL,PISTON COOLING	8-98173-342-0	06	1	1106-		●
61	PIN; STRAIGHT L=22	8-94483-674-0	04	1	1311-	●
70	CUP; SEALING,FRT & RR (A) OD=25	1-09600-016-0	01	1	1311-	●
70	CUP; SEALING,FRT & RR (B) OD=40	8-97096-824-0	04	1	1311-	●
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	1106-1310		●
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	1311-	●	●
97	CUP; SEALING (A) OD=16	5-11129-006-0	01	1	1311-	●
97	CUP; SEALING (C) OD=12	8-97036-335-1	01	1	1311-	●
97	CUP; SEALING (B) OD=22	8-97209-609-0	03	1	1311-	●
132	VALVE; CHECK,OIL M10X18.5	8-97329-618-0	04	1	1311-	●
132	VALVE; CHECK,OIL M12X18.5	8-94394-419-1	06	1	1106-		●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	1311-	●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	1106-		●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	17	1	1311-	●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	10	1	1311-	●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	25	1	1106-		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	14	1	1106-		●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	1311-	●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	1106-		●
406	PLUG; CRANK CASE PT3/8	5-09605-005-0	02	1	1311-	●

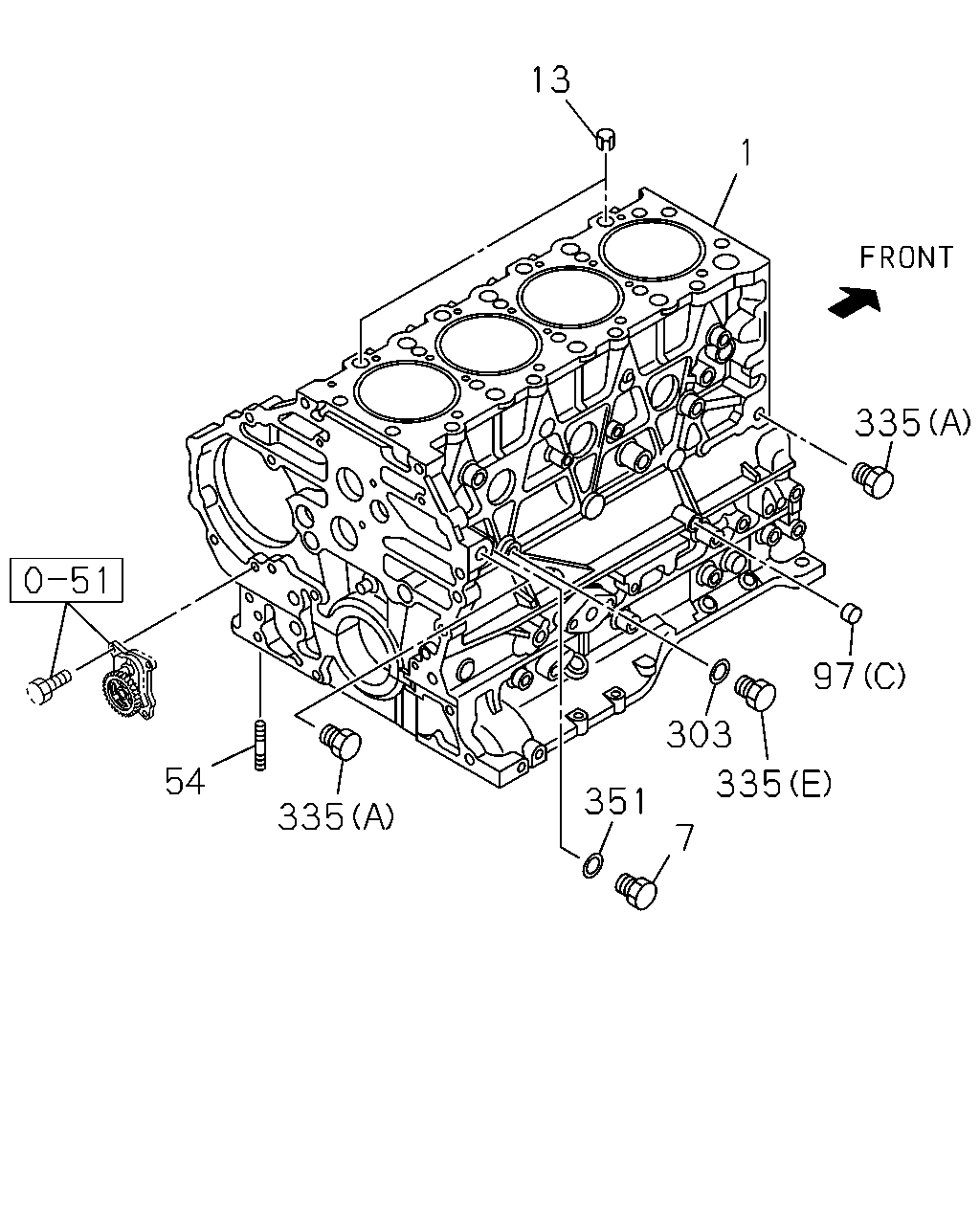

335 97 1 13 335 54 351 335 303 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	8-98204-529-0	01	1	1311-1405	●
1	BLOCK ASM; CYL	8-98204-528-0	01	1	1406-	●
1	BLOCK ASM; CYL	8-97618-664-3	01	1	1106-1209		●
1	BLOCK ASM; CYL	8-98206-967-0	01	1	1210-		●
7	PLUG; WATER DRAIN M10X10	8-97352-537-0	01	1	1311-	●
13	DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	1311-	●
54	STUD; OIL PAN TO BLOCK M8X20 L=38	8-97021-431-0	03	1	1311-	●
97	CUP; SEALING (A) OD=16	5-11129-006-0	01	1	1311-	●
97	CUP; SEALING (C) OD=12	8-97036-335-1	01	1	1311-	●
97	CUP; SEALING (B) OD=22	8-97209-609-0	03	1	1311-	●
303	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	01	1	1311-1312	●
303	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	01	1	1401-	●
335	PLUG; C/BL,SIDE (E) M14X18	8-98038-403-0	01	1	1311-	●
335	PLUG; C/BL,SIDE (C) M12X10	5-13265-001-0	01	1	1106-		●
335	PLUG; C/BL,SIDE (D) M14	8-94399-225-0	01	1	1106-		●
335	PLUG; C/BL,SIDE (A) M14X16.5	8-97329-617-0	02	1	1106-1310		●
335	PLUG; C/BL,SIDE (A) M14X16.5	8-97329-617-0	02	1	1311-	●	●
335	PLUG; C/BL,SIDE (B) M8X10	8-98003-416-0	01	1	1106-		●
351	GASKET; COCK,WATER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	1311-	●
