0-11 — CYLINDER HEAD (#55095) — 155 parça

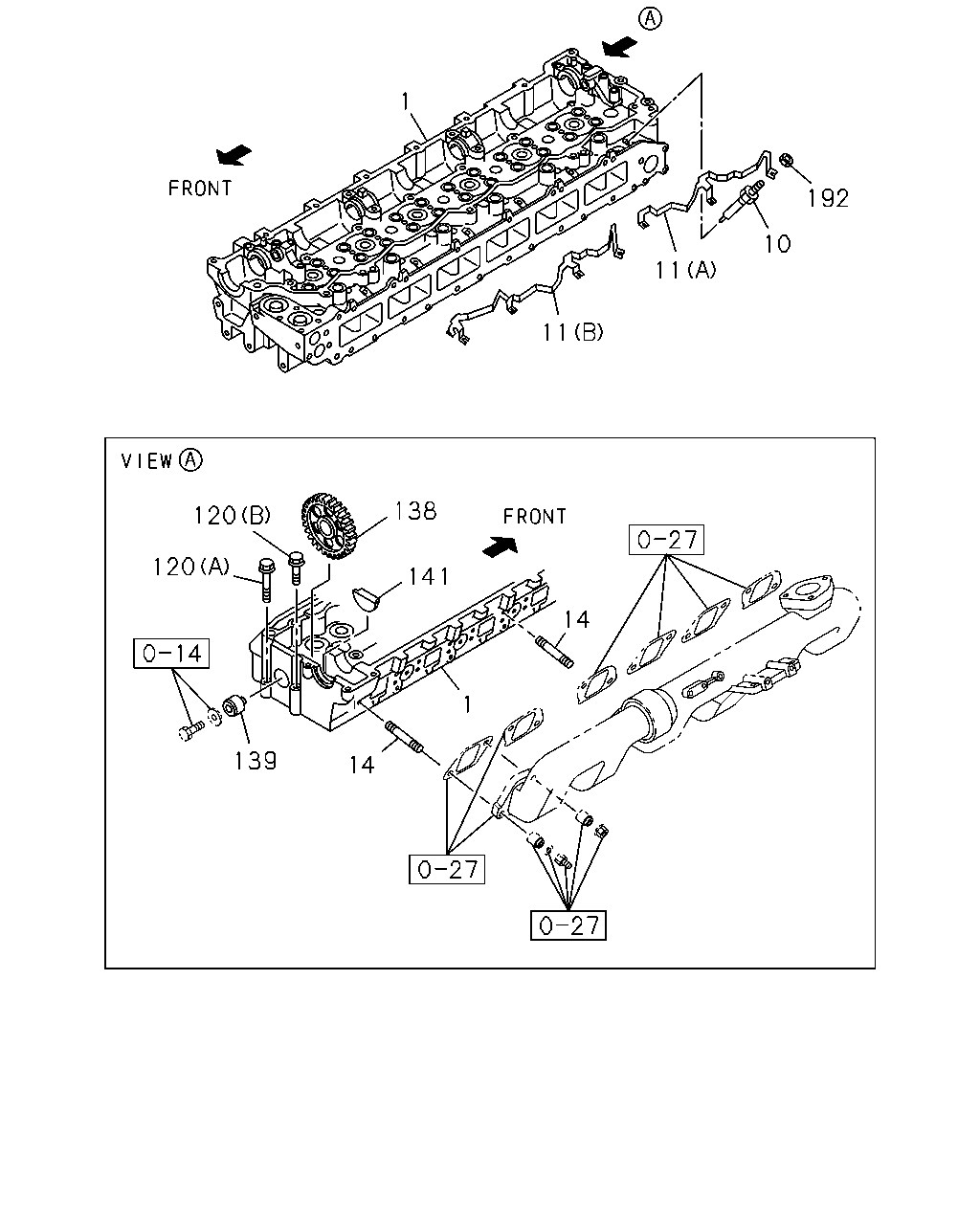

11 11 10 192 1 120 120 139 14 1 141 138 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEAD ASM; CYL	8-98170-620-0	01	1	1311-	●
1	HEAD ASM; CYL	8-97604-903-7	01	1	1106-1305		●
1	HEAD ASM; CYL	8-98243-824-0	01	1	1306-		●
10	PLUG; GLOW NGK	8-94390-777-6	04	1	1311-	●
10	PLUG; GLOW NGK	8-94390-777-6	06	1	1106-		●
11	CONNECTOR; GLOW PLUG (C)	8-97332-358-2	01	1	1311-	●
11	CONNECTOR; GLOW PLUG (B)	8-98040-648-0	01	1	1106-		●
11	CONNECTOR; GLOW PLUG (A)	8-98040-649-0	01	1	1106-		●
14	STUD; EXH MANIF M10X60 L=75	8-94397-286-0	02	1	1311-	●
14	STUD; EXH MANIF M10X60 L=75	8-94397-286-0	12	1	1106-		●
120	BOLT; CYL HD TO HSG (A) M10X73	8-94399-554-0	01	1	1106-		●
120	BOLT; CYL HD TO HSG (B) M10X43	8-94399-555-0	01	1	1106-		●
138	GEAR; IDLE Z=41	8-98058-321-1	01	1	1106-1310		●
138	GEAR; IDLE Z=41	8-97606-929-0	01	1	1311-		●
139	SHAFT; IDLE GEAR	8-97606-990-1	01	1	1106-1310		●
139	SHAFT; IDLE GEAR	8-97186-398-1	01	1	1311-		●
141	PLUG; RUBBER,CYL HD	8-98163-813-0	02	1	1106-		●
192	NUT; GLOW PLUG M4 FLANGE	8-97368-853-0	04	1	1311-	●
192	NUT; GLOW PLUG M4 FLANGE	8-97368-853-0	06	1	1106-		●

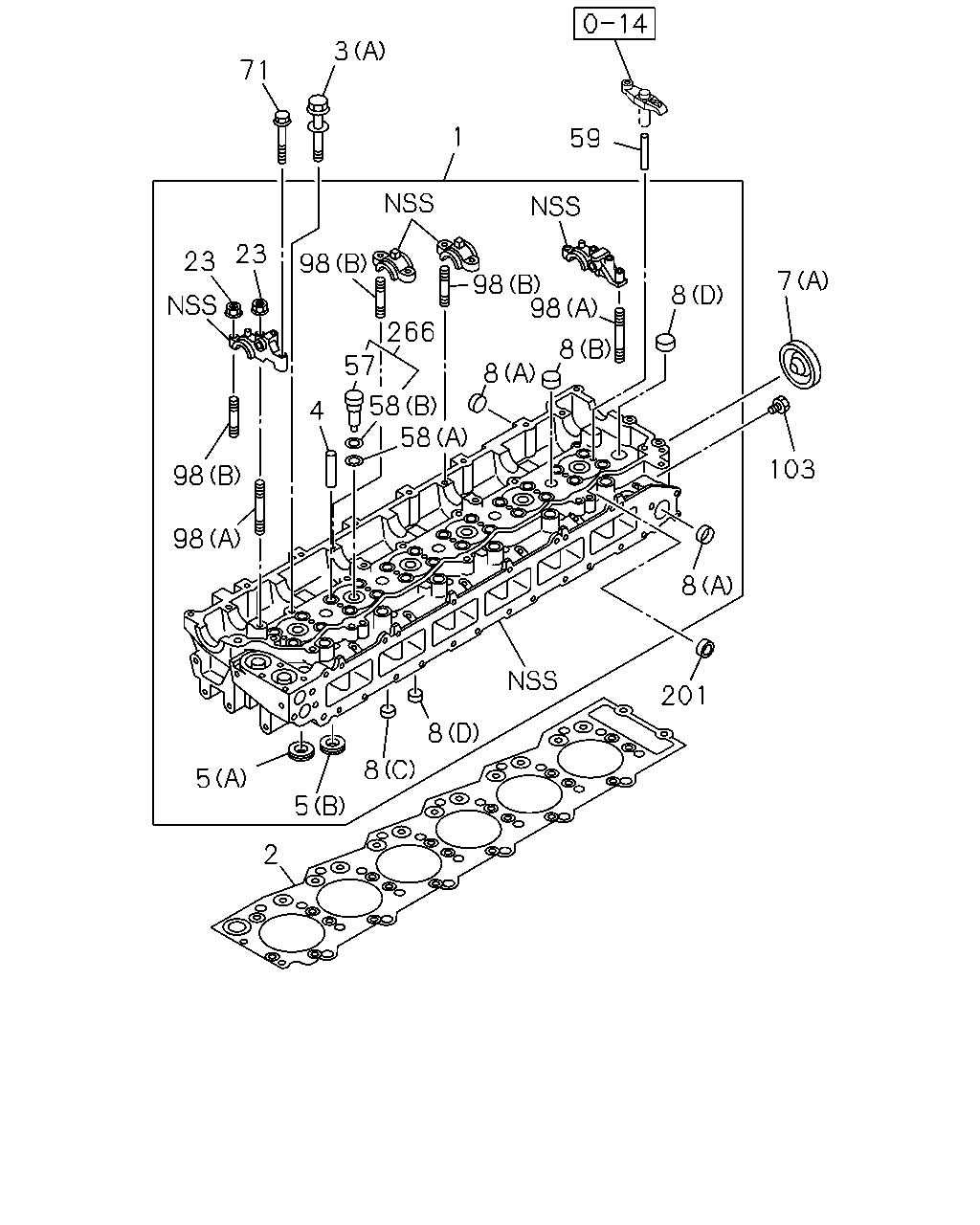

71 3 1 59 8 7 103 8 201 8 8 5 2 5 98 98 4 57 23 23 98 8 8 266 58 58 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEAD ASM; CYL	8-98170-620-0	01	1	1311-	●
1	HEAD ASM; CYL	8-97604-903-7	01	1	1106-1305		●
1	HEAD ASM; CYL	8-98243-824-0	01	1	1306-		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE	8-98288-501-0	01	1	1506-	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE	8-98288-502-0	01	1	1506-	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE	8-98288-503-0	01	1	1506-	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE	8-98245-617-0	02	1	1311-1404	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE	8-98244-823-0	02	1	1405-1505	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE	8-98244-823-0	01	1	1506-	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE	8-98245-618-0	02	1	1311-1404	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE	8-98244-824-0	02	1	1405-1505	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE	8-98244-824-0	01	1	1506-	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE	8-98245-619-0	02	1	1311-1404	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE	8-98244-825-0	02	1	1405-1505	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE	8-98244-825-0	01	1	1506-	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97601-819-5	01	1	1106-		●
3	BOLT; CYL HD TO BLOCK (B) M10X73	8-94399-554-0	01	1	1311-	●
3	BOLT; CYL HD TO BLOCK (C) M10X43	8-94399-555-0	01	1	1311-	●
3	BOLT; CYL HD TO BLOCK (A) M14X115 W/FLANGE	8-97077-638-0	18	1	1311-1503	●
3	BOLT; CYL HD TO BLOCK (A) M14X115 W/FLANGE	8-98260-005-0	18	1	1504-	●
3	BOLT; CYL HD TO BLOCK (A) M14X115 W/FLANGE	8-97077-638-0	26	1	1106-1407		●
3	BOLT; CYL HD TO BLOCK (A) M14X115 W/FLANGE	8-98260-005-0	26	1	1408-		●
4	GUIDE; VLV L=57	8-97376-719-2	16	1	1311-	●
4	GUIDE; VLV L=57	8-97376-719-2	24	1	1106-		●
5	SEAT; VLV INSERT (A) INLET ID=32 OD=38	8-98028-874-0	08	1	1311-	●
5	SEAT; VLV INSERT (B) EXHAUST ID=31 OD=38	8-98028-875-0	08	1	1311-	●
5	SEAT; VLV INSERT (A) INLET ID=32 OD=38	8-98028-874-0	12	1	1106-		●
5	SEAT; VLV INSERT (B) EXHAUST ID=31 OD=38	8-98028-875-0	12	1	1106-		●
7	CUP; SEALING,CYL HEAD (B) OD=25	1-09600-016-0	04	1	1311-	●
7	CUP; SEALING,CYL HEAD (C) OD=16	5-11129-006-0	05	1	1311-	●
7	CUP; SEALING,CYL HEAD (E) OD=32	8-97096-821-0	05	1	1311-	●
7	CUP; SEALING,CYL HEAD (D) OD=20	9-11129-128-0	07	1	1311-	●
7	CUP; SEALING,CYL HEAD (A) OD=51	8-97096-826-0	01	1	1106-		●
8	CUP; SEALING,WATER JACKET (A) OD=32	1-09600-012-2	07	1	1106-		●
8	CUP; SEALING,WATER JACKET (B) OD=25	1-09600-016-0	06	1	1106-		●
8	CUP; SEALING,WATER JACKET (C) OD=16	5-11129-006-0	07	1	1106-		●
8	CUP; SEALING,WATER JACKET (D) OD=20	9-11129-128-0	11	1	1106-		●
23	NUT; CAM BRKT M8 FLANGE	0-91180-208-0	10	1	1311-	●
23	NUT; CAM BRKT M8 FLANGE	0-91180-208-0	08	1	1106-		●
57	SLEEVE; NOZZLE HOLDER	8-97606-661-0	06	1	1106-1310		●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=26.4	8-97604-916-0	04	1	1311-	●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=26.4	8-97604-916-0	06	1	1106-		●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=26.2	8-98004-187-0	06	1	1106-1310		●
59	GUIDE; BRIDGE	8-97381-603-1	08	1	1311-	●
59	GUIDE; BRIDGE	8-97381-603-1	12	1	1106-		●
71	BOLT; CAM BRKT M8X35 FLANGE	0-28050-835-0	02	1	1106-1310		●
71	BOLT; CAM BRKT M8X35 FLANGE	0-28050-835-0	02	1	1311-	●	●
98	STUD; CAM BRKT (A) M8X54 L=79	8-94322-512-2	02	1	1106-		●
98	STUD; CAM BRKT (B) M8X41 L=66	8-94322-513-2	06	1	1106-		●
103	PLUG; HD M8X10	8-98003-416-0	01	1	1106-		●
201	GASKET; SLEEVE,INJ PUMP ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30	1-09639-034-0	04	1	1311-	●
201	GASKET; SLEEVE,INJ PUMP ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30	1-09639-034-0	06	1	1106-		●
266	SLEEVE ASM; NOZZLE HOLDER	8-98018-462-0	06	1	1311-		●
266	SLEEVE ASM; NOZZLE HOLDER	8-98018-462-0	04	1	1311-	●

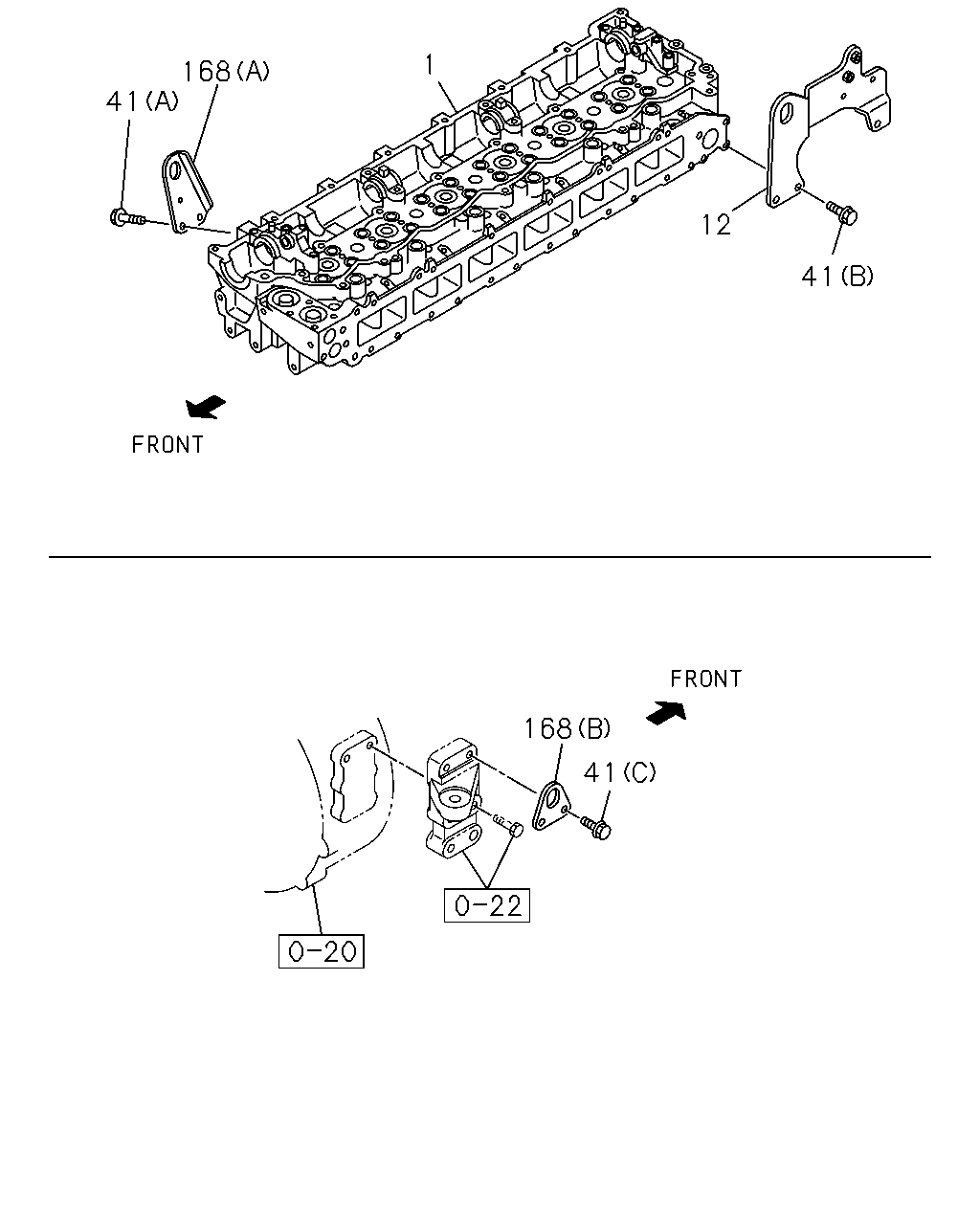

41 168 1 12 41 168 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEAD ASM; CYL	8-98170-620-0	01	1	1311-	●
1	HEAD ASM; CYL	8-97604-903-7	01	1	1106-1305		●
1	HEAD ASM; CYL	8-98243-824-0	01	1	1306-		●
12	HANGER; ENG,RR	8-98088-059-0	01	1	1106-		●
41	BOLT; ENG HANGER (A) M10X20 FLANGE	0-28151-020-0	03	1	1106-		●
41	BOLT; ENG HANGER (B) M10X25 FLANGE	0-28751-025-0	02	1	1106-		●
41	BOLT; ENG HANGER (C) M12X25 FLANGE	0-28751-225-0	02	1	1106-		●
168	HANGER; ENG,FRT (C)	8-97383-001-1	01	1	1311-	●
168	HANGER; ENG,FRT (B)	8-94394-398-1	01	1	1106-		●
168	HANGER; ENG,FRT (A)	8-98043-134-0	01	1	1106-		●

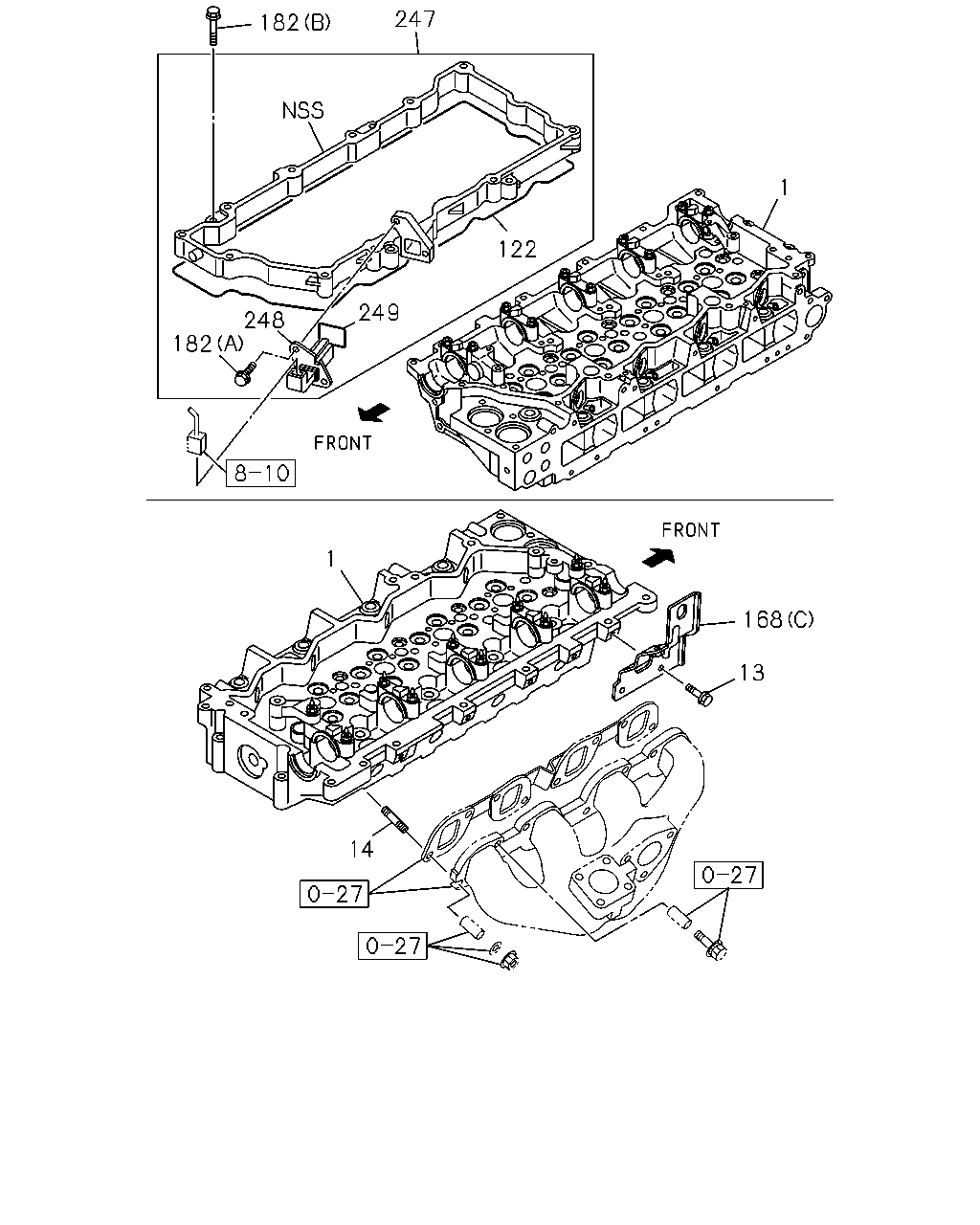

247 182 248 182 249 122 1 1 14 168 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEAD ASM; CYL	8-98170-620-0	01	1	1311-	●
1	HEAD ASM; CYL	8-97604-903-7	01	1	1106-1305		●
1	HEAD ASM; CYL	8-98243-824-0	01	1	1306-		●
13	BOLT; HANGER M10X20 FLANGE	0-28151-020-0	02	1	1311-	●
14	STUD; EXH MANIF M10X60 L=75	8-94397-286-0	02	1	1311-	●
14	STUD; EXH MANIF M10X60 L=75	8-94397-286-0	12	1	1106-		●
122	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97331-360-1	01	1	1311-	●
168	HANGER; ENG,FRT (C)	8-97383-001-1	01	1	1311-	●
168	HANGER; ENG,FRT (B)	8-94394-398-1	01	1	1106-		●
168	HANGER; ENG,FRT (A)	8-98043-134-0	01	1	1106-		●
182	BOLT; CASE (A) M8X12 FLANGE	0-28050-812-0	02	1	1311-	●
182	BOLT; CASE (B) M8X45 FLANGE	0-28050-845-0	04	1	1311-	●
247	CASE; CYL HEAD,C/H COVER	8-97331-362-1	01	1	1311-	●
248	CONNECTOR	8-94390-858-1	01	1	1311-	●
249	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94391-310-0	01	1	1311-	●

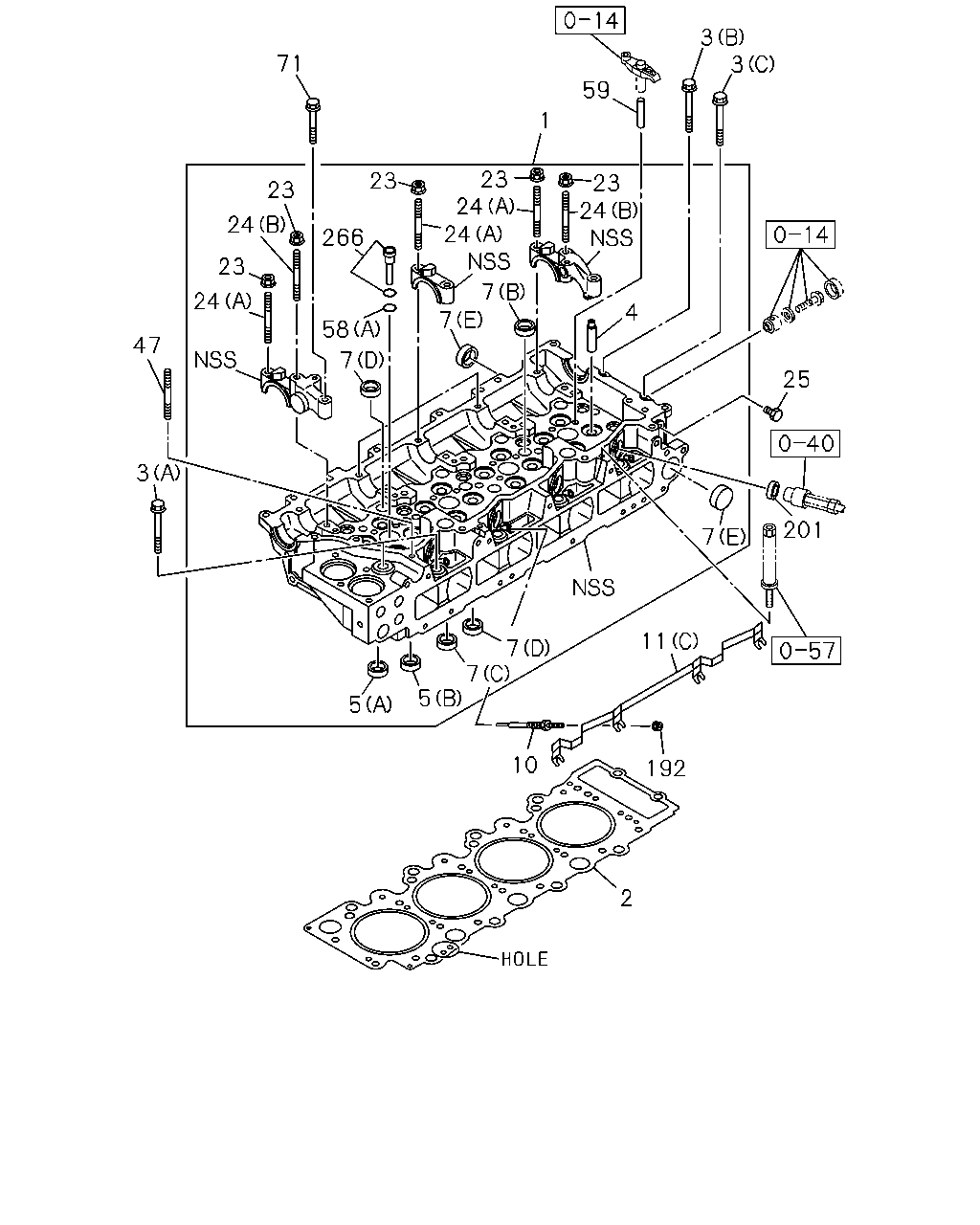

3 3 59 1 71 23 24 23 24 47 3 266 23 23 24 24 7 7 58 7 7 7 5 5 10 2 192 11 7 201 25 4 24 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HEAD ASM; CYL	8-98170-620-0	01	1	1311-	●
1	HEAD ASM; CYL	8-97604-903-7	01	1	1106-1305		●
1	HEAD ASM; CYL	8-98243-824-0	01	1	1306-		●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE	8-98288-501-0	01	1	1506-	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE	8-98288-502-0	01	1	1506-	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE	8-98288-503-0	01	1	1506-	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE	8-98245-617-0	02	1	1311-1404	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE	8-98244-823-0	02	1	1405-1505	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.475 NON-HOLE	8-98244-823-0	01	1	1506-	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE	8-98245-618-0	02	1	1311-1404	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE	8-98244-824-0	02	1	1405-1505	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.525 1-HOLE	8-98244-824-0	01	1	1506-	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE	8-98245-619-0	02	1	1311-1404	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE	8-98244-825-0	02	1	1405-1505	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.575 2-HOLE	8-98244-825-0	01	1	1506-	●
2	GASKET; CYL HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97601-819-5	01	1	1106-		●
3	BOLT; CYL HD TO BLOCK (B) M10X73	8-94399-554-0	01	1	1311-	●
3	BOLT; CYL HD TO BLOCK (C) M10X43	8-94399-555-0	01	1	1311-	●
3	BOLT; CYL HD TO BLOCK (A) M14X115 W/FLANGE	8-97077-638-0	18	1	1311-1503	●
3	BOLT; CYL HD TO BLOCK (A) M14X115 W/FLANGE	8-98260-005-0	18	1	1504-	●
3	BOLT; CYL HD TO BLOCK (A) M14X115 W/FLANGE	8-97077-638-0	26	1	1106-1407		●
3	BOLT; CYL HD TO BLOCK (A) M14X115 W/FLANGE	8-98260-005-0	26	1	1408-		●
4	GUIDE; VLV L=57	8-97376-719-2	16	1	1311-	●
4	GUIDE; VLV L=57	8-97376-719-2	24	1	1106-		●
5	SEAT; VLV INSERT (A) INLET ID=32 OD=38	8-98028-874-0	08	1	1311-	●
5	SEAT; VLV INSERT (B) EXHAUST ID=31 OD=38	8-98028-875-0	08	1	1311-	●
5	SEAT; VLV INSERT (A) INLET ID=32 OD=38	8-98028-874-0	12	1	1106-		●
5	SEAT; VLV INSERT (B) EXHAUST ID=31 OD=38	8-98028-875-0	12	1	1106-		●
7	CUP; SEALING,CYL HEAD (B) OD=25	1-09600-016-0	04	1	1311-	●
7	CUP; SEALING,CYL HEAD (C) OD=16	5-11129-006-0	05	1	1311-	●
7	CUP; SEALING,CYL HEAD (E) OD=32	8-97096-821-0	05	1	1311-	●
7	CUP; SEALING,CYL HEAD (D) OD=20	9-11129-128-0	07	1	1311-	●
7	CUP; SEALING,CYL HEAD (A) OD=51	8-97096-826-0	01	1	1106-		●
10	PLUG; GLOW NGK	8-94390-777-6	04	1	1311-	●
10	PLUG; GLOW NGK	8-94390-777-6	06	1	1106-		●
11	CONNECTOR; GLOW PLUG (C)	8-97332-358-2	01	1	1311-	●
11	CONNECTOR; GLOW PLUG (B)	8-98040-648-0	01	1	1106-		●
11	CONNECTOR; GLOW PLUG (A)	8-98040-649-0	01	1	1106-		●
23	NUT; CAM BRKT M8 FLANGE	0-91180-208-0	10	1	1311-	●
23	NUT; CAM BRKT M8 FLANGE	0-91180-208-0	08	1	1106-		●
24	STUD; CM/SHF BRKT (B) M8X54 L=79	8-94322-512-2	02	1	1311-	●
24	STUD; CM/SHF BRKT (A) M8X41 L=66	8-94322-513-2	08	1	1311-	●
25	PLUG; CYL HD M8X10	8-98003-416-0	01	1	1311-	●
47	STUD; CYL HD M8X60 L=72	0-49140-860-0	02	1	1311-	●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=26.4	8-97604-916-0	04	1	1311-	●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=26.4	8-97604-916-0	06	1	1106-		●
58	GASKET; SLEEVE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=26.2	8-98004-187-0	06	1	1106-1310		●
59	GUIDE; BRIDGE	8-97381-603-1	08	1	1311-	●
59	GUIDE; BRIDGE	8-97381-603-1	12	1	1106-		●
71	BOLT; CAM BRKT M8X35 FLANGE	0-28050-835-0	02	1	1106-1310		●
71	BOLT; CAM BRKT M8X35 FLANGE	0-28050-835-0	02	1	1311-	●	●
192	NUT; GLOW PLUG M4 FLANGE	8-97368-853-0	04	1	1311-	●
192	NUT; GLOW PLUG M4 FLANGE	8-97368-853-0	06	1	1106-		●
201	GASKET; SLEEVE,INJ PUMP ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30	1-09639-034-0	04	1	1311-	●
201	GASKET; SLEEVE,INJ PUMP ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=30	1-09639-034-0	06	1	1106-		●
266	SLEEVE ASM; NOZZLE HOLDER	8-98018-462-0	06	1	1311-		●
266	SLEEVE ASM; NOZZLE HOLDER	8-98018-462-0	04	1	1311-	●
