◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FORWARD ▶ 11412 - FORWARD 1100/1200 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-01 - PARTIAL ENGINE ▶
0-01 — PARTIAL ENGINE (#55092) — 14 parça

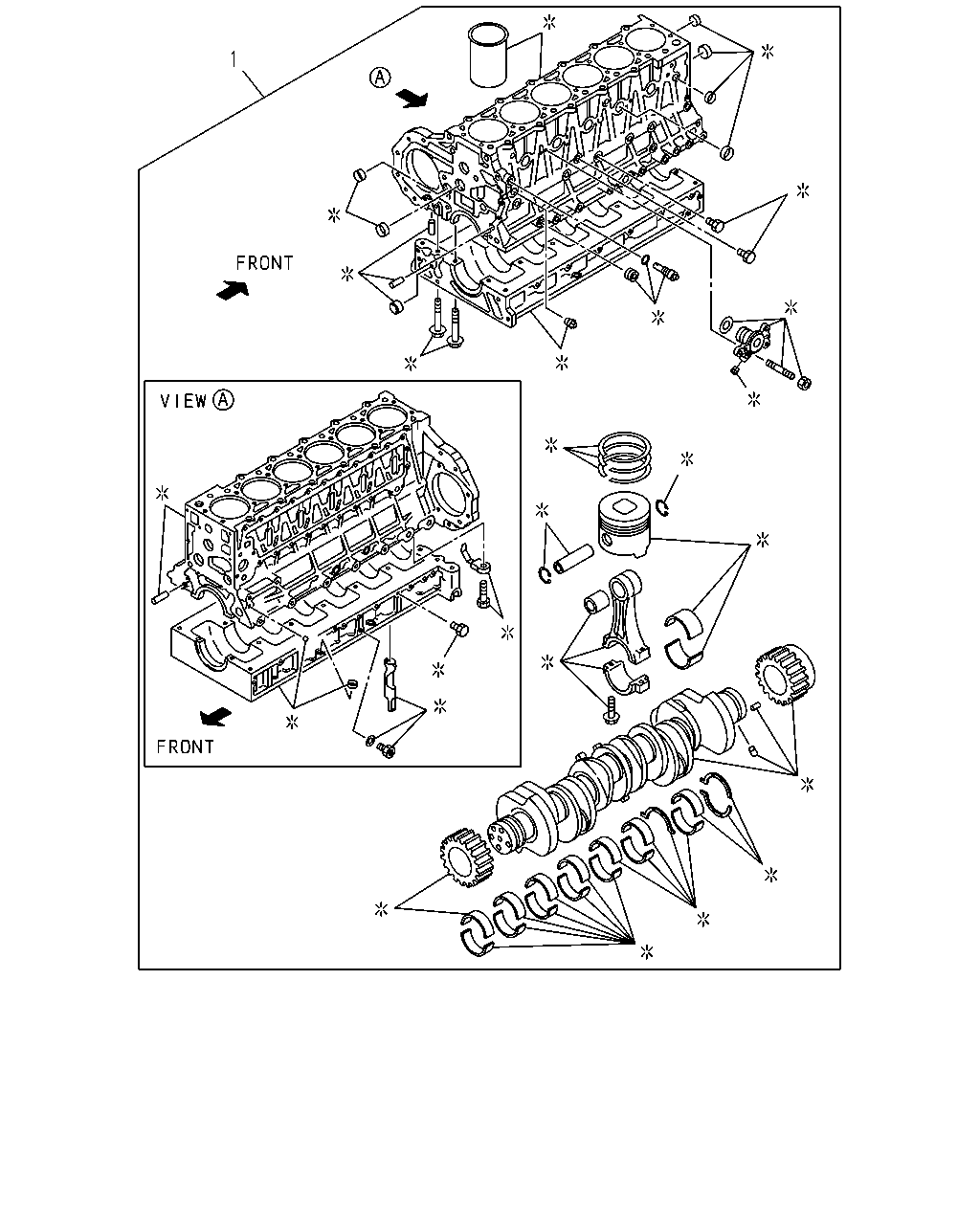

çizim 145082
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 ENGINE ASM; PARTIAL 5-87311-201-0 01 1 1311-1312 ●
1 ENGINE ASM; PARTIAL 5-87311-238-2 01 1 1401- ●
1 ENGINE ASM; PARTIAL 1-87310-676-0 01 1 1106-1208 ●
1 ENGINE ASM; PARTIAL 1-87310-777-0 01 1 1209-1310 ●
1 ENGINE ASM; PARTIAL 1-87310-881-0 01 1 1311-1312 ●
1 ENGINE ASM; PARTIAL 1-87310-939-0 01 1 1401-1405 ●
1 ENGINE ASM; PARTIAL 1-87311-041-1 01 1 1406- ●

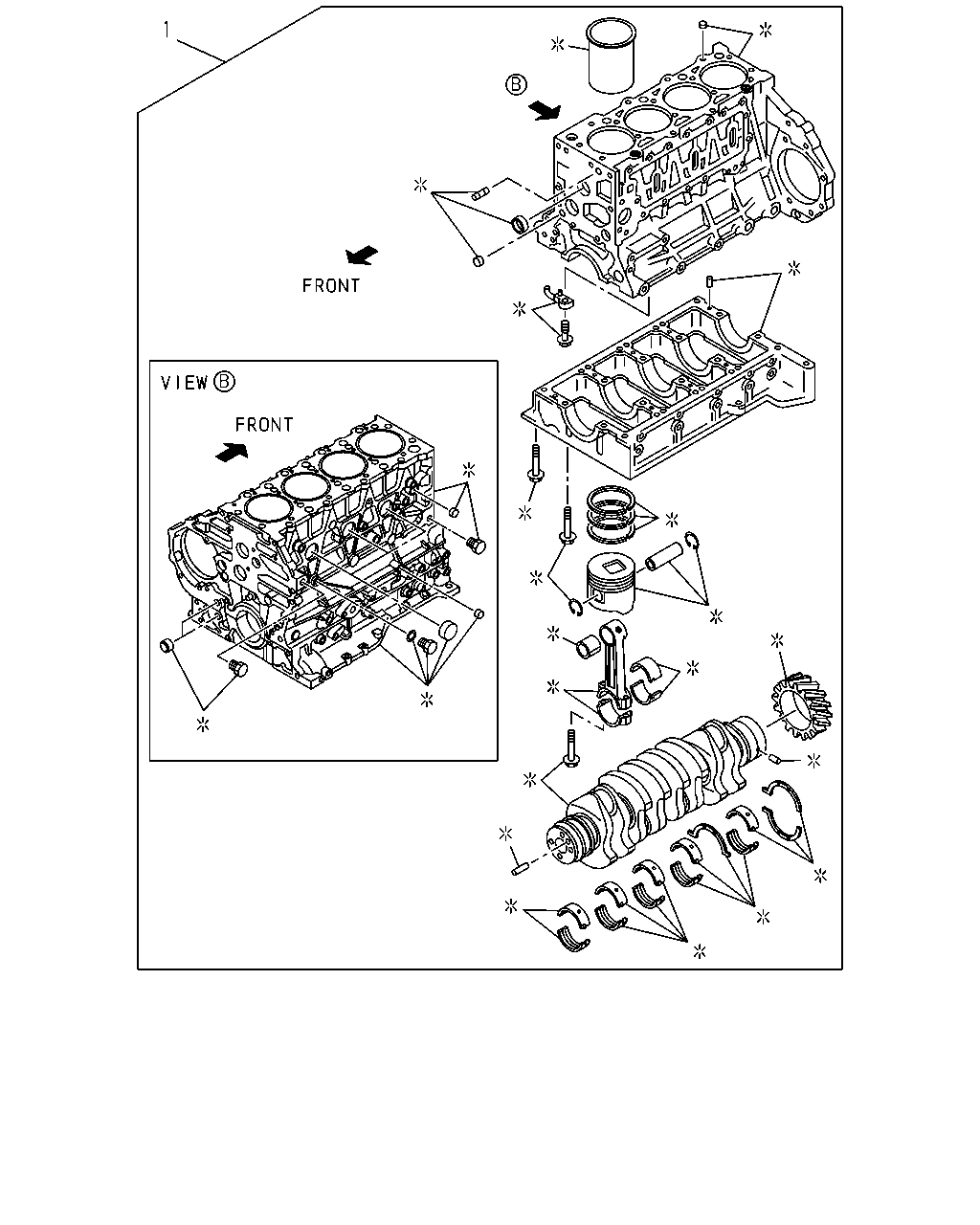

çizim 386362
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 ENGINE ASM; PARTIAL 5-87311-201-0 01 1 1311-1312 ●
1 ENGINE ASM; PARTIAL 5-87311-238-2 01 1 1401- ●
1 ENGINE ASM; PARTIAL 1-87310-676-0 01 1 1106-1208 ●
1 ENGINE ASM; PARTIAL 1-87310-777-0 01 1 1209-1310 ●
1 ENGINE ASM; PARTIAL 1-87310-881-0 01 1 1311-1312 ●
1 ENGINE ASM; PARTIAL 1-87310-939-0 01 1 1401-1405 ●
1 ENGINE ASM; PARTIAL 1-87311-041-1 01 1 1406- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
