8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#55081) — 37 parça

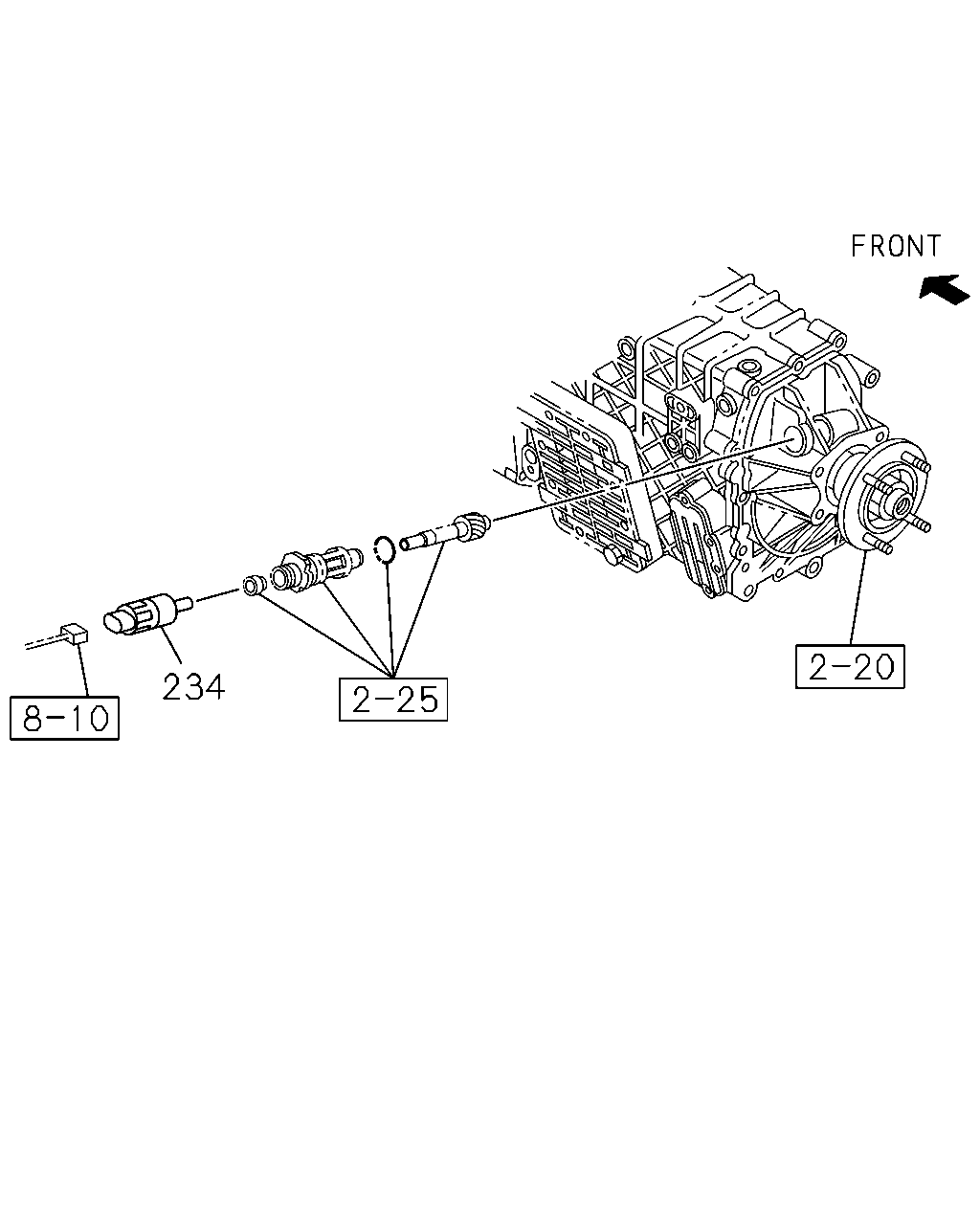

çizim 176025
234
BalonParca AdiParca NoAdetTipApplied Date A B C
234 03.682 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 1012- ● ● ●

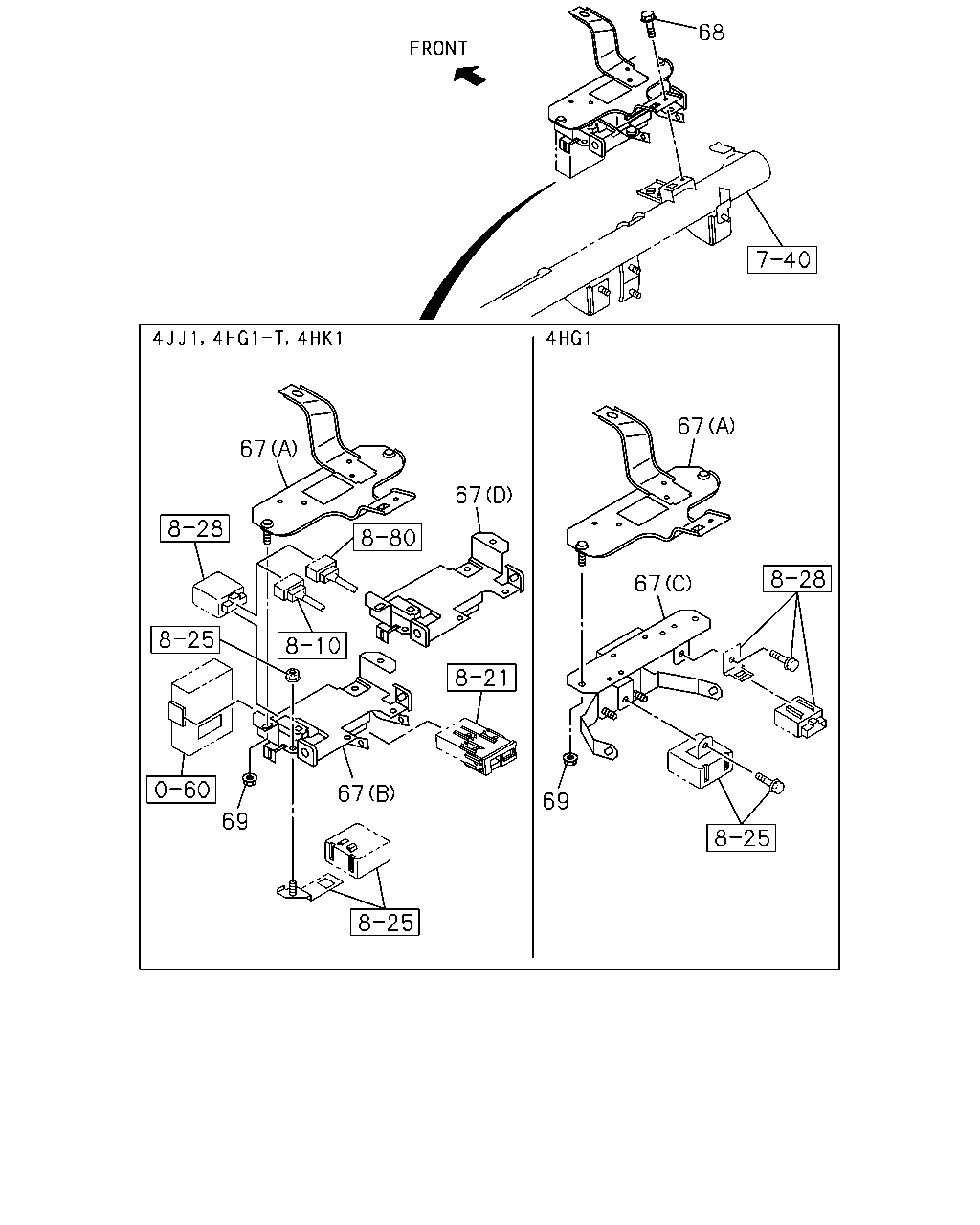

çizim 176027
68 67 67 69 67 67 69 67
BalonParca AdiParca NoAdetTipApplied Date A B C
67 03.887 BRACKET; CONT UNIT
4HG1-T ENG(RDP) (B) 		8-98172-518-0 01 1 1012- ● ●
67 03.887 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (B) 		8-98022-206-2 01 1 1012-1111 ●
67 03.887 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ) (B) 		8-98022-206-2 01 1 1012-1111 ●
67 03.887 BRACKET; CONT UNIT
(B) 		8-98022-206-2 01 1 1012-1111 ●
67 03.887 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (D) 		8-98203-057-0 01 1 1112-1207 ●
67 03.887 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ) (D) 		8-98203-057-0 01 1 1112-1207 ●
67 03.887 BRACKET; CONT UNIT
(D) 		8-98203-057-0 01 1 1112-1207 ●
67 03.887 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (D) 		8-98217-377-0 01 1 1208-1212 ●
67 03.887 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ) (D) 		8-98217-377-0 01 1 1208-1212 ●
67 03.887 BRACKET; CONT UNIT
(D) 		8-98217-377-0 01 1 1208-1212 ●
67 03.887 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (D) 		8-98237-555-0 01 1 1301-1404 ●
67 03.887 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ) (D) 		8-98237-555-0 01 1 1301-1404 ●
67 03.887 BRACKET; CONT UNIT
(D) 		8-98237-555-0 01 1 1301-1404 ●
67 03.887 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (D) 		8-98217-377-0 01 1 1405- ●
67 03.887 BRACKET; CONT UNIT
4HK1-TCN ENG(RDQ) (D) 		8-98217-377-0 01 1 1405- ●
67 03.887 BRACKET; CONT UNIT
(D) 		8-98217-377-0 01 1 1405- ●
67 03.887 BRACKET; CONT UNIT
4HG1 ENG(RJH) (C) 		8-98110-224-1 01 1 1012- ● ●
67 03.887 BRACKET; CONT UNIT
(A) 		8-98022-170-1 01 1 1012- ● ● ●
68 02.500 BOLT; BRKT
00.206 M6X12 FLANGE 		0-28450-612-0 01 1 1012- ● ● ●
69 02.458 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 02 1 1012- ● ● ●

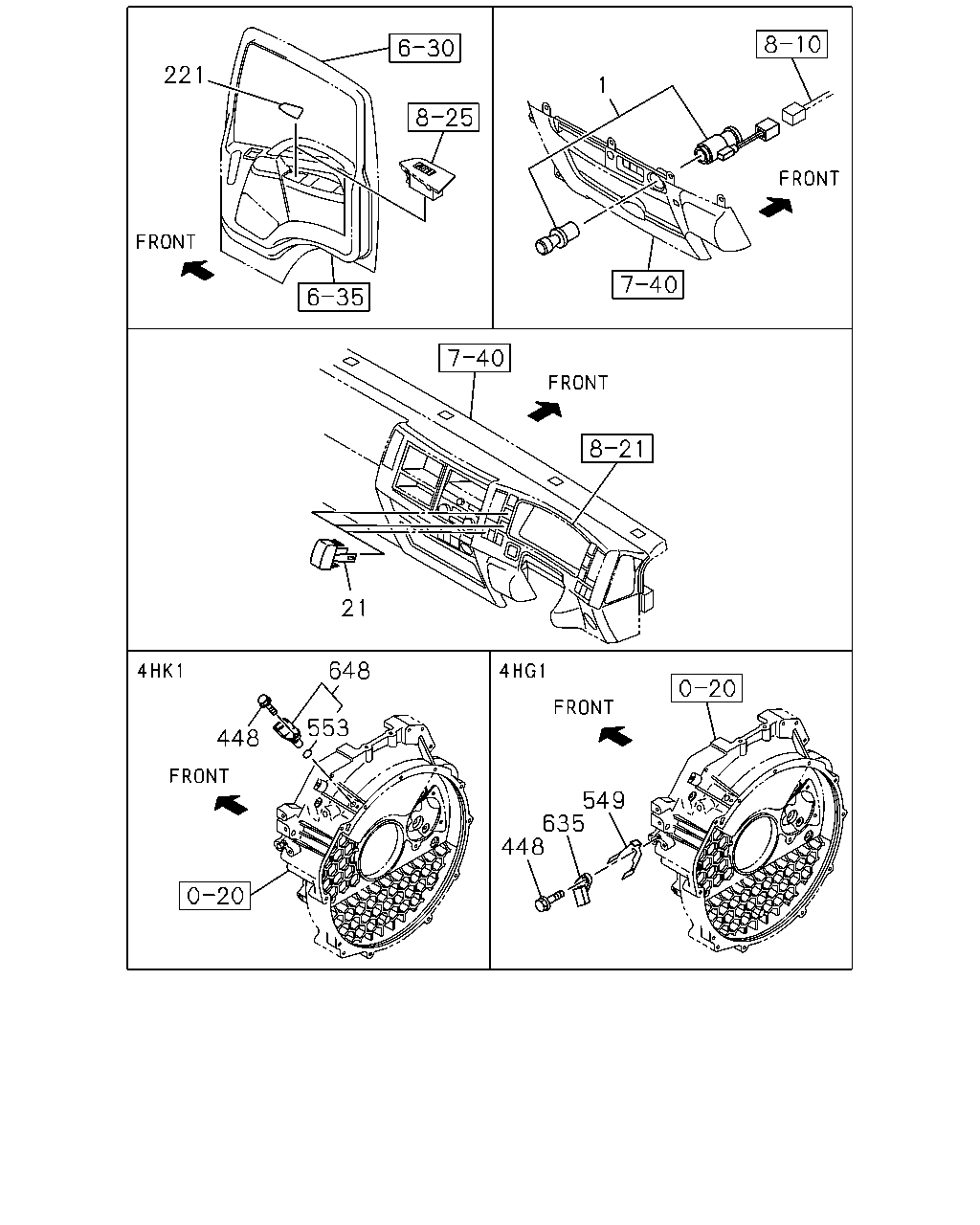

çizim 176035
221 1 21 648 553 448 549 635 448
BalonParca AdiParca NoAdetTipApplied Date A B C
1 09.709 LIGHTER; CIGAR 8-98142-962-0 01 1 1012- ● ● ●
21 09.744 COVER; HOLE
16.081 		8-98025-954-1 01 1 1012-1511 ● ● ●
21 09.744 COVER; HOLE
16.081 		8-98025-954-1 01 1 1512- ● ● ●
21 09.744 COVER; HOLE
16.081 		8-98025-954-1 01 1 1512- ● ● ●
21 09.744 COVER; HOLE
16.081 		8-98025-954-1 01 1 1512- ● ● ●
21 09.744 COVER; HOLE
16.081 		8-98025-954-1 02 1 1012-1511 ● ● ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 1012- ● ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98029-915-2 01 1 1012- ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 1012- ● ●
221 16.320 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98029-916-2 01 1 1012- ●
448 02.500 BOLT; SENSOR
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 09.242 M6X16 FLANGE 		0-28050-616-0 01 1 1012- ● ●
549 02.510 SHEET
4HG1-T ENG(RDP),4HG1 ENG(RJH) 09.743 		8-97161-633-2 01 1 1012- ● ●
553 02.500 GASKET
4HK1-TCN ENG(RDQ) 00.724 ID=14.2 OD=18.8 		8-97369-404-0 01 1 1012- ● ●
635 09.750 SENSOR; TACHOMETER
4HG1-T ENG(RDP) YAZAKI 		8-97214-325-0 01 1 1012- ● ●
635 09.750 SENSOR; TACHOMETER
4HG1 ENG(RJH) CALSONIC KANSEI 		8-97163-104-0 01 1 1012- ● ●
648 03.682 SENSOR; CRANK ANGLE
4HK1-TCN ENG(RDQ) 		8-97606-943-0 01 1 1012- ● ●
