◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51296 - NPR/NQR-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#55080) — 267 parça

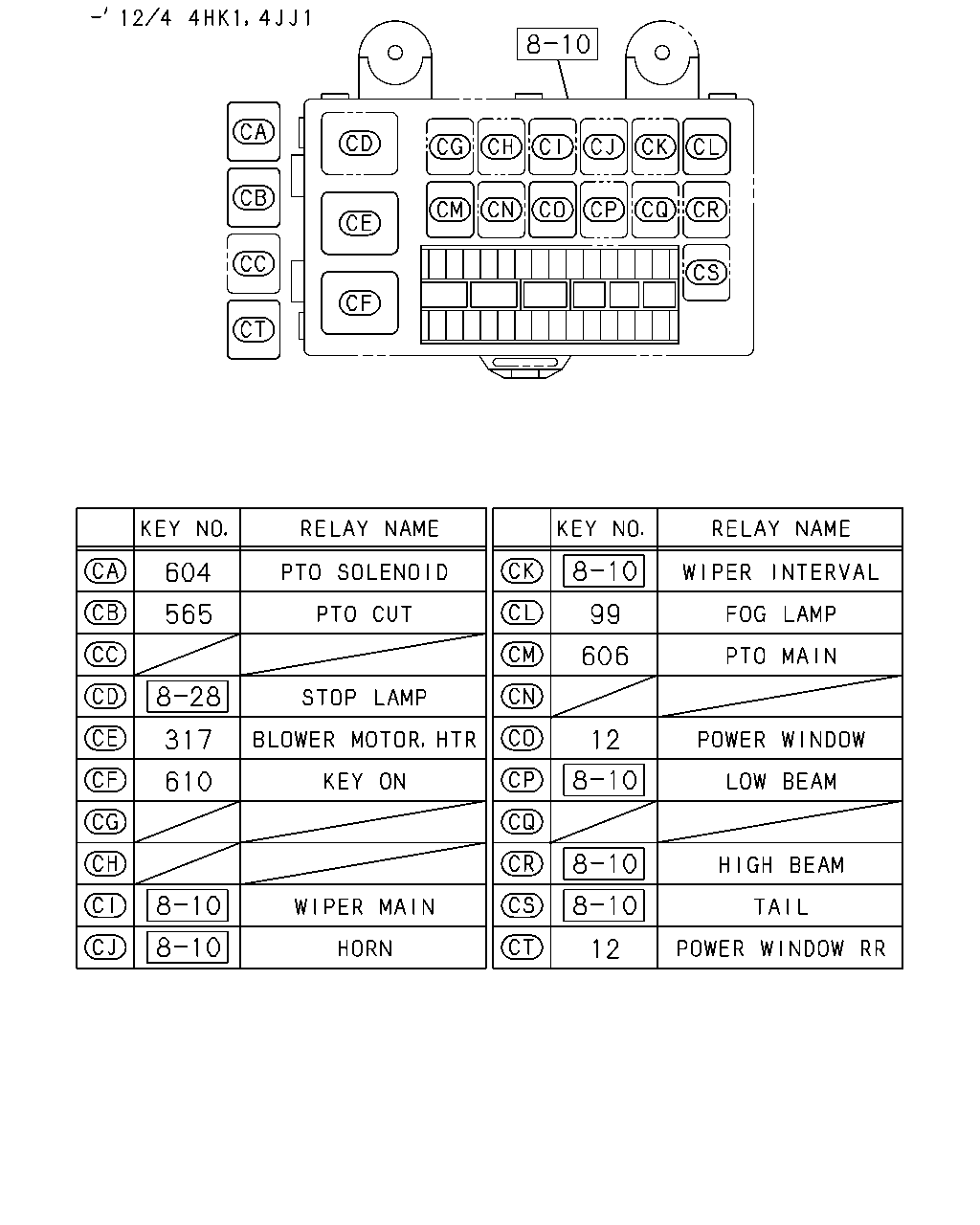

çizim 176006
604 565 99 606 317 12 610 12
BalonParca AdiParca NoAdetTipApplied Date A B C
12 08.852 RELAY; POWER WINDOW
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) POWER WINDOW FRT DOOR<A32> POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
12 08.852 RELAY; POWER WINDOW
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
99 02.485 RELAY; FOG LAMP
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) FOG LAMP<T96> POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
99 02.485 RELAY; FOG LAMP
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ●
565 02.510 RELAY; PTO CUT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
604 02.510 RELAY; PTO SOLENOID
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
606 02.510 RELAY; PTO MAIN
POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1204 ●
610 02.510 RELAY; KEY ON
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1204 ●
610 02.510 RELAY; KEY ON
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1204 ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1204 ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1207 ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1207 ● ● ●
610 02.510 RELAY; KEY ON
4HG1 ENG(RJH) POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1208-1212 ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1208-1212 ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1208-1212 ●
610 02.510 RELAY; KEY ON
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1208-1212 ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1208-1212 ●
610 02.510 RELAY; KEY ON
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1208-1212 ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1208-1212 ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1208-1212 ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ●
610 02.510 RELAY; KEY ON
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ●
610 02.510 RELAY; KEY ON
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ●

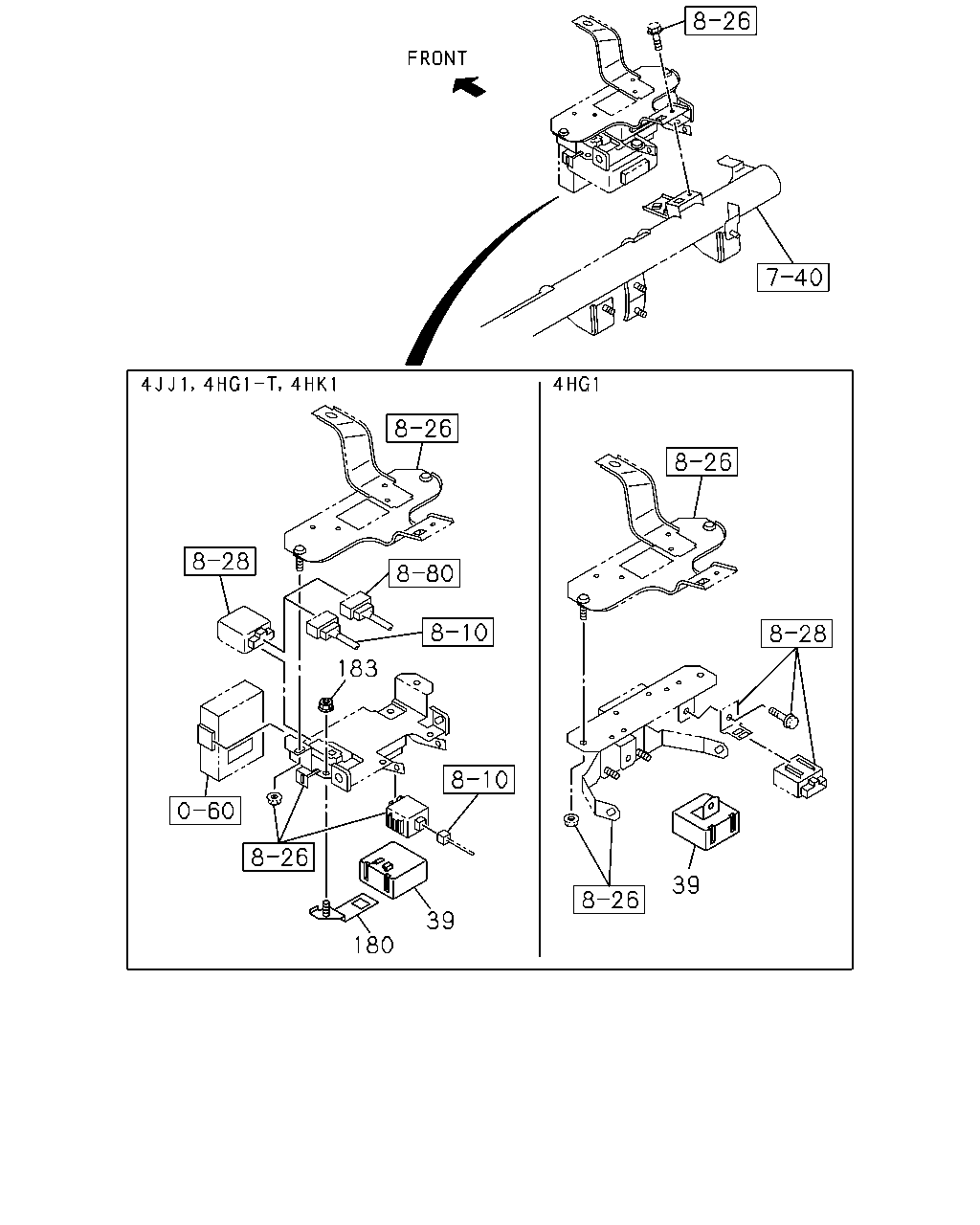

çizim 176010
183 39 180 39
BalonParca AdiParca NoAdetTipApplied Date A B C
39 16.341 RELAY; DOOR LK
AUTO DOOR LOCK<AU4> 		8-98060-789-0 01 1 1012- ● ● ●
180 02.510 BRACKET; RELAY
4HG1-T ENG(RDP) AUTO DOOR LOCK<AU4> 		8-98091-660-0 01 1 1012- ● ●
183 02.510 NUT; RELAY BRKT
4HG1-T ENG(RDP) AUTO DOOR LOCK<AU4> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1012- ● ●

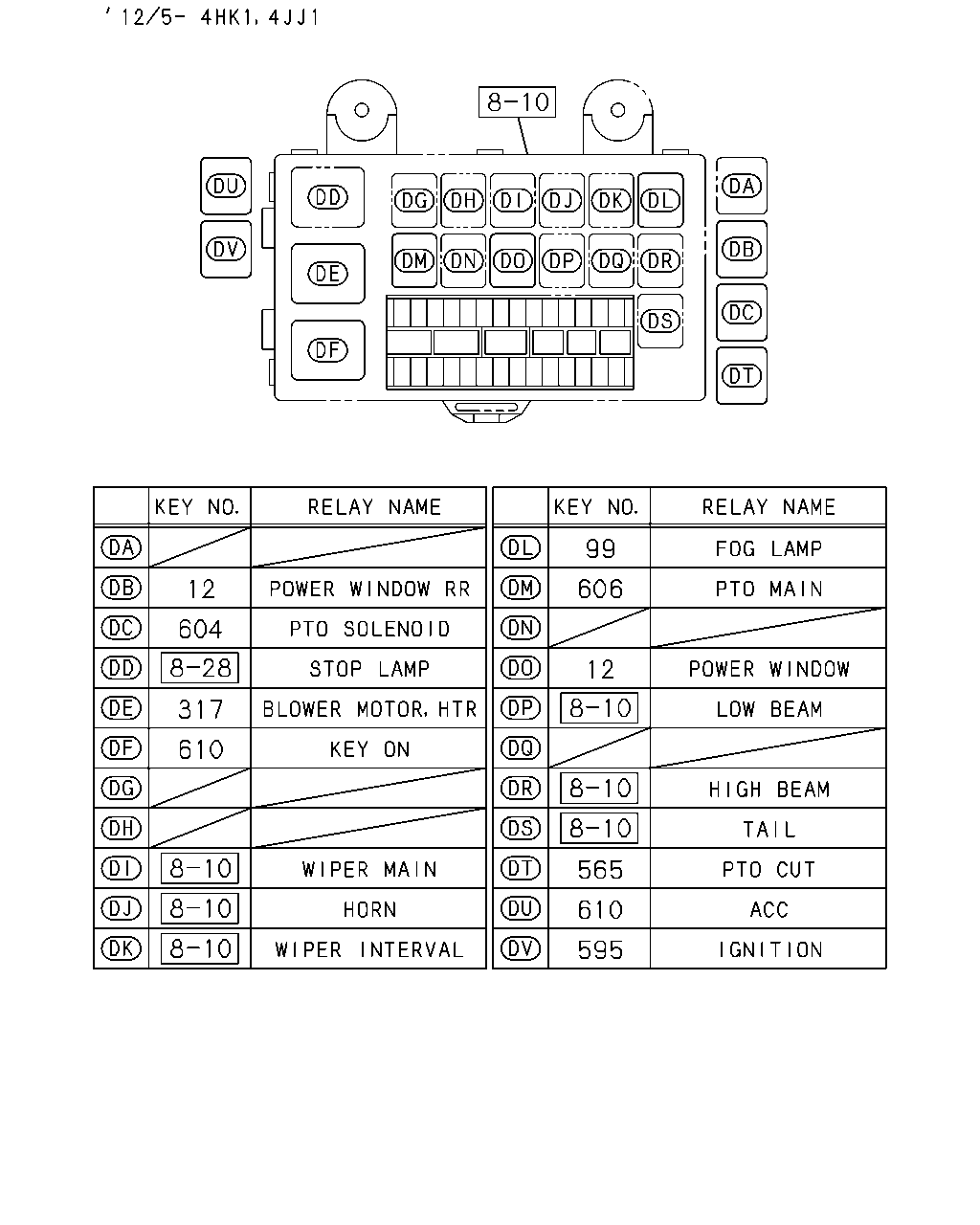

çizim 176011
99 12 606 604 12 317 610 565 610 595
BalonParca AdiParca NoAdetTipApplied Date A B C
12 08.852 RELAY; POWER WINDOW
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) POWER WINDOW FRT DOOR<A32> POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
12 08.852 RELAY; POWER WINDOW
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
99 02.485 RELAY; FOG LAMP
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) FOG LAMP<T96> POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
99 02.485 RELAY; FOG LAMP
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ●
565 02.510 RELAY; PTO CUT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
595 02.510 RELAY; IGNITION
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205- ● ● ●
604 02.510 RELAY; PTO SOLENOID
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
606 02.510 RELAY; PTO MAIN
POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1204 ●
610 02.510 RELAY; KEY ON
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1204 ●
610 02.510 RELAY; KEY ON
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1204 ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1204 ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1207 ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1207 ● ● ●
610 02.510 RELAY; KEY ON
4HG1 ENG(RJH) POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1208-1212 ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1208-1212 ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1208-1212 ●
610 02.510 RELAY; KEY ON
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1208-1212 ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1208-1212 ●
610 02.510 RELAY; KEY ON
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1208-1212 ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1208-1212 ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1208-1212 ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ●
610 02.510 RELAY; KEY ON
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ●
610 02.510 RELAY; KEY ON
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ●
çizim 176012
151 154 315
BalonParca AdiParca NoAdetTipApplied Date A B C
151 09.277 RELAY; HTR & A/C
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ●
151 09.277 RELAY; HTR & A/C
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ●
151 09.277 RELAY; HTR & A/C
4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ●
151 09.277 RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ● ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
315 09.277 RELAY; EXH BRAKE CONT
4HK1-TCN ENG(RDQ) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1106 ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1107- ● ●
315 09.277 RELAY; EXH BRAKE CONT
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1107- ● ●

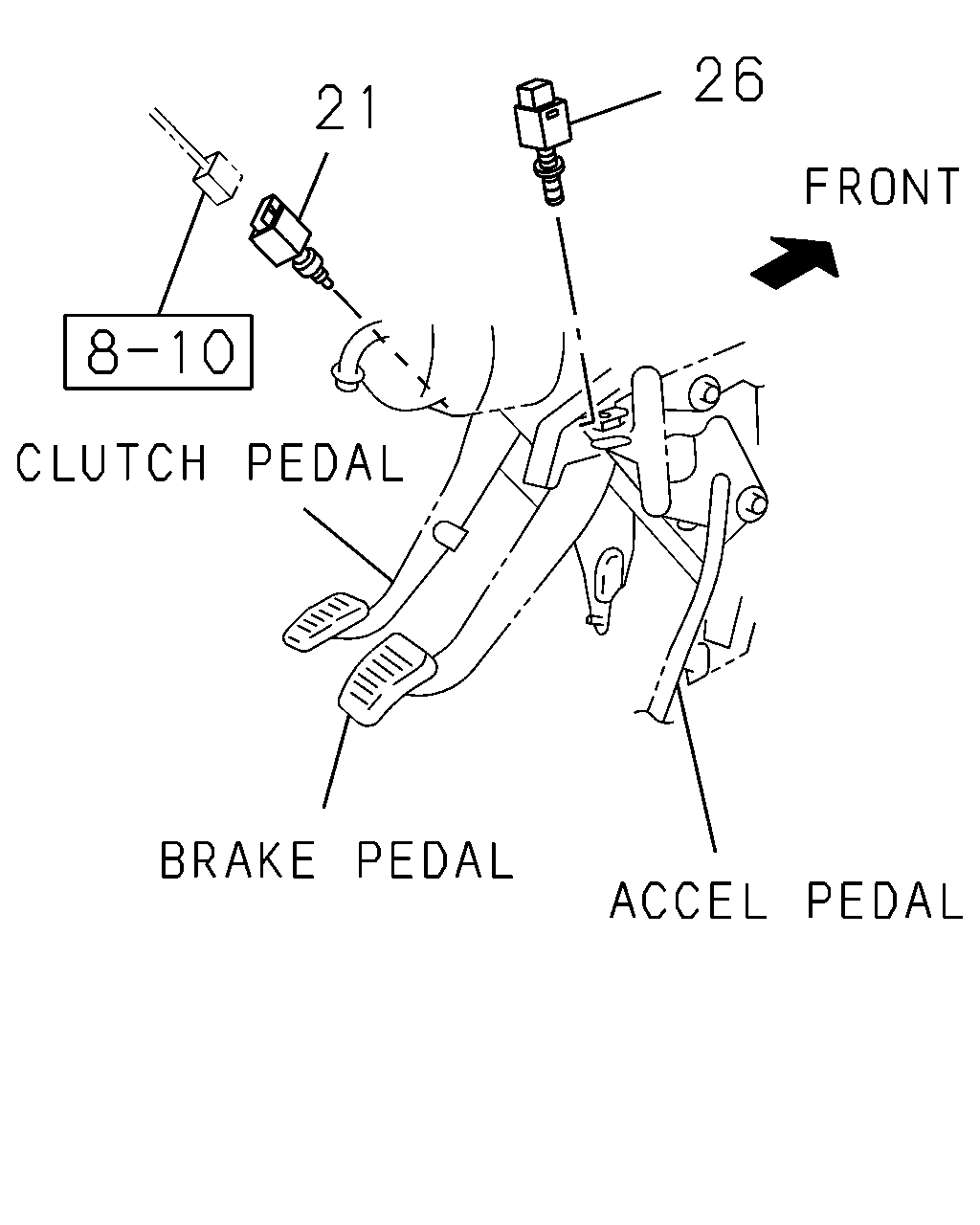

çizim 176013
26 21
BalonParca AdiParca NoAdetTipApplied Date A B C
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8> POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.447 		8-94109-863-0 01 1 1012-1509 ●
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.447 		8-94109-863-0 01 1 1510- ●
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-97358-248-0 01 1 1012-1509 ●
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8> 		8-97358-248-0 01 1 1012-1509 ●
21 02.575 SWITCH; CLU 8-97358-248-0 01 1 1012-1509 ●
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-97358-248-0 01 1 1510- ●
21 02.575 SWITCH; CLU
EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 		8-97358-248-0 01 1 1510- ●
21 02.575 SWITCH; CLU 8-97358-248-0 01 1 1510- ●
26 03.636 SWITCH; ACCEL
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 		8-97358-315-0 01 1 1012- ● ●
çizim 176017
154 191
BalonParca AdiParca NoAdetTipApplied Date A B C
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ● ●
154 09.277 RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
191 02.510 RELAY; EXH BRK CUT
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1106 ●
191 02.510 RELAY; EXH BRK CUT
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012-1106 ●

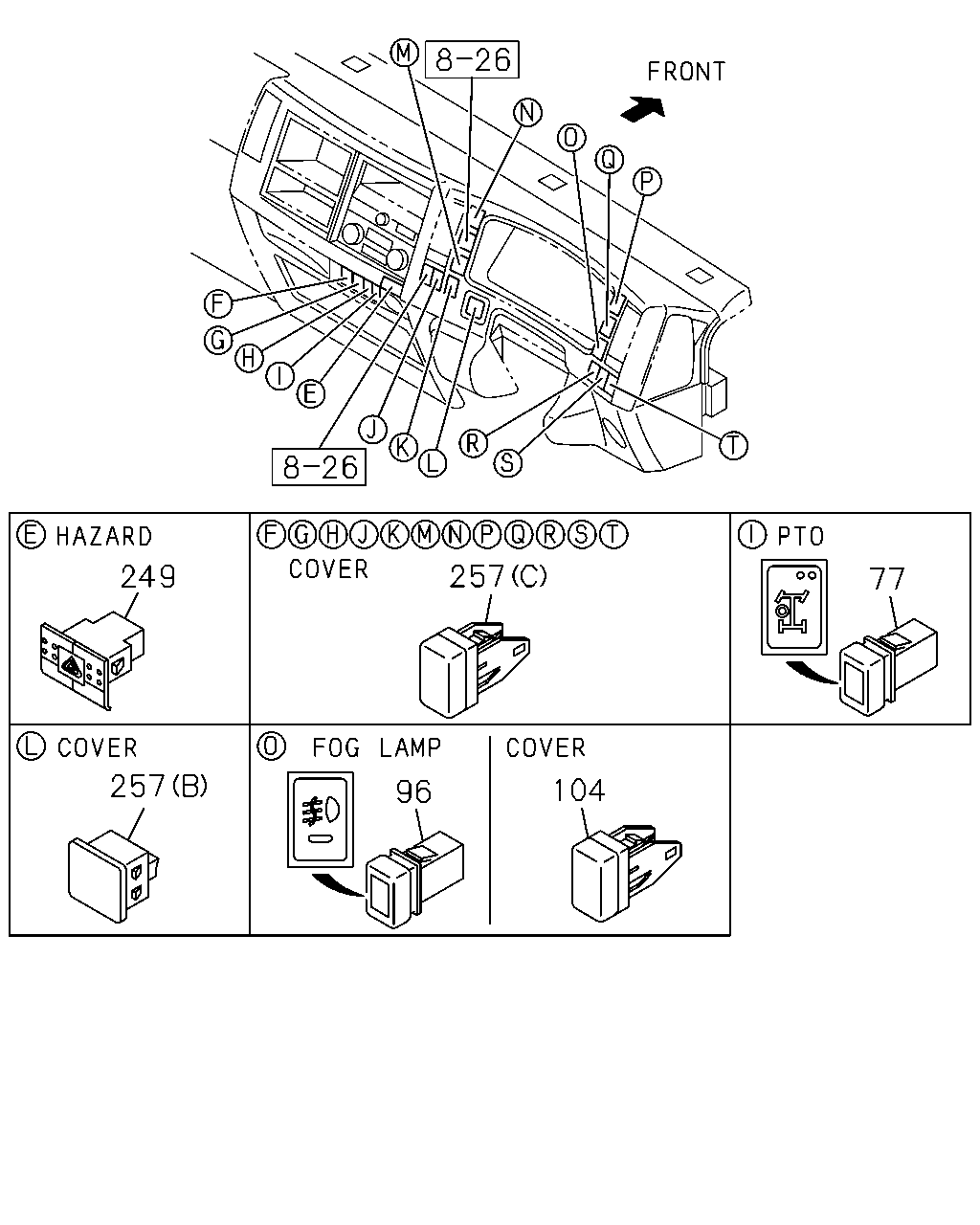

çizim 176018
257 249 77 257 104 96
BalonParca AdiParca NoAdetTipApplied Date A B C
77 04.439 SWITCH; PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-97386-993-4 01 1 1012- ●
96 02.485 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 1012- ● ● ●
104 09.778 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 16.081 		8-98025-954-1 01 1 1012- ● ● ●
249 02.485 SWITCH; HAZARD 8-97386-922-1 01 1 1012- ● ● ●
257 16.081 COVER; HOLE,SW
(A) 		8-98029-917-0 01 1 1012- ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 02 1 1012- ● ● ●
257 16.081 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1012- ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1012- ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1012- ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1012- ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1012- ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1012- ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1012- ● ● ●
257 16.081 COVER; HOLE,SW
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98025-954-1 01 1 1012- ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1012- ● ●

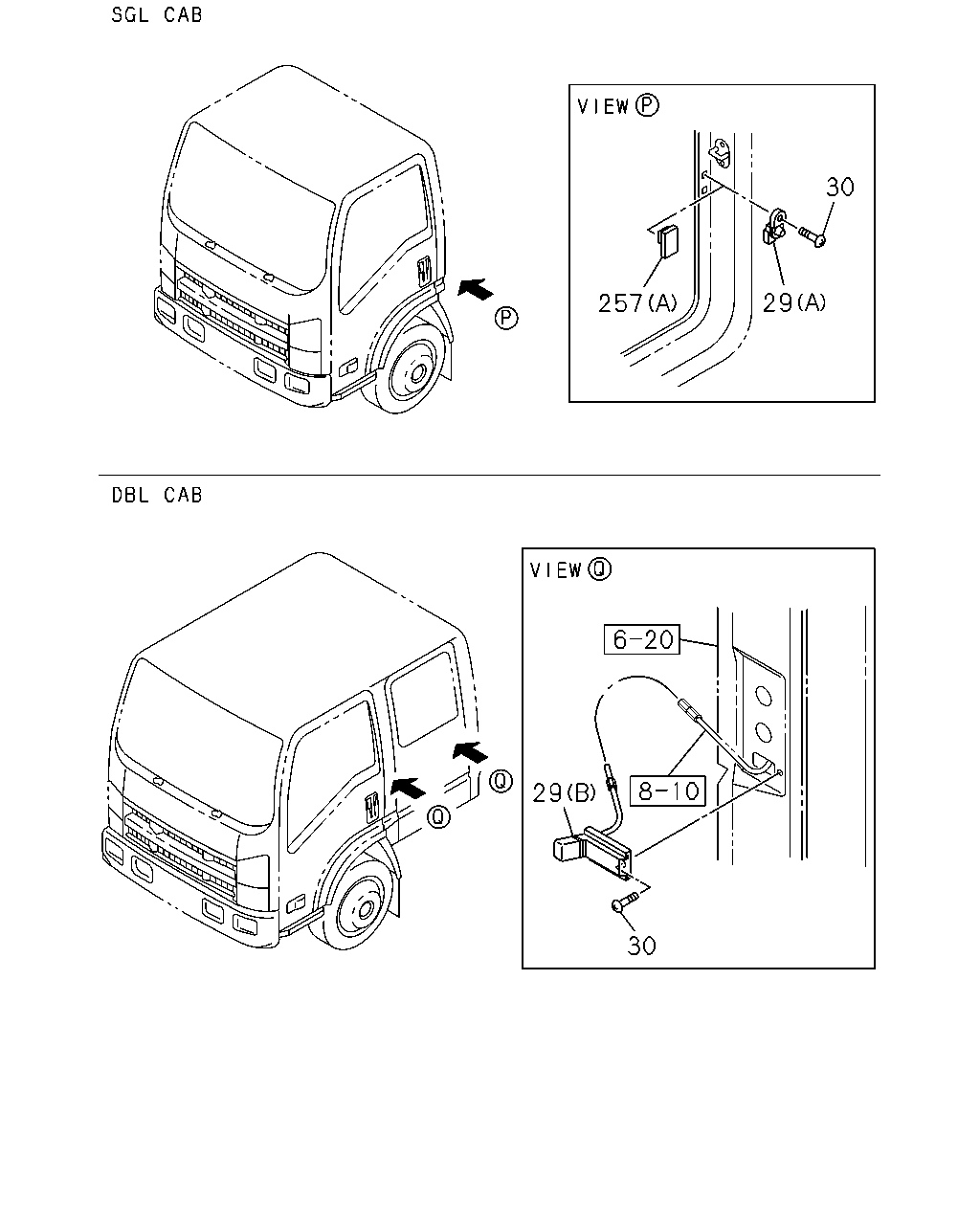

çizim 176019
30 29 257 29 30
BalonParca AdiParca NoAdetTipApplied Date A B C
29 16.263 SWITCH; DOOR
(A) BLACK 		8-98022-211-0 01 1 1012- ● ●
29 16.263 SWITCH; DOOR
(B) FRONT 		8-97855-032-3 01 1 1012- ●
29 16.263 SWITCH; DOOR
(B) FRONT 		8-97855-032-3 01 1 1012- ●
29 16.263 SWITCH; DOOR
(B) REAR 		8-98054-195-0 01 1 1012- ●
29 16.263 SWITCH; DOOR
(B) REAR 		8-98054-195-0 01 1 1012- ●
30 16.263 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 1012- ● ●
30 16.263 SCREW; DOOR SW
M5X16 		8-94279-341-0 04 1 1012- ●
257 16.081 COVER; HOLE,SW
(A) 		8-98029-917-0 01 1 1012- ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 02 1 1012- ● ● ●
257 16.081 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 1012- ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1012- ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1012- ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1012- ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1012- ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1012- ● ● ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1012- ● ● ●
257 16.081 COVER; HOLE,SW
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98025-954-1 01 1 1012- ●
257 16.081 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1012- ● ●
çizim 176020
527 86 87 609 317 610 45 693 12 99
BalonParca AdiParca NoAdetTipApplied Date A B C
12 08.852 RELAY; POWER WINDOW
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) POWER WINDOW FRT DOOR<A32> POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
12 08.852 RELAY; POWER WINDOW
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
45 02.252 RELAY; HORN
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
45 02.252 RELAY; HORN
4HG1-T ENG(RDP),4HG1 ENG(RJH) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
86 02.485 RELAY; HI-BEAM
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
86 02.485 RELAY; HI-BEAM
4HG1-T ENG(RDP),4HG1 ENG(RJH) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
87 02.485 RELAY; LOW-BEAM
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
87 02.485 RELAY; LOW-BEAM
4HG1-T ENG(RDP),4HG1 ENG(RJH) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
99 02.485 RELAY; FOG LAMP
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) FOG LAMP<T96> POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
99 02.485 RELAY; FOG LAMP
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ●
527 02.510 RELAY; TAIL
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
527 02.510 RELAY; TAIL
4HG1-T ENG(RDP),4HG1 ENG(RJH) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
609 02.485 RELAY; CHARGE
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
609 02.485 RELAY; CHARGE
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
609 02.485 RELAY; CHARGE
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1204 ●
610 02.510 RELAY; KEY ON
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1204 ●
610 02.510 RELAY; KEY ON
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1204 ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1204 ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1207 ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1207 ● ● ●
610 02.510 RELAY; KEY ON
4HG1 ENG(RJH) POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1208-1212 ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1208-1212 ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1208-1212 ●
610 02.510 RELAY; KEY ON
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1208-1212 ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1208-1212 ●
610 02.510 RELAY; KEY ON
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1208-1212 ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1208-1212 ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1208-1212 ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ●
610 02.510 RELAY; KEY ON
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ●
610 02.510 RELAY; KEY ON
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ●
693 16.742 RELAY; A/C.COMP.CUT
4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ●
693 16.742 RELAY; A/C.COMP.CUT
4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ●

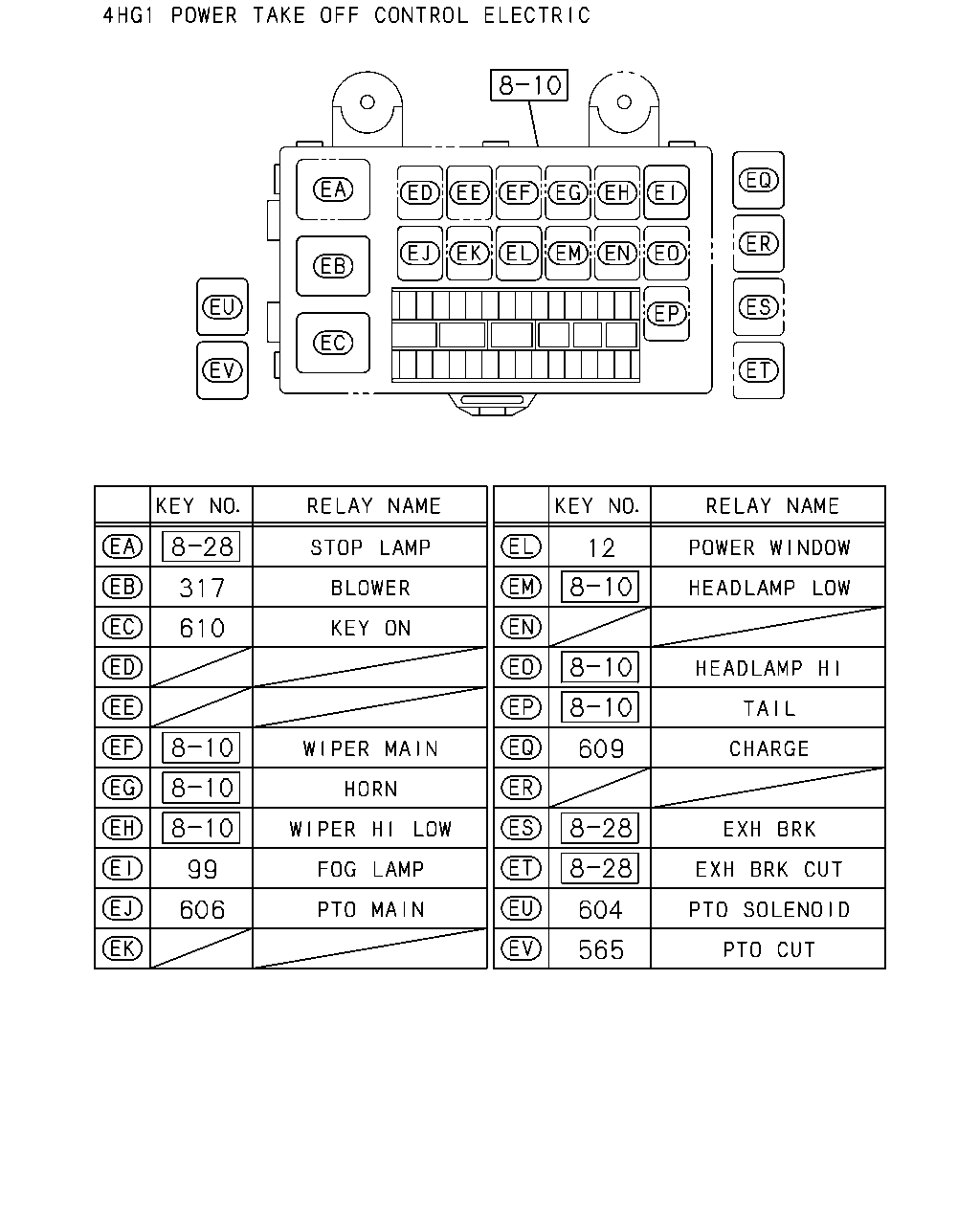

çizim 176021
12 317 610 609 99 606 604 565
BalonParca AdiParca NoAdetTipApplied Date A B C
12 08.852 RELAY; POWER WINDOW
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) POWER WINDOW FRT DOOR<A32> POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
12 08.852 RELAY; POWER WINDOW
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
12 08.852 RELAY; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
99 02.485 RELAY; FOG LAMP
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) FOG LAMP<T96> POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
99 02.485 RELAY; FOG LAMP
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
99 02.485 RELAY; FOG LAMP
FOG LAMP<T96> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ●
317 02.510 RELAY; BLOWER MOTOR,HTR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012- ●
565 02.510 RELAY; PTO CUT
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
604 02.510 RELAY; PTO SOLENOID
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
606 02.510 RELAY; PTO MAIN
POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
609 02.485 RELAY; CHARGE
4HG1 ENG(RJH) EXHAUST BRAKE<NF8> POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
609 02.485 RELAY; CHARGE
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
609 02.485 RELAY; CHARGE
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> 08.852 24V 10A PANASONIC 		8-97173-035-1 01 1 1012- ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1204 ●
610 02.510 RELAY; KEY ON
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1204 ●
610 02.510 RELAY; KEY ON
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1204 ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1012-1204 ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1207 ● ● ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1205-1207 ● ● ●
610 02.510 RELAY; KEY ON
4HG1 ENG(RJH) POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1208-1212 ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1208-1212 ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1208-1212 ●
610 02.510 RELAY; KEY ON
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1208-1212 ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1208-1212 ●
610 02.510 RELAY; KEY ON
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1208-1212 ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1208-1212 ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1208-1212 ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ●
610 02.510 RELAY; KEY ON
EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ●
610 02.510 RELAY; KEY ON
4HK1-TCN ENG(RDQ) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ●
610 02.510 RELAY; KEY ON
4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ●
610 02.510 RELAY; KEY ON
24V 12.5A PANASONIC 		8-97262-933-0 01 1 1301- ●

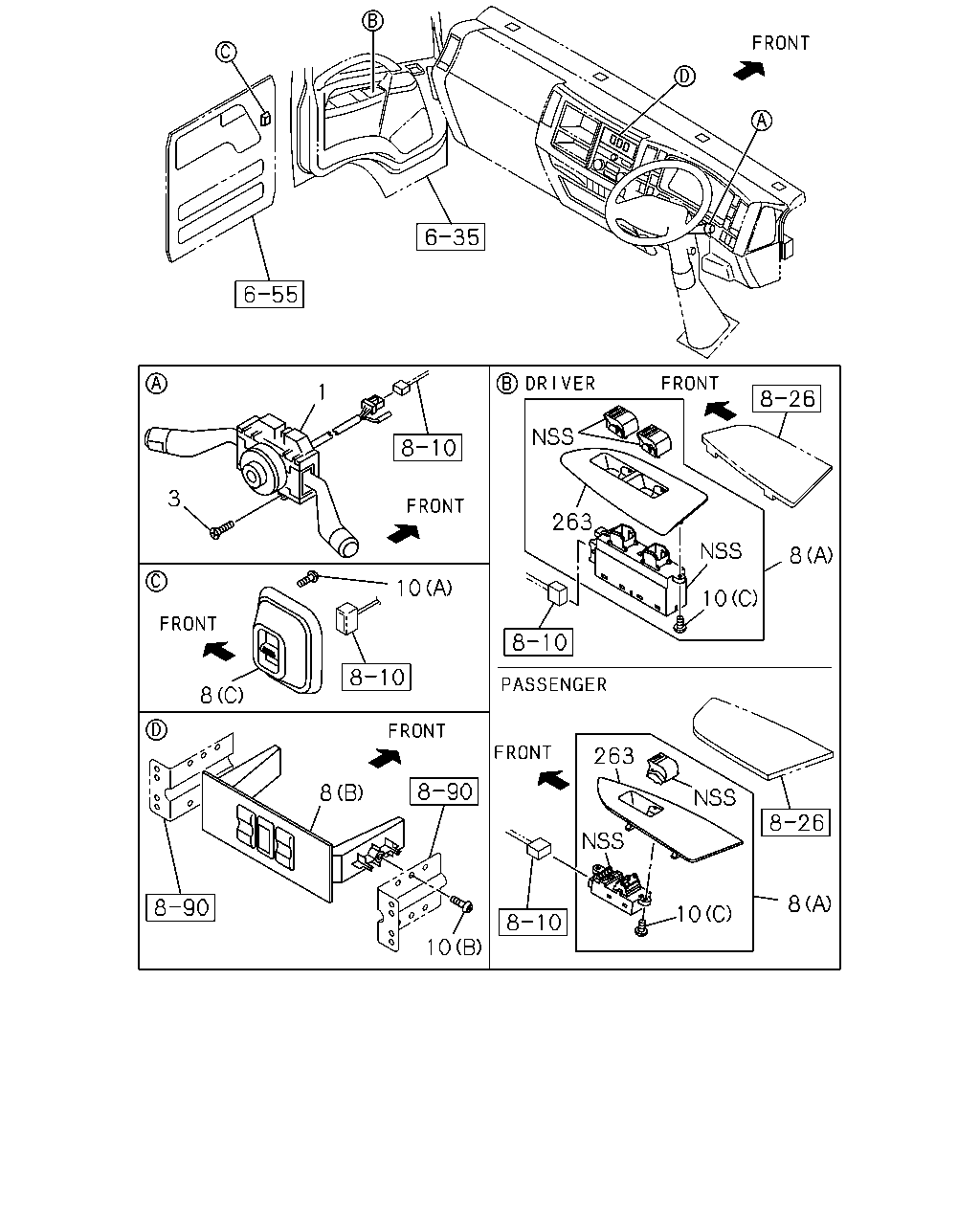

çizim 176034
1 3 263 8 10 10 8 263 8 8 10 10
BalonParca AdiParca NoAdetTipApplied Date A B C
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-98114-332-1 01 1 1012-1310 ● ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-98243-736-0 01 1 1311-1509 ● ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 		8-98243-736-0 01 1 1510- ● ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-98114-331-1 01 1 1012-1310 ● ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-98243-735-0 01 1 1311-1509 ● ●
1 02.895 SWITCH; COMB
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. INTERMITTENT WIPER<C13> 		8-98243-735-0 01 1 1510- ● ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-98069-995-1 01 1 1012-1310 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-98069-995-1 01 1 1012-1310 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-98069-995-1 01 1 1012-1310 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-98243-729-0 01 1 1311-1509 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8> 		8-98243-729-0 01 1 1311-1509 ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-98243-729-0 01 1 1311-1509 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 		8-98243-729-0 01 1 1510- ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ) INTERMITTENT WIPER<C13> EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> 		8-98243-729-0 01 1 1510- ●
1 02.895 SWITCH; COMB
INTERMITTENT WIPER<C13> 		8-98243-729-0 01 1 1510- ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-98069-993-2 01 1 1012-1310 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-98069-993-2 01 1 1012-1310 ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-98069-993-2 01 1 1012-1310 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-98243-728-0 01 1 1311-1509 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8> EXC. INTERMITTENT WIPER<C13> 		8-98243-728-0 01 1 1311-1509 ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-98243-728-0 01 1 1311-1509 ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. INTERMITTENT WIPER<C13> 		8-98243-728-0 01 1 1510- ●
1 02.895 SWITCH; COMB
4HK1-TCN ENG(RDQ) EXHAUST BRAKE<NF8>,EXHAUST BRAKE VAR3<8QZ> EXC. INTERMITTENT WIPER<C13> 		8-98243-728-0 01 1 1510- ●
1 02.895 SWITCH; COMB
EXC. INTERMITTENT WIPER<C13> 		8-98243-728-0 01 1 1510- ●
3 02.897 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 1012- ● ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE 		8-97387-034-2 01 1 1012-1509 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) PASSENGER SIDE 		8-97387-034-2 01 1 1012-1509 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) PASSENGER SIDE 		8-98316-415-0 01 1 1510- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) PASSENGER SIDE 		8-98316-415-0 01 1 1510- ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) DRIVER SIDE 		8-98159-543-0 01 1 1012-1509 ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER SIDE 		8-98159-543-0 01 1 1012-1509 ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> (A) DRIVER SIDE 		8-98298-750-0 01 1 1510- ● ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER SIDE 		8-98298-750-0 01 1 1510- ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (B) 		8-97386-987-2 01 1 1012- ●
8 16.263 SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (C) REAR SIDE 		8-97387-035-0 02 1 1012- ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32> (C) 		8-98153-865-0 03 1 1012- ● ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> (C) 		8-98153-865-0 03 1 1012- ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> 16.714 (A) M4X14 TAPPING 		0-74360-414-0 04 1 1012- ●
10 03.885 SCREW; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31> 16.100 (B) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1012- ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE 		8-98153-836-0 01 1 1012- ● ●
263 16.081 COVER; SW
POWER WINDOW FRT&REAR DOOR<A31> DRIVER SIDE 		8-98153-836-0 01 1 1012- ●
263 16.081 COVER; SW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE 		8-98153-841-0 01 1 1012- ● ●
263 16.081 COVER; SW
POWER WINDOW FRT&REAR DOOR<A31> PASSENGER SIDE 		8-98153-841-0 01 1 1012- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
