Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#55078) — 552 parça

150 38 313 38 139 150 516 480 529 480 529 377 377 386 386 577 24 294 515 577 294 515 515 552 24 515 552 516 113 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	02.559 NUT; HARNESS 4HK1-TCN ENG(RDQ) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-	●	●
24	02.559 NUT; HARNESS 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1012-1409	●	●	●
24	02.559 NUT; HARNESS (A) M6 FLANGE STAINLESS	8-98297-112-0	01	1	1410-	●	●	●
38	02.559 BOLT; CLIP,HARNESS 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 09.216 (B) M6X12 FLANGE	0-28250-612-0	02	1	1012-1106	●	●
38	02.559 BOLT; CLIP,HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) 09.216 (B) M6X12 FLANGE	0-28250-612-0	02	1	1107-1307	●	●
38	02.559 BOLT; CLIP,HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.216 (B) M6X12 FLANGE	0-28250-612-0	02	1	1308-	●	●
38	02.559 BOLT; CLIP,HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) M/T MYY5T(RSM) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-1301	●
38	02.559 BOLT; CLIP,HARNESS 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) M/T MYY6S(RST) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-1301	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-1301	●
38	02.559 BOLT; CLIP,HARNESS 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-1301			●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) M/T MYY6S(RST) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. KD PREPARATORY PACK<6HF> 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1302-	●
38	02.559 BOLT; CLIP,HARNESS 4HK1-TCN ENG(RDQ) M/T MYY6S(RST) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1302-	●
38	02.559 BOLT; CLIP,HARNESS 4HG1 ENG(RJH) M/T MYY5T(RSM) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1302-	●
38	02.559 BOLT; CLIP,HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1302-	●
38	02.559 BOLT; CLIP,HARNESS 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1302-			●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1 ENG(RJH) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) POWER TAKE OFF CONTROL ELECTRIC(7GR) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1208-1212	●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1 ENG(RJH) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) POWER TAKE OFF CONTROL ELECTRIC(7GR) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-1301	●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1 ENG(RJH) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. HYDRO BRAKE BOOSTER(7QQ) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1302-1508	●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> FOG LAMP<T96> EXC. CORNERING LAMP<T87>,VIN MODEL YEAR 2015<VZF>,HYDRO BRAKE BOOSTER(7QQ) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-	●	●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> FUEL SEDIMENTER WITH HEATER<6HU> EXC. CORNERING LAMP<T87>,FOG LAMP<T96>, VIN MODEL YEAR 2015<VZF>,HYDRO BRAKE BOOS TER(7QQ) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-	●	●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2015<VZF>,HYDRO BRAKE BOOSTER(7QQ) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-	●	●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. INTERMITTENT WIPER<C13>,CORNERING LAMP<T87>,FOG LAMP<T96>,VIN MODEL YEAR 20 15<VZF>,FUEL SEDIMENTER WITH HEATER<6HU> ,HYDRO BRAKE BOOSTER(7QQ) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-	●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> HYDRO BRAKE BOOSTER(7QQ) EXC. VIN MODEL YEAR 2015<VZF>,POWER TAKEOFF CONTROL ELECTRIC(7GR) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-	●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1 ENG(RJH) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. POWER WINDOW FRT DOOR<A32>, INTERMITTENT WIPER<C13>,AIR CONDITIONER MANUAL C ONT(C60),COOLER WO/HEATER(C65),FAST GLOWSYSTEM<KM6>,CORNERING LAMP<T87>,FOG LAM P<T96>,VIN MODEL YEAR 2015<VZF>,FUEL SEDIMENTER WITH HEATER<6HU>,HYDRO BRAKE BOO STER(7QQ) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-	●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1-T ENG(RDP) FAST GLOW SYSTEM<KM6> FOG LAMP<T96> VIN MODEL YEAR 2015<VZF> EXC. CORNERING LAMP<T87>,FUEL SEDIMENTERWITH HEATER<6HU>,POWER TAKE OFF CONTROLELECTRIC(7GR),HYDRO BRAKE BOOSTER(7QQ) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-	●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1-T ENG(RDP) FAST GLOW SYSTEM<KM6> VIN MODEL YEAR 2015<VZF> HYDRO BRAKE BOOSTER(7QQ) EXC. CORNERING LAMP<T87>,FOG LAMP<T96>, POWER TAKE OFF CONTROL ELECTRIC(7GR) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-	●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1 ENG(RJH) POWER WINDOW FRT DOOR<A32> FAST GLOW SYSTEM<KM6> EXC. CORNERING LAMP<T87>,FOG LAMP<T96>, VIN MODEL YEAR 2015<VZF>,FUEL SEDIMENTERWITH HEATER<6HU>,POWER TAKE OFF CONTROLELECTRIC(7GR),HYDRO BRAKE BOOSTER(7QQ) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-	●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1 ENG(RJH) INTERMITTENT WIPER<C13> CORNERING LAMP<T87> POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. FAST GLOW SYSTEM<KM6>,VIN MODEL YEAR 2015<VZF>,HYDRO BRAKE BOOSTER(7QQ) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-	●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1 ENG(RJH) INTERMITTENT WIPER<C13> FOG LAMP<T96> POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. FAST GLOW SYSTEM<KM6>,CORNERING LAMP<T87>,VIN MODEL YEAR 2015<VZF>,HYDRO BR AKE BOOSTER(7QQ) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-	●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1 ENG(RJH) INTERMITTENT WIPER<C13> FUEL SEDIMENTER WITH HEATER<6HU> POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. FAST GLOW SYSTEM<KM6>,CORNERING LAMP<T87>,FOG LAMP<T96>,VIN MODEL YEAR 2015 <VZF>,HYDRO BRAKE BOOSTER(7QQ) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-	●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1 ENG(RJH) INTERMITTENT WIPER<C13> POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. CORNERING LAMP<T87>,FOG LAMP<T96>, VIN MODEL YEAR 2015<VZF>,FUEL SEDIMENTERWITH HEATER<6HU>,HYDRO BRAKE BOOSTER(7QQ) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-	●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) FAST GLOW SYSTEM<KM6> EXC. POWER WINDOW FRT DOOR<A32>, CORNERING LAMP<T87>,FOG LAMP<T96>,VIN MODEL YEAR 2015<VZF>,FUEL SEDIMENTER WITH HEATER<6HU>,POWER TAKE OFF CONTROL ELECTRIC(7GR) ,HYDRO BRAKE BOOSTER(7QQ) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-	●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> HYDRO BRAKE BOOSTER(7QQ) EXC. VIN MODEL YEAR 2015<VZF> 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-		●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1-T ENG(RDP) FAST GLOW SYSTEM<KM6> FOG LAMP<T96> VIN MODEL YEAR 2015<VZF> EXC. CORNERING LAMP<T87>,FUEL SEDIMENTERWITH HEATER<6HU>,HYDRO BRAKE BOOSTER(7QQ) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-		●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1-T ENG(RDP) FAST GLOW SYSTEM<KM6> VIN MODEL YEAR 2015<VZF> HYDRO BRAKE BOOSTER(7QQ) EXC. CORNERING LAMP<T87>,FOG LAMP<T96> 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-		●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1 ENG(RJH) POWER WINDOW FRT DOOR<A32> FAST GLOW SYSTEM<KM6> EXC. CORNERING LAMP<T87>,FOG LAMP<T96>, VIN MODEL YEAR 2015<VZF>,FUEL SEDIMENTERWITH HEATER<6HU>,HYDRO BRAKE BOOSTER(7QQ) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-		●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) FAST GLOW SYSTEM<KM6> EXC. POWER WINDOW FRT DOOR<A32>, CORNERING LAMP<T87>,FOG LAMP<T96>,VIN MODEL YEAR 2015<VZF>,FUEL SEDIMENTER WITH HEATER<6HU>,HYDRO BRAKE BOOSTER(7QQ) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-		●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-	●	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1012-1012	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1012-1012			●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1101-1212	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1101-1212			●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-			●
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ) 03.671 (A) M6X10 FLANGE	0-28050-610-0	01	1	1012-	●	●
150	02.343 BOLT; CLIP 4HK1-TCN ENG(RDQ) (B) M8X16 FLANGE	0-28050-816-0	04	1	1012-	●	●
294	02.559 NUT 4HG1-T ENG(RDP),4HG1 ENG(RJH) 02.343 (A) M6 W/LK WASHER	8-94424-179-0	01	1	1012-	●	●
294	02.559 NUT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1012-	●
294	02.559 NUT 4HK1-TCN ENG(RDQ) 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1012-		●
294	02.559 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	1012-			●
313	02.559 BOLT; BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU) 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1012-	●
313	02.559 BOLT; BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1012-		●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1012-			●
377	02.559 BOLT; CAB EARTH 02.343 (B) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1012-	●	●	●
377	02.559 BOLT; CAB EARTH (A) M6X14 W/PL WASHER	8-98164-836-0	01	1	1012-	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1012-	●	●	●
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1012-	●	●	●
480	02.483 BOLT; BRKT 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) EXC. DUMP CHASSIS(V4D) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1012-	●
480	02.483 BOLT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1012-	●
480	02.483 BOLT; BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1012-		●
480	02.483 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1012-			●
480	02.483 BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	1012-	●	●

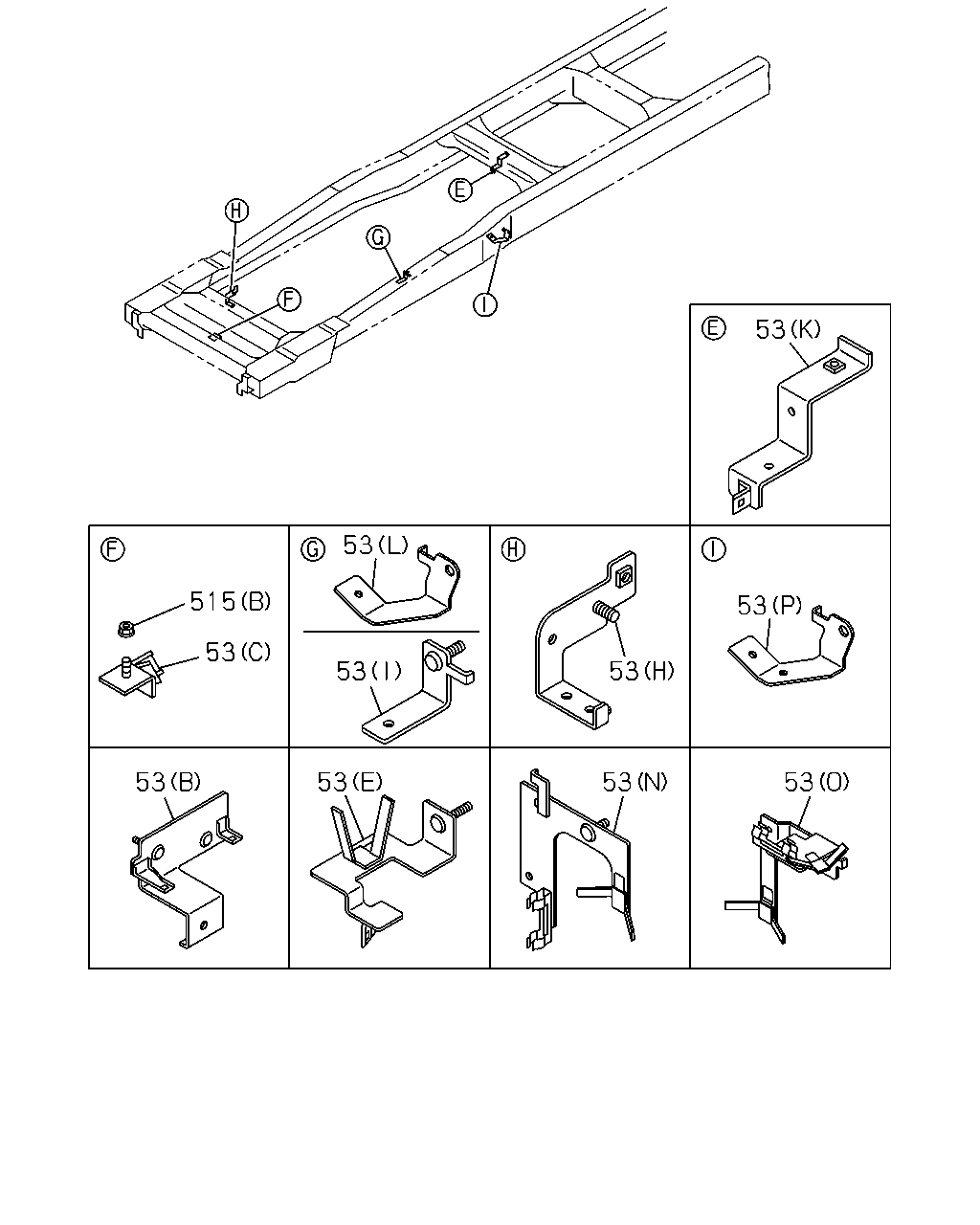

515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1405	●	●	●
515	02.559 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1405	●	●
515	02.559 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1405	●
515	02.559 NUT; BRKT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1405	●
515	02.559 NUT; BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1405		●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1406-	●	●	●
515	02.559 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1406-	●
515	02.559 NUT; BRKT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1406-	●
515	02.559 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. VIN MODEL YEAR 2015<VZF>,DUMP CHASSIS(V4D) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1406-	●
515	02.559 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) DUMP CHASSIS(V4D) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1406-	●
515	02.559 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1406-		●
515	02.559 NUT; BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1406-		●
515	02.559 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
515	02.559 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 (D) M8 FLANGE	0-91180-108-0	02	1	1012-	●
515	02.559 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8 FLANGE	0-91180-108-0	02	1	1012-		●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1012-	●	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1012-	●	●	●
516	02.559 BOLT; HARNESS 4JJ1-TCC ENG(RDU) 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-1111	●		●
516	02.559 BOLT; HARNESS 09.650 (B) M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1012-	●	●	●
529	02.559 BOLT; RELAY BOX 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 08.155 (A) M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1012-	●	●
529	02.559 BOLT; RELAY BOX EXC. FRAME STRAIGHT TYPE<7KJ> 08.155 (A) M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1012-	●	●
529	02.559 BOLT; RELAY BOX 4HG1-T ENG(RDP),4HG1 ENG(RJH) POWER TAKE OFF CONTROL ELECTRIC(7GR) FRAME STRAIGHT TYPE<7KJ> 08.155 (A) M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1012-	●
529	02.559 BOLT; RELAY BOX 08.155 (A) M8X35 W/LK&PL WASHER	1-09030-094-0	03	1	1012-			●
529	02.559 BOLT; RELAY BOX 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 06.216 (B) M8X25 FLANGE	0-28650-825-0	03	1	1012-	●
529	02.559 BOLT; RELAY BOX 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 06.216 (B) M8X25 FLANGE	0-28650-825-0	03	1	1012-		●

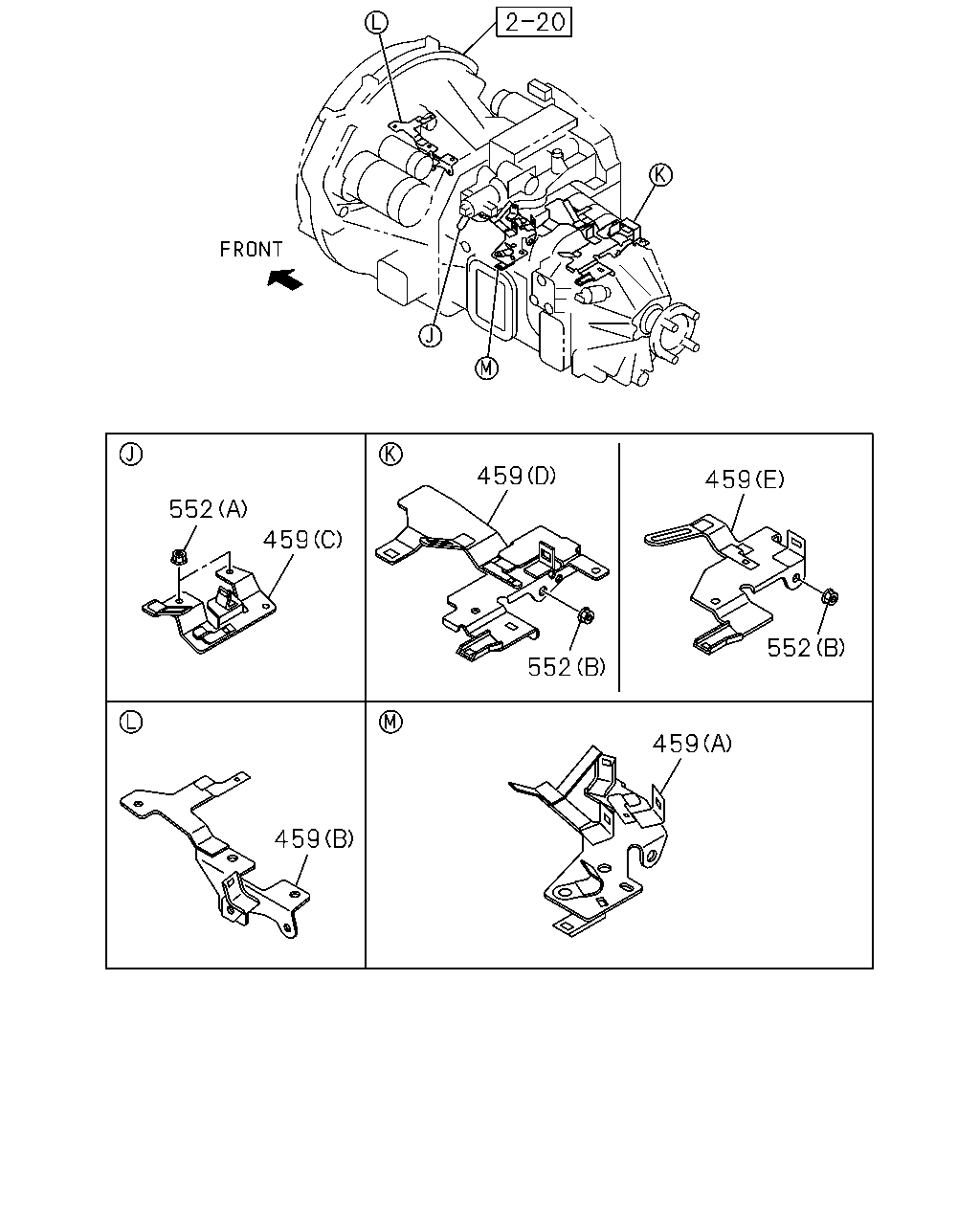

552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1012-	●		●
552	02.483 NUT; BRKT,HARNESS 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1012-		●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-	●		●
552	02.483 NUT; BRKT,HARNESS 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-		●

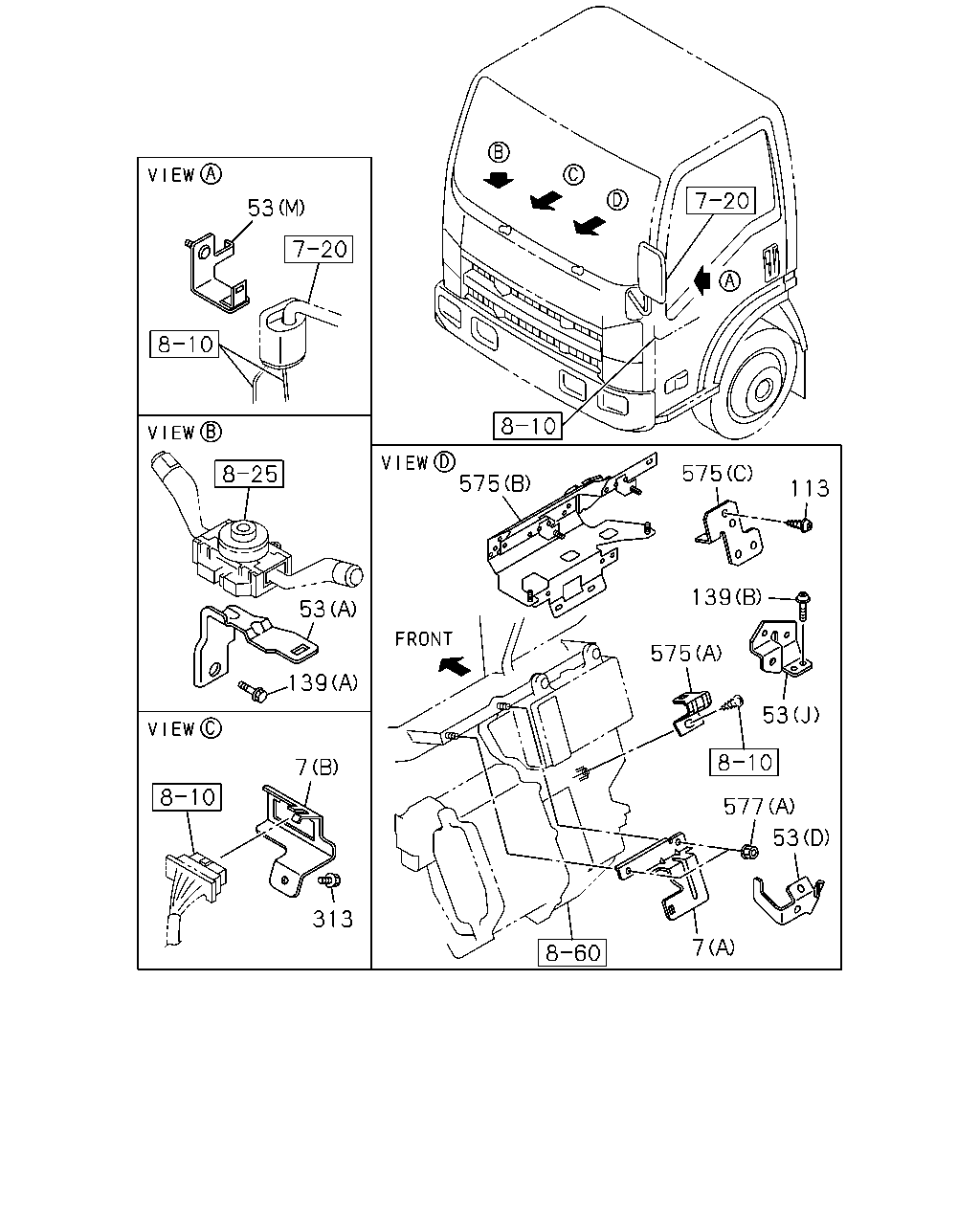

577	02.559 NUT; FUSE BOX 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 09.744 (B) M5 FLANGE	5-09440-003-0	04	1	1012-	●
577	02.559 NUT; FUSE BOX 4HG1-T ENG(RDP),4HG1 ENG(RJH) 09.744 (B) M5 FLANGE	5-09440-003-0	04	1	1012-		●
577	02.559 NUT; FUSE BOX 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	1012-1212	●	●
577	02.559 NUT; FUSE BOX 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	1301-	●
577	02.559 NUT; FUSE BOX 4HG1 ENG(RJH) POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	1301-	●
577	02.559 NUT; FUSE BOX 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	1301-		●
577	02.559 NUT; FUSE BOX 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 01.062 (A) M6 FLANGE	0-91180-106-0	04	1	1012-	●
577	02.559 NUT; FUSE BOX 4HK1-TCN ENG(RDQ) 01.062 (A) M6 FLANGE	0-91180-106-0	04	1	1012-		●
577	02.559 NUT; FUSE BOX 01.062 (A) M6 FLANGE	0-91180-106-0	04	1	1012-			●

16 14 48 22 14 16 22 102 483 570 617 16 102 22 16 570 48 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	02.559 CLIP; BAND,HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) GLOW SYSTEM DELETE<7RK> 03.162 (B) L=140	5-09707-031-1	01	1	1502-	●	●
14	02.559 CLIP; BAND,HARNESS 4HK1-TCN ENG(RDQ) 09.242 (A) L=150	8-97355-273-0	01	1	1012-	●	●
16	02.559 CLIP; HARNESS COOLER WO/HEATER(C65) 03.162 (M) L=140	5-09707-031-1	01	1	1401-	●	●
16	02.559 CLIP; HARNESS 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (K) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	1012-1106	●	●
16	02.559 CLIP; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (K) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	1107-1307	●	●
16	02.559 CLIP; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (K) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	1308-	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> (C) L=40.6	8-97229-357-0	01	1	1012-	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> CORNERING LAMP<T87> (C) L=40.6	8-97229-357-0	01	1	1012-			●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) 03.483 (J)	8-97101-436-0	01	1	1012-	●	●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (I) ID=6 & 10	8-94154-844-0	01	1	1012-	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (I) ID=6 & 10	8-94154-844-0	01	1	1012-			●
16	02.559 CLIP; HARNESS RR BODY FLAT BED<RS6> 02.587 (E) L=112	8-94232-618-0	05	1	1012-	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1012-	●	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	1012-	●	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1012-	●	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1012-	●	●	●
16	02.559 CLIP; HARNESS EXC. RR BODY FLAT BED<RS6> (L) L=250	5-09707-030-1	01	1	1012-	●
16	02.559 CLIP; HARNESS (L) L=250	5-09707-030-1	01	1	1012-		●	●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (C) L=40.6	8-97229-357-0	02	1	1012-	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6	8-97229-357-0	02	1	1012-			●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (G) L=60	8-94449-165-0	02	1	1012-			●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (H) L=60	8-97063-335-0	02	1	1012-			●
22	02.559 CLIP; ENG HARNESS 4HG1 ENG(RJH) (C) L=170.3	1-09987-182-0	01	1	1012-1106	●	●
22	02.559 CLIP; ENG HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C) L=170.3	1-09987-182-0	01	1	1107-	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION(NT2) 03.671 (H) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-1501	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 03.671 (H) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-1501	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION(NT2) 03.671 (H) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1502-	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) EXC. FAST GLOW SYSTEM<KM6> 03.671 (H) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1502-	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (A) L=140	5-09707-031-1	01	1	1012-1311	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 03.162 (A) L=140	5-09707-031-1	01	1	1012-1311	●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	1012-1311			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (A) L=140	5-09707-031-1	01	1	1312-	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 02.343 (D) L=119.5	1-09707-197-0	01	1	1012-	●
22	02.559 CLIP; ENG HARNESS 02.343 (D) L=119.5	1-09707-197-0	01	1	1012-			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 04.594 (B) L=100	5-09707-036-1	01	1	1012-	●
22	02.559 CLIP; ENG HARNESS 04.594 (B) L=100	5-09707-036-1	01	1	1012-			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	1012-	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1012-	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	1012-	●		●
48	02.559 CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 03.483 (C) L=450	1-09707-142-1	01	1	1012-1308	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 03.483 (C) L=450	1-09707-142-1	01	1	1309-	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	1012-	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8> 01.240 (D) ID=14 L=47	5-09700-319-0	01	1	1012-	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 03.430 (F) ID=10 & 16.5	8-94424-440-0	01	1	1012-	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	1012-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1012-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1012-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1012-	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1012-			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1012-1307	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1308-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1308-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1012-1307	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1308-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1308-		●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	1012-1412	●	●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	1012-1412			●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	1501-	●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	1501-			●
48	02.559 CLIP; FRAME HARNESS 08.852 (E) L=350	8-94152-256-1	01	1	1012-			●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ) (B) L=250	5-09707-030-1	01	1	1012-	●	●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ) 03.162 (A) L=140	5-09707-031-1	04	1	1012-1202	●	●
102	02.559 CLIP; BAND 4HK1-TCN ENG(RDQ) 03.162 (A) L=140	5-09707-031-1	02	1	1203-	●	●
483	02.559 CLIP; ENG HARNESS 4HG1 ENG(RJH) 03.162 (F) L=140	5-09707-031-1	01	1	1410-	●	●
483	02.559 CLIP; ENG HARNESS 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015<VZF> 03.162 (F) L=140	5-09707-031-1	01	1	1410-	●	●
483	02.559 CLIP; ENG HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.162 (F) L=140	5-09707-031-1	01	1	1012-1409	●	●
483	02.559 CLIP; ENG HARNESS 4HG1-T ENG(RDP) VIN MODEL YEAR 2015<VZF> 03.162 (F) L=140	5-09707-031-1	03	1	1410-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (A) ID=19 L=60	0-95235-896-0	01	1	1012-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 04.785 (B) ID=12 L=70	1-09700-097-1	01	1	1012-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (C) ID=24 L=24	1-09701-001-1	01	1	1012-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 01.152 (E) L=36	8-94224-891-1	04	1	1012-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 03.671 (D) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-	●	●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.671 (C) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-	●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	1012-1301	●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	1302-1408	●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	1409-1504	●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D) 03.162 (A) L=140	5-09707-031-1	02	1	1409-1504	●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	1505-	●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) T=4.5 & 9	8-97371-947-0	01	1	1012-1301	●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) T=4.5 & 9	8-97371-947-0	01	1	1302-1408	●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) T=4.5 & 9	8-97371-947-0	01	1	1409-1504	●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D) (B) T=4.5 & 9	8-97371-947-0	01	1	1409-1504	●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) T=4.5 & 9	8-97371-947-0	01	1	1505-	●
617	02.559 STRAP; BAND 4JJ1-TCC ENG(RDU) 03.162 L=140	5-09707-031-1	01	1	1104-1106	●
617	02.559 STRAP; BAND 03.162 L=140	5-09707-031-1	01	1	1104-1106			●

16 16 483 483 483 483 16 16 16 16 513 530 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	02.559 CLIP; HARNESS COOLER WO/HEATER(C65) 03.162 (M) L=140	5-09707-031-1	01	1	1401-	●	●
16	02.559 CLIP; HARNESS 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (K) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	1012-1106	●	●
16	02.559 CLIP; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (K) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	1107-1307	●	●
16	02.559 CLIP; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (K) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	1308-	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> (C) L=40.6	8-97229-357-0	01	1	1012-	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> CORNERING LAMP<T87> (C) L=40.6	8-97229-357-0	01	1	1012-			●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) 03.483 (J)	8-97101-436-0	01	1	1012-	●	●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (I) ID=6 & 10	8-94154-844-0	01	1	1012-	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (I) ID=6 & 10	8-94154-844-0	01	1	1012-			●
16	02.559 CLIP; HARNESS RR BODY FLAT BED<RS6> 02.587 (E) L=112	8-94232-618-0	05	1	1012-	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1012-	●	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	1012-	●	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1012-	●	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1012-	●	●	●
16	02.559 CLIP; HARNESS EXC. RR BODY FLAT BED<RS6> (L) L=250	5-09707-030-1	01	1	1012-	●
16	02.559 CLIP; HARNESS (L) L=250	5-09707-030-1	01	1	1012-		●	●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (C) L=40.6	8-97229-357-0	02	1	1012-	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6	8-97229-357-0	02	1	1012-			●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (G) L=60	8-94449-165-0	02	1	1012-			●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (H) L=60	8-97063-335-0	02	1	1012-			●
48	02.559 CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 03.483 (C) L=450	1-09707-142-1	01	1	1012-1308	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 03.483 (C) L=450	1-09707-142-1	01	1	1309-	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	1012-	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8> 01.240 (D) ID=14 L=47	5-09700-319-0	01	1	1012-	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 03.430 (F) ID=10 & 16.5	8-94424-440-0	01	1	1012-	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	1012-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1012-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1012-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1012-	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1012-			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1012-1307	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1308-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1308-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1012-1307	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1308-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1308-		●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	1012-1412	●	●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	1012-1412			●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	1501-	●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	1501-			●
48	02.559 CLIP; FRAME HARNESS 08.852 (E) L=350	8-94152-256-1	01	1	1012-			●
483	02.559 CLIP; ENG HARNESS 4HG1 ENG(RJH) 03.162 (F) L=140	5-09707-031-1	01	1	1410-	●	●
483	02.559 CLIP; ENG HARNESS 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015<VZF> 03.162 (F) L=140	5-09707-031-1	01	1	1410-	●	●
483	02.559 CLIP; ENG HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.162 (F) L=140	5-09707-031-1	01	1	1012-1409	●	●
483	02.559 CLIP; ENG HARNESS 4HG1-T ENG(RDP) VIN MODEL YEAR 2015<VZF> 03.162 (F) L=140	5-09707-031-1	03	1	1410-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (A) ID=19 L=60	0-95235-896-0	01	1	1012-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 04.785 (B) ID=12 L=70	1-09700-097-1	01	1	1012-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (C) ID=24 L=24	1-09701-001-1	01	1	1012-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 01.152 (E) L=36	8-94224-891-1	04	1	1012-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 03.671 (D) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-	●	●
513	02.559 TAPE; SOFT,HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 130X80	8-97304-373-0	01	1	1012-	●	●
513	02.559 TAPE; SOFT,HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 130X80	8-97304-373-0	01	1	1012-			●
530	02.559 SEAL; HARNESS 16.545 OD=32 BLACK	8-98031-126-0	01	1	1012-	●	●	●

459 459 552 459 552 552 459 459

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
459	02.483 BRACKET; SUPPORT,HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B)	8-98123-282-0	01	1	1012-	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) (A)	8-98123-286-1	01	1	1012-	●	●
459	02.483 BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (C)	8-98020-227-3	01	1	1012-	●
459	02.483 BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG(RDQ) (C)	8-98020-227-3	01	1	1012-		●
459	02.483 BRACKET; SUPPORT,HARNESS (C)	8-98020-227-3	01	1	1012-			●
459	02.483 BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (D)	8-98030-990-2	01	1	1012-1109	●
459	02.483 BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG(RDQ) (D)	8-98030-990-2	01	1	1012-1109		●
459	02.483 BRACKET; SUPPORT,HARNESS (D)	8-98030-990-2	01	1	1012-1109			●
459	02.483 BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (E)	8-98196-974-0	01	1	1110-	●
459	02.483 BRACKET; SUPPORT,HARNESS 4HK1-TCN ENG(RDQ) (E)	8-98196-974-0	01	1	1110-		●
459	02.483 BRACKET; SUPPORT,HARNESS (E)	8-98196-974-0	01	1	1110-			●
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1012-	●		●
552	02.483 NUT; BRKT,HARNESS 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1012-		●
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-	●		●
552	02.483 NUT; BRKT,HARNESS 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	1012-		●

48 22 22 16 22 483 570 22 16 48 48 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	02.559 CLIP; HARNESS COOLER WO/HEATER(C65) 03.162 (M) L=140	5-09707-031-1	01	1	1401-	●	●
16	02.559 CLIP; HARNESS 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (K) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	1012-1106	●	●
16	02.559 CLIP; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60) (K) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	1107-1307	●	●
16	02.559 CLIP; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (K) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	1308-	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> CORNERING LAMP<T87> (C) L=40.6	8-97229-357-0	01	1	1012-	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> CORNERING LAMP<T87> (C) L=40.6	8-97229-357-0	01	1	1012-			●
16	02.559 CLIP; HARNESS 4HK1-TCN ENG(RDQ) 03.483 (J)	8-97101-436-0	01	1	1012-	●	●
16	02.559 CLIP; HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (I) ID=6 & 10	8-94154-844-0	01	1	1012-	●
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.483 (I) ID=6 & 10	8-94154-844-0	01	1	1012-			●
16	02.559 CLIP; HARNESS RR BODY FLAT BED<RS6> 02.587 (E) L=112	8-94232-618-0	05	1	1012-	●
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16	8-94413-325-0	01	1	1012-	●	●	●
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	1012-	●	●	●
16	02.559 CLIP; HARNESS (A) L=155	8-97173-307-0	14	1	1012-	●	●	●
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1012-	●	●	●
16	02.559 CLIP; HARNESS EXC. RR BODY FLAT BED<RS6> (L) L=250	5-09707-030-1	01	1	1012-	●
16	02.559 CLIP; HARNESS (L) L=250	5-09707-030-1	01	1	1012-		●	●
16	02.559 CLIP; HARNESS EXC. CORNERING LAMP<T87> (C) L=40.6	8-97229-357-0	02	1	1012-	●	●	●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (C) L=40.6	8-97229-357-0	02	1	1012-			●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (G) L=60	8-94449-165-0	02	1	1012-			●
16	02.559 CLIP; HARNESS POWER WINDOW FRT&REAR DOOR<A31> (H) L=60	8-97063-335-0	02	1	1012-			●
22	02.559 CLIP; ENG HARNESS 4HG1 ENG(RJH) (C) L=170.3	1-09987-182-0	01	1	1012-1106	●	●
22	02.559 CLIP; ENG HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) (C) L=170.3	1-09987-182-0	01	1	1107-	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION(NT2) 03.671 (H) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-1501	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) 03.671 (H) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-1501	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) AIR CONDITIONER MANUAL CONT(C60) EURO2 SPECIFICATION(NT2) 03.671 (H) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1502-	●	●
22	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) GENERATOR 24V50A(6QN),GENERATOR 24V80A(7YN) EXC. FAST GLOW SYSTEM<KM6> 03.671 (H) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1502-	●	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (A) L=140	5-09707-031-1	01	1	1012-1311	●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) EURO2 SPECIFICATION(NT2) 03.162 (A) L=140	5-09707-031-1	01	1	1012-1311	●
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	1012-1311			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (A) L=140	5-09707-031-1	01	1	1312-	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 02.343 (D) L=119.5	1-09707-197-0	01	1	1012-	●
22	02.559 CLIP; ENG HARNESS 02.343 (D) L=119.5	1-09707-197-0	01	1	1012-			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 04.594 (B) L=100	5-09707-036-1	01	1	1012-	●
22	02.559 CLIP; ENG HARNESS 04.594 (B) L=100	5-09707-036-1	01	1	1012-			●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.425 (E) ID=6 & 8.3	8-94167-742-0	01	1	1012-	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 03.162 (F) ID=13.2 & 14.5	8-94475-649-0	01	1	1012-	●		●
22	02.559 CLIP; ENG HARNESS 4JJ1-TCC ENG(RDU) 04.104 (G) ID=12 & 6.8	8-97125-842-0	01	1	1012-	●		●
48	02.559 CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 03.483 (C) L=450	1-09707-142-1	01	1	1012-1308	●	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) EURO2 SPECIFICATION(NT2) FRAME STRAIGHT TYPE<7KJ> 03.483 (C) L=450	1-09707-142-1	01	1	1309-	●	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> (B) T=4.5 & 9	8-97371-947-0	01	1	1012-	●
48	02.559 CLIP; FRAME HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) DUMP CHASSIS(V4D) FRAME STRAIGHT TYPE<7KJ> EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8> 01.240 (D) ID=14 L=47	5-09700-319-0	01	1	1012-	●
48	02.559 CLIP; FRAME HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 03.430 (F) ID=10 & 16.5	8-94424-440-0	01	1	1012-	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	09	1	1012-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1012-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	05	1	1012-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1012-	●	●
48	02.559 CLIP; FRAME HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	10	1	1012-			●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1012-1307	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1308-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	03	1	1308-		●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1012-1307	●	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1308-	●
48	02.559 CLIP; FRAME HARNESS WHEEL BASE 4100MM(41W),WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ> 01.240 (D) ID=14 L=47	5-09700-319-0	04	1	1308-		●
48	02.559 CLIP; FRAME HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	1012-1412	●	●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	1012-1412			●
48	02.559 CLIP; FRAME HARNESS 4JJ1-TCC ENG(RDU) EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=20	8-94241-972-0	01	1	1501-	●
48	02.559 CLIP; FRAME HARNESS (A) ID=20	8-94241-972-0	01	1	1501-			●
48	02.559 CLIP; FRAME HARNESS 08.852 (E) L=350	8-94152-256-1	01	1	1012-			●
483	02.559 CLIP; ENG HARNESS 4HG1 ENG(RJH) 03.162 (F) L=140	5-09707-031-1	01	1	1410-	●	●
483	02.559 CLIP; ENG HARNESS 4HG1-T ENG(RDP) EXC. VIN MODEL YEAR 2015<VZF> 03.162 (F) L=140	5-09707-031-1	01	1	1410-	●	●
483	02.559 CLIP; ENG HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.162 (F) L=140	5-09707-031-1	01	1	1012-1409	●	●
483	02.559 CLIP; ENG HARNESS 4HG1-T ENG(RDP) VIN MODEL YEAR 2015<VZF> 03.162 (F) L=140	5-09707-031-1	03	1	1410-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (A) ID=19 L=60	0-95235-896-0	01	1	1012-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 04.785 (B) ID=12 L=70	1-09700-097-1	01	1	1012-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) (C) ID=24 L=24	1-09701-001-1	01	1	1012-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 01.152 (E) L=36	8-94224-891-1	04	1	1012-	●	●
483	02.559 CLIP; ENG HARNESS 4HK1-TCN ENG(RDQ) 03.671 (D) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-	●	●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.671 (C) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	1012-	●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	1012-1301	●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	1302-1408	●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	1409-1504	●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D) 03.162 (A) L=140	5-09707-031-1	02	1	1409-1504	●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.162 (A) L=140	5-09707-031-1	02	1	1505-	●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) T=4.5 & 9	8-97371-947-0	01	1	1012-1301	●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) T=4.5 & 9	8-97371-947-0	01	1	1302-1408	●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) WHEEL BASE 2700MM(27W) DUMP CHASSIS(V4D) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) T=4.5 & 9	8-97371-947-0	01	1	1409-1504	●
570	02.559 CLIP; HARNESS,PTO 4HK1-TCN ENG(RDQ) WHEEL BASE 3300MM(33W),WHEEL BASE 3800MM(38W),WHEEL BASE 4100MM(41W) PTO TRANSMISSION SIDE(V66) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. MINI BUS CHASSIS(V4B),DUMP CHASSIS(V4D) (B) T=4.5 & 9	8-97371-947-0	01	1	1409-1504	●
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) T=4.5 & 9	8-97371-947-0	01	1	1505-	●

515 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

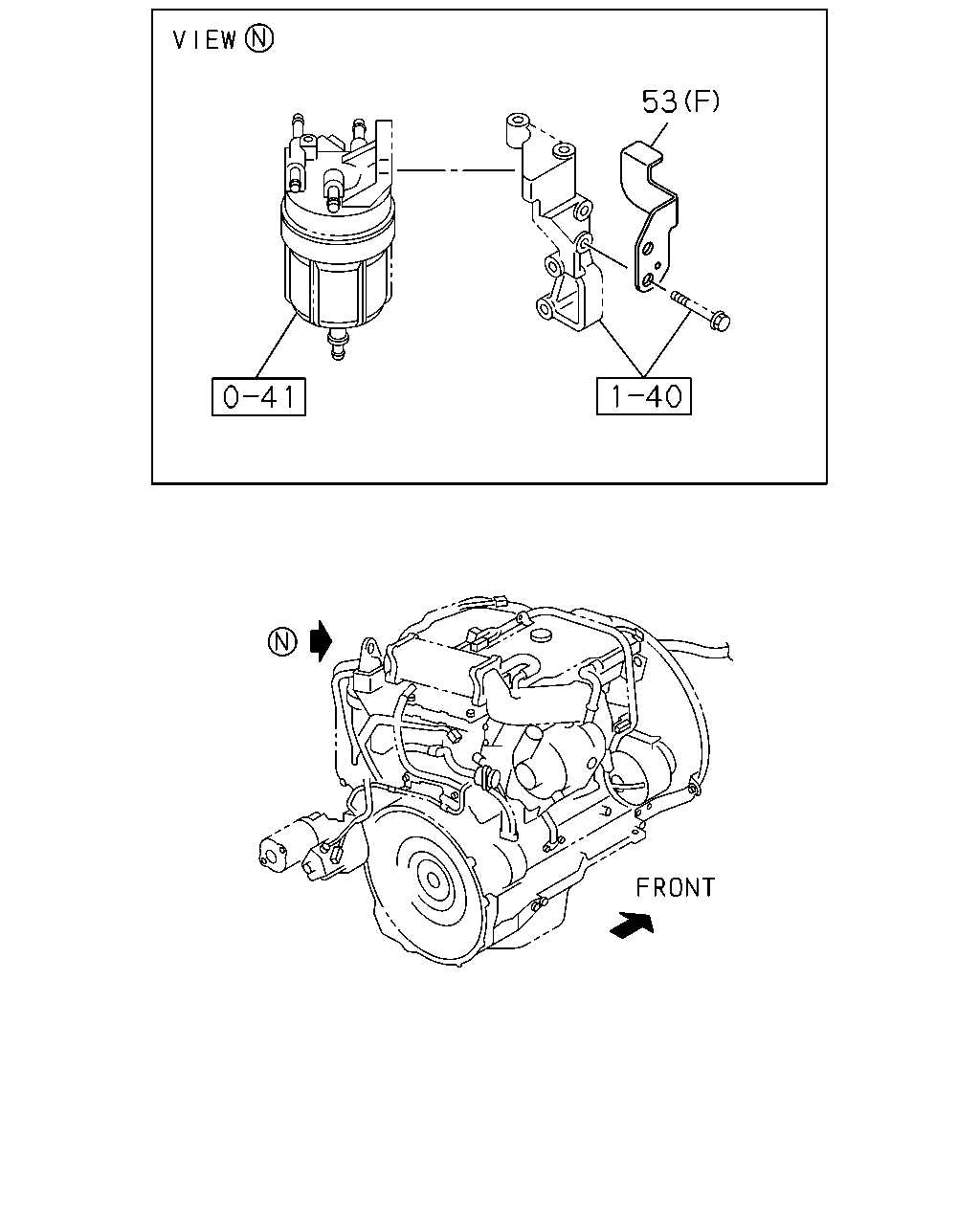

53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) DUMP CHASSIS(V4D) (O)	8-98126-491-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (M)	8-98114-461-2	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (P)	8-98130-669-1	01	1	1012-1303	●	●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (P)	8-98130-669-1	01	1	1304-	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (P)	8-98130-669-1	01	1	1304-	●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (P)	8-98130-669-1	01	1	1304-		●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (E)	8-98132-377-0	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B)	8-98173-558-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (B)	8-98173-558-0	01	1	1012-		●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. DUMP CHASSIS(V4D) (N)	8-98126-454-2	01	1	1012-1405	●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) (N)	8-98126-454-2	01	1	1012-1405		●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. VIN MODEL YEAR 2015<VZF>,DUMP CHASSIS(V4D) (N)	8-98126-454-2	01	1	1406-	●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> (N)	8-98126-454-2	01	1	1406-		●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) 02.559 (F)	8-98052-804-0	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (L)	8-98094-629-0	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (L)	8-98094-629-0	01	1	1012-1303		●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (D)	8-98074-502-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (D)	8-98074-502-0	01	1	1012-		●
53	02.483 BRACKET; HARNESS (D)	8-98074-502-0	01	1	1012-			●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (H)	8-98077-503-1	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98077-504-0	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	1012-	●	●	●
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	1012-	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1012-	●	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (J)	8-98084-590-0	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J)	8-98084-590-0	01	1	1012-			●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (I)	8-98083-225-1	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS (I)	8-98083-225-1	01	1	1012-			●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1405	●	●	●
515	02.559 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1405	●	●
515	02.559 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1405	●
515	02.559 NUT; BRKT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1405	●
515	02.559 NUT; BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1405		●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1406-	●	●	●
515	02.559 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1406-	●
515	02.559 NUT; BRKT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1406-	●
515	02.559 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. VIN MODEL YEAR 2015<VZF>,DUMP CHASSIS(V4D) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1406-	●
515	02.559 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) DUMP CHASSIS(V4D) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1406-	●
515	02.559 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1406-		●
515	02.559 NUT; BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1406-		●
515	02.559 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
515	02.559 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 (D) M8 FLANGE	0-91180-108-0	02	1	1012-	●
515	02.559 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8 FLANGE	0-91180-108-0	02	1	1012-		●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1012-	●	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1012-	●	●	●

53 575 575 113 139 53 575 139 53 7 577 53 313 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
7	02.559 BRACKET; CONNECTOR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU) (B)	8-98043-070-1	01	1	1012-	●
7	02.559 BRACKET; CONNECTOR 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) (B)	8-98043-070-1	01	1	1012-		●
7	02.559 BRACKET; CONNECTOR (B)	8-98043-070-1	01	1	1012-			●
7	02.559 BRACKET; CONNECTOR 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (A)	8-98029-762-4	01	1	1012-	●
7	02.559 BRACKET; CONNECTOR 4HK1-TCN ENG(RDQ) (A)	8-98029-762-4	01	1	1012-		●
7	02.559 BRACKET; CONNECTOR (A)	8-98029-762-4	01	1	1012-			●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) DUMP CHASSIS(V4D) (O)	8-98126-491-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (M)	8-98114-461-2	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (P)	8-98130-669-1	01	1	1012-1303	●	●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (P)	8-98130-669-1	01	1	1304-	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (P)	8-98130-669-1	01	1	1304-	●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (P)	8-98130-669-1	01	1	1304-		●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (E)	8-98132-377-0	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B)	8-98173-558-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (B)	8-98173-558-0	01	1	1012-		●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. DUMP CHASSIS(V4D) (N)	8-98126-454-2	01	1	1012-1405	●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) (N)	8-98126-454-2	01	1	1012-1405		●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. VIN MODEL YEAR 2015<VZF>,DUMP CHASSIS(V4D) (N)	8-98126-454-2	01	1	1406-	●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> (N)	8-98126-454-2	01	1	1406-		●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) 02.559 (F)	8-98052-804-0	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (L)	8-98094-629-0	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (L)	8-98094-629-0	01	1	1012-1303		●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (D)	8-98074-502-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (D)	8-98074-502-0	01	1	1012-		●
53	02.483 BRACKET; HARNESS (D)	8-98074-502-0	01	1	1012-			●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (H)	8-98077-503-1	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98077-504-0	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	1012-	●	●	●
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	1012-	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1012-	●	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (J)	8-98084-590-0	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J)	8-98084-590-0	01	1	1012-			●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (I)	8-98083-225-1	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS (I)	8-98083-225-1	01	1	1012-			●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1 ENG(RJH) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) POWER TAKE OFF CONTROL ELECTRIC(7GR) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1208-1212	●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1 ENG(RJH) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) POWER TAKE OFF CONTROL ELECTRIC(7GR) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-1301	●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1 ENG(RJH) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. HYDRO BRAKE BOOSTER(7QQ) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1302-1508	●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> FOG LAMP<T96> EXC. CORNERING LAMP<T87>,VIN MODEL YEAR 2015<VZF>,HYDRO BRAKE BOOSTER(7QQ) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-	●	●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> FUEL SEDIMENTER WITH HEATER<6HU> EXC. CORNERING LAMP<T87>,FOG LAMP<T96>, VIN MODEL YEAR 2015<VZF>,HYDRO BRAKE BOOS TER(7QQ) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-	●	●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2015<VZF>,HYDRO BRAKE BOOSTER(7QQ) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-	●	●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. INTERMITTENT WIPER<C13>,CORNERING LAMP<T87>,FOG LAMP<T96>,VIN MODEL YEAR 20 15<VZF>,FUEL SEDIMENTER WITH HEATER<6HU> ,HYDRO BRAKE BOOSTER(7QQ) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-	●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> HYDRO BRAKE BOOSTER(7QQ) EXC. VIN MODEL YEAR 2015<VZF>,POWER TAKEOFF CONTROL ELECTRIC(7GR) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-	●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1 ENG(RJH) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. POWER WINDOW FRT DOOR<A32>, INTERMITTENT WIPER<C13>,AIR CONDITIONER MANUAL C ONT(C60),COOLER WO/HEATER(C65),FAST GLOWSYSTEM<KM6>,CORNERING LAMP<T87>,FOG LAM P<T96>,VIN MODEL YEAR 2015<VZF>,FUEL SEDIMENTER WITH HEATER<6HU>,HYDRO BRAKE BOO STER(7QQ) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-	●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1-T ENG(RDP) FAST GLOW SYSTEM<KM6> FOG LAMP<T96> VIN MODEL YEAR 2015<VZF> EXC. CORNERING LAMP<T87>,FUEL SEDIMENTERWITH HEATER<6HU>,POWER TAKE OFF CONTROLELECTRIC(7GR),HYDRO BRAKE BOOSTER(7QQ) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-	●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1-T ENG(RDP) FAST GLOW SYSTEM<KM6> VIN MODEL YEAR 2015<VZF> HYDRO BRAKE BOOSTER(7QQ) EXC. CORNERING LAMP<T87>,FOG LAMP<T96>, POWER TAKE OFF CONTROL ELECTRIC(7GR) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-	●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1 ENG(RJH) POWER WINDOW FRT DOOR<A32> FAST GLOW SYSTEM<KM6> EXC. CORNERING LAMP<T87>,FOG LAMP<T96>, VIN MODEL YEAR 2015<VZF>,FUEL SEDIMENTERWITH HEATER<6HU>,POWER TAKE OFF CONTROLELECTRIC(7GR),HYDRO BRAKE BOOSTER(7QQ) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-	●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1 ENG(RJH) INTERMITTENT WIPER<C13> CORNERING LAMP<T87> POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. FAST GLOW SYSTEM<KM6>,VIN MODEL YEAR 2015<VZF>,HYDRO BRAKE BOOSTER(7QQ) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-	●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1 ENG(RJH) INTERMITTENT WIPER<C13> FOG LAMP<T96> POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. FAST GLOW SYSTEM<KM6>,CORNERING LAMP<T87>,VIN MODEL YEAR 2015<VZF>,HYDRO BR AKE BOOSTER(7QQ) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-	●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1 ENG(RJH) INTERMITTENT WIPER<C13> FUEL SEDIMENTER WITH HEATER<6HU> POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. FAST GLOW SYSTEM<KM6>,CORNERING LAMP<T87>,FOG LAMP<T96>,VIN MODEL YEAR 2015 <VZF>,HYDRO BRAKE BOOSTER(7QQ) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-	●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1 ENG(RJH) INTERMITTENT WIPER<C13> POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. CORNERING LAMP<T87>,FOG LAMP<T96>, VIN MODEL YEAR 2015<VZF>,FUEL SEDIMENTERWITH HEATER<6HU>,HYDRO BRAKE BOOSTER(7QQ) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-	●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) FAST GLOW SYSTEM<KM6> EXC. POWER WINDOW FRT DOOR<A32>, CORNERING LAMP<T87>,FOG LAMP<T96>,VIN MODEL YEAR 2015<VZF>,FUEL SEDIMENTER WITH HEATER<6HU>,POWER TAKE OFF CONTROL ELECTRIC(7GR) ,HYDRO BRAKE BOOSTER(7QQ) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-	●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> HYDRO BRAKE BOOSTER(7QQ) EXC. VIN MODEL YEAR 2015<VZF> 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-		●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1-T ENG(RDP) FAST GLOW SYSTEM<KM6> FOG LAMP<T96> VIN MODEL YEAR 2015<VZF> EXC. CORNERING LAMP<T87>,FUEL SEDIMENTERWITH HEATER<6HU>,HYDRO BRAKE BOOSTER(7QQ) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-		●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1-T ENG(RDP) FAST GLOW SYSTEM<KM6> VIN MODEL YEAR 2015<VZF> HYDRO BRAKE BOOSTER(7QQ) EXC. CORNERING LAMP<T87>,FOG LAMP<T96> 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-		●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1 ENG(RJH) POWER WINDOW FRT DOOR<A32> FAST GLOW SYSTEM<KM6> EXC. CORNERING LAMP<T87>,FOG LAMP<T96>, VIN MODEL YEAR 2015<VZF>,FUEL SEDIMENTERWITH HEATER<6HU>,HYDRO BRAKE BOOSTER(7QQ) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-		●
113	02.483 SCREW; HARNESS CONNECTOR 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) FAST GLOW SYSTEM<KM6> EXC. POWER WINDOW FRT DOOR<A32>, CORNERING LAMP<T87>,FOG LAMP<T96>,VIN MODEL YEAR 2015<VZF>,FUEL SEDIMENTER WITH HEATER<6HU>,HYDRO BRAKE BOOSTER(7QQ) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-		●
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1012-	●	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1012-1012	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1012-1012			●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1101-1212	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1101-1212			●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-	●	●
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-			●
313	02.559 BOLT; BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4JJ1-TCC ENG(RDU) 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1012-	●
313	02.559 BOLT; BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ) 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1012-		●
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1012-			●
575	02.559 BRACKET; FUSE BOX 4HG1 ENG(RJH) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY) POWER TAKE OFF CONTROL ELECTRIC(7GR) (C)	1-82698-128-2	01	1	1208-1212	●
575	02.559 BRACKET; FUSE BOX 4HG1 ENG(RJH) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) POWER TAKE OFF CONTROL ELECTRIC(7GR) (C)	1-82698-128-2	01	1	1301-1301	●
575	02.559 BRACKET; FUSE BOX 4HG1 ENG(RJH) FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. HYDRO BRAKE BOOSTER(7QQ) (C)	1-82698-128-2	01	1	1302-1508	●
575	02.559 BRACKET; FUSE BOX 4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> FOG LAMP<T96> EXC. CORNERING LAMP<T87>,VIN MODEL YEAR 2015<VZF>,HYDRO BRAKE BOOSTER(7QQ) (C)	1-82698-128-2	01	1	1509-	●	●
575	02.559 BRACKET; FUSE BOX 4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> FUEL SEDIMENTER WITH HEATER<6HU> EXC. CORNERING LAMP<T87>,FOG LAMP<T96>, VIN MODEL YEAR 2015<VZF>,HYDRO BRAKE BOOS TER(7QQ) (C)	1-82698-128-2	01	1	1509-	●	●
575	02.559 BRACKET; FUSE BOX 4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> CORNERING LAMP<T87> EXC. VIN MODEL YEAR 2015<VZF>,HYDRO BRAKE BOOSTER(7QQ) (C)	1-82698-128-2	01	1	1509-	●	●
575	02.559 BRACKET; FUSE BOX 4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. INTERMITTENT WIPER<C13>,CORNERING LAMP<T87>,FOG LAMP<T96>,VIN MODEL YEAR 20 15<VZF>,FUEL SEDIMENTER WITH HEATER<6HU> ,HYDRO BRAKE BOOSTER(7QQ) (C)	1-82698-128-2	01	1	1509-	●
575	02.559 BRACKET; FUSE BOX 4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> HYDRO BRAKE BOOSTER(7QQ) EXC. VIN MODEL YEAR 2015<VZF>,POWER TAKEOFF CONTROL ELECTRIC(7GR) (C)	1-82698-128-2	01	1	1509-	●
575	02.559 BRACKET; FUSE BOX 4HG1 ENG(RJH) POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. POWER WINDOW FRT DOOR<A32>, INTERMITTENT WIPER<C13>,AIR CONDITIONER MANUAL C ONT(C60),COOLER WO/HEATER(C65),FAST GLOWSYSTEM<KM6>,CORNERING LAMP<T87>,FOG LAM P<T96>,VIN MODEL YEAR 2015<VZF>,FUEL SEDIMENTER WITH HEATER<6HU>,HYDRO BRAKE BOO STER(7QQ) (C)	1-82698-128-2	01	1	1509-	●
575	02.559 BRACKET; FUSE BOX 4HG1-T ENG(RDP) FAST GLOW SYSTEM<KM6> FOG LAMP<T96> VIN MODEL YEAR 2015<VZF> EXC. CORNERING LAMP<T87>,FUEL SEDIMENTERWITH HEATER<6HU>,POWER TAKE OFF CONTROLELECTRIC(7GR),HYDRO BRAKE BOOSTER(7QQ) (C)	1-82698-128-2	01	1	1509-	●
575	02.559 BRACKET; FUSE BOX 4HG1-T ENG(RDP) FAST GLOW SYSTEM<KM6> VIN MODEL YEAR 2015<VZF> HYDRO BRAKE BOOSTER(7QQ) EXC. CORNERING LAMP<T87>,FOG LAMP<T96>, POWER TAKE OFF CONTROL ELECTRIC(7GR) (C)	1-82698-128-2	01	1	1509-	●
575	02.559 BRACKET; FUSE BOX 4HG1 ENG(RJH) POWER WINDOW FRT DOOR<A32> FAST GLOW SYSTEM<KM6> EXC. CORNERING LAMP<T87>,FOG LAMP<T96>, VIN MODEL YEAR 2015<VZF>,FUEL SEDIMENTERWITH HEATER<6HU>,POWER TAKE OFF CONTROLELECTRIC(7GR),HYDRO BRAKE BOOSTER(7QQ) (C)	1-82698-128-2	01	1	1509-	●
575	02.559 BRACKET; FUSE BOX 4HG1 ENG(RJH) INTERMITTENT WIPER<C13> CORNERING LAMP<T87> POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. FAST GLOW SYSTEM<KM6>,VIN MODEL YEAR 2015<VZF>,HYDRO BRAKE BOOSTER(7QQ) (C)	1-82698-128-2	01	1	1509-	●
575	02.559 BRACKET; FUSE BOX 4HG1 ENG(RJH) INTERMITTENT WIPER<C13> FOG LAMP<T96> POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. FAST GLOW SYSTEM<KM6>,CORNERING LAMP<T87>,VIN MODEL YEAR 2015<VZF>,HYDRO BR AKE BOOSTER(7QQ) (C)	1-82698-128-2	01	1	1509-	●
575	02.559 BRACKET; FUSE BOX 4HG1 ENG(RJH) INTERMITTENT WIPER<C13> FUEL SEDIMENTER WITH HEATER<6HU> POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. FAST GLOW SYSTEM<KM6>,CORNERING LAMP<T87>,FOG LAMP<T96>,VIN MODEL YEAR 2015 <VZF>,HYDRO BRAKE BOOSTER(7QQ) (C)	1-82698-128-2	01	1	1509-	●
575	02.559 BRACKET; FUSE BOX 4HG1 ENG(RJH) INTERMITTENT WIPER<C13> POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. CORNERING LAMP<T87>,FOG LAMP<T96>, VIN MODEL YEAR 2015<VZF>,FUEL SEDIMENTERWITH HEATER<6HU>,HYDRO BRAKE BOOSTER(7QQ) (C)	1-82698-128-2	01	1	1509-	●
575	02.559 BRACKET; FUSE BOX 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) FAST GLOW SYSTEM<KM6> EXC. POWER WINDOW FRT DOOR<A32>, CORNERING LAMP<T87>,FOG LAMP<T96>,VIN MODEL YEAR 2015<VZF>,FUEL SEDIMENTER WITH HEATER<6HU>,POWER TAKE OFF CONTROL ELECTRIC(7GR) ,HYDRO BRAKE BOOSTER(7QQ) (C)	1-82698-128-2	01	1	1509-	●
575	02.559 BRACKET; FUSE BOX 4HG1 ENG(RJH) FAST GLOW SYSTEM<KM6> HYDRO BRAKE BOOSTER(7QQ) EXC. VIN MODEL YEAR 2015<VZF> (C)	1-82698-128-2	01	1	1509-		●
575	02.559 BRACKET; FUSE BOX 4HG1-T ENG(RDP) FAST GLOW SYSTEM<KM6> FOG LAMP<T96> VIN MODEL YEAR 2015<VZF> EXC. CORNERING LAMP<T87>,FUEL SEDIMENTERWITH HEATER<6HU>,HYDRO BRAKE BOOSTER(7QQ) (C)	1-82698-128-2	01	1	1509-		●
575	02.559 BRACKET; FUSE BOX 4HG1-T ENG(RDP) FAST GLOW SYSTEM<KM6> VIN MODEL YEAR 2015<VZF> HYDRO BRAKE BOOSTER(7QQ) EXC. CORNERING LAMP<T87>,FOG LAMP<T96> (C)	1-82698-128-2	01	1	1509-		●
575	02.559 BRACKET; FUSE BOX 4HG1 ENG(RJH) POWER WINDOW FRT DOOR<A32> FAST GLOW SYSTEM<KM6> EXC. CORNERING LAMP<T87>,FOG LAMP<T96>, VIN MODEL YEAR 2015<VZF>,FUEL SEDIMENTERWITH HEATER<6HU>,HYDRO BRAKE BOOSTER(7QQ) (C)	1-82698-128-2	01	1	1509-		●
575	02.559 BRACKET; FUSE BOX 4HG1 ENG(RJH) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) FAST GLOW SYSTEM<KM6> EXC. POWER WINDOW FRT DOOR<A32>, CORNERING LAMP<T87>,FOG LAMP<T96>,VIN MODEL YEAR 2015<VZF>,FUEL SEDIMENTER WITH HEATER<6HU>,HYDRO BRAKE BOOSTER(7QQ) (C)	1-82698-128-2	01	1	1509-		●
575	02.559 BRACKET; FUSE BOX 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B)	8-98173-144-3	01	1	1012-	●
575	02.559 BRACKET; FUSE BOX 4HG1-T ENG(RDP),4HG1 ENG(RJH) (B)	8-98173-144-3	01	1	1012-		●
575	02.559 BRACKET; FUSE BOX 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98042-656-2	01	1	1012-	●
575	02.559 BRACKET; FUSE BOX 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (A)	8-98042-656-2	01	1	1012-	●
575	02.559 BRACKET; FUSE BOX 4HK1-TCN ENG(RDQ) (A)	8-98042-656-2	01	1	1012-		●
575	02.559 BRACKET; FUSE BOX (A)	8-98042-656-2	01	1	1012-			●
577	02.559 NUT; FUSE BOX 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 09.744 (B) M5 FLANGE	5-09440-003-0	04	1	1012-	●
577	02.559 NUT; FUSE BOX 4HG1-T ENG(RDP),4HG1 ENG(RJH) 09.744 (B) M5 FLANGE	5-09440-003-0	04	1	1012-		●
577	02.559 NUT; FUSE BOX 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	1012-1212	●	●
577	02.559 NUT; FUSE BOX 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	1301-	●
577	02.559 NUT; FUSE BOX 4HG1 ENG(RJH) POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	1301-	●
577	02.559 NUT; FUSE BOX 4HG1-T ENG(RDP),4HG1 ENG(RJH) 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	1301-		●
577	02.559 NUT; FUSE BOX 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 01.062 (A) M6 FLANGE	0-91180-106-0	04	1	1012-	●
577	02.559 NUT; FUSE BOX 4HK1-TCN ENG(RDQ) 01.062 (A) M6 FLANGE	0-91180-106-0	04	1	1012-		●
577	02.559 NUT; FUSE BOX 01.062 (A) M6 FLANGE	0-91180-106-0	04	1	1012-			●

53 53 515 53 53 53 53 53 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) DUMP CHASSIS(V4D) (O)	8-98126-491-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (M)	8-98114-461-2	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (P)	8-98130-669-1	01	1	1012-1303	●	●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (P)	8-98130-669-1	01	1	1304-	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (P)	8-98130-669-1	01	1	1304-	●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (P)	8-98130-669-1	01	1	1304-		●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (E)	8-98132-377-0	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B)	8-98173-558-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (B)	8-98173-558-0	01	1	1012-		●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. DUMP CHASSIS(V4D) (N)	8-98126-454-2	01	1	1012-1405	●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) (N)	8-98126-454-2	01	1	1012-1405		●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. VIN MODEL YEAR 2015<VZF>,DUMP CHASSIS(V4D) (N)	8-98126-454-2	01	1	1406-	●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> (N)	8-98126-454-2	01	1	1406-		●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) 02.559 (F)	8-98052-804-0	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (L)	8-98094-629-0	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (L)	8-98094-629-0	01	1	1012-1303		●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (D)	8-98074-502-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (D)	8-98074-502-0	01	1	1012-		●
53	02.483 BRACKET; HARNESS (D)	8-98074-502-0	01	1	1012-			●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (H)	8-98077-503-1	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98077-504-0	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	1012-	●	●	●
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	1012-	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1012-	●	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (J)	8-98084-590-0	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J)	8-98084-590-0	01	1	1012-			●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (I)	8-98083-225-1	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS (I)	8-98083-225-1	01	1	1012-			●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1405	●	●	●
515	02.559 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1405	●	●
515	02.559 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1405	●
515	02.559 NUT; BRKT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1405	●
515	02.559 NUT; BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1012-1405		●
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1406-	●	●	●
515	02.559 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1406-	●
515	02.559 NUT; BRKT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1406-	●
515	02.559 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. VIN MODEL YEAR 2015<VZF>,DUMP CHASSIS(V4D) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1406-	●
515	02.559 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) DUMP CHASSIS(V4D) 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1406-	●
515	02.559 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1406-		●
515	02.559 NUT; BRKT 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	1406-		●
515	02.559 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8 FLANGE	0-91180-108-0	02	1	1012-	●	●
515	02.559 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 01.062 (D) M8 FLANGE	0-91180-108-0	02	1	1012-	●
515	02.559 NUT; BRKT 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> 01.062 (D) M8 FLANGE	0-91180-108-0	02	1	1012-		●
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	1012-	●	●	●
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1012-	●	●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) DUMP CHASSIS(V4D) (O)	8-98126-491-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (M)	8-98114-461-2	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (P)	8-98130-669-1	01	1	1012-1303	●	●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (P)	8-98130-669-1	01	1	1304-	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (P)	8-98130-669-1	01	1	1304-	●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (P)	8-98130-669-1	01	1	1304-		●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (E)	8-98132-377-0	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) (B)	8-98173-558-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) FRAME STRAIGHT TYPE<7KJ> (B)	8-98173-558-0	01	1	1012-		●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. DUMP CHASSIS(V4D) (N)	8-98126-454-2	01	1	1012-1405	●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) (N)	8-98126-454-2	01	1	1012-1405		●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. VIN MODEL YEAR 2015<VZF>,DUMP CHASSIS(V4D) (N)	8-98126-454-2	01	1	1406-	●
53	02.483 BRACKET; HARNESS 4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> (N)	8-98126-454-2	01	1	1406-		●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) 02.559 (F)	8-98052-804-0	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> EXC. DUMP CHASSIS(V4D) (L)	8-98094-629-0	01	1	1012-1303	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (L)	8-98094-629-0	01	1	1012-1303		●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (D)	8-98074-502-0	01	1	1012-	●
53	02.483 BRACKET; HARNESS 4HK1-TCN ENG(RDQ) (D)	8-98074-502-0	01	1	1012-		●
53	02.483 BRACKET; HARNESS (D)	8-98074-502-0	01	1	1012-			●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (H)	8-98077-503-1	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS FRAME STRAIGHT TYPE<7KJ> (K)	8-98077-504-0	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	1012-	●	●	●
53	02.483 BRACKET; HARNESS (G)	8-98051-457-0	01	1	1012-	●	●	●
53	02.483 BRACKET; HARNESS (A)	8-98052-458-0	01	1	1012-	●	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (J)	8-98084-590-0	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J)	8-98084-590-0	01	1	1012-			●
53	02.483 BRACKET; HARNESS EXC. FRAME STRAIGHT TYPE<7KJ> (I)	8-98083-225-1	01	1	1012-	●	●
53	02.483 BRACKET; HARNESS (I)	8-98083-225-1	01	1	1012-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
