Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#55071) — 209 parça

460 368 161 361 160 141 139 460 16 126 139 139 114 16 361 478 126 368 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	16.682 ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98003-087-1	01	1	1012-1301	●
16	16.682 ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (A)	8-98003-087-1	01	1	1012-1301		●	●
16	16.682 ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (A)	8-98003-087-1	01	1	1302-	●	●	●
16	16.682 ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (B) BLACK W/KNOB	8-97859-273-3	01	1	1012-1301	●
16	16.682 ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (B) BLACK W/KNOB	8-97859-273-3	01	1	1012-1301		●	●
16	16.682 ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (B) BLACK W/KNOB	8-97859-273-3	01	1	1302-	●	●	●
16	16.682 ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (C) BLACK W/KNOB	8-97859-274-3	01	1	1012-1301	●
16	16.682 ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (C) BLACK W/KNOB	8-97859-274-3	01	1	1012-1301		●	●
16	16.682 ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (C) BLACK W/KNOB	8-97859-274-3	01	1	1302-	●	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-720-0	01	1	1012-	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-292-0	01	1	1012-	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-276-1	01	1	1012-1301		●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT W/RECLINING<A83> DARK GRAY	8-97409-276-1	01	1	1012-1301			●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-276-1	01	1	1302-	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT W/RECLINING<A83> DARK GRAY	8-97409-276-1	01	1	1302-			●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-291-0	01	1	1012-1301		●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97421-291-0	01	1	1012-1301			●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-291-0	01	1	1302-	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97421-291-0	01	1	1302-			●
126	16.686 BUSHING; HINGE,RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA>	8-98069-558-0	02	1	1012-1301	●
126	16.686 BUSHING; HINGE,RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL>	8-98069-558-0	02	1	1012-1301		●	●
126	16.686 BUSHING; HINGE,RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL>	8-98069-558-0	02	1	1302-	●	●	●
139	16.679 BOLT; PASSENGER SEAT M8X20 W/PL WASHER	8-98031-841-0	04	1	1012-	●	●	●
141	16.724 COVER; TRIM,BENCH SEAT,BACK SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-306-0	01	1	1012-	●	●
141	16.724 COVER; TRIM,BENCH SEAT,BACK VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-726-0	01	1	1012-	●	●
141	16.724 COVER; TRIM,BENCH SEAT,BACK VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-336-2	01	1	1012-1301		●
141	16.724 COVER; TRIM,BENCH SEAT,BACK VINYL SEAT W/RECLINING<A83> DARK GRAY	8-97409-336-2	01	1	1012-1301			●
141	16.724 COVER; TRIM,BENCH SEAT,BACK VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-336-2	01	1	1302-	●	●
141	16.724 COVER; TRIM,BENCH SEAT,BACK VINYL SEAT W/RECLINING<A83> DARK GRAY	8-97409-336-2	01	1	1302-			●
141	16.724 COVER; TRIM,BENCH SEAT,BACK SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-305-1	01	1	1012-1301		●
141	16.724 COVER; TRIM,BENCH SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97421-305-1	01	1	1012-1301			●
141	16.724 COVER; TRIM,BENCH SEAT,BACK SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-305-1	01	1	1302-	●	●
141	16.724 COVER; TRIM,BENCH SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97421-305-1	01	1	1302-			●
160	16.650 CONSOLE; UPR,BACK CENTER VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97405-361-1	01	1	1012-1301	●
160	16.650 CONSOLE; UPR,BACK CENTER VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> GRAY	8-97405-361-1	01	1	1012-1301		●	●
160	16.650 CONSOLE; UPR,BACK CENTER VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> GRAY	8-97405-361-1	01	1	1302-	●	●	●
161	16.650 SCREW; CONSOLE VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> M4X12	8-94279-351-0	04	1	1012-1301	●
161	16.650 SCREW; CONSOLE VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M4X12	8-94279-351-0	04	1	1012-1301		●	●
161	16.650 SCREW; CONSOLE VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M4X12	8-94279-351-0	04	1	1302-	●	●	●
361	16.682 BOLT; ADJ,RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> M8X18	8-94279-109-1	04	1	1012-1301	●
361	16.682 BOLT; ADJ,RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M8X18	8-94279-109-1	04	1	1012-1301		●	●
361	16.682 BOLT; ADJ,RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M8X18	8-94279-109-1	04	1	1302-	●	●	●
368	16.682 BOLT; SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> 16.320 M8X24.5 W/LK&PL WASHER	8-94279-217-0	02	1	1012-1301	●
368	16.682 BOLT; SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> 16.320 M8X24.5 W/LK&PL WASHER	8-94279-217-0	02	1	1012-1301		●	●
368	16.682 BOLT; SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> 16.320 M8X24.5 W/LK&PL WASHER	8-94279-217-0	02	1	1302-	●	●	●
460	16.670 BACK ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97418-691-0	01	1	1012-	●	●
460	16.670 BACK ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97418-697-2	01	1	1012-	●	●
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97421-279-0	01	1	1012-	●	●
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97421-300-1	01	1	1012-	●	●
460	16.670 BACK ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97405-334-4	01	1	1012-1301		●
460	16.670 BACK ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> (B) DARK GRAY	8-97405-334-4	01	1	1012-1301			●
460	16.670 BACK ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97405-334-4	01	1	1302-	●	●
460	16.670 BACK ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> (B) DARK GRAY	8-97405-334-4	01	1	1302-			●
460	16.670 BACK ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97405-337-4	01	1	1012-1301		●
460	16.670 BACK ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> (A) DARK GRAY	8-97405-337-4	01	1	1012-1301			●
460	16.670 BACK ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97405-337-4	01	1	1302-	●	●
460	16.670 BACK ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> (A) DARK GRAY	8-97405-337-4	01	1	1302-			●
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97421-278-0	01	1	1012-1301		●
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-278-0	01	1	1012-1301			●
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97421-278-0	01	1	1302-	●	●
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-278-0	01	1	1302-			●
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97421-299-1	01	1	1012-1301		●
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> (A) DARK GRAY	8-97421-299-1	01	1	1012-1301			●
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97421-299-1	01	1	1302-	●	●
460	16.670 BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> (A) DARK GRAY	8-97421-299-1	01	1	1302-			●
478	16.716 BRACKET ASM; HINGE,PASSENGER SEA	8-98002-092-0	01	1	1012-	●	●	●

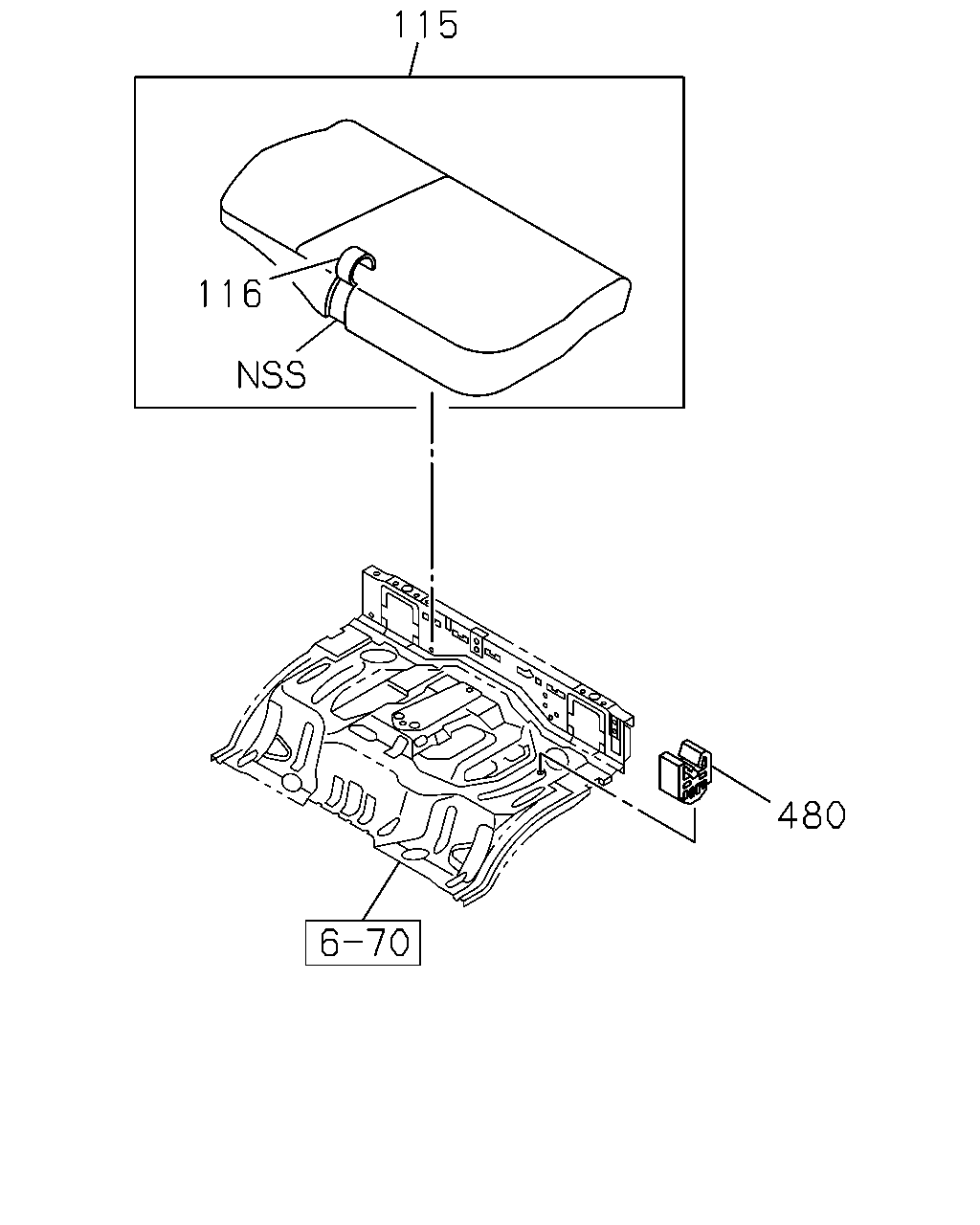

115 116 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
115	16.720 CUSHION ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-705-2	01	1	1012-	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-320-3	01	1	1012-	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97405-346-3	01	1	1012-1301		●
115	16.720 CUSHION ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> DARK GRAY	8-97405-346-3	01	1	1012-1301			●
115	16.720 CUSHION ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97405-346-5	01	1	1302-	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT VINYL SEAT W/RECLINING<A83> DARK GRAY	8-97405-346-5	01	1	1302-			●
115	16.720 CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-321-0	01	1	1012-1301		●
115	16.720 CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-321-0	01	1	1012-1301			●
115	16.720 CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-321-3	01	1	1302-	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-321-3	01	1	1302-			●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI VINYL SEAT W/RECLINING<A83> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-734-1	01	1	1012-	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-340-2	01	1	1012-	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-290-2	01	1	1012-1301		●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI VINYL SEAT W/RECLINING<A83> DARK GRAY	8-97409-290-2	01	1	1012-1301			●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-290-3	01	1	1302-	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI VINYL SEAT W/RECLINING<A83> DARK GRAY	8-97409-290-3	01	1	1302-			●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-341-0	01	1	1012-1301		●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI SEAT CLOTH<7FL> DARK GRAY	8-97421-341-0	01	1	1012-1301			●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-341-2	01	1	1302-	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI SEAT CLOTH<7FL> DARK GRAY	8-97421-341-2	01	1	1302-			●
480	16.716 CLIP; CUSHION	8-94279-977-0	05	1	1012-	●	●	●

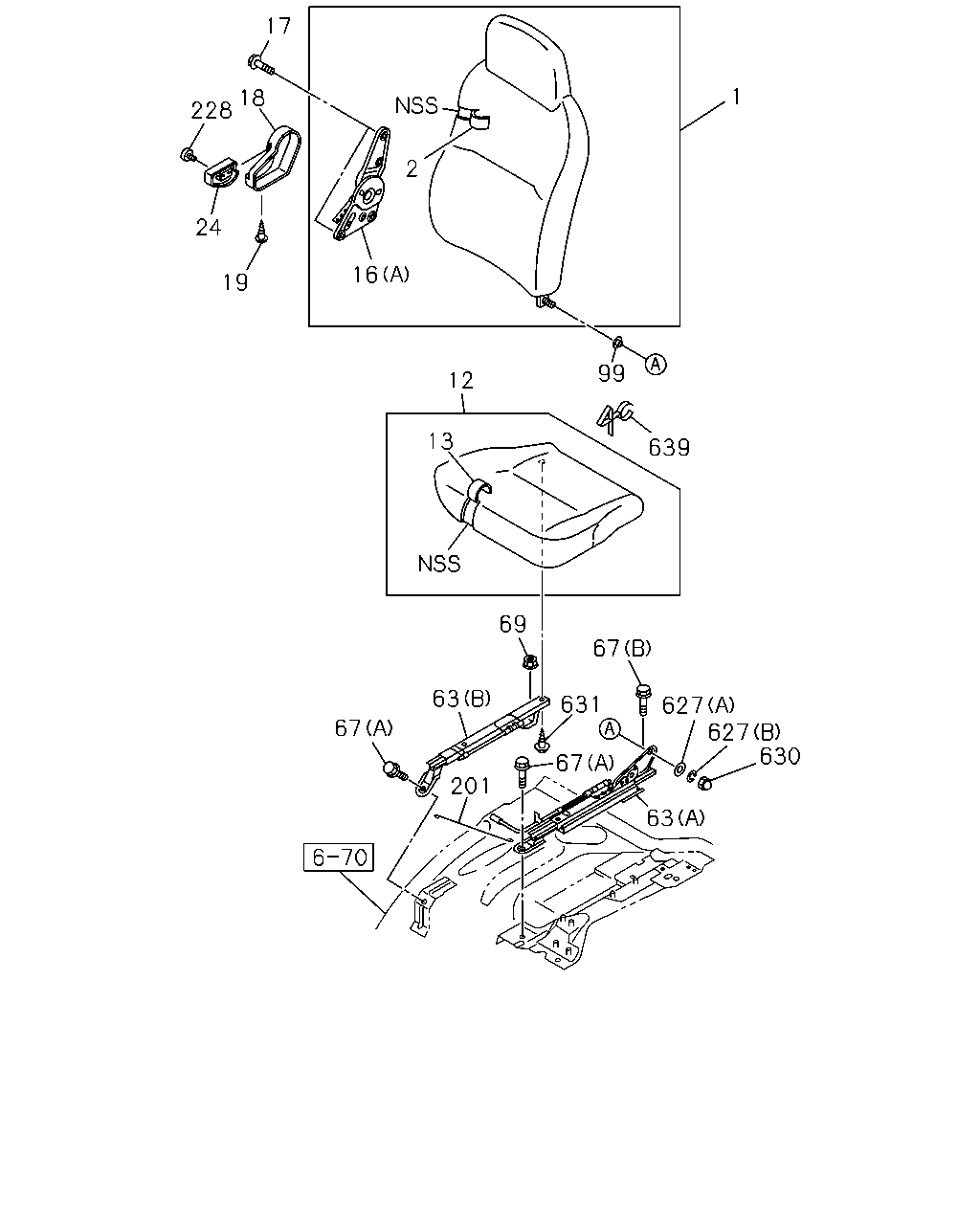

63 627 630 627 67 69 63 631 67 67 201 13 12 99 639 1 2 17 228 18 24 19 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	16.720 BACK ASM; SEAT VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-142-6	01	1	1012-1301	●
1	16.720 BACK ASM; SEAT VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-142-6	01	1	1012-1301		●	●
1	16.720 BACK ASM; SEAT VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-142-7	01	1	1302-	●	●	●
1	16.720 BACK ASM; SEAT VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-312-6	01	1	1012-1301	●
1	16.720 BACK ASM; SEAT VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97409-312-6	01	1	1012-1301		●	●
1	16.720 BACK ASM; SEAT VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97409-312-7	01	1	1302-	●	●	●
1	16.720 BACK ASM; SEAT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-235-0	01	1	1012-1301	●
1	16.720 BACK ASM; SEAT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-235-0	01	1	1012-1301		●	●
1	16.720 BACK ASM; SEAT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-235-1	01	1	1302-	●	●	●
1	16.720 BACK ASM; SEAT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-234-0	01	1	1012-1301	●
1	16.720 BACK ASM; SEAT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-234-0	01	1	1012-1301		●	●
1	16.720 BACK ASM; SEAT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-234-1	01	1	1302-	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97411-910-2	01	1	1012-1301	●
2	16.724 COVER; TRIM,FRT SEAT,BACK VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97411-910-2	01	1	1012-1301		●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97411-910-2	01	1	1302-	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-318-2	01	1	1012-1301	●
2	16.724 COVER; TRIM,FRT SEAT,BACK VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97409-318-2	01	1	1012-1301		●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97409-318-2	01	1	1302-	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-254-0	01	1	1012-1301	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-254-0	01	1	1012-1301		●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-254-0	01	1	1302-	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-253-0	01	1	1012-1301	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-253-0	01	1	1012-1301		●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-253-0	01	1	1302-	●	●	●
12	16.670 CUSHION; SEAT,FRT VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-143-4	01	1	1012-	●	●
12	16.670 CUSHION; SEAT,FRT VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-322-4	01	1	1012-	●	●
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-241-2	01	1	1012-	●	●
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-240-2	01	1	1012-	●	●
12	16.670 CUSHION; SEAT,FRT VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-149-0	01	1	1012-1301		●
12	16.670 CUSHION; SEAT,FRT VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-149-0	01	1	1012-1301			●
12	16.670 CUSHION; SEAT,FRT VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-149-0	01	1	1302-	●	●
12	16.670 CUSHION; SEAT,FRT VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-149-0	01	1	1302-			●
12	16.670 CUSHION; SEAT,FRT VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-706-0	01	1	1012-1301		●
12	16.670 CUSHION; SEAT,FRT VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-706-0	01	1	1012-1301			●
12	16.670 CUSHION; SEAT,FRT VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-706-0	01	1	1302-	●	●
12	16.670 CUSHION; SEAT,FRT VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-706-0	01	1	1302-			●
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-248-0	01	1	1012-1301		●
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-248-0	01	1	1012-1301			●
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-248-2	01	1	1302-	●	●
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-248-2	01	1	1302-			●
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-247-0	01	1	1012-1301		●
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-247-0	01	1	1012-1301			●
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-247-2	01	1	1302-	●	●
12	16.670 CUSHION; SEAT,FRT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-247-2	01	1	1302-			●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-144-2	01	1	1012-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-328-2	01	1	1012-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-260-2	01	1	1012-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-259-2	01	1	1012-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-860-0	01	1	1012-1301		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-860-0	01	1	1012-1301			●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-860-0	01	1	1302-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-860-0	01	1	1302-			●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-707-0	01	1	1012-1301		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-707-0	01	1	1012-1301			●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT W/RECLINING<A83> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-707-0	01	1	1302-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-707-0	01	1	1302-			●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-268-0	01	1	1012-1301		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-268-0	01	1	1012-1301			●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-268-2	01	1	1302-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-268-2	01	1	1302-			●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-267-0	01	1	1012-1301		●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-267-0	01	1	1012-1301			●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-267-2	01	1	1302-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-267-2	01	1	1302-			●
16	16.682 ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98003-087-1	01	1	1012-1301	●
16	16.682 ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (A)	8-98003-087-1	01	1	1012-1301		●	●
16	16.682 ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (A)	8-98003-087-1	01	1	1302-	●	●	●
16	16.682 ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (B) BLACK W/KNOB	8-97859-273-3	01	1	1012-1301	●
16	16.682 ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (B) BLACK W/KNOB	8-97859-273-3	01	1	1012-1301		●	●
16	16.682 ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (B) BLACK W/KNOB	8-97859-273-3	01	1	1302-	●	●	●
16	16.682 ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (C) BLACK W/KNOB	8-97859-274-3	01	1	1012-1301	●
16	16.682 ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (C) BLACK W/KNOB	8-97859-274-3	01	1	1012-1301		●	●
16	16.682 ADJUSTER ASM; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (C) BLACK W/KNOB	8-97859-274-3	01	1	1302-	●	●	●
17	16.682 BOLT; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> M10X20	8-98062-661-0	04	1	1012-1301	●
17	16.682 BOLT; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M10X20	8-98062-661-0	04	1	1012-1301		●	●
17	16.682 BOLT; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M10X20	8-98062-661-0	04	1	1302-	●	●	●
18	16.682 COVER; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97409-332-0	01	1	1012-1301	●
18	16.682 COVER; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> GRAY	8-97409-332-0	01	1	1012-1301		●	●
18	16.682 COVER; RECLINING VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> GRAY	8-97409-332-0	01	1	1302-	●	●	●
19	16.686 SCREW; COVER VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> M5	8-98062-663-0	01	1	1012-1301	●
19	16.686 SCREW; COVER VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M5	8-98062-663-0	01	1	1012-1301		●	●
19	16.686 SCREW; COVER VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M5	8-98062-663-0	01	1	1302-	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97409-333-0	01	1	1012-1301	●
24	16.682 KNOB; RECLINING,FRT,SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> GRAY	8-97409-333-0	01	1	1012-1301		●	●
24	16.682 KNOB; RECLINING,FRT,SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> GRAY	8-97409-333-0	01	1	1302-	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-97382-800-2	01	1	1012-1301	●
63	16.682 ADJUSTER; SEAT SLIDE VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (A)	8-97382-800-2	01	1	1012-1301		●	●
63	16.682 ADJUSTER; SEAT SLIDE VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (A)	8-97382-800-2	01	1	1302-	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-97382-801-1	01	1	1012-1301	●
63	16.682 ADJUSTER; SEAT SLIDE VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (B)	8-97382-801-1	01	1	1012-1301		●	●
63	16.682 ADJUSTER; SEAT SLIDE VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (B)	8-97382-801-1	01	1	1302-	●	●	●
67	16.682 BOLT; FRT SEAT TO BODY (A) M10X20 FLANGE	8-98055-941-0	02	1	1012-	●	●	●
67	16.682 BOLT; FRT SEAT TO BODY (B) M10X30 FLANGE	8-98055-942-0	01	1	1012-	●	●	●
69	16.682 NUT; FRT SEAT M10 FLANGE	8-98055-961-0	01	1	1012-	●	●	●
99	16.716 BUSHING; SEAT BACK VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA>	8-98112-751-0	01	1	1012-1301	●
99	16.716 BUSHING; SEAT BACK VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL>	8-98112-751-0	01	1	1012-1301		●	●
99	16.716 BUSHING; SEAT BACK VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL>	8-98112-751-0	01	1	1302-	●	●	●
201	16.682 CABLE; ADJ VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA>	8-98003-086-1	01	1	1012-1301	●
201	16.682 CABLE; ADJ VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL>	8-98003-086-1	01	1	1012-1301		●	●
201	16.682 CABLE; ADJ VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL>	8-98003-086-1	01	1	1302-	●	●	●
228	16.714 SCREW; KNOB VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> M4	8-98062-662-0	01	1	1012-1301	●
228	16.714 SCREW; KNOB VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M4	8-98062-662-0	01	1	1012-1301		●	●
228	16.714 SCREW; KNOB VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M4	8-98062-662-0	01	1	1302-	●	●	●
627	16.682 WASHER; FRT SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98063-223-0	01	1	1012-1301	●
627	16.682 WASHER; FRT SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (A)	8-98063-223-0	01	1	1012-1301		●	●
627	16.682 WASHER; FRT SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (A)	8-98063-223-0	01	1	1302-	●	●	●
627	16.682 WASHER; FRT SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98063-224-0	01	1	1012-1301	●
627	16.682 WASHER; FRT SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (B)	8-98063-224-0	01	1	1012-1301		●	●
627	16.682 WASHER; FRT SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (B)	8-98063-224-0	01	1	1302-	●	●	●
630	16.682 NUT; CAP VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> M8	8-98063-225-0	01	1	1012-1301	●
630	16.682 NUT; CAP VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M8	8-98063-225-0	01	1	1012-1301		●	●
630	16.682 NUT; CAP VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M8	8-98063-225-0	01	1	1302-	●	●	●
631	16.682 BOLT; ADJ,SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> M8X25 W/LK WASHER	8-98062-658-0	02	1	1012-1301	●
631	16.682 BOLT; ADJ,SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M8X25 W/LK WASHER	8-98062-658-0	02	1	1012-1301		●	●
631	16.682 BOLT; ADJ,SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M8X25 W/LK WASHER	8-98062-658-0	02	1	1302-	●	●	●
631	16.682 BOLT; ADJ,SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> M8X32 W/LK WASHER	8-98062-659-0	02	1	1012-1301	●
631	16.682 BOLT; ADJ,SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M8X32 W/LK WASHER	8-98062-659-0	02	1	1012-1301		●	●
631	16.682 BOLT; ADJ,SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M8X32 W/LK WASHER	8-98062-659-0	02	1	1302-	●	●	●
639	16.679 CLIP; SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA>	8-98097-693-0	01	1	1012-1301		●
639	16.679 CLIP; SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL>	8-98097-693-0	01	1	1012-1301			●
639	16.679 CLIP; SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA>	8-98097-693-0	01	1	1302-	●	●
639	16.679 CLIP; SEAT VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL>	8-98097-693-0	01	1	1302-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
