◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51296 - NPR/NQR-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#55067) — 190 parça

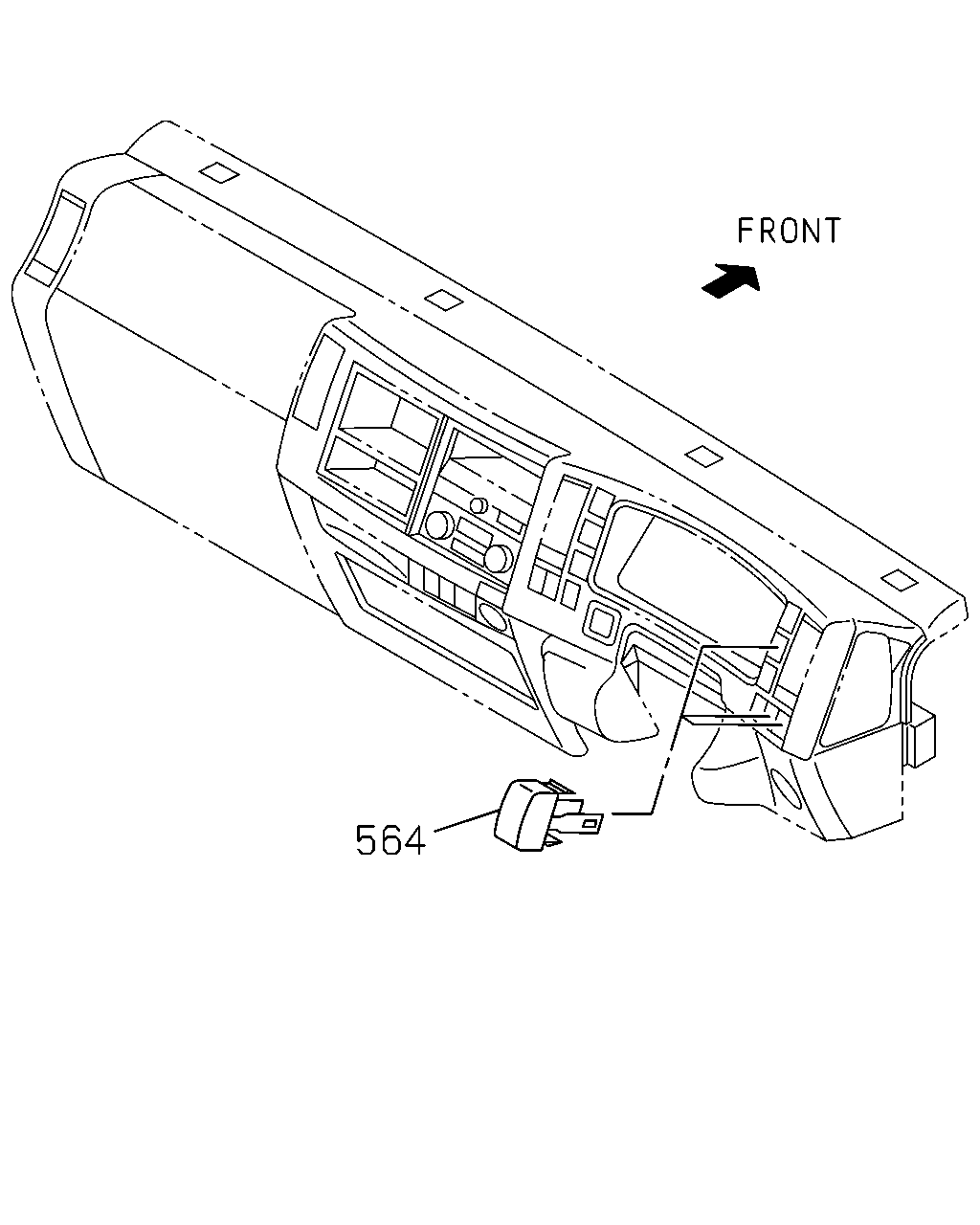

çizim 175964
564
BalonParca AdiParca NoAdetTipApplied Date A B C
564 16.081 COVER; SW 8-98025-954-1 03 1 1012- ● ● ●

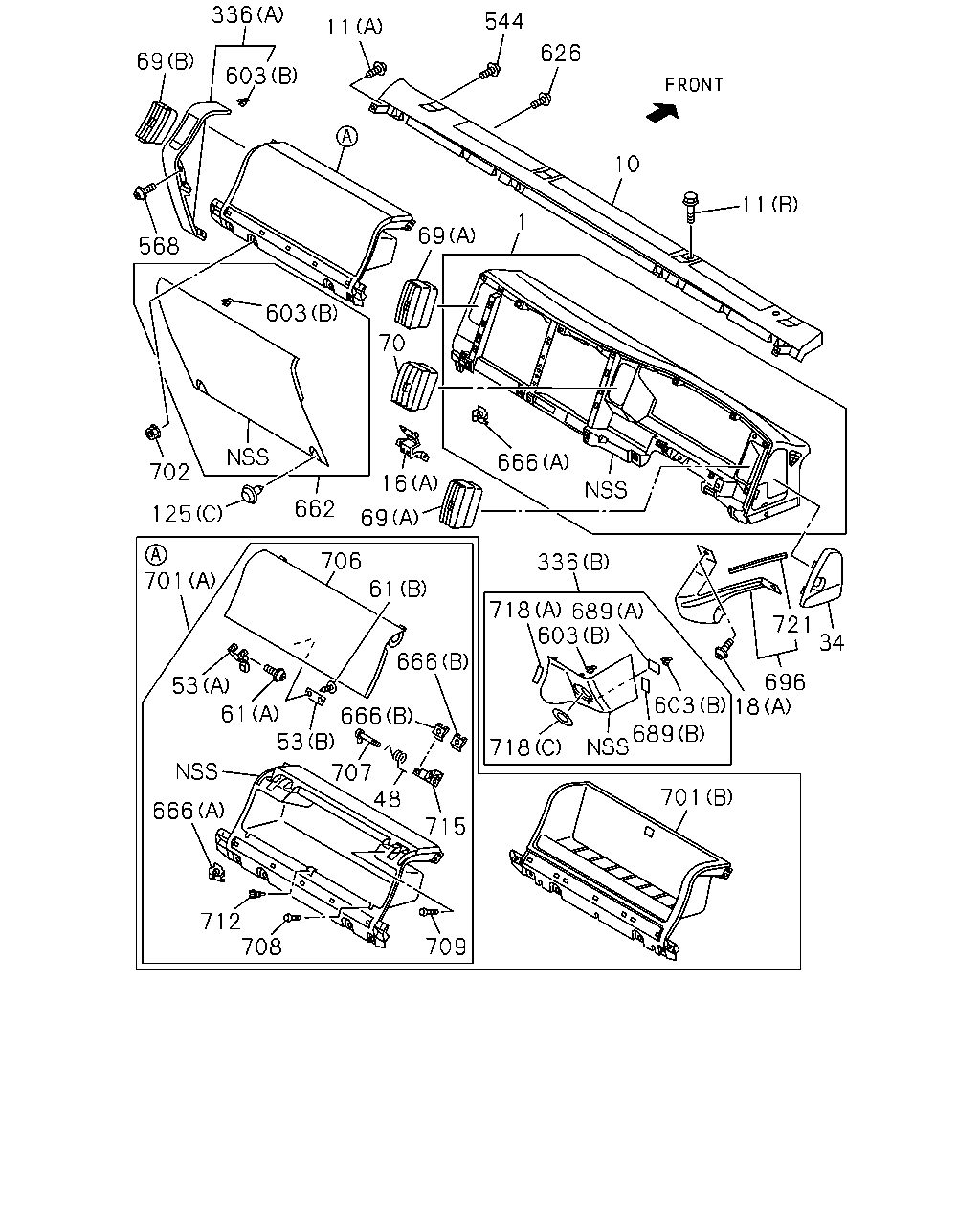

çizim 175977
11 10 626 544 11 336 69 603 69 1 568 603 70 702 125 662 69 16 666 701 706 61 666 53 61 53 666 707 48 715 666 712 708 709 701 718 718 336 689 603 689 603 18 696 34 721
BalonParca AdiParca NoAdetTipApplied Date A B C
1 16.080 PANEL; INST
GRAY 		8-97405-253-8 01 1 1012- ● ● ●
10 16.069 PANEL ASM; GARNISH
GRAY 		8-97419-683-5 01 1 1012- ● ● ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1012-1012 ● ● ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 08 1 1101-1212 ● ● ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1301- ● ● ●
11 16.090 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1012- ● ● ●
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 		8-97585-532-0 01 1 1012- ● ● ●
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) 		8-97585-612-2 01 1 1012- ● ● ●
16 16.085 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1012- ● ● ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 1012- ● ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1012-1012 ● ● ●
18 16.085 BOLT; BRKT
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1101-1212 ● ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301- ● ● ●
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1012- ● ● ●
34 16.085 LID; OIL TANK
GRAY 		8-97405-260-1 01 1 1012- ● ● ●
48 16.110 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98034-986-0 01 1 1012-1311 ● ● ●
48 16.110 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-410-0 01 1 1312-1405 ● ● ●
48 16.110 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98270-763-0 01 1 1406- ● ● ●
48 16.110 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98034-987-0 01 1 1012-1311 ● ● ●
48 16.110 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-411-0 01 1 1312-1405 ● ● ●
48 16.110 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98270-764-0 01 1 1406- ● ● ●
53 16.115 STRIKER; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) 		8-98108-913-0 01 1 1012-1405 ● ● ●
53 16.115 STRIKER; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (B) 		8-98270-765-0 01 1 1406- ● ● ●
61 16.100 SCREW; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) 		8-98108-915-0 01 1 1012-1405 ● ● ●
61 16.100 SCREW; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (B) M4X85 		8-97926-404-0 02 1 1406- ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 02 1 1012- ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1012- ● ● ●
70 09.264 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 01 1 1012- ● ● ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1012- ● ● ●
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 02 1 1012- ● ● ●
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1012- ● ● ●
336 16.081 COVER; INST PANEL SIDE
4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) GRAY 		8-97414-961-4 01 1 1012-1511 ● ●
336 16.081 COVER; INST PANEL SIDE
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. DUMP CHASSIS(V4D),POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) GRAY 		8-97414-961-4 01 1 1512- ●
336 16.081 COVER; INST PANEL SIDE
4HG1 ENG(RJH) DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) GRAY 		8-97414-961-4 01 1 1512- ●
336 16.081 COVER; INST PANEL SIDE
4HG1-T ENG(RDP),4HG1 ENG(RJH) (B) GRAY 		8-97414-961-4 01 1 1512- ●
336 16.081 COVER; INST PANEL SIDE
(A) GRAY 		8-97405-259-4 01 1 1012- ● ● ●
336 16.081 COVER; INST PANEL SIDE
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (B) GRAY 		8-97414-688-1 01 1 1012-1511 ●
336 16.081 COVER; INST PANEL SIDE
4HK1-TCN ENG(RDQ) (B) GRAY 		8-97414-688-1 01 1 1012-1511 ●
336 16.081 COVER; INST PANEL SIDE
(B) GRAY 		8-97414-688-1 01 1 1012-1511 ●
336 16.081 COVER; INST PANEL SIDE
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) EXC. DUMP CHASSIS(V4D),POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) GRAY 		8-97414-688-1 01 1 1512- ●
336 16.081 COVER; INST PANEL SIDE
4HK1-TCN ENG(RDQ) DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) GRAY 		8-97414-688-1 01 1 1512- ●
336 16.081 COVER; INST PANEL SIDE
4HK1-TCN ENG(RDQ) (B) GRAY 		8-97414-688-1 01 1 1512- ●
336 16.081 COVER; INST PANEL SIDE
(B) GRAY 		8-97414-688-1 01 1 1512- ●
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1012-1101 ● ● ●
544 16.085 SCREW; TRAY
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1102-1212 ● ● ●
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1301- ● ● ●
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1012-1012 ● ● ●
568 09.744 BOLT; COVER
16.090 SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1101-1212 ● ● ●
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ● ●
603 16.090 CLIP; COVER
16.165 (A) 		8-98004-025-0 01 1 1012- ● ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 02 1 1012- ● ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 1012- ● ● ●
603 16.090 CLIP; COVER
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 16.085 (B) 		8-98021-271-0 03 1 1012-1207 ●
603 16.090 CLIP; COVER
4HK1-TCN ENG(RDQ) 16.085 (B) 		8-98021-271-0 03 1 1012-1207 ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 03 1 1012-1207 ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 03 1 1208- ● ● ●
626 16.080 RETAINER
16.069 OD=15 BLACK 		8-94279-804-0 02 1 1012- ● ● ●
662 16.081 COVER; LWR,INST PANEL
GRAY 		8-97405-258-2 01 1 1012- ● ● ●
666 16.085 INSERT; INST PANEL
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) 		8-98037-629-0 02 1 1012- ● ● ●
666 16.085 INSERT; INST PANEL
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (B) 		8-98038-450-0 04 1 1012-1311 ● ● ●
666 16.085 INSERT; INST PANEL
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (B) M5 		8-97926-400-0 04 1 1312- ● ● ●
666 16.085 INSERT; INST PANEL
(A) 		8-98037-629-0 15 1 1012- ● ● ●
689 09.743 SEAL; INST
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (A) 7X31 		8-98061-777-0 01 1 1012-1207 ●
689 09.743 SEAL; INST
4HK1-TCN ENG(RDQ) (A) 7X31 		8-98061-777-0 01 1 1012-1207 ●
689 09.743 SEAL; INST
(A) 7X31 		8-98061-777-0 01 1 1012-1207 ●
689 09.743 SEAL; INST
(A) 7X31 		8-98061-777-0 01 1 1208- ● ● ●
689 09.743 SEAL; INST
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (B) 18X170 		8-98061-778-1 01 1 1012-1207 ●
689 09.743 SEAL; INST
4HK1-TCN ENG(RDQ) (B) 18X170 		8-98061-778-1 01 1 1012-1207 ●
689 09.743 SEAL; INST
(B) 18X170 		8-98061-778-1 01 1 1012-1207 ●
689 09.743 SEAL; INST
(B) 18X170 		8-98061-778-1 01 1 1208- ● ● ●
696 16.085 BRACKET; KNEE 8-97589-189-4 01 1 1012-1211 ● ● ●
696 16.085 BRACKET; KNEE 8-98199-366-0 01 1 1212- ● ● ●
701 16.100 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) GRAY 		8-97415-542-6 01 1 1012-1405 ● ● ●
701 16.100 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) GRAY 		8-97429-702-1 01 1 1406- ● ● ●
701 16.100 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITHOUT LID<JDP> (B) GRAY 		8-97422-091-1 01 1 1012- ● ● ●
702 16.069 NUT; TRAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 1012- ● ● ●
706 16.081 LID; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> GRAY 		8-97415-541-0 01 1 1012-1405 ● ● ●
706 16.081 LID; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> GRAY 		8-97429-992-0 01 1 1406- ● ● ●
707 09.744 SHAFT; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98035-730-1 02 1 1012-1311 ● ● ●
707 09.744 SHAFT; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-393-0 02 1 1312- ● ● ●
708 16.100 STOPPER; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98010-867-1 02 1 1012- ● ● ●
709 16.085 SCREW; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> M5X16 TAPPING 		0-71040-516-0 04 1 1012- ● ● ●
712 16.110 LOCK; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98031-846-0 01 1 1012- ● ● ●
715 16.081 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98034-928-0 01 1 1012-1311 ● ● ●
715 16.081 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-396-0 01 1 1312- ● ● ●
715 16.081 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-98034-929-0 01 1 1012-1311 ● ● ●
715 16.081 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> 		8-97926-397-0 01 1 1312- ● ● ●
718 16.100 SEAL; COVER
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (A) 30X15 		8-98097-696-0 01 1 1012-1207 ●
718 16.100 SEAL; COVER
4HK1-TCN ENG(RDQ) (A) 30X15 		8-98097-696-0 01 1 1012-1207 ●
718 16.100 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 1012-1207 ●
718 16.100 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 1208- ● ● ●
718 16.100 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1206- ● ● ●
718 16.100 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1110- ● ● ●
718 16.100 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1110- ● ● ●
718 16.100 SEAL; COVER
4HG1-T ENG(RDP),4HG1 ENG(RJH) (C) 		8-98218-319-0 01 1 1208-1511 ● ●
718 16.100 SEAL; COVER
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. DUMP CHASSIS(V4D),POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98218-319-0 01 1 1512- ●
718 16.100 SEAL; COVER
4HG1 ENG(RJH) DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98218-319-0 01 1 1512- ●
718 16.100 SEAL; COVER
4HG1-T ENG(RDP),4HG1 ENG(RJH) (C) 		8-98218-319-0 01 1 1512- ●
721 16.650 FINISHER; BRKT,KNEE
L=95 		8-97995-992-0 01 1 1012-1211 ● ● ●
721 16.650 FINISHER; BRKT,KNEE
L=75 		8-98176-240-0 01 1 1212- ● ● ●

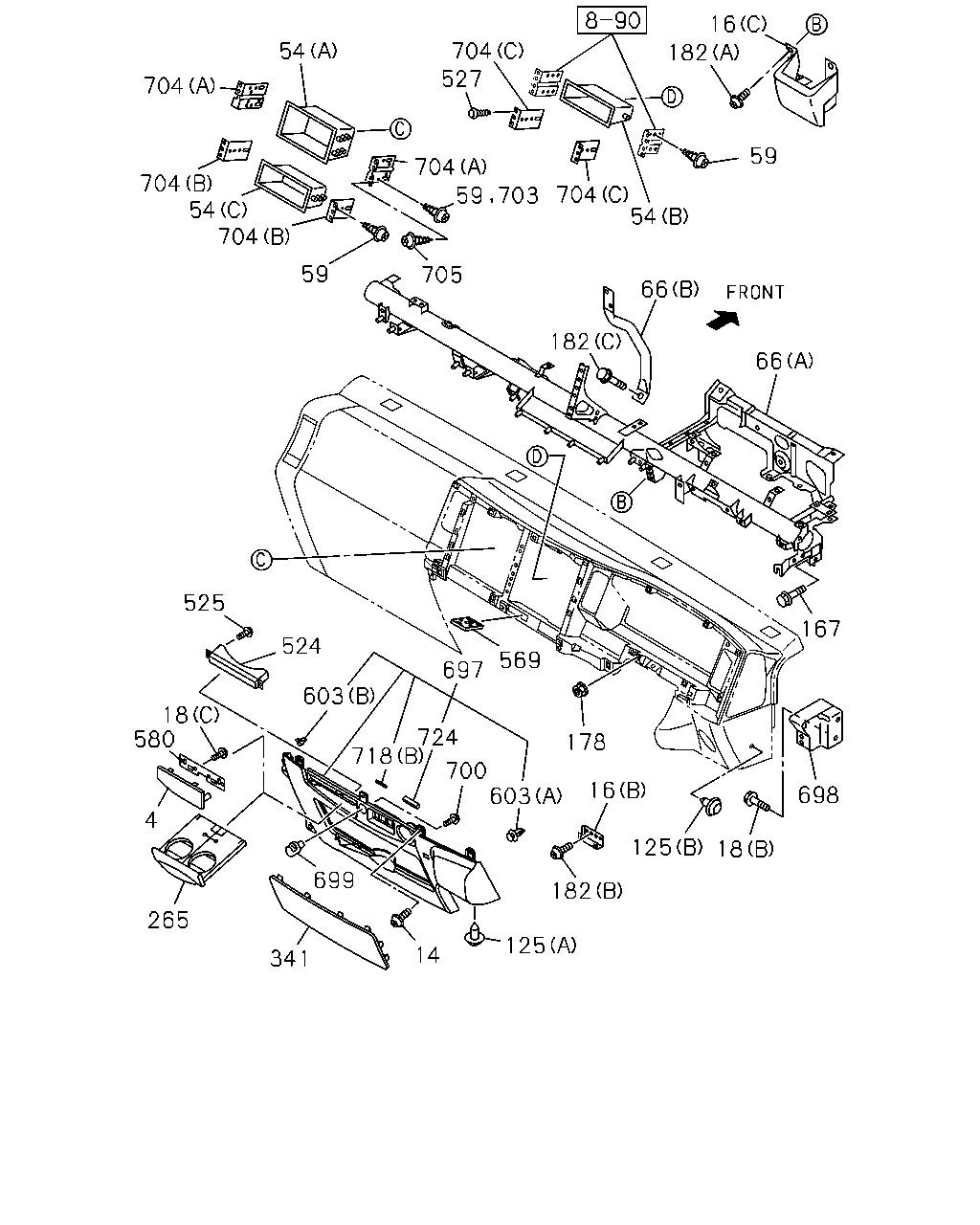

çizim 175981
16 182 59 54 66 66 182 704 703 59 704 704 527 54 704 704 704 59 705 167 698 18 125 16 178 569 697 724 700 603 182 125 14 341 699 718 603 524 525 18 580 4 265 54
BalonParca AdiParca NoAdetTipApplied Date A B C
4 16.080 COVER; INST PNL
EXC. CUP HOLDER<7KZ> GRAY 		8-97407-898-1 01 1 1012- ● ● ●
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1012-1012 ● ● ●
14 16.085 SCREW; INST PNL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1101-1212 ● ● ●
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301- ● ● ●
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) 		8-97585-532-0 01 1 1012- ● ● ●
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) 		8-97585-612-2 01 1 1012- ● ● ●
16 16.085 BRACKET; INST PNL
(C) 		8-98053-711-0 01 1 1012- ● ● ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 1012- ● ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1012-1012 ● ● ●
18 16.085 BOLT; BRKT
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1101-1212 ● ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301- ● ● ●
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1012- ● ● ●
54 16.100 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1012- ● ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1012- ● ● ●
54 16.100 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 1012- ● ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. POWER WINDOW FRT&REAR DOOR<A31> (B) H=58.4 BLACK 		8-97408-864-3 01 1 1012- ● ● ●
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1012- ● ● ●
59 16.100 SCREW; CLUSTER POCKET
EXC. POWER WINDOW FRT&REAR DOOR<A31> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1012- ● ● ●
59 16.100 SCREW; CLUSTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1012- ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
(B) 		8-97585-578-1 01 1 1012- ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
(A) 		8-98106-831-3 01 1 1012-1204 ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
(A) 		8-98199-358-1 01 1 1205- ● ● ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1012- ● ● ●
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 02 1 1012- ● ● ●
125 16.085 CLIP; INST PANEL
(C) GRAY 		8-97419-968-1 02 1 1012- ● ● ●
167 16.085 BOLT; REINF TO INST
16.090 M8X23 FLANGE 		8-97264-766-0 04 1 1012- ● ● ●
178 16.085 NUT; INST PANEL
01.062 M6 FLANGE 		0-91180-106-0 03 1 1012- ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1012-1012 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1101-1212 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1012-1012 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1101-1212 ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1301- ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
(C) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 1012- ● ● ●
265 16.100 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97418-528-0 01 1 1012- ● ● ●
341 16.110 LID; FUSE BOX
02.483 GRAY 		8-97406-265-3 01 1 1012-1205 ● ● ●
341 16.110 LID; FUSE BOX
GRAY 		8-97423-658-0 01 1 1206- ● ● ●
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-98054-414-0 01 1 1012- ● ● ●
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1012-1012 ● ● ●
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1101-1212 ● ● ●
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1301- ● ● ●
527 16.100 CLIP; INST CLUSTER
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.742 DARK GRAY 		8-97098-326-0 01 1 1012- ● ●
527 16.100 CLIP; INST CLUSTER
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.742 DARK GRAY 		8-97098-326-0 01 1 1012- ●
569 16.100 HOLDER; CARD 8-97410-276-1 01 1 1012- ● ● ●
580 16.080 BRACKET; COVER
EXC. CUP HOLDER<7KZ> 		8-98091-546-0 01 1 1012- ● ● ●
603 16.090 CLIP; COVER
16.165 (A) 		8-98004-025-0 01 1 1012- ● ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 02 1 1012- ● ● ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 05 1 1012- ● ● ●
603 16.090 CLIP; COVER
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) 16.085 (B) 		8-98021-271-0 03 1 1012-1207 ●
603 16.090 CLIP; COVER
4HK1-TCN ENG(RDQ) 16.085 (B) 		8-98021-271-0 03 1 1012-1207 ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 03 1 1012-1207 ●
603 16.090 CLIP; COVER
16.085 (B) 		8-98021-271-0 03 1 1208- ● ● ●
697 16.080 PANEL; INST CENTER
GRAY 		8-97405-256-8 01 1 1012-1205 ● ● ●
697 16.080 PANEL; INST CENTER
GRAY 		8-97423-656-1 01 1 1206- ● ● ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 1012- ● ● ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 1012- ● ● ●
699 16.081 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1012- ● ● ●
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1012-1012 ● ● ●
700 16.090 BOLT; HOOK
SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1101-1212 ● ● ●
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ● ●
703 16.085 SCREW; CENTER POCKET
16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1012- ● ● ●
704 16.085 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1012- ● ● ●
704 16.085 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1012- ● ● ●
704 16.085 BRACKET; CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) 		8-98107-549-0 02 1 1012- ● ●
704 16.085 BRACKET; CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98107-549-0 02 1 1012- ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1012-1012 ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1012-1012 ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1101-1212 ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1101-1212 ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301- ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301- ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1012-1012 ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1012-1012 ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1101-1212 ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1101-1212 ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1301- ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1301- ●
718 16.100 SEAL; COVER
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) (A) 30X15 		8-98097-696-0 01 1 1012-1207 ●
718 16.100 SEAL; COVER
4HK1-TCN ENG(RDQ) (A) 30X15 		8-98097-696-0 01 1 1012-1207 ●
718 16.100 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 1012-1207 ●
718 16.100 SEAL; COVER
(A) 30X15 		8-98097-696-0 01 1 1208- ● ● ●
718 16.100 SEAL; COVER
(B) 5X30 		8-98176-199-0 01 1 1206- ● ● ●
718 16.100 SEAL; COVER
(B) 8X80 		8-98200-040-0 01 1 1110- ● ● ●
718 16.100 SEAL; COVER
(B) 4X35 		8-98200-041-0 01 1 1110- ● ● ●
718 16.100 SEAL; COVER
4HG1-T ENG(RDP),4HG1 ENG(RJH) (C) 		8-98218-319-0 01 1 1208-1511 ● ●
718 16.100 SEAL; COVER
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. DUMP CHASSIS(V4D),POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98218-319-0 01 1 1512- ●
718 16.100 SEAL; COVER
4HG1 ENG(RJH) DUMP CHASSIS(V4D) POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) 		8-98218-319-0 01 1 1512- ●
718 16.100 SEAL; COVER
4HG1-T ENG(RDP),4HG1 ENG(RJH) (C) 		8-98218-319-0 01 1 1512- ●
724 16.085 INSULATOR; INST PANEL 8-98200-042-0 01 1 1110- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
