◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 51296 - NPR/NQR-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#55064) — 42 parça

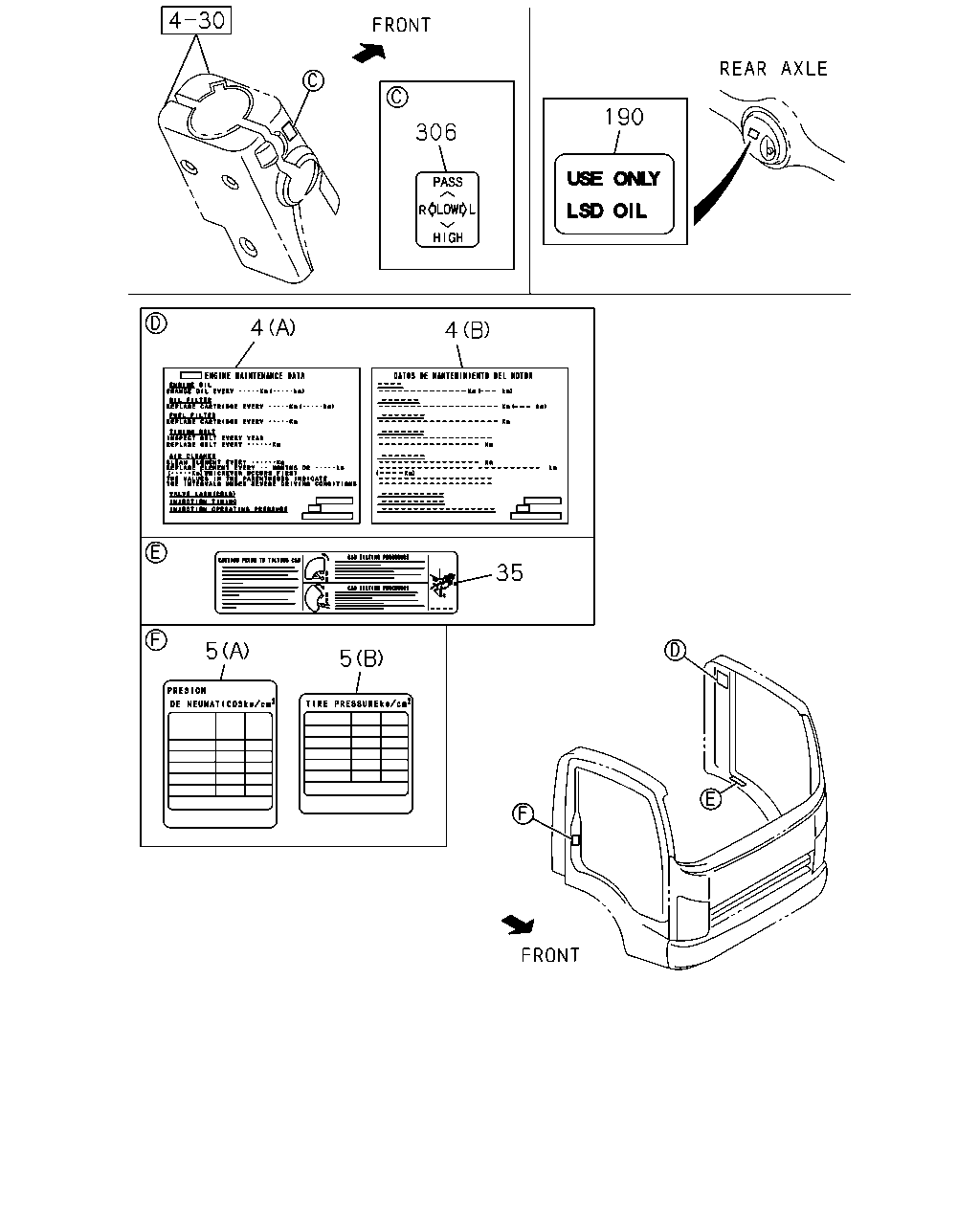

çizim 175800
190 306 4 4 35 5 5
BalonParca AdiParca NoAdetTipApplied Date A B C
4 00.004 LABEL; ENG MAINTENANCE
4HG1-T ENG(RDP) EXC. CAUTION SPANISH<YN1> (A) 		8-97187-424-0 01 1 1012- ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HG1 ENG(RJH) CAUTION SPANISH<YN1> (B) 		8-97189-402-1 01 1 1012- ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HG1 ENG(RJH) EXC. CAUTION SPANISH<YN1> (A) 		8-97189-401-1 01 1 1012- ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HK1-TCN ENG(RDQ) CAUTION SPANISH<YN1> (B) 		8-98013-424-0 01 1 1012- ● ●
4 00.004 LABEL; ENG MAINTENANCE
4HK1-TCN ENG(RDQ) EXC. CAUTION SPANISH<YN1> (A) 		8-98013-423-0 01 1 1012- ● ●
4 00.004 LABEL; ENG MAINTENANCE
4JJ1-TCC ENG(RDU) CAUTION SPANISH<YN1> (B) 		8-98030-803-1 01 1 1012- ●
4 00.004 LABEL; ENG MAINTENANCE
CAUTION SPANISH<YN1> (B) 		8-98030-803-1 01 1 1012- ●
4 00.004 LABEL; ENG MAINTENANCE
4JJ1-TCC ENG(RDU) EXC. CAUTION SPANISH<YN1> (A) 		8-98030-757-0 01 1 1012- ●
4 00.004 LABEL; ENG MAINTENANCE
EXC. CAUTION SPANISH<YN1> (A) 		8-98030-757-0 01 1 1012- ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 1012-1404 ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 1405-1506 ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 1507- ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 1012-1404 ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 1405-1506 ●
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 1507- ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> 		8-98070-512-0 01 1 1012- ● ●
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> 		8-98067-809-0 01 1 1012- ● ●
190 08.808 PLATE; CAUTION,OIL CHANGE
LIMITED SLIP DIFF<6LV> 		8-97200-740-0 01 1 1012- ● ●
306 08.808 LABEL; BEAM & PASS 8-98070-239-0 01 1 1012- ● ● ●
çizim 175960
49 234
BalonParca AdiParca NoAdetTipApplied Date A B C
49 08.808 PLATE; CAUTION,FUSE BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98173-142-0 01 1 1012- ●
49 08.808 PLATE; CAUTION,FUSE BOX
4HG1-T ENG(RDP),4HG1 ENG(RJH) 		8-98173-142-0 01 1 1012- ●
49 08.808 PLATE; CAUTION,FUSE BOX
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU) EXC. POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98090-175-0 01 1 1012- ● ● ●
49 08.808 PLATE; CAUTION,FUSE BOX
4HK1-TCN ENG(RDQ),4JJ1-TCC ENG(RDU), 4HG1ENG(RJH) POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98090-175-0 01 1 1012- ●
234 08.808 PLATE; CAUTION,ENG COVER
CAUTION SPANISH<YN1> INSPECTION ENGINE COVER<8GA> 		8-98071-067-0 01 1 1012- ● ●
234 08.808 PLATE; CAUTION,ENG COVER
CAUTION SPANISH<YN1> 		8-98071-067-0 01 1 1012- ●
234 08.808 PLATE; CAUTION,ENG COVER
INSPECTION ENGINE COVER<8GA> EXC. CAUTION SPANISH<YN1> 		8-97994-545-0 01 1 1012- ● ●
234 08.808 PLATE; CAUTION,ENG COVER
EXC. CAUTION SPANISH<YN1> 		8-97994-545-0 01 1 1012- ●
çizim 175966
96 2 38 47 48
BalonParca AdiParca NoAdetTipApplied Date A B C
2 03.680 LABEL; FUEL CAUTION
4JJ1-TCC ENG(RDU) CAUTION SPANISH<YN1> 		8-98083-876-0 01 1 1012- ●
2 03.680 LABEL; FUEL CAUTION
CAUTION SPANISH<YN1> 		8-98083-876-0 01 1 1012- ●
2 03.680 LABEL; FUEL CAUTION
4JJ1-TCC ENG(RDU) EXC. CAUTION SPANISH<YN1> 08.808 		8-98036-252-0 01 1 1012- ●
2 03.680 LABEL; FUEL CAUTION
EXC. CAUTION SPANISH<YN1> 08.808 		8-98036-252-0 01 1 1012- ●
38 08.808 PLATE; CAUTION,LSV
MALAYSIA EQUIPMENT(B10) BRK WHL LK CONT LSPV<6PH> 		8-98232-417-0 01 1 1302-1304 ● ●
47 08.808 PLATE; CAUTION,DUMP CONT
DUMP CHASSIS(V4D) CAUTION SPANISH<YN1> 		8-98096-341-0 01 1 1012- ●
47 08.808 PLATE; CAUTION,DUMP CONT
DUMP CHASSIS(V4D) EXC. CAUTION SPANISH<YN1> 		8-97115-792-0 01 1 1012- ●
48 08.808 PLATE; CAUTION,PTO
CAUTION SPANISH<YN1> PTO MANUAL CONTROL(6WC) 		8-94313-054-0 01 1 1012- ● ● ●
48 08.808 PLATE; CAUTION,PTO
CAUTION SPANISH<YN1> POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. DUMP CHASSIS(V4D) 		8-98017-873-0 01 1 1012- ●
48 08.808 PLATE; CAUTION,PTO
PTO MANUAL CONTROL(6WC) EXC. CAUTION SPANISH<YN1> 		8-94469-277-0 01 1 1012- ● ● ●
48 08.808 PLATE; CAUTION,PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. DUMP CHASSIS(V4D),CAUTION SPANISH<YN1> 		8-98017-874-0 01 1 1012- ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JJ1-TCC ENG(RDU) CAUTION SPANISH<YN1> 		8-98036-112-0 01 1 1012- ●
96 08.808 PLATE; CAUTION,ENGINE OIL
CAUTION SPANISH<YN1> 		8-98036-112-0 01 1 1012- ●
96 08.808 PLATE; CAUTION,ENGINE OIL
4JJ1-TCC ENG(RDU) EXC. CAUTION SPANISH<YN1> 		8-98036-111-1 01 1 1012- ●
96 08.808 PLATE; CAUTION,ENGINE OIL
EXC. CAUTION SPANISH<YN1> 		8-98036-111-1 01 1 1012- ●
