Isuzu WW
▶
TRUCKS
▶
NPR
▶
51296 - NPR/NQR-RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-75 - MAT AND CARPET
▶
6-75 — MAT AND CARPET
(#55056) — 26 parça
Tümü
A - NPR5SN
B - NPR5SS
C - NPR5WN
◀

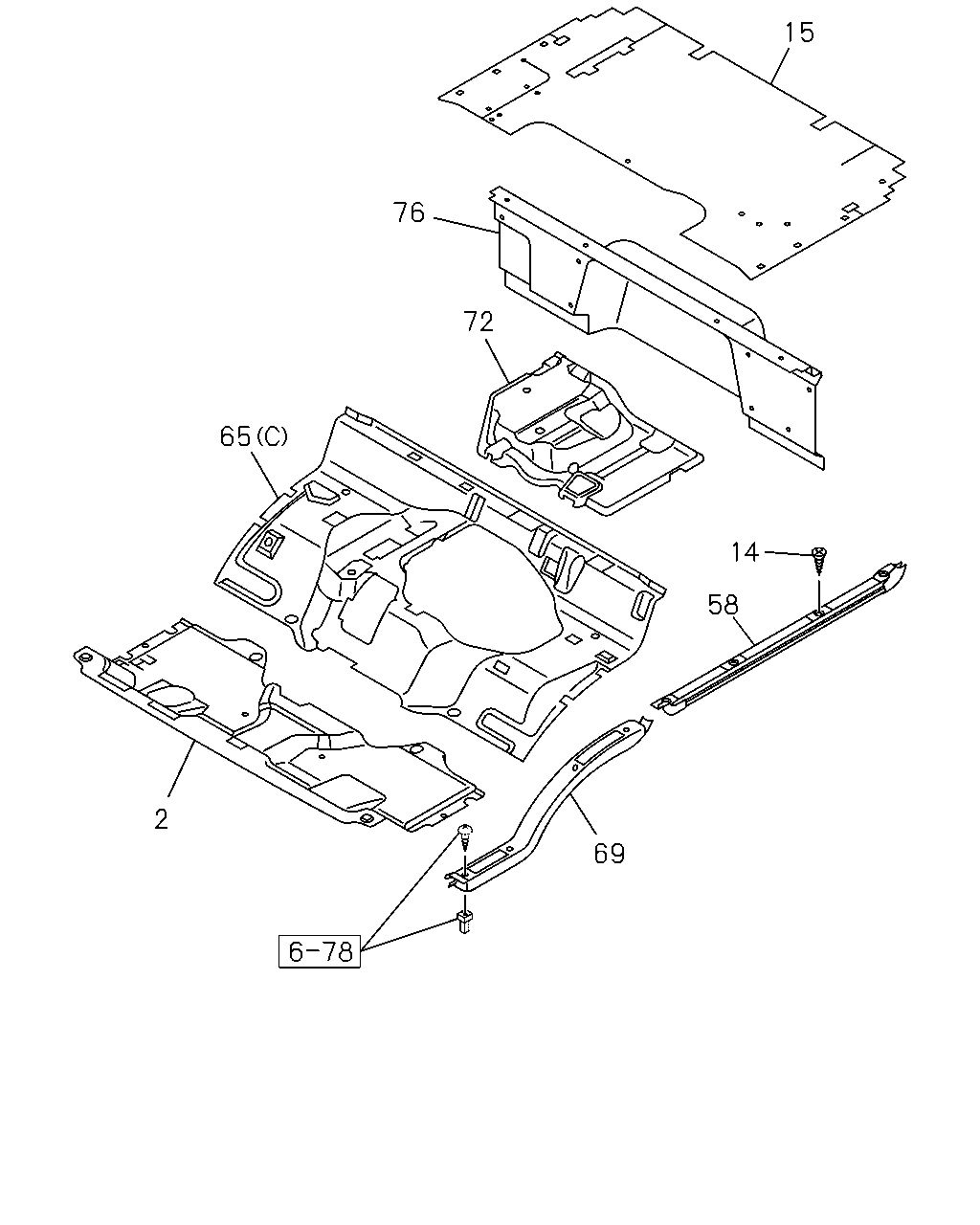

[675A] DBL CAB (15 parça)

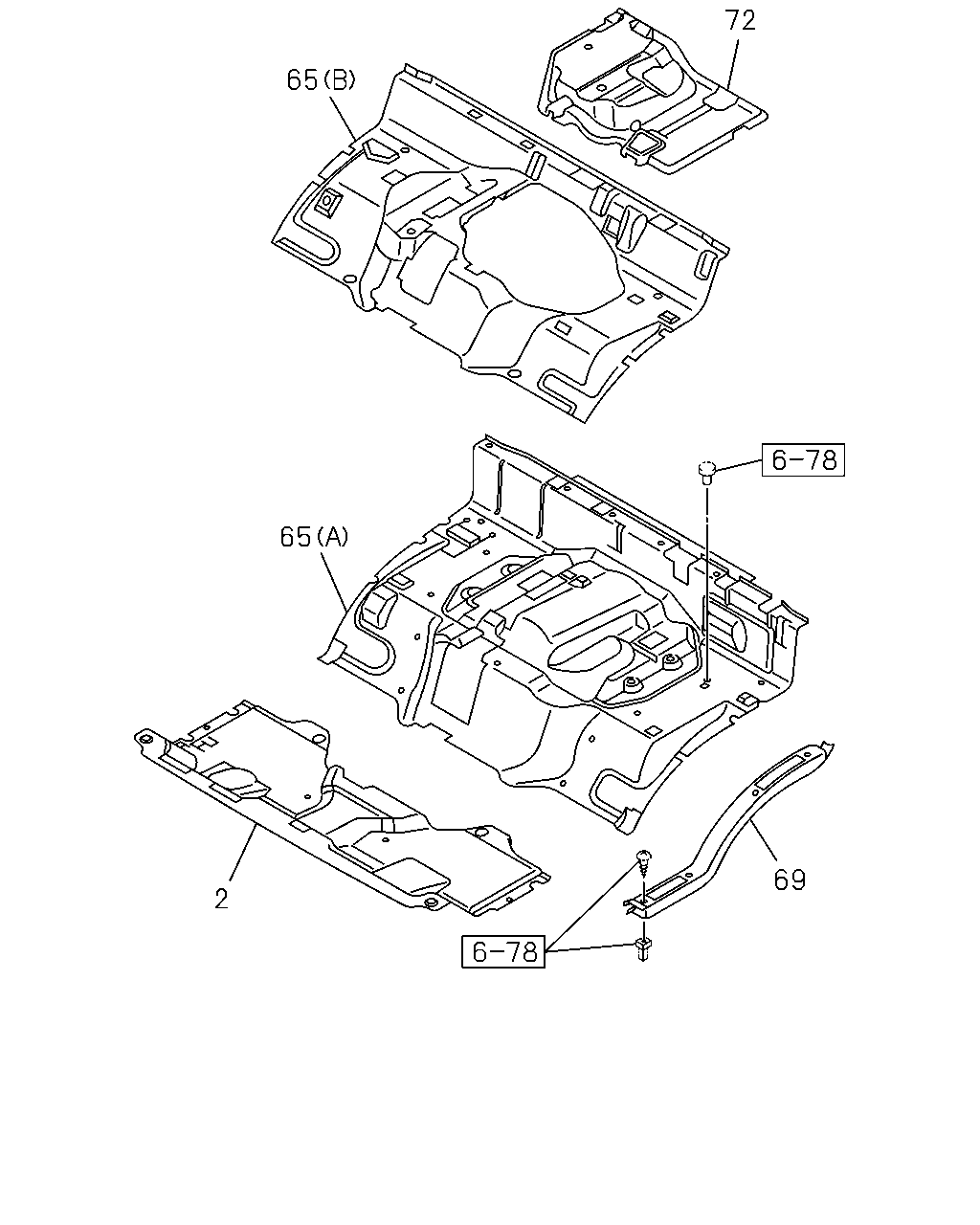

[675A] SGL CAB (11 parça)
▶
15
76
72
65
14
58
2
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
16.800 MAT; FLOOR
GRAY
8-97422-057-0
01
1
1012-
●
●
●
14
16.870 SCREW; PLATE
04.681 T25 M5X12 TAPPING HEXALOBULAR
0-72180-512-0
08
1
1012-
●
15
16.800 MAT; FLOOR REAR
GRAY
8-97412-601-2
01
1
1012-
●
58
08.153 PLATE; GUARD,RR FLOOR MAT
GRAY
8-97405-981-1
02
1
1012-
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY
8-97405-198-6
01
1
1012-1303
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY
8-97425-119-1
01
1
1304-
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
INSPECTION ENGINE COVER<8GA> (B) GRAY
8-97405-200-6
01
1
1012-1303
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
INSPECTION ENGINE COVER<8GA> (B) GRAY
8-97425-110-1
01
1
1304-
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
(C) GRAY
8-97405-201-5
01
1
1012-1303
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
(C) GRAY
8-97425-111-1
01
1
1304-
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97405-388-1
01
1
1012-
●
●
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97405-389-1
01
1
1012-
●
●
●
72
16.800 MAT; SILENCER,ENG COVER
INSPECTION ENGINE COVER<8GA> GRAY
8-97406-252-3
01
1
1012-
●
●
72
16.800 MAT; SILENCER,ENG COVER
GRAY
8-97406-252-3
01
1
1012-
●
76
16.800 MAT; FLOOR,REINF,CAB RR MTG
GRAY
8-97405-204-4
01
1
1012-
●
72
65
65
69
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
16.800 MAT; FLOOR
GRAY
8-97422-057-0
01
1
1012-
●
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY
8-97405-198-6
01
1
1012-1303
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY
8-97425-119-1
01
1
1304-
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
INSPECTION ENGINE COVER<8GA> (B) GRAY
8-97405-200-6
01
1
1012-1303
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
INSPECTION ENGINE COVER<8GA> (B) GRAY
8-97425-110-1
01
1
1304-
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
(C) GRAY
8-97405-201-5
01
1
1012-1303
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
(C) GRAY
8-97425-111-1
01
1
1304-
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97405-388-1
01
1
1012-
●
●
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97405-389-1
01
1
1012-
●
●
●
72
16.800 MAT; SILENCER,ENG COVER
INSPECTION ENGINE COVER<8GA> GRAY
8-97406-252-3
01
1
1012-
●
●
72
16.800 MAT; SILENCER,ENG COVER
GRAY
8-97406-252-3
01
1
1012-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
